Jaltest CV (Commercial Vehicles) | Diagnostic Tool

The Jaltest CV is not a standard reading device, but a professional diagnostic platform designed for in-depth diagnosis of commercial vehicles. This multi-brand and multi-system system is suitable for, among others, trucks, buses, Trailer, Delivery van and special vehicles. The platform consists of a robust wireless VCI (Vehicle Communication Interface) combined with the powerful Jaltest SOFT diagnostic software, which is installed on a compatible PC or laptop.

The power of Jaltest lies in the combination of extensive vehicle coverage, in-depth diagnostic capabilities and integrated technical support tools. In addition to reading and clearing fault codes, the system offers direct access to a comprehensive database with technical data, wiring diagrams, repair instructions, maintenance procedures and live measurements. This allows the technician not only to identify the fault code but also to analyze the cause and perform the correct solution — all within one clear and user-friendly interface. Jaltest CV is widely recognized as the market leader in multi-brand diagnostics for commercial vehicles.

Diagnostic functions:

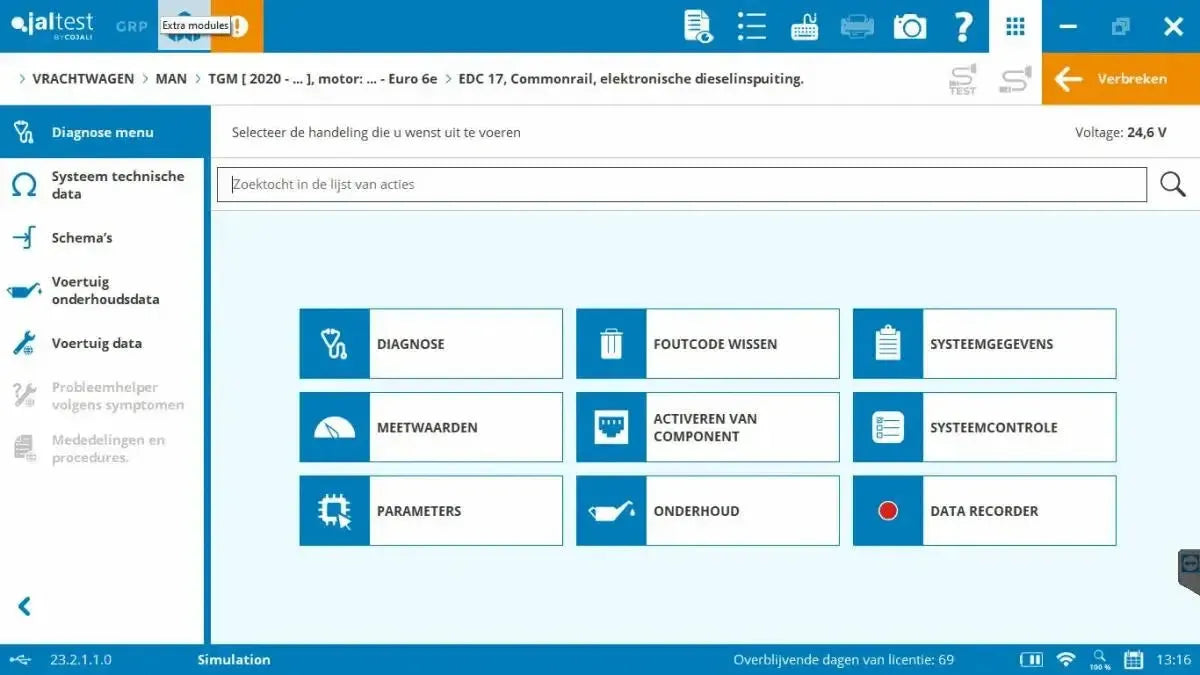

Jaltest CV offers extensive and brand-independent OE-level diagnostic capabilities for all electronic systems within commercial vehicles. Core functions include:

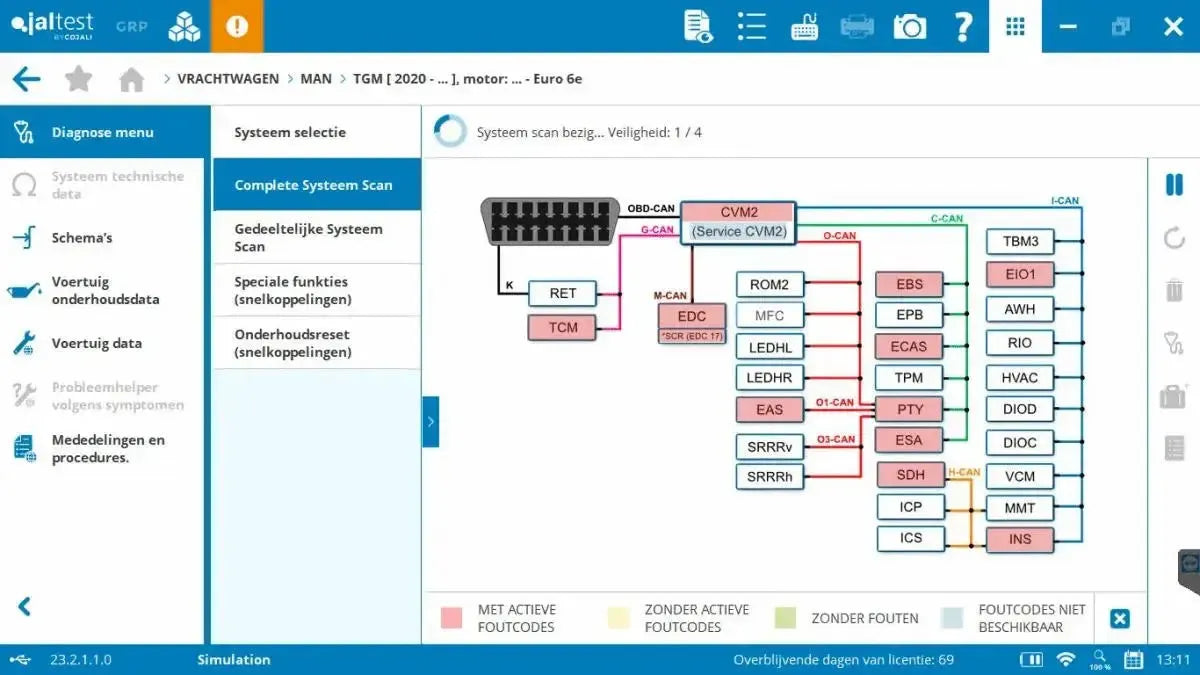

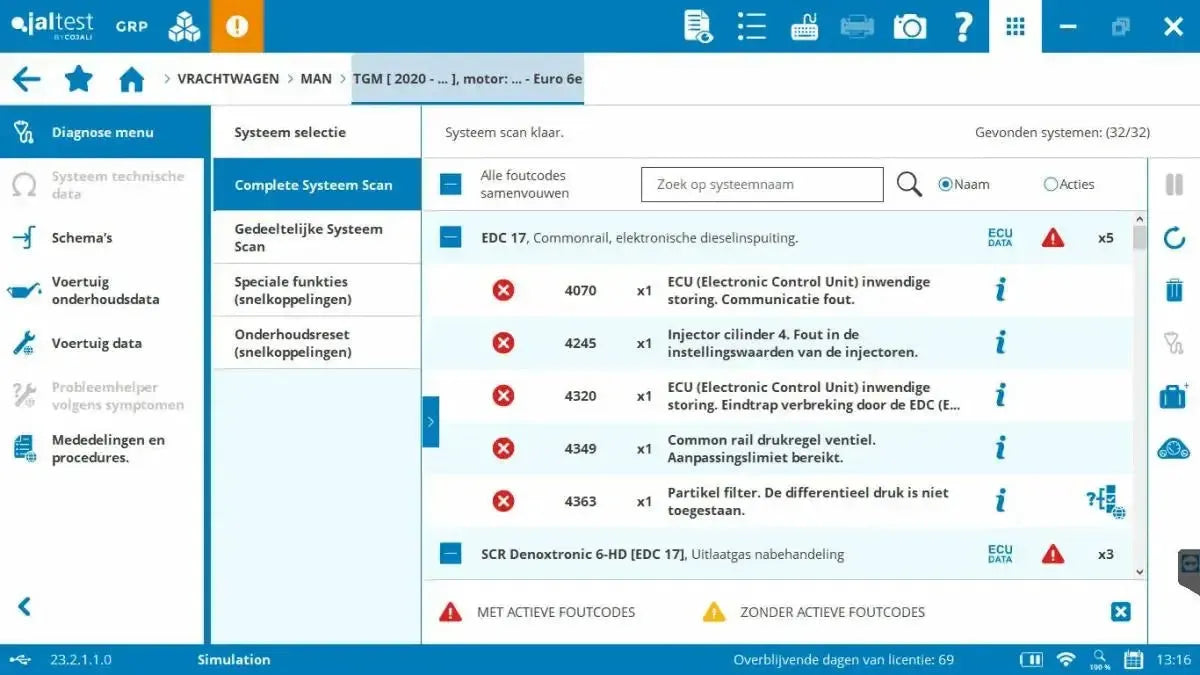

• Complete system diagnosis: automatically performs a full scan of all present control units (ECUs) in the vehicle and immediately detects fault codes per system.
• Read and clear fault codes: shows current, permanent, and sporadic fault codes with clear descriptions, including original OEM fault code numbers and explanatory details.
• Live data monitoring: records real-time values from sensors and parameters. Data can be displayed numerically and graphically, with the option to save measurements for later analysis.
• Test actuators: directly controls individual components such as valves, relays, injectors, or electric actuators to verify their operation in real time.
• ECU and system information: provides access to technical data of control units, including part number, software version, serial number, and initial installation data.

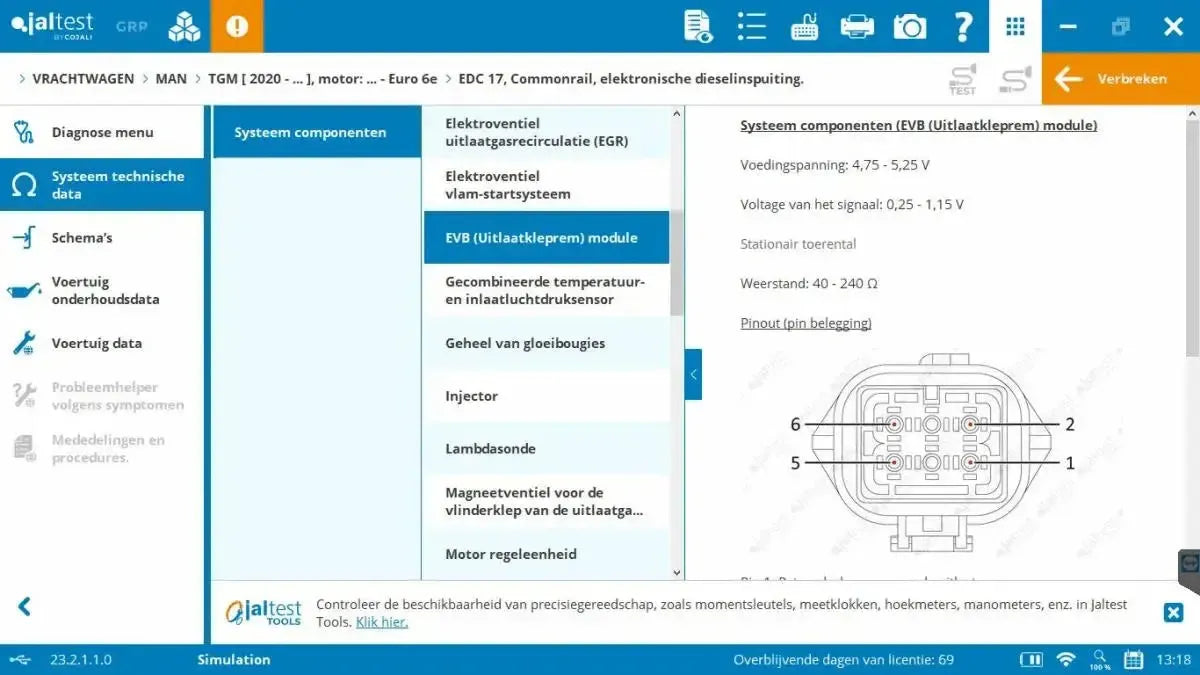

• System technical data: Access to technical specifications, nominal values, and reference data for specific vehicle systems.

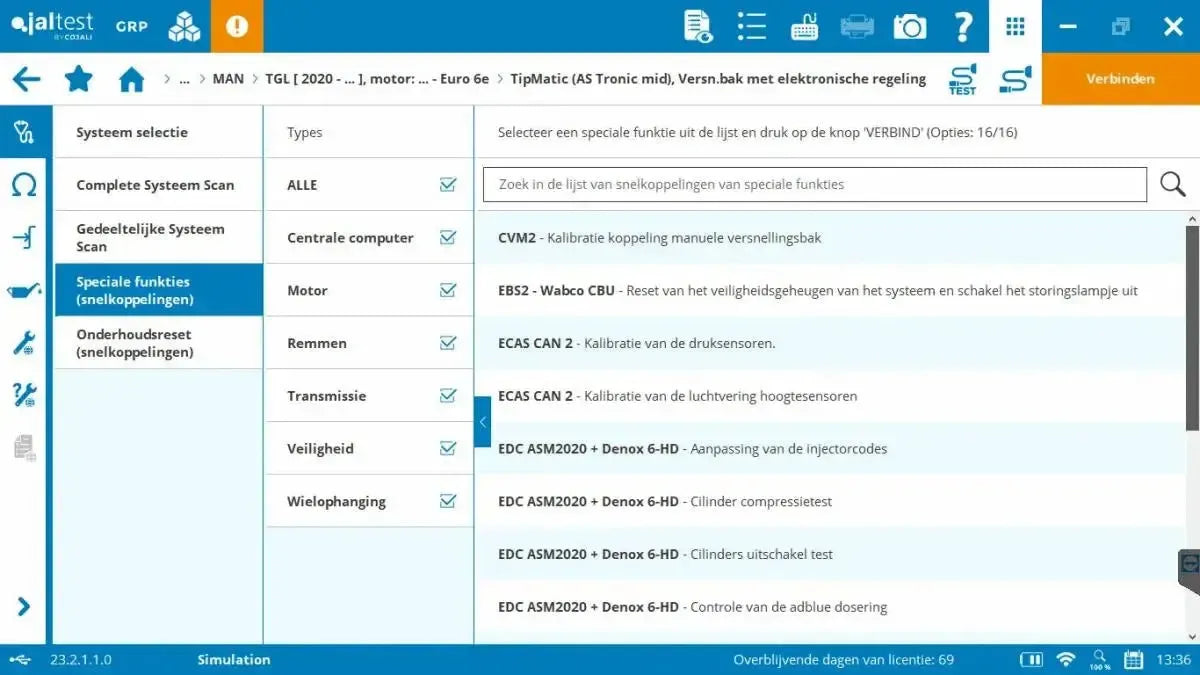

Service and maintenance functions:

This diagnostic system supports a wide range of service procedures and calibrations for commercial vehicles. Available functions may vary by vehicle brand, model, and system configuration.

Engine and drivetrain:

• Diesel particulate filter regeneration (DPF): Initiates a forced regeneration of the DPF to remove accumulated soot and restore filter performance.
• Injector coding: Registers new or replacement injectors in the engine control unit (ECU) for accurate fuel injection.
• Calibrate clutch: Performs calibrations on the clutch and gearbox actuator, for example after component replacement.
• Calibrate transmission: Sets parameters of automatic and automated transmission systems for correct shifting behavior.
• Cylinder deactivation test: Deactivates individual cylinders to assess each cylinder's contribution to engine performance.
• Compression test: Performs an electronic compression test to analyze the mechanical condition of the engine.

Exhaust systems:

• SCR/AdBlue system diagnosis: Performs tests and resets on the Selective Catalytic Reduction (SCR) system, including the AdBlue dosing.
• Reset NOx sensor: Reset the adaptation values of NOx sensors after replacement or maintenance of the exhaust gas aftertreatment system.

Brake and suspension systems:

• Calibrate EBS brake modulator: Calibrates the parameters of the electronic brake system (EBS) modulator for optimal braking performance.
• Calibrate electronic air suspension (ECAS): Sets the ride height and other parameters of the electronically controlled air suspension system (ECAS).

Bodywork and electronics:

• Initialize steering angle sensor (SAS): Calibrates the steering angle sensor, which is necessary for the correct operation of systems such as ESP.
• Configure system parameters: Enables adjustment of vehicle-specific parameters, such as speed limiters or idle speed.
• Reset maintenance interval: Resets the service indicator on the dashboard after performing maintenance.

Special features and capabilities:

Jaltest CV offers advanced functions for configuration, calibration, and access to technical documentation.

Coding and programming

• Parameter configuration: Adjusting vehicle parameters, such as speed limiters, idle speed, and other system settings.
• System calibration: Performing calibrations for components such as clutches, transmissions, suspension systems, and ADAS sensors.

Cloud and reporting features

• Jaltest GRP (Garage Resource Planning): An integrated workshop management system, including work orders, customer management, and reporting.

Documentation and diagrams

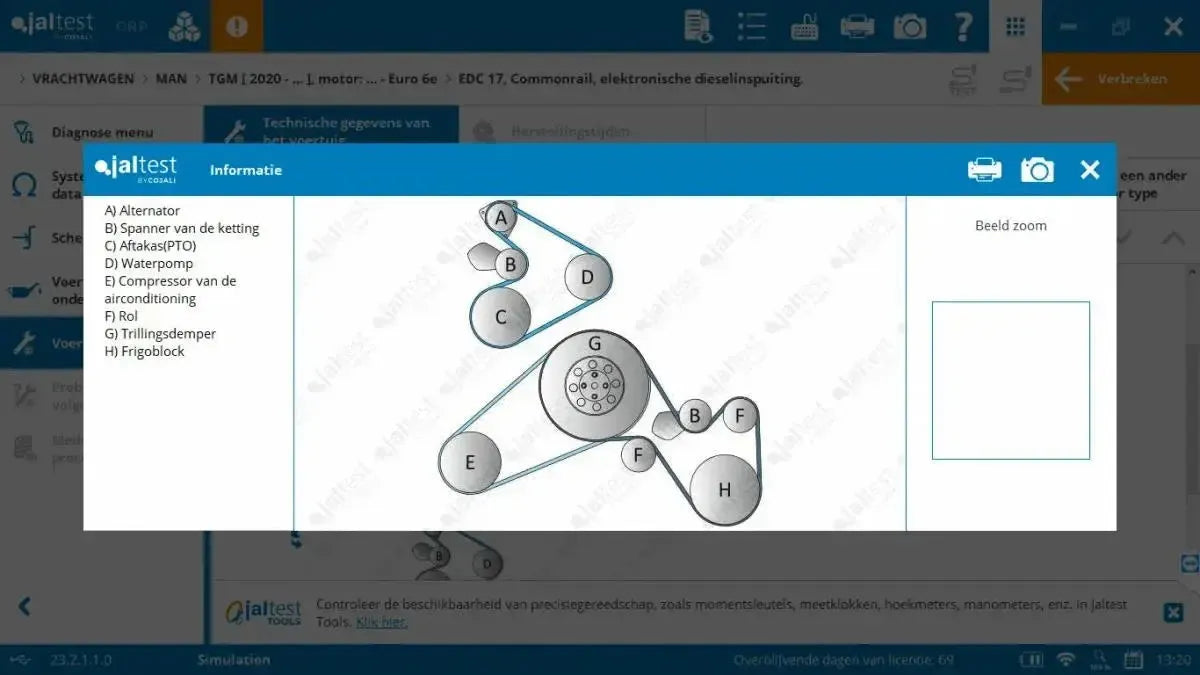

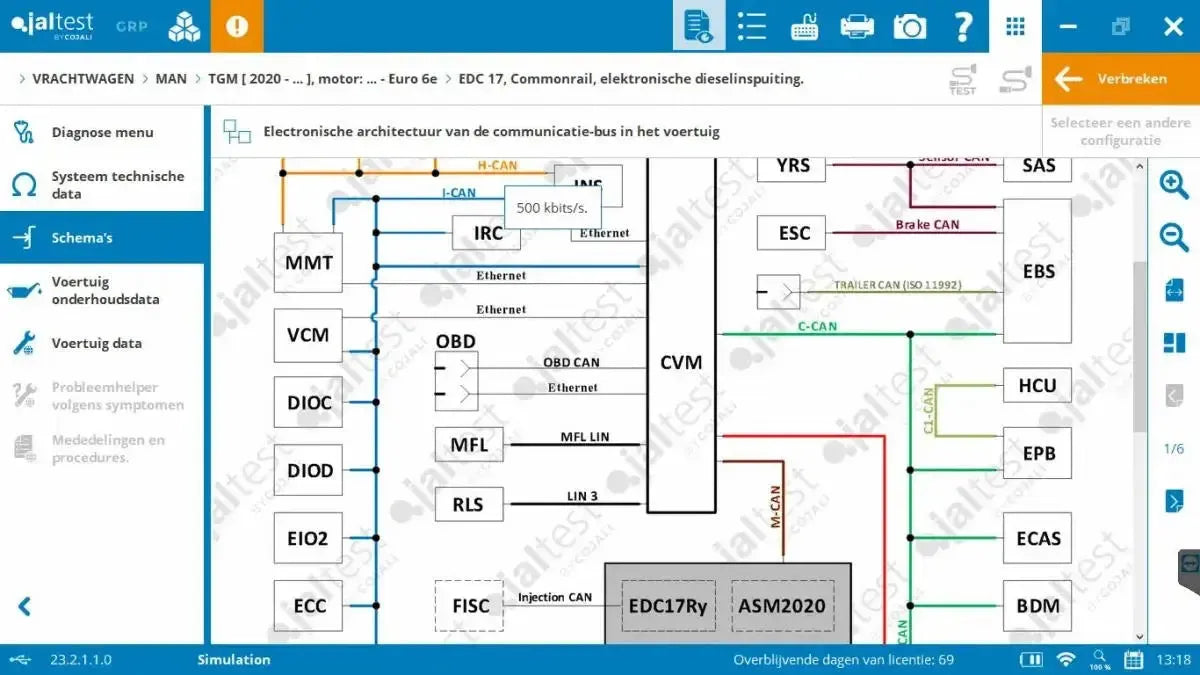

• Electrical diagrams: Access to detailed and interactive wiring diagrams.
• Jaltest INFO: A comprehensive technical database with repair manuals, maintenance information, technical bulletins, and troubleshooting guides.

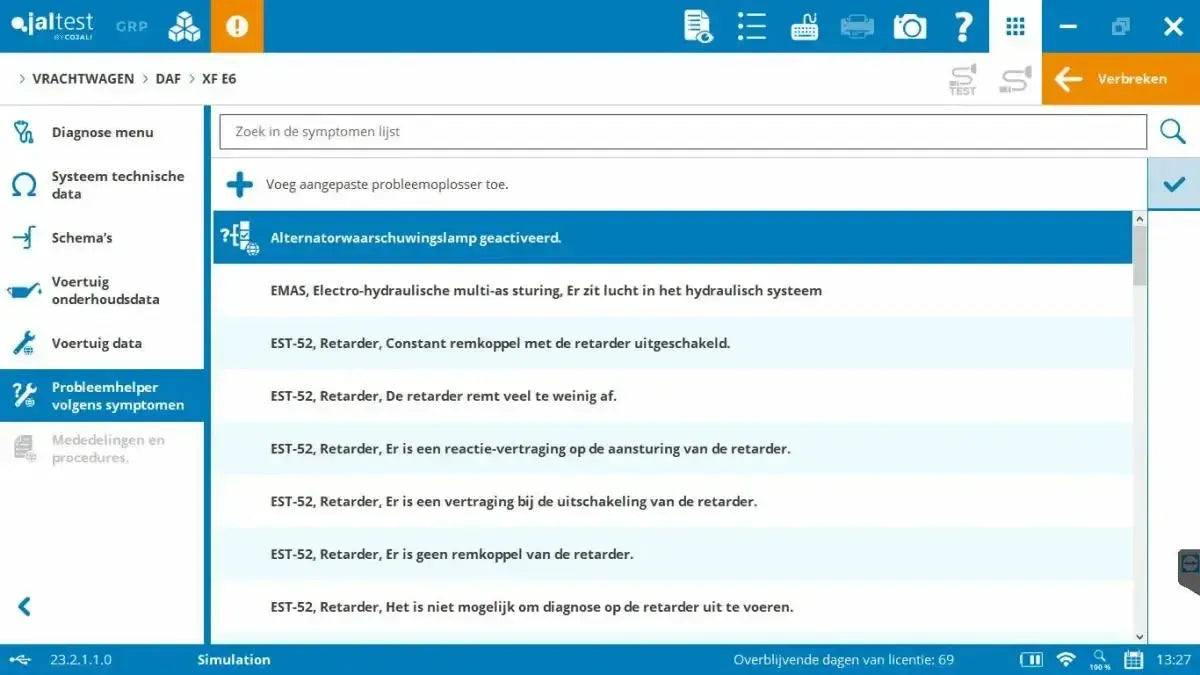

• SMART Guides: Step-by-step, guided diagnostic procedures for efficient troubleshooting.

Other special features

• Central services: Provides access to remote services for advanced procedures such as copying DAF parameters or updating Cummins ECM's.
• Integration of OEM software: Ability to integrate third-party software, such as Bendix ACom, for specific system diagnostics.

Optional expansion modules:

For the Jaltest CV, various optional expansions are available. These consist of hardware modules that increase physical testing capabilities and software licenses that expand diagnostic functionality and access to information.

Hardware modules and accessories:

• Jaltest ADAS Kalibratie Toestel: Equipment for calibrating and testing Advanced Driver-Assistance Systems (ADAS) in commercial vehicles.
• Jaltest ETM (Electronic Test Module): An additional module for directly testing and checking the operation of electronic components such as EBS modulators, speed sensors, and ABS/EBS inductive wheel sensors.
• Jaltest PTB (Pneumatic Trailer Board): A portable test device for checking the performance of pneumatic valves on commercial vehicles.
• Jaltest PTE (Portable Test Equipment): A mobile test device for checking power voltages and signals from sensors and actuators, supporting Knoppentestman and CAN communication.
• Jaltest SST (Speed Sensor Tester): A device for checking the correct operation of active and passive speed sensors and performing simulations.
• Jaltest TPMS: A device for reading, activating, and checking TPMS sensors (Tire Pressure Monitoring System) in commercial vehicles.
• Jaltest WST (Wheel Speed Tester): A portable device for checking and adjusting brake pad wear sensors on commercial vehicles.

Software modules and licenses:

• Jaltest ATS (Advanced Technical Support): A remote technical support service where a Jaltest specialist can assist with complex diagnostic procedures.
• Jaltest Centrale Diensten: A service that provides access to advanced remote functions, such as copying and pasting DAF parameters or updating Cummins ECM calibrations.
• Jaltest GRP (Garage Resource Planning): A software package for workshop management, allowing management of work orders, customer data, scheduling, and reporting.
• Jaltest INFO: An integrated technical database with diagrams, technical data, repair instructions, maintenance data, and troubleshooting manuals. Available in various versions, including INFO Plus and INFO Web.
• Jaltest OEM RMI (Repair and Maintenance Information): A software module that provides access to official technical repair and maintenance information from vehicle manufacturers such as IVECO, MAN, DAF, and Scania.
• Jaltest Spare Parts Search: An add-on module for identifying spare parts based on vehicle data, with cross-references and technical information.
• i-Parts Assist: An online support platform offering technical data, installation manuals, and calibration information for component assembly.
• Knorr-Bremse Diagnosis: An integrated license that enables diagnostic capabilities for Knorr-Bremse brake systems directly within the Jaltest software.
• Secure Gateway (SGW) license: Provides authorized access to the secure diagnostic systems of vehicle brands such as FCA and IVECO, enabling secure functions to be performed.

Supported vehicle brands

Jaltest CV offers diagnostic coverage for a wide range of delivery vans, buses, and trucks.

• Delivery vans: Agrale, Ashok Leyland, Citroën, Dacia, DFSK, Dodge, Fiat, Force Motors, Ford, Foton, Freightliner, GAZ, GMC/Chevrolet, Great Wall, Hino USA, Holden, Hyundai, International, Isuzu, Isuzu USA, Iveco, Kia, LDV/Maxus, Mahindra, MAN, Mazda, Mercedes-Benz, Mitsubishi, Mitsubishi Fuso USA, Multicar, Nissan, Opel, Peugeot, Piaggio, Renault, Santana, Tata, Toyota, UD Trucks, Vauxhall, Volkswagen
• Buses: Agrale, Alexander Dennis, Ashok Leyland, Autosan, BCI, BharatBenz, BLK, Blue Bird, BMC, BYD, Credo, Daewoo, Dina, Eicher, Force Motors, Ford Custom Chassis, Freightliner Custom Chassis, Gillig, Golden Dragon, Higer, Hino, Hyundai, IC (International), Irizar, Isuzu, Iveco/Irisbus, Karsan, Kia, King Long, Mahindra, MAN, MAZ, MCI, MCV, Menarinibus, Mercedes-Benz, Mitsubishi Fuso, NABI, NefAZ, Neoplan, New Flyer, Nissan, Nova Bus, Orion, Otokar, Prevost, Renault, Scania, Setra, SML Isuzu, Solaris, Solbus, SOR, Tata, Temsa, Thomas Built, Toyota, Van Hool, VDL, Viseon Bus, Volkswagen, Volvo, Wrightbus, Yutong, ZhongTong
• Trucks: Agrale, Ashok Leyland, Askam, Astra, AVIA, BeiBen, BharatBenz, BMC, CAMC, Capacity, Caterpillar, CNHTC-Sinotruk, DAF, Dennis Eagle, Dongfeng, Eicher, ERF, FAW, Foden, Ford, Foton, Freightliner, GAZ, Haohan, Hino, Hyundai, International, Isuzu, Iveco, JAC, KamAZ, Kenworth, Mack, Mahindra, MAN, MAZ, Mercedes-Benz, Mitsubishi Fuso, Nissan, Oshkosh, Peterbilt, Renault, SAIC-Iveco Hongyan, Scania, Seddon Atkinson, Shacman, Sisu, SML Isuzu, Sterling, Tata, Tata-Daewoo, Tatra, Terberg, UD Trucks, Uro, Volkswagen, Volvo, Volvo USA, Western Star
• Trailers: Bendix, Carrier, Chereau, Cojali, Dana, Haldex, Knorr-Bremse, Thermo King, Vigia, Wabco
• Manufacturers: Aisin, Allison, Bendix, Bosch Rexroth, Carrier, Caterpillar, Chereau, Cummins, Daimler Trucks, Dana, Detroit Diesel-MBE, Eaton, Freightliner, GM, Hino, International, Isuzu, Iveco-FPT, KamAZ, Mack, Mercedes-Benz, Meritor Wabco, MWM, Navistar, Paccar, PSI, Thermo King, PSI, Thermo King, Twin Disc, VM Motori, Voith, Volvo, Wabco, Weichai, Yuchai, ZF, ZF Meritor

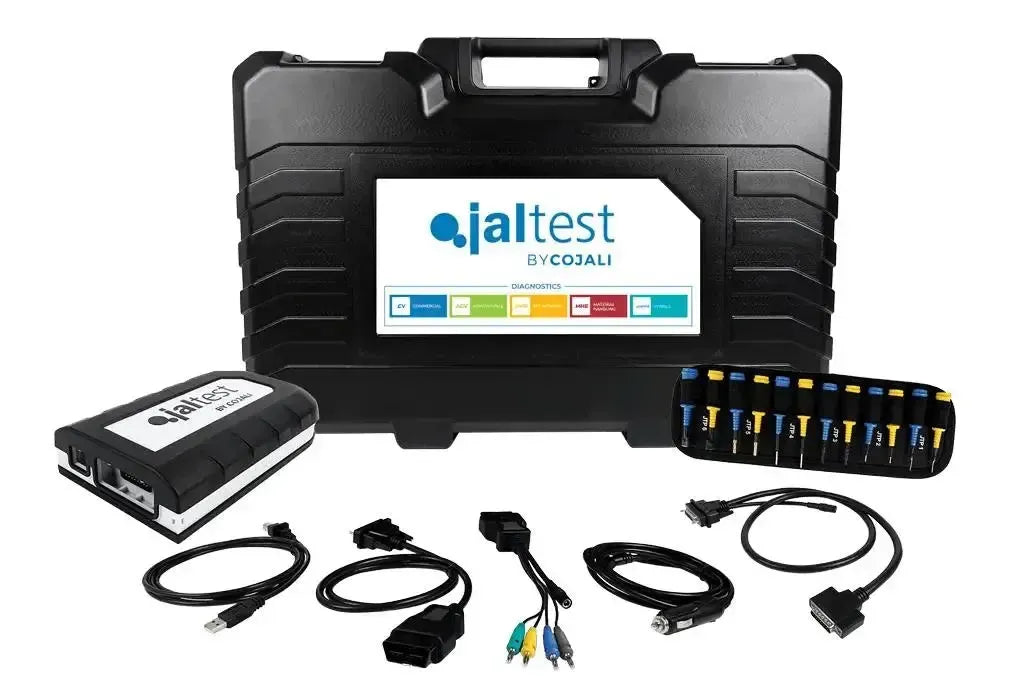

Package Contents:

• Jaltest Link V9 Interface
• Jaltest 15 Pins DB15 - 16 Pins OBD2 Adapter Plug
• Jaltest 26 Pins DB26 Extension Cable
• Jaltest USB-A - USB-B
• Jaltest Multipin Kit
• Jaltest Storage Case (Compact)
• Jaltest Cigarette Lighter Adapter Cable

License information:

The Jaltest CV diagnostic device with Link V9 works with an annual software license. This license provides full access to the diagnostic platform and includes:

• Software updates: three times a year with new features, vehicle coverage, and current information.
• Technical support: assistance with diagnostic procedures, activations, and updates.
• After expiration: diagnostic functions and expert mode remain usable, but without technical information and without ETM function.
• Reactivation: within 15 days after the expiration date extension from the original date, thereafter from the renewal date.
• Registration: mandatory via the Jaltest portal, after each software version and every six months. Without re-registration, the software will be blocked.

Modular construction

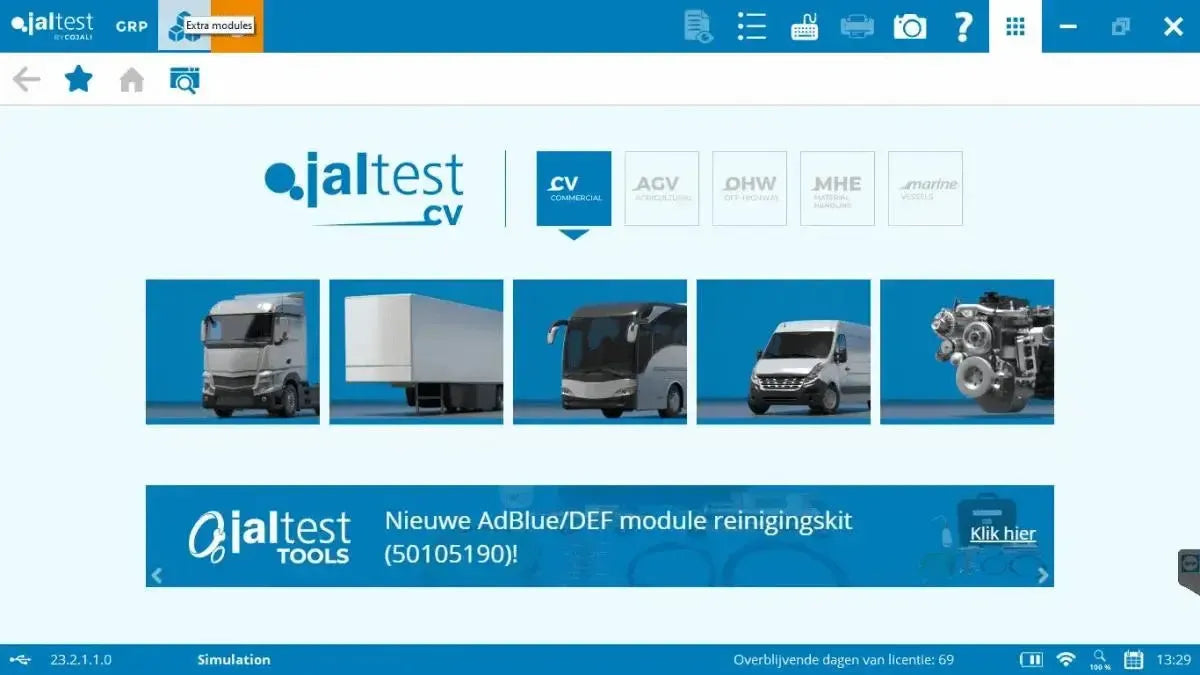

The Jaltest software is expandable. In addition to commercial vehicles (CV), additional licenses can be activated for:

• Agricultural vehicles (AGV)
• Off-Highway machines (OHW)
• Material Handling Equipment (MHE)
• Maritime applications (Marine)
