Autool | SKU:
SVB408

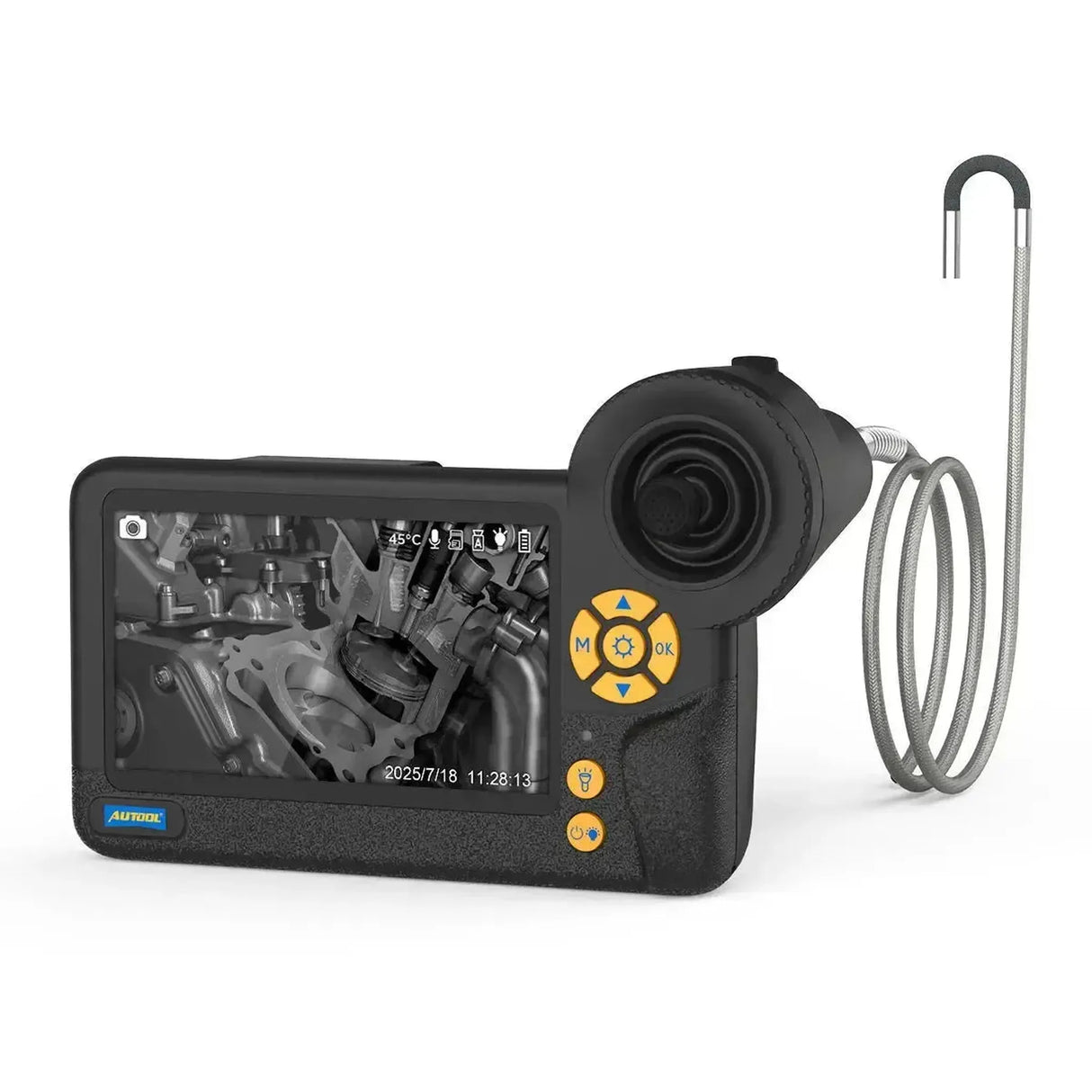

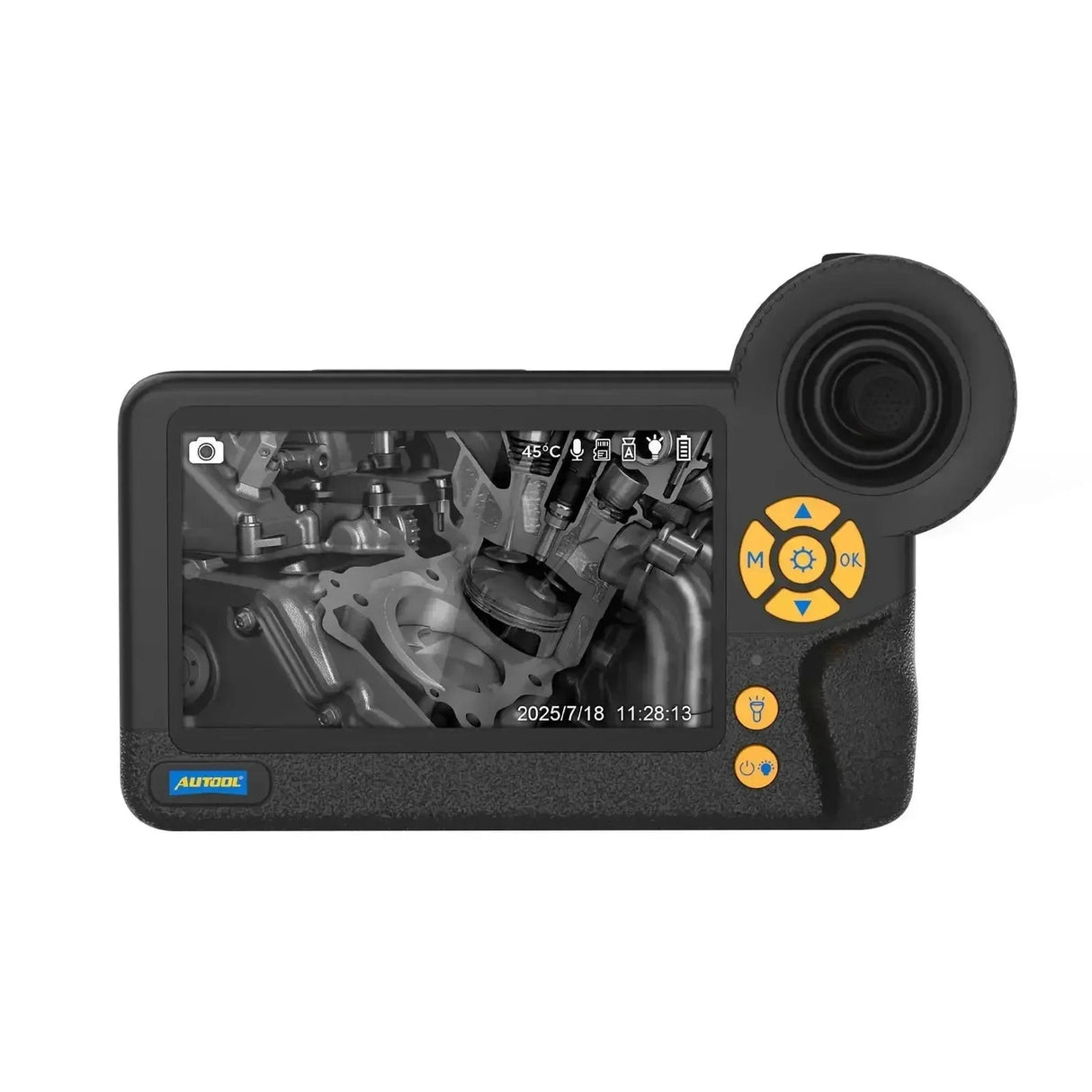

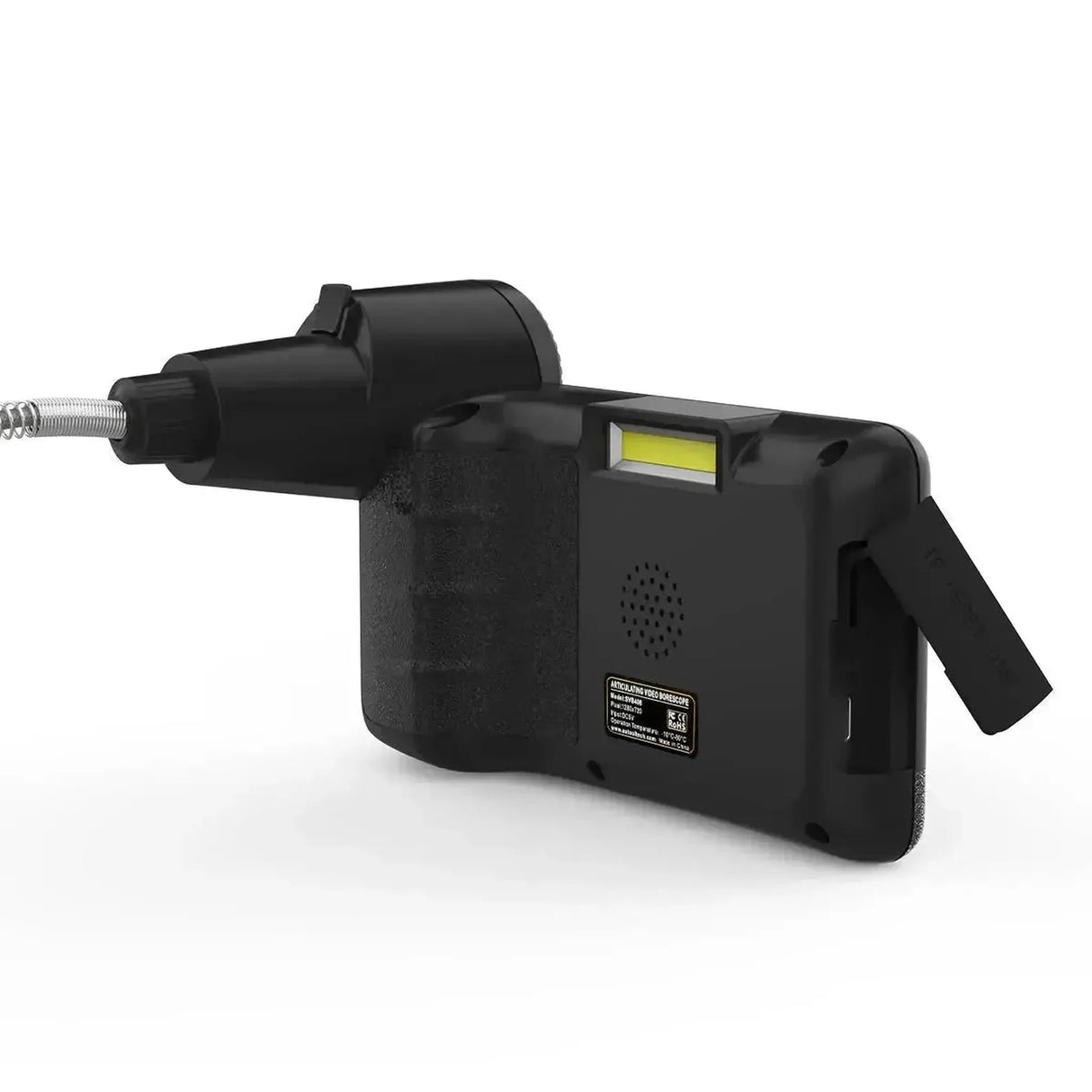

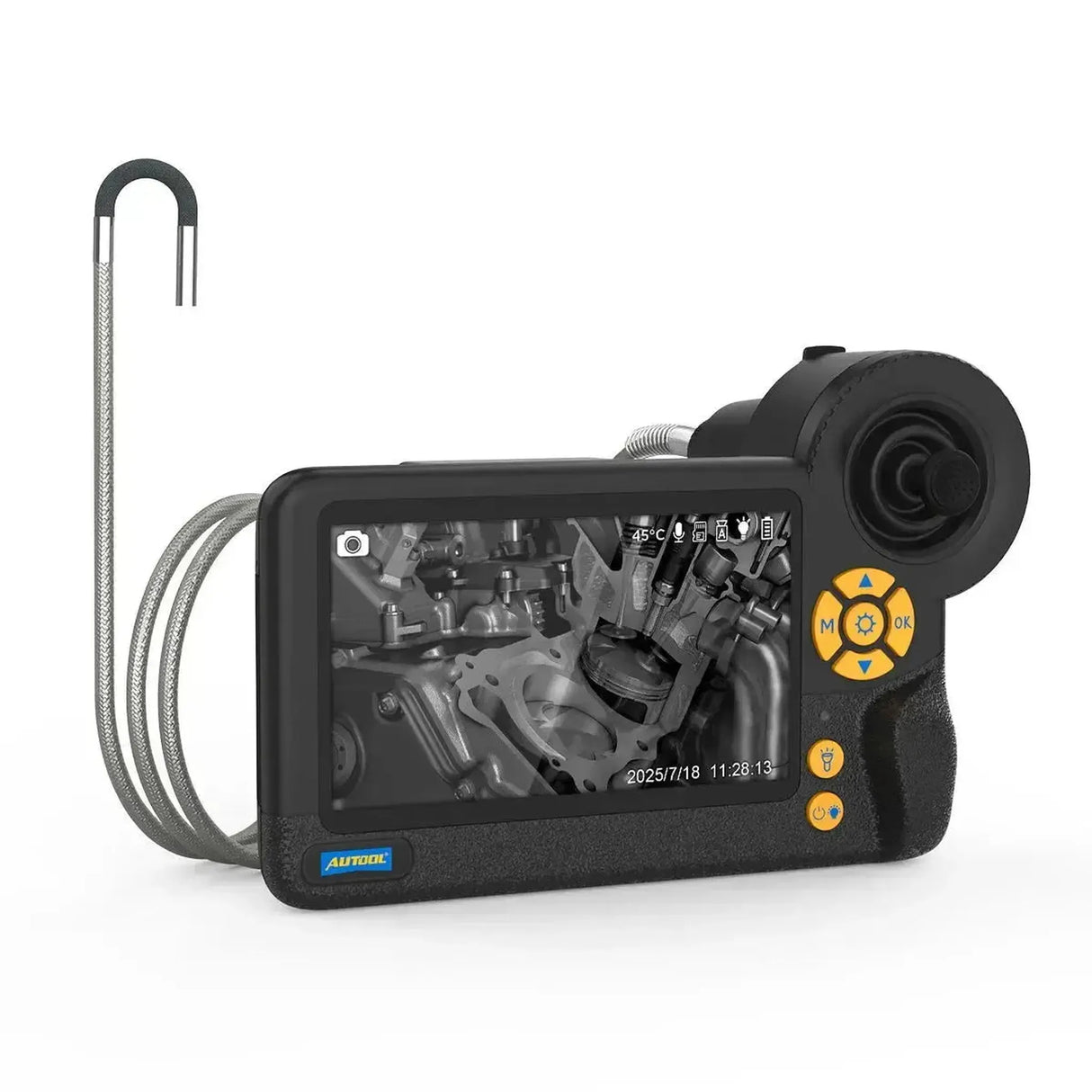

Autool SVB408 | Inspection Camera (3.9 mm)
Regular price
€251,95 incl.
€208,22 excl.
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
The Autool SVB408 is an inspection camera equipped with an ultra-slim 3.9 mm camera probe and a 4.5-inch IPS display. The system features four-way articulation allowing the camera head to be steered 360° with a 210° bending angle. The flexible, wear-resistant metal tube measures 1 meter in length, with a depth of field from 25-100 mm.
The video scope is equipped with 6 ceramic LEDs offering three brightness levels for dark environments. The probe has an IP67 rating (dust and waterproof). A built-in temperature sensor alerts at 80 °C. Images are saved to the included 32 GB memory card. The 2000 mAh battery provides up to 180 minutes of operation and the system includes 8x digital zoom.
KEY BENEFITS
✔3.9 mm ultra-slim probe — access to extremely tight spaces (injector ports, valves).
✔4-way articulation 210° — complete control in complex structures.
✔4.5" IPS screen + 8x zoom — large display and detailed viewing without external devices.
CONSIDERATIONS
✕More fragile probe — 3.9 mm is more delicate than thicker variants; handle with care.
✕Temperature warning at 80 °C — pause or retract when inspecting hot engine components.
✕Cable length 1 m — may be too short for larger systems.
Application and functionality

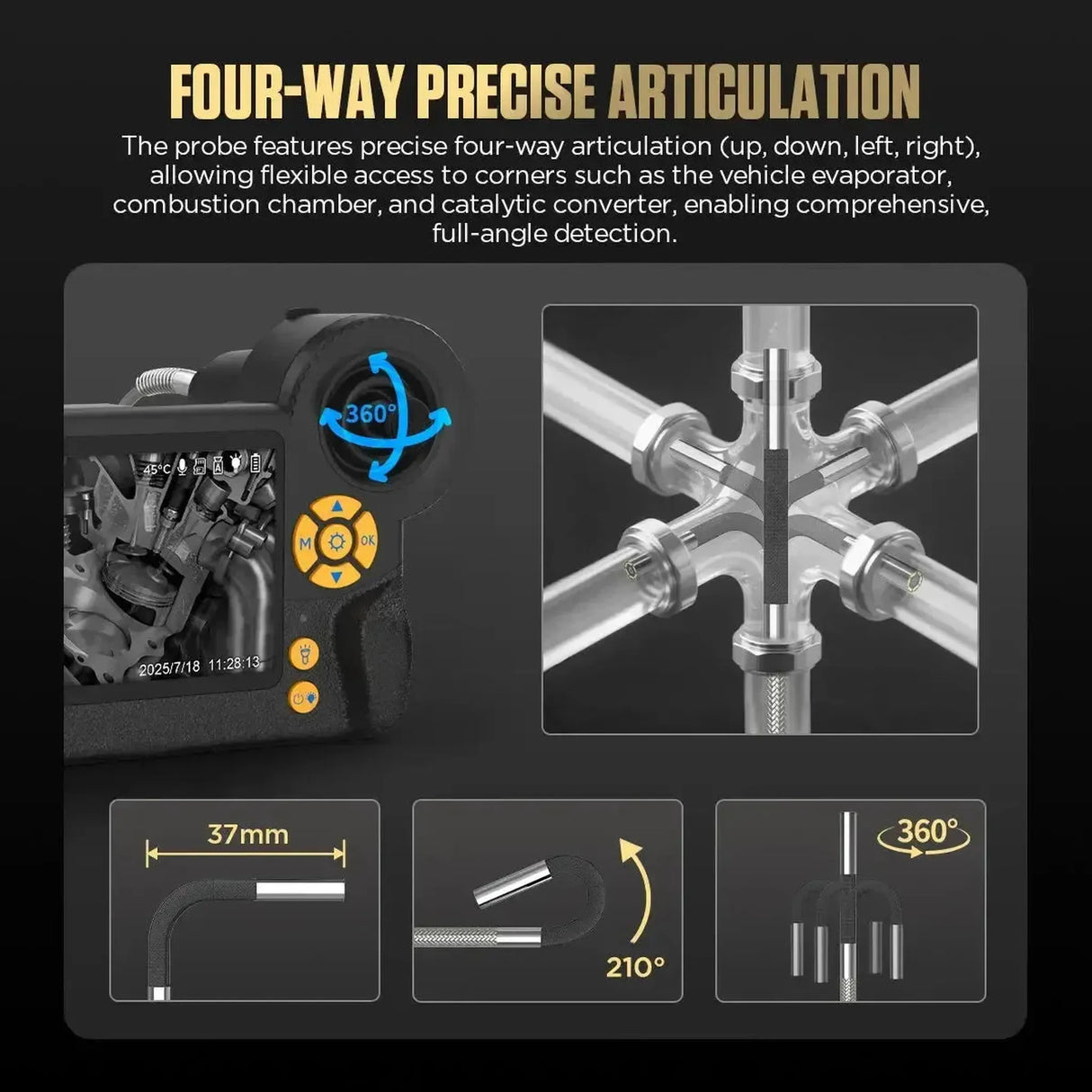

- Four-way articulation: Camera head rotates 360° (up/down, left/right) with 210° bend angle for complete inspection of complex components (combustion chambers, catalytic converters, evaporators).
- 3.9 mm probe: Access to extremely tight openings such as fuel injectors or valves.
- Image and video recording: Photos (JPG) and videos (AVI) on 32 GB card for later analysis.
- Adjustable LED lighting: 6 ceramic LEDs with 3 brightness levels.
- 8x digital zoom: View threads, cracks or other details up close.
- Overheat protection: Alarm at 80 °C to protect components.
- IP67 rating: Probe is waterproof and dustproof for wet or dirty environments.

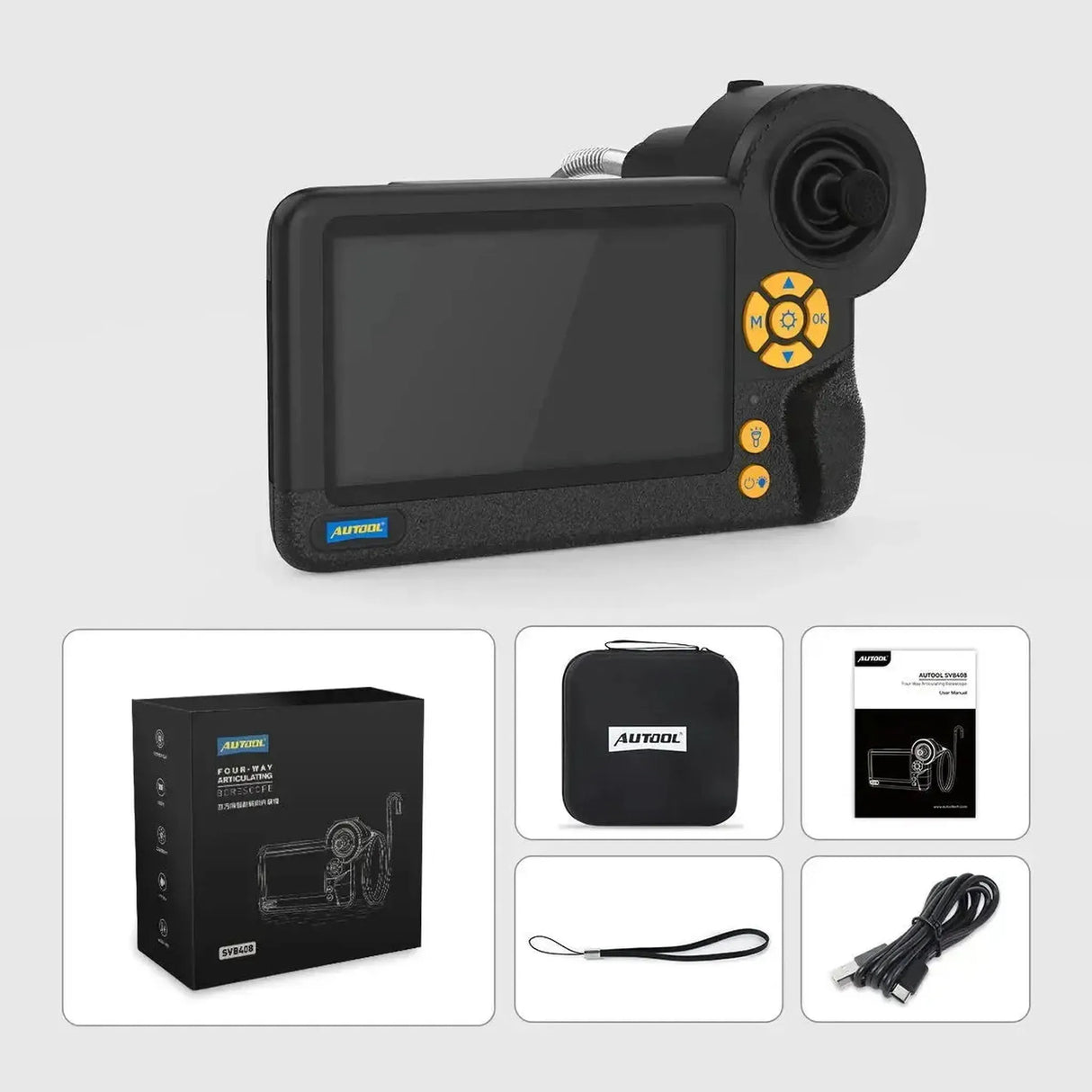

Package contents
- 1x Autool SVB408 inspection camera
- 1x 32 GB memory card
- 1x Carrying case
- 1x USB-C cable
- 1x Wrist strap
- 1x User manual
Technical specifications
General
- The manufacturer of the inspection camera.Brand
- Autool
- Whether the camera has its own screen or displays the image on your phone, tablet, diagnostic tester or PC. This determines what else you will need.Type of camera
- With own screen
Camera
- How wide the camera's view is in one shot. A larger angle shows more of the surrounding space.Viewing angle
- 70 °C
- At what distance from the camera head the image is in focus.Depth of field
- 25 to 100 mm
- The number of settings for the camera's lights, so the image is neither too dark nor overexposed.Number of light settings
- 3 settings
- Whether you can zoom in on the screen to view a detail more closely.Digital zoom
- Yes
Probe
- How thick the camera head is. A thinner probe fits through smaller holes, such as a spark plug hole.Probe diameter
- 3.9 mm
- How far you can insert the camera into a space.Cable length
- 1 m
- In how many directions you can bend the camera head. This lets you look around corners without moving the cable.Steerable head
- 4 directions
- How far the camera head can turn. A larger angle lets you see further around a bend.Steering angle
- 210 °C
- How tightly the head can bend. A smaller radius helps in confined spaces.Bend radius
- 37 mm
- The protection rating of the probe. With IP67, the probe can withstand water, oil and dust.Probe waterproofing
- IP67
- Up to which temperature you can use the probe, for example in a hot engine.Maximum probe temperature
- 80 °C
- The camera warns or switches off if the probe becomes too hot, to prevent damage.Temperature protection
- Yes
Screen
- The size of the camera's own screen. A larger screen makes details easier to see.Screen diagonal
- 4.5 inch
Storage and connectivity
- Where photos and videos are stored.Storage
- Memory card
- The maximum size of memory card supported. More storage lets you save more videos.Maximum memory card
- 32 GB
- The file types in which photos and videos are saved.File formats
- JPG
- AVI
Battery
- How much energy the battery stores. A larger battery usually lasts longer.Battery capacity
- 2,000 mAh
Other specifications
- Resolution
- 1 megapixel
- Articulation
- Four-way, 360°
- Light Source
- 6 adjustable ceramic LEDs
- Zoom
- 8x digital
- File Formats
- JPG (photos), AVI (video)
- Runtime
- Up to 180 minutes
