The VT14104 is a tracer gas leak detector for identifying leaks in air conditioning systems. The tester works by detecting tracer gas — a gas mixture of 95% nitrogen (N₂) and 5% hydrogen (H₂). With 7 sensitivity levels, both large and small leaks can be pinpointed. The flexible probe measuring 40 cm provides access to hard-to-reach components.
This leak detection tool is equipped with a microprocessor (MCU) for digital signal processing. Leak detection via tri-color LED indicator and audible sound alert. The sensor can be recalibrated directly to ambient concentration. Auto shut-off after 10 minutes of inactivity. Complies with SAE J1627 and EN14624 standards.
KEY FEATURES
IMPORTANT NOTES
Application and functionality
- Adjustable sensitivity: 7 levels to customize detection based on expected leak size.
- Visual and audible alerts: Three-color LED bar displays gas concentration; audible alarm warns of leaks. Sound can be muted.
- Direct reset function: Recalibrate at any time to ambient concentration.
- Flexible probe: 40 cm length for hard-to-reach areas.
- Low battery indicator: Warning when batteries are running low.
- Auto shut-off: After 10 minutes of inactivity to conserve battery.

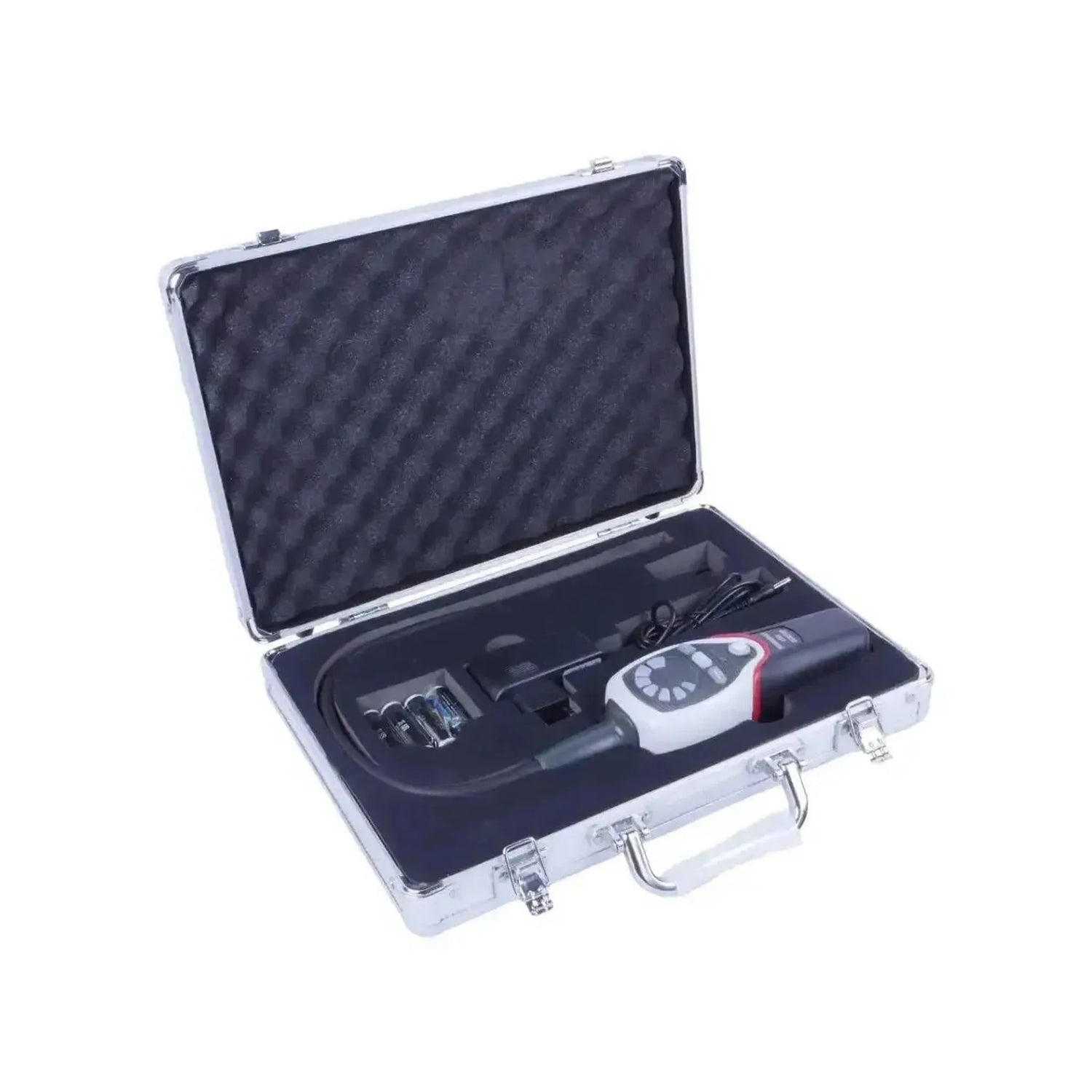

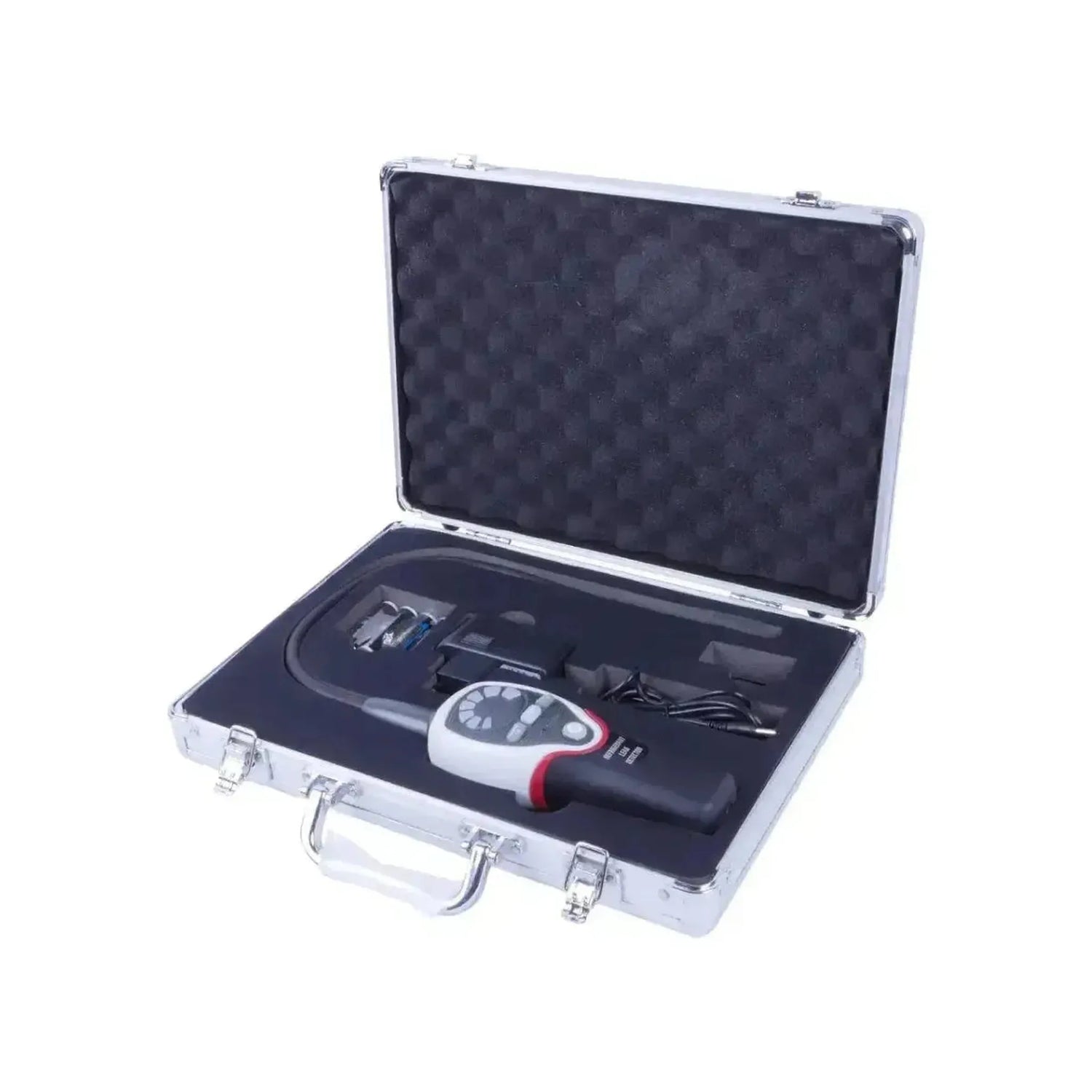

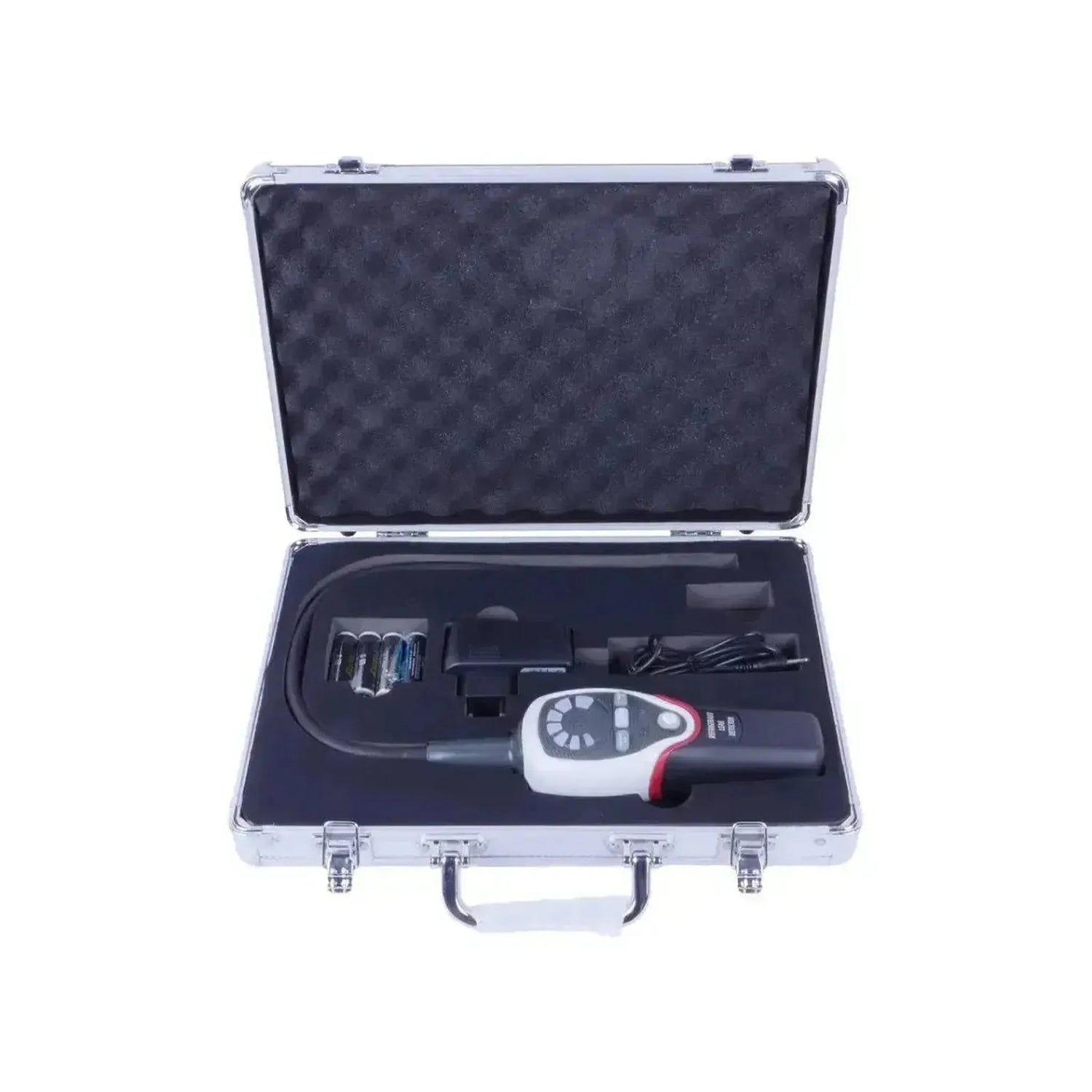

Package contents
- 1x VT14104 forming gas leak detector
- 1x Flexible probe (40 cm)
- 4x AA alkaline battery
- 1x Charging adapter
- 1x Storage case
Technical specifications
| Specification | Description |
|---|---|
| Model | VT14104 |
| Product type | Forming gas leak detector |
| Detected gas | Forming gas (5% H₂ + 95% N₂) |
| Sensitivity levels | 7 |
| Probe length | 40 cm |
| Indication | Visual (three-color LED) and audible |
| Power supply | 4x AA alkaline battery |
| Standards | SAE J1627, EN14624 |
