OBDSTAR KeyMaster G3 | Multifunction Programmer

Diagnosis functions

The OBDSTAR KeyMaster G3 supports diagnosis functions for fault code reading and system checks in addition to programming.

• OBD-II diagnosis: Reading and clearing fault codes via the standard OBD-II diagnostic port according to common protocols.
• Remote Test: Built-in function for testing and simulating remote controls and key signals.
• Dash Board diagnosis: Reading and analyzing dashboards via the Test Platform for fault and communication checks.
• E-CAR ABS diagnosis: Diagnosis of the anti-lock braking system on electric vehicles via the Test Platform.
• E-CAR BSG diagnosis: Reading the belt-driven starter generator on electric vehicles.
• E-CAR MHEV diagnosis: Diagnosis of mild-hybrid systems on electric vehicles.
• E-CAR AUDIO diagnosis: Reading and testing audio systems on electric vehicles.
• E-CAR EBA diagnosis: Diagnosis of the electronic brake assist system on electric vehicles.

Key and EEPROM functions

The KeyMaster G3 is primarily designed for key and immobilizer work and offers a wide range of programming and memory editing functions.

• CAR IMMO: Immobilizer programming for passenger cars, including adding and deleting keys.
• HD IMMO: Immobilizer programming for commercial vehicles and heavy equipment.
• E-CAR IMMO: Immobilizer functions for electric vehicles such as LI, NETA, Leapmotor, Seres, and AITO.
• MOTO IMMO: Key programming without PIN code for Harley-Davidson, Triumph, Ducati, Kawasaki, Honda, Suzuki, Yamaha, BRP, Indian, Dayang, Aprilia, Piaggio, Vespa, Derby, Girella, Guzzi, Peugeot, and Italjet.
• MARINE IMMO: Key programming for jetskis from BRP, Kawasaki, Yamaha, and other brands.
• Make Key: Create new vehicle keys including PROXIMITY AKL and BLADE AKL for MQB vehicles.
• R/W Transponder: Read and write transponder data for key cloning and programming.
• Unlock Smart Key: Unlock smart keys for further programming or reuse.
• Renew Key: Restore and reset used keys for new programming.
• EEPROM/MCU R/W: Direct reading and writing of EEPROM and MCU memories for immobilizer and instrument panel editing.
• Unlock ECU: Unlocking ECUs for Alfa Romeo, Fiat, Chrysler, Dodge, Jeep, and other brands.
• Pincode reading: Reading pincodes for Renault ESPACE, Kadjar, Koleos, Megan, Scenic, Talisman (post-2015) and Samsung QM6/SM6.
• Ford/Lincoln key programming: Key programming for Ford and Lincoln models up to and including the 2021 model year.
• Nissan AKL: All keys lost key programming for Nissan Sentra B18 and Rogue T33.
• Smart 453 programming: Key programming for Smart 453 models that have lost all keys and deactivated all functions.
• Renault AKL: All keys lost key programming for Renault City K-ZE, Kwid, Sandero, Trafic, Twingo, Lodgy, Duster PH3.

Special features and capabilities

In addition to regular diagnostic and programming functions, the KeyMaster G3 offers additional features focused on ECU programming and specialized operations.

• ECU Advanced - (Optional): Advanced ECU programming and editing for passenger cars and commercial vehicles.
• ECU Flasher (CAR ECM) - (Optional): Flashing and reprogramming engine management ECUs on passenger cars.
• ECU Flasher (CAR TCM) - (Optional): Flashing and reprogramming transmission control modules.
• ECU Flasher (CAR BODY) - (Optional): Flashing and reprogramming body control modules.
• ECU Flasher (MOTO ECM - (Optional)): Flashing and reprogramming engine management ECUs on motorcycles.
• Crash Reset - (Optional): Reset of battery, airbag, and SAS modules after a collision or maintenance intervention.
• Test Platform - (Optional): Bench test environment for dashboards, ABS, gear shift, air conditioning panels, and E-CAR modules outside the vehicle.
• Gear Lever functions - (Optional): Programming and testing electronic gear shift systems.
• A/C Panel functions - (Optional): Testing and programming air conditioning control panels.
• Wireless screen: Wireless sharing of the screen for demonstration or documentation.
• Screen recording: Recording the screen during diagnostic or programming sessions for reporting.

Supported vehicle brands

The KeyMaster G3 offers broad coverage of vehicle brands divided into four main regions.

Car brands (Immobilizer):

• European: Alfa Romeo, Audi, Bentley, BMW, Citroën, Dacia, DS, Ferrari, Fiat, Iveco, Jaguar, Lada, Lamborghini, Land Rover, Lancia, Maserati, Mercedes-Benz, MINI, Opel, Peugeot, Porsche, Renault, Samsung, Seat, Skoda, Vauxhall, Volkswagen, Volvo
• Asian: Acura, Daewoo, Daihatsu, Datsun, Genesis, Himiko, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota
• American: Chrysler, Dodge, Ford, GM, Jeep, Lincoln, Mercury
• Chinese: Aeolus, BAIC, Baojun, Besturn, Bisu, Borgward, Brilliance, BYD, Changan, Chery, Cowin, Denza, Dorcen, Enranger, Exeed, Fecon, Foday, Forthing, Foton, GAC Motor, Geely, GreatWall, Hafei, Haima, Hanteng, Haval, Hawtai, HongQi, Huanghai, JAC, Jiabao, JMC, Jinbei, Jetour, Landwind, Leopaard, Lifan, Linktour, Lotus, Luxgen, Lynk&Co, Maple, Maxus, MG, Neta, Ora, Qoros, Roewe, Seres, Soueast, SWM, Traum, Venucia, WEY, Wuling, Xenia, Yema, Zotye, ZXauto

Truck brands (Immobilizer):

• European: DAF
• Chinese: Jiefang, Kinland

E-car brands (Immobilizer):

• Chinese: ARCFOX, BAIC, Besturn, Xenia, Borgward, Changan, Chery, Karry, Exeed, Jetour, Dayun, Denza, DF, Emgrand, Maple, Geome, Radar, GAC, Great Wall, Haval, Wey, Linktour, Ora, Haima, Hanteng, Hawtai, Hongqi, JAC, JMC, Larkauto, Leapmotor, Li, Neta, Roewe, MG, Seres, Soueast, WM, Wuling, Baojun, ZD

Motorcycle brands (Immobilizer):

• European: BMW, Ducati, Piaggio, Triumph
• Asian: Honda, Kawasaki, Suzuki, Yamaha
• American: BRP, Harley Davidson, Indian, Polaris
• Chinese: Dayang, Haojue

Motorboat brands (Immobilizer):

• Asian: SEA-DOO (BRP)
• Asian: Kawasaki, Yamaha

Car brands (ECU advanced):

• Chrysler, Dodge, Jeep, Fiat, Alfa Romeo, GM, Opel, Hyundai, Kia, Genesis, Renault, Dacia, Samsung, Lada, Volvo

Car brands (ECU flasher):

• Chrysler, Dodge, Fiat, Ford, GM, Jeep, Maserati, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Citroën, Dodge, Fiat, Ford, GMC, Holden, Iveco, Lamborghini, Lancia, MINI, Opel, Peugeot, Porsche, Saab, SAIC, Seat, Skoda, Tata, Vauxhall, Volkswagen

Optional additions and expansions

The KeyMaster G3 can be expanded with various hardware adapters and cable sets for specific vehicle brands and operations.

Hardware modules and accessories

• BENZ FBS3 KIT: Kit for reading PIN codes, resetting, and programming keys for Mercedes-Benz FBS3 start authorization systems.
• C4-07 Adapter Kit (Mercedes-Benz VGS4-0-NAG2): Adapter set for cloning and virginizing VGS4-0 NAG2 7G-Tronic TCUs from Mercedes-Benz.
• C4-09 Adapter Kit (MB91F526): Adapter for reading and writing data on Magneti Marelli and Denso BCMs with MB91F526 processor.
• C1001 NIO Gateway Wiring Harness: Wiring harness designed for key programming on NIO ES6, ES8, and EC6 models via the gateway connector.
• C1007 Nissan/Renault 16+32 Gateway Cable: Cable for bypassing the Secure Gateway Module (SGW) on recent Nissan and Renault vehicles.
• C1008 Nissan BCM Cable: Special cable for adding keys and 'all keys lost' situations on various Nissan models.
• C1023 TOYOTA 30 Cable: Cable for connecting to specific Toyota systems (8A-BA and 8A-88 types) without needing to open the housing.
• CAN Direct Kit: Set of cables for direct reading of ECU data via the gateway connector on various Toyota models.
• FCA 12+8 Gateway Cable: Adapter cable for secure communication with the diagnostic system on Fiat Chrysler Automobiles vehicles from 2018 onward.
• FORD/TOYOTA AKL Cable: Cable set for 'all keys lost' key programming on specific Ford and Toyota vehicles with smart key systems.
• M034 IMMO Adapter (Harley-Davidson): Diagnostic and immobilizer adapter specifically for the communication port of Harley-Davidson motorcycles.
• M037 IMMO Adapter (Ducati): Diagnostic and immobilizer adapter specifically for the communication port of Ducati motorcycles.
• M040 IMMO Adapter (BMW): Diagnostic and immobilizer adapter specifically for the communication port of BMW motorcycles.
• M041 OBD-II Adapter (MOTO): Universal OBD-II adapter for connecting the main device to the standard diagnostic port of motorcycles.
• M042A IMMO Adapter (Indian/Victory): Diagnostic and immobilizer adapter specifically for the communication port of Indian and Victory motorcycles.
• M043 IMMO Adapter (BRP): Diagnostic and immobilizer adapter specifically for the communication port of BRP vehicles.
• M053 IMMO Adapter (Honda): Diagnostic and immobilizer adapter specifically for the communication port of Honda motorcycles.
• M054 IMMO Adapter (Suzuki/Yamaha): Diagnostic and immobilizer adapter specifically for the communication port of Suzuki and Yamaha motorcycles.
• P005 Adapter Kit: Adapter kit with a custom circuit board and connection cable for specific ECU and IMMO programming tasks.
• RH850/V850 Adapter Kit: Adapter kit for programming keys and resetting airbags on systems with RH850/V850 processors.
• VW4-AKL Cable: Specific cable for 'All Keys Lost' situations on VAG vehicles with NEC24C64 and NEC35XX instrument panels.

License Information

The OBDSTAR KeyMaster G3 comes with a 1-year license. In addition to the standard IMMO and key functions, various specialized OBDSTAR modules are available as paid activation services, including ODO METER, ECU Flasher, Crash Reset, and Test Platform.

• License period: Valid for 1 year from activation, with renewal options via OBDSTAR or the distributor.
• Software updates: Access to software updates with new vehicle brands, expansion of key and immobilizer functions, additional ECU programming protocols, and bug fixes during the license period.
• Extended functions: ODO METER, ECU Flasher, Crash Reset, and Test Platform require a separate paid activation in addition to the basic license. Extended key and programming options such as MQB AKL, Renault pincode reading, and brand-specific AKL solutions require an active license.
• After license expiration: The device will continue to function with the last installed software version. New updates and access to added vehicle brands or features will no longer be available until the license is renewed.

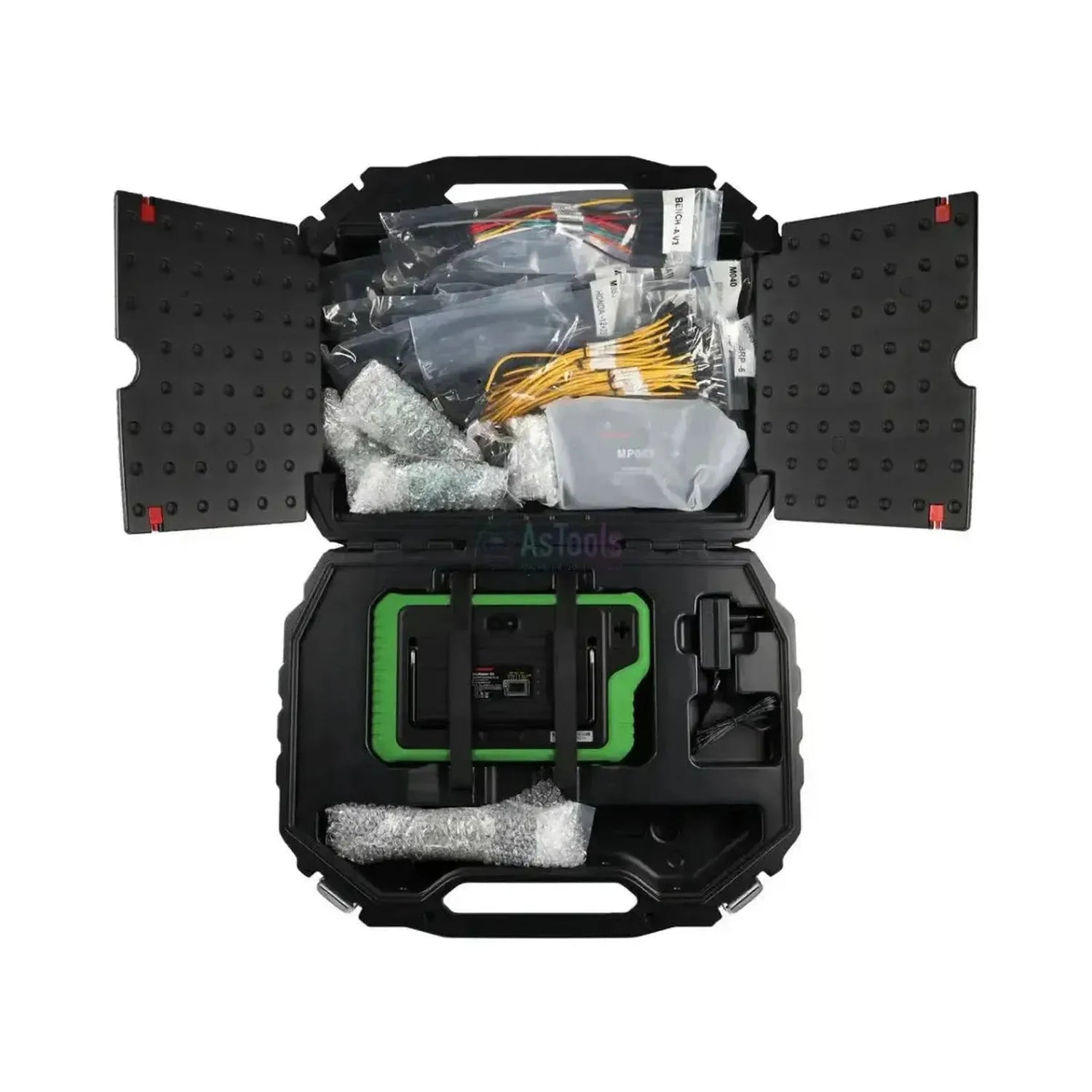

Package Contents

• 1x OBDSTAR KeyMaster G3 multifunctional programmer
• 1x 12V/2A charger
• 1x M001 main cable
• 1x MP001 All In One Programmer
• 1x W004 Read/Write solder wire
• 1x W005 Read/Write solder wire
• 1x C4-01 Multi-Function Data Read/Write Board
• 1x C4-02 Eight-Pin Chip (IC) Soldering Board
• 1x BENCH-A V3 cable set for ECM and TCM cloning functions
• 1x P004 Adapter
• 1x P004 Jumper (C1024)
• 1x BENCH-B V2 ECU Flasher bench cable
• 1x Jumper Wire set (6 specifications)
• 1x 3-In-1 Jumper extension cable
