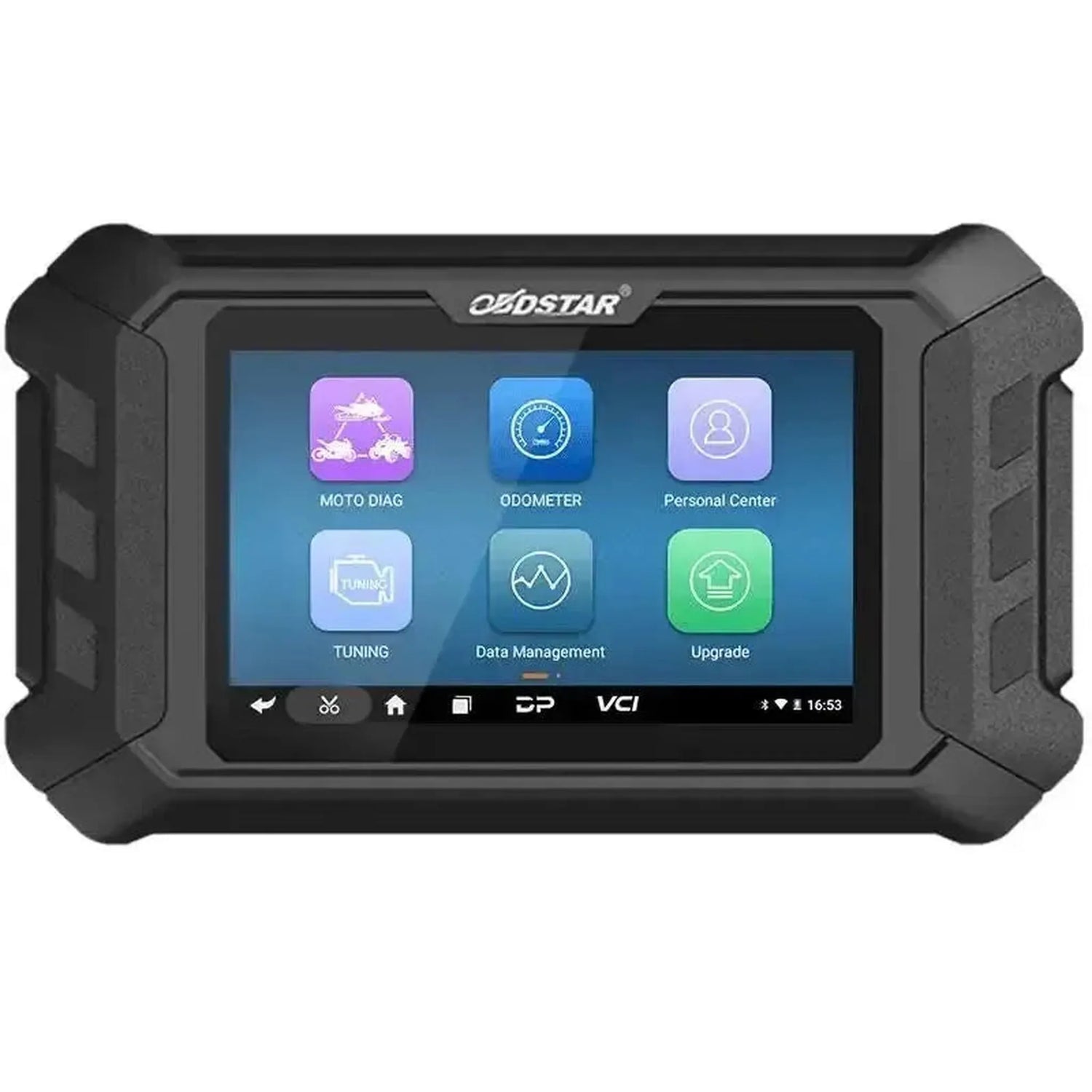

OBDSTAR MS50 STD | Diagnostic Tool | Moped/Motorcycle

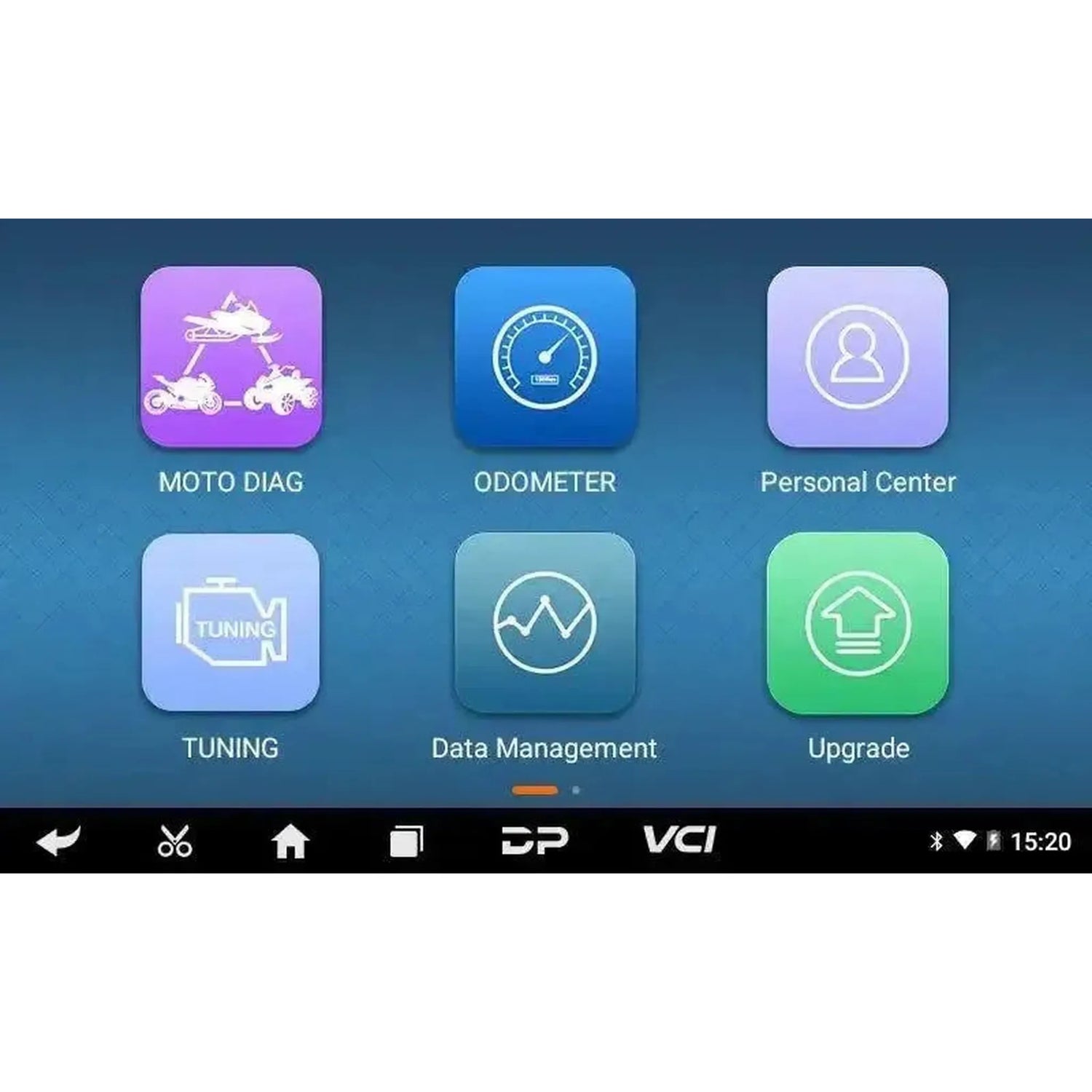

Applications and functions

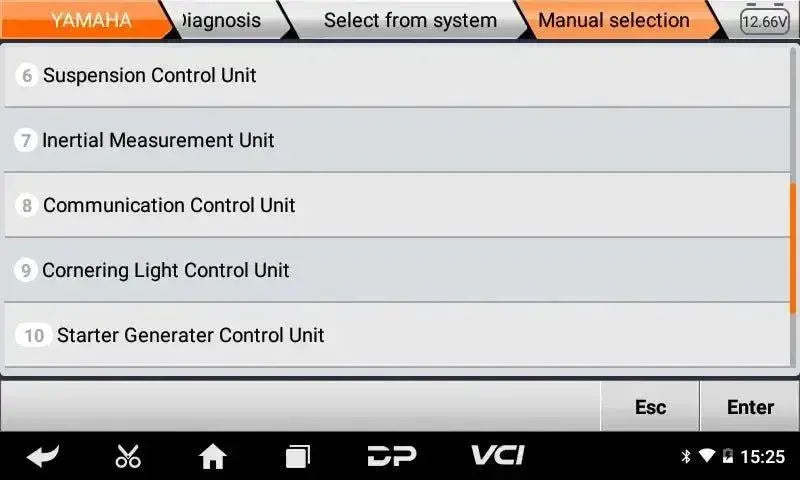

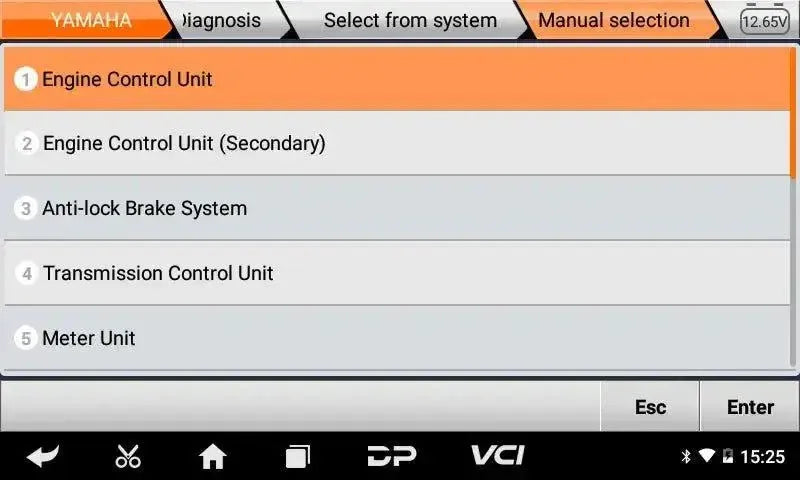

The device connects to the motorcycle's diagnostic port and accesses the control modules present.

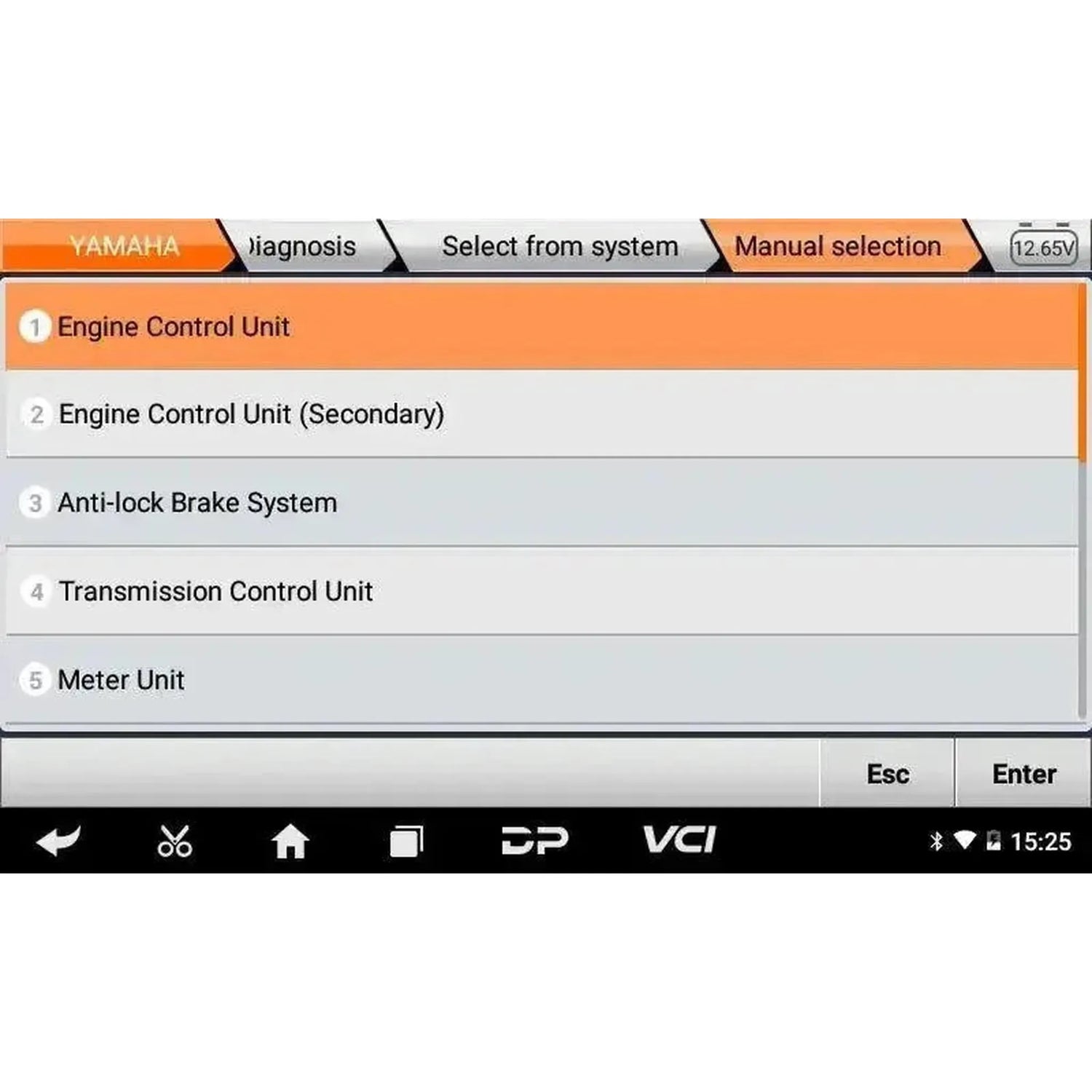

Systems you can access

• Engine management: The control module for fuel injection and ignition, where the majority of diagnostics takes place.
• ABS: Read the anti-lock braking system, control it and configure the control module on models equipped with ABS.
• Immobiliser: The engine immobiliser system for learning keys and transponders.
• Instrument cluster: The speedometer and associated control module, including coding.
• Suspension: Electronically controlled suspension and air suspension, where the model is equipped with it.
• Steering switches: The electrical switch blocks on the left and right of the handlebar, each can be diagnosed separately.
• EPS: Electric power steering on models that are equipped with it.
• BMS: The battery management system of electric and hybrid two-wheelers.
• Alarm and parking: The alarm system and parking functions.
• TPMS: The tyre pressure monitoring system.
• Other modules: Which additional modules are accessible varies by manufacturer, model and year of manufacture.

What you can do

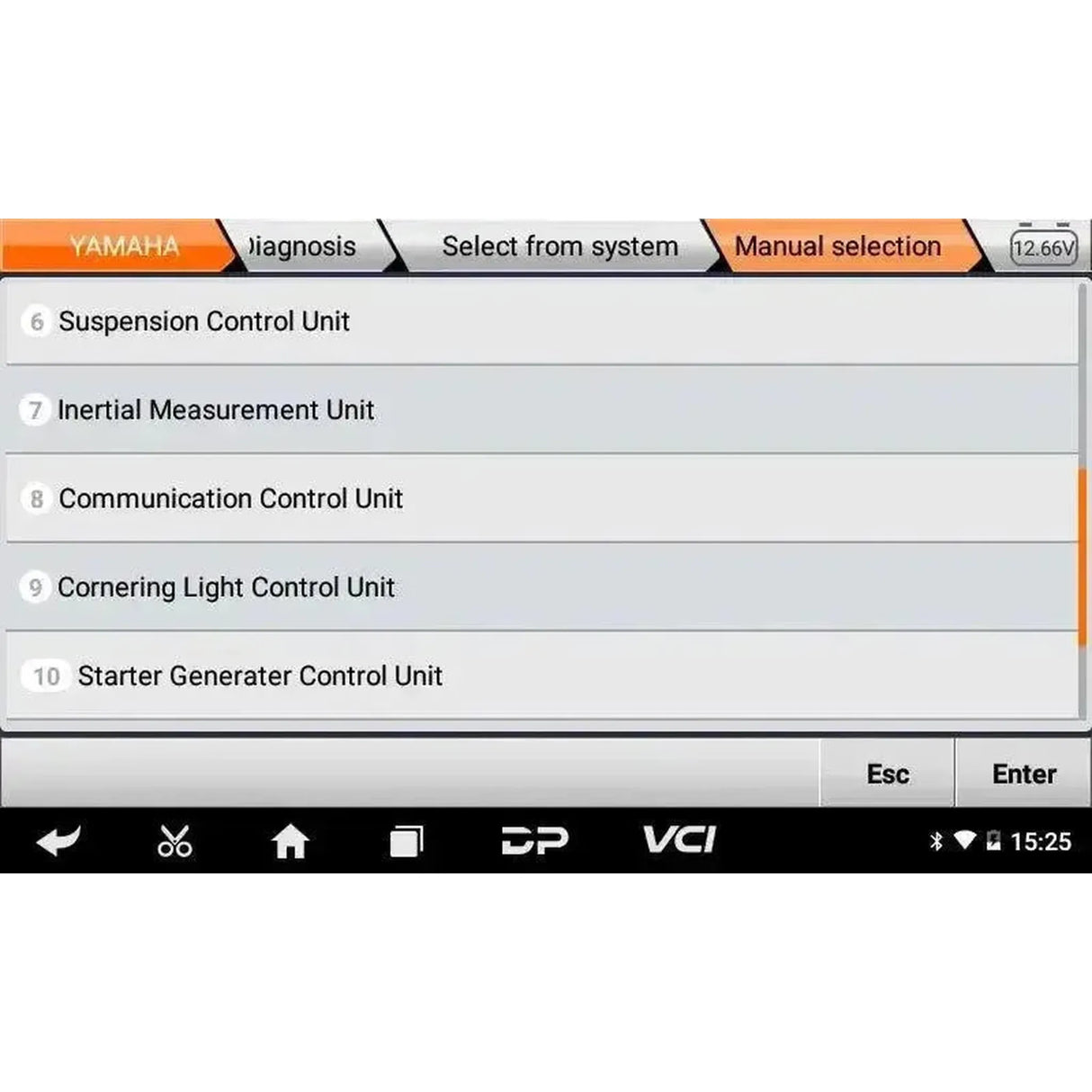

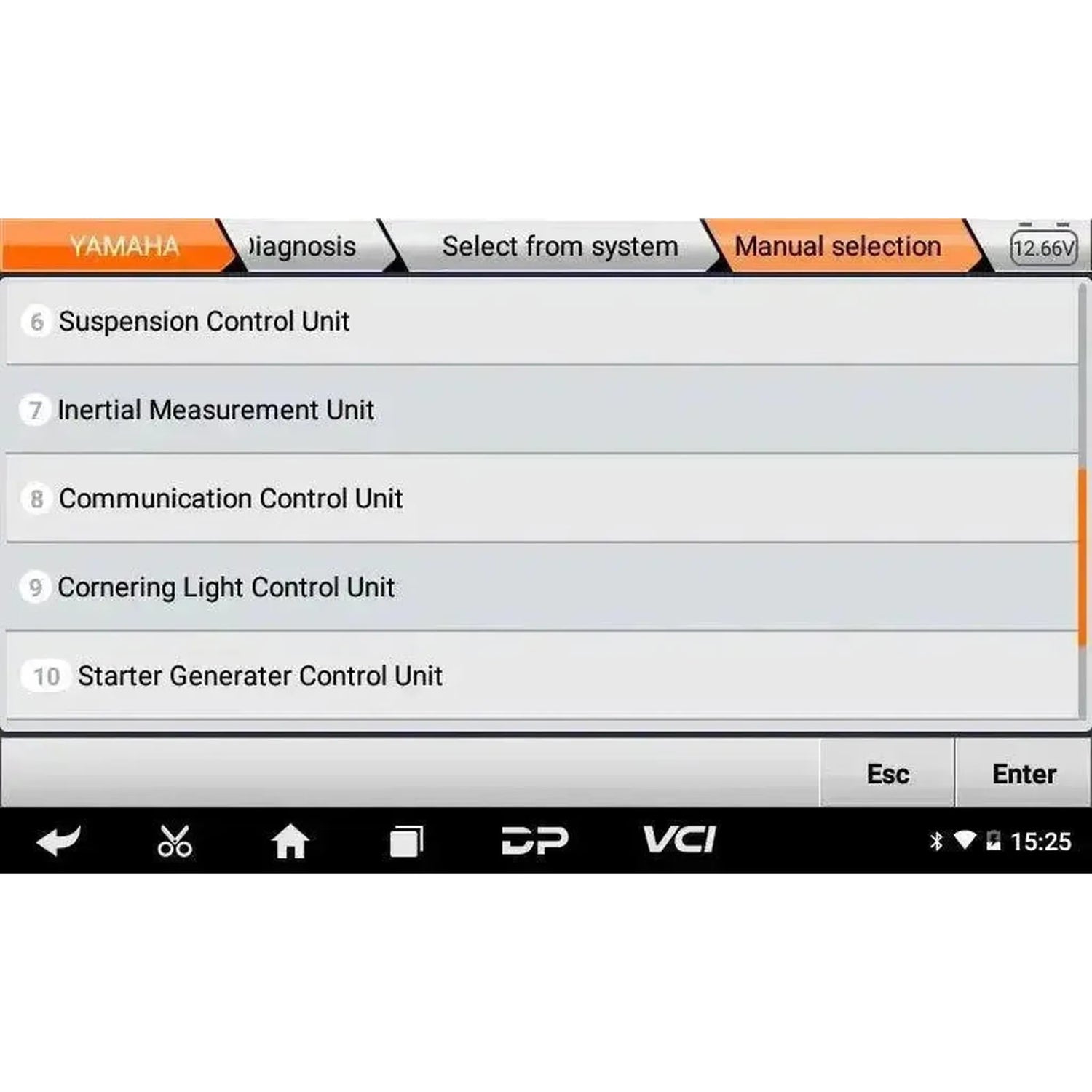

• Automatic scanning and VIN recognition: Inventory all available modules in one go and automatically identify the vehicle.
• Read and clear fault codes: Retrieve stored and active codes from the control modules and clear the memory after repair.

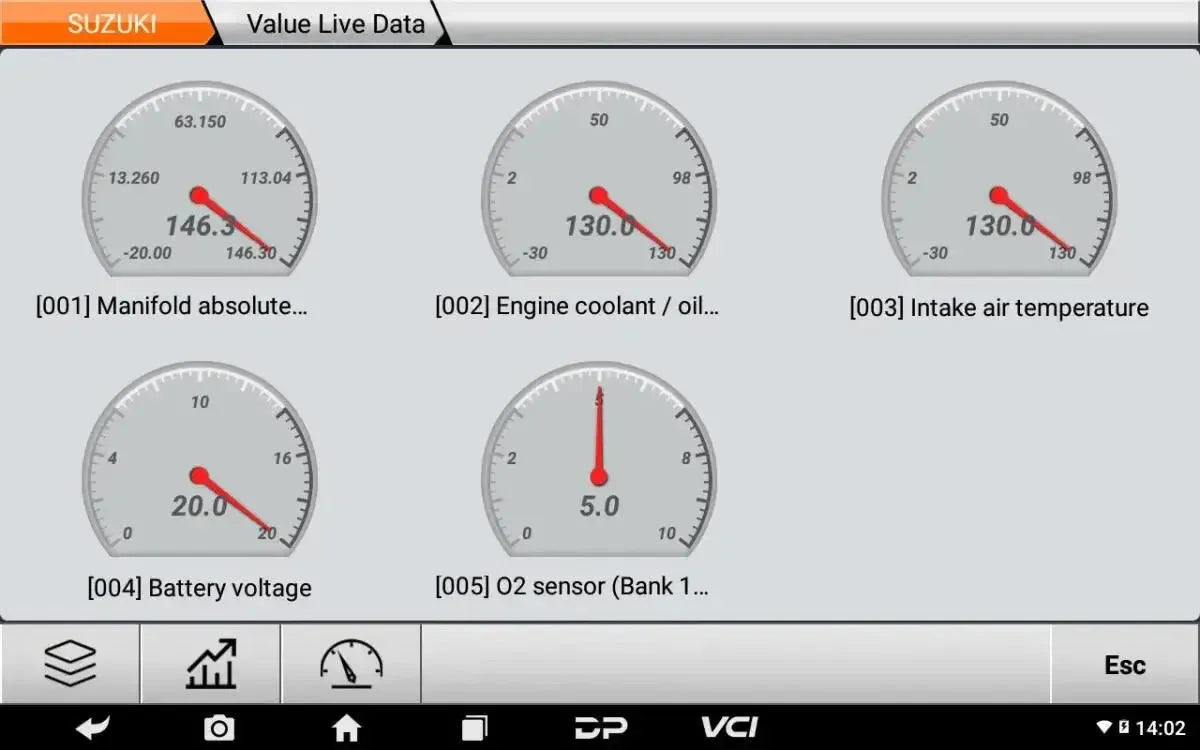

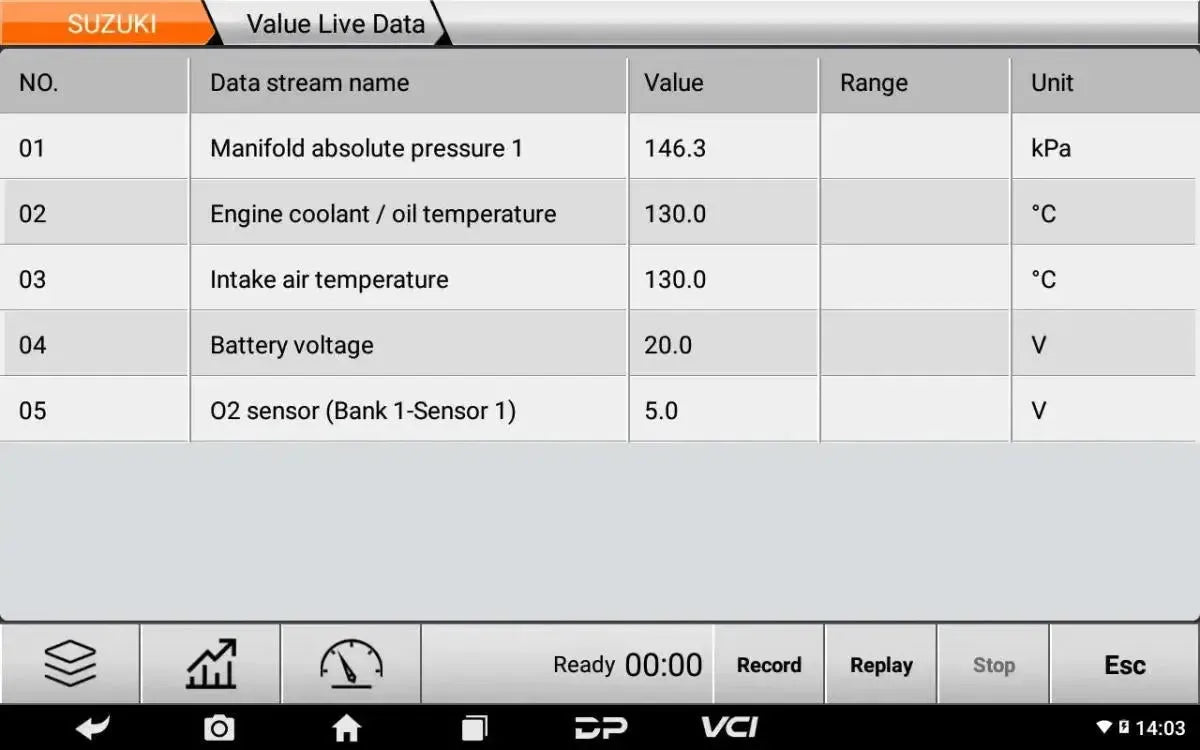

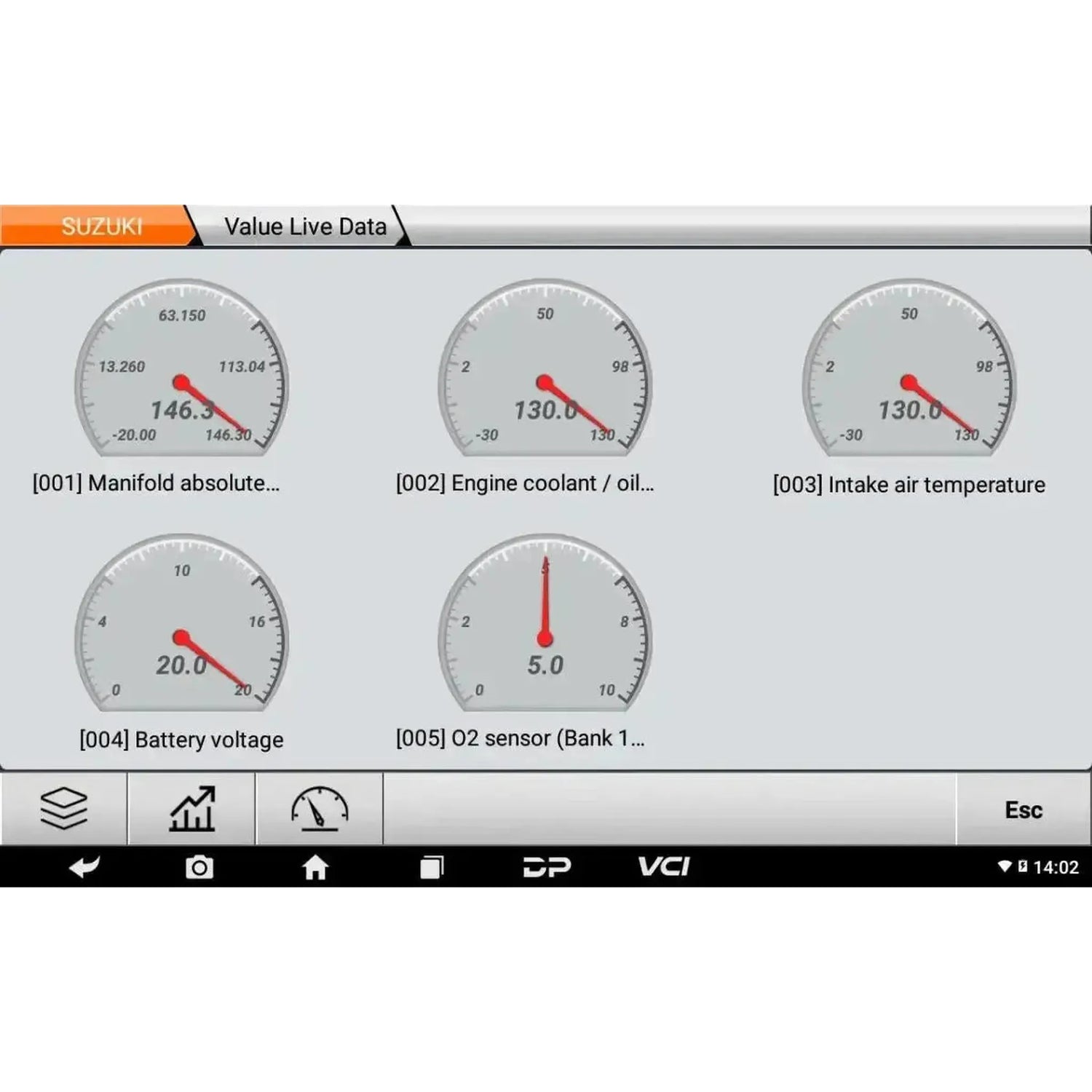

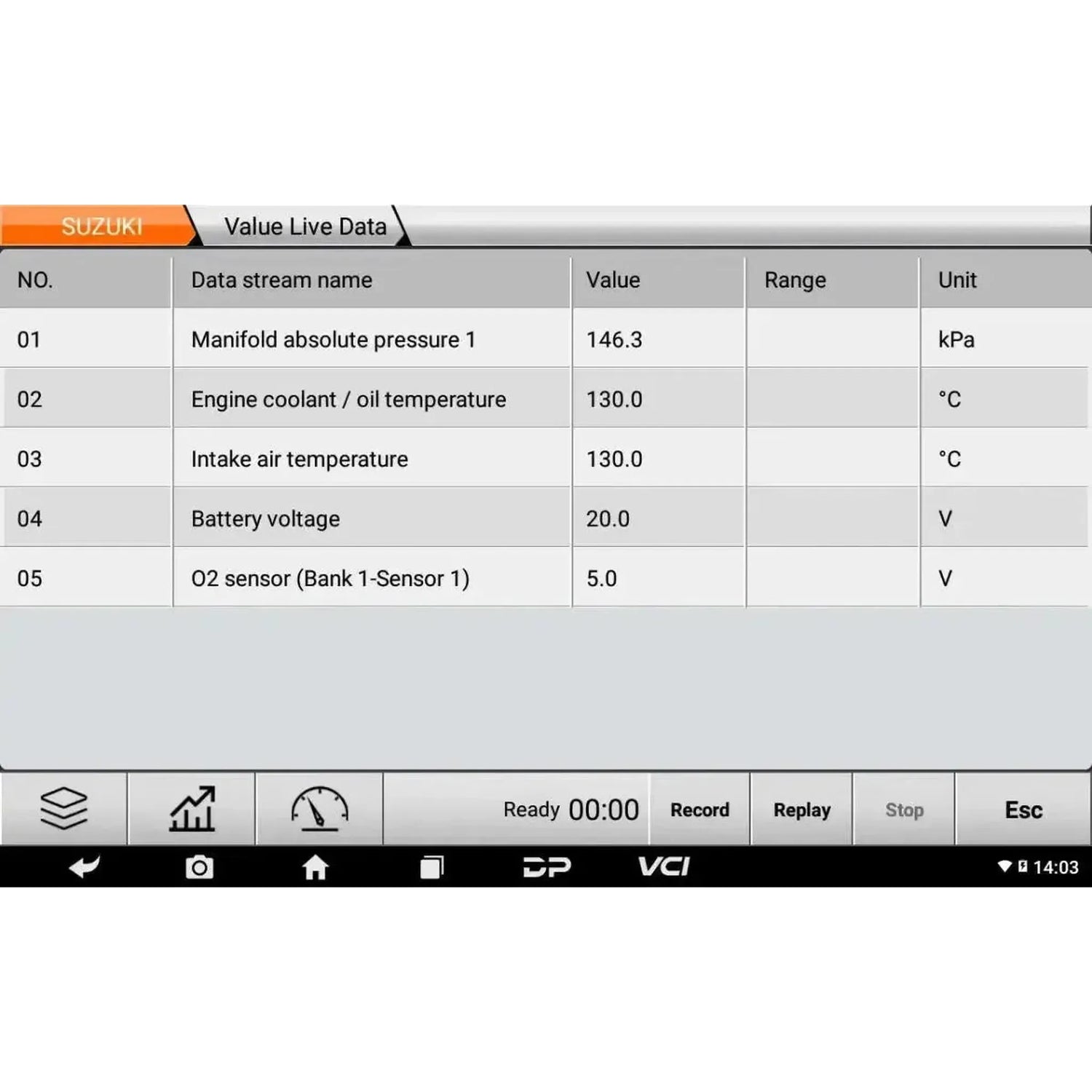

• Monitor live data: View sensor and actuator values in real time as text, waveform or instrument display.
• Record and playback data: Capture a ride and review it later to locate a fault that does not occur on demand.
• Actuator tests: Control individual components and actuators to assess operation without disassembly.
• Code and programme control modules: Code and programme modules after replacement, where the vehicle system permits it.
• ECU settings and instrument cluster coding: Set parameters in engine management and code the instrument cluster.
• Adjust and reprogramme fuel injection: Modify the fuel injection and rewrite injection data on supported models.

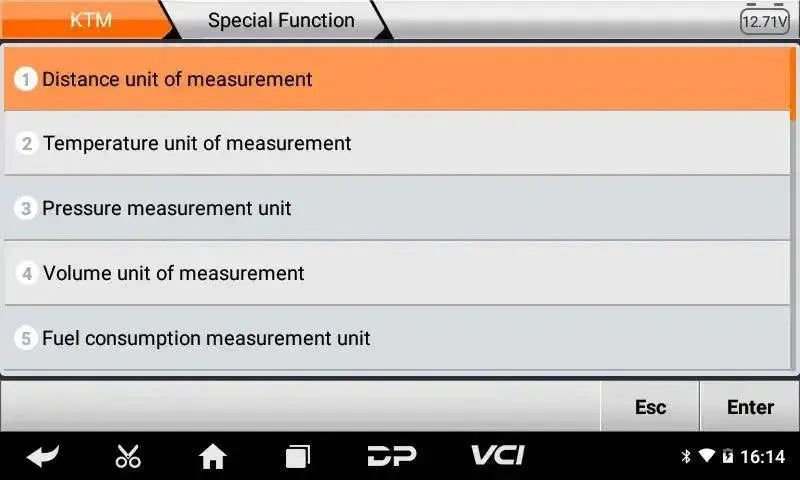

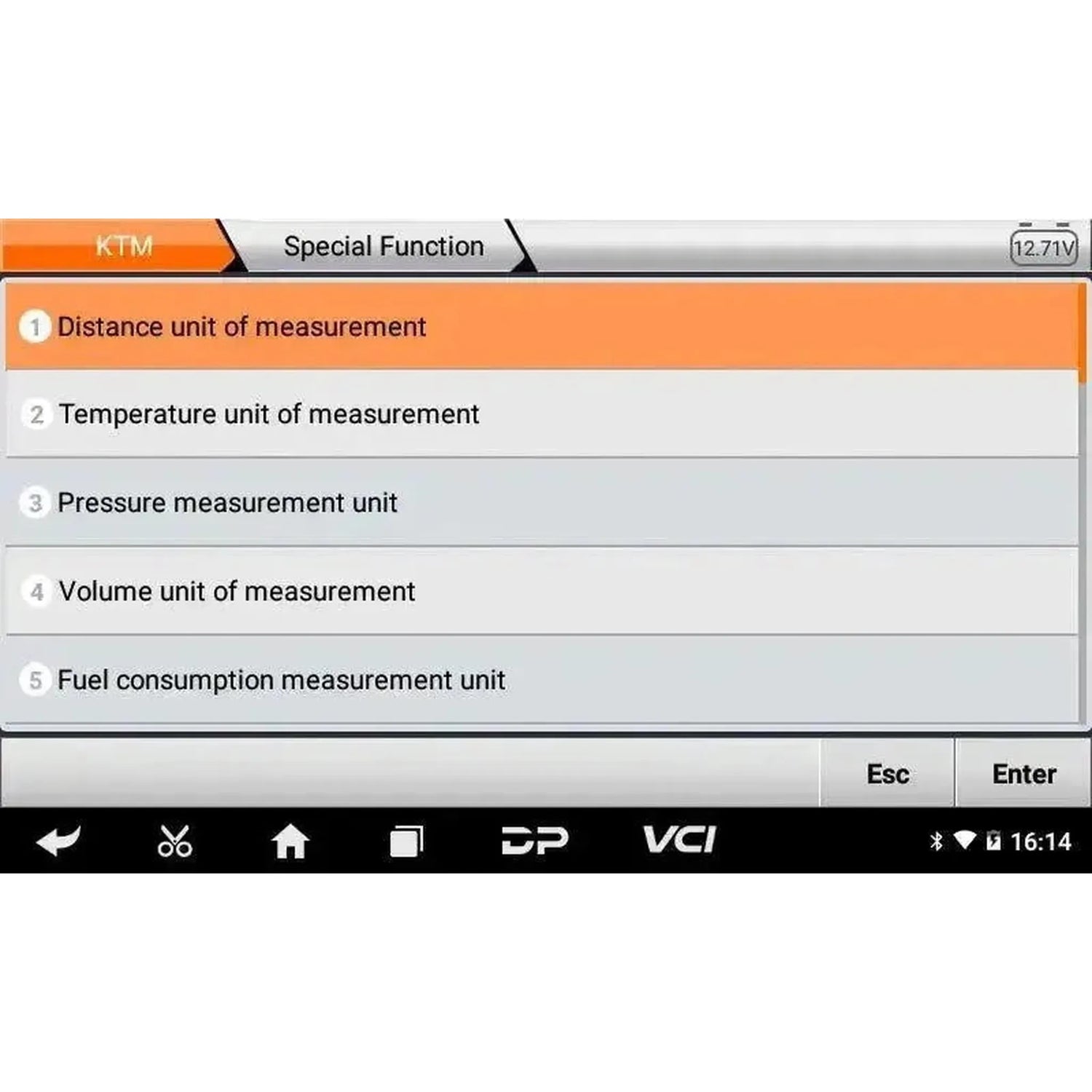

• Special configuration functions: CIP settings, code-and-reset and manufacturer-specific procedures from the OBDSTAR database.
• Please note: Available functions vary by manufacturer, model and year of manufacture.

Service and maintenance functions

Available functions vary by vehicle manufacturer, model and year of manufacture.

Engine and drivetrain

• Oil service reset: Resetting the service interval after an oil change.
• Throttle valve learning: Teaching the base position of the electronic throttle valve after cleaning or replacement.
• Idle speed learning: Calibrating the idle speed after maintenance to the intake system.
• CO adjustment: Adjusting the CO percentage for correct fuel mixture and emission values.
• Air-fuel ratio reset: Resetting the adaptation values of the engine management system.
• Lambda sensor adaptation reset: Clearing learned correction values after sensor replacement.
• Engine adaptation reset: Clearing general learned values after component repair or replacement.

Transmission, brakes and other systems

• Transmission adaptation reset: Resetting learned shift values of the transmission control module.
• ABS bleeding: Activating the ABS pump to bleed the brake system after maintenance.
• Tyre pressure monitoring system reset: Resetting the TPMS where present on the motorcycle.
• Odometer correction: Adjusting the stored mileage on supported models.
• EOL mode: Performing end-of-line procedures on supported control modules.
• Control module memory erase: Removing stored data from a control module for a clean starting point.

Supported vehicle manufacturers

The combination of manufacturer, model and year of manufacture is decisive, not the manufacturer alone. OBDSTAR divides MS50 STD coverage across four separate lists. A manufacturer that appears only in the odometer list cannot be fully read out. For some manufacturers, a separate diagnostic adapter is also required; see the lists below.

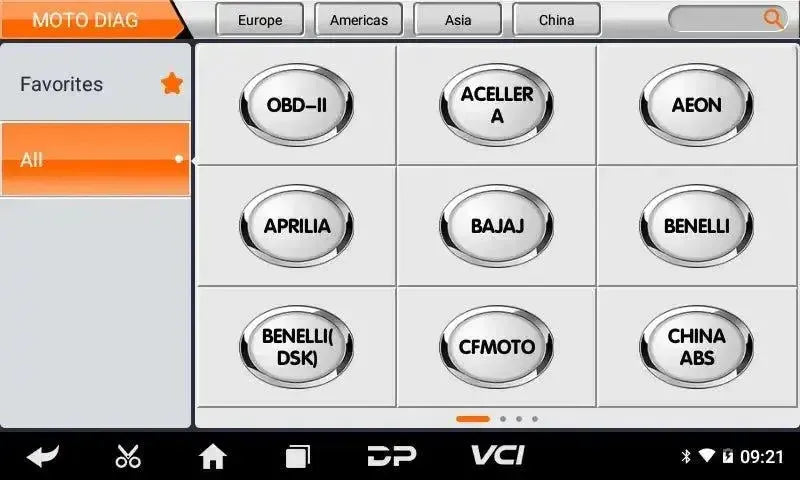

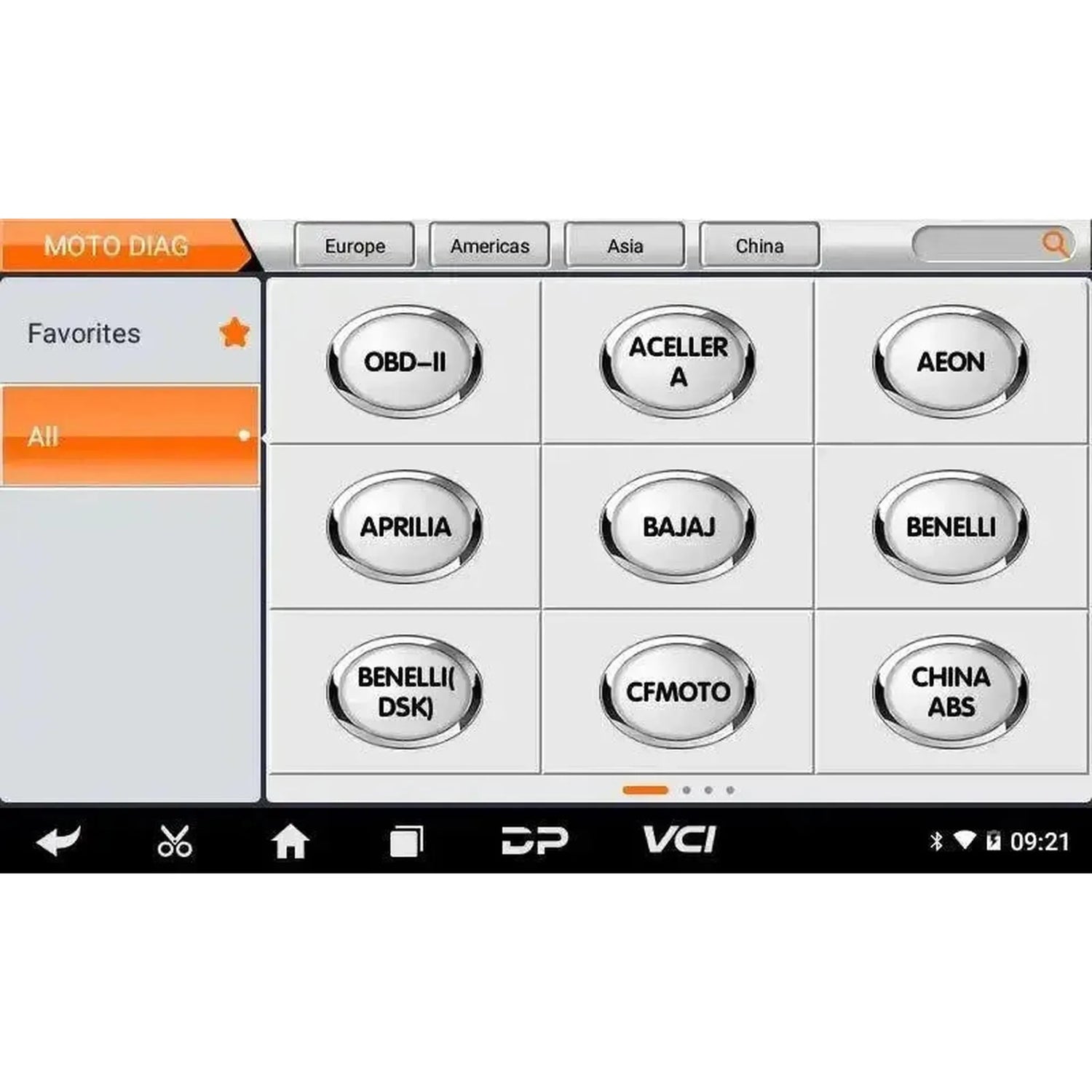

Full diagnostics — motorcycle, snowmobile, ATV and UTV

Thirty-five manufacturers, plus three generic inputs.

• European: Aprilia, Benelli, HM, Husqvarna, KTM, Piaggio, Royal Alloy, Vespa
• Asian: Aeon, Bajaj, Benelli DSK, Hartford, Hero, Honda, Hyosung, Kawasaki, Kymco, PGO, Royal Enfield, Suzuki, SYM, TVS, Yamaha
• American: Acellera, Victory
• Chinese: CFMoto, Haojue, Lifan, Linhai, QJ Benelli, Shineray, Wuyang-Honda, XGJAO, Xindazhou Honda, Zontes
• Generic connections: Standard OBD, Chinese ABS systems and Chinese engine management systems.

Odometer adjustment via dump

Twenty brands, with the reading set via the instrument cluster memory read-out.

• European: Aprilia, Benelli, BMW, Cagiva, Ducati, KTM, MV Agusta, Peugeot, Piaggio, Triumph, Vespa
• Asian: Honda, Kawasaki, Kymco, Suzuki, Yamaha
• American: Buell, Harley-Davidson
• Chinese: Haojue
• Generic: Generic

BMW, Buell, Cagiva, Ducati, Harley-Davidson, MV Agusta, Peugeot and Triumph are listed exclusively in this category. The MS50 STD does not perform full system diagnostics on these brands.

Odometer adjustment via OBD or bench

KTM.

Tuning

Honda.

Supplied adapters

The package includes twelve connection adapters alongside the device, covering the most common connector types.

• N004 diagnostic adapter: Aprilia, Ducati, Honda, KTM, Piaggio, Vespa and Yamaha
• M005 diagnostic adapter: Kawasaki
• N012A diagnostic adapter: Suzuki
• N015A diagnostic adapter: Honda
• M018A diagnostic adapter: Yamaha
• N019 diagnostic adapter: KTM
• N021A diagnostic adapter: Aeon, Benelli and various Chinese brands
• N026 diagnostic adapter: SYM
• N027 diagnostic adapter: Kymco and Kawasaki
• M028 diagnostic adapter: PGO
• M030 diagnostic adapter: Hartford
• N041 OBD adapter: Motorcycles with standard Euro 5 6-pin OBD connection

Optional adapters

For brands and connections not included in the box, separate adapters are available. Below are the most commonly requested options.

• M002A battery clamp cable: External power supply for the diagnostic interface or vehicle.
• M006, M008 and M009: Kawasaki models with non-standard diagnostic port.
• M013: Lifan and Suzuki.
• M014 and M023: Suzuki.
• M020: Aeon and Benelli.
• M022A: Benelli.
• M024 and M026: SYM.
• M025: Motorcycles with standard 16-pin OBD-II port.
• M029 and M061: Yamaha.
• M045: Shineray.
• M046: Benelli ABS system.
• M047: Vespa.
• M048: Aprilia.
• M052 and N052: Royal Enfield.
• M055: Honda.
• M056: Kymco.
• N001 converter: Motorcycles with ROJO or AVIC EFI system.

Licence

• Duration: One year from the device's first registration.
• What updates include: New models, expansion of existing brands, additional service and coding functions, and bug fixes.
• What requires an active licence: Latest vehicle software, WiFi updates and remote support.
• After expiry: The device continues to work with the last installed version; new updates become available again only after renewal.

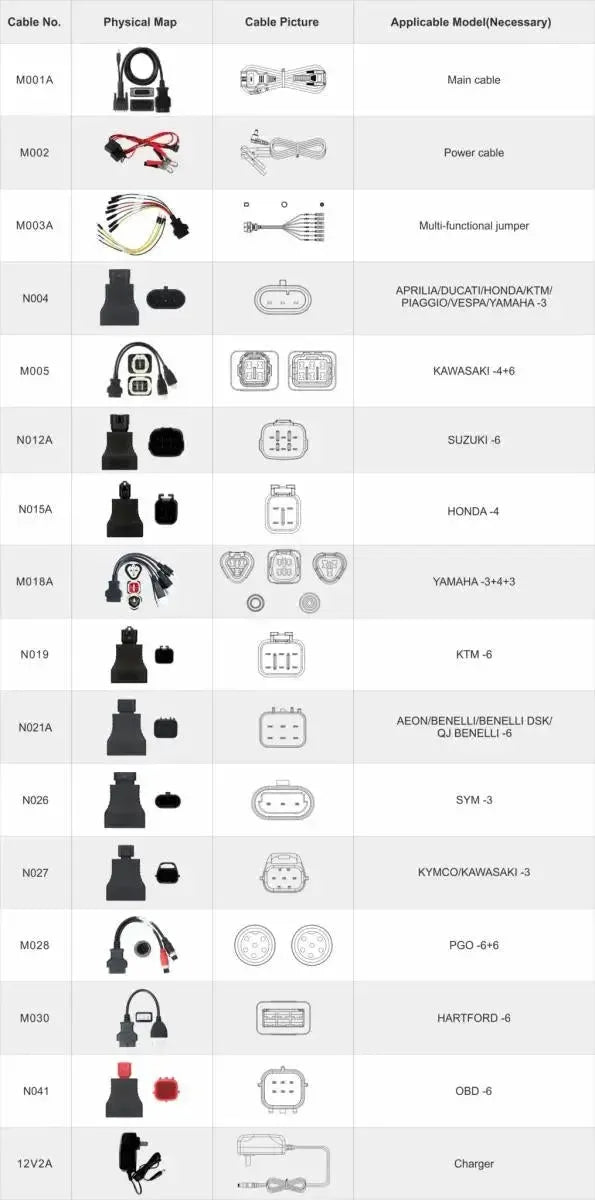

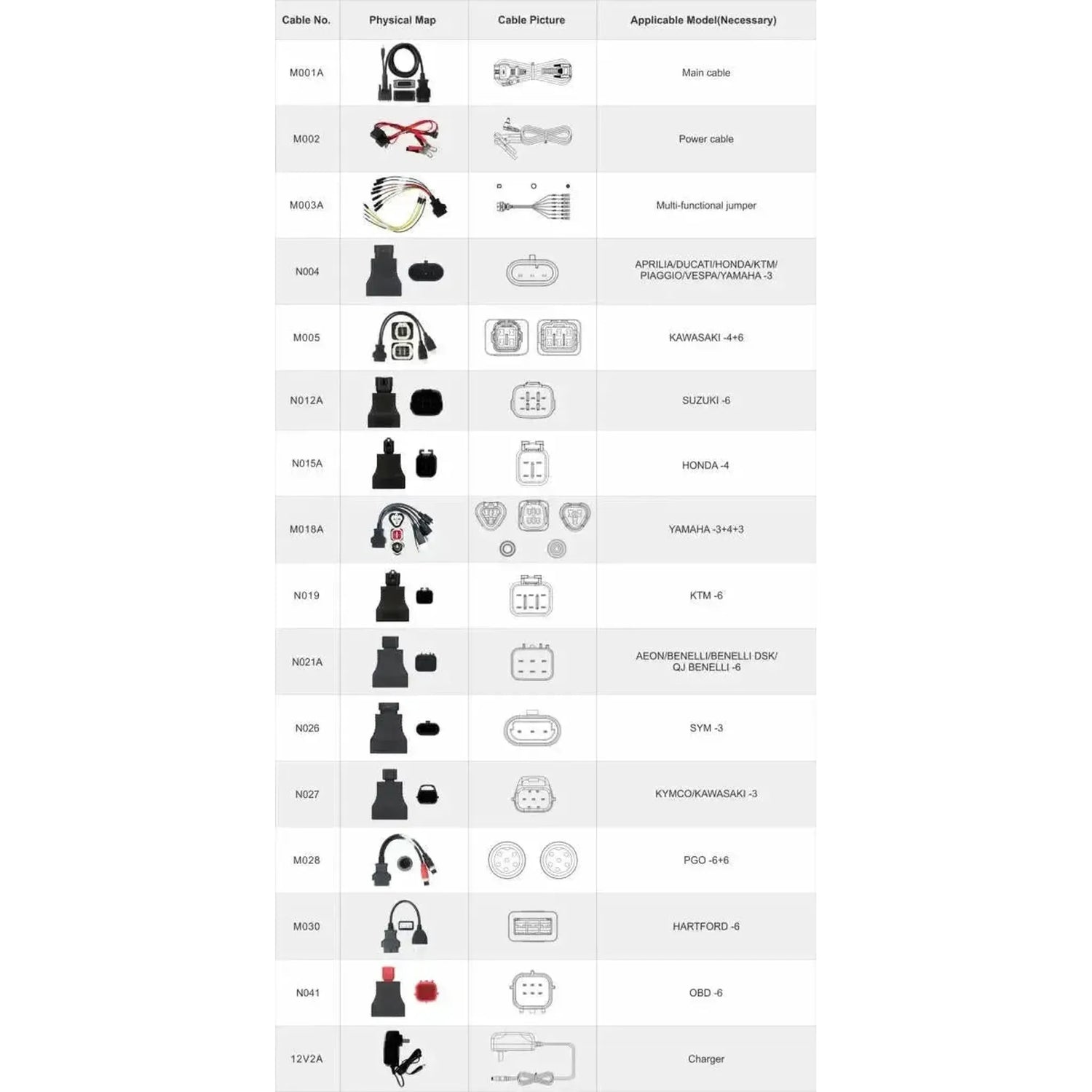

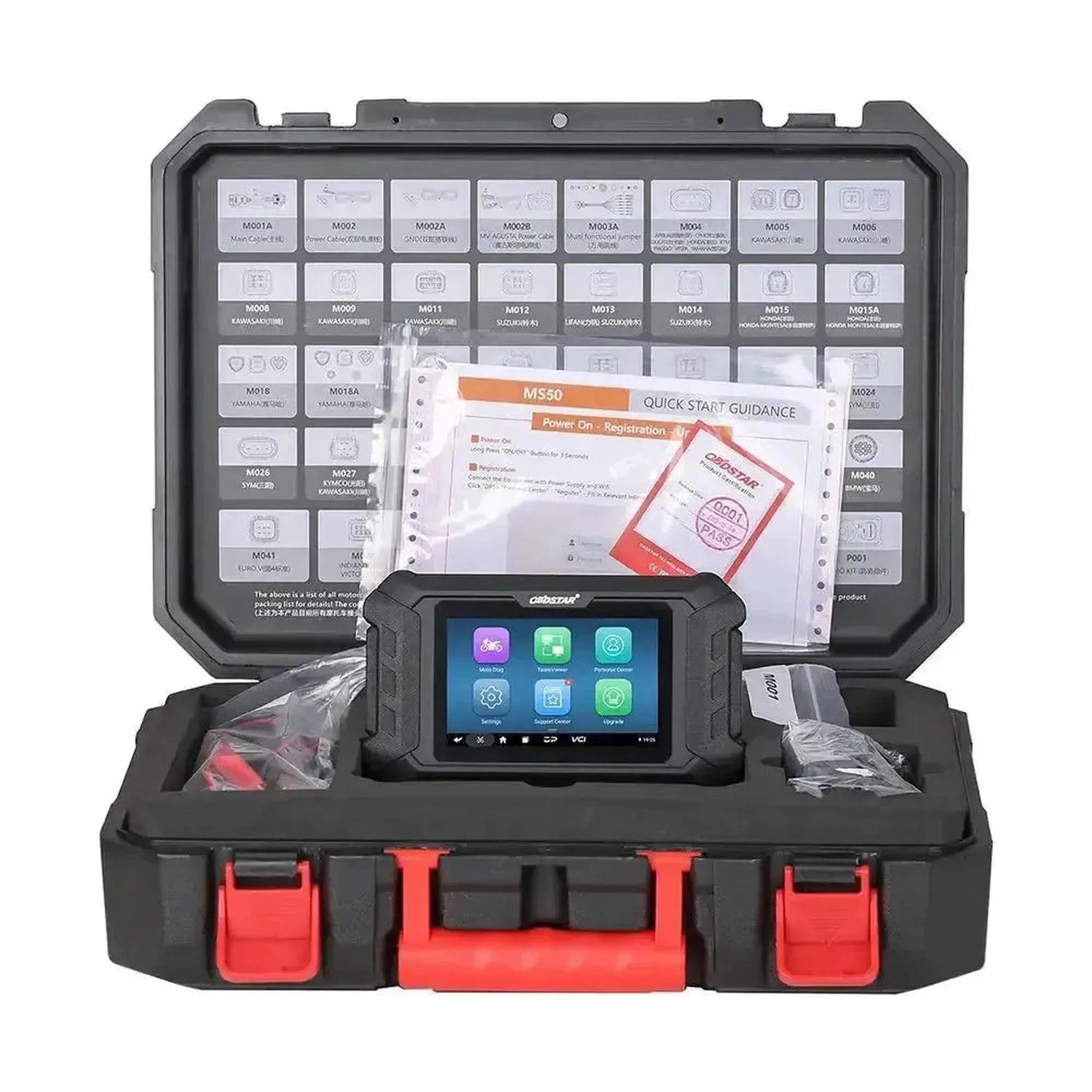

Package contents

• 1x OBDSTAR MS50 STD diagnostic reader
• 1x 12V2A charger
• 1x M001A main cable
• 1x M002 power cable
• 1x M003A multifunctional jumper cable
• 1x N004 diagnostic adapter (Aprilia/Ducati/Honda/KTM/Piaggio/Vespa/Yamaha)
• 1x M005 diagnostic adapter (Kawasaki)
• 1x N012A diagnostic adapter (Suzuki)
• 1x N015A diagnostic adapter (Honda)
• 1x M018A diagnostic adapter (Yamaha)
• 1x N019 diagnostic adapter (KTM)
• 1x N021A diagnostic adapter (Aeon/Benelli/various Chinese brands)
• 1x N026 diagnostic adapter (SYM)
• 1x N027 diagnostic adapter (Kymco/Kawasaki)
• 1x M028 diagnostic adapter (PGO)
• 1x M030 diagnostic adapter (Hartford)
• 1x N041 OBD adapter
