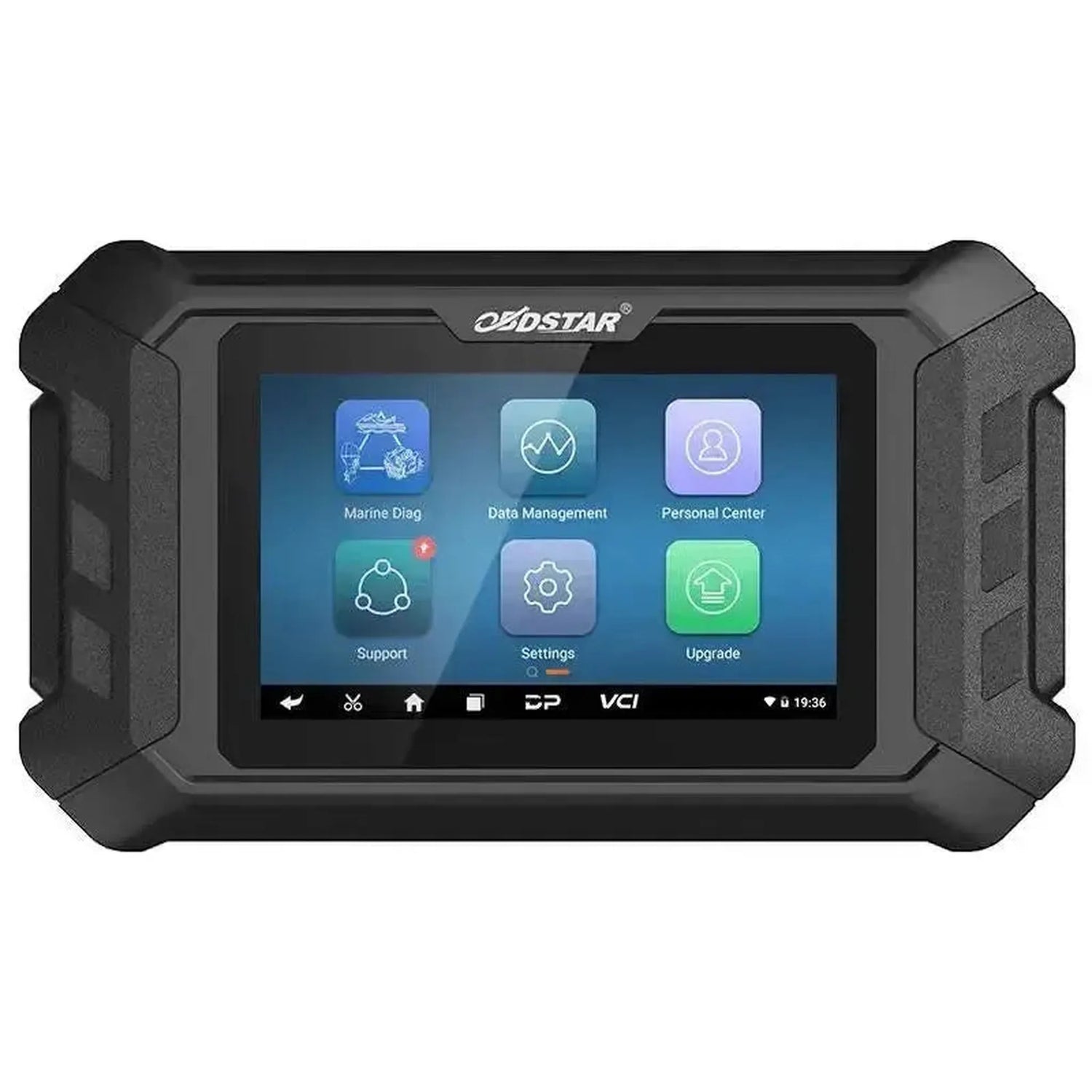

The OBDSTAR IScan Honda (Marine) is a professional diagnostic tool, specifically developed for performing diagnostics on Honda outboard motors. The system is based on a RK3128 quad-core processor and runs on Android 5.1.1, operated via a 5.0 inch touchscreen. The core functionalities include reading and clearing fault codes, displaying live data, and performing actuator tests. A license for 2 years of software updates is included with the purchase.
The diagnostic tool supports extensive service functions, such as resetting the engine control module and setting the hour meter. Internet connection is via Wi-Fi, allowing software updates to be received directly on the device. The design is aimed at use in a marine workshop environment.
Diagnostic Functions:
The IScan Honda offers various diagnostic functions for analyzing the electronic systems in Honda outboard motors.
- Actuator test: Allows specific components, such as injectors or relays, to be activated to check their operation.
- Automatic system scan: Performs a full scan of all present electronic control modules.
- Read and clear fault codes (DTC): Reads and removes stored and current fault codes from the control modules.

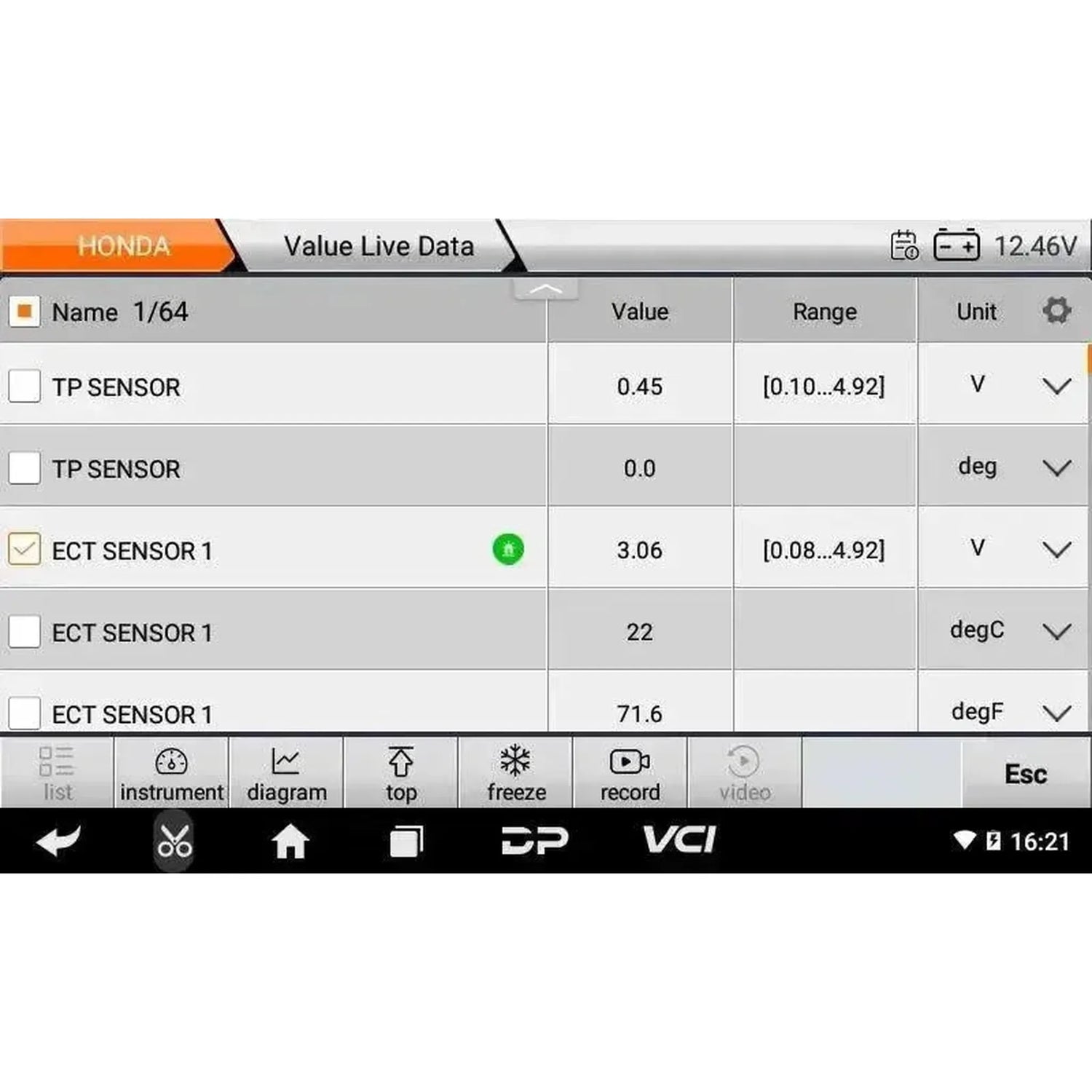

- Display live data: Shows real-time data from sensors and components, such as engine speed, temperature, and sensor voltages.
- Read control module information: Displays specific data from the selected control module, such as part numbers and software versions.
Service and Maintenance Functions:
The system supports a range of service and maintenance functions specifically for Honda outboard motors. Availability may vary by engine model and year of manufacture.

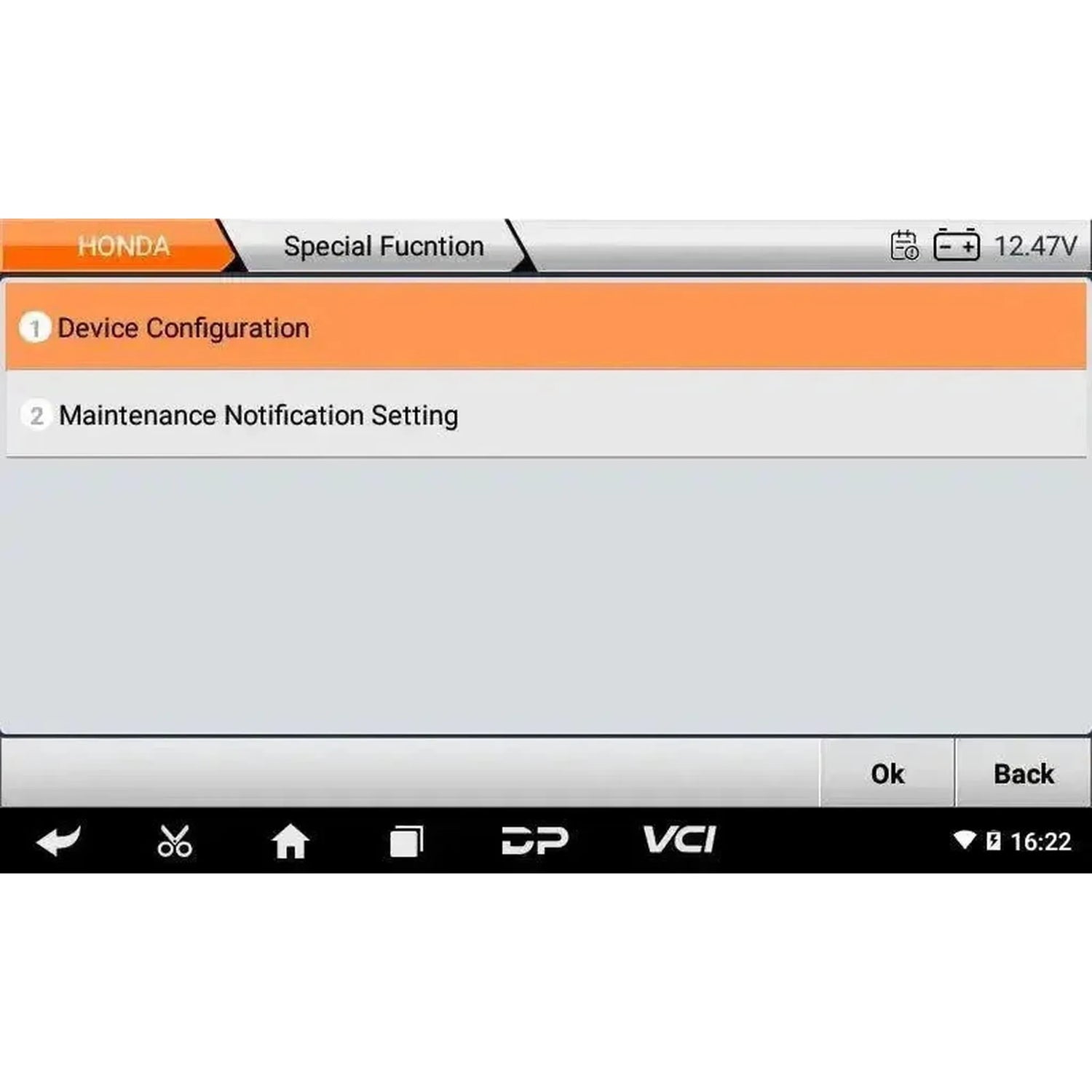

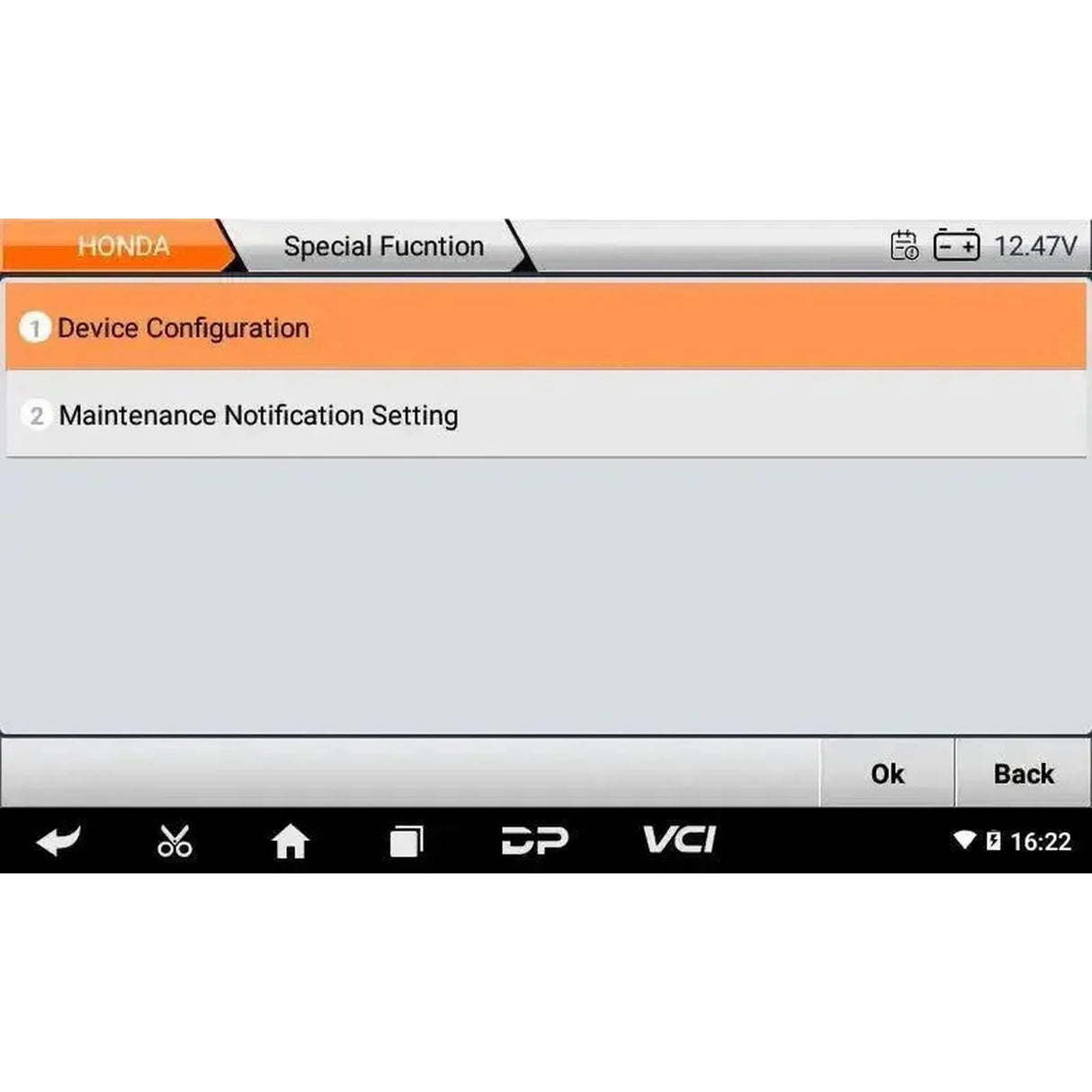

Service and reset functions:
- Record operating hours: Allows writing or adjusting the engine's operating hours.
- Reset engine control module (ECM): Resets the engine control module to factory or default settings.
- Set hour meter: Sets the hour meter of the instrument panel or engine.
- Reset warning device: Resets warnings or service indicators after maintenance.
- Replace warning device: Performs the necessary configuration after replacing a warning component.
- Set self-test: Configures parameters for the system's internal self-test.
Supported Vehicle Brands:

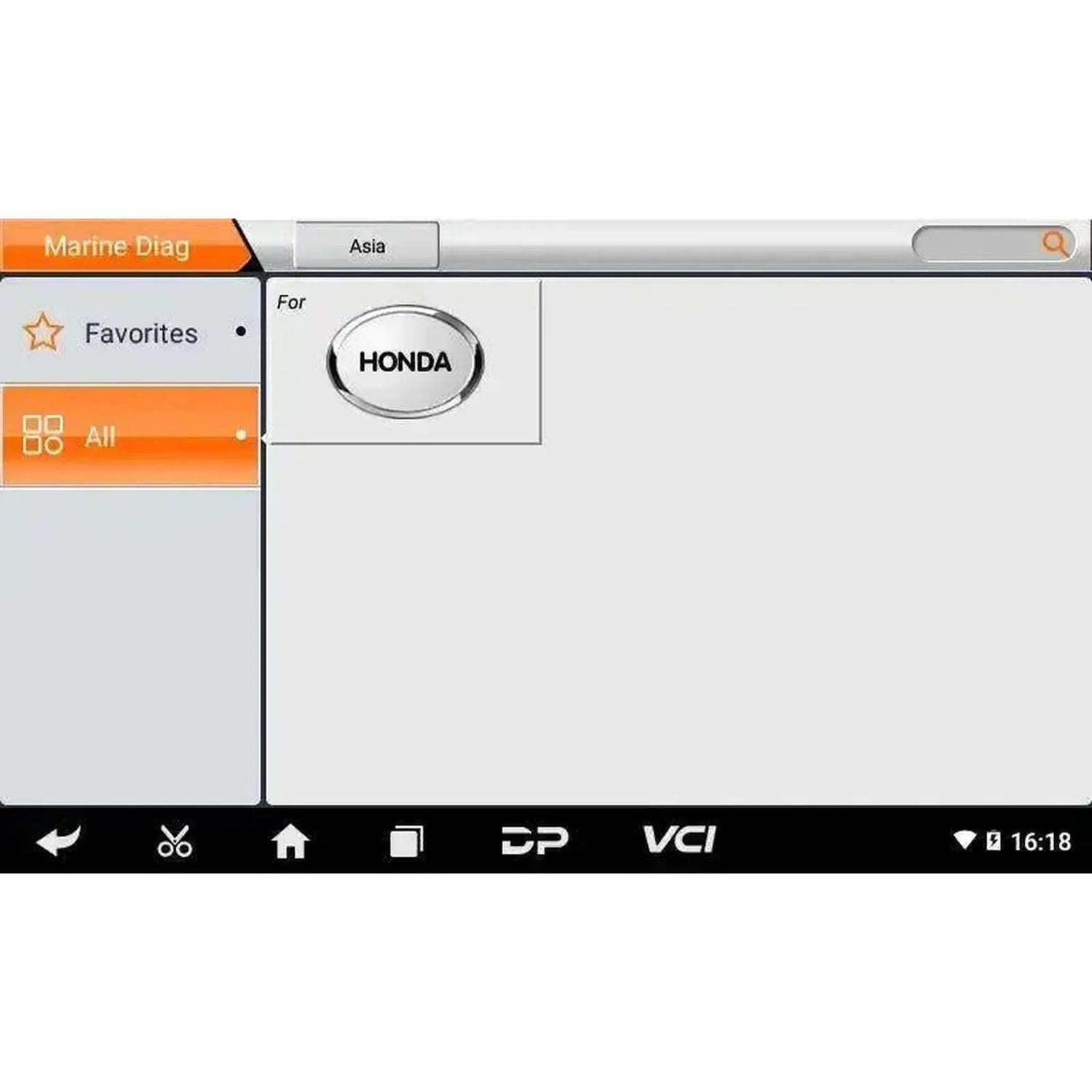

This diagnostic tool is specifically developed for Honda outboard motors.
- Asian: Honda
Package Contents:
- 1x OBDSTAR IScan Honda (Marine)
- 1x Main cable (M001B)
- 1x Honda 4-pin adapter cable (M015A)
- 1x Charger (12V/2A)
License Information:
- Includes 2 years of updates: A 24-month update license is included with the purchase.
After the license period expires, the device will continue to function with the last installed software version. New software updates will no longer be available until the license is renewed.
Technical Specifications:
| Specification | Description |
|---|---|
| Product Brand | OBDSTAR |
| Product Model | IScan Honda (Marine) |
| Operating System | Android 5.1.1 |
| Screen Size | 5.0 inch |
| Screen Resolution | 800 x 480 pixels |
| Processor | RK3128 Quad-Core ARM Cortex A7 |
| Connectivity | Wi-Fi |
| Battery | 2600 mAh lithium-polymer |
