OBDSTAR IScan Harley Davidson | Diagnostic Tool | Motorcycle

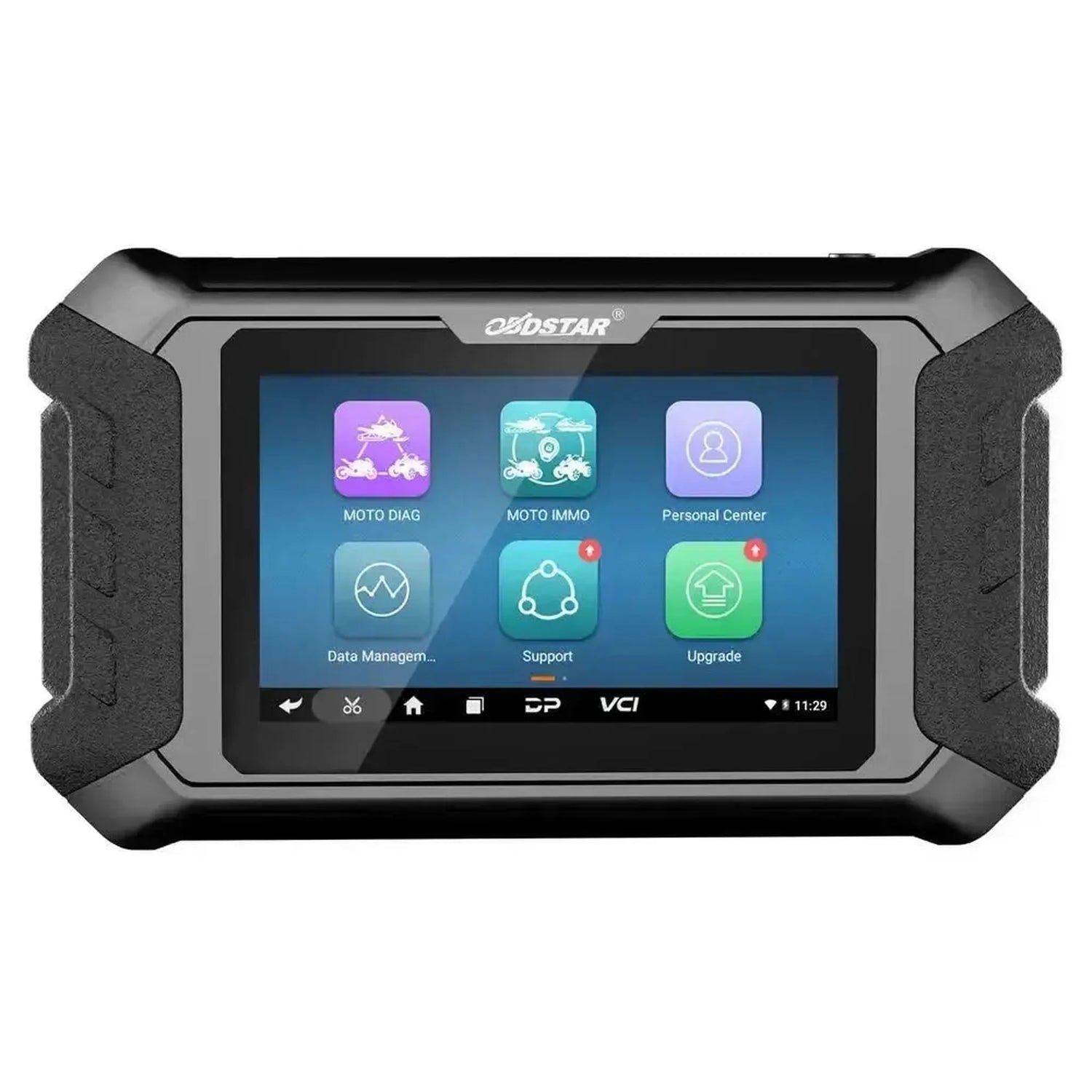

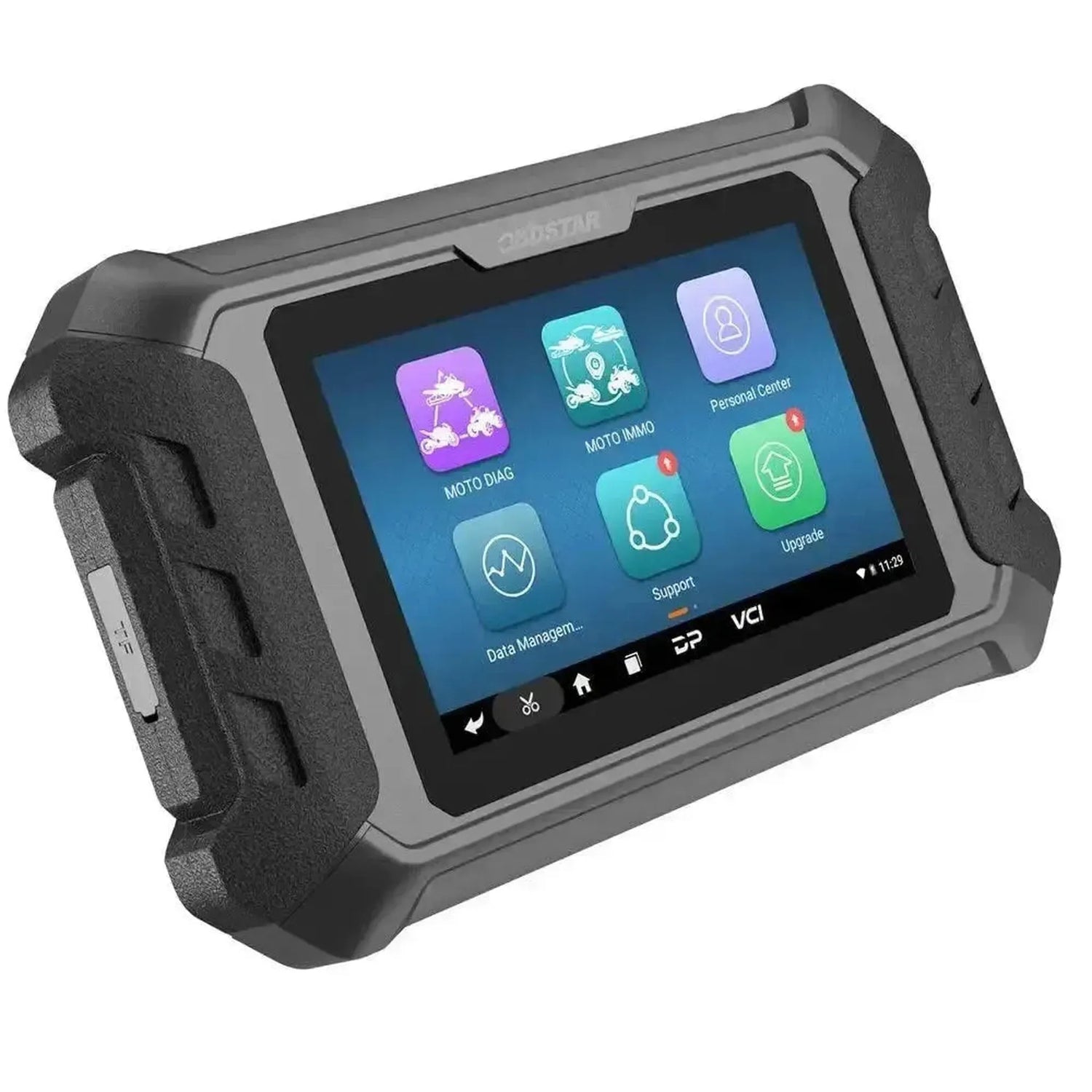

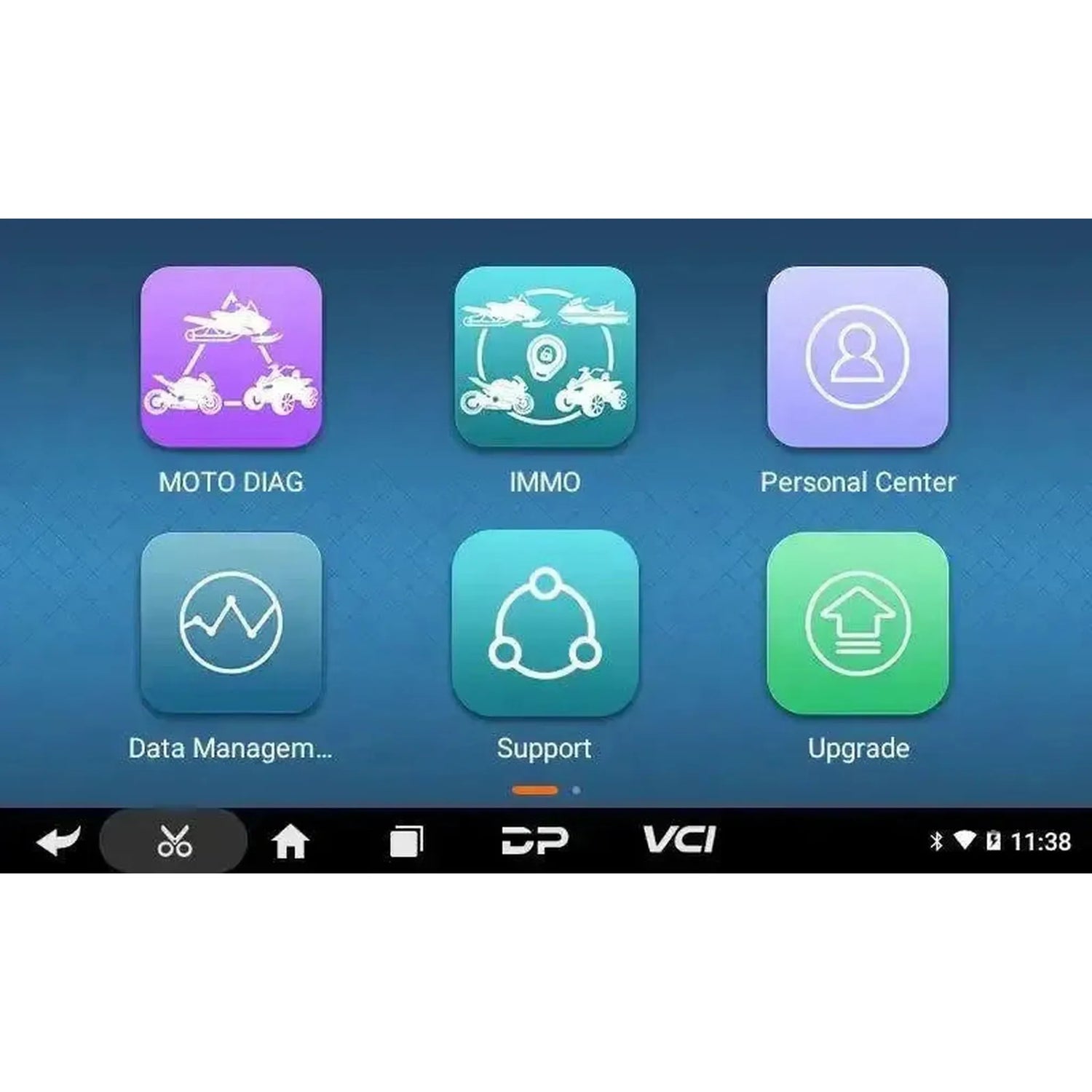

The OBDSTAR IScan Harley Davidson is a reader device specifically developed for performing diagnostics on Harley-Davidson motorcycles. The system is based on a RK3128 quad-core processor and runs on the Android 5.1.1 operating system. Operation is via a 5.0 inch capacitive touchscreen. The IScan supports a wide range of functions, including reading ECU information, analyzing live data, and performing actuator tests. A license for 1 year of software updates is included with purchase.

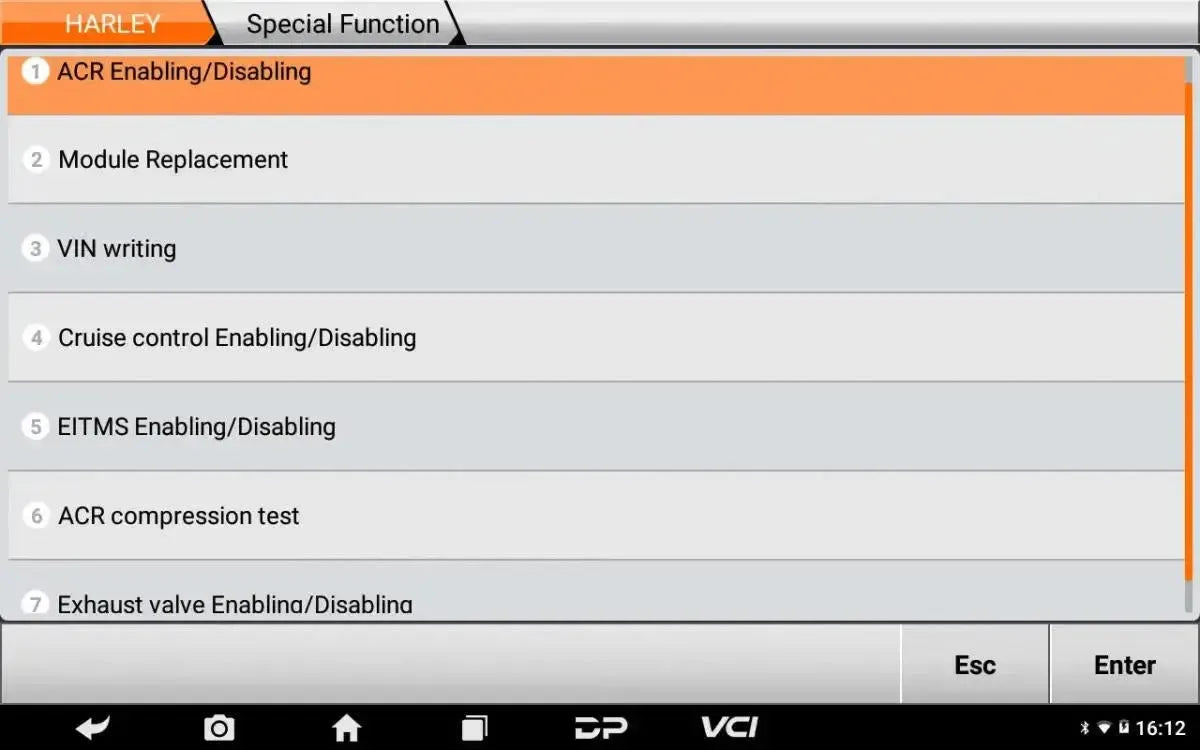

The device offers extensive diagnostic capabilities, such as an automatic scan of all present systems and reading and clearing fault codes. Additionally, it is possible to perform special functions, such as learning components and configuring modules. The functionality can be expanded with optional hardware modules, including a multifunctional jumper cable and a GND cable for specific diagnostic procedures.

Diagnostic functions:

The OBDSTAR IScan Harley Davidson offers various diagnostic functions for analyzing the electronic systems of the motorcycle.

• Read and clear fault codes: Reads and removes diagnostic fault codes (DTC's) from all available control units.
• Freeze frame data: Shows a snapshot of vehicle data at the moment a fault code was stored.
• Read live data: Displays real-time data from sensors and components, such as RPM, temperature, and sensor voltages.
• Test actuators: Directly controls components such as the fuel pump, injectors, and fans to verify operation.

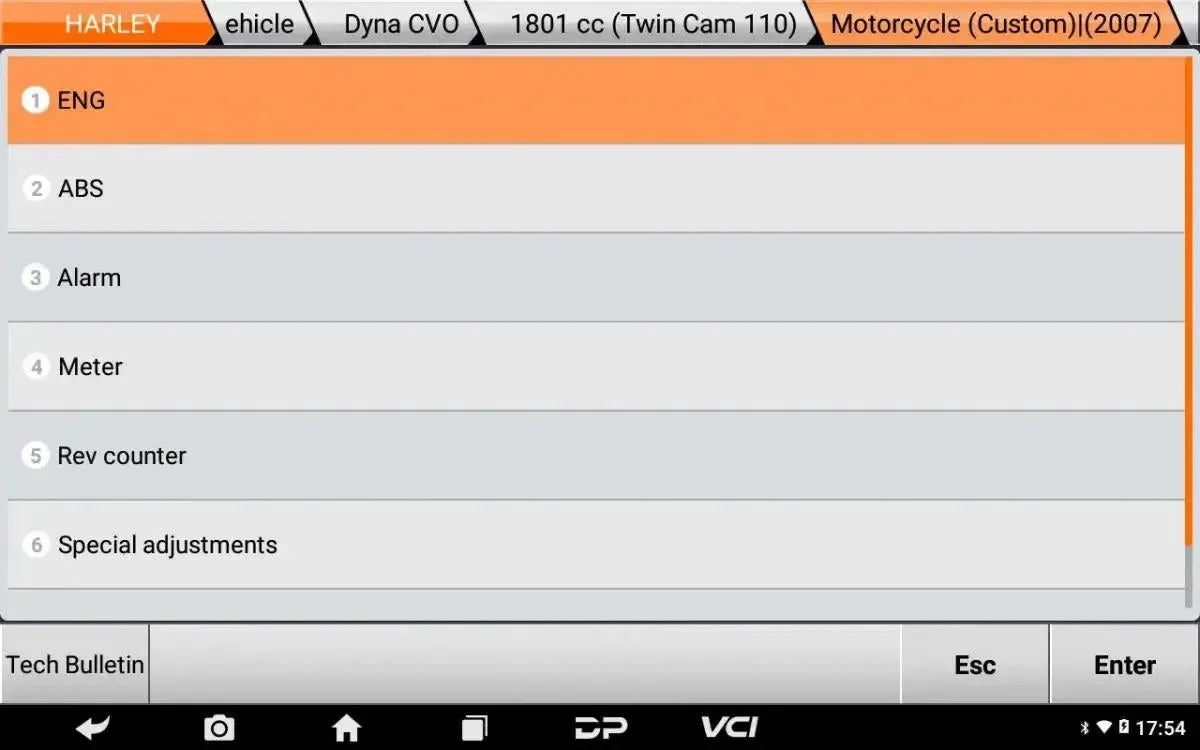

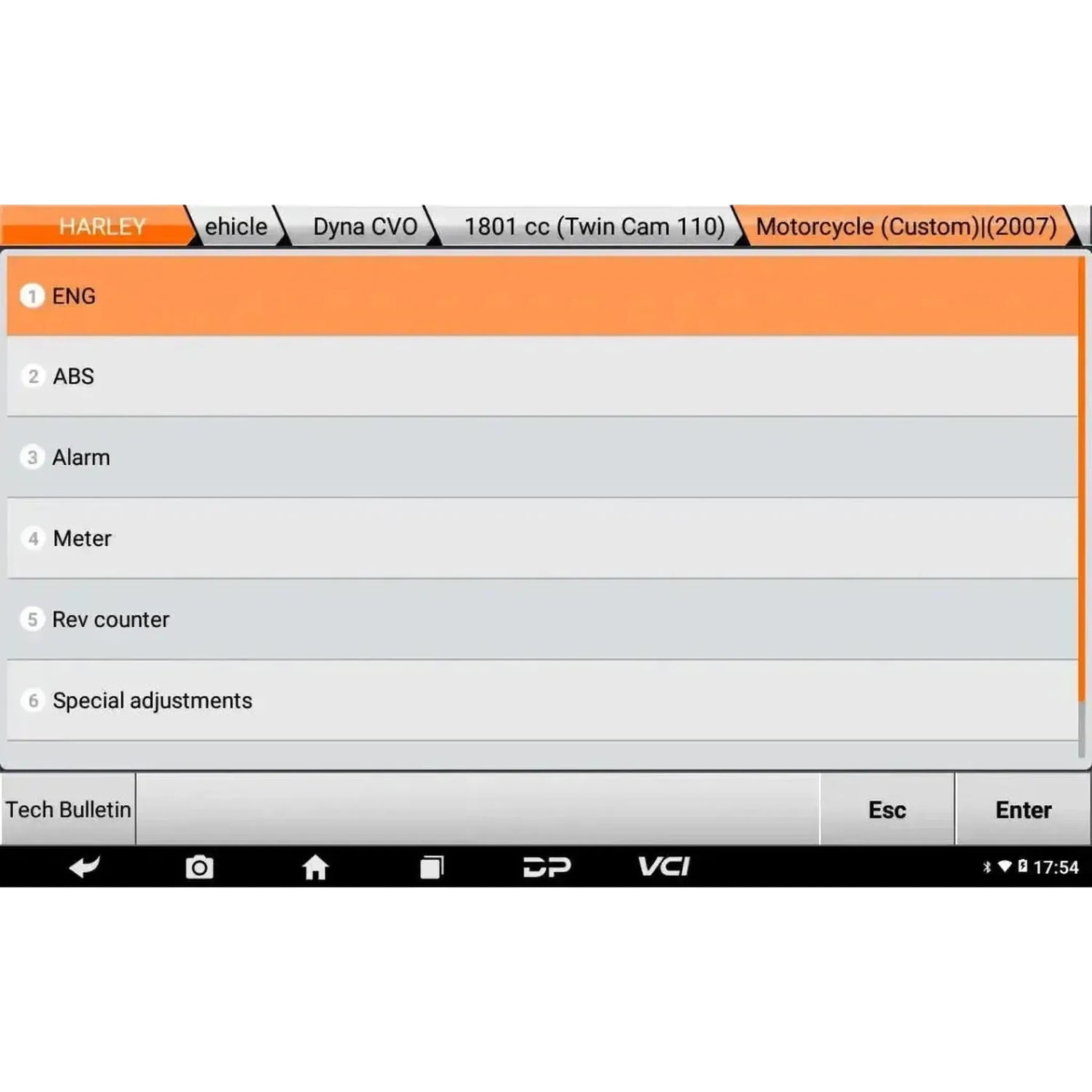

• Auto scan: Performs a full scan of all electronic systems present in the motorcycle.

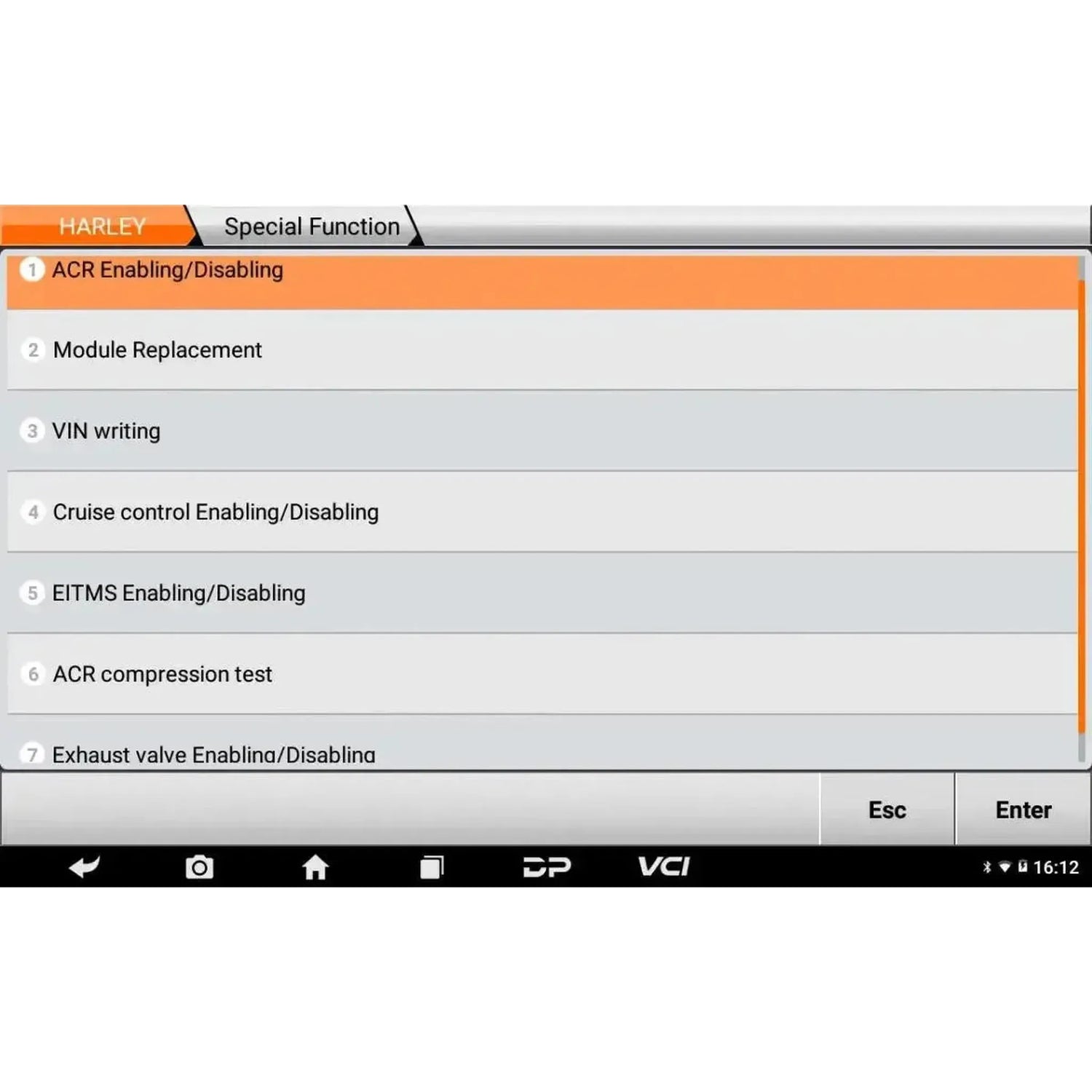

• Basic settings: Enables basic configurations and adjustments in various modules.
• ECU information: Requests detailed information from the control unit, such as hardware and software versions.

Service and maintenance functions:

This diagnostic tool supports a wide range of diagnostic and maintenance functions for Harley-Davidson motorcycles. Available functions may vary by specific model, year, and installed control units.

Engine and drivetrain:

• Reset service message: Resets the service interval indicator after maintenance, such as an oil change.
• Initialize throttle position sensor (TPS): Calibrates the throttle position sensor, which is necessary after replacement or cleaning.
• Adjust idle speed: Electronically sets the engine's idle speed within the manufacturer's specifications.
• Learn crankshaft position sensor (CKP): Performs the procedure to relearn the crankshaft position pattern after replacing the sensor or drivetrain components.
• Test actuators: Activates and tests components such as the fuel pump, injectors, and the fan to verify correct operation.

Brakes:

• Bleed ABS system: Activates the ABS pump to remove air from the brake system during the bleeding process.

Body and electronics:

• Program keys and remote controls (FOB): Adds new keys or remote controls to the motorcycle's security system or removes them.
• Module configuration: Codes and configures new control units, such as the Body Control Module (BCM) or Engine Control Unit (ECU), after installation.
• Instrument panel configuration: Adjusts settings of the instrument panel, such as units for speed and temperature.
• Audio and speaker configuration: Configures the settings of the audio system and speakers on models equipped with them.
• Configure turn signal and security module: Sets the parameters for the turn signals and the security module.

Optional expansion modules:

The functionality of the OBDSTAR IScan Harley Davidson can be expanded with various optional accessories. These expansions are specifically designed for use with this diagnostic system.

Hardware modules and accessories:

• M002A GND cable: Cable for establishing a ground connection (GND).
• M003A multifunction jumper cable: A jumper cable used for making various connections during diagnostic procedures.

Supported vehicle brands:

The iScan is a diagnostic device specifically developed for Harley-Davidson motorcycles and supports the brand below.

• American: Harley-Davidson

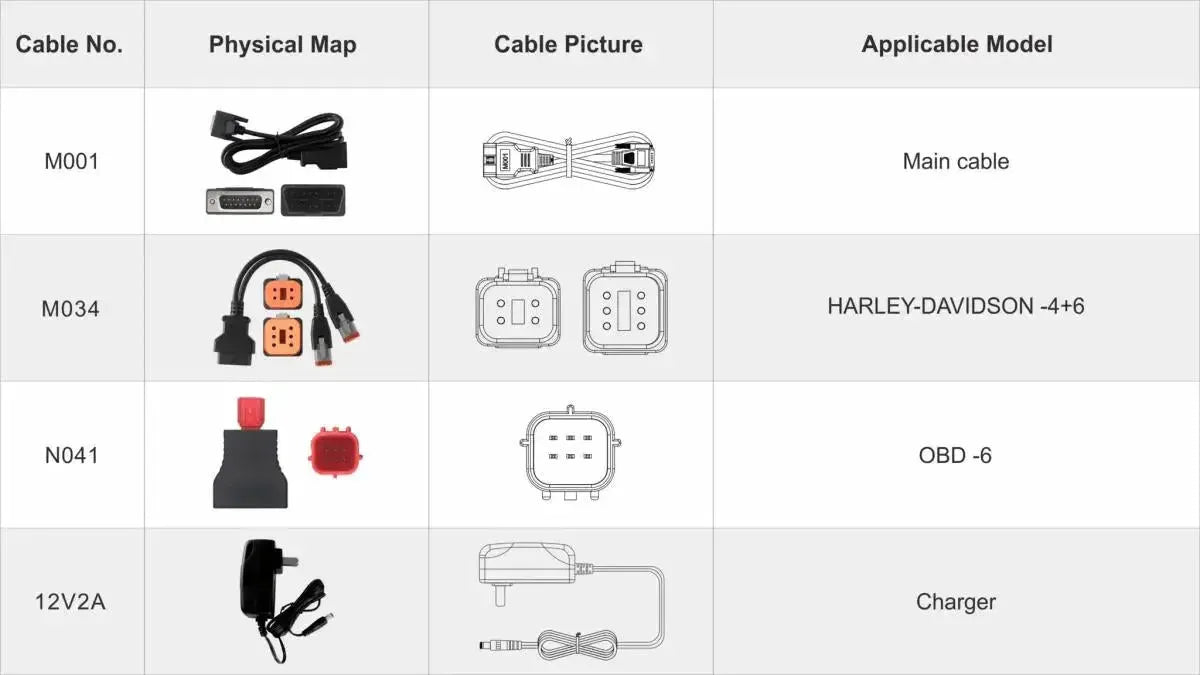

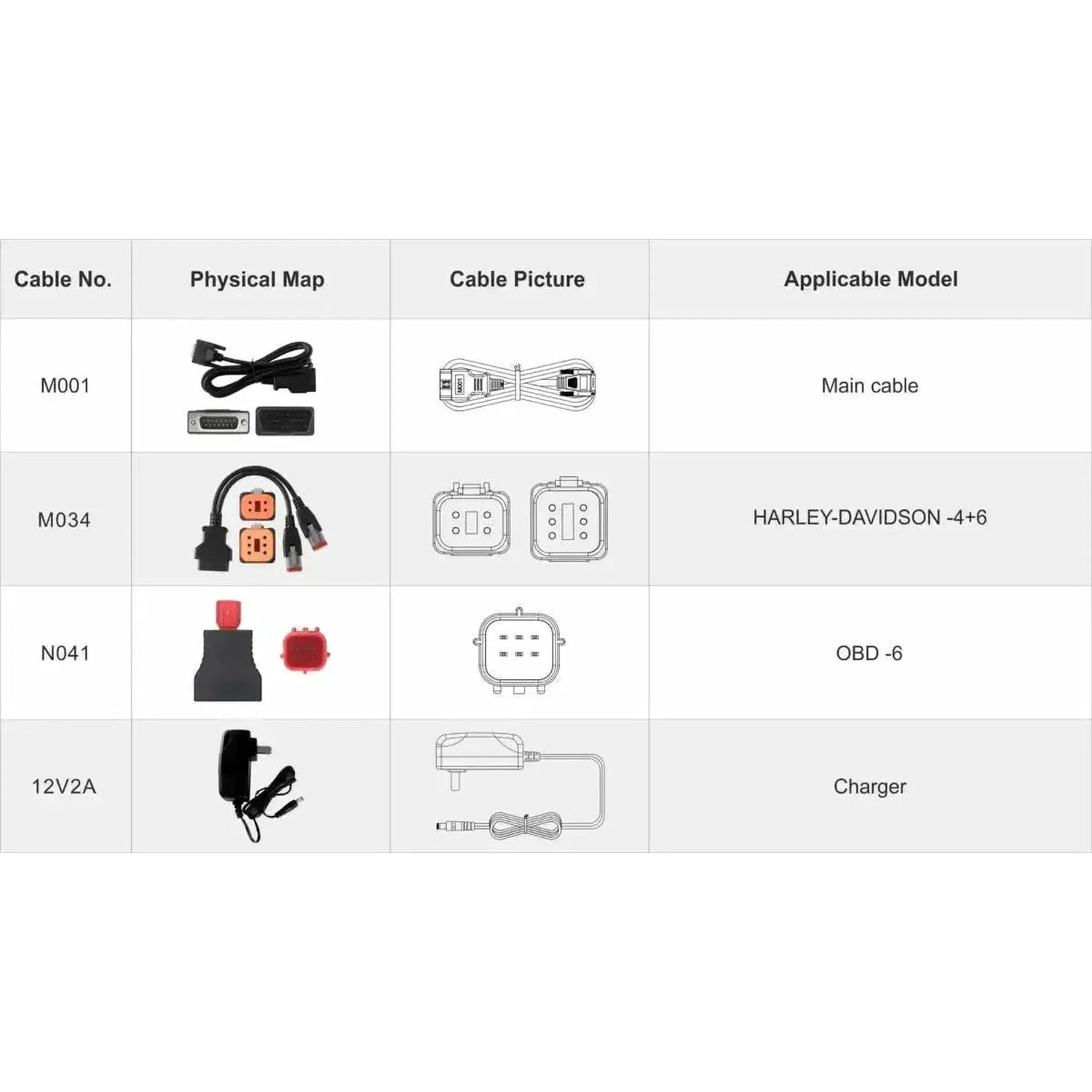

Package Contents:

• 1x OBDSTAR IScan Harley Davidson
• 1x M001 Main cable
• 1x N004 4-pin Adapter
• 1x N041 OBD cable
• 1x 12V2A Power Adapter
• 1x User manual
• 1x Packing list

License information:

• Including 1 year updates: A 12-month update license is included with purchase.

After the license period expires, the device will continue to operate on the last installed software version. The online functions and the ability to receive new software updates will be disabled until the license is renewed.
