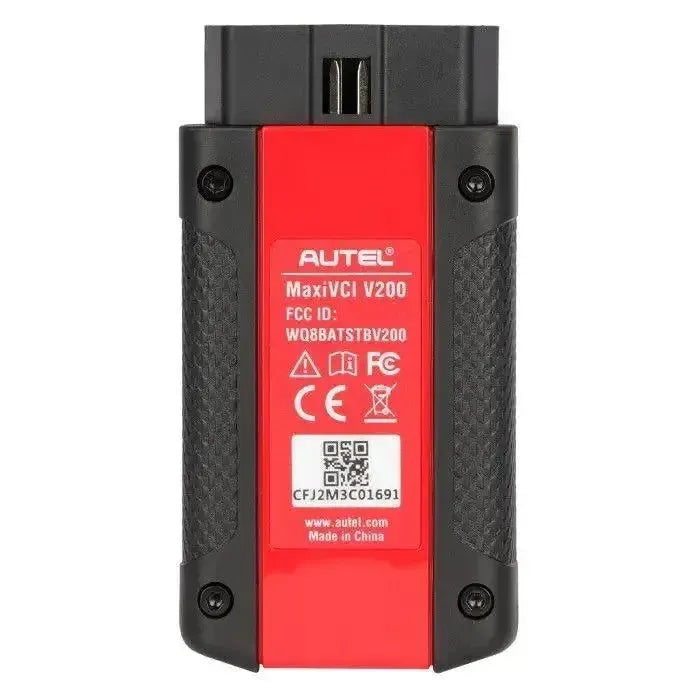

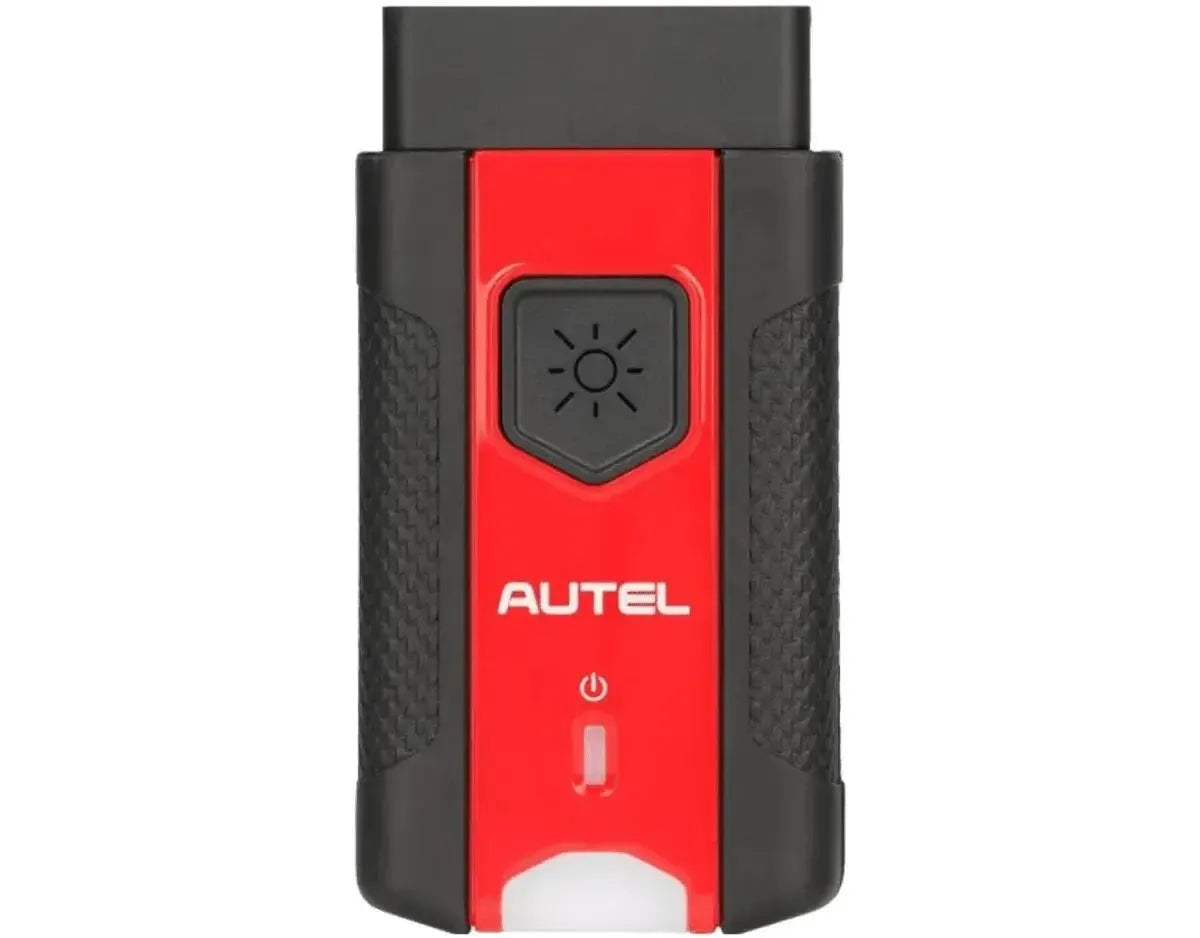

Autel MaxiVCI V200 | Interface
The Autel MaxiVCI V200 is a compact vehicle communication interface (VCI) that establishes a wireless connection between a compatible Autel diagnostic tablet and a vehicle. This interface supports the latest communication protocols, including CAN FD and DoIP (Diagnostics over Internet Protocol). The connection can be established via Bluetooth or a wired USB connection.
In addition to the diagnostic functions with Autel tablets, the MaxiVCI V200 also functions as a J2534 pass-thru programming interface. This allows the VCI to be used in combination with OEM software from vehicle manufacturers for programming and coding. The interface is powered via the vehicle's OBDII port and features a status LED that indicates connection status and activity.
Application and functionality:
The VCI is used for reading and programming vehicle systems and is compatible with modern vehicle architectures.
- Communication Protocols: Supports CAN, CAN FD, DoIP, and K-Line for broad vehicle coverage.
- Wireless Diagnosis: Connects via Bluetooth to Autel diagnostic tablets to perform diagnostic tasks.
- J2534 Pass-Thru: Suitable for use with OEM software for programming ECUs on Windows computers.
- Status Indicator: An integrated LED shows the status of power and communication.
Compatibility:
The MaxiVCI V200 is designed for use with a range of Autel diagnostic tablets and as a J2534 device with a PC.
- Autel MaxiCOM: MK906 Pro, MK906 Pro-TS
- Autel MaxiSys: Elite II, MS906 Pro, MS906 Pro-TS, MS909, MS919, Ultra
- PC: Compatible with Windows operating systems for J2534 Application.
Package Contents:
- 1x Autel MaxiVCI V200
- 1x USB cable
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Autel |
| Product model | MaxiVCI V200 |
| Interface type | DoIP / CAN FD / J2534 |
| Protocol support | CAN, CAN FD, DoIP, ISO 9141-2, J2534, KWP |
| Connection | Bluetooth, USB 2.0 Type-C |
| Wireless range | Approx. 30 m |
| Power supply | 6 V to 36 V DC (via OBDII connector) |
| Operating temperature | 0 °C to 50 °C |
