Autel MaxiVCI Mini | Interface

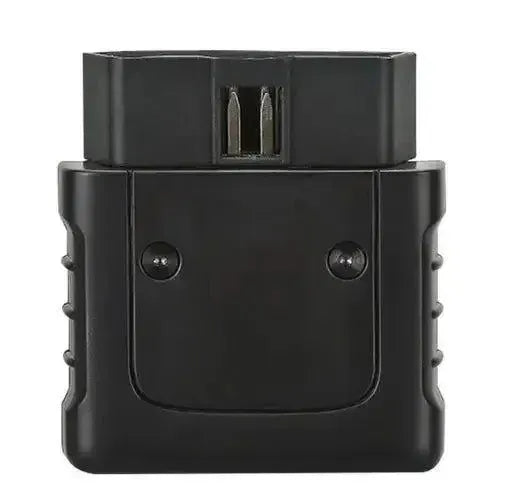

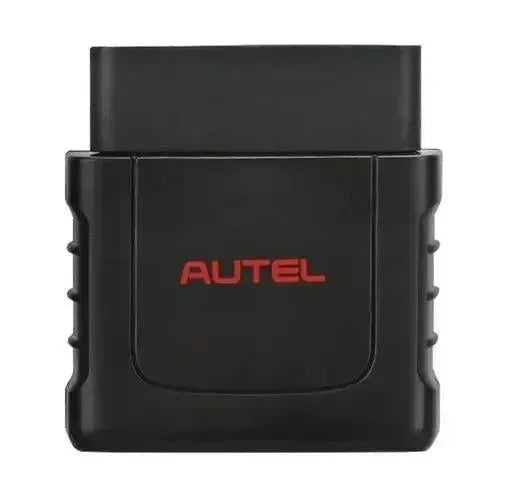

The Autel MaxiVCI Mini is a compact vehicle communication interface (VCI) that establishes a wireless connection between a vehicle and a compatible Autel diagnostic tablet. The interface is directly connected to the OBDII port of the vehicle and communicates via Bluetooth with the tablet. This allows remote diagnostic tasks to be performed without physical cables between the tablet and the vehicle.
This interface is designed as a replacement or supplementary part for specific Autel diagnostic devices. The power supply is directly managed via the OBDII port of the vehicle, eliminating the need for external power. A LED indicator on the VCI shows the status of communication and power, informing the user about the operational state.
Application and functionality:
The MaxiVCI Mini acts as the bridge between the electronic control units (ECUs) of a vehicle and the Autel diagnostic tablet. It reads and transmits vehicle data wirelessly, making full diagnostic functions available.
- Diagnostic interface: Enables reading and clearing fault codes, viewing live data, and performing service functions via a compatible tablet.
- Wireless communication: Provides a stable Bluetooth connection for flexible operation around the vehicle.
- Status indicator: The built-in LED lamp shows the status of the connection and power supply.
Compatibility:
This product is only compatible with specific models from the Autel range. It does not function as a standalone diagnostic device.
- Autel MaxiCOM-serie: MK808BT, MK808BT Pro, MK808TS
- Autel MaxiCheck-serie: MX808, MX808TS
- Autel MaxiDAS-serie: DS808BT
Package Contents:
- 1x Autel MaxiVCI Mini
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Autel |
| Product model | MaxiVCI Mini |
| Dimensions | 86 x 42.5 x 20.5 mm |
| Operating temperature | 0 °C to 50 °C |
| Weight | 51 g |
| Storage temperature | -20 °C to 70 °C |
| Protocol support | Standard OBDII protocols |
| Connection | Bluetooth |
| Power supply | 12 V via OBDII connection |
