Cojali | 15-pins Type-S/N Spiral Cable | Trailer

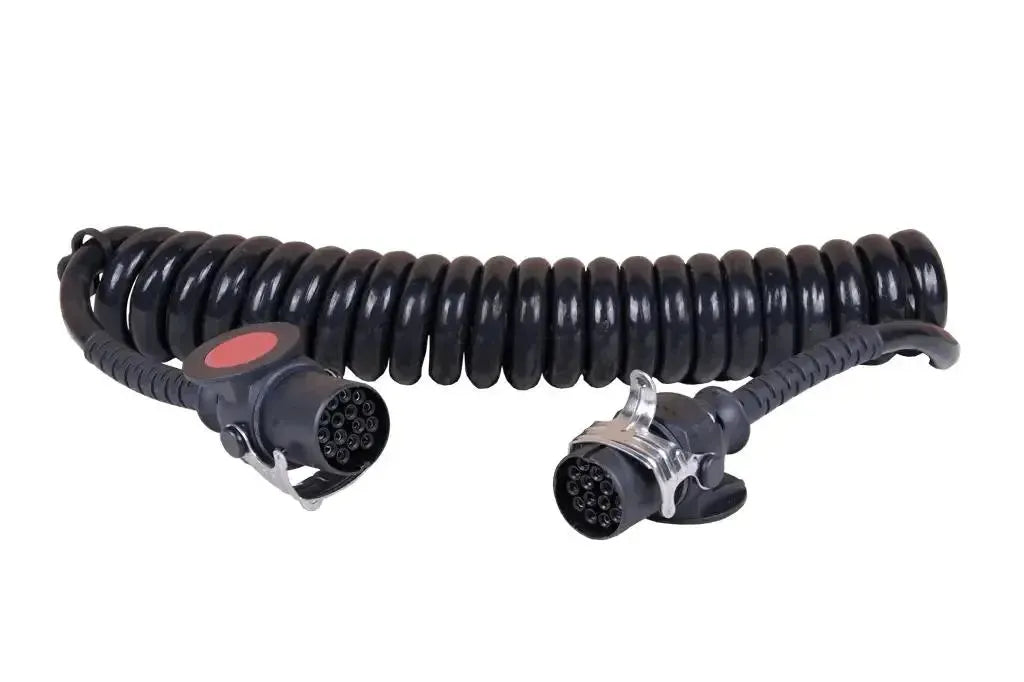

The Cojali 2260109 is a 15-pin Type-S/N spiral cable that operates on 24V electrical systems. This cable is designed to establish the electrical connection between a tractor and a trailer or semi-trailer. The cable has an effective extended length of four meters and is equipped at both ends with a 15-pin ISO plug, ensuring a standardized connection according to the ISO 12098 standard.
The spiral design of the cable offers flexibility during use and prevents the cable from touching the ground or tangling. The construction is rated for an operating temperature of -40°C to 80°C, making the cable suitable for various weather conditions. The pin configuration ensures a one-to-one connection, where each pin of one plug is directly connected to the corresponding pin on the other plug for correct signal and power transmission.
Application and functionality:
This cable is used for the transfer of power and signals for various systems on a trailer, including:
- Lighting systems: Supplies power to brake lights, turn signals, tail lights, and other mandatory lighting.
- Brake systems: Provides electrical power and signal transmission for ABS- and EBS systems.
- Additional circuits: Supports other electrical functions of the trailer, such as data connections and power for extra components.
Package Contents:
- 1x Cojali 15-pin Type-S/N spiral cable (2260109)
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Cojali |
| Model | 2260109 |
| Product type | Coiled cable |
| Connection A | 15-pin connector (ISO 12098) |
| Connection B | 15-pin connector (ISO 12098) |
| Voltage | 24V |
| Extended length | 4.0 meters |
| Operating temperature | -40°C to 80°C |
| Weight | 2.17 kg |
| Cable diameter | Ø 15 mm (± 2 mm) |
| Conformity | ISO 12098 |
