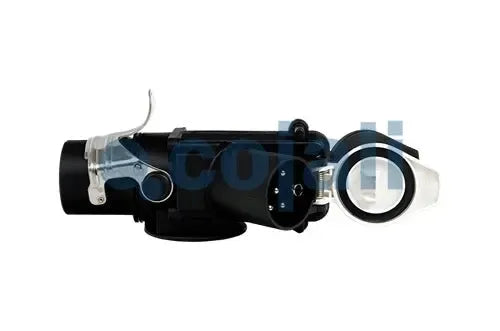

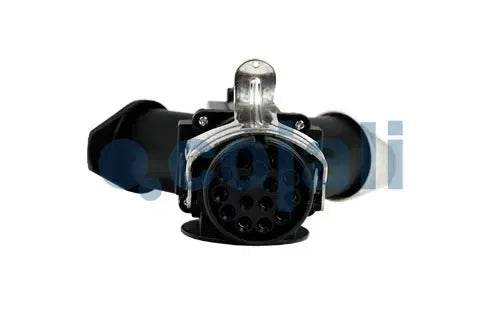

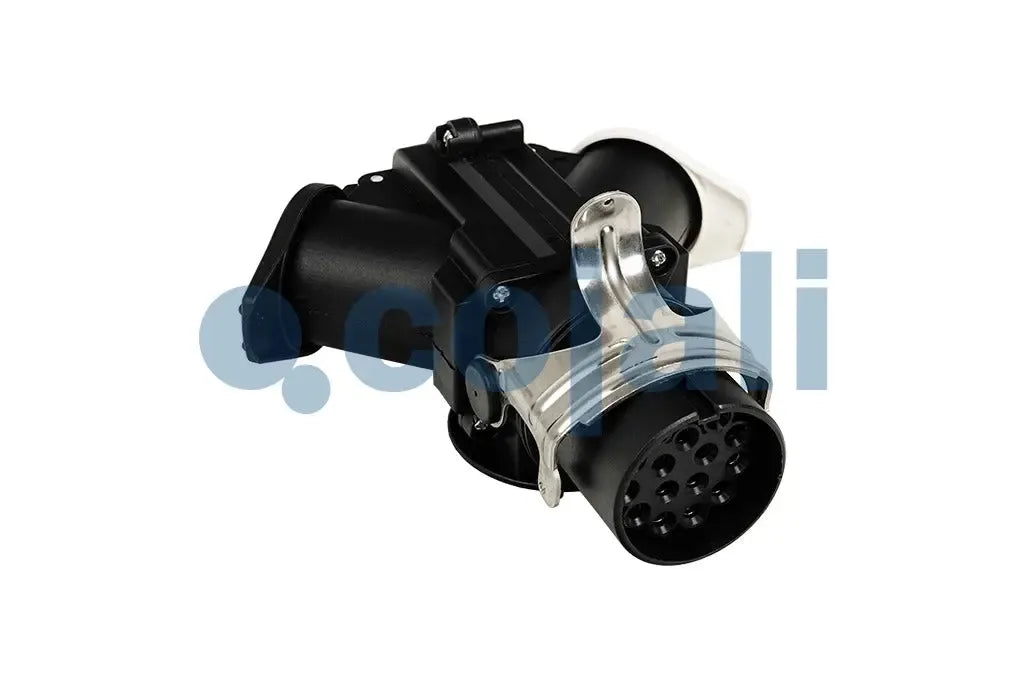

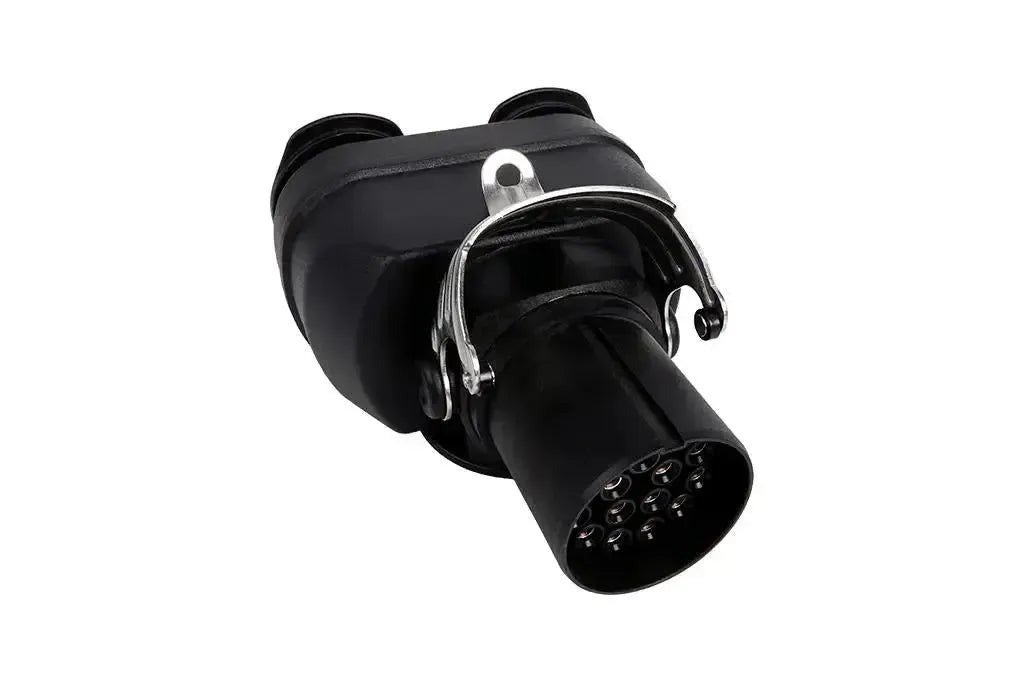

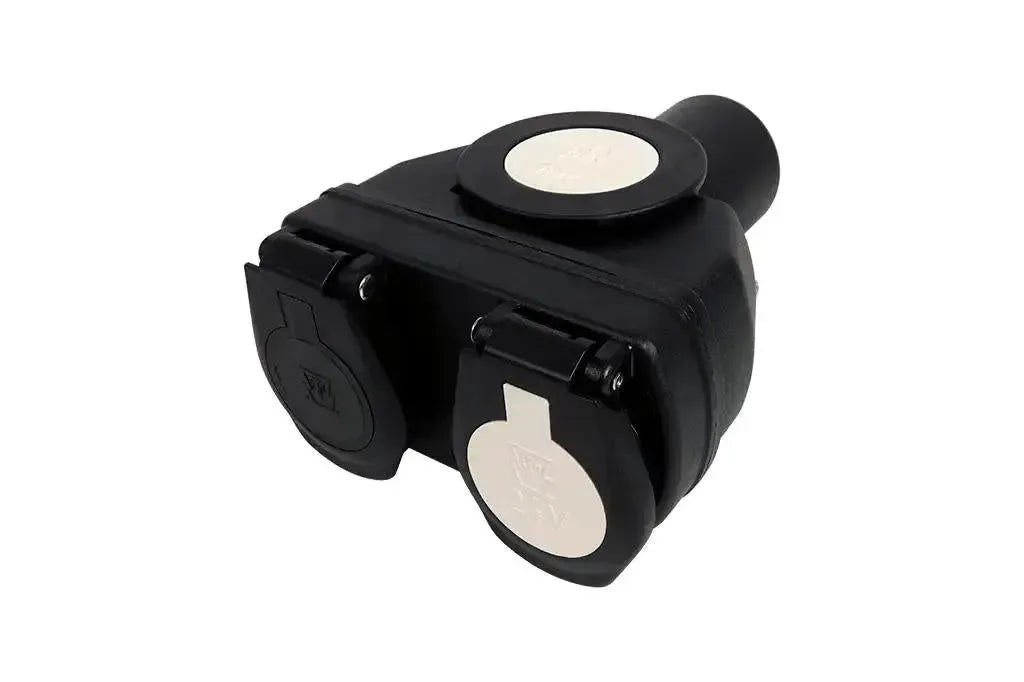

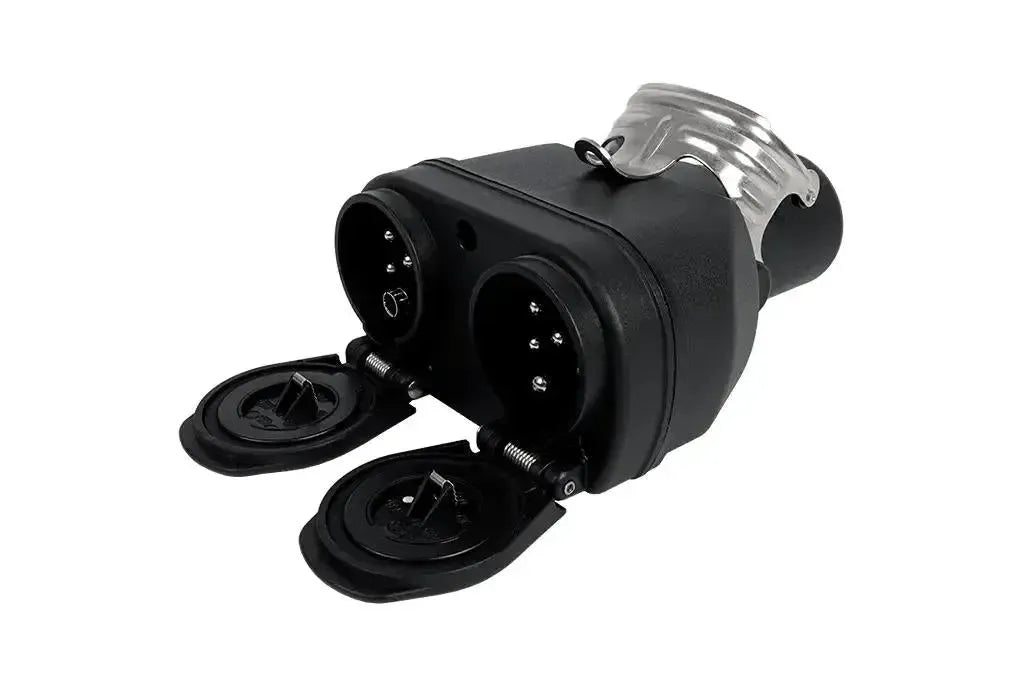

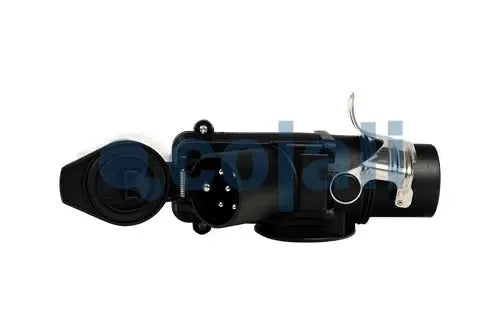

The Cojali 2260110 is a 15-pins to dual 7-pins Adapter, designed for the electrical connection between tractors and trailers. This component converts a single 15-pin connector (according to ISO 12098) of the towing vehicle into two separate 7-pin connectors: a Type-N (24N, ISO 1185, black) and a Type-S (24S, ISO 3731, white). The Adapter operates within a temperature range of -40°C to 80°C and weighs 465 grams.

The Adapter functions as a Y-splitter that distributes the signals from the 15-pin connection over the two 7-pin systems. The black 24N connector is intended for standard lighting functions, while the white 24S connector serves the additional circuits, such as power supply for the ABS system, reversing lights, and permanent power. The design ensures a direct and physically stable connection between the different electrical standards used in the transport sector.

Application and functionality:

This Adapter is developed to achieve compatibility between tractors with a modern 15-pin connection and trailers equipped with the dual 7-pin system (Type N+S).

• Standard conversion: Converts a single 15-pin ISO 12098 signal into a dual 7-pin system, consisting of a 7-pin 24N (ISO 1185) and a 7-pin 24S (ISO 3731) connector.
• Signal distribution: Splits the electrical circuits, with the 24N connector controlling the primary lighting (such as turn signals, brake and tail lights) and the 24S connector handling secondary functions (such as ABS power supply, reversing lights, and continuous power).
• Compatibility: Enables tractors with a 15-pin socket to connect to a wide range of trailers still using the dual 7-pin plugs.
• Physical design: The fixed, Y-shaped construction offers a compact and durable connection without loose wiring, suitable for conditions in the transport sector.

Package Contents:

• 1x Cojali 15-pins to 7-pins Type-S/N Adapter (2260110)

Technical specifications:
