Allosun (EM415Pro) | Short Circuit and Cable Break Detector

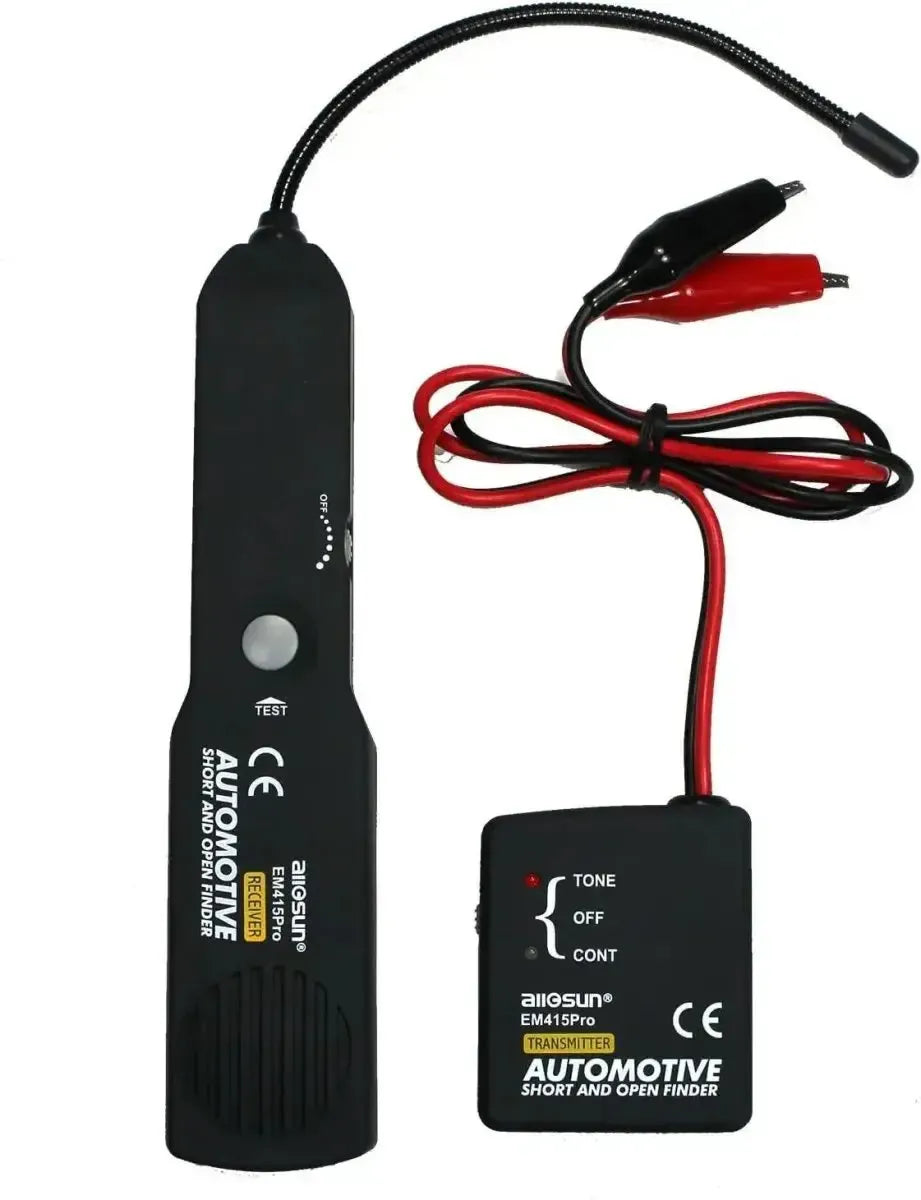

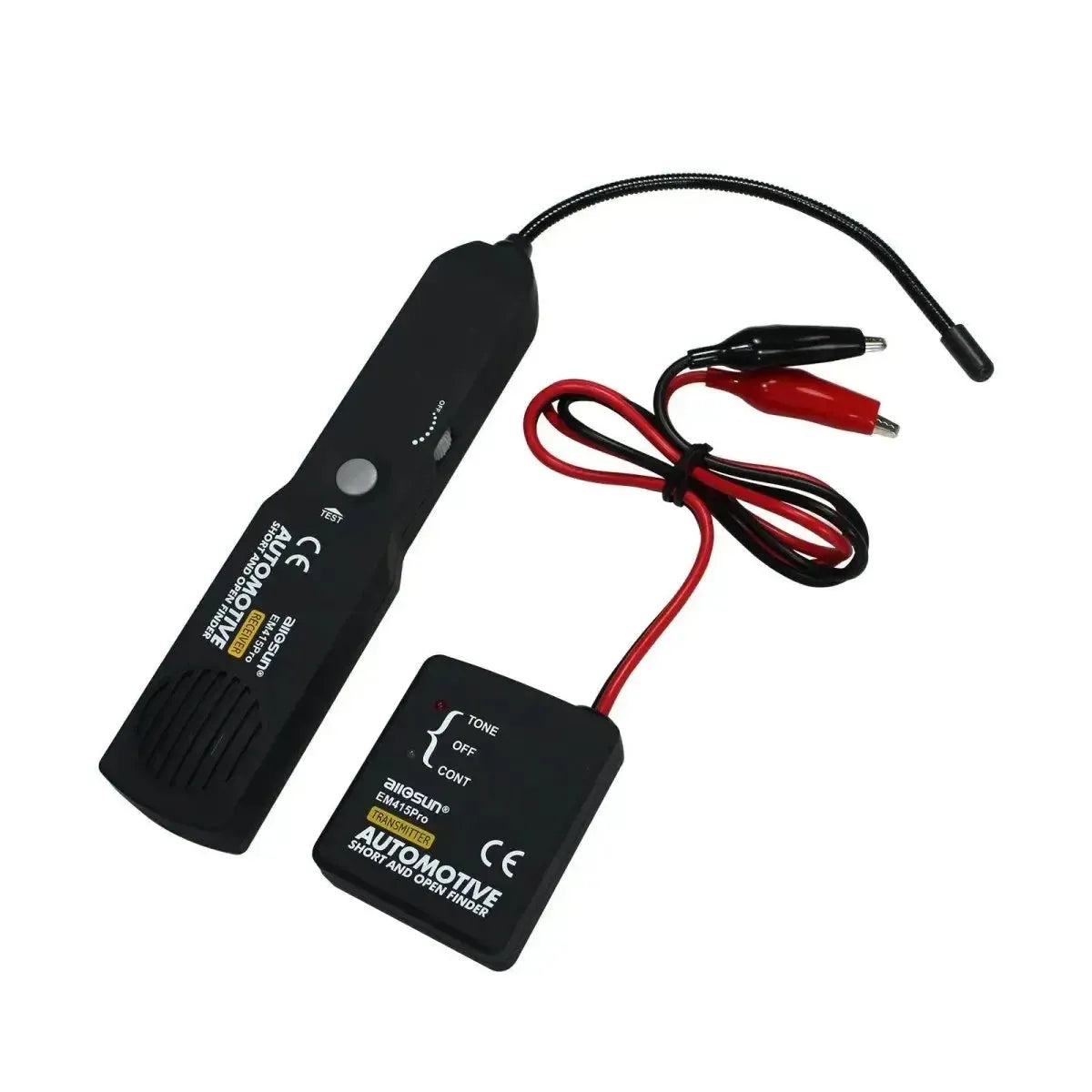

The Allosun EM415Pro is a detector designed for locating short circuits, cable breaks, and tracing wiring in electrical systems. The set consists of a transmitter and a receiver and is suitable for use on circuits with a DC voltage of 6 to 42 volts. This detector is specifically developed for application in the automotive sector for diagnosing electrical faults in cars, trucks, and other vehicles.

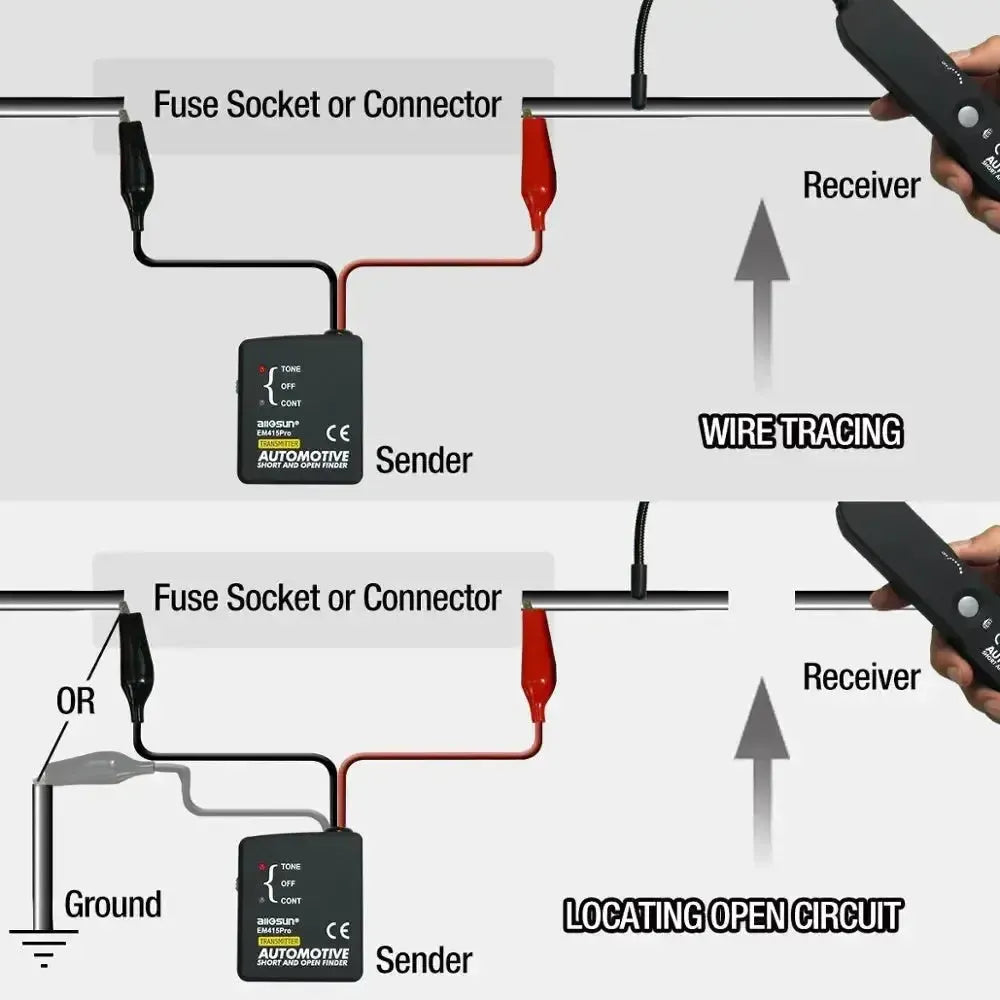

The operation is based on a signal sent by the transmitter through the cable to be checked. The receiver, equipped with a flexible probe, detects this signal without the cable insulation needing to be broken. A variable pitch and a visual indicator on the receiver help precisely locate the position of the cable or fault. The receiver's sensitivity is adjustable to optimize accuracy in different environments.
Application and functionality:
This detector enables quick identification of the cause of electrical problems without damaging the wiring.
- Cable tracing: Follows the path of a specific cable, even when it is in a cable harness, behind panels, or under upholstery.
- Short circuit detection: Locates the exact position of a short circuit by following the signal until it disappears or changes path.
- Finding cable breaks: Identifies a break (open circuit) by following the cable until the transmitter's signal is no longer detectable.
- Adjustable sensitivity: The receiver is equipped with a dial to adjust sensitivity, which helps isolate specific signals in environments with dense wiring.

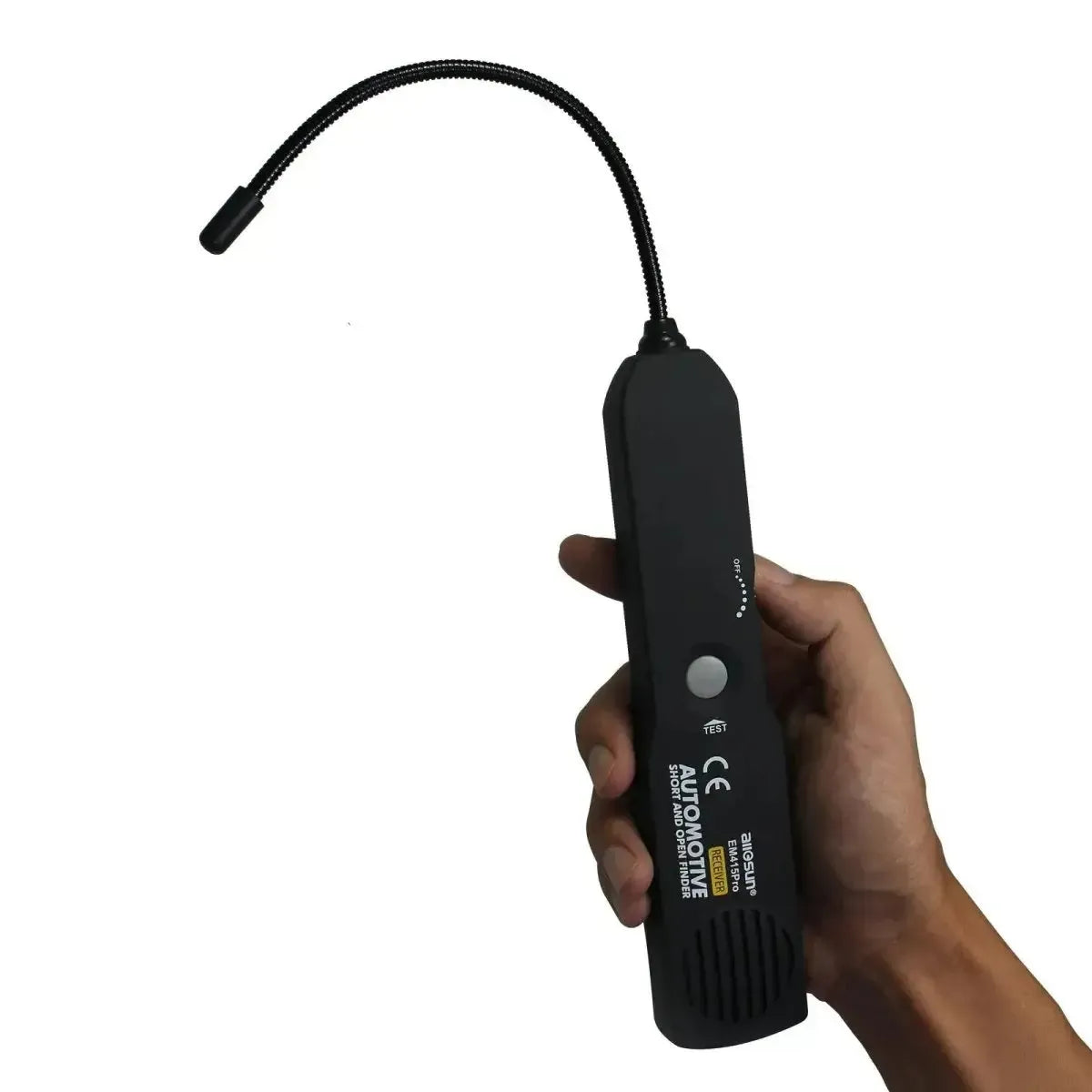

- Flexible probe: The receiver features a flexible probe, allowing inspection of wiring in hard-to-reach places.
- Contactless measurement: Detection takes place through the insulation, keeping the wiring intact and avoiding the risk of further damage.

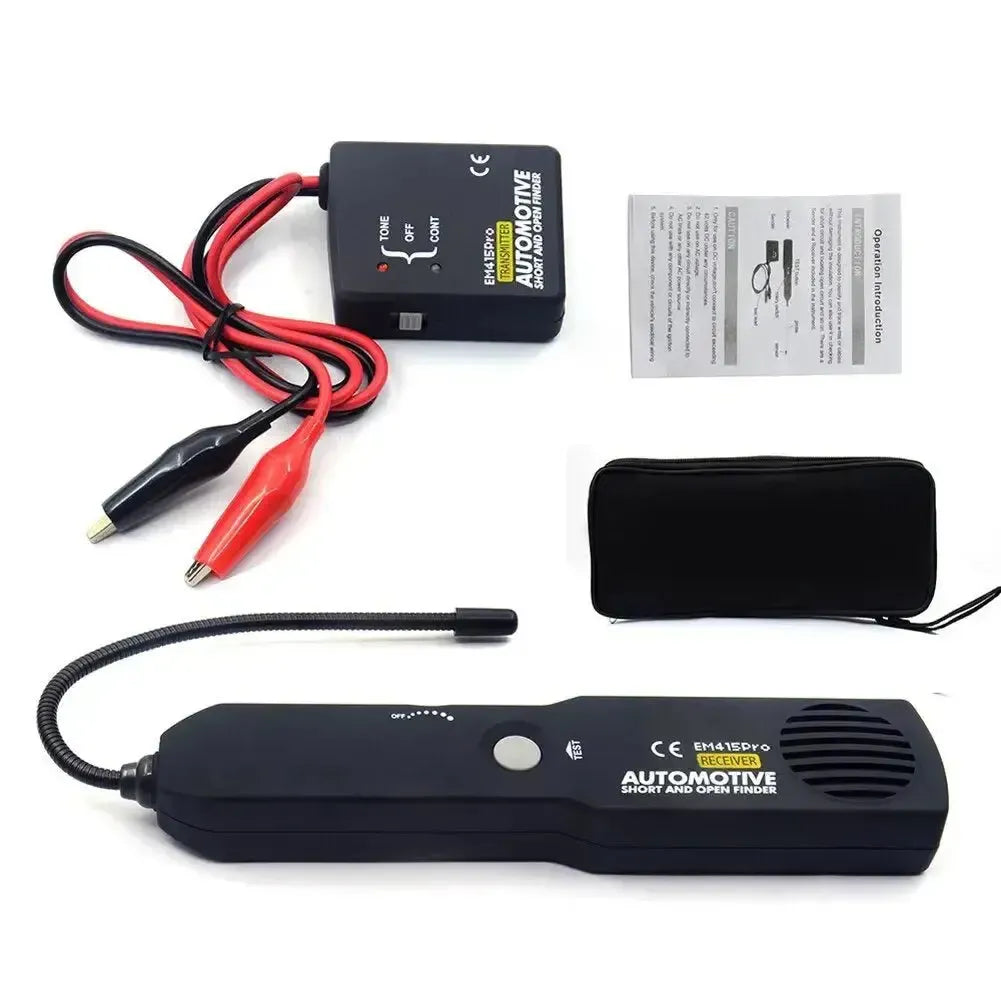

Package Contents:

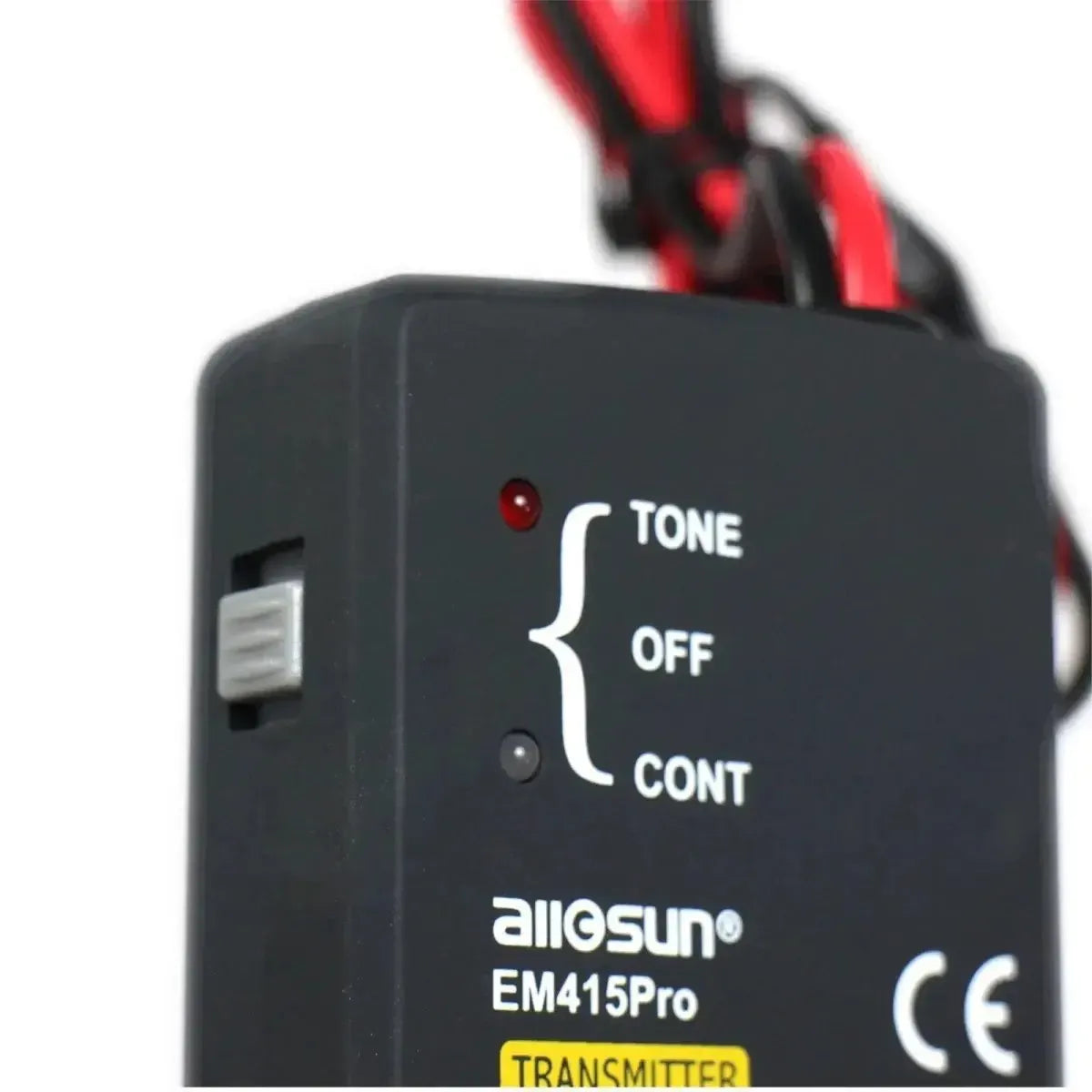

- 1x Allosun EM415Pro transmitter
- 1x Allosun EM415Pro receiver

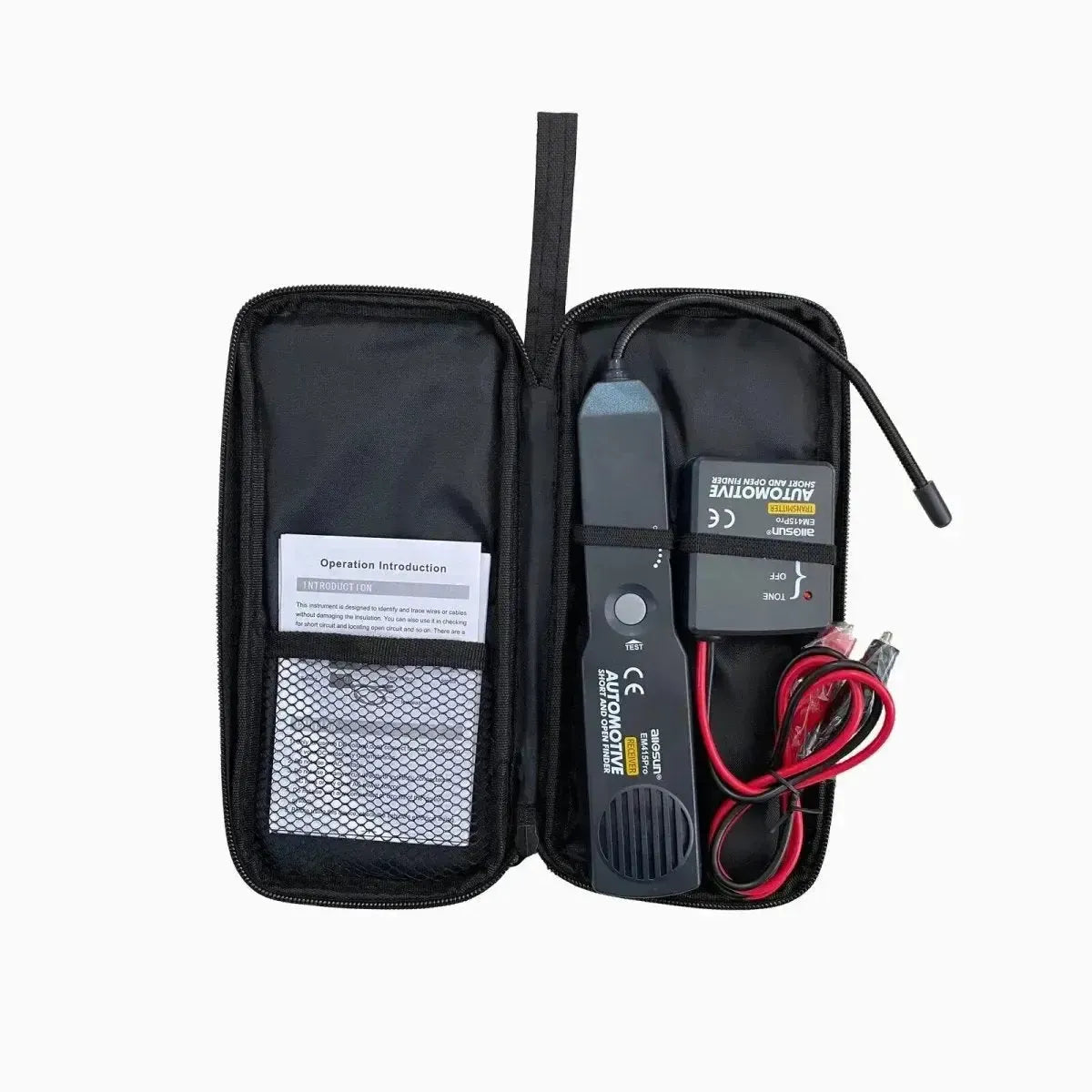

- 1x Carrying case
- 1x Manual
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Allosun |
| Model | EM415Pro |
| Product type | Short circuit and cable break detector |
| Operating voltage | 6 - 42 volt DC |
| Transmitter power supply | 1x 9V battery (not included) |

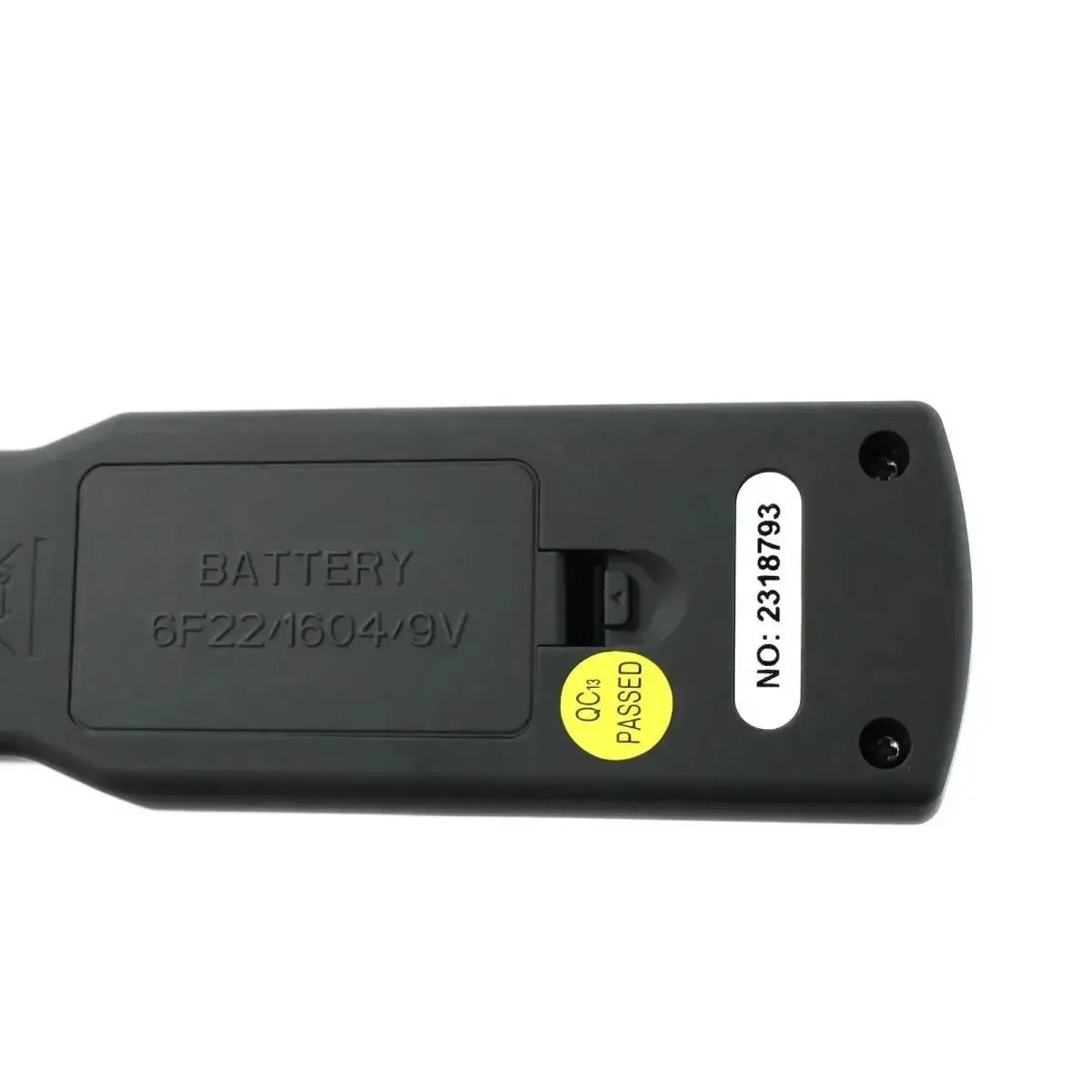

| Receiver power supply | 1x 9V battery (not included) |
| Protection | Internally protected against power surges and overload |
| Length flexible probe | Approximately 18 cm |
