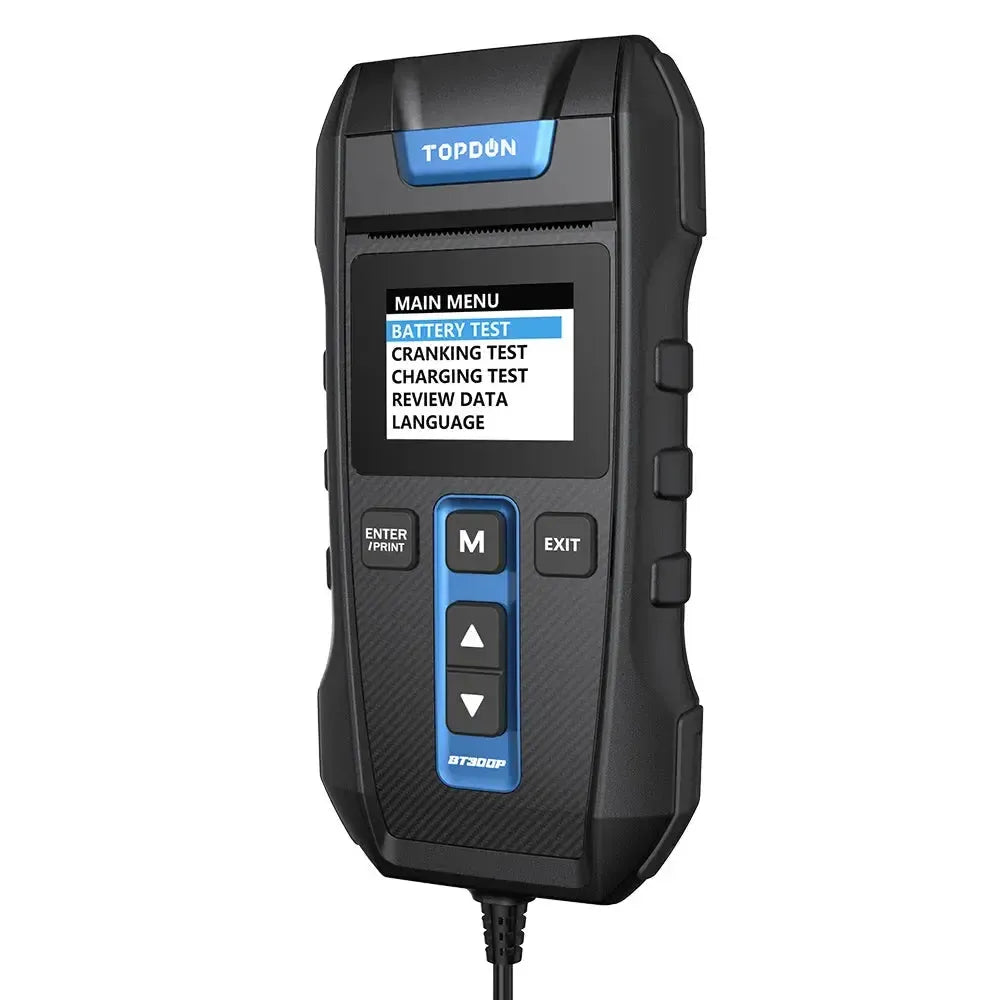

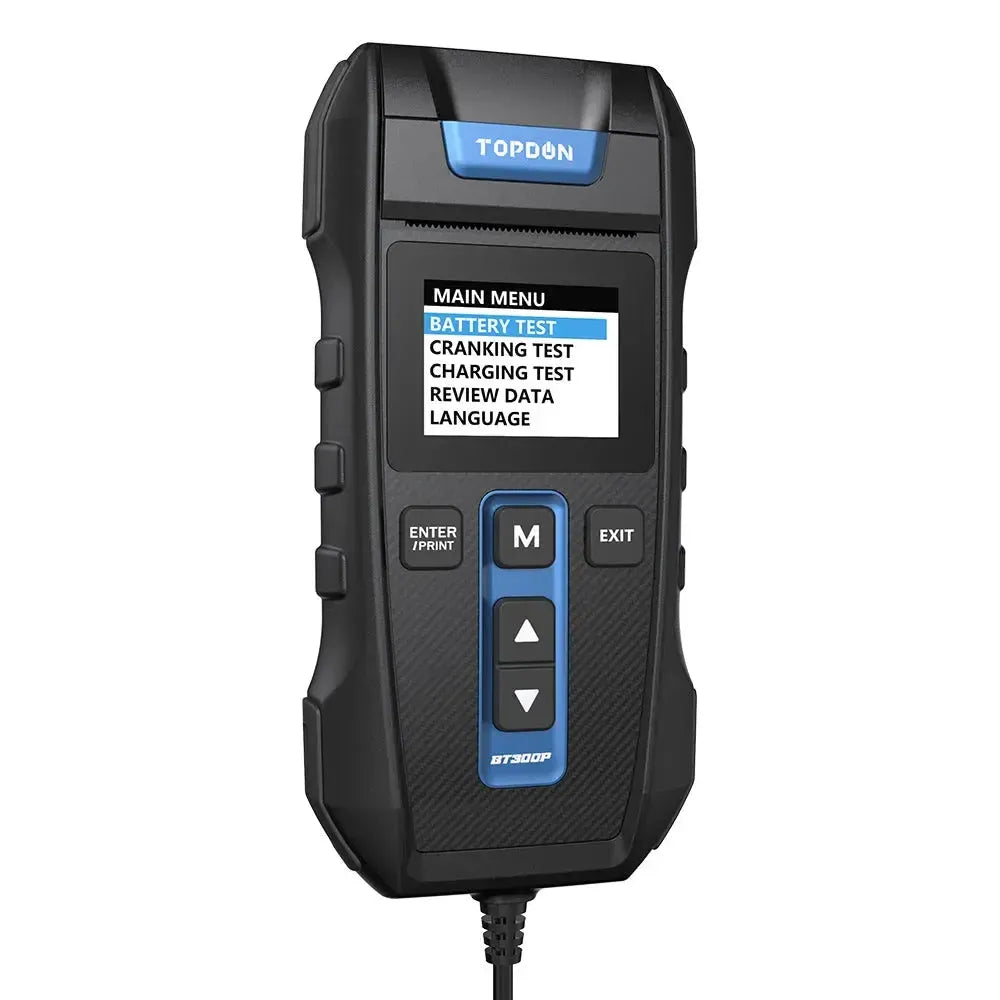

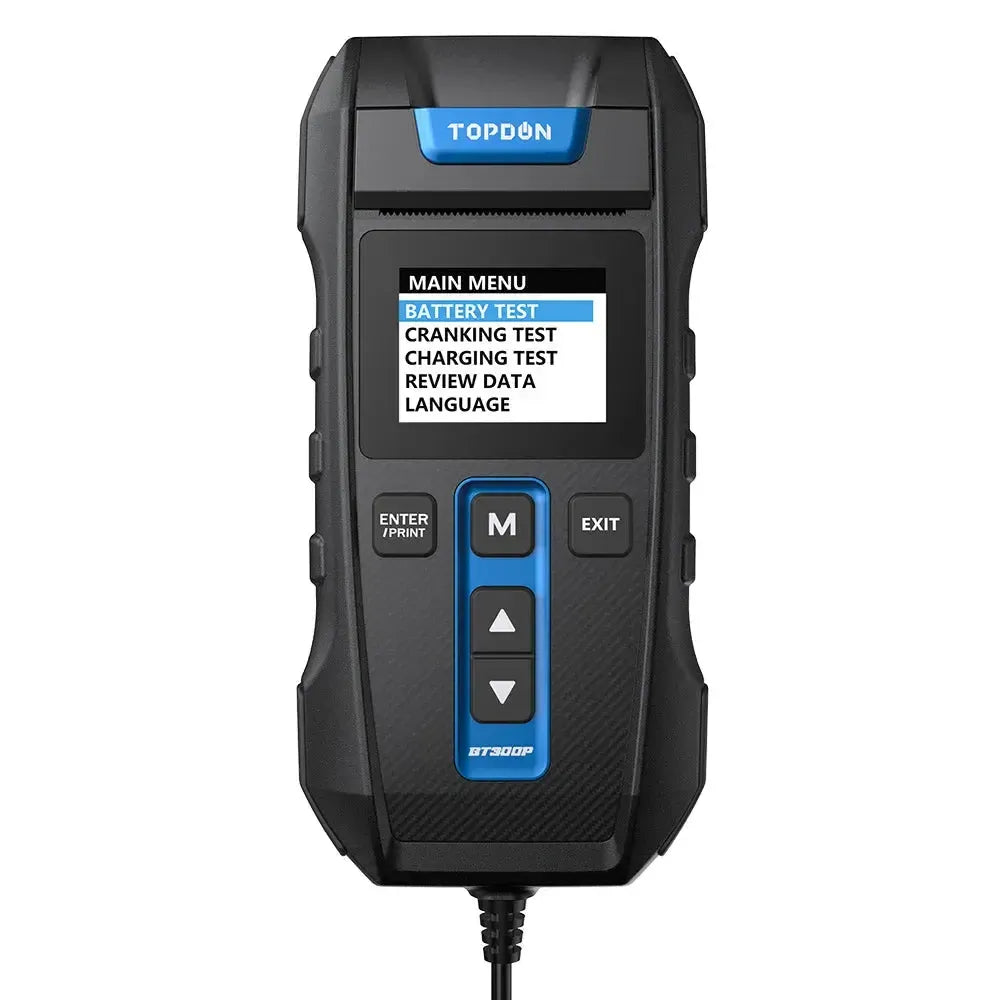

The Topdon BT300P is a battery tester designed to analyze the condition of 12V and 24V lead-acid batteries. This model can measure the actual Cold Cranking Amps (CCA) of a battery and assess the overall health status. The tester is suitable for a wide range of vehicles, including cars, motorcycles, trucks, and boats. The measurement range covers batteries from 100 to 2000 CCA.
A distinctive feature of the BT300P is the built-in thermal printer, which allows test results to be printed immediately. This is practical for documenting maintenance and sharing reports with customers. The tester is equipped with reverse polarity protection, preventing damage to the battery or device in case of incorrect connection. Operation is via a clearly readable screen and an intuitive interface, available in multiple languages.
Application and functionality:
The Topdon BT300P offers various test modes for a complete analysis of a vehicle's battery system.
- Battery Test: Analyzes the battery status, including State of Health (SOH) and State of Charge (SOC), and displays the internal resistance and measured CCA value.
- Start Test (Cranking Test): Checks the starting system by measuring the minimum starting voltage and time during engine start. This helps identify starting problems.
- Charging Test: Evaluates the operation of the vehicle's charging system, including the alternator. The test measures voltage under different loads (no load, load, and ripple test) to verify if the battery is being charged correctly.

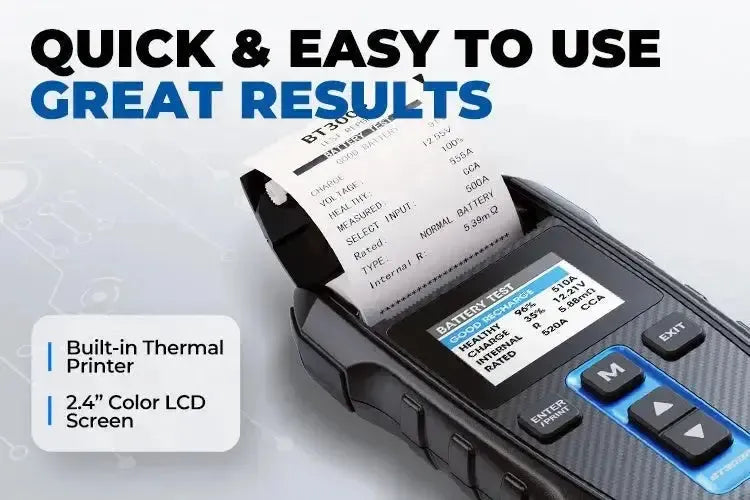

- Integrated Printer: Enables direct printing of test reports. The report contains all important measured values from the performed tests.
Supported battery types:
The tester is compatible with a wide range of 12V and 24V lead-acid batteries.
- Regular Flooded: Standard wet lead-acid batteries.
- AGM Flat Plate: Batteries with Absorbent Glass Mat technology in a flat-plate design.
- AGM Spiral: Batteries with Absorbent Glass Mat technology in a spiral design.
- GEL: Gel batteries where the electrolyte is immobilized in a gel.
- EFB: Enhanced Flooded Battery, an improved version of the standard wet battery, often used in vehicles with start-stop systems.
Supported battery standards:
The device supports the most common international battery standards, making it widely applicable.
- CCA: Cold Cranking Amps (100-2000A)
- BCI: Battery Council International
- CA: Cranking Amps
- MCA: Marine Cranking Amps
- JIS: Japan Industrial Standard
- DIN: German Institute for Standardization
- IEC: International Electrotechnical Commission
- EN: European Standard
- SAE: Society of Automotive Engineers
Package Contents:
- 1x Topdon BT300P battery tester
- 2x Rolls of print paper
- 1x Manual
Technical specifications:
General
- The brand that manufactures the tester.Brand
- Topdon
- Whether the device tests only the battery, or also starting and charging by the alternator. A more comprehensive tester finds more causes of starting problems.Type of tester
- Battery and start tester
- Which battery voltages you can test. 12 volts is for cars, 24 volts for lorries and buses.Battery voltage
- 12 V
- 24 V
Batteries and standards
- Which types of batteries the tester can assess accurately. Modern cars with start stop often have an AGM or EFB battery.Battery types
- Lead acid
- AGM flat plate
- AGM spiral wound
- EFB
- Gel
- The standards in which you can enter the battery's cold start current. Choose the standard shown on the battery.Test standards
- CCA
- EN
- DIN
- IEC
- JIS
- SAE
- BCI
- CA
- MCA
- Between which values the tester can measure the cold cranking current. A wider range suits more types of batteries.Cold start current measuring range
- 100 to 2,000 CCA
Test functions
- Measures the condition, state of charge and cold start current of the battery. This shows whether the battery is still good or needs replacing.Battery test
- Yes
- Measures how far the voltage drops when the engine starts. This shows whether the starter motor draws too much current.Start test
- Yes
- Checks whether the alternator charges the battery properly. Useful if the battery keeps going flat.Charging system test
- Yes
- Measures disturbance in the charging voltage. This helps find a faulty diode in the alternator.Ripple voltage test
- Yes
Screen and controls
- Whether the tester can print the result directly on a receipt. Useful to hand to a customer.Built-in printer
- Yes
Use
- Protects the tester if you connect the clamps the wrong way round.Reverse polarity protection
- Yes
Dimensions and weight
- The length, width and height of the tester.Dimensions
- 205 x 108 x 43 mm
- How heavy the tester is. A light tester is easy to carry.Weight
- 450 g
Other specifications
- Application
- Battery, start, and charging system test
- Test Functions
- Battery test, start test, charging test, ripple test
- Connections

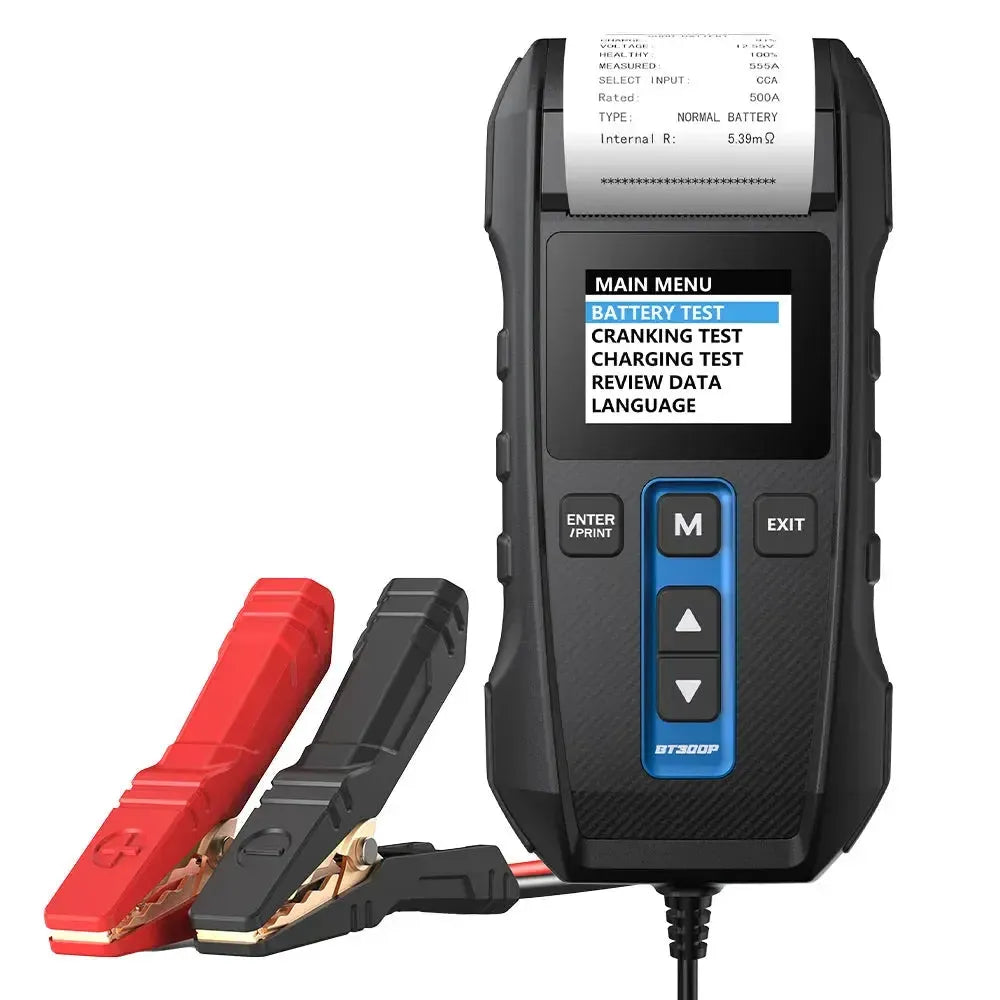

- Crocodile clips
