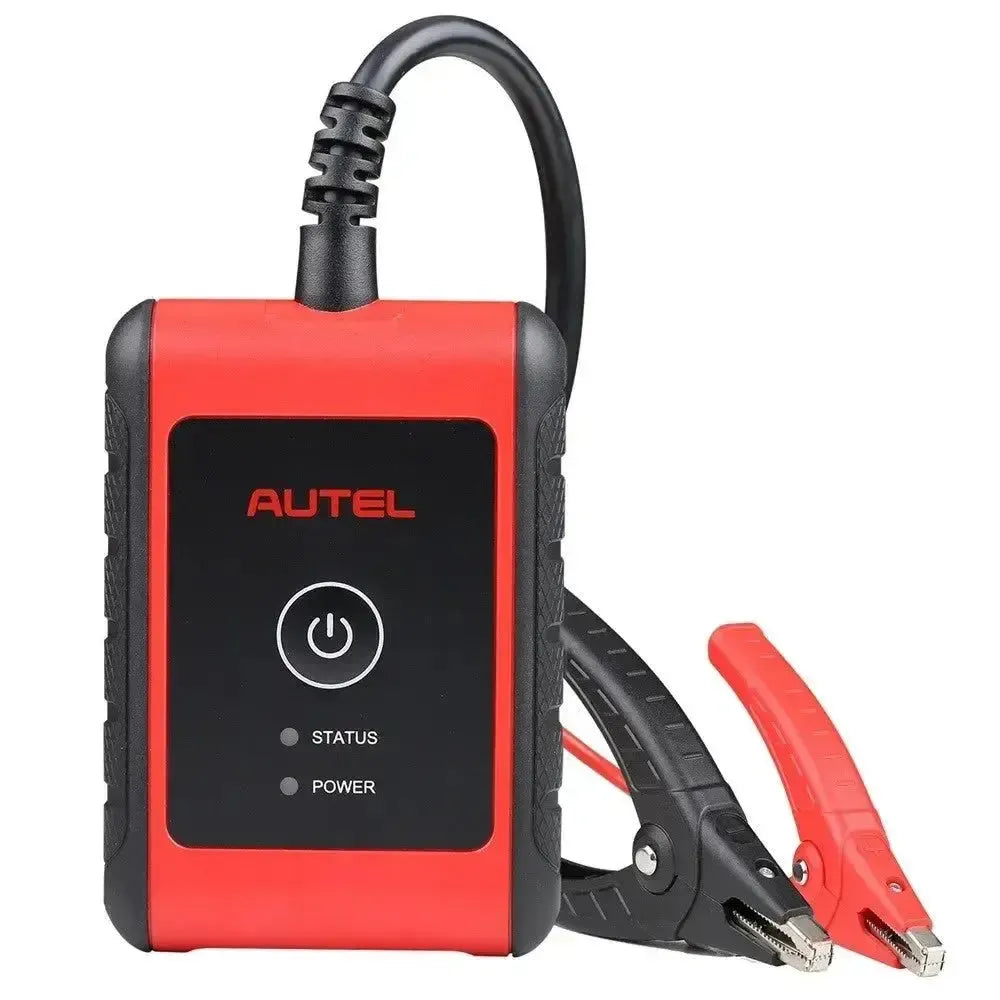

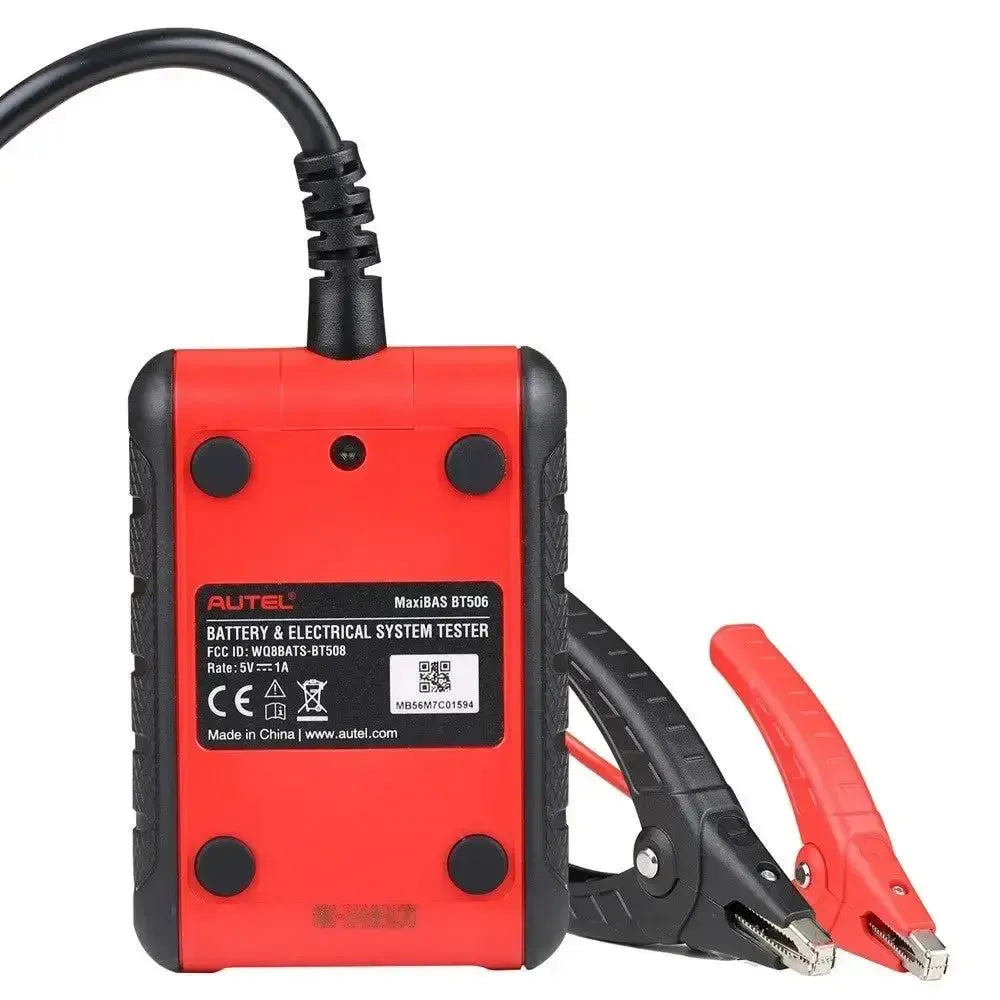

The Autel MaxiBas BT506 is a wireless battery tester for analyzing 12V batteries and starting/charging systems in passenger cars and light commercial vehicles. The device works in combination with an Autel tablet via Bluetooth and supports various battery types, including conventional lead-acid, AGM, AGM Spiral, EFB, and gel. Thanks to the adaptive conductance technology, it provides accurate measurements of the actual battery condition and health status.

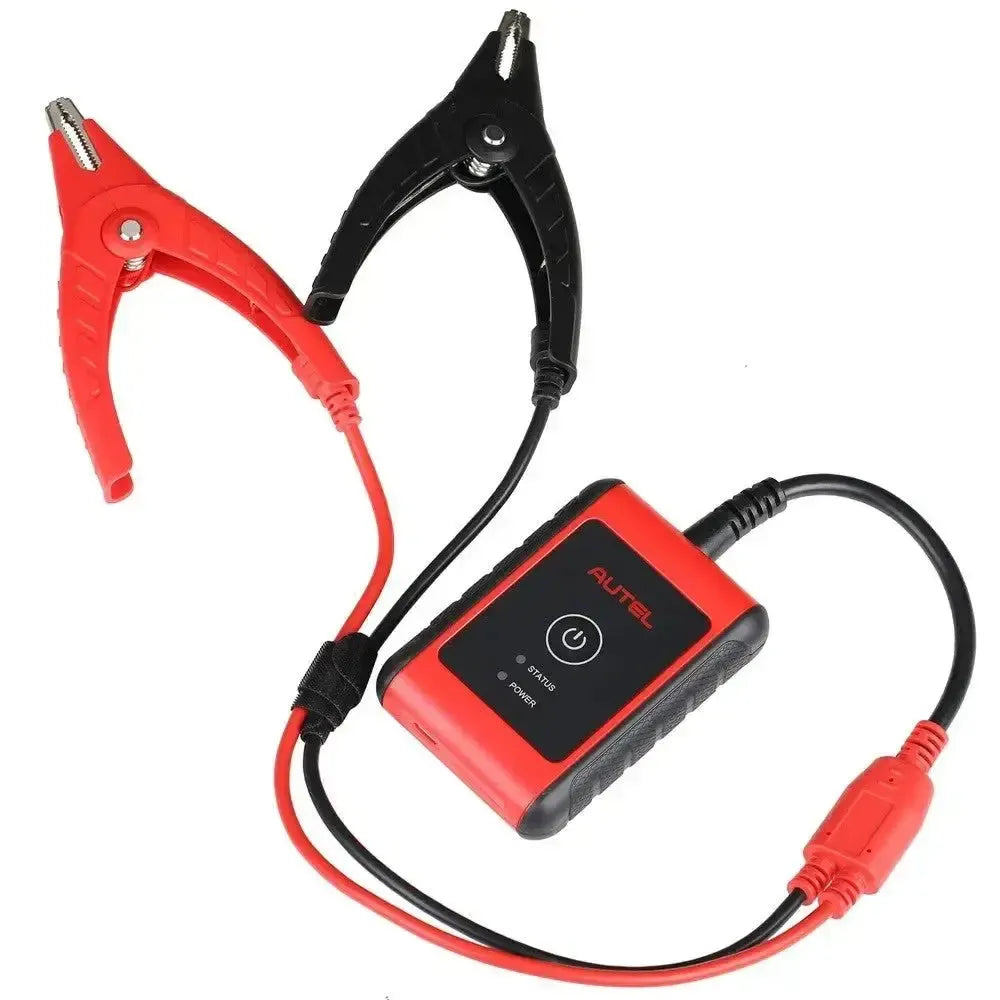

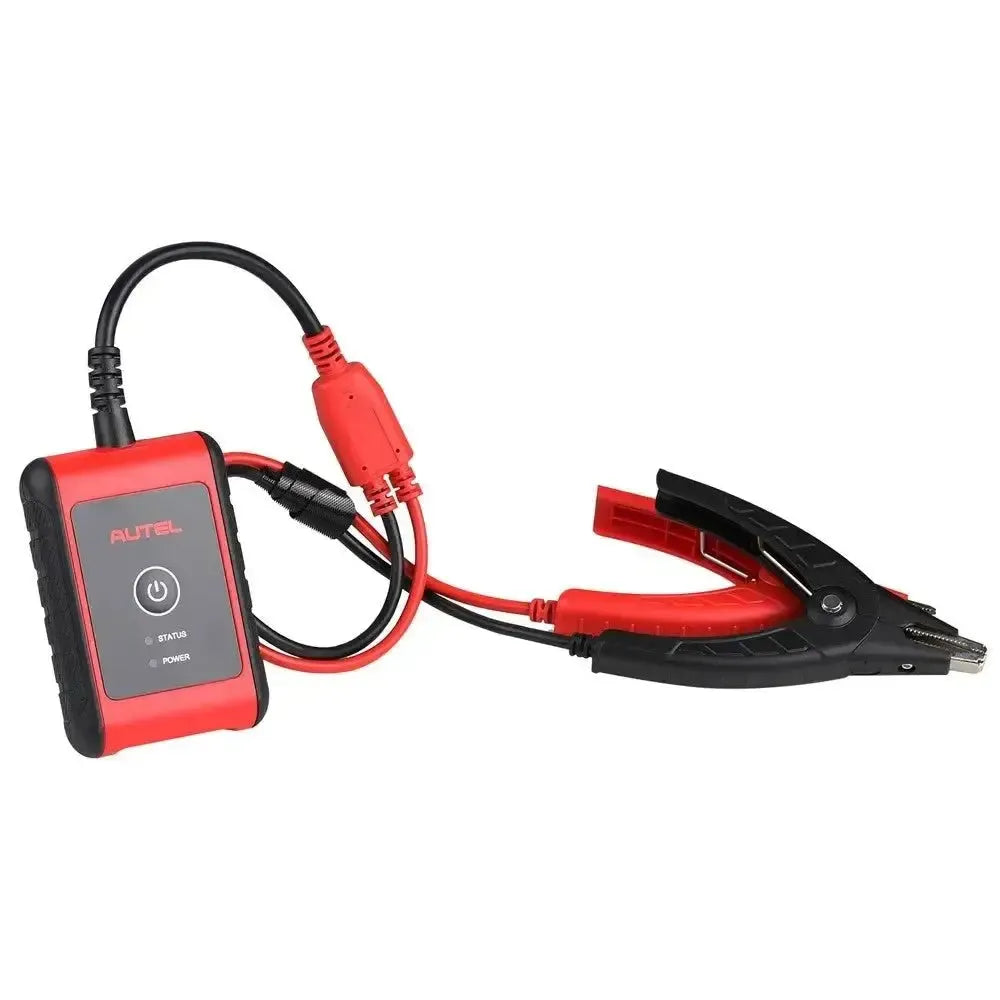

After connection to the battery terminals via the integrated clamps, the BT506 communicates wirelessly with the paired tablet, which displays all test results, graphs, and reports. The tester performs battery tests, starting system tests, and charging system tests and automatically detects the CCA value, voltage, and internal resistance. In combination with an Autel diagnostic tool, the technician can immediately perform a battery registration via the vehicle’s BMS system after replacement.
ADVANTAGES
KEY POINTS
Applications and functionalities
The BT506 supports the following test and analysis functions on the 12V system:
- Battery test: Measures voltage, internal resistance, and CCA value and determines the battery's state of health (SoH) and state of charge (SoC).
- Starter system test: Analyzes the behavior of the starter motor during starting and detects voltage drop or slow buildup indicating starting problems.
- Charging system test: Checks the operation of the alternator and voltage regulator under load and no load to detect charging deviations.
- Battery type recognition: Selects the correct test profile for lead-acid, AGM, AGM Spiral, EFB, and gel batteries.
- Report generation: Saves test results and exports them as a report linked to vehicle data or VIN.
Special functions and capabilities
The BT506 stands out with the following features:
- Adaptive conductivity technology: Combines conductivity measurement with dynamic analysis for more accurate determination of the actual battery condition than traditional methods.
- Connection with diagnostic tablet: Integrated workflow where test results are immediately available within the Autel diagnostic platform, including referral to BMS registration via an additional diagnostic tool.
Package Contents
- 1x Autel MaxiBas BT506 | Battery Tester
- 1x Quick start guide
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Autel |
| Product model | MaxiBas BT506 |
| Product type | Battery and electrical system tester |
| Battery voltage | 12V |
| Supported battery types | Lead-acid, AGM, AGM Spiral, EFB, gel |
| CCA measurement range | 100 – 2000 CCA |
| Supported test standards | CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB |
| Test functions | Battery test, starter system test, charging system test |
| Connection | Bluetooth, wireless to Autel tablet |
| Vehicle connection | Integrated battery clamps |
