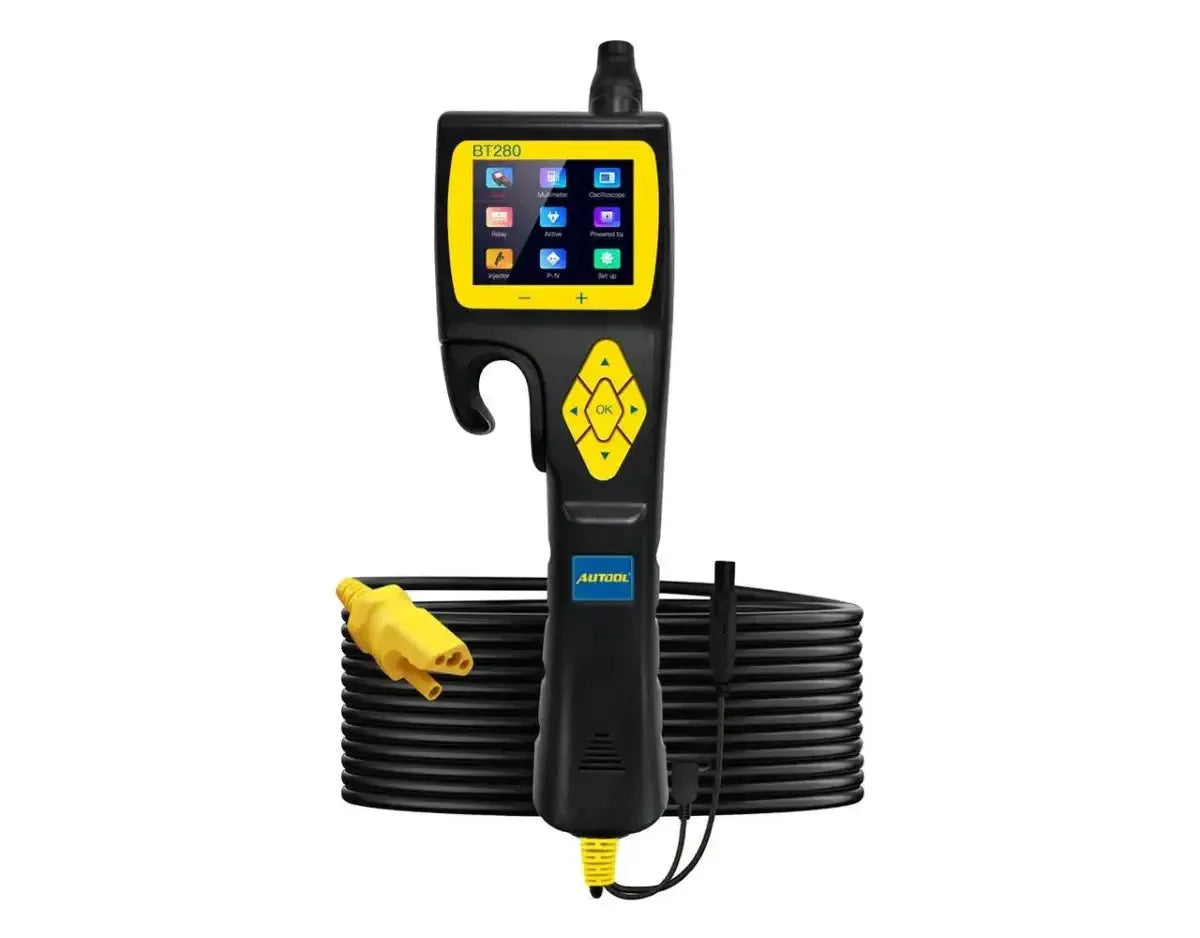

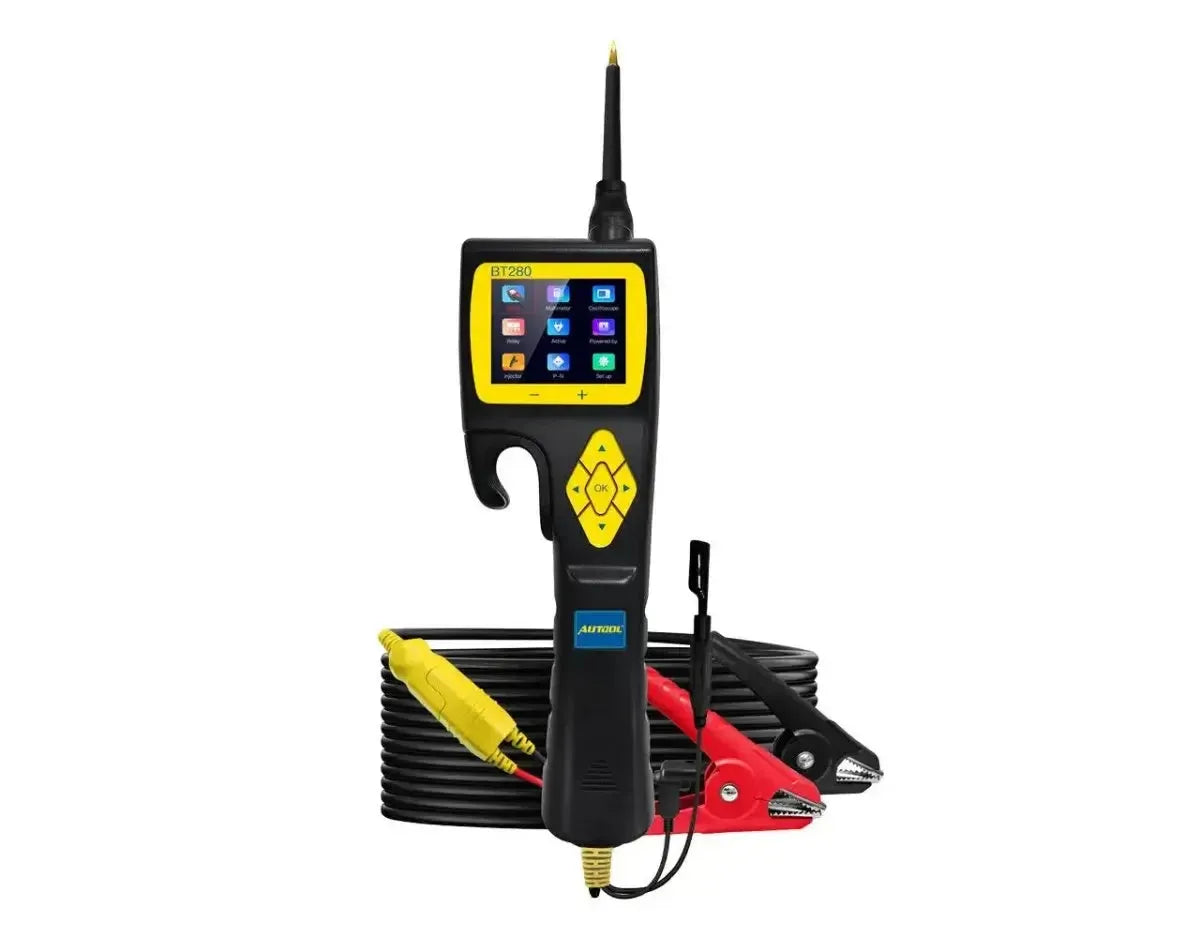

The Autool BT280 circuit tester is designed to perform comprehensive electrical diagnostics on 12V and 24V vehicle electrical systems. The tester operates at a working voltage of 9V to 30V and measures DC voltage up to 100V with its robust measurement sensor. The device is powered directly from the vehicle battery via the supplied battery clamps and a 6-meter power cable. This generous cable length allows the diagnostic technician to perform measurements around the entire vehicle without extension cords, from fuse boxes in the engine bay to lighting circuits at the rear of a commercial vehicle or trailer.
During troubleshooting, the tester automatically detects the circuit type via the Smart Test mode, after which current measurement values for voltage and resistance appear directly on the 2.4-inch color LCD display screen. Beyond passive measurement, the device offers the ability to actively test actuators such as cooling fans, windshield wiper motors, or lights by applying power or ground directly to a component via a button. The built-in red and green LED indicators provide instant visual confirmation of the detected polarity. Thanks to the integrated work light, the measurement location is always well illuminated, which significantly simplifies tracing wiring in dark and confined spaces.
KEY FEATURES
IMPORTANT NOTES
Applications and functionality
This circuit tester consolidates multiple diagnostic tools by combining standard measurement instruments with active testing capabilities.
- Multimeter mode: Measures fundamental electrical parameters, including DC voltage from 0.1V to 100V, resistance from 1Ω to 200 kΩ, current up to 18A, and frequency. Also includes a diode test for checking semiconductors in charging circuits or relay diodes.
- Oscilloscope mode: Generates a graphical display of measured voltage over time. Essential for monitoring dynamic signals such as PWM control signals and sensor outputs, or detecting voltage drops on the data bus.
- Smart Test: An automated mode that independently detects whether the probe is touching positive, ground, or resistance. The tester automatically switches to the correct measurement unit, significantly speeding up troubleshooting.
- Component activation: Delivers available battery voltage or ground directly to an actuator or load to verify operation. The activation mode can be set to momentary (while the button is pressed), continuous (locked), or via a repeating pulse signal.
Special features and capabilities
For comprehensive diagnostics of modern engine management systems, the tester includes specialized simulation and protection functions.
- Injector test: Features four dedicated pulse modes for controlling fuel injectors. Allows safe testing of the injector inside or outside the vehicle for proper mechanical opening, closing, and spray pattern, without involving the engine ECU.
- Relay diagnostics: Via a dedicated test port and included adapter cables, common 4- and 5-pin automotive relays can be directly activated and tested for proper contact closure.
- 0–5V power simulation: Generates an adjustable reference voltage between 0V and 5V, limited to a safe output current of 100 mA. This function is used to simulate sensor outputs such as a MAP sensor or throttle position sensor, to test wiring and ECU response.
- Adjustable overload protection: Features an electronic current breaker with a configurable trip current in the menu. This protects the tester, vehicle wiring, and the tested component against short circuits and excessive current draw during active power delivery.
Package contents
- 1x Autool BT280 circuit tester
- 1x 6-meter power cable with battery clamps and extension connector
- 1x Test cable set for relay diagnostics, with clamps
- 1x Set of interchangeable test probes and sensors
- 1x Extra ground cable with clamp, green and black
- 1x USB cable for firmware updates
- 1x Rugged storage case
- 1x User Manual
Technical Specifications
| Specification | Description |
|---|---|
| Product Brand | Autool |
| Product Model | BT280 |
| System Input Voltage | 9V - 30V DC |
| DC Voltage Range | 0.1V - 100V |
| Resistance Range | 1Ω - 200 KΩ |
| Current Range | 0 - 18A |
| Power Supply Simulation | 0V - 5V, maximum 100 mA output |
| Power Cable Length | 6 meters |
| Display | 2.4-inch HD LCD color screen |
| Protection | Adjustable electronic fuse and overcurrent protection |
| Additional Features | Built-in work light and acoustic buzzer |
| Part Number | BT280 |
