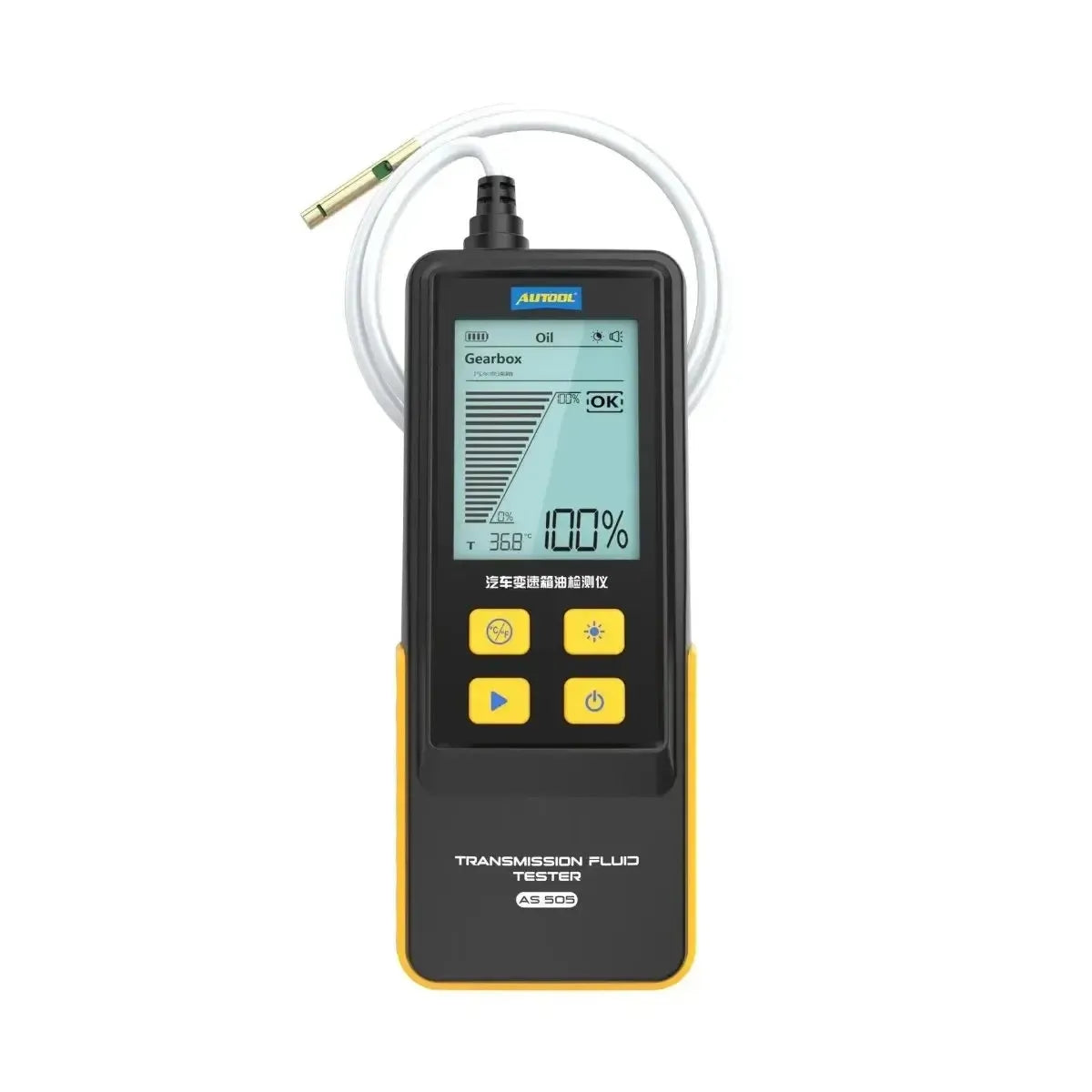

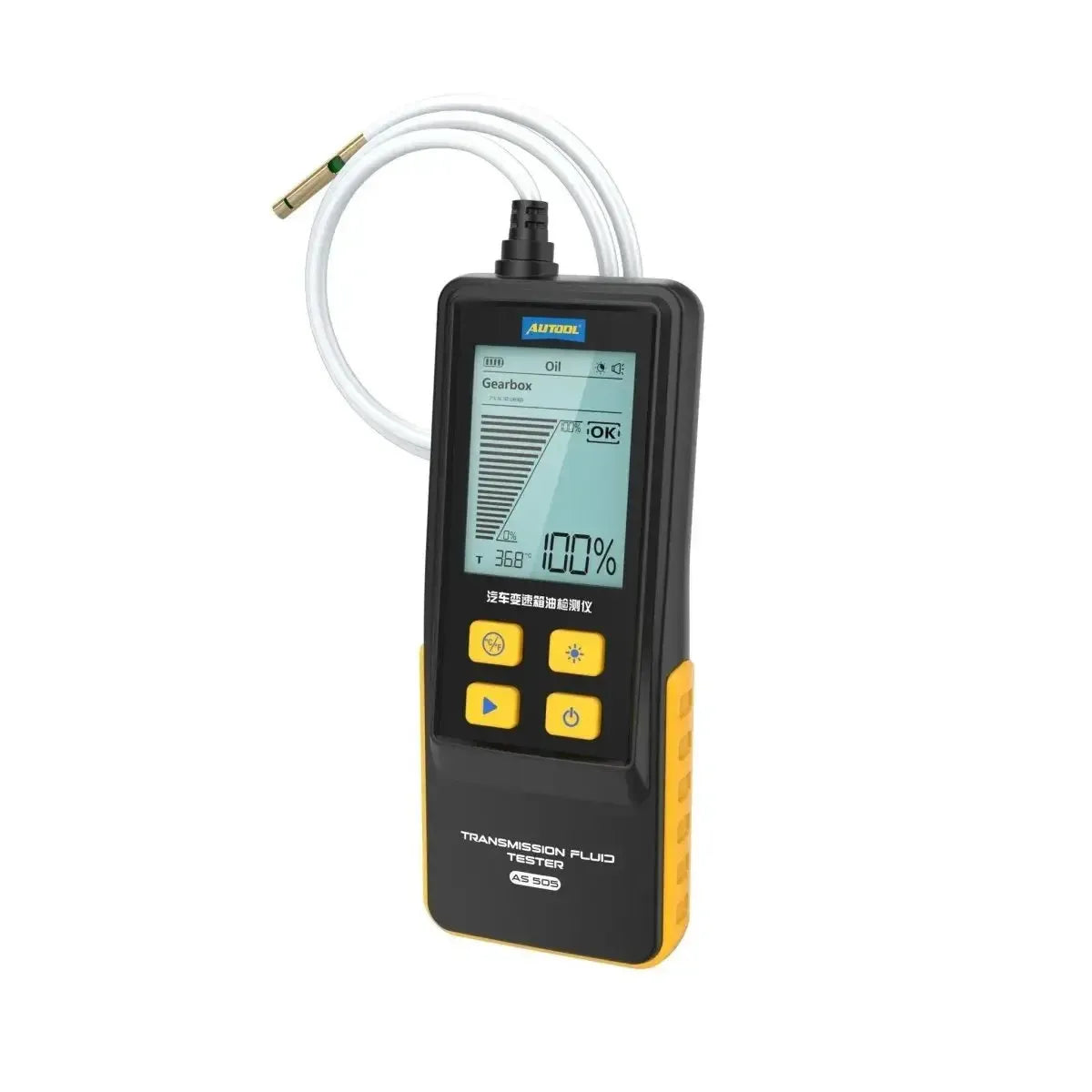

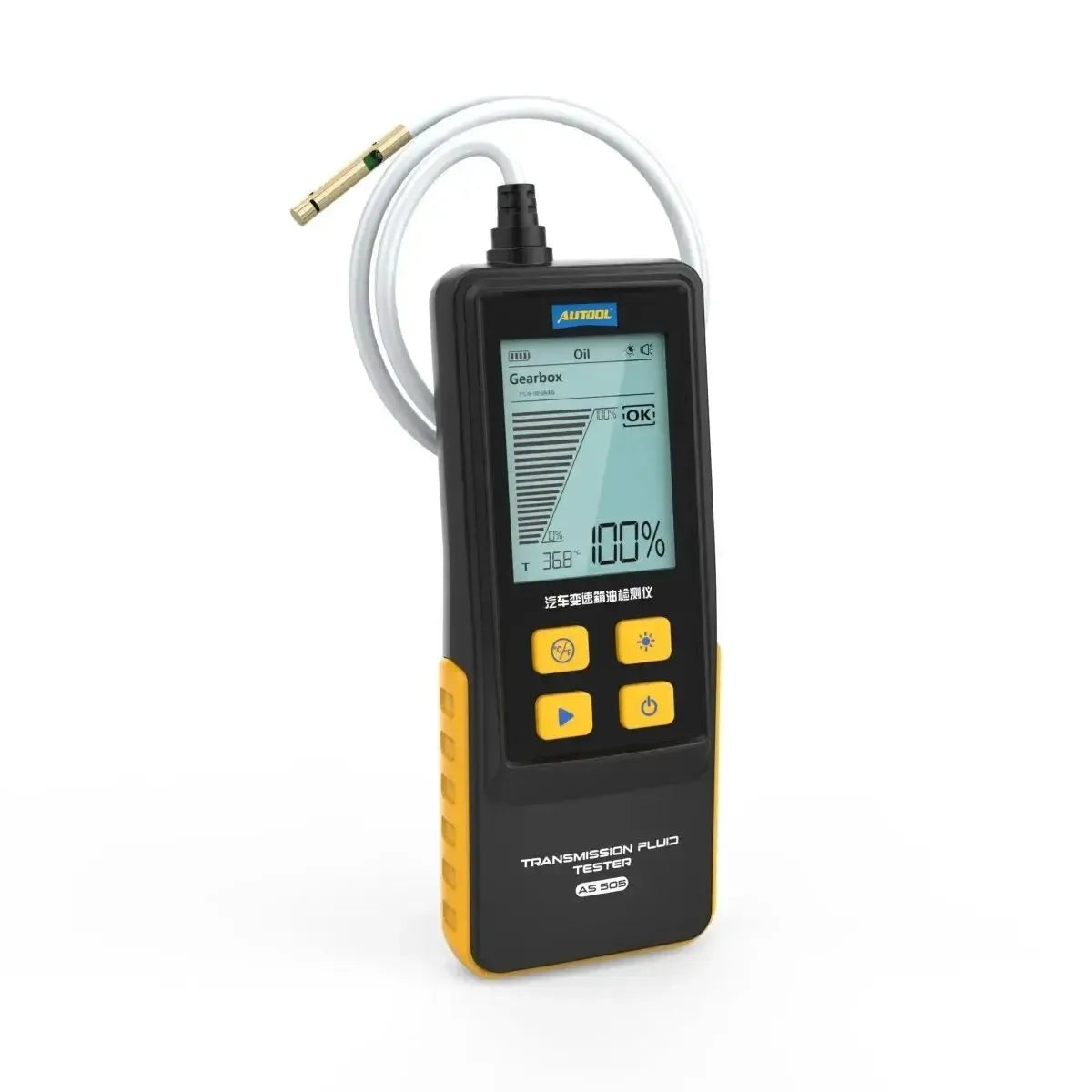

The Autool AS505 is an automatic transmission fluid tester. It assesses the ATF condition in automatic gearboxes. An optical probe measures how much light still passes through the fluid, and this is exactly what changes as the fluid endures heat and wear.
This is particularly useful for automatics, because the fluid often has no fixed service interval and there is rarely a dipstick to check. The probe is attached to an 800 mm PTFE hose, long enough to reach the fluid via the filler or dipstick opening. The measurement takes ten seconds and the device also reads the fluid temperature.
KEY BENEFITS
POINTS TO NOTE
Application and functionality
Transmission fluid faces extreme conditions in an automatic gearbox: the torque converter generates heat, the clutches introduce wear particles, and many manufacturers specify no fixed service interval. A measurement replaces the guesswork that otherwise remains.
The Autool AS505 supports the following measurement and calibration functions:
- Optical measurement of light transmission: Of automatic transmission fluid, expressed as a percentage.
- Three-level assessment: Above 60 per cent satisfactory, between 60 and 30 per cent a warning, below 30 per cent replace.

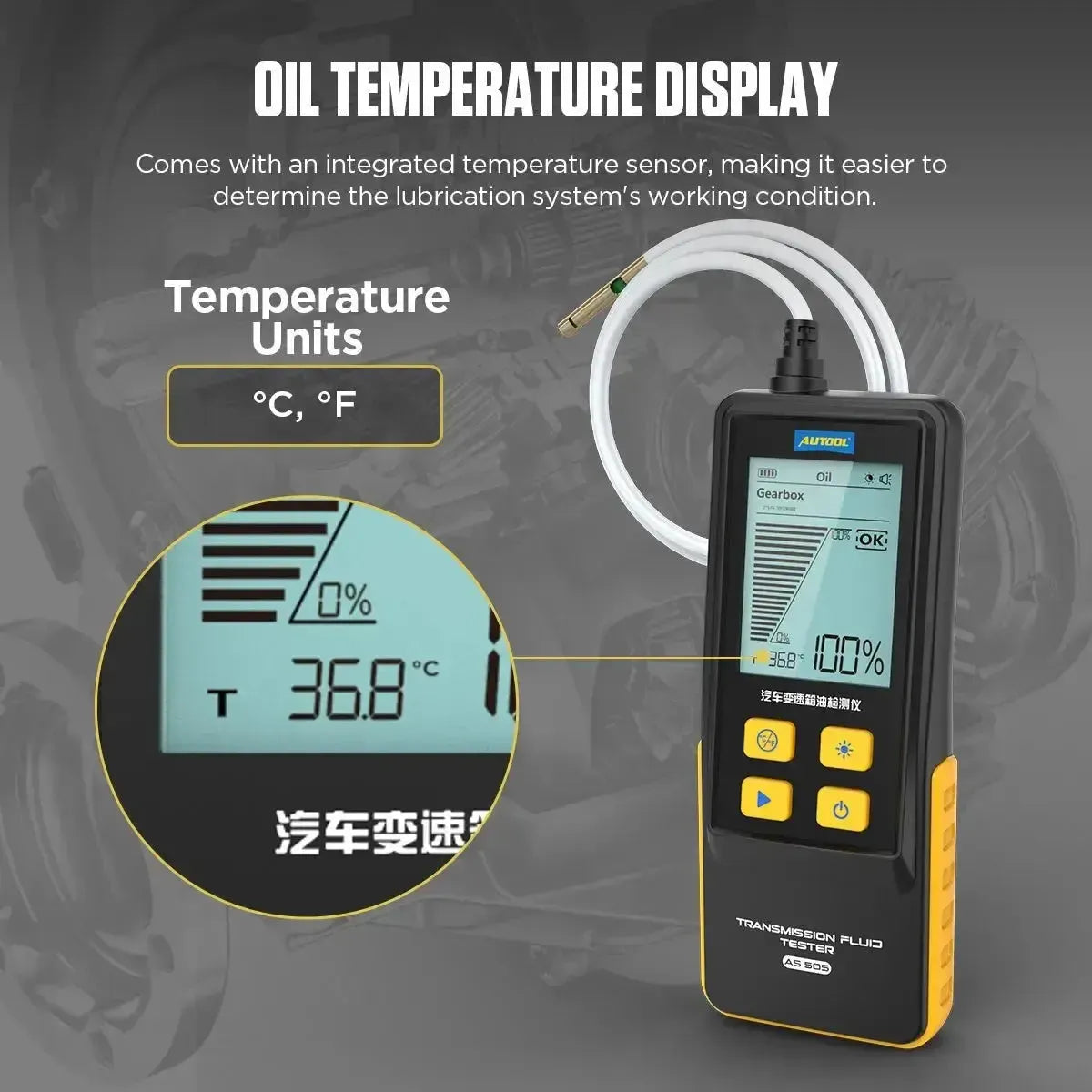

- Temperature measurement: Fluid temperature alongside the measurement value.
- Analogue bar display: The measurement value also shown graphically, next to the percentage.
- Unit conversion: Temperature in degrees Celsius or Fahrenheit.
- Backlight: Can be switched on and off with a dedicated button.

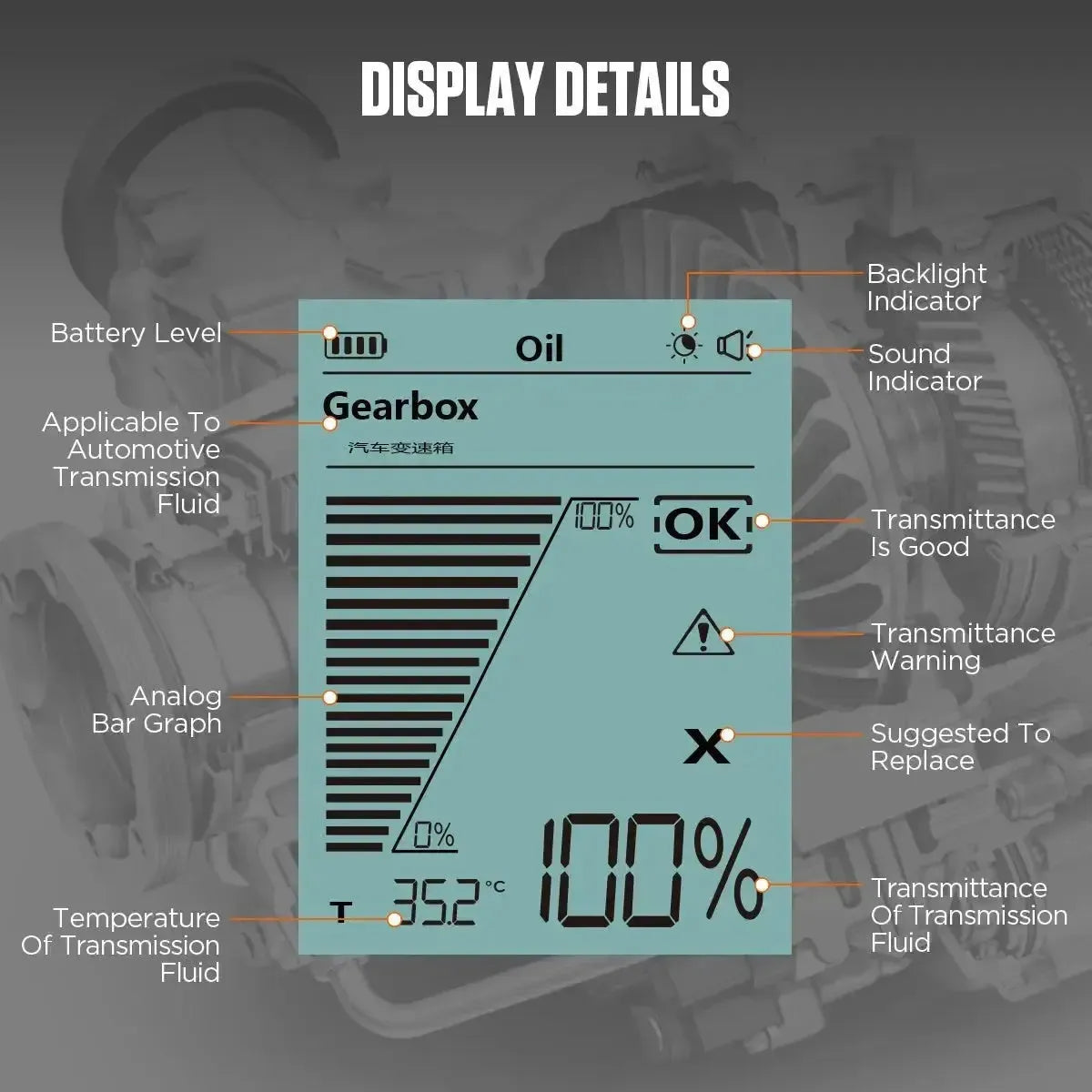

What you see on the display
- Light transmittance: The measurement result as a percentage, with an analogue bar alongside.
- Assessment: Above 60% is good, between 60% and 30% gives a warning, below 30% recommends replacement.
- Fluid temperature: In degrees Celsius or Fahrenheit, switchable with a dedicated button.
- Battery level: So you do not run out of power mid-inspection.

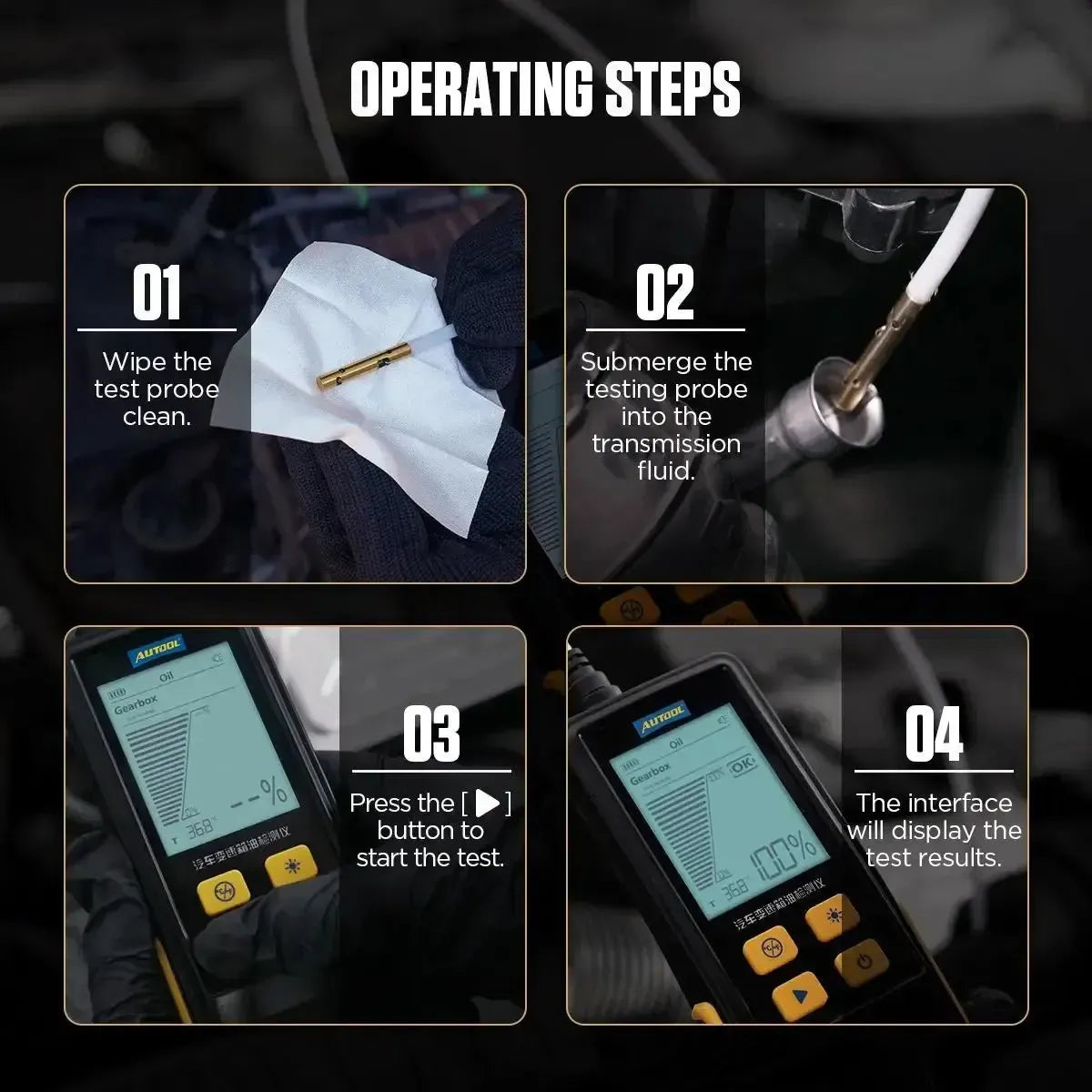

How to use it

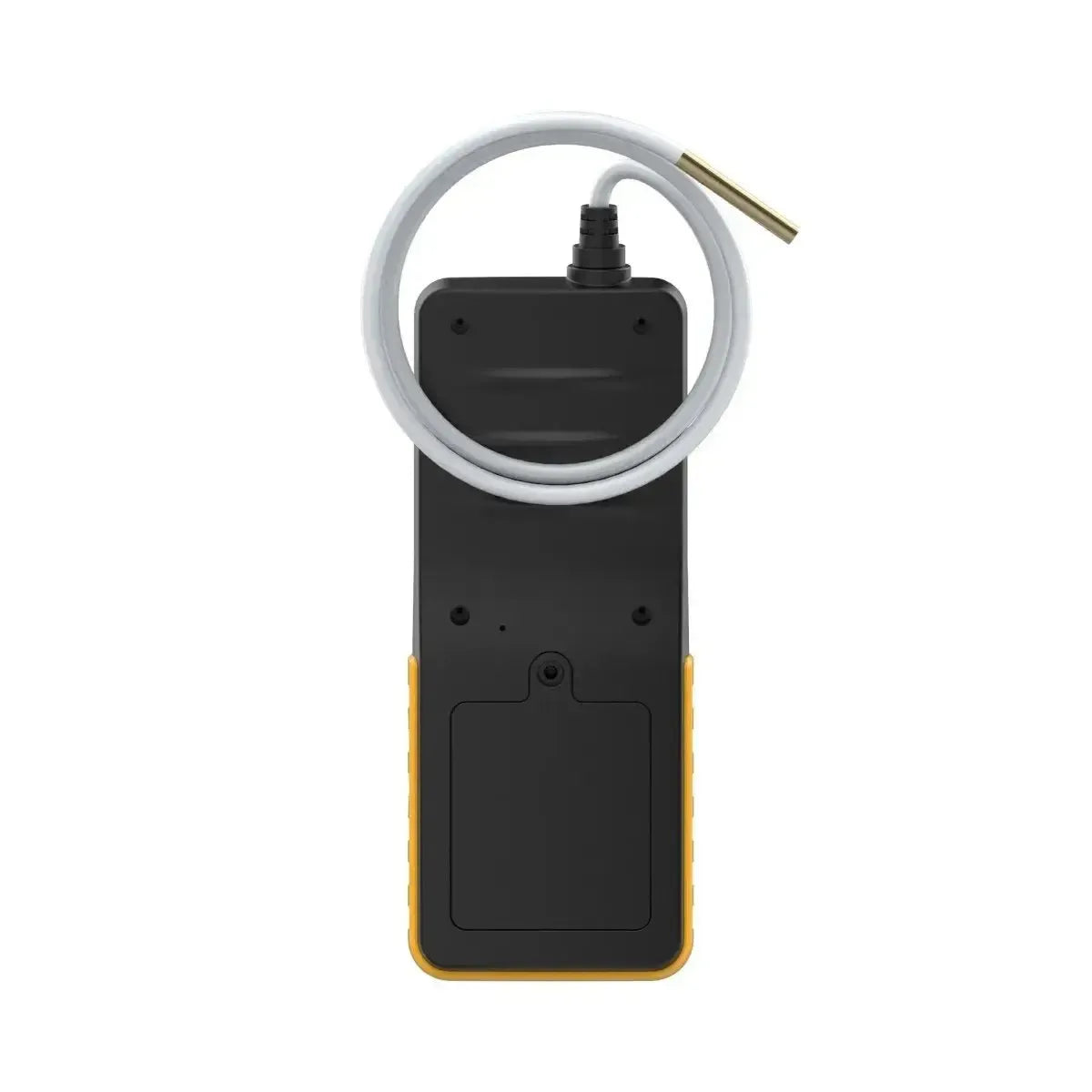

- Insert the batteries: Four AAA in the compartment on the rear, observing correct polarity.
- Wipe the probe clean: Dry and free from residue of any previous measurement.
- Switch the tester on: Press and hold the power button for longer than two seconds.
- Insert the probe: Via the filler or dipstick opening, until the probe is fully submerged and the fluid is below 60 °C.
- Press the test button and read the result: After ten seconds, transmittance, assessment and temperature appear on the display.
Special features and capabilities
In an automatic gearbox the fluid is rarely accessible and the service interval often not specified; these features address exactly that.
- 800 mm PTFE hose probe: Long enough to reach the fluid via the filler or dipstick opening, even when located deep in the pan.
- Measurement in ten seconds: Quick enough to test before and after a flush without disrupting the workflow.
- Measurement below 60 degrees: Immediately after a test drive the fluid often still runs well above that temperature.
Where to use it
The measurement is designed for automatic gearboxes without a fixed service schedule, where without a measurement value only guesswork remains.
- For automatics with no service schedule: Measurement is then the only way to know where you stand.
- For shift problems: To identify or rule out fluid condition as the cause.
- Before and after a service: Two measurements show how much old fluid remains in the system.
- At a pre-purchase inspection of an automatic: A vehicle with neglected ATF reveals itself immediately.

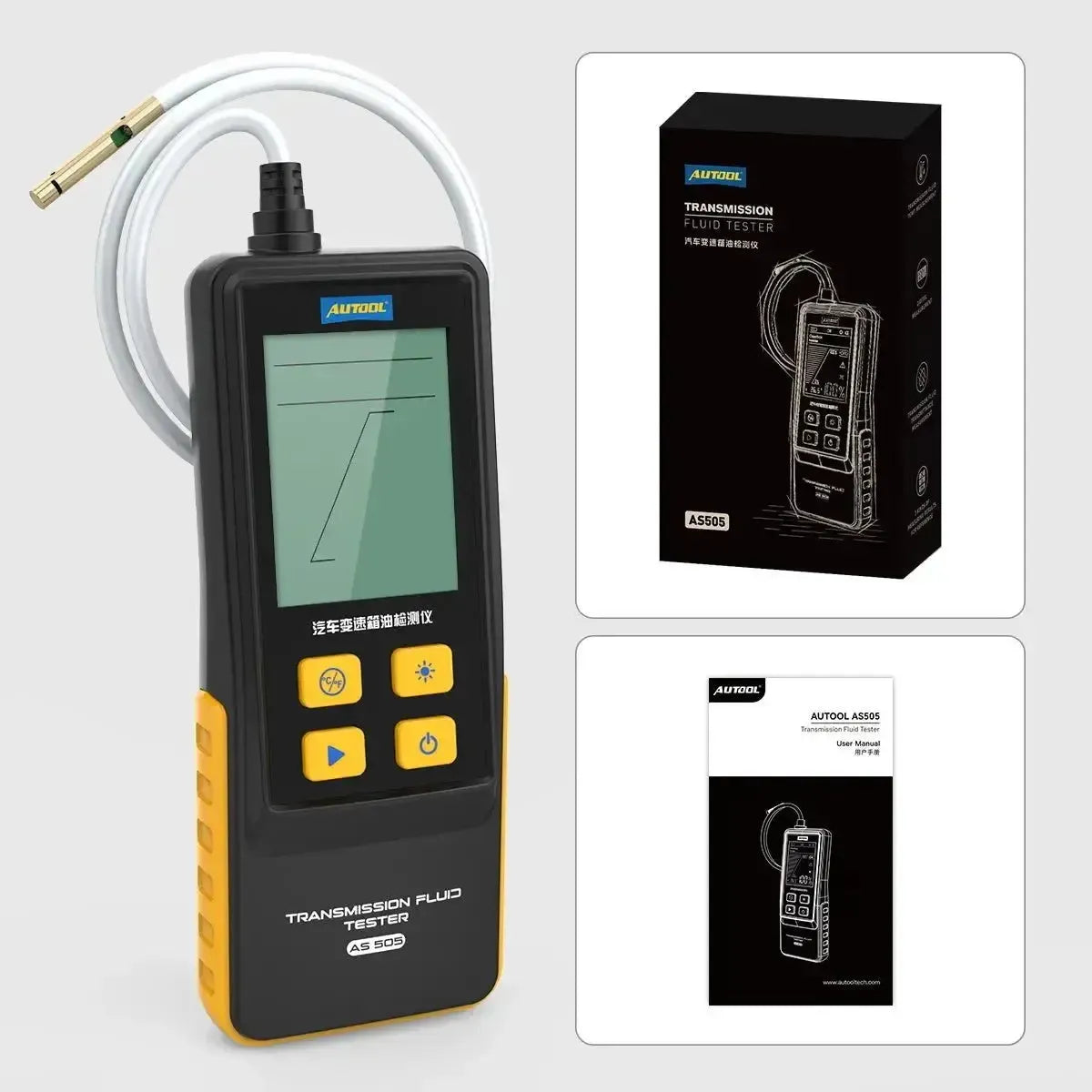

Package contents
- 1x Autool AS505 automatic transmission fluid tester with 800 mm hose probe
- 1x User manual
Technical specifications
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | AS505 |
| Type | Automatic transmission fluid tester, optical |
| Measurement principle | Optical probe that measures fluid light transmittance |
| Measurement value | Light transmittance in percentage, plus fluid temperature |
| Assessment | Above 60% good, 60% to 30% warning, below 30% replace |
| For | Automatic transmission fluid |
| Response time | Ten seconds |
| Display | 2.8-inch LCD with backlight |
| Probe | Flexible 800 mm PTFE hose |
| Power supply | 6V, four AAA batteries |
| Operating temperature | −10 °C to +60 °C |
| Auto shut-off | After five minutes of inactivity |
| Dimensions | 175 × 72 × 29 mm |
| Article number | AS505 |
