Autel MaxiCheck MX900 | Diagnostic Tool | Car

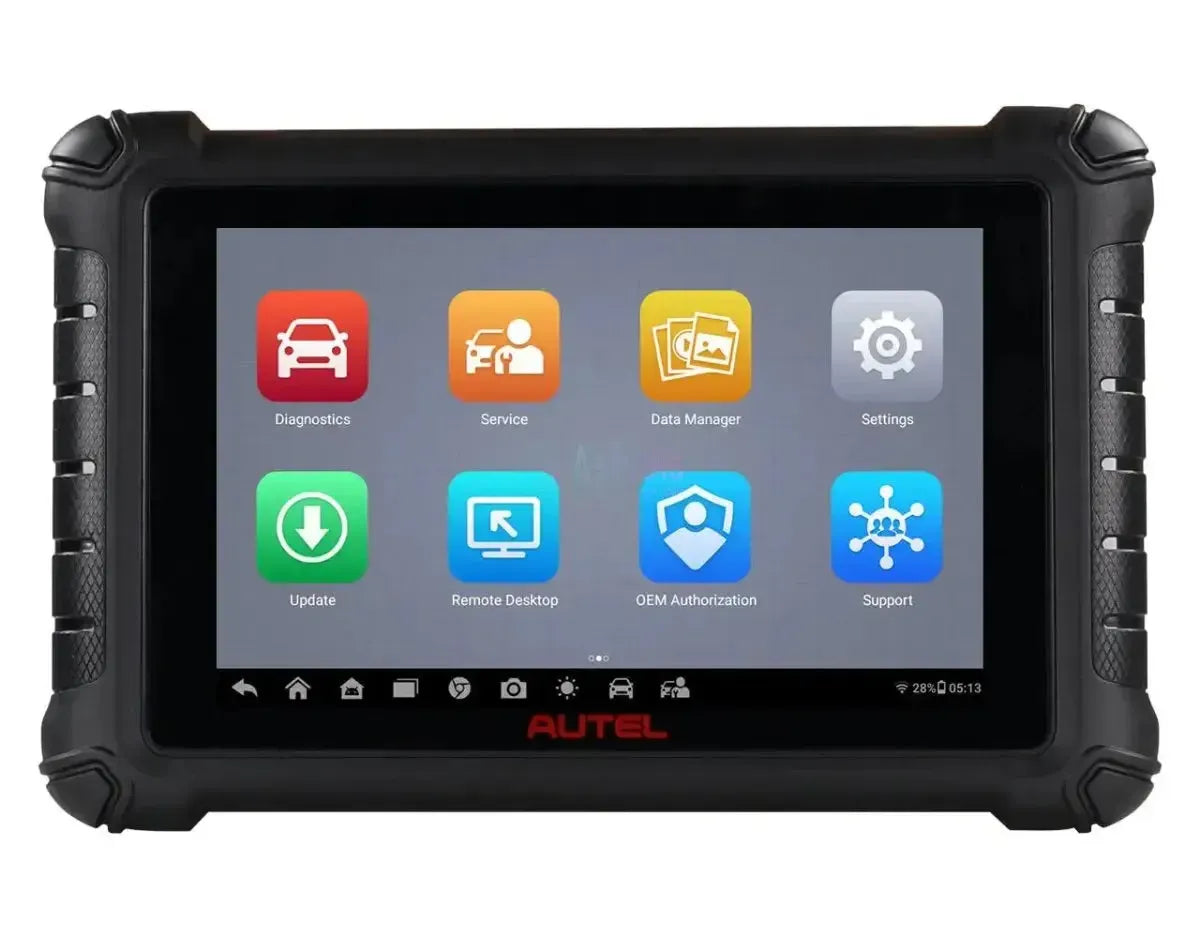

The Autel MaxiCheck MX900 is a wired fault code reader equipped with an 8-inch touchscreen and Android 11 operating system. This diagnostic tool delivers OE-level diagnostics across all accessible vehicle modules for more than 80 American, Asian and European vehicle makes. The MX900 supports the latest communication protocols, including DoIP and CAN FD. A 1-year software update licence is included with purchase.

The device features AutoVIN technology for rapid vehicle identification and offers functions such as actuator control (bi-directional testing) and more than 40 service and maintenance functions. The software enables you to generate detailed pre- and post-scan reports, providing a complete overview of vehicle status before and after repair. The system is designed to manage workshop data, including customer and vehicle information.

Diagnostic functions:

The MX900 performs comprehensive system diagnosis at OE level across all available electronic systems in the vehicle. This includes systems such as engine, transmission, ABS, airbag, instrument cluster and more.

• Read and clear fault codes: Reads and clears diagnostic trouble codes (DTCs) from all control modules, including generic, manufacturer-specific and pending codes.
• Live data: Displays real-time sensor and module data in various display modes, including text, graph and analogue gauges. You can record and replay data streams.
• Actuator control (bi-directional testing): Commands components and systems directly to test functionality, such as activating relays, injectors, fans or performing system-independent tests.
• ECU information: Retrieves detailed control module information, including type, version numbers and other specifications.
• Vehicle Identification Number (VIN) scanning: Automatically identifies the vehicle via the AutoVIN function.

Service and maintenance functions:

This diagnostic tool supports more than 40 service and maintenance functions. Available functions vary by vehicle make, model and year of manufacture. The software provides access to a wide range of reset, calibration and adaptation procedures.

Engine and powertrain:

• Oil and service interval reset: Resets the vehicle's service and oil interval system after maintenance.
• Throttle body learning: Resets and calibrates the throttle position sensor after cleaning or replacement.
• Injector coding: Programs new injector codes into the engine control unit (ECU) for correct fuel injection.
• Transmission adaptive values reset: Restores automatic transmission learning values to factory settings.
• Crankshaft position sensor learning: Executes a procedure to teach the ECU the crankshaft sensor tolerances.
• Fuel/air ratio adjustment (A/F): Adjusts the fuel/air ratio for optimal performance and emissions.
• Start/stop system configuration: Activates or deactivates the engine's automatic start/stop function.
• Electronic water pump activation: Activates the electronic water pump for cooling system bleeding.
• Relative compression test: Executes a test to measure compression per cylinder relative to each other.
• Variable geometry turbo (VGT) learning: Calibrates the variable geometry turbo actuator.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Forces DPF regeneration to burn accumulated soot and clear blockages.
• AdBlue system reset (SCR): Resets the SCR system after AdBlue top-up or component replacement.
• EGR valve learning: Adjusts exhaust gas recirculation valve values after cleaning or replacement.

Braking:

• Electronic parking brake (EPB) service mode: Opens and closes the brake callipers of the electronic parking brake for brake pad or disc replacement.
• Brake bleeding (ABS): Executes an automated procedure to remove air from the ABS braking system.

Steering and suspension:

• Steering angle sensor calibration (SAS): Calibrates the sensor that measures steering wheel position and rotation angle.
• Air suspension calibration: Sets the ride height of the air suspension and calibrates the level sensors.

Body and electrical:

• Battery registration (BMS): Registers a new battery in the Battery Management System after replacement.
• Tyre pressure monitoring system (TPMS) reset: Programs sensors and resets TPMS after tyre change or sensor replacement.
• Key and immobiliser learning (IMMO): Programs new keys or remote controls into the immobiliser system.
• Seat calibration: Calibrates the positions of electrically adjustable seats.
• Sunroof and window initialisation: Resets and programmes the opening and closing positions of the sunroof and electric windows.
• Headlight adjustment: Performs basic adjustment of adaptive headlights.
• Rain and light sensor initialisation: Calibrates the sensitivity and operation of the rain and light sensors.
• Transport mode deactivation/activation: Enables or disables the vehicle's transport mode.
• Change language: Adjusts the display language of the instrument cluster or infotainment system.

Safety systems:

• Airbag module reset: Resets the airbag module and removes crash data following a repair.
• Adaptive cruise control (ACC) calibration: Calibrates the radar sensor of the adaptive cruise control system.
• Yaw rate sensor calibration: Performs calibration of the sensor that measures the vehicle's rotation around its vertical axis.

Hybrid and electric:

• High-voltage battery diagnostics: Reads status information and fault codes from the battery pack of hybrid and electric vehicles.
• High-voltage system deactivation/activation: Safely switches the high-voltage system off for maintenance and back on afterwards.

General functions:

• Coolant bleeding: Performs an automated procedure for bleeding the cooling system.
• Adjust mileage: Corrects the mileage on a new instrument cluster following replacement.
• Change tyre size: Programmes the new tyre circumference into the vehicle modules for accurate speed display.

Special functions and capabilities:

The Autel MaxiCheck MX900 offers various functions for data management and reporting, designed to increase workshop efficiency.

Cloud and reporting functions:

• Record and playback data: Allows live data to be recorded and played back later for analysis.
• Pre- and post-scan reporting: Generates reports documenting the vehicle's condition before and after diagnosis or repair. These reports can be printed via Wi-Fi.

Other special capabilities:

• AutoVIN technology: Automatically identifies the vehicle make, model and year of manufacture.
• Data management: An integrated system for managing workshop data, including vehicle history, customer information and other files.
• Remote technical support: Provides the ability for technicians to access the device remotely for assistance with diagnostic issues.

Optional expansion modules:

The functionality of the MaxiCheck MX900 can be extended with various hardware modules. These expansions are not included and must be purchased separately.

Hardware modules and accessories:

• Autel MaxiVideo MV105S/MV108S: A digital inspection camera (videoscope) for examining hard-to-reach components.

Supported vehicle makes:

This device provides support for a wide range of European, Asian and American vehicle makes.

• European: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroën, Cupra, Dacia, DS, Fiat, Ford, Jaguar, Lamborghini, Lancia, Land Rover, MAN LD, Maserati, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, Volkswagen, Volkswagen CV
• Asian: Acura, Daewoo, Daihatsu, Genesis, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American: Chevrolet, Chrysler, Dodge, Ford, General Motors, Jeep, RAM

Package contents:

• 1x Autel MaxiCheck MX900 fault code reader
• 1x Main cable
• 1x USB Type-C cable
• 1x Power adapter
• 1x Quick start guide
• 1x Packing list
• 1x Soft cloth

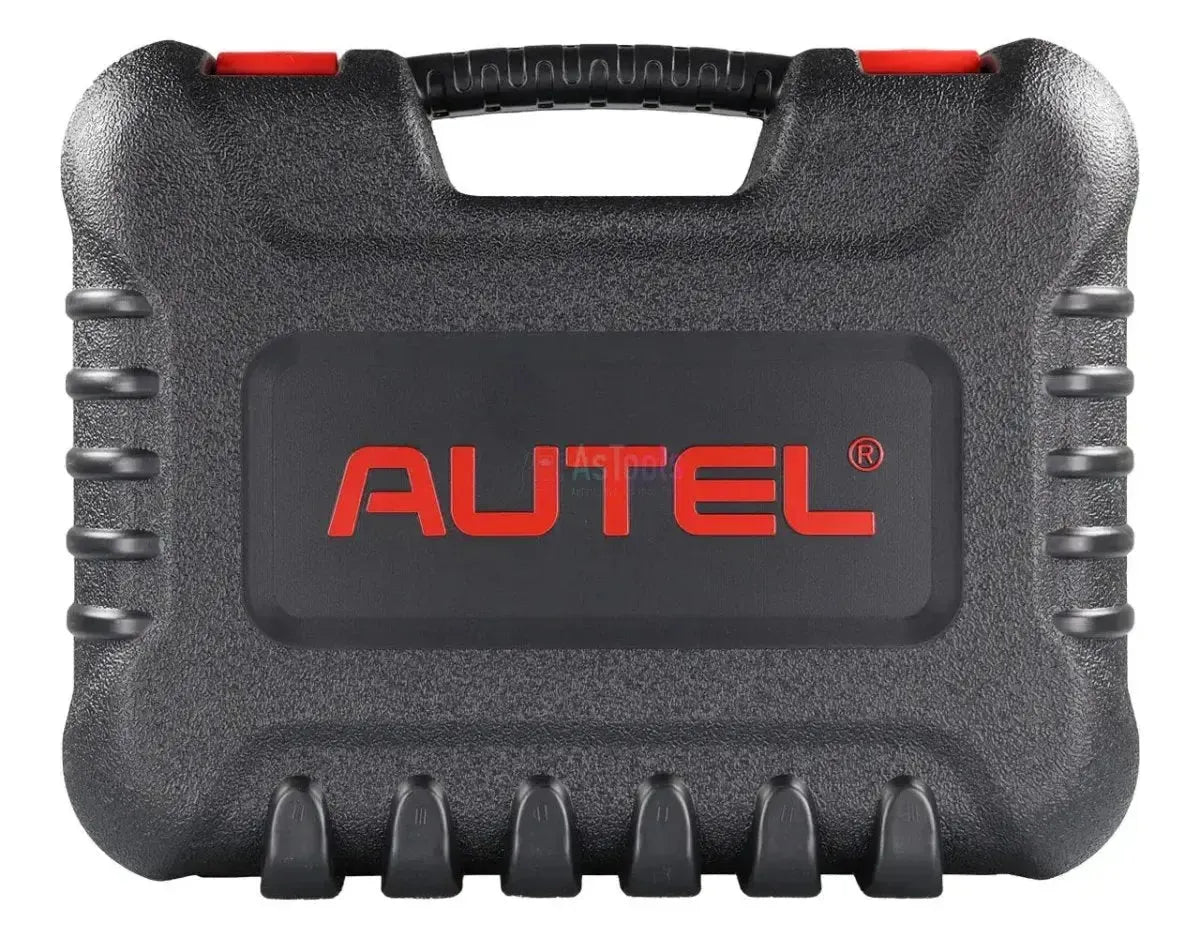

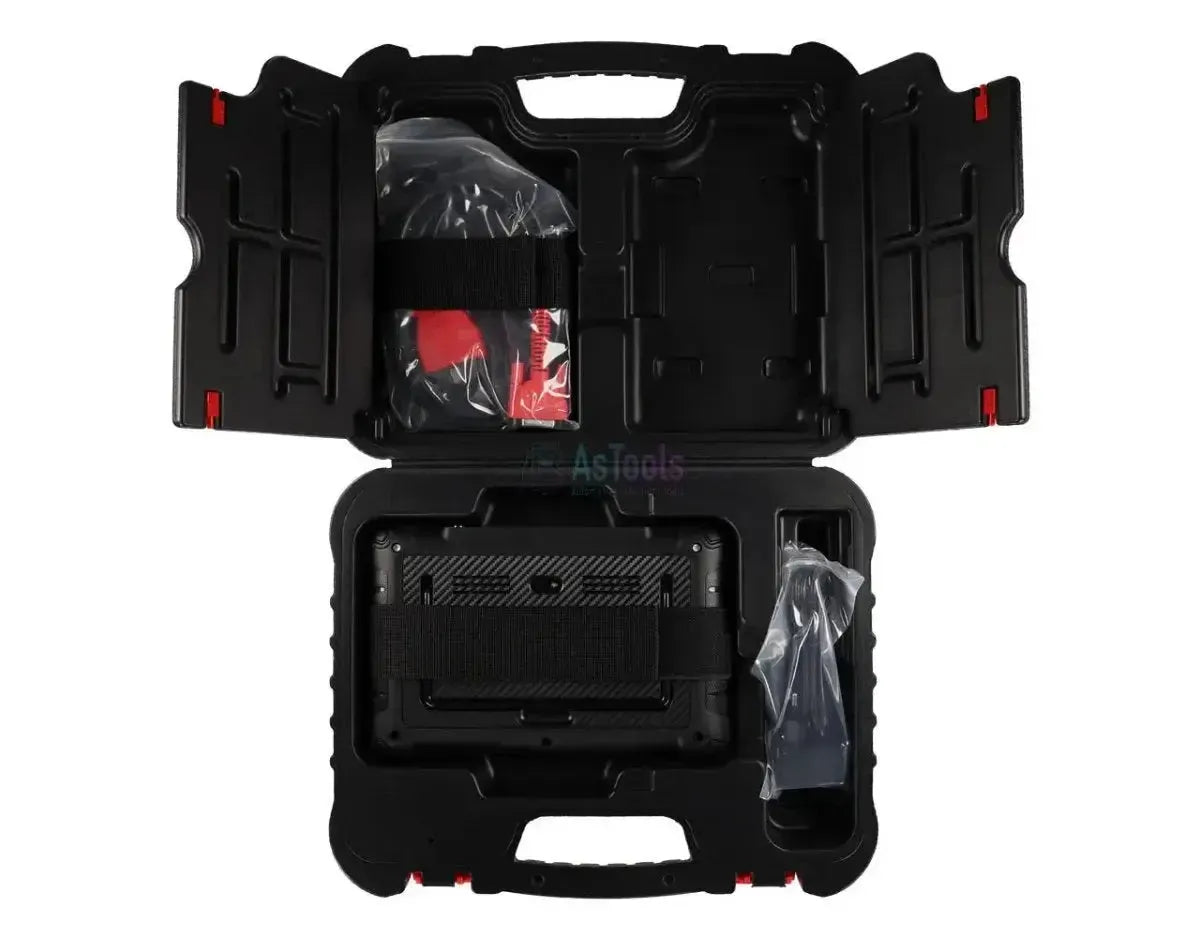

• 1x Carry case

Licence information:

• Includes 1 year of updates: A software update licence for 12 months is included with purchase.

After the licence period expires, the device will continue to operate based on the last installed software version. Access to new software updates and online functions will cease until a new licence is purchased.
