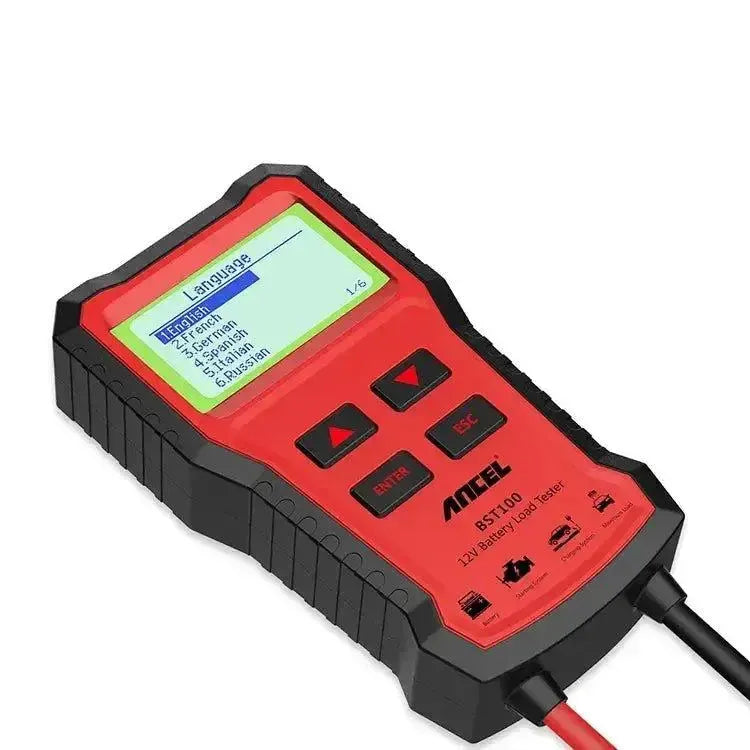

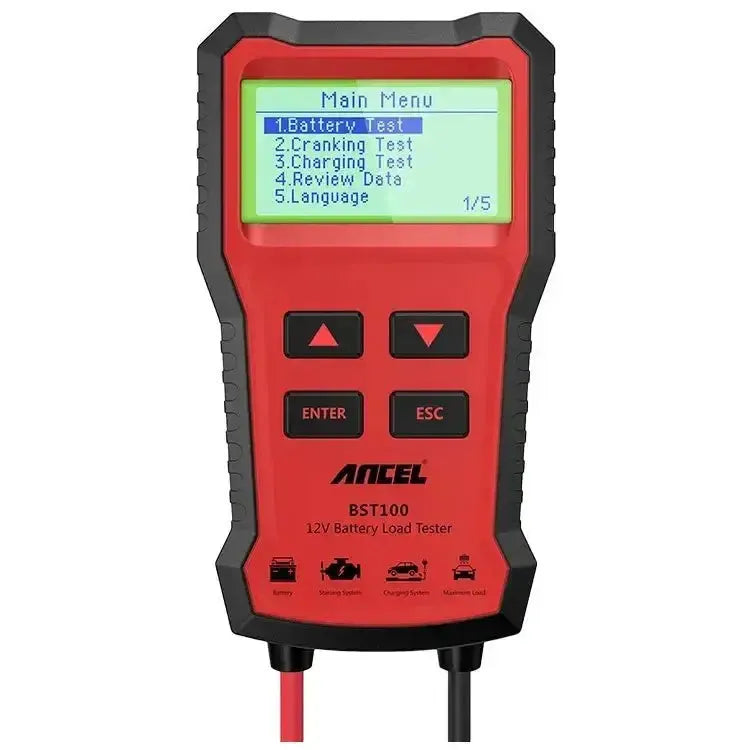

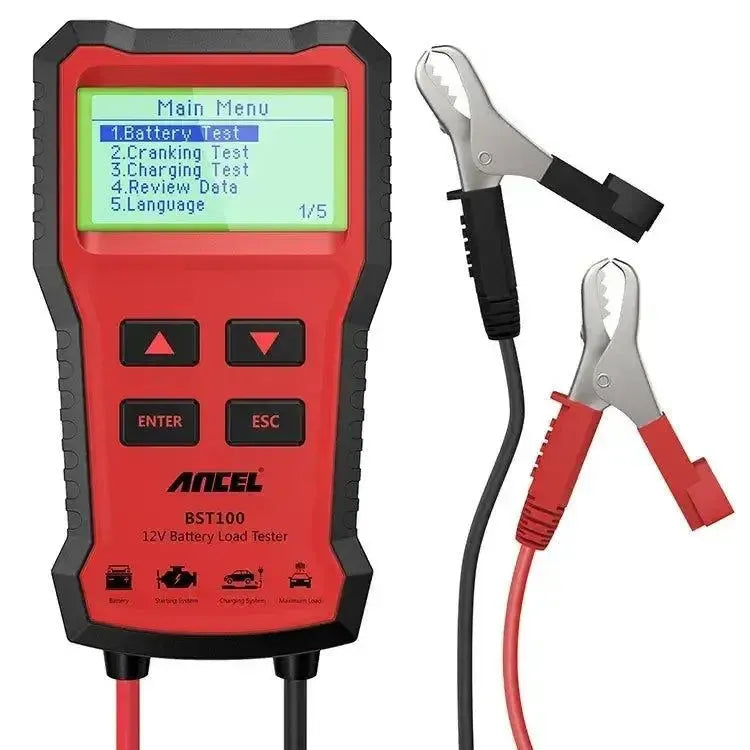

Ancel BST100 Battery Tester
The Ancel BST100 is a compact Battery Tester designed for testing 12V lead-acid batteries. The device offers a quick and accurate analysis of battery condition, including measurements of voltage, cold cranking amps (CCA), internal resistance, and charge status. Thanks to advanced conductivity test technology, the BST100 delivers reliable results even with partially discharged batteries.
With a user-friendly interface and a clear LCD screen, the BST100 is easy to operate. The device requires no internal battery and is powered directly via the connected battery, increasing ease of use.
Features:
-
Battery Tester: Analyzes the health status, voltage, internal resistance, and capacity of the battery.
-
Start/charge system test: Evaluates the performance of the vehicle's start and charge system.
-
Advanced conductivity test technology: Provides fast and accurate measurements.
Special features:
-
Ripple voltage test: Analyzes unwanted AC fluctuations on the DC power supply for comprehensive power supply analysis.
-
Data storage and feedback: Stores test results for later evaluation and comparison.
-
Safety protection: Protects against reverse polarity, short circuit, and overload.
Supported batteries:
-
Battery Types: Lead acid, AGM (flat plate and spiral), GEL, EFB
-
Battery Standards: CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB
Package contents:
-
Ancel BST100 Battery Tester
-
Manual
Technical specifications
|
Specification |
Value |
|---|---|
|
Supported voltage |
12V |
|
Voltage measurement range |
9V – 16V |
|
CCA range |
100 – 2000 CCA |
|
AH range |
3 – 220 Ah |
|
Operating temperature |
-20°C to 50°C |
|
Storage temperature |
-20°C to 70°C |
|
Screen |
2.4-inch black and white LCD screen |
|
Cable length |
100 cm |
|
Weight |
417 g |
|
Dimensions |
138.6 × 76.8 × 30 mm |
|
Housing |
Impact-resistant ABS housing |
|
Protection |
Reverse polarity protection, short circuit protection, overload protection |
