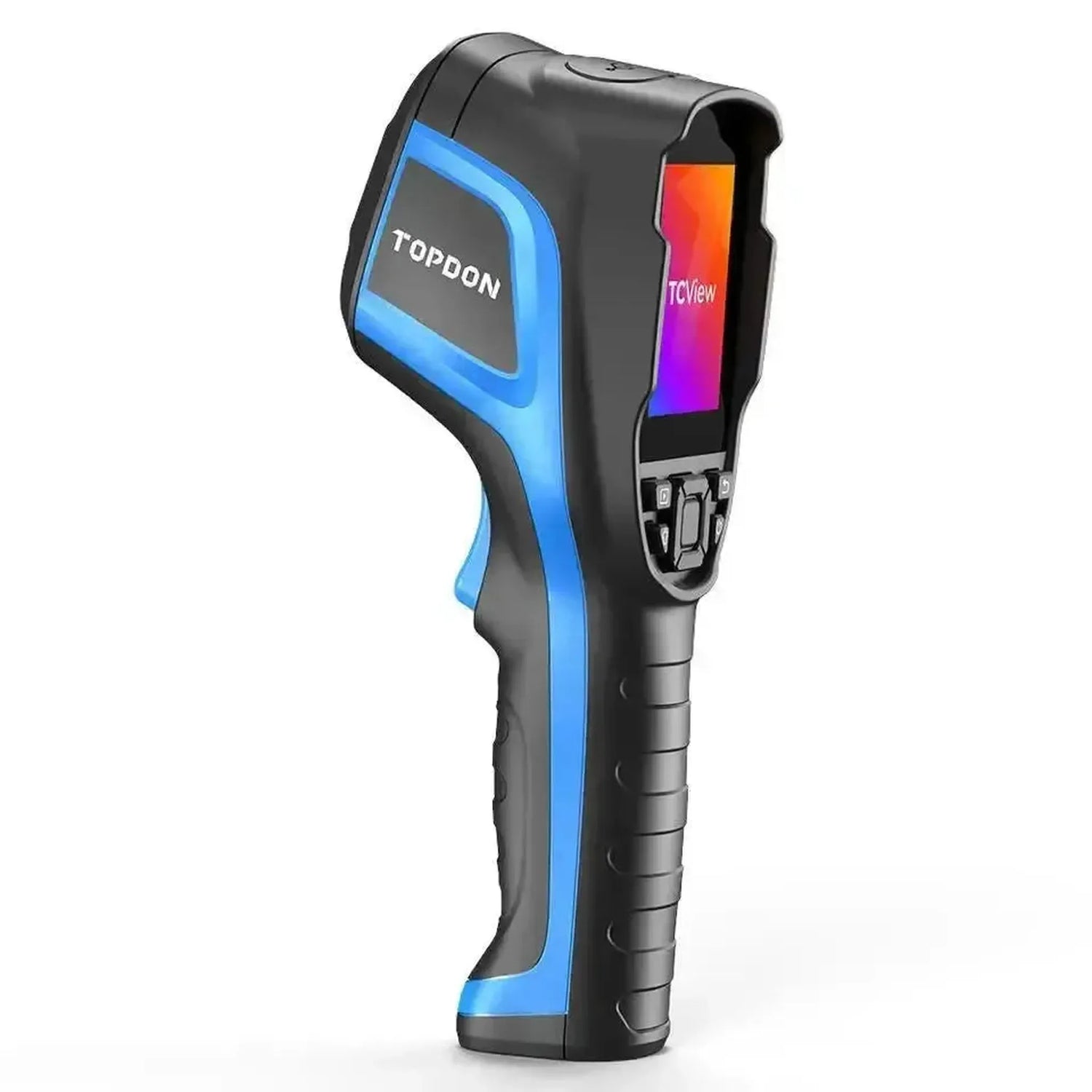

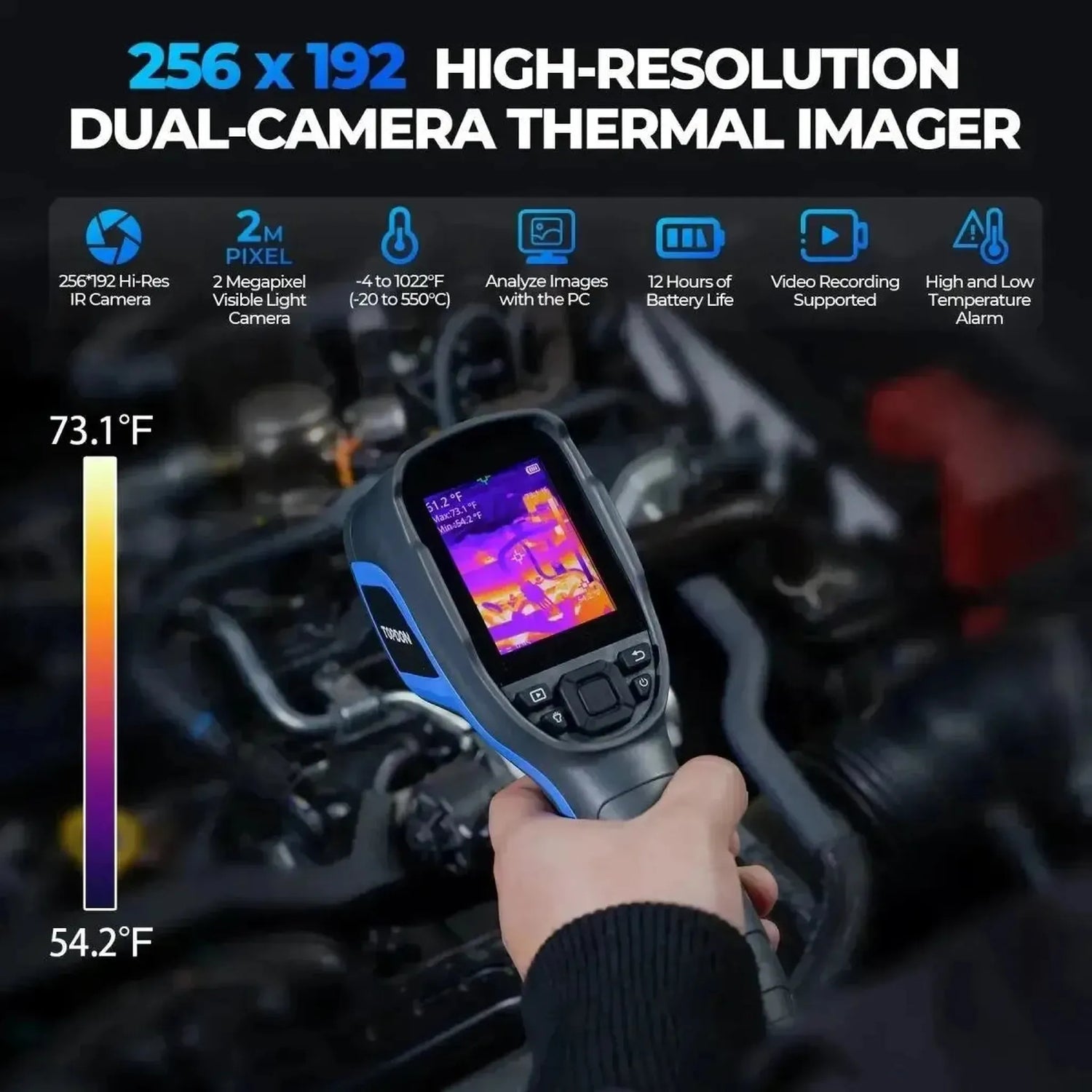

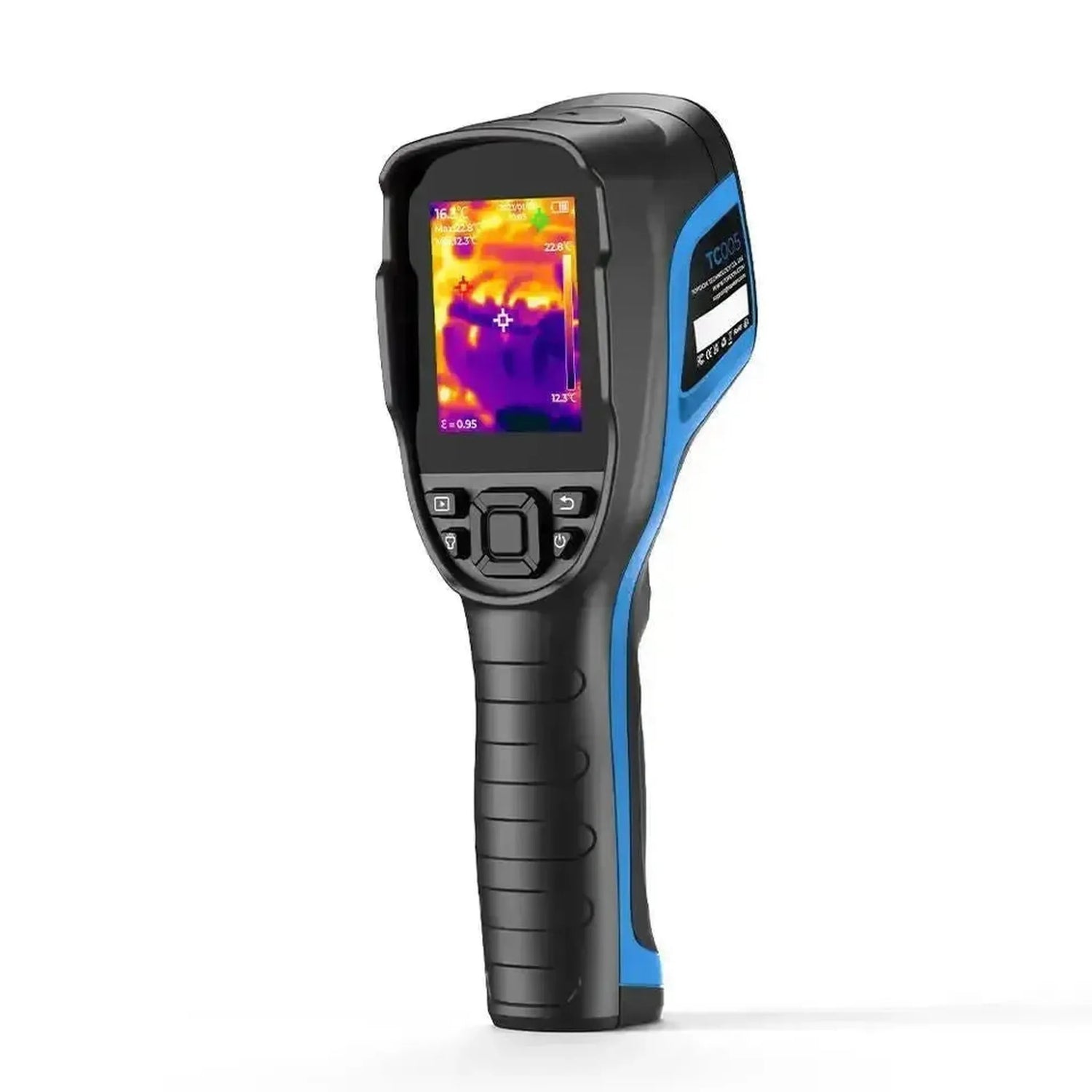

The Topdon TCView TC005 thermal imaging camera is a handheld inspection tool designed for accurate temperature measurements in industrial and automotive environments. The device features a thermal sensor resolution of 256x192 pixels, resulting in detailed thermal images for diagnostics. The camera operates at a frame rate of 20 Hz and uses a lens with a wide field of view of 56°. The measurement range spans from -20°C to +550°C, with a thermal sensitivity (NETD) of 40mK allowing the detection of small temperature differences.

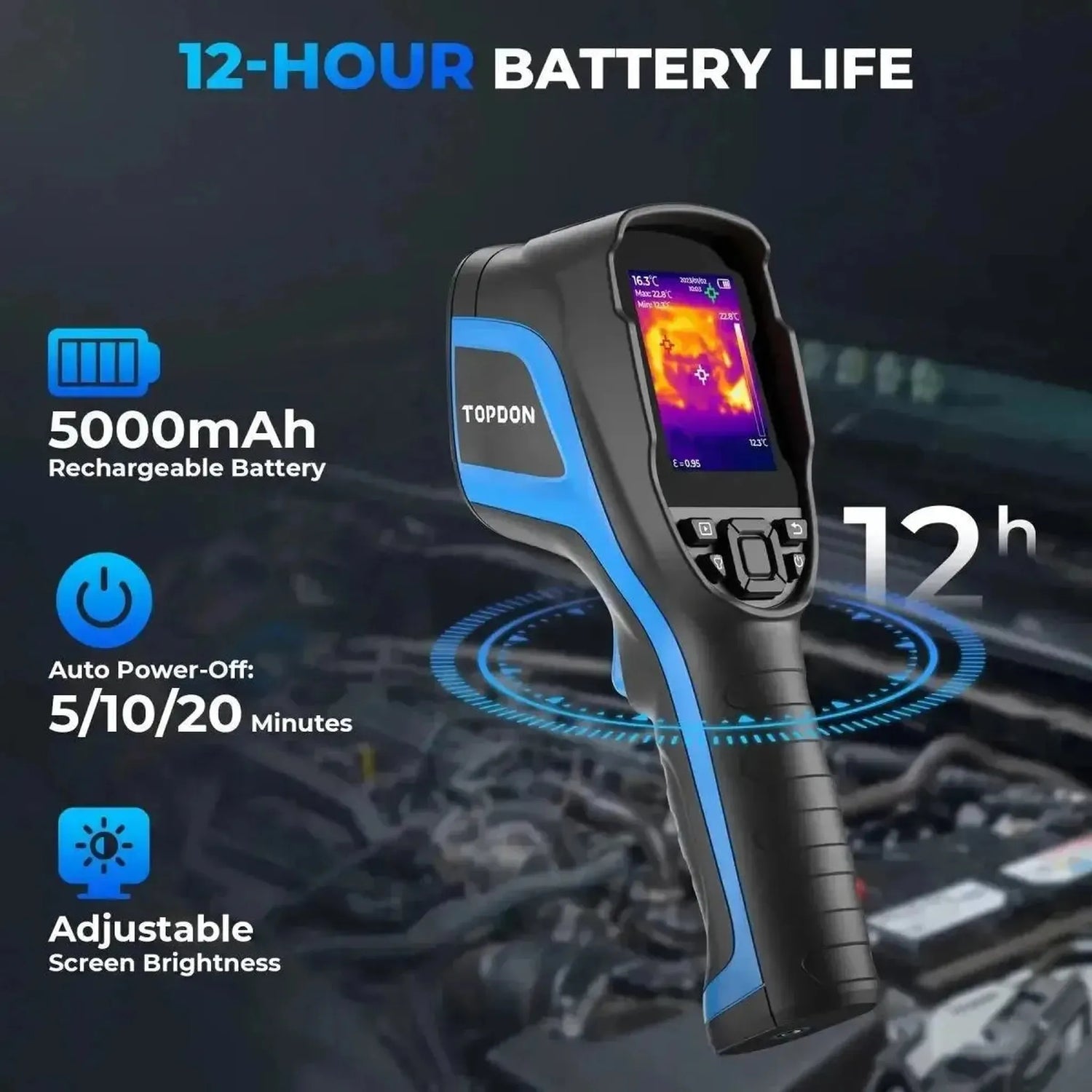

For extensive inspection capabilities, this instrument combines an infrared sensor with a 2-megapixel visual camera, enabling various image modes such as thermal, visible light, and picture-in-picture (PIP). The stored radiometric images can be transferred via USB to a computer for in-depth image analysis and projection using the accompanying software. The system is powered by an integrated battery that offers an operational duration of up to 12 hours and features a robust IP54 housing that withstands a 2-meter drop.
ADVANTAGES
KEY POINTS
Applications and features
The TC005 is equipped with various features to perform thermal inspections efficiently and accurately. The device supports the user with automatic detection functions and visual aids.

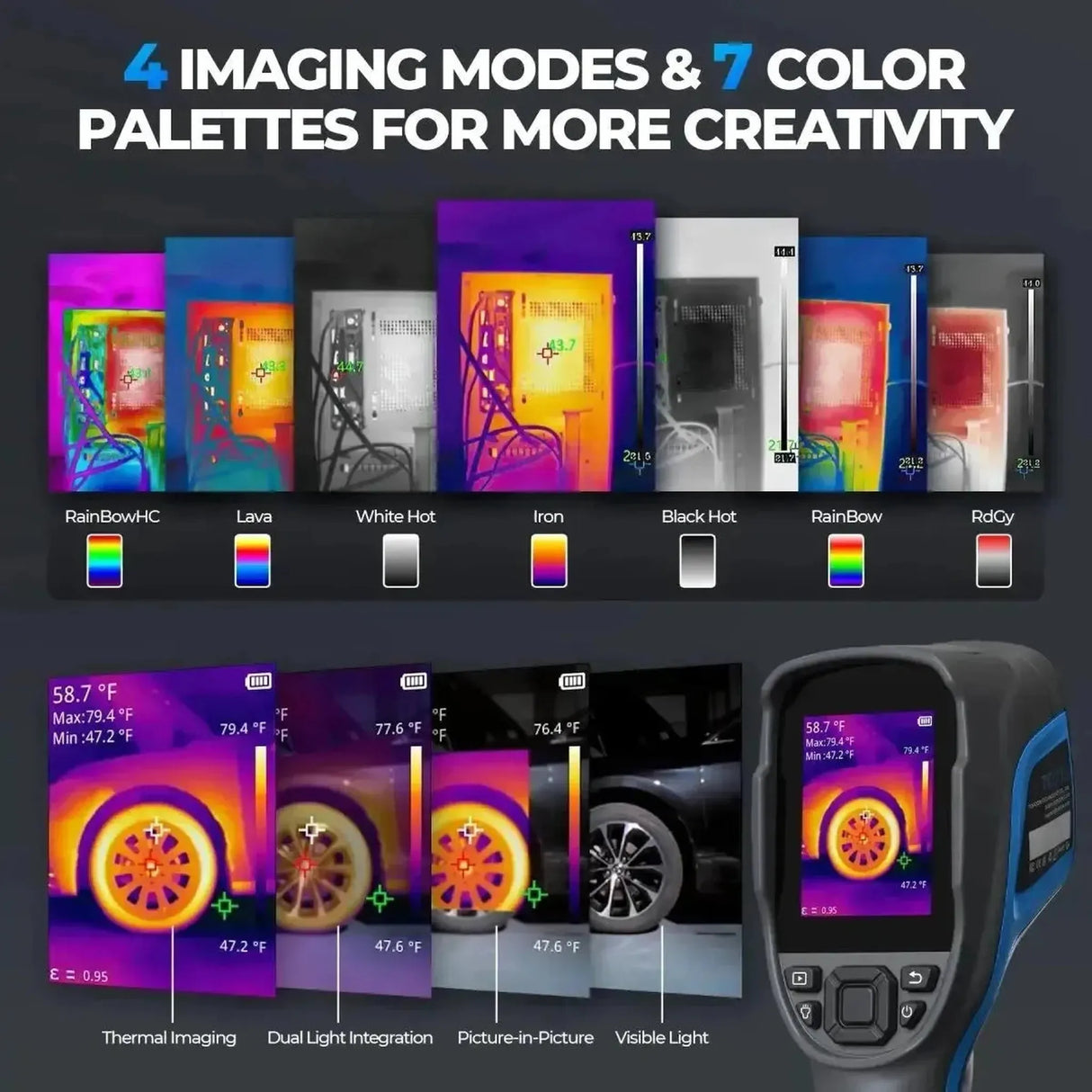

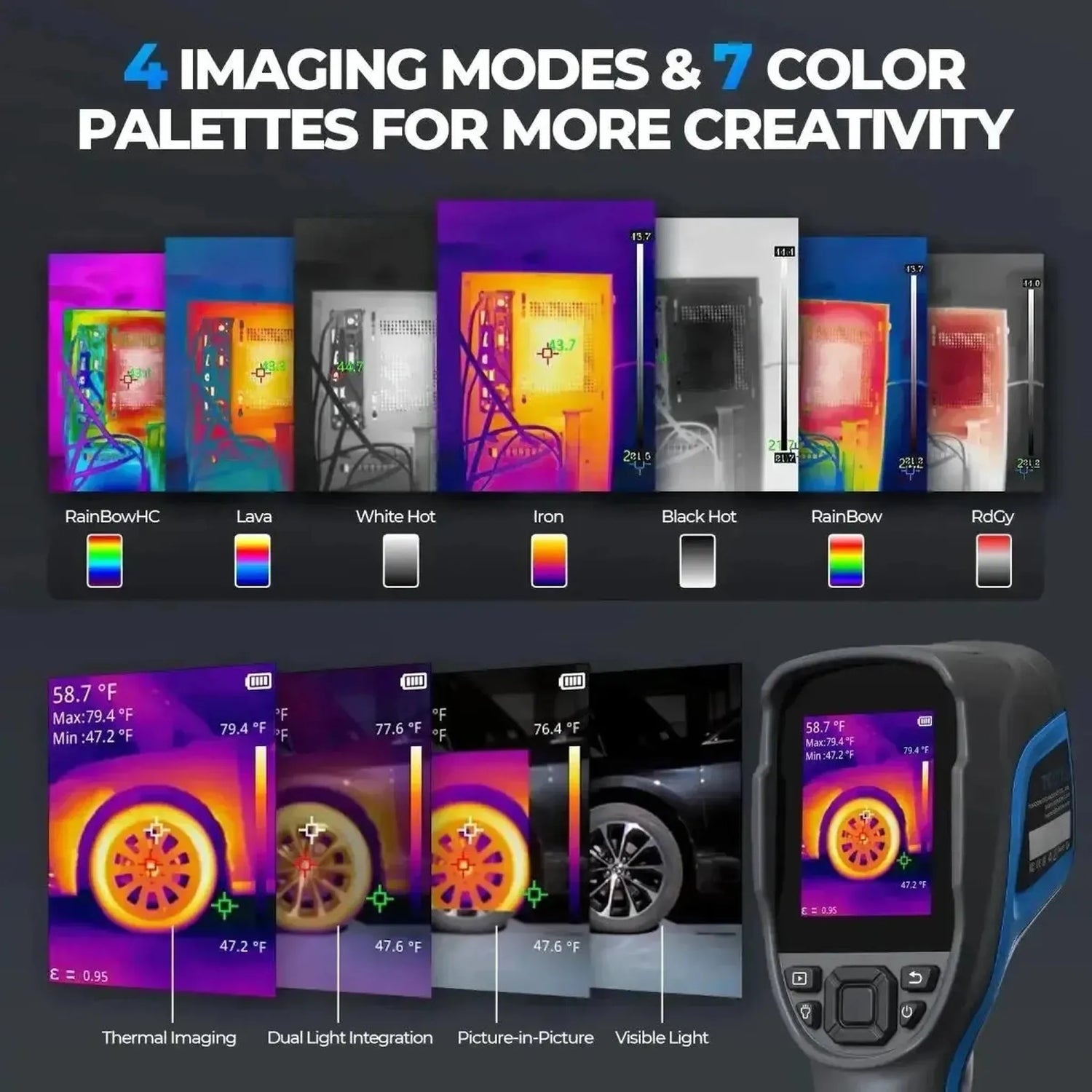

- Image modes: Selection from four display options: Infrared, Visible light, Dual Light (Fusion), and Picture-in-Picture.
- Automatic detection: Real-time marking of the hottest, coldest, and central temperature points in the image.
- LED work light: Integrated fill light for inspections in dark environments such as engine compartments.

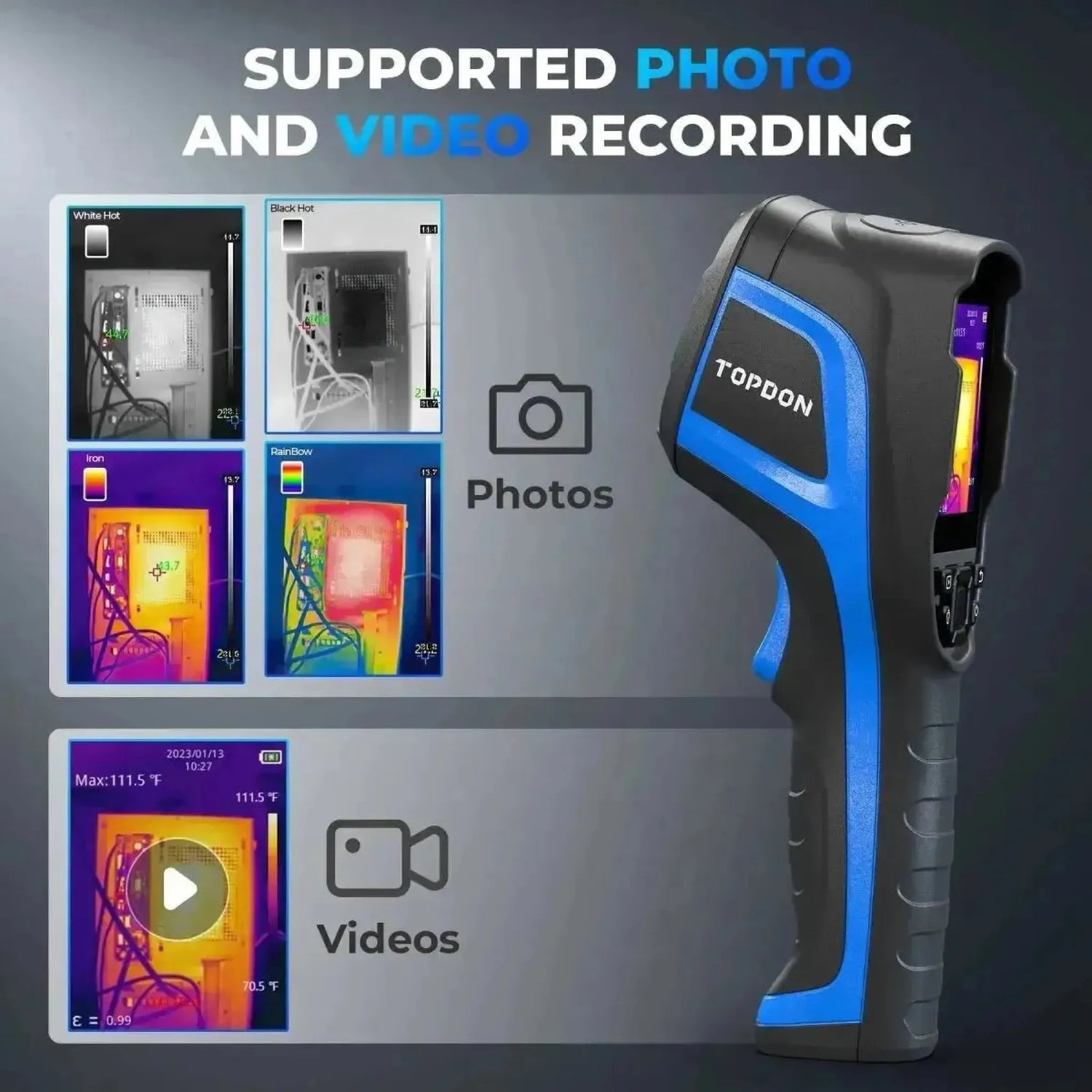

- Memory storage: Storage of radiometric images on the included SD card for later reporting.
Special features and capabilities
In addition to standard thermography, this model offers specific features for in-depth analysis and connectivity with external systems.

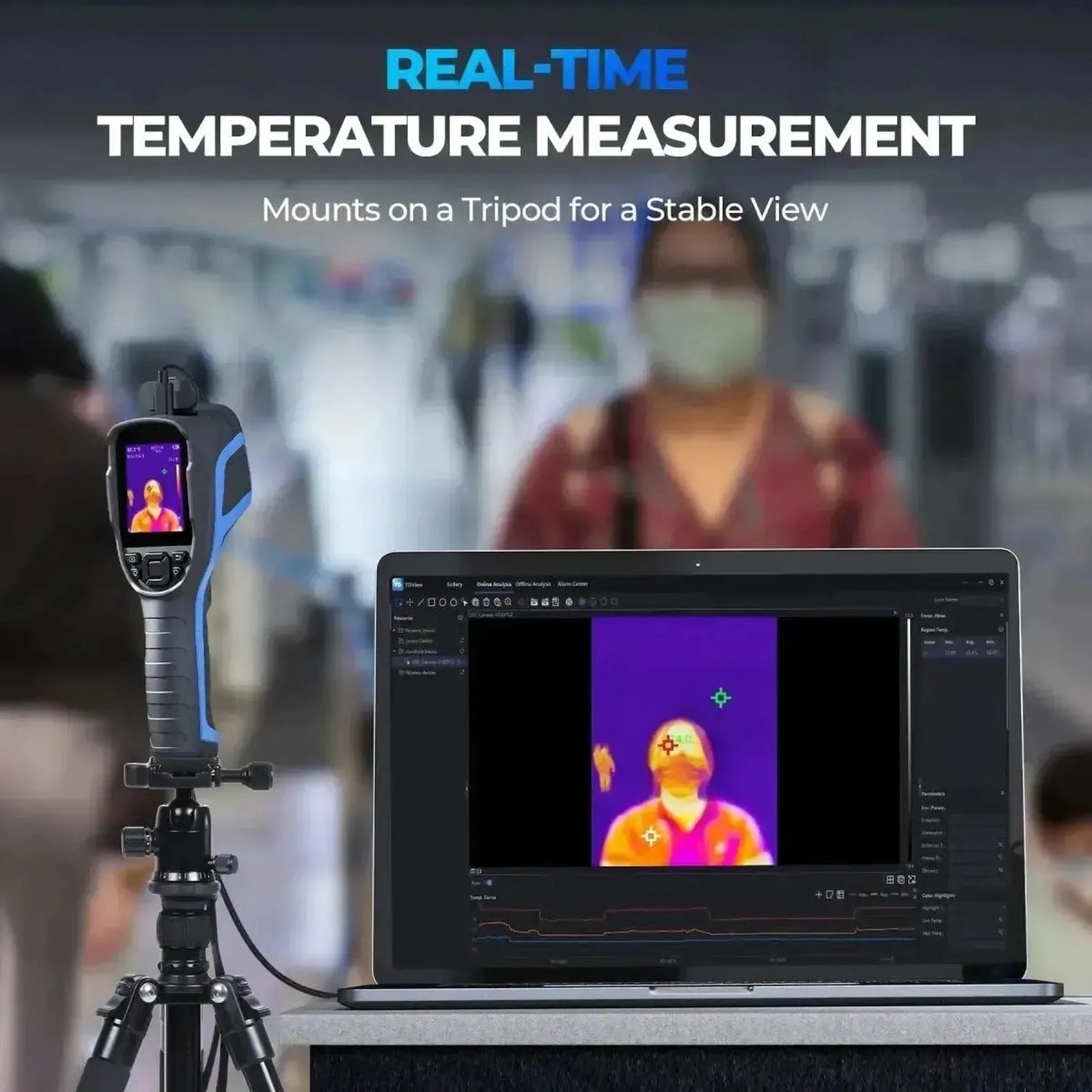

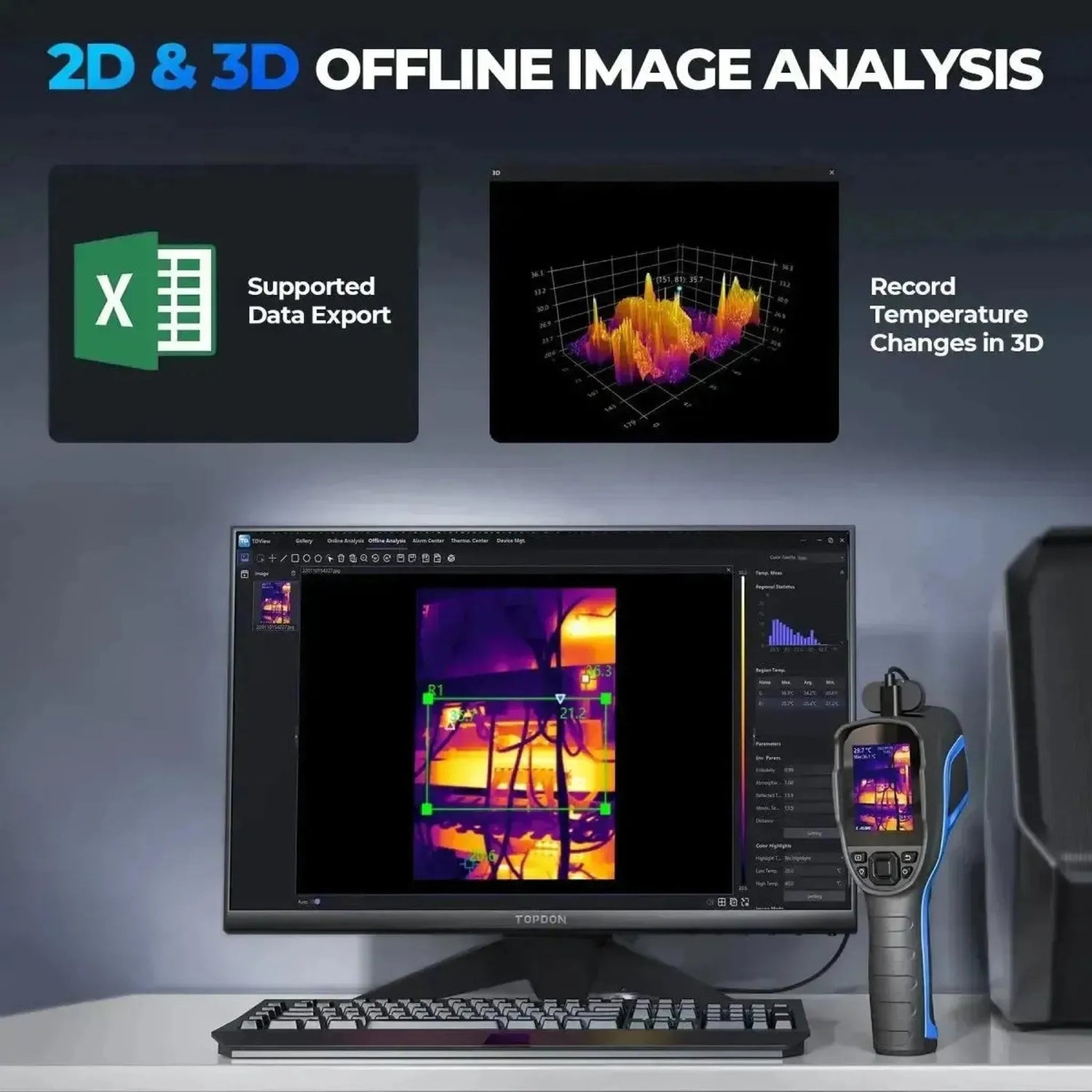

- PC analysis and projection: Software connection to a computer for reading data and live projection of the camera image.

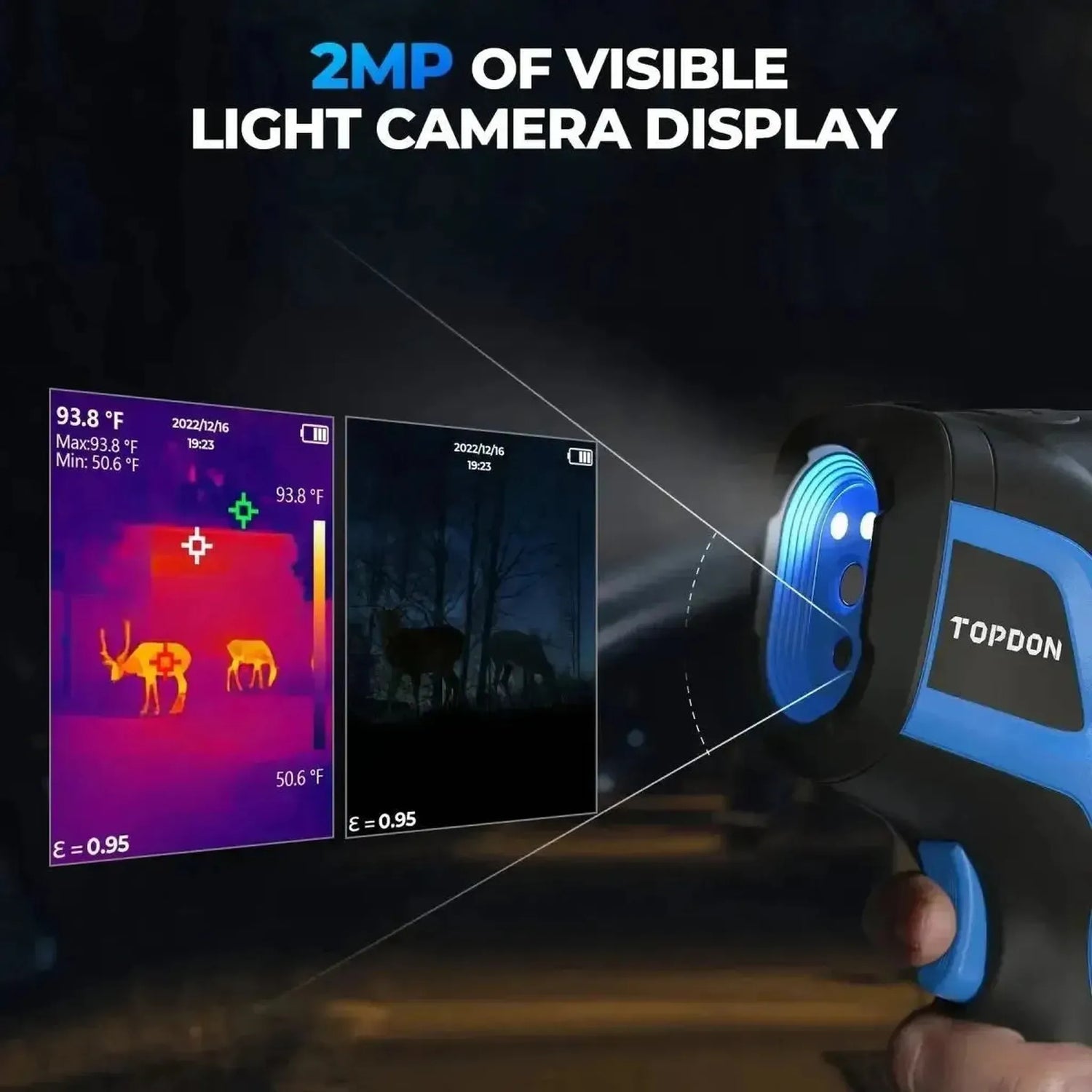

- Dual-Camera System: Combination of thermal data with a 2-megapixel optical camera for improved orientation and contour recognition.
Application areas and inspection uses
The sensor specifications and temperature range make this camera suitable for various technical sectors, ranging from automotive to building inspection.
- Inspection application: Detection of contact resistances and overloads in fuse boxes and wiring.
- Technical analysis: Checking heat dissipation in engine blocks, cooling systems, and brake components.
- Diagnostic application: Detecting leaks in underfloor heating or insulation defects in bodywork and buildings.

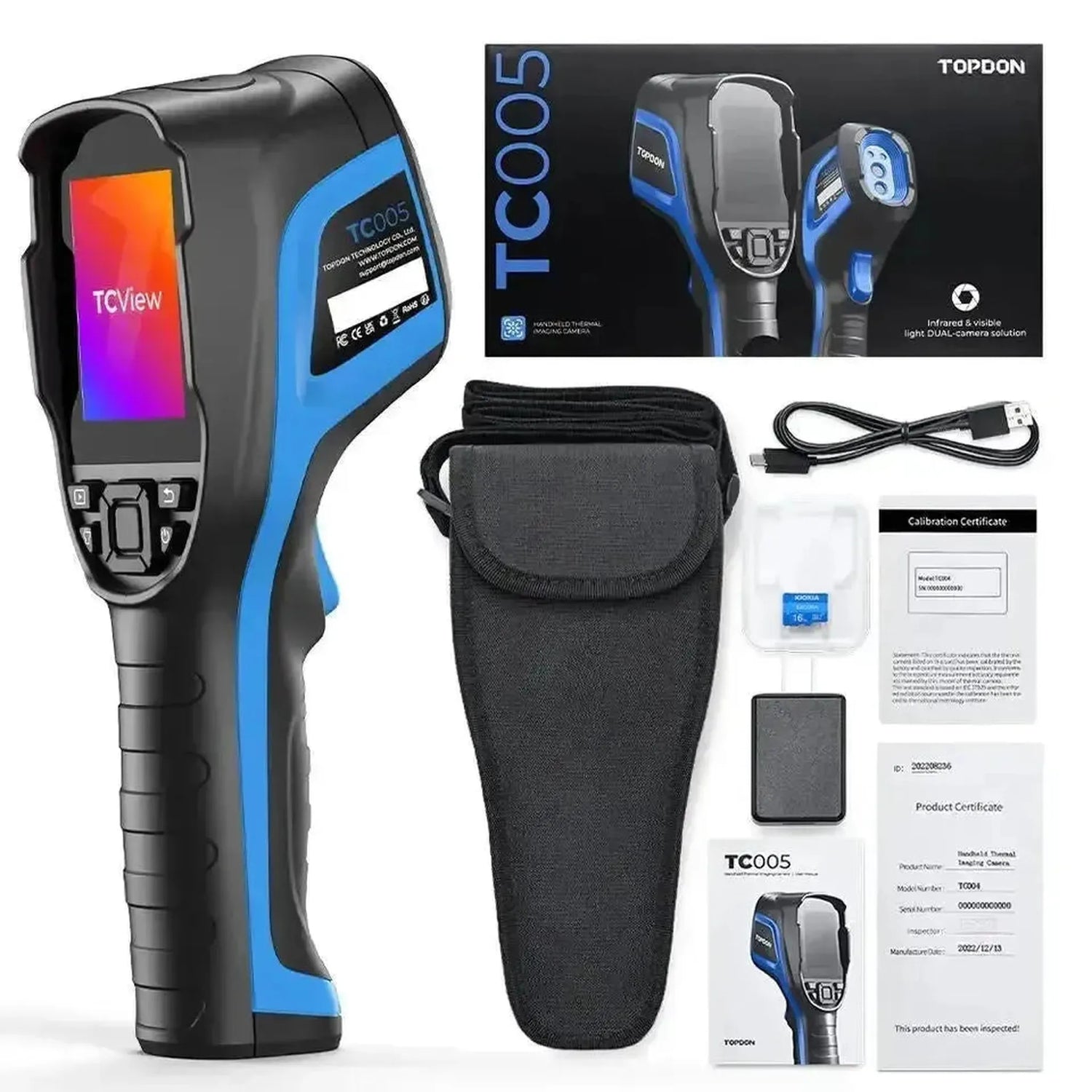

Package Contents
- 1x Topdon TCView TC005 Thermal imaging camera
- 1x 16GB Memory card
- 1x USB data cable
- 1x 5V3A Power adapter
- 1x Carrying case
- 1x Manual
- 1x Calibration certificate
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Topdon |
| Product model | TCView TC005 |
| IR resolution | 256 x 192 pixels |
| Temperature range | -20°C to +550°C |
| Thermal sensitivity (NETD) | 40 mK |
| Frame rate | 20 Hz |
| Field of View (FOV) | 56° |
| Visual camera | 2 Megapixel |
| Display | 2.8-inch LCD |
| Battery life | Up to 12 hours |
| Accuracy | ±2°C or ±2% of the reading |
| Protection class | IP54 (2 meter drop resistant) |
| Connectivity | USB (Data and Projection) |
