TopDiag P100 | Circuit Tester
Sign up and receive an email as soon as it is back in stock.
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

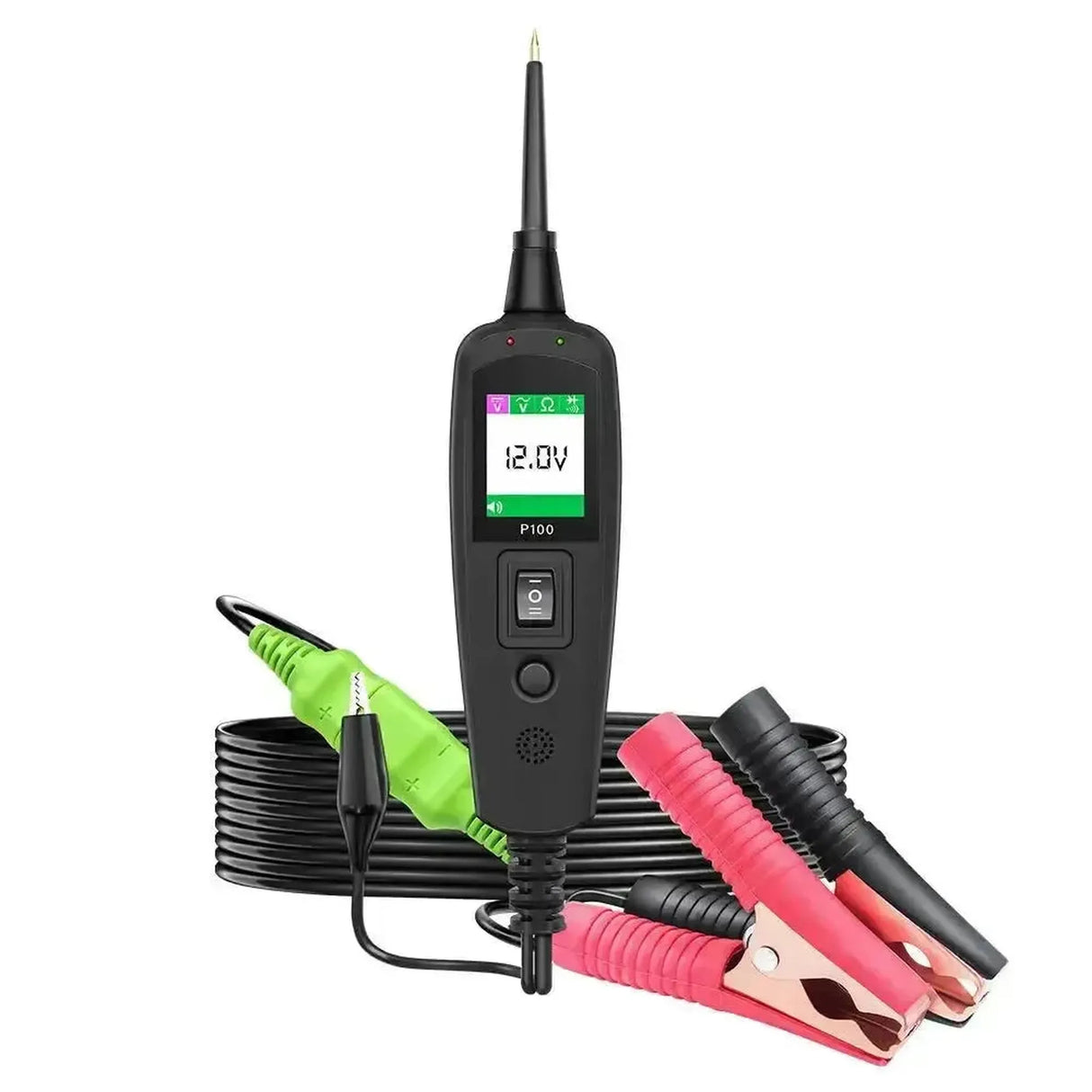

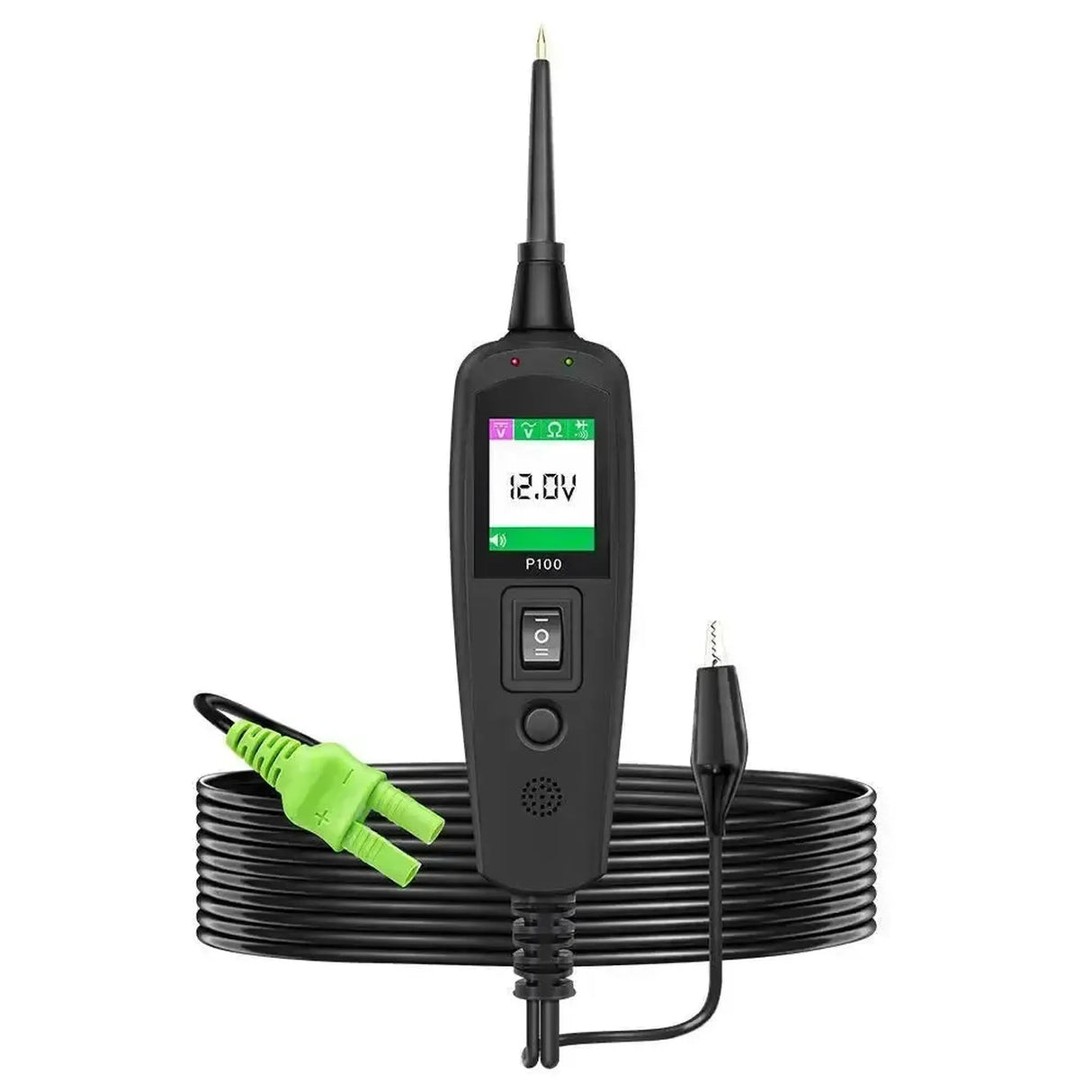

The TopDiag P100 circuit tester is designed for diagnosing electrical systems in vehicles with a voltage range of 6 to 30 volts, making it suitable for both 12V passenger cars and 24V commercial vehicles. The device is powered directly from the vehicle's battery via the included battery clamps or a 12V cigarette lighter adapter. The physical connection to the wiring or components to be tested is made through the fixed, pointed test probe. In electrical diagnostics, this tester is primarily used for locally verifying voltage levels, continuity, and the presence of power and ground during troubleshooting.
During use, the tester functions as an active diagnostic aid that both measures signals and can supply voltage. Through the LCD screen, the technician reads current values of AC/DC voltage, resistance, and diodes, including parameters such as frequency and duty cycle for alternating current. With the integrated toggle switch, the tester can actively apply a direct power or ground to a component, such as a cooling fan, windshield wiper motor, or relay, to force operation without connecting an external power source. Additionally, the system detects immediately upon touching a wire whether it is positive, negative, or an open circuit via colored LEDs and an acoustic signal, simplifying wiring tracing and ground fault detection.
Applications and Features
The TopDiag P100 offers a range of measurement and test modes for daily diagnostic work on vehicle electronics.

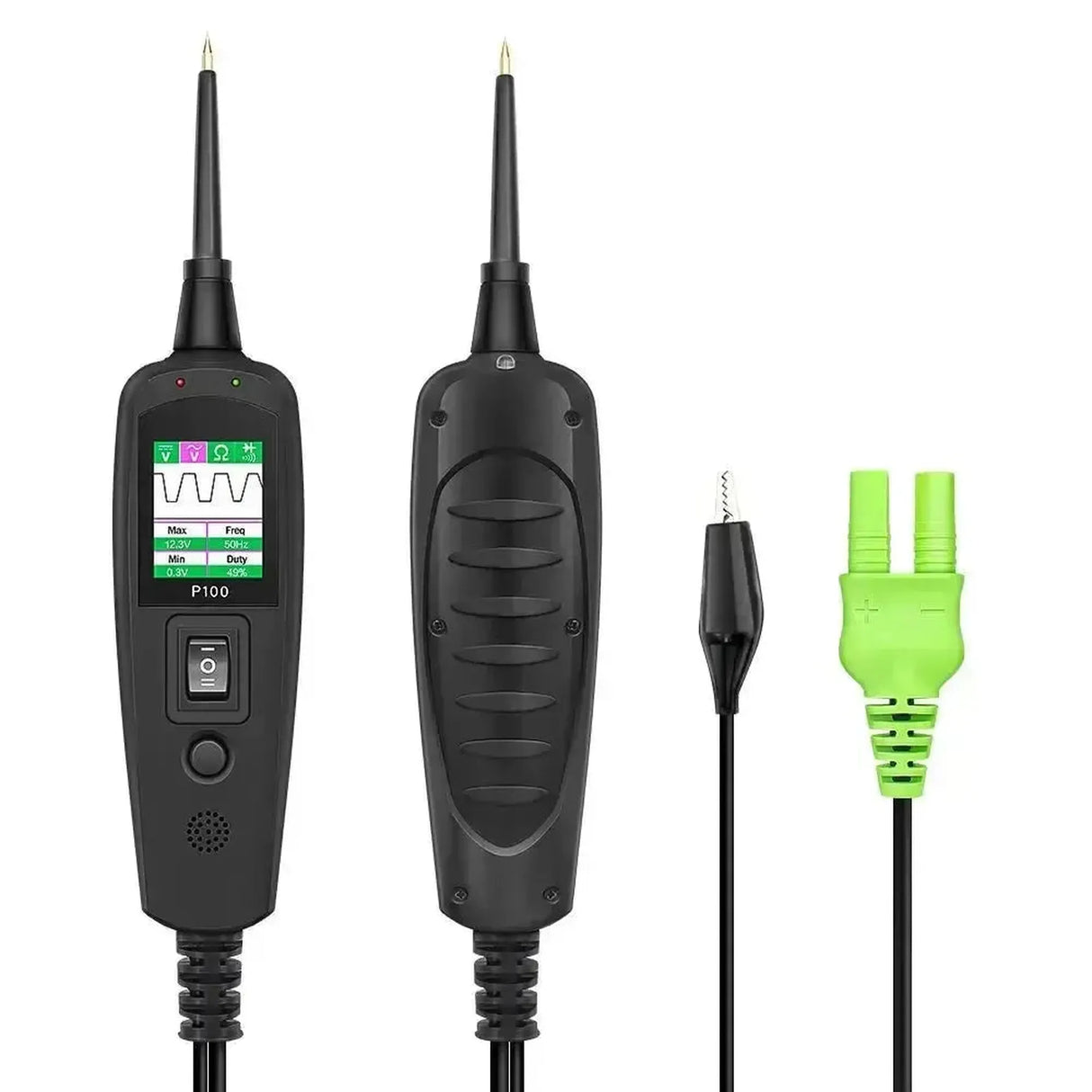

- AC/DC Voltage Measurement: Directly measures direct current and alternating current voltage in the circuit. In AC mode, the current frequency and duty cycle are also displayed.
- Resistance and Diode Test: Checks wiring continuity (including OL display for open circuits) and verifies the correct forward direction and blocking voltage of diodes in the electrical system.
- Polarity Detection: Instantly identifies whether a probed wire has positive power, ground, or no connection, supported by a red or green LED indicator on the housing.
- Ground and Contact Check: Detects poor ground connections. The tester gives a warning signal for high contact resistance to the chassis without requiring a complicated voltage drop measurement.
Special Functions and Capabilities
This model features active test capabilities and integrated protections that make diagnosis and troubleshooting more efficient.
- Activate Components: Allows direct application of battery voltage (positive) or ground to a component via the toggle switch to physically check operation, both mounted and dismounted.
- Short Circuit Protection: Equipped with an internal automatic circuit breaker (overload protection). When driving a circuit with a short, the tester shuts off to prevent damage to internal electronics and vehicle wiring.
- Trace and Locate Short Circuits: Enables the technician to step-by-step check wiring and find the exact point of a short to ground without constantly replacing fuses.
- Trailer Lighting Test: Includes functionality for directly testing pins and connections on trailer socket boxes for power and ground.
Package Contents

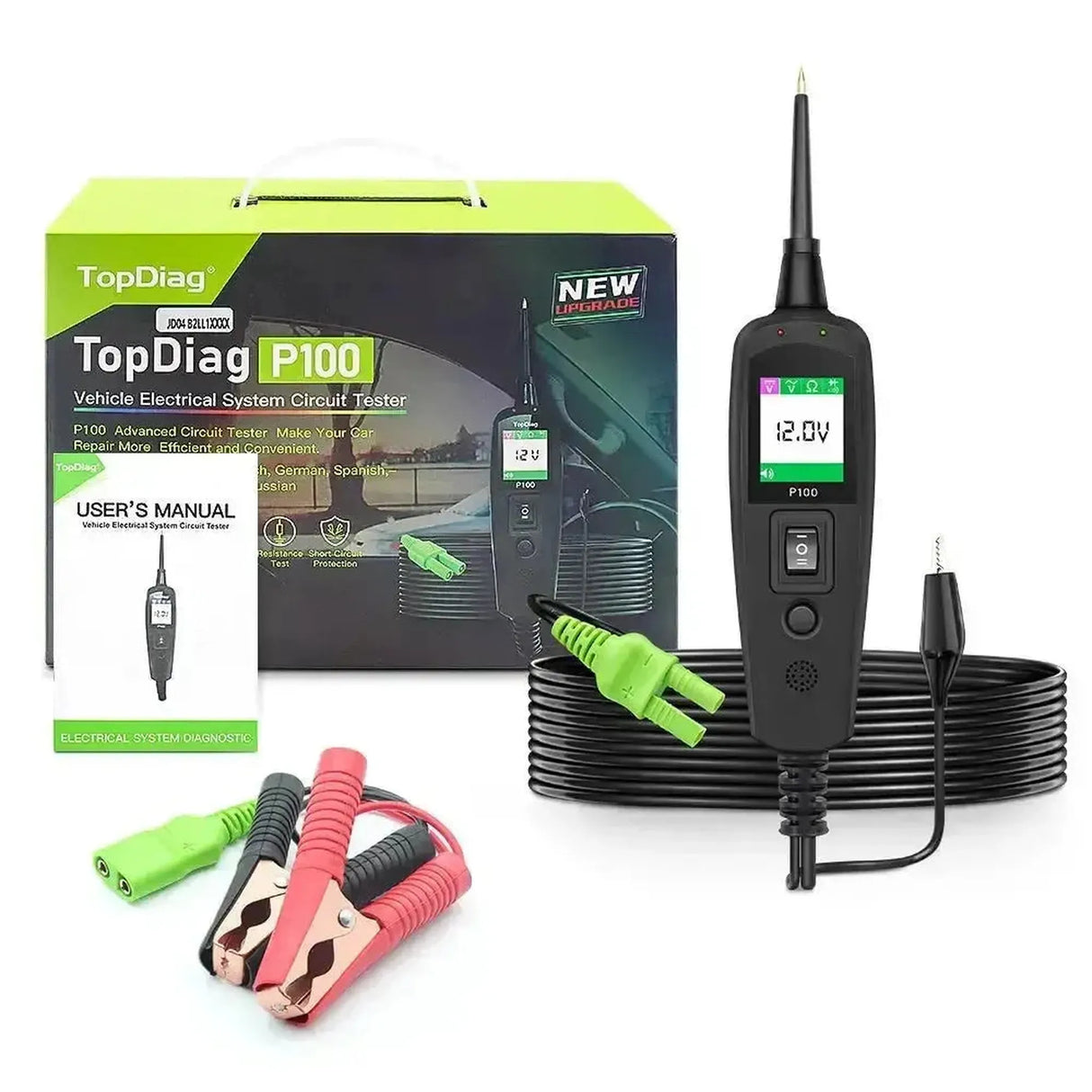

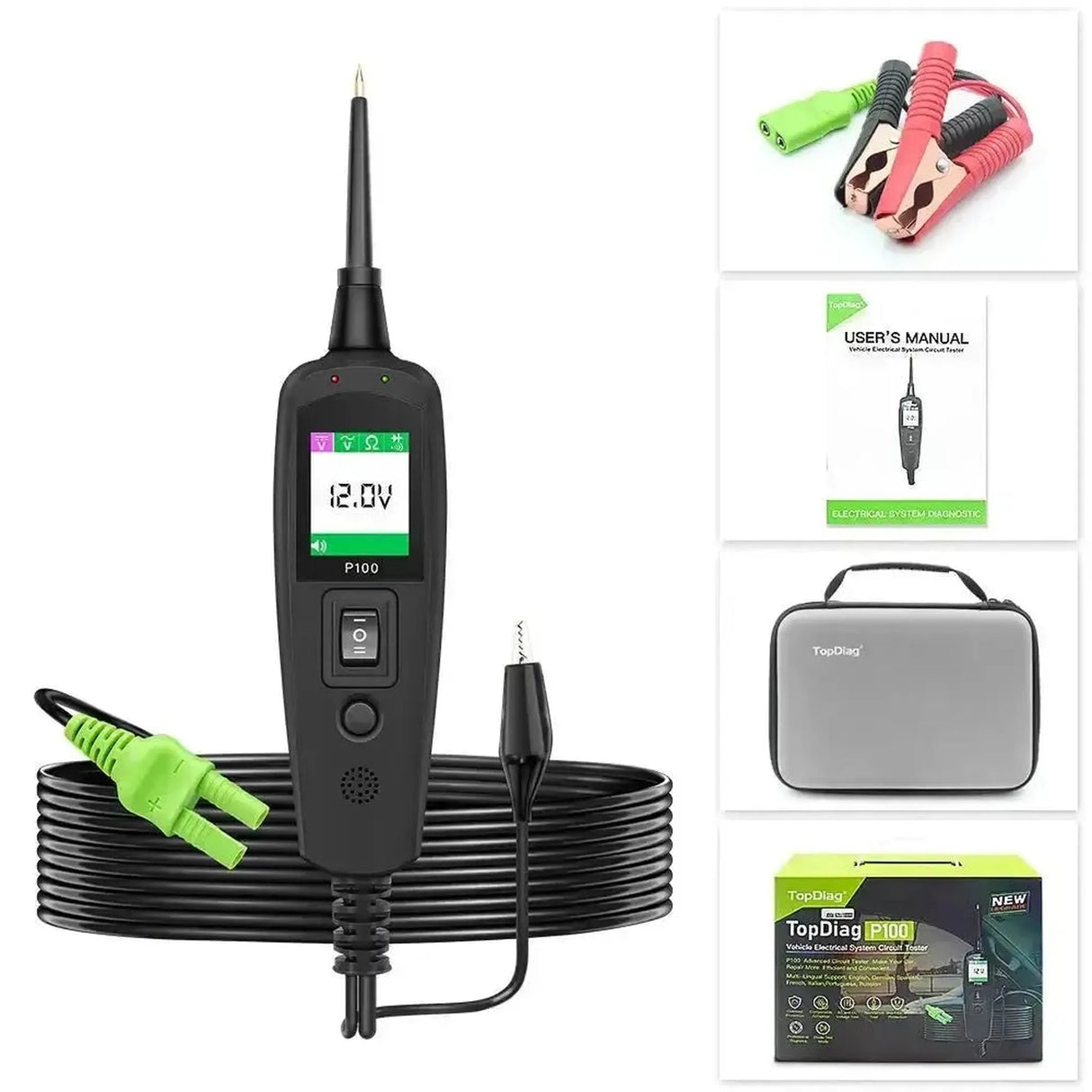

- 1x TopDiag P100 circuit tester
- 1x 10-meter (32 ft) extension cable

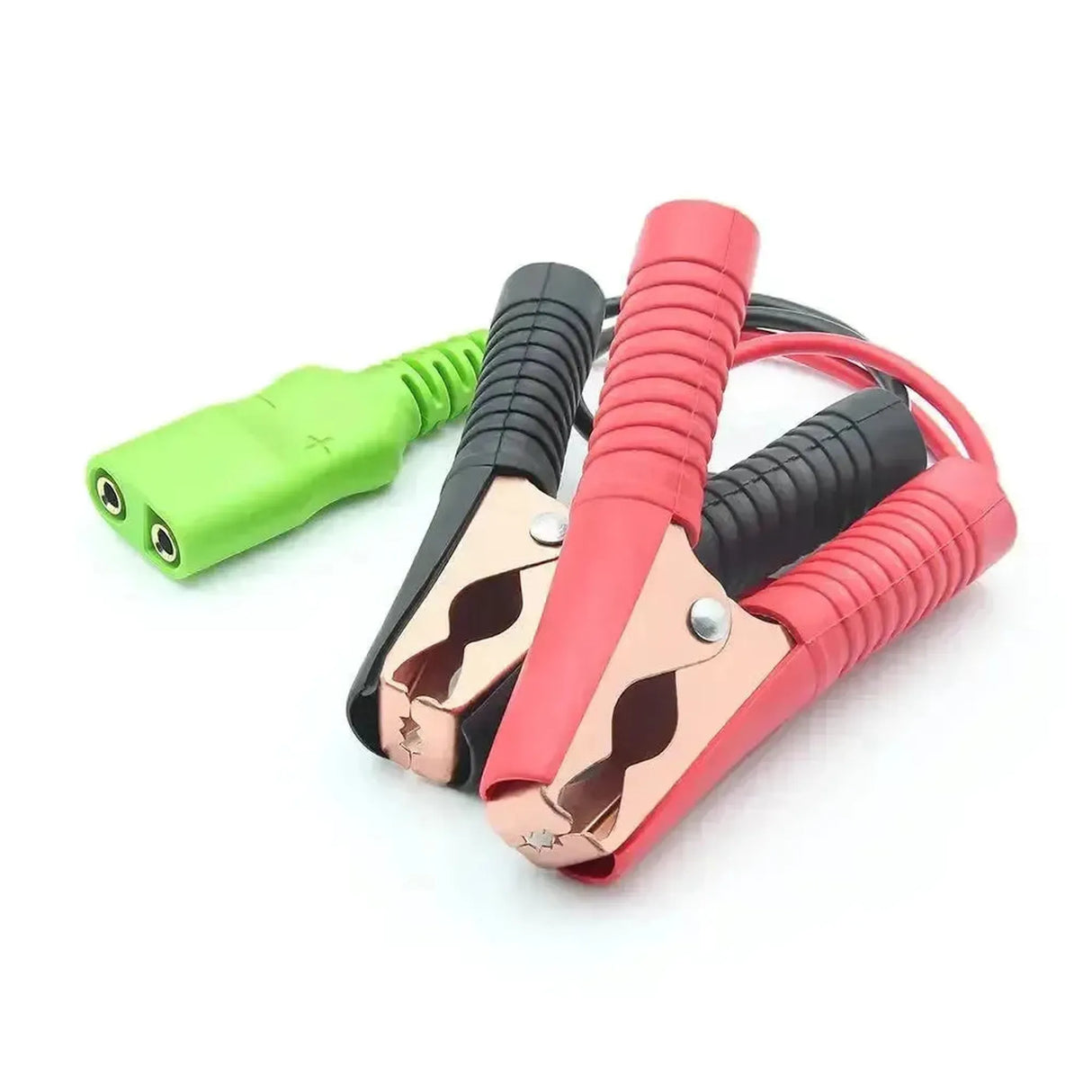

- 1x Battery clamp adapter cable
- 1x Cigarette lighter adapter cable

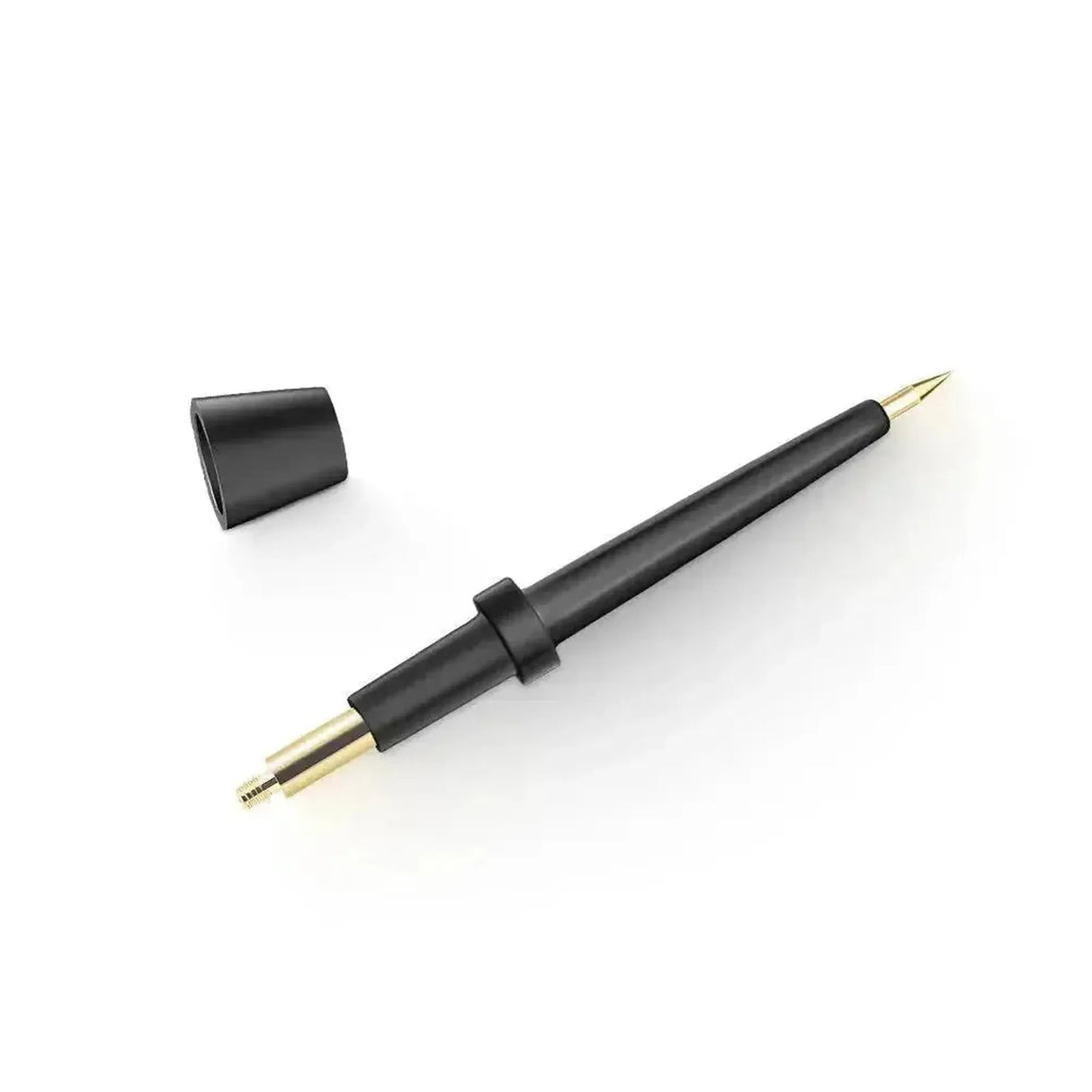

- 1x Detachable test probe

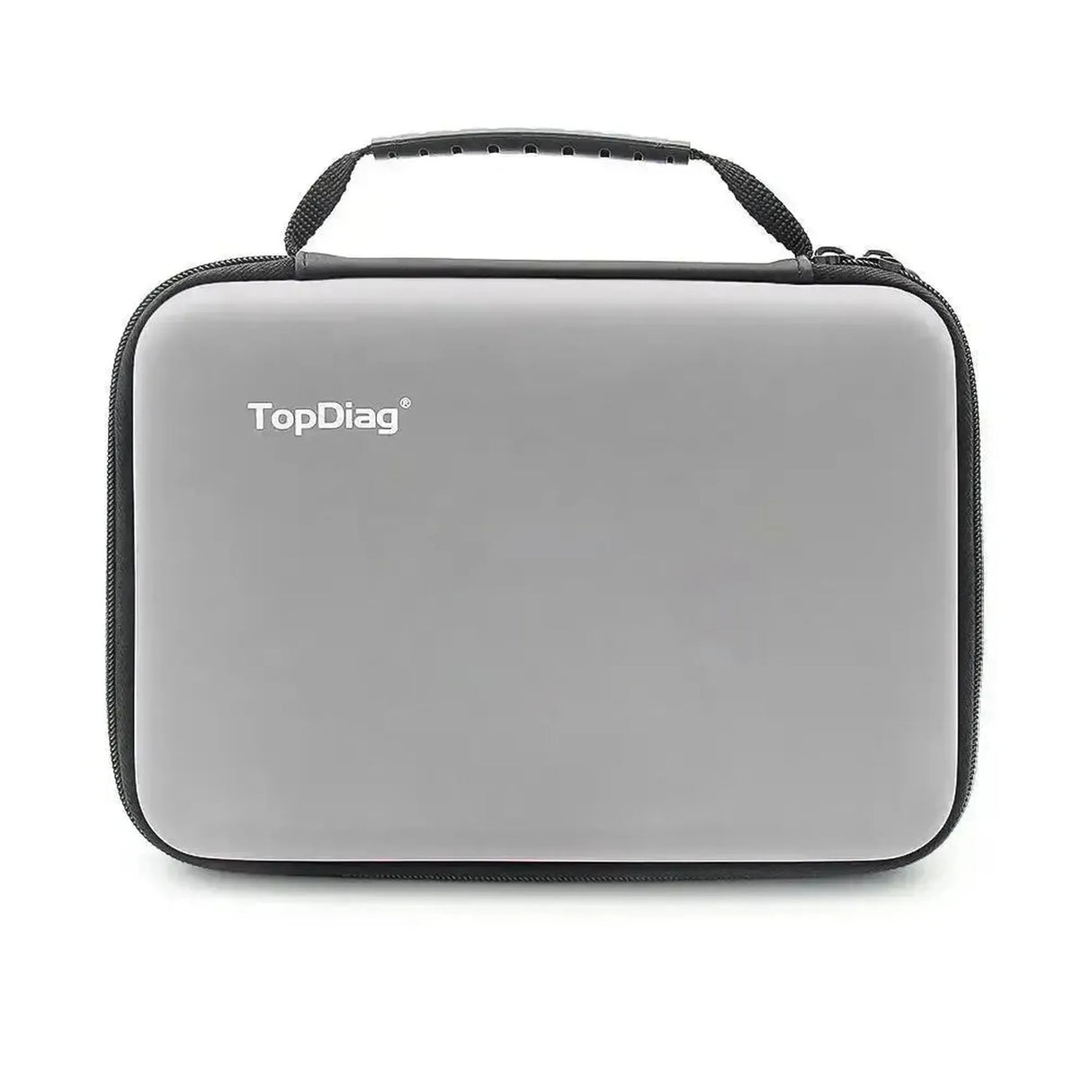

- 1x Plastic storage case
Technical Specifications
| Specification | Description |
|---|---|
| Brand | TopDiag |
| Model | P100 |
| Compatibility (Voltage) | 6V - 30V DC systems |
| Test Modes | DC voltage, AC voltage, Resistance, Diode |
| Display Type | TFT Color Screen |
| Extension Cable Length | 10 meters (32 ft) |
| Protection | Built-in circuit breaker (Overload/Short Circuit Protection) |
| Languages | Multilingual menu |
| Additional Features | Built-in work light (LED), switchable tones |
