OBDSTAR IScan Yamaha (Marine) | Diagnostic Tool | Motorboat

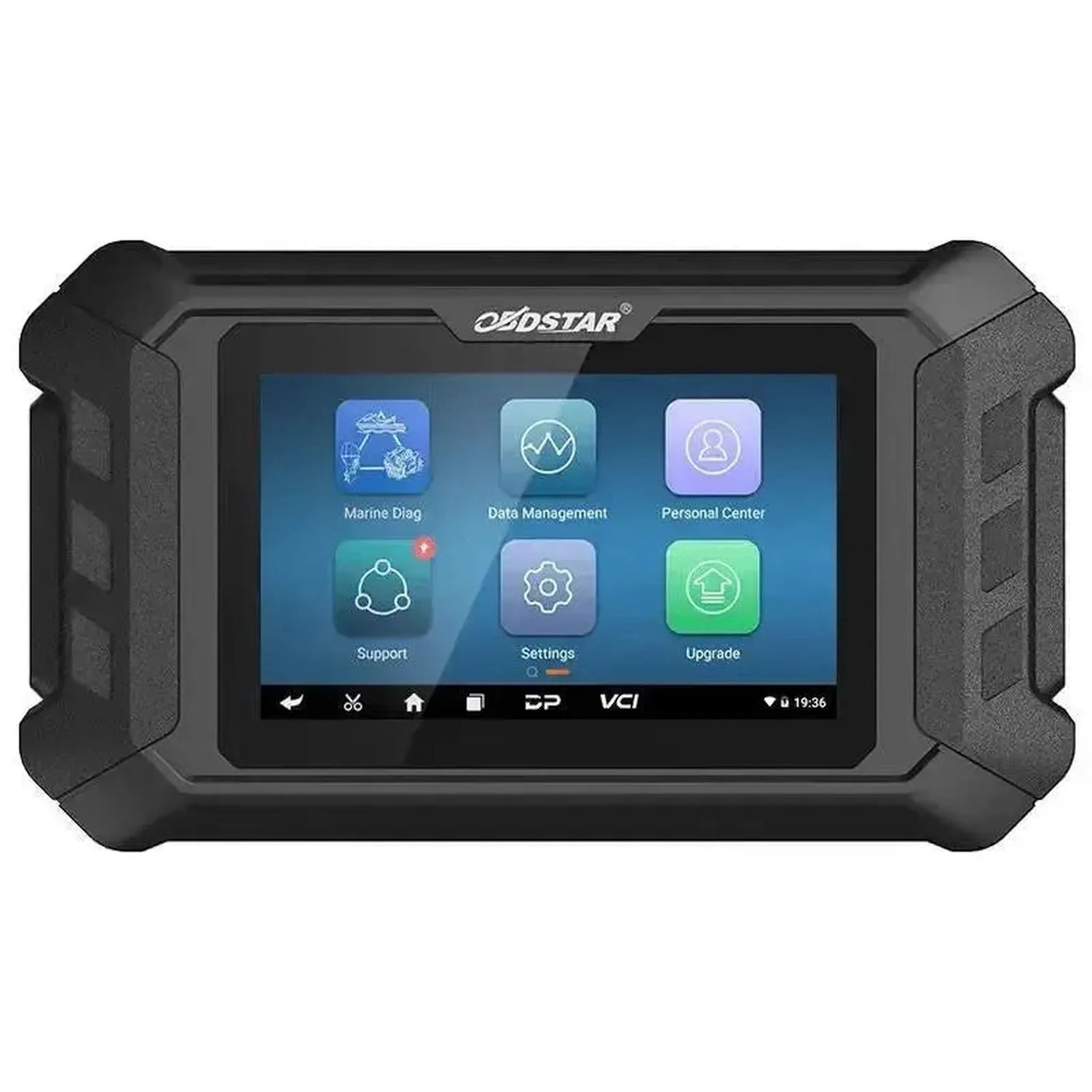

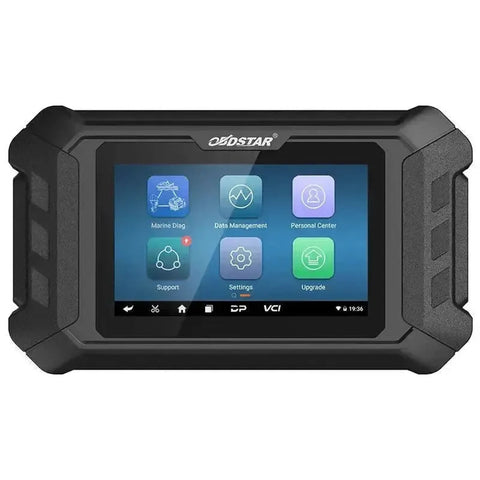

The OBDSTAR IScan Yamaha (Marine) is a portable reader device, specifically designed for performing diagnosis and maintenance on Yamaha marine systems. This device, running on an Android 5.1.1 operating system, is equipped with an RK3128 quad-core processor and a 5.0-inch touchscreen. It offers extensive diagnostic capabilities and specialized service functions for a wide range of Yamaha outboard motors, jet skis, and sport boats. The license includes 2 years of software updates.

The system features an intuitive user interface that supports technicians in quickly identifying problems. Functionalities include reading live data in various views, performing actuator tests, and configuring system components. The IScan Yamaha (Marine) is designed for use in a workshop environment and provides access to technical documentation, such as the location of diagnostic connectors, directly on the device.

Diagnostic functions:

The OBDSTAR IScan Yamaha (Marine) offers the ability to perform a full diagnosis on all available electronic systems of supported Yamaha vessels. Communication with the onboard computer allows reading fault codes and live data.

• Read and clear fault codes: Reads and clears fault codes (DTCs) from the control units in the vehicle, including engine, transmission, and control modules.
• Actuator control: Tests the operation of components by controlling them via software, such as injectors or valves.

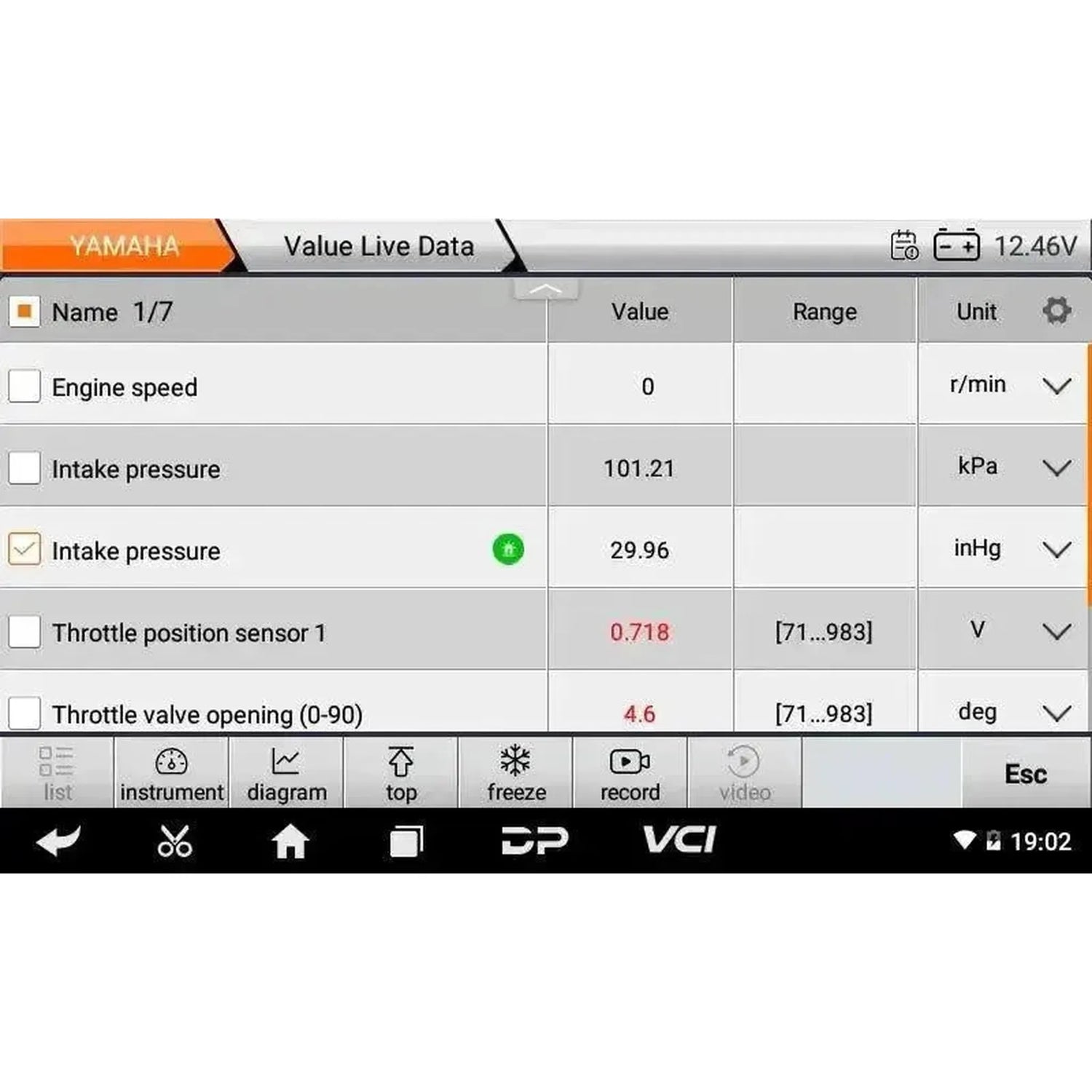

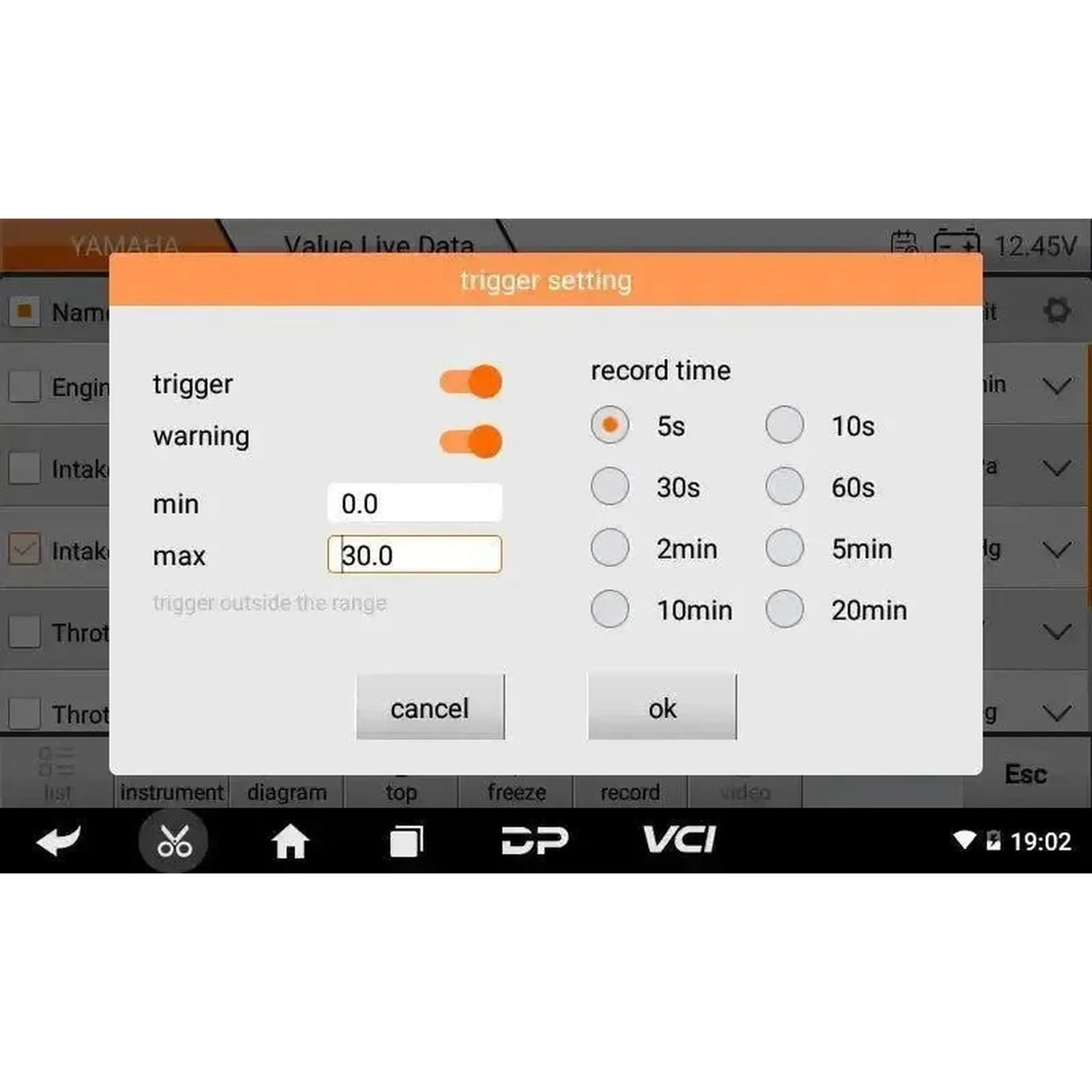

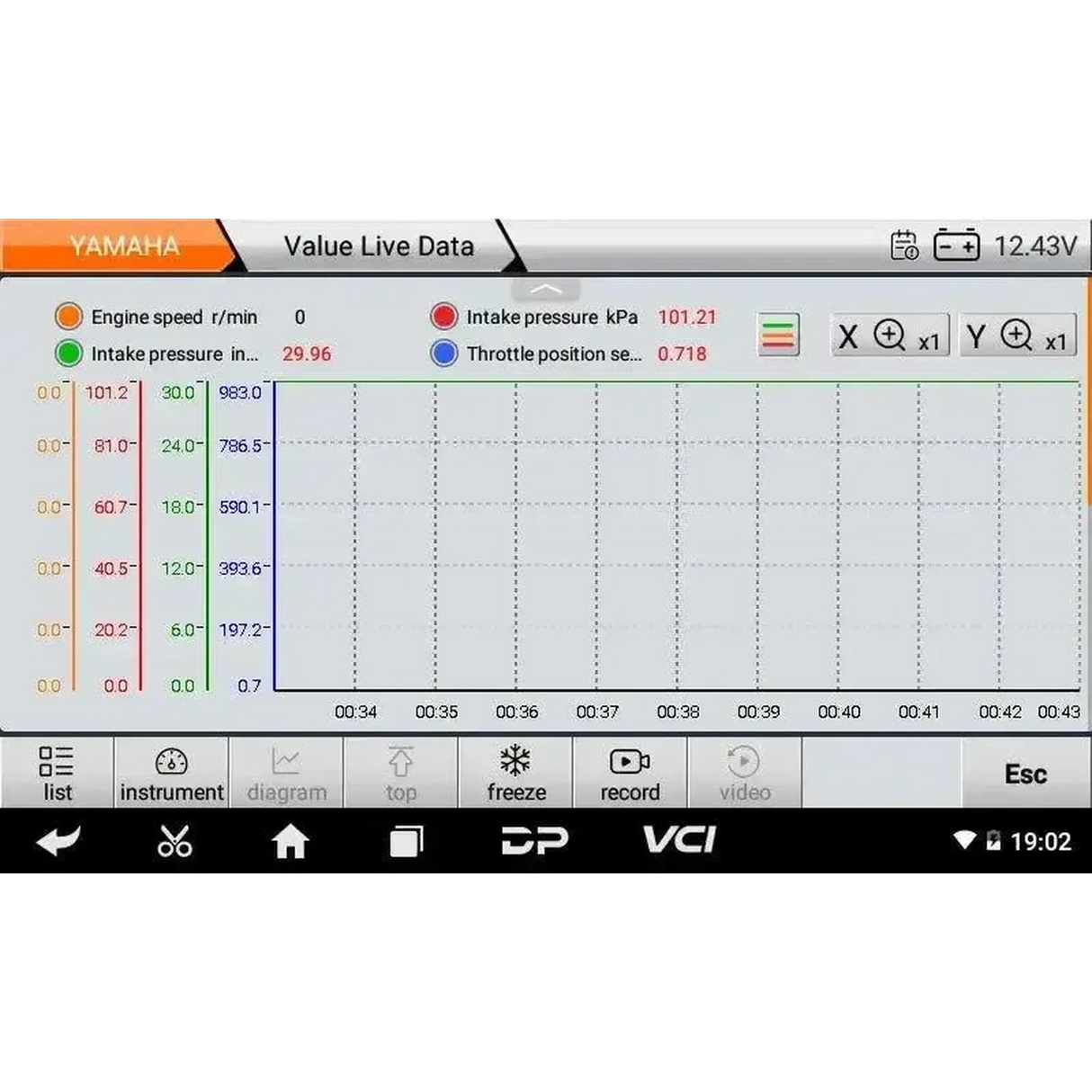

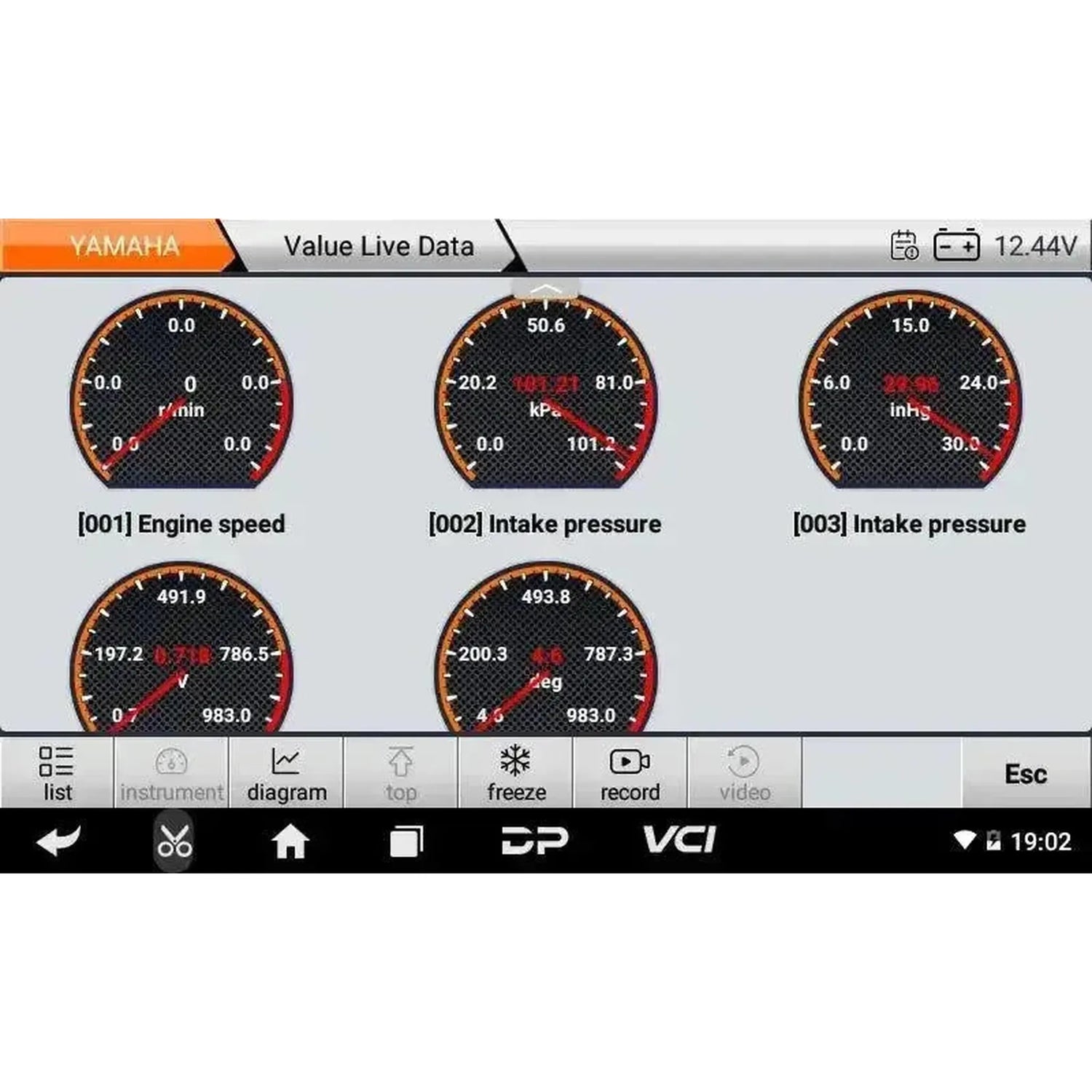

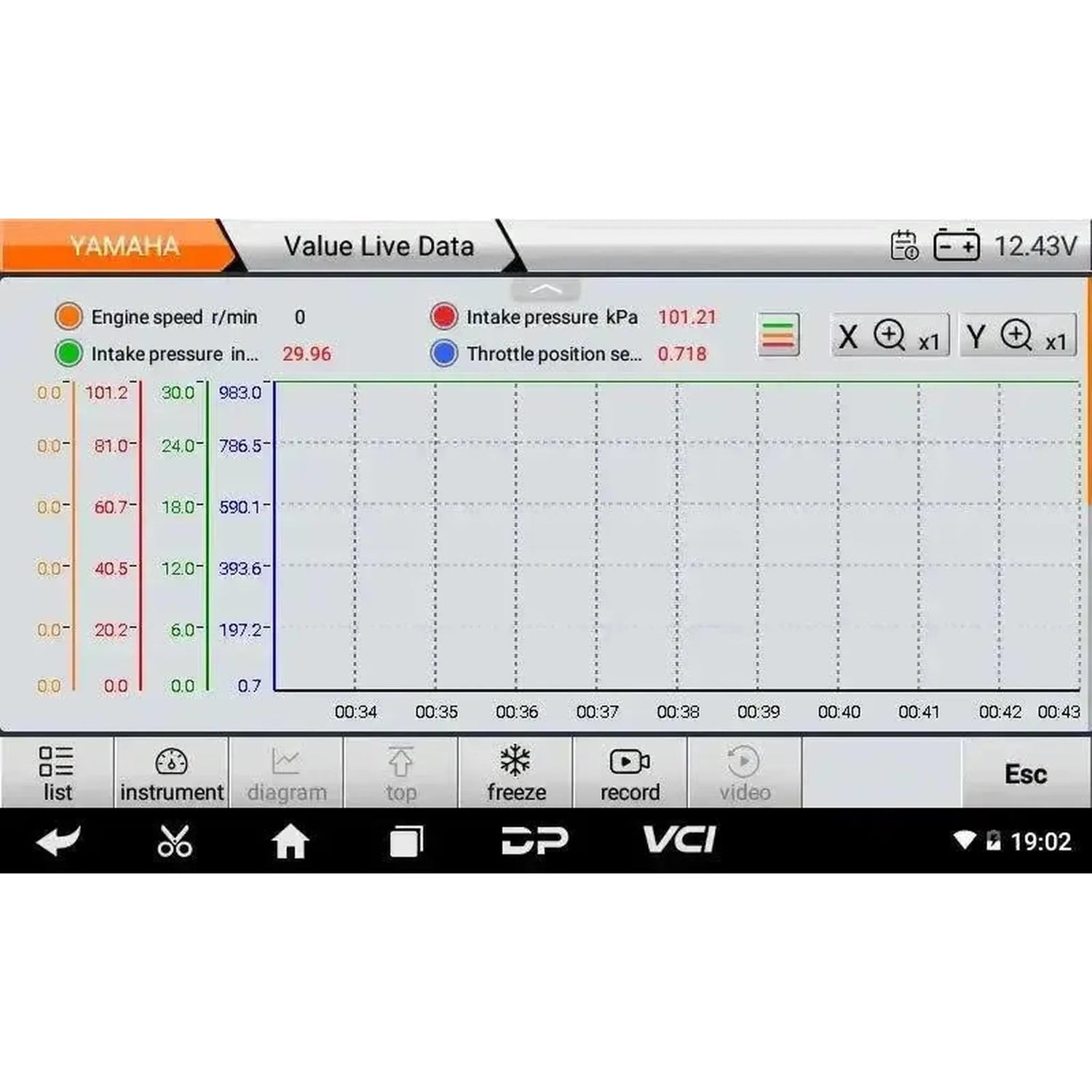

• Live data functions: Displays real-time data from sensors and components in various display modes, such as graphs or lists. This includes parameters like engine speed, intake pressure, temperature, and throttle position.

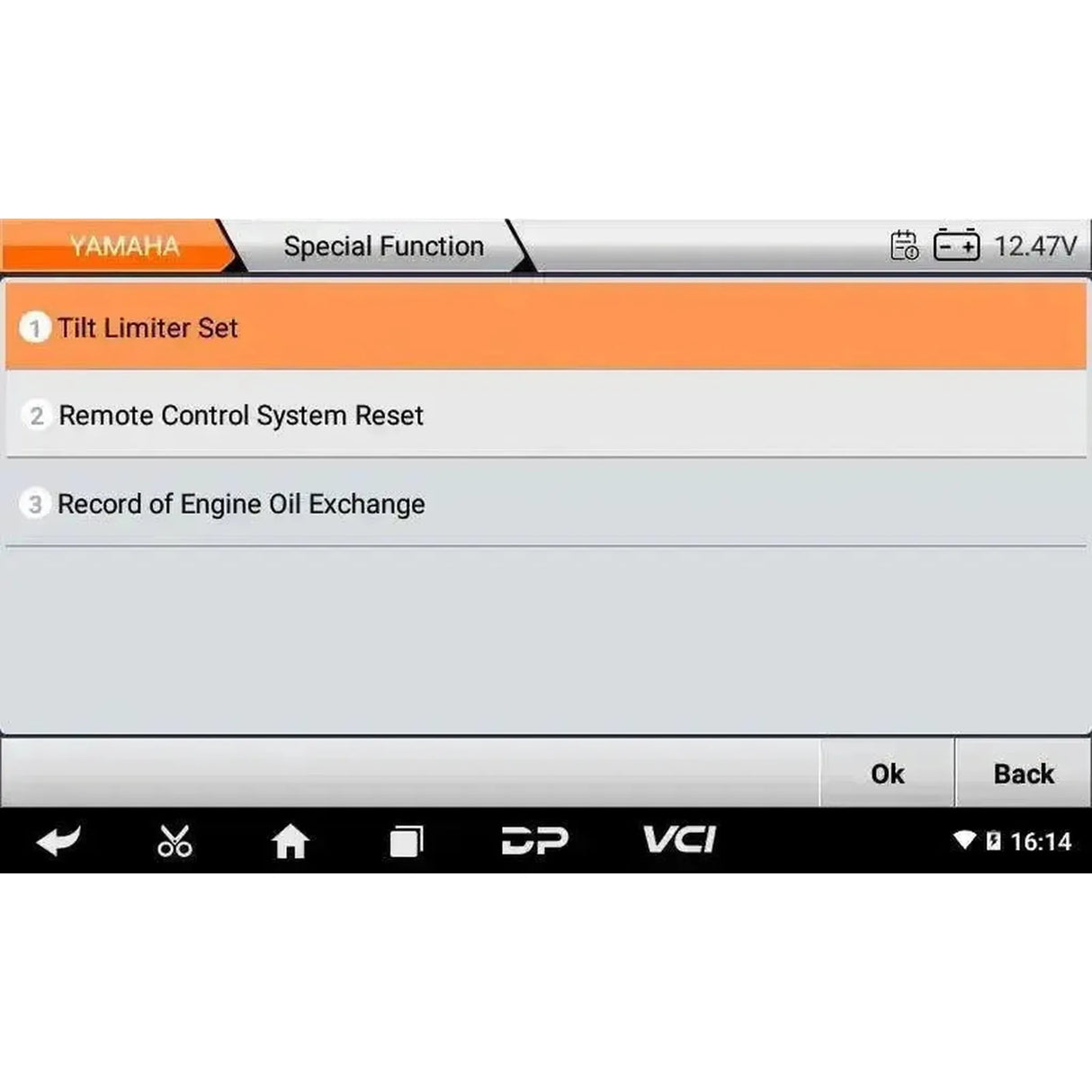

Service and maintenance functions:

This device supports more than 15 specialized service and maintenance functions for Yamaha marine engines. Available functions may vary by model and year.

Engine and Drivetrain:

• Record engine oil change history: Records the date and operating hours of the last oil change in the onboard computer.
• Oil change table: Displays the maintenance history related to oil changes.
• View engine data: Provides access to stored engine data and operating hours.
• Reset rotor (FWM): Performs a reset of the rotor position sensor.
• Transmission test: Activates and tests the operation of the transmission.
• Drive control inspection: Checks the components of the drive system.
• Calibrate cylinder: Calibrates the parameters of the engine cylinders for proper operation.
• Center cylinder: Centers the position of the cylinders, relevant for specific systems.
• Bleed system: Starts the procedure for bleeding fluid systems, such as the fuel or hydraulic system.

Steering system and Operation:

• SCU configuration: Configures the Steering Control Unit (SCU) after replacement or repair.
• Calibrate steering wheel: Calibrates the position of the steering wheel.
• Steering system operation: Enables testing and operation of the steering system.
• Learn RIDE reverse clutch: Relearns the RIDE (Reverse with Intuitive Deceleration Electronics) reverse clutch.
• Reset remote control system: Restores the settings of the remote control system.
• Initial learning: Performs the initial learning procedure for newly installed components.

Trim and tilt system:

• Set tilt limiter: Sets the maximum tilt angle of the outboard motor.
• Trim reset: Restores the trim settings to factory default.

Special features and capabilities:

The IScan Yamaha (Marine) offers additional functions that support diagnosis and maintenance.

Codings and programming:

• Adjust settings: Offers the ability to configure specific parameters and system settings.

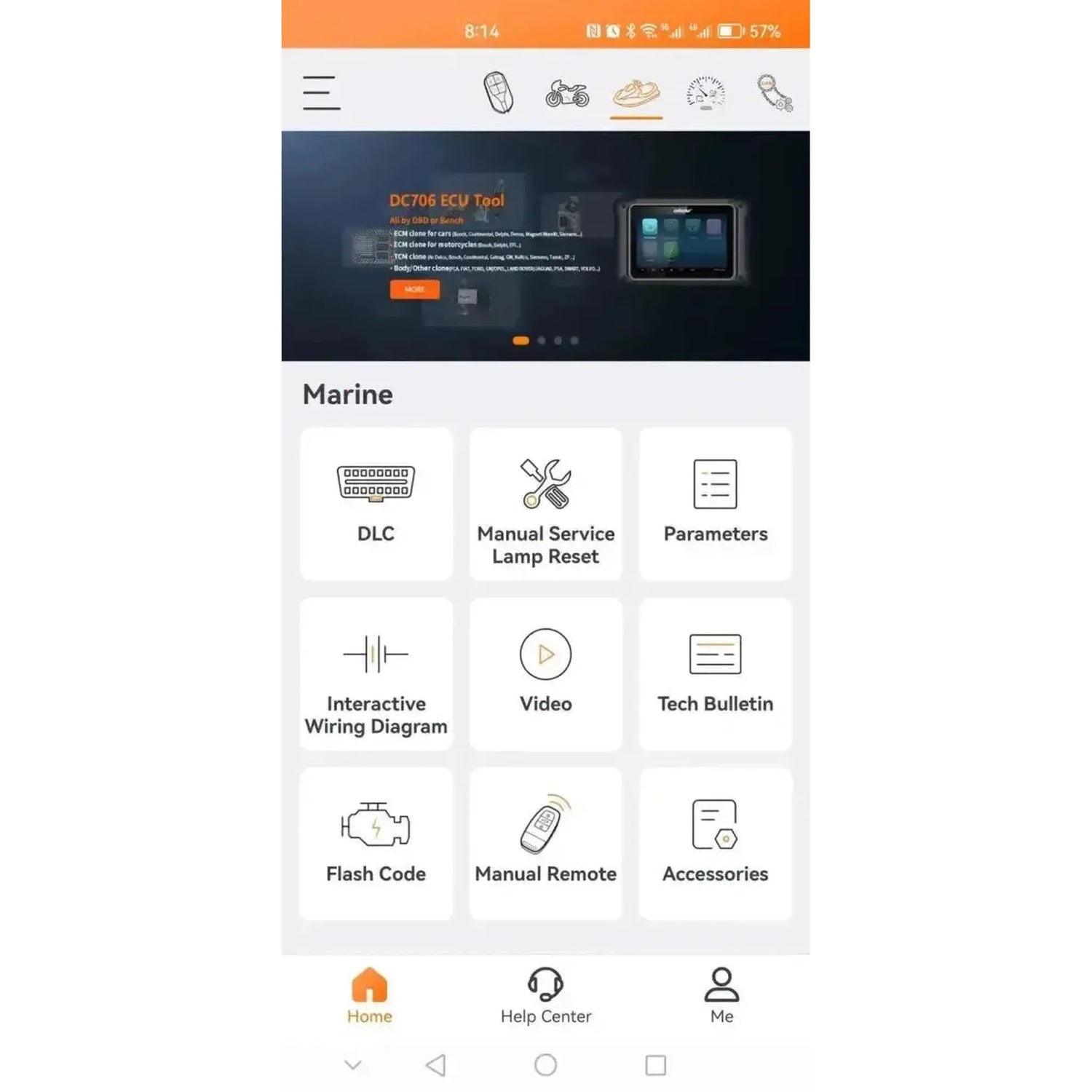

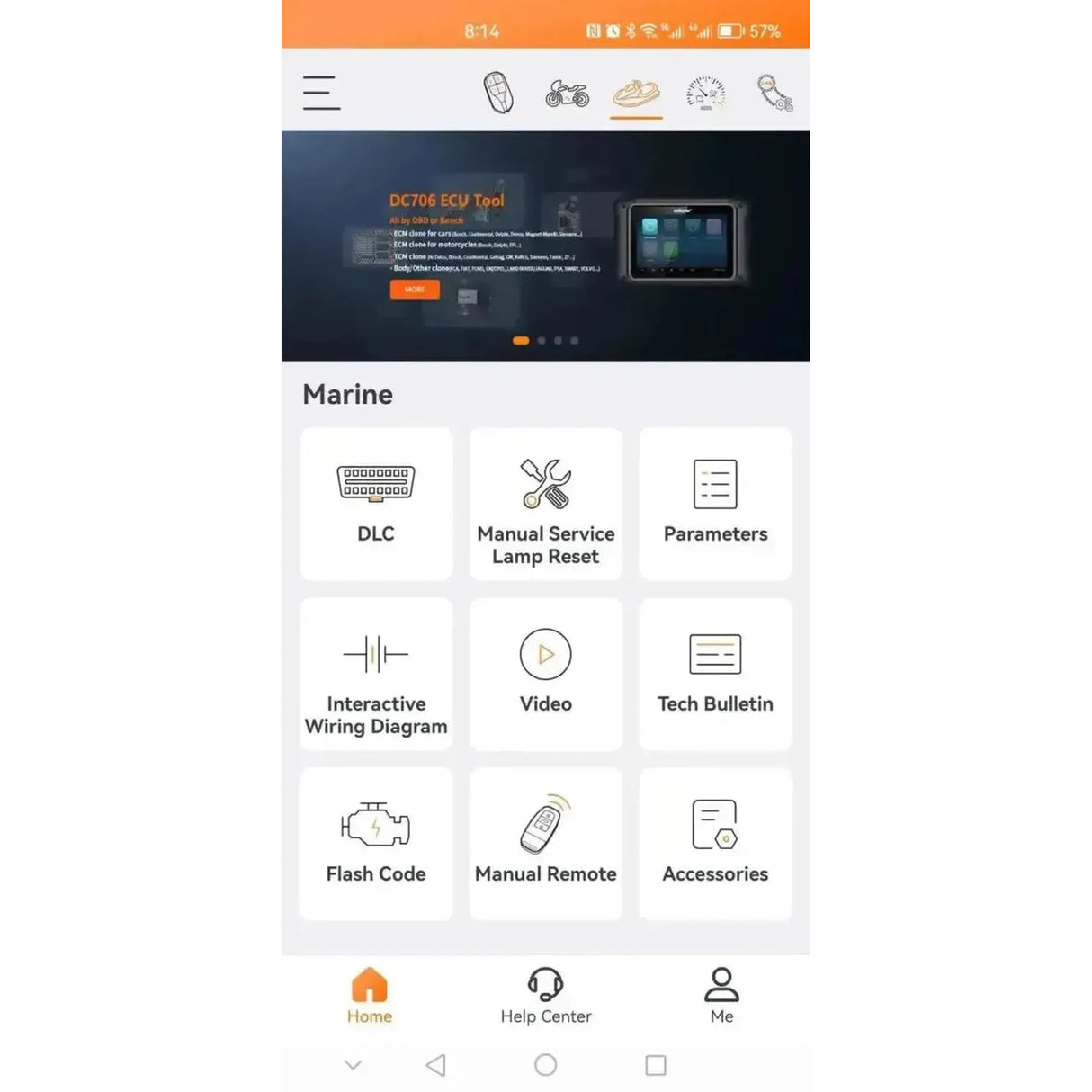

Documentation and diagrams:

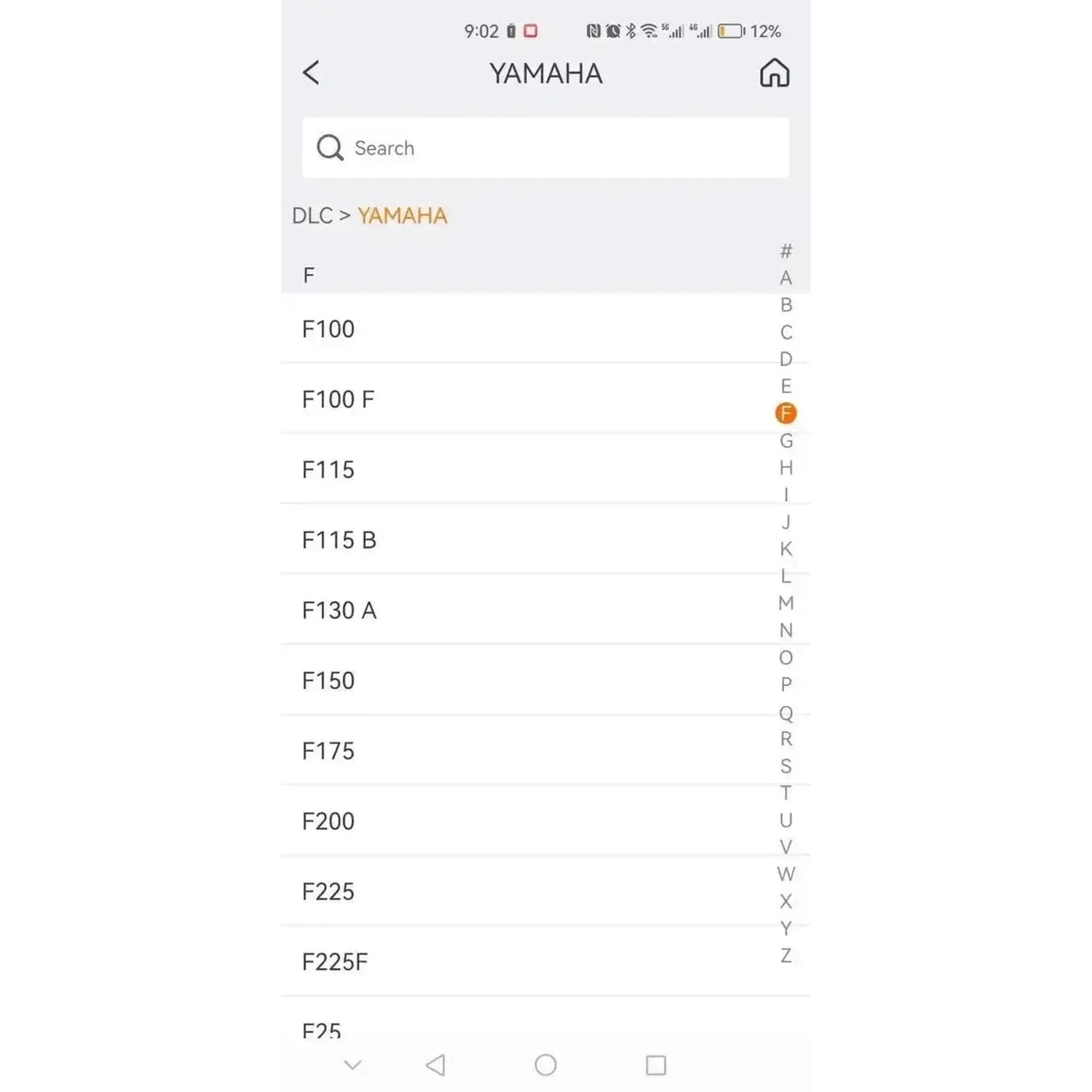

• Diagnostic connector location: Shows the physical location of the diagnostic connector (DLC) on the vessel.
• Technical manuals: Provides access to integrated manuals and technical documentation for supported systems.

Supported vehicle brands:

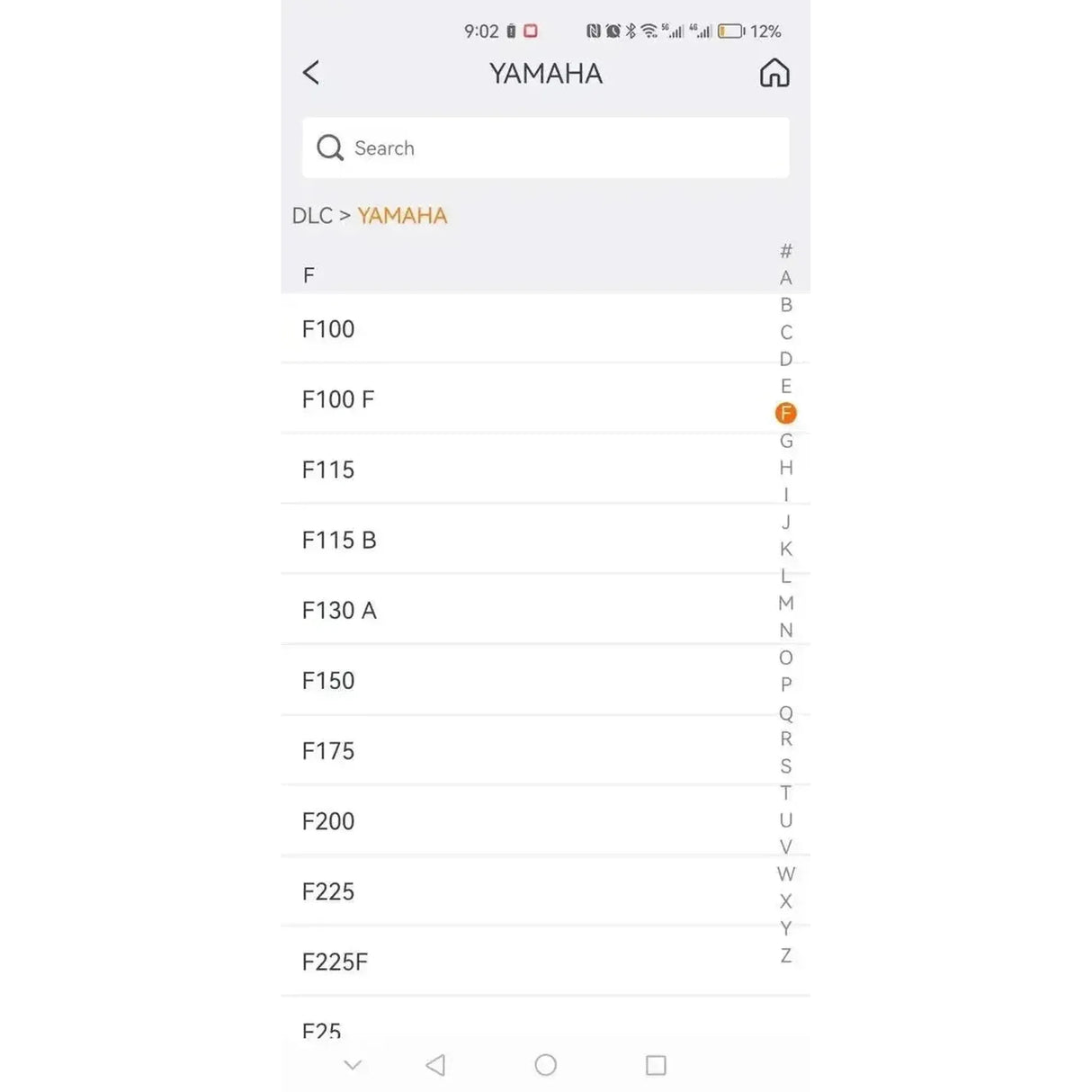

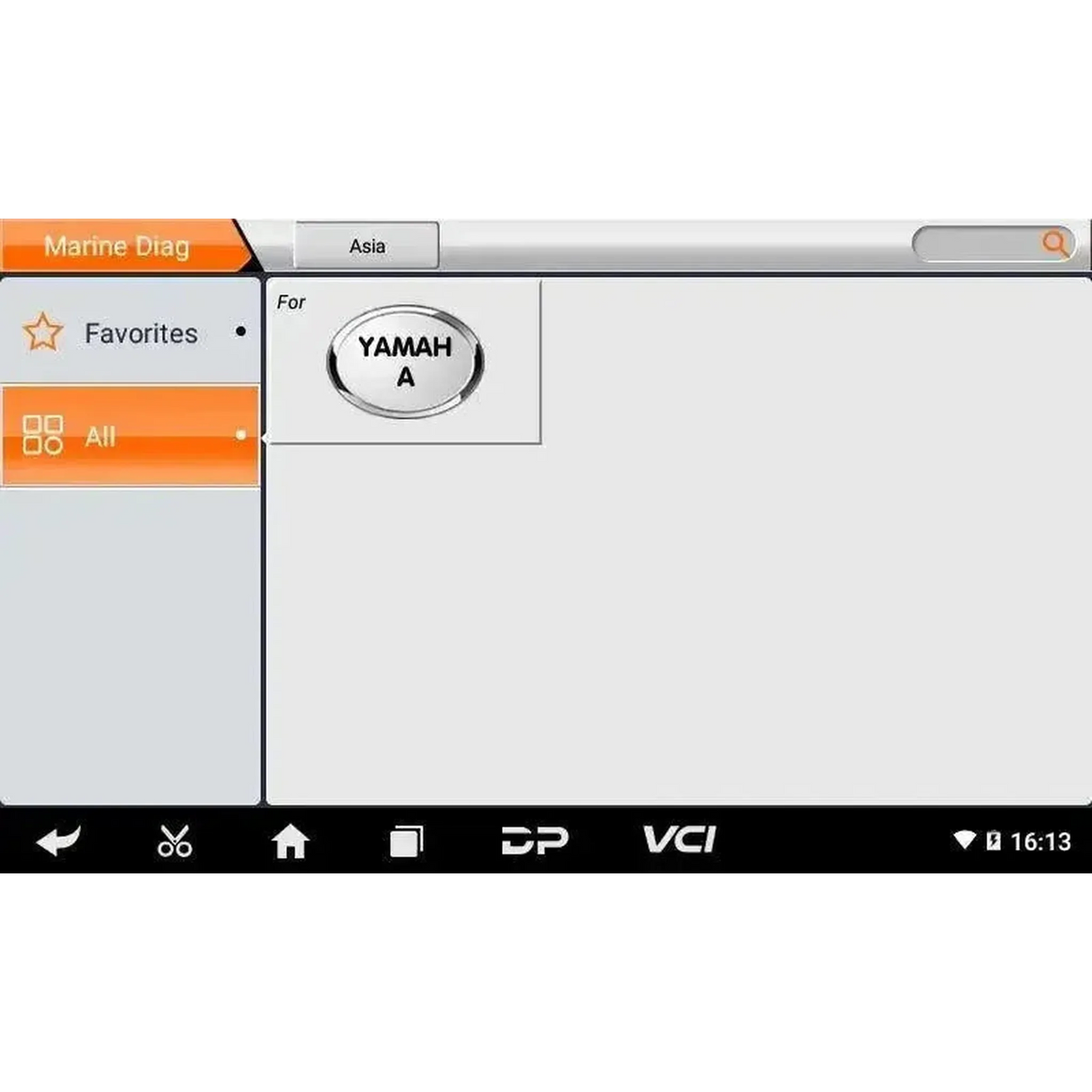

The OBDSTAR IScan is a diagnostic device specifically developed for the marine sector of Yamaha. The system supports various outboard motors, jet skis, and sport boats of this brand.

• Asian: Yamaha

Package Contents:

• 1x OBDSTAR IScan Yamaha (Marine) diagnostic device
• 1x Main cable (M001B)
• 1x Power adapter (12V2A)
• 1x Yamaha 3-pin adapter cable (M061)

License information:

• Includes 2 years of updates: A 24-month update license is included with the purchase.

After the license expires, the device will continue to operate based on the last installed software version. Receiving new software updates is no longer possible after this period without purchasing a new license.

Technical specifications:
