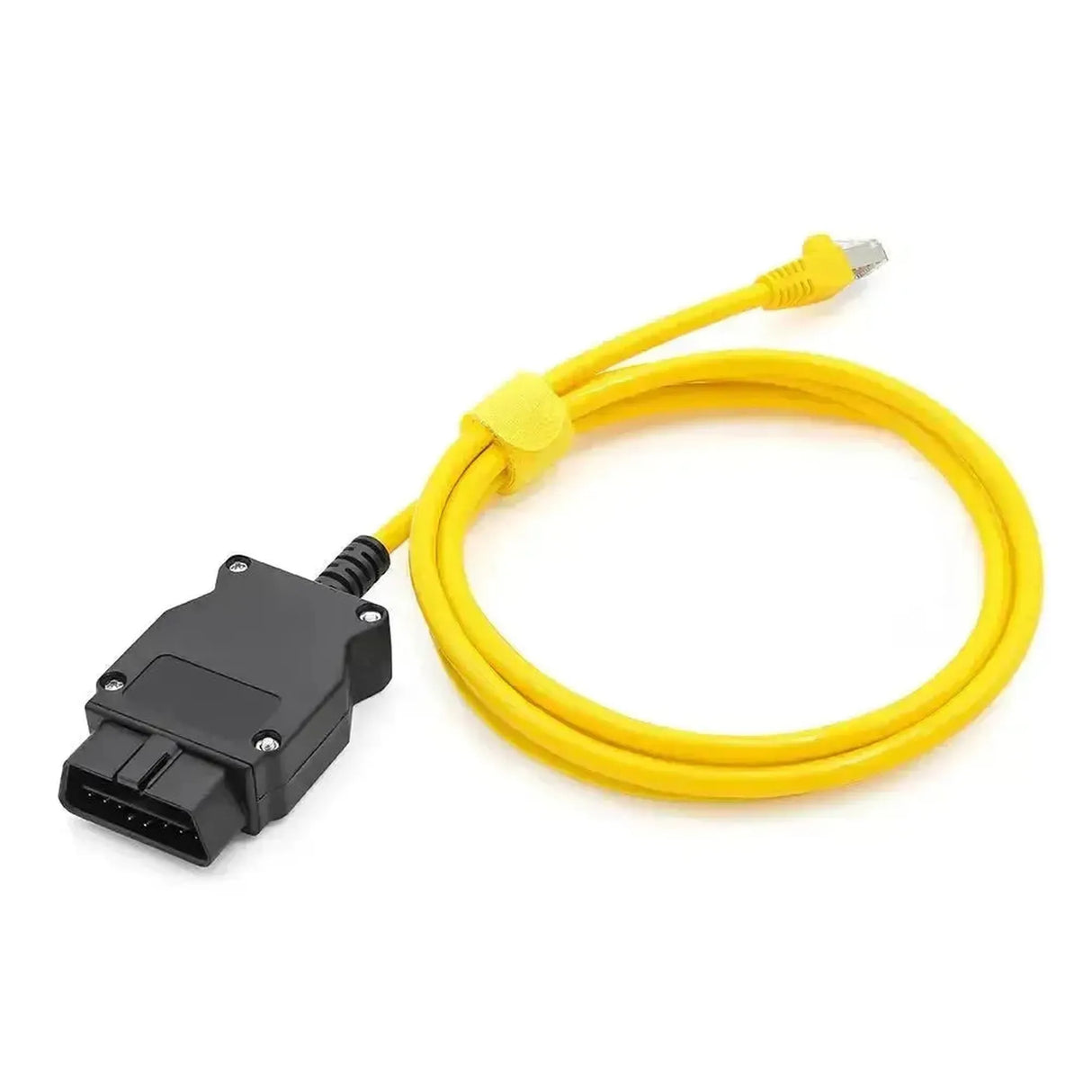

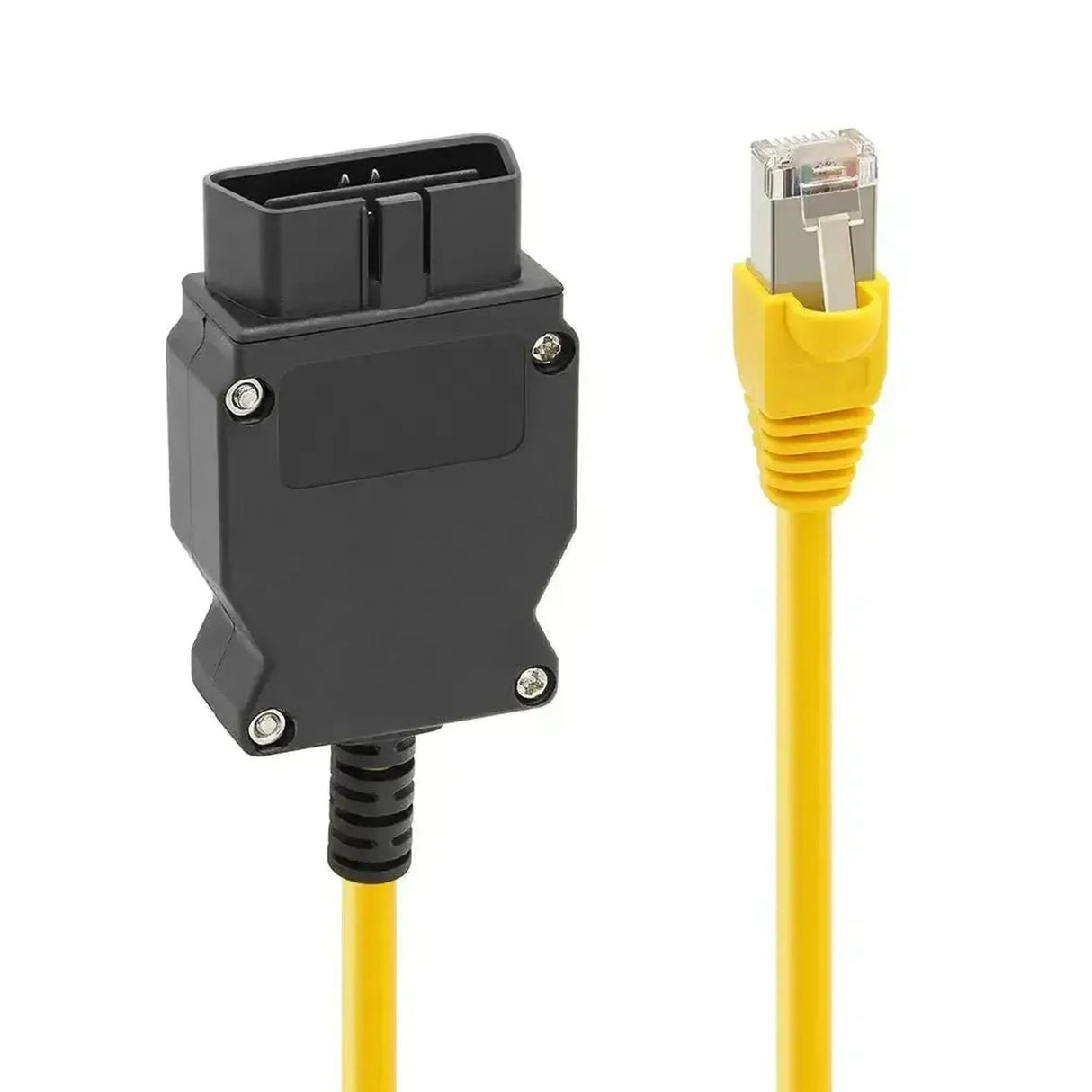

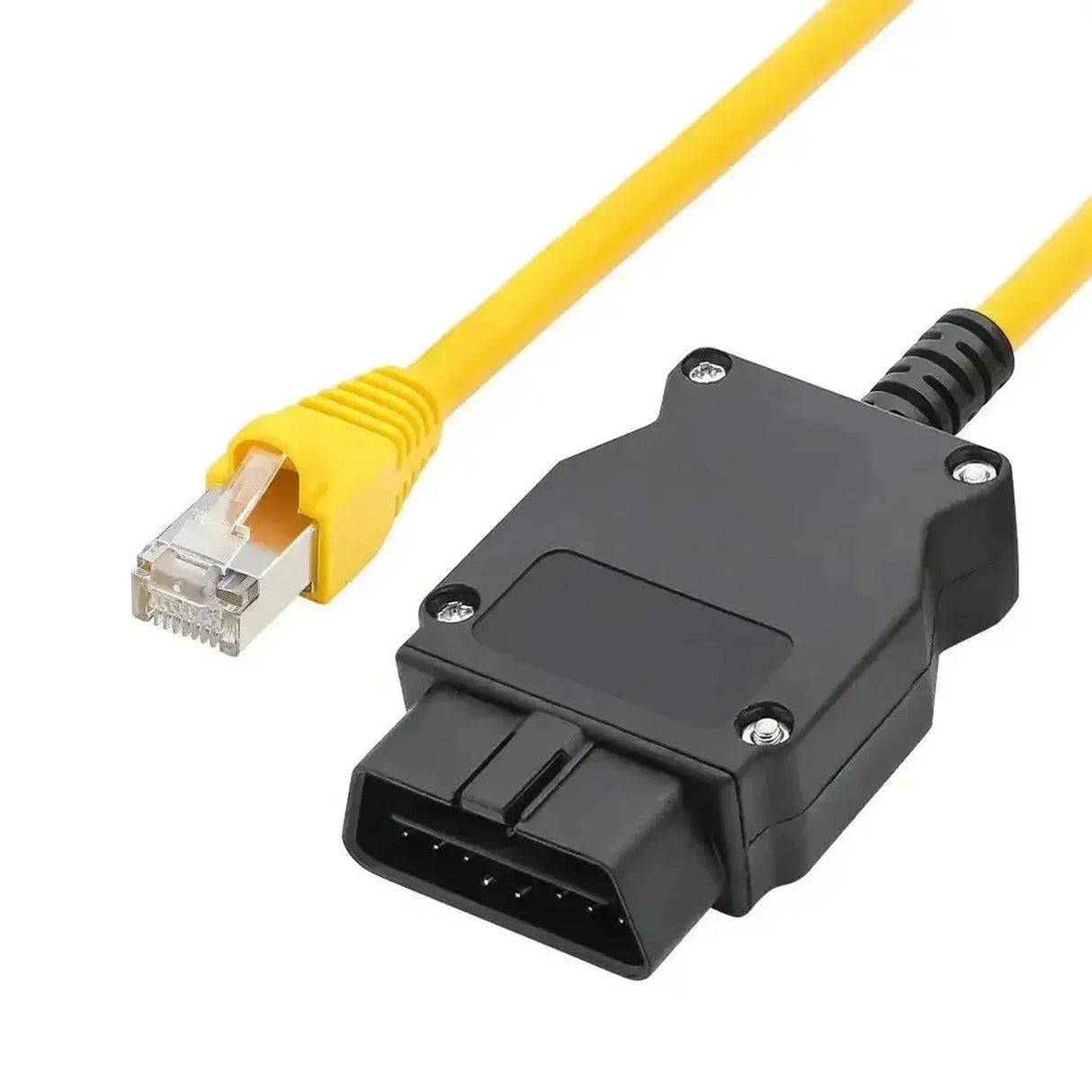

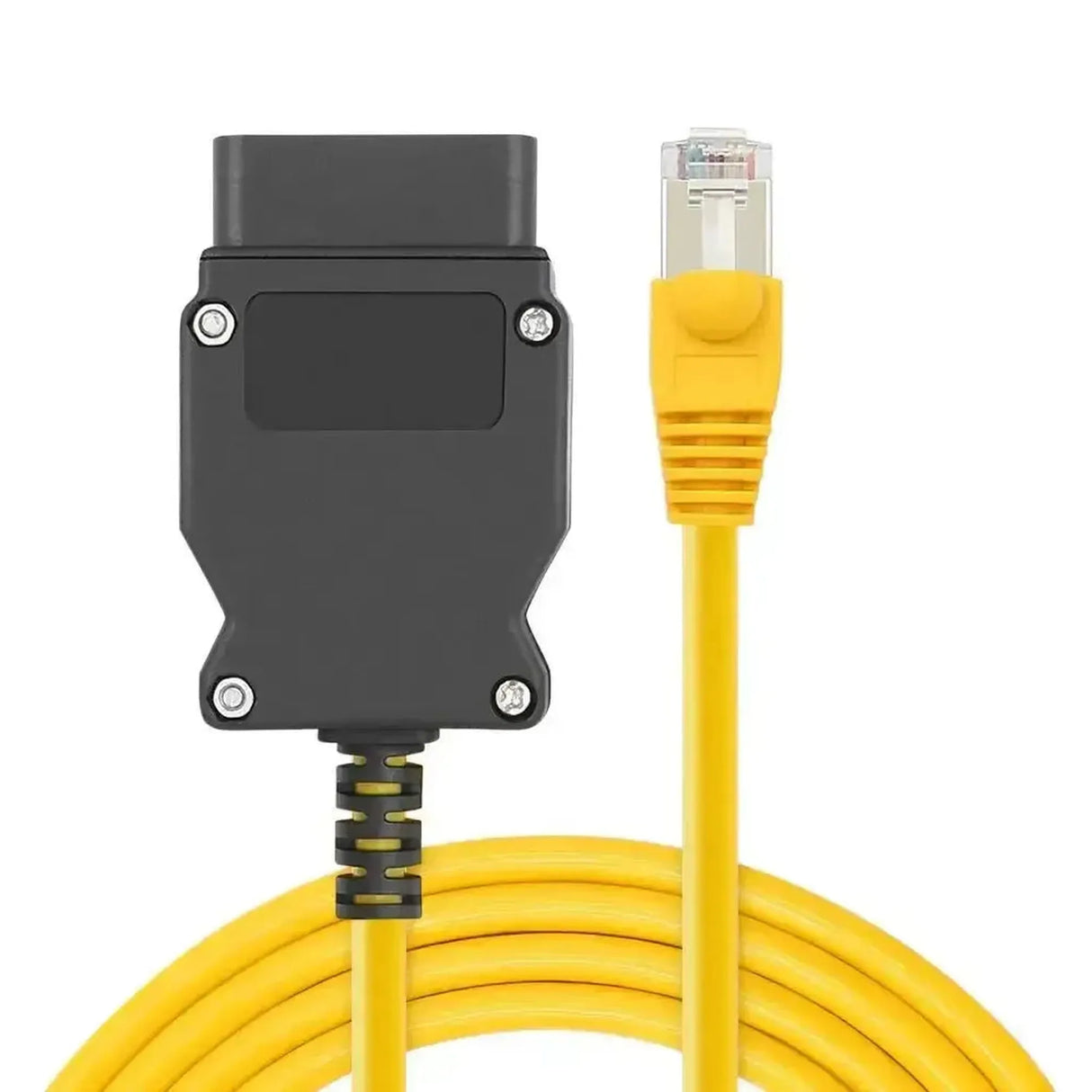

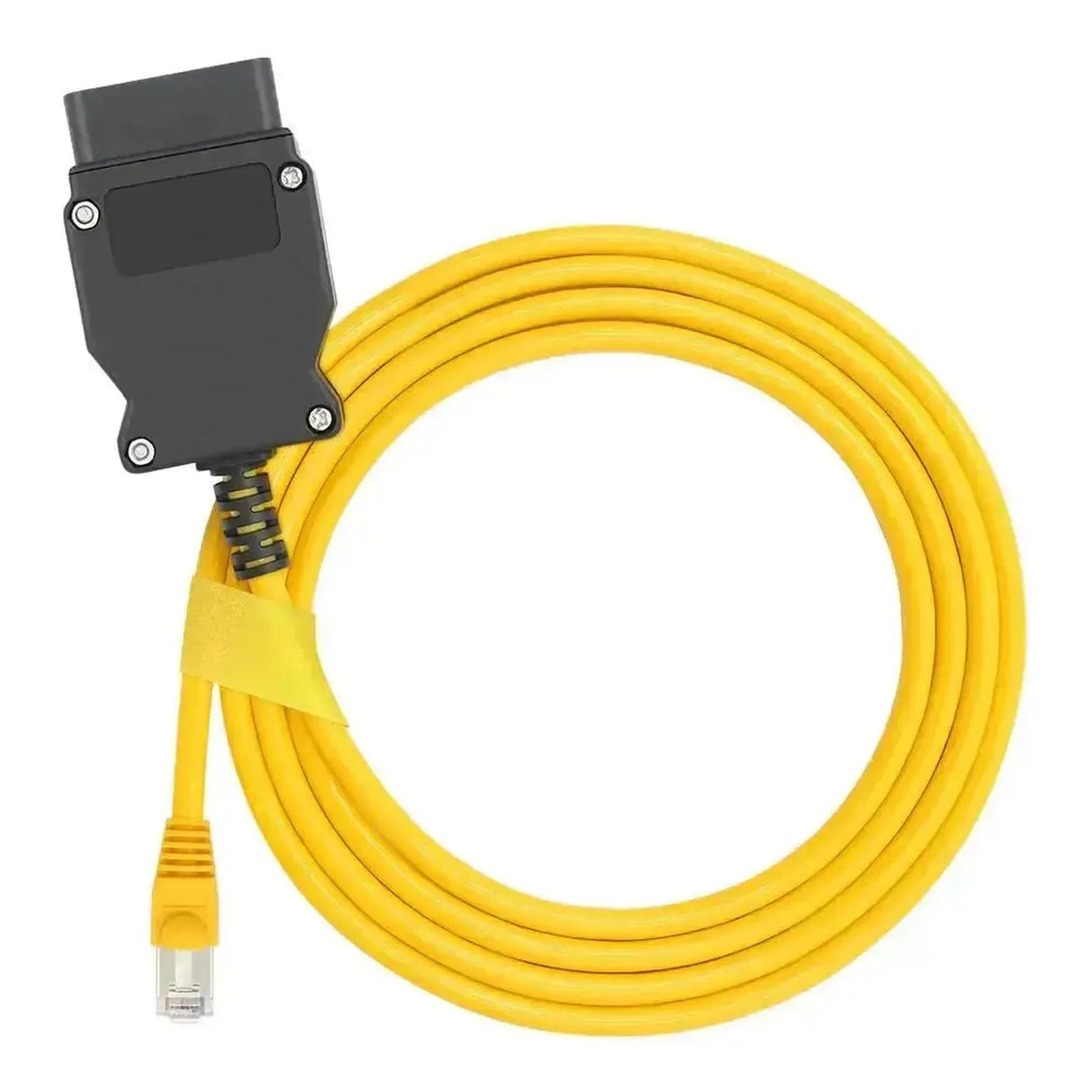

The BMW ENET OBD2 - RJ45 | Interface Cable connects vehicles with a DoIP architecture via the OBD2 connector directly to an external system equipped with a RJ45 network port. This interface uses a wired Ethernet connection to perform complex diagnostic tasks, control unit coding, and flashing of control units (ECUs). The direct connection is specifically designed for modern vehicle models where fast and extremely stable data transfer is required for safe software modifications and in-depth network diagnostics.
Technically, the interface cable functions as a pass-through component between the vehicle's central gateway and the connected equipment, applying Diagnostics over Internet Protocol (DoIP). Unlike conventional communication via the CAN-bus, this infrastructure supports significantly higher bandwidths, minimizing the time required for programming large modules. During operation, the network card of the connected computer recognizes the vehicle network as a local device and is assigned an IP address via DHCP, establishing a robust session with dealer-level diagnostic software such as ISTA+ or engineering tools like E-Sys.
ADVANTAGES
KEY POINTS
Applications and functionalities
This interface cable enables various diagnostic and programming tasks when used with the appropriate external software. The capabilities depend on the features of the chosen software package.
- Vehicle diagnostics: Read and clear diagnostic trouble codes (DTCs) from all available modules on the vehicle network using dealer-level software.
- Module coding: Adjust vehicle configurations and unlock hidden comfort and safety features via specialized tools.
- ECU Programming (Flashing): Perform firmware updates for control units and write modified files (for example, for chip tuning or transmission adjustments).
- Live data logging: Monitor and graphically display real-time sensor data, actuator tests, and engine parameters while running.
Special features and capabilities
The cable supports advanced network communication required for modern vehicle architectures.
- DoIP communication: Facilitates fast and stable data transfer via IP packets instead of traditional bus protocols, required for vehicles from 2008 onward.
- ZGM Flash support: Enables direct access to the Central Gateway Module (ZGM) for performing integral network updates.
- Pass-through architecture: Since the cable does not apply active protocol conversion, latency is negligible. Signals travel 1-to-1 between the OBD2 port and the RJ45 port.
- Plug & Play IP assignment: Utilizes the built-in DHCP server of the vehicle gateway, often eliminating the need for manual network configurations.
Compatible vehicles
This interface cable is only compatible with models equipped with an Ethernet vehicle network (ENET architecture).
BMW:
- F-series: All models (Model years 2008 and newer)
- G-series: All models (Model years 2016 and newer)
- I-series: All models (Model years 2013 and newer)
Mini / Rolls Royce:
- F-series & G-series equivalents: Models built on the shared ENET architecture.
Compatible software and operating systems
This hardware functions as a physical bridge and requires external software to perform diagnostics. Compatibility is versatile.
Compatible software:
- E-Sys: Advanced coding, flashing, and module configuration (engineering level).
- ISTA+ / Rheingold: Official diagnostics, workshop instructions, and fault code reading.
- BimmerCode / BimmerLink: Easy coding and diagnostics via smartphone or tablet.
- Bootmod3 / xHP Flashtool: Specialized tuning for engine (ECU) and transmission (TCU).
Operating systems:
- Windows: Fully supported, required for ISTA+ and E-Sys.
- iOS / Android: Supported for mobile applications (requires suitable network-to-USB/Lightning Adapter).
Package Contents
- 1x BMW ENET OBD2 - RJ45 | Interface cable
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Universal |
| Product model | BMW ENET RJ45 |
| Device type | Interface cable |
| Vehicle connection | 16-pin OBD2 (Male) |
| System connection | RJ45 network connector (Male) |
| Supported protocols | DoIP, Ethernet over OBD |
| Maximum bandwidth | 100 Mbps |
| Cable length | Approximately 2 meters |
