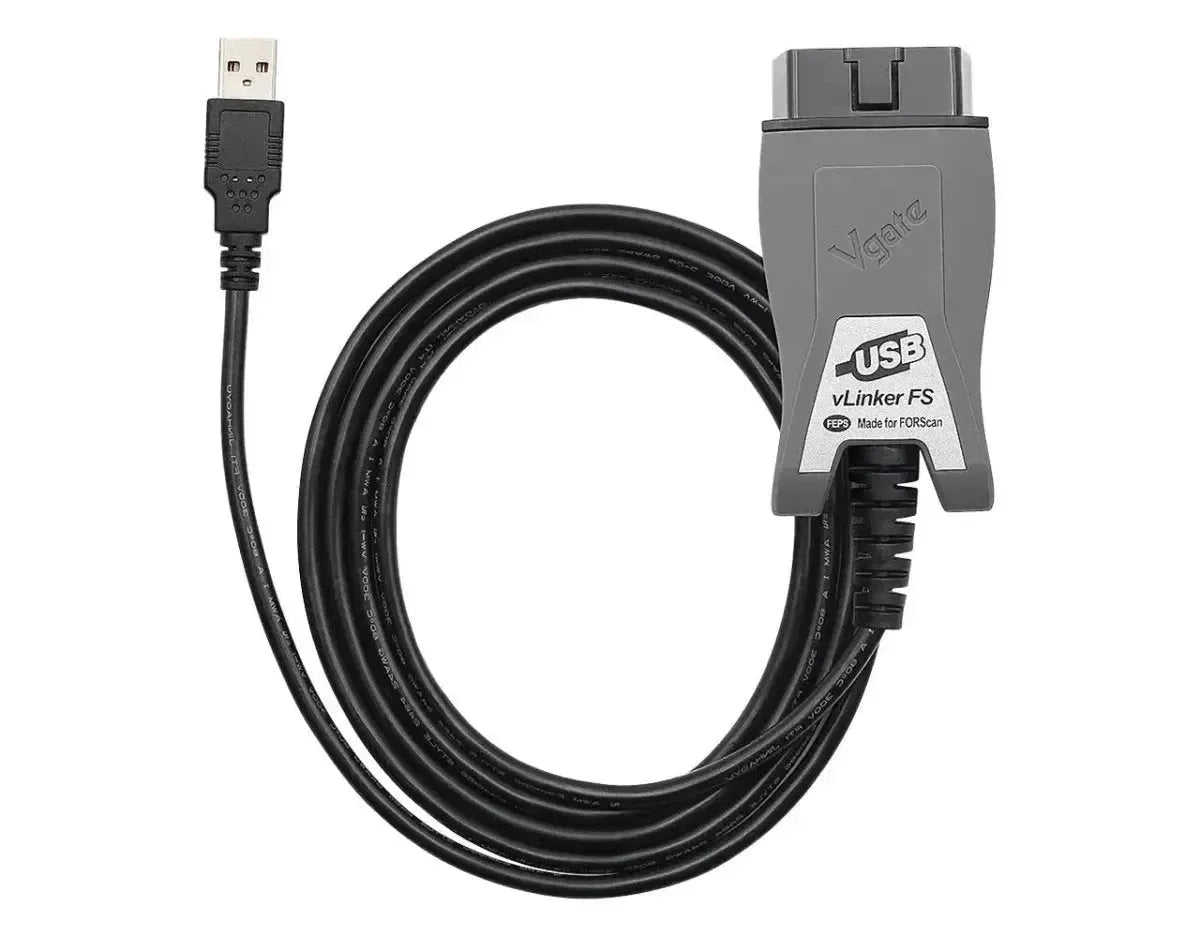

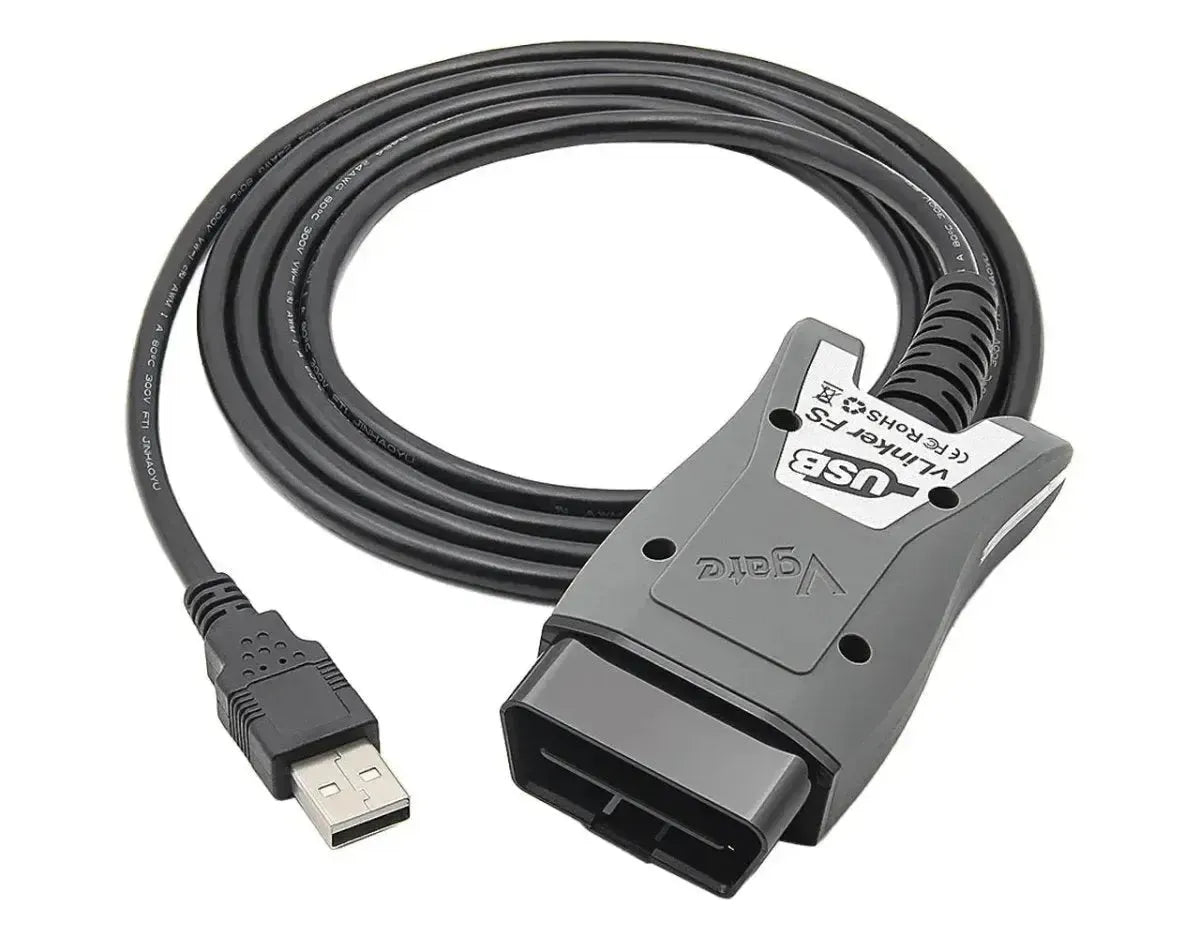

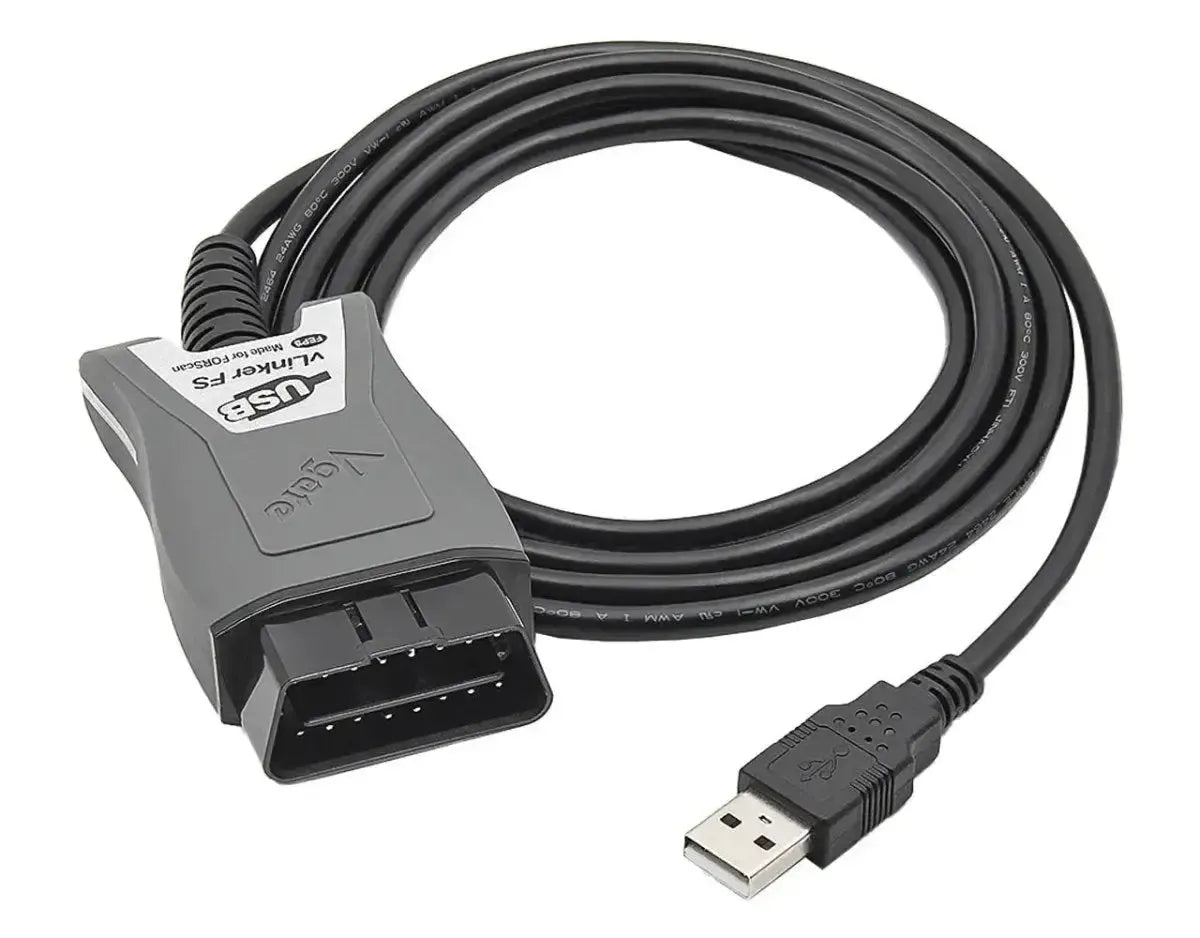

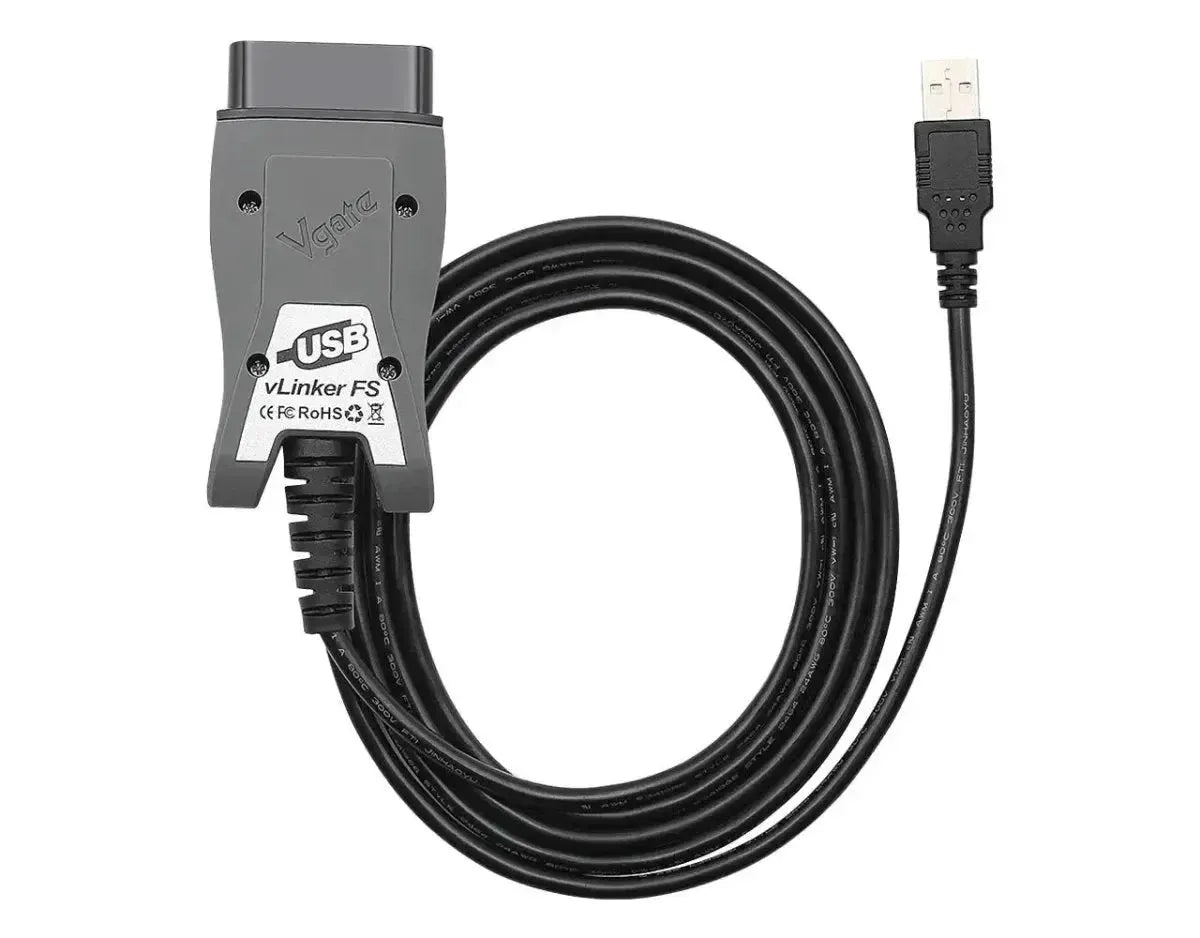

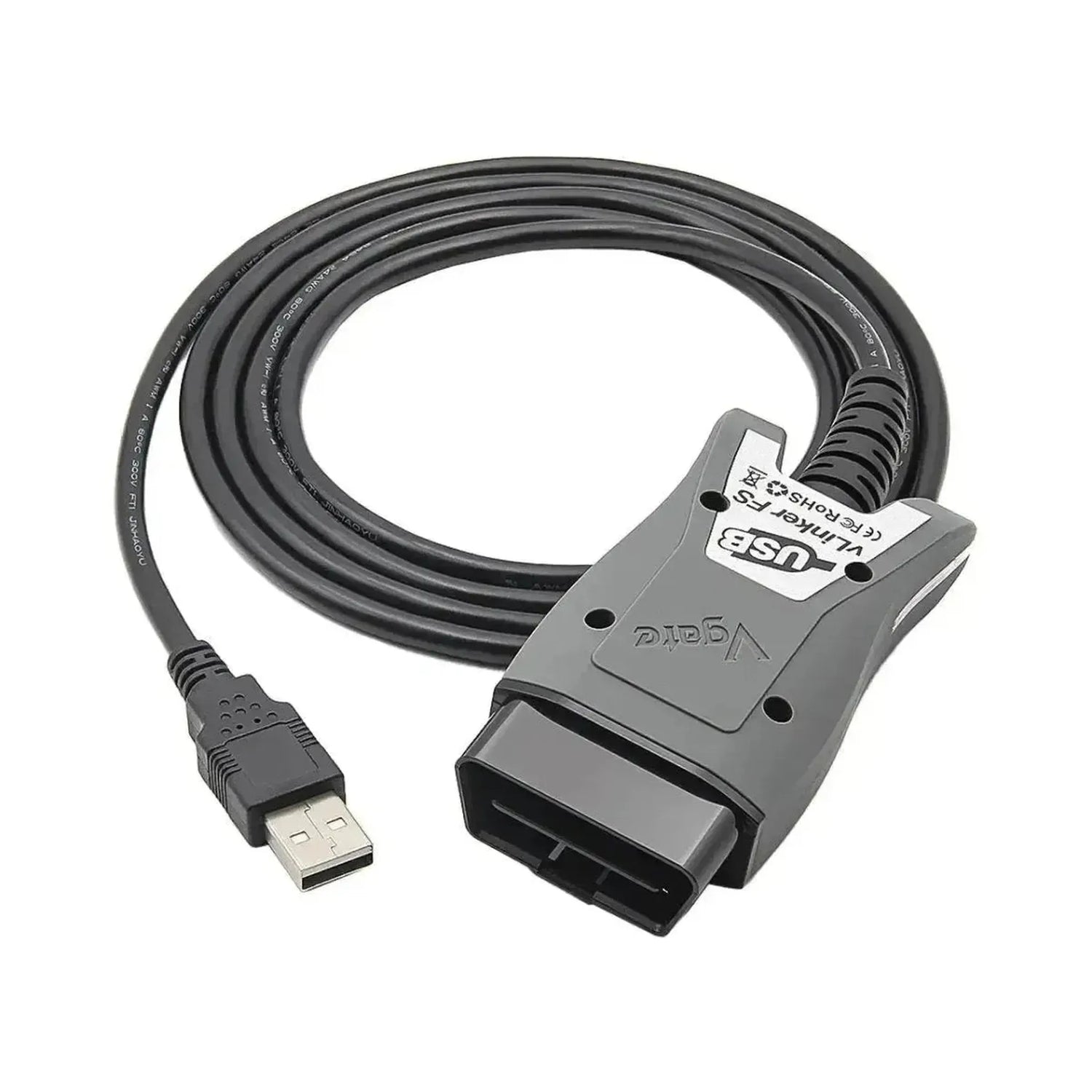

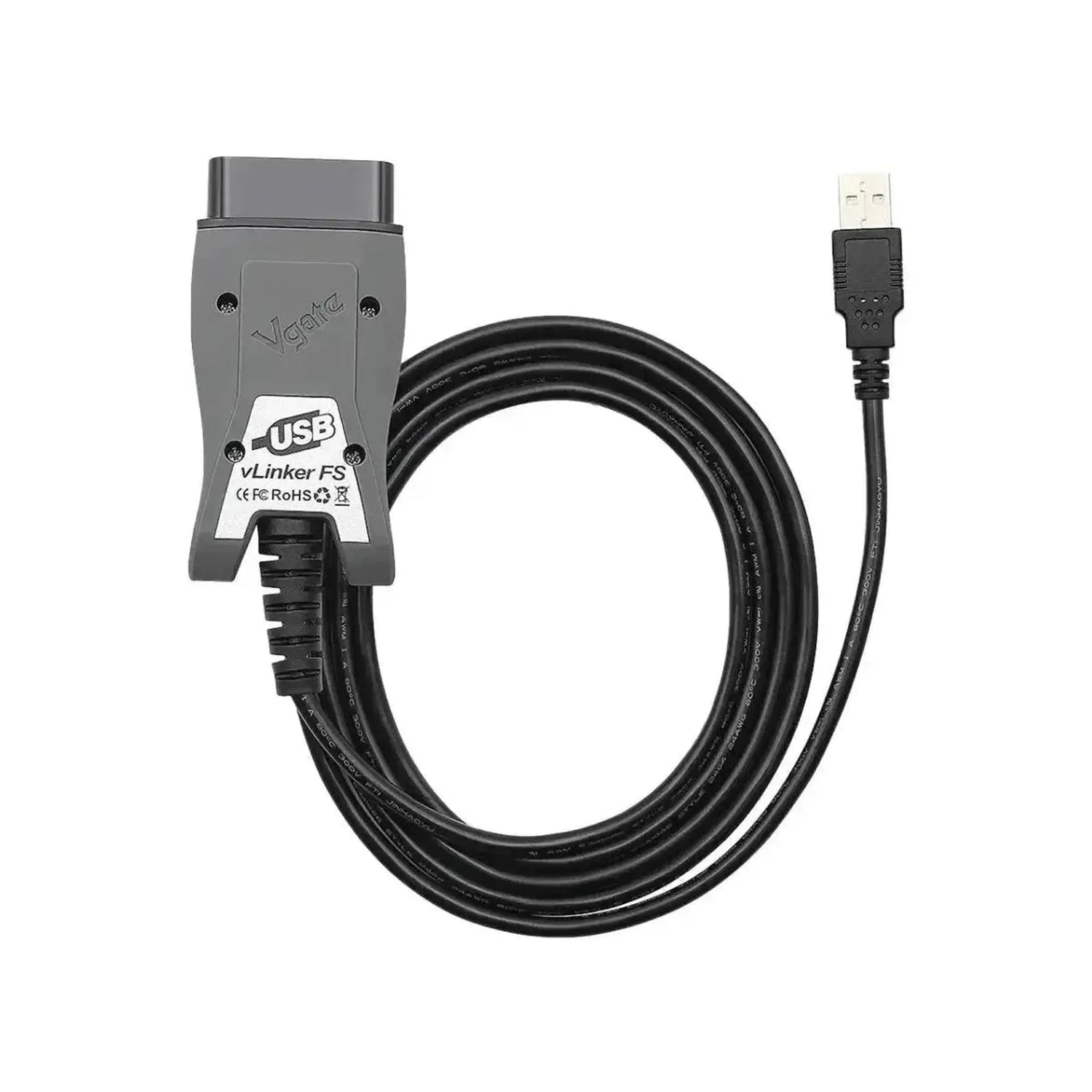

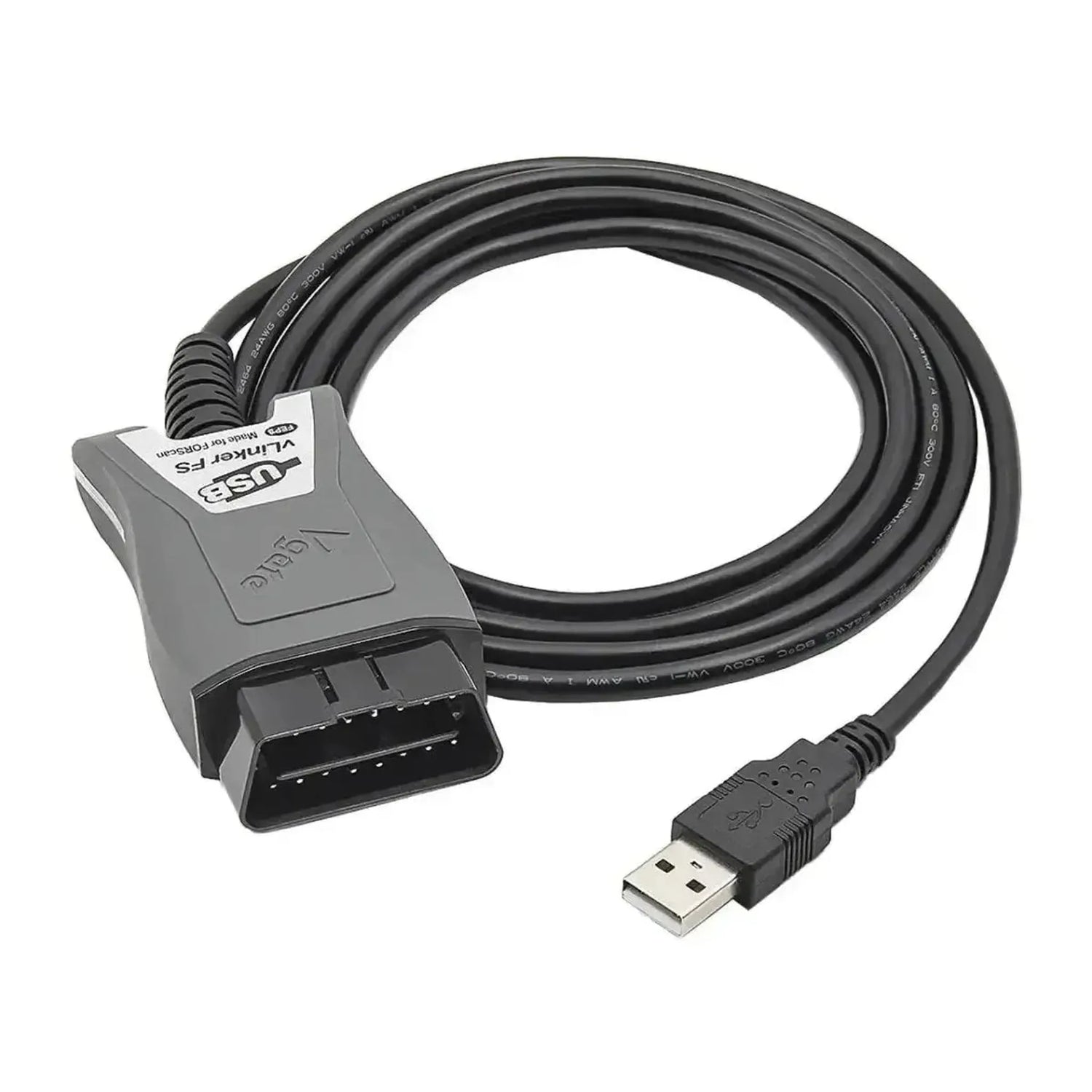

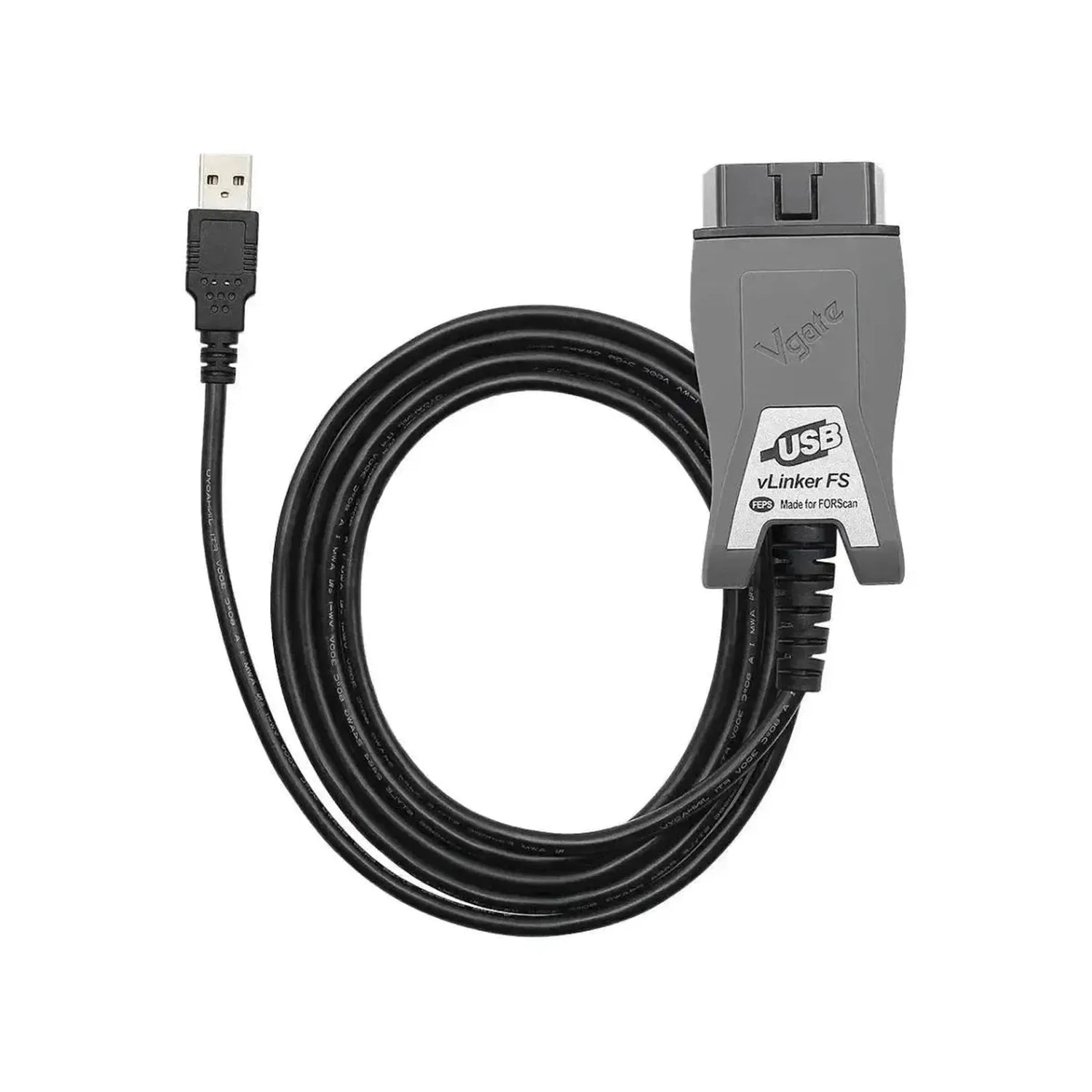

The Vgate vLinker FS interface cable forms a direct, wired data connection between the vehicle’s OBD2 port and an external system via a USB connection. This interface cable is specifically optimized for in-depth vehicle diagnostics, module configuration adjustments, and performing complex programming tasks. Because communication occurs via a physical cable, the chance of data loss or interference is minimized, which is an absolute requirement when flashing or reprogramming control units through PC-based diagnostic software.
Within the diagnostic network, the interface cable acts as a fast translator between vehicle protocols and software thanks to a built-in 32-bit processor. The device applies automatic electronic switching to seamlessly switch between HS-CAN and MS-CAN without the user needing to manually toggle a physical switch. This enables diagnostic software like FORScan to simultaneously read data parameters from different CAN buses and directly access advanced vehicle modules that are normally shielded from standard OBD2 readers.
The Vgate vLinker FS, combined with the appropriate software, offers extensive diagnostic capabilities for both standard OBD2 analysis and brand-specific protocols.
The hardware of the vLinker FS is designed to bridge specific communication limitations of standard OBD2 cables.
This interface cable supports all standard 12V and 24V OBD2-compatible vehicles, but the advanced protocol support (HS/MS-CAN) is explicitly designed for vehicles from the Ford group.
Full compatibility (including MS-CAN & FEPS):
The Vgate vLinker FS functions solely as a data pass-through and requires external diagnostic software on a PC or laptop to operate.
Compatible software:
Operating systems:
| Specification | Description |
|---|---|
| Product brand | Vgate |
| Product model | vLinker FS |
| Vehicle connection | 16-pin OBD2 |
| System connection | USB Type-A |
| Processor | 32-bit |
| Network protocols | HS-CAN, MS-CAN, Standard OBD2 |
| Maximum baud rate | 3 Mbps |
| OBD request bytes | Up to 4128 bytes |
| Serial buffer | 8192 bytes |
| Programming voltage | FEPS 18V output support |
| Vehicle voltage | 12V and 24V compatible |
| Operating current | 51 mA |
| Sleep current | 3 mA (Automatic standby) |
Great obd2 cable! Could immediately see my car with new firmware!
Prima obd2 kabel! Kon gelijk mijn auto voor zien van nieuwe firmware!
Works without problems, a manual for forscan would be handy
Werkt zonder problemen, een handleiding voor forscan zou handig zijn
Fast delivery and well packaged, highly recommended
Device works perfectly, was just a bit of a search for a good usb driver for windows 7
Found this one here: https://vgatemall.com/downloadcenter
vLinker_FS_v2.2.88 is the right one for windows 7
Snelle levering en goed verpakt, een aanrader
Apparaat werkt perfect, was alleen een beetje zoeken naar een goede usb driver voor windows 7
Deze hier gevonden: https://vgatemall.com/downloadcenter
vLinker_FS_v2.2.88 is de juiste voor windows 7
Device works directly under windows 10, no problems with drivers etc.
Apparaat werkt direct onder windows 10, geen problemen met drivers o,i,d.
