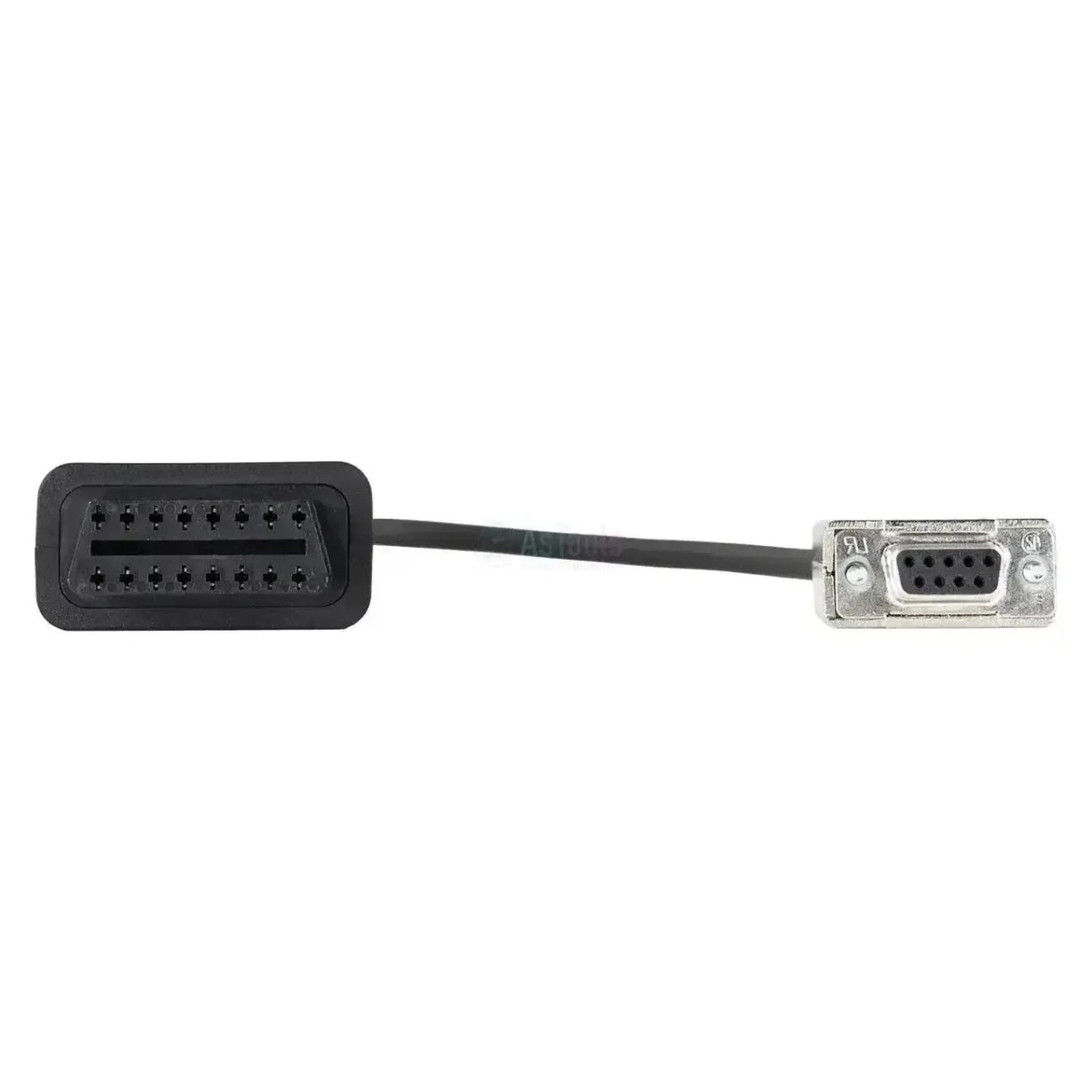

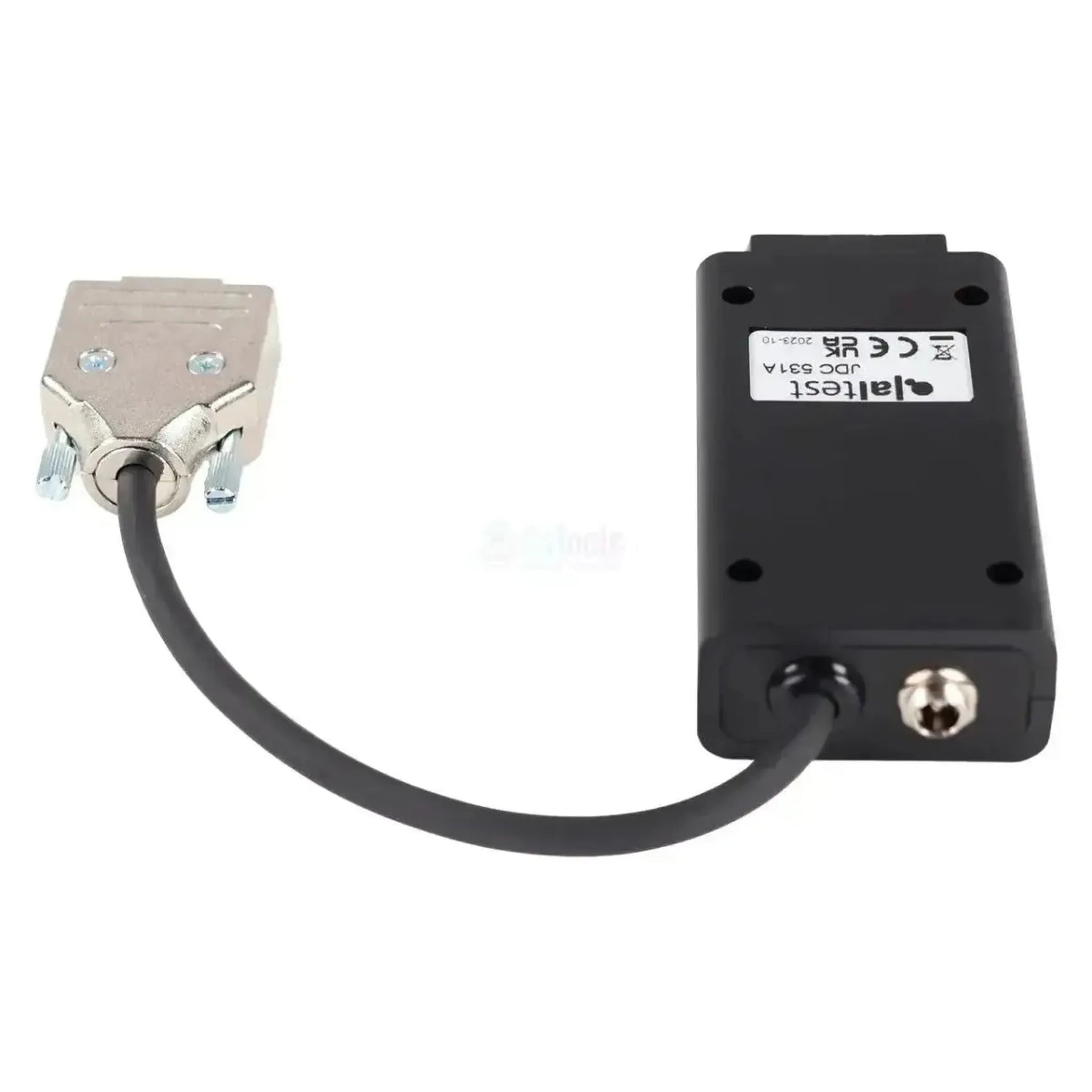

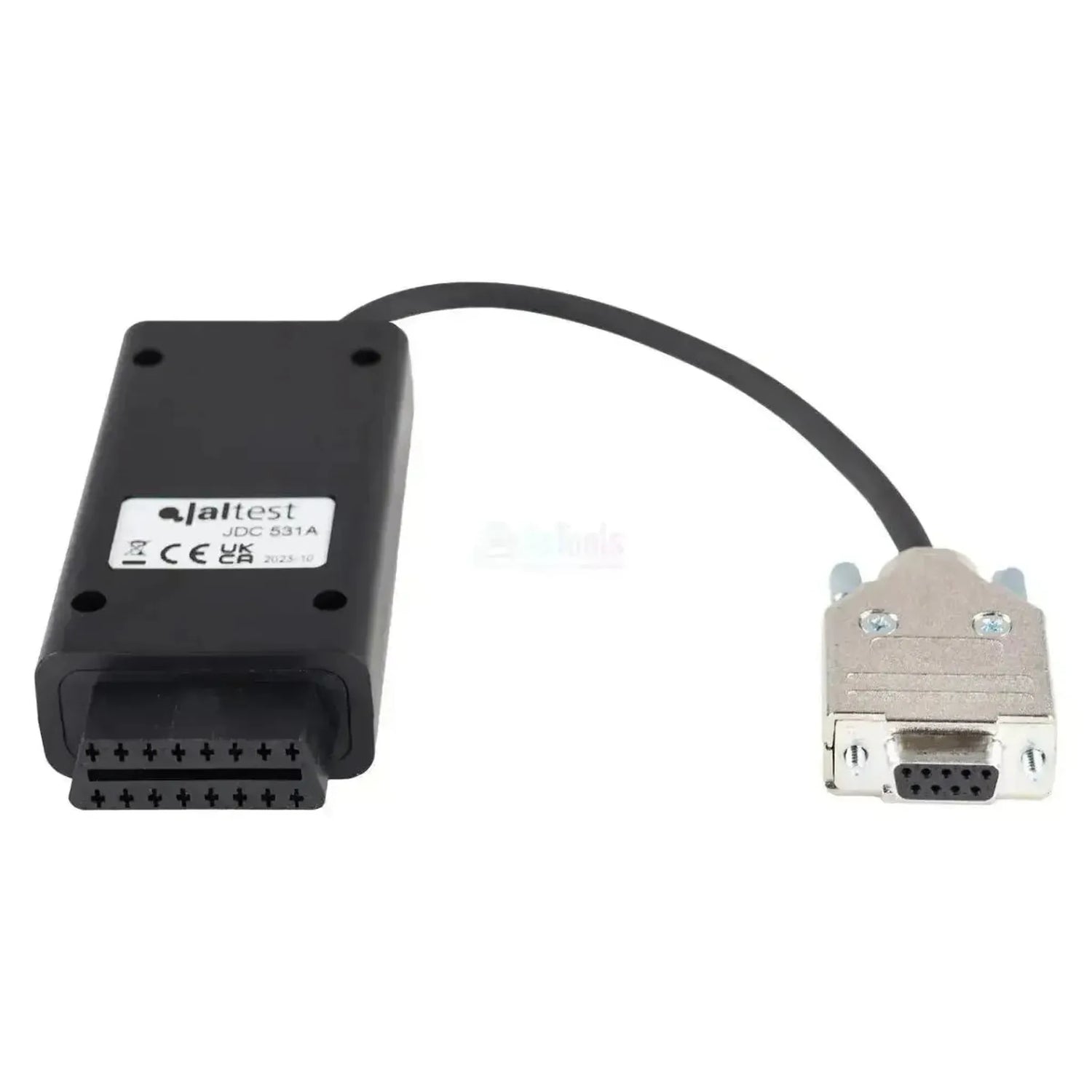

The Jaltest JDC531A is the diagnostic cable for the 9-pin RS232 connector on Scania engines; the cable routes that serial connection to the 16-pin OBD2 port of Jaltest diagnostic equipment. The connector is part of the engine itself and is located in the engine bay, not on the machine or vessel in which the engine is installed. Scania also uses a 4-pin CAN connector; for that version, the JDC532A is the appropriate cable.
Once the connection is established, Jaltest software accesses the engine control system of the Scania engine: The control units DEC2 (V7.0) and EDC MS5 on engines with in-line injection pumps, the unit injector control EDC MS6.2 and the engine management system EMS PDE with pump-line nozzle units. Coverage on these engines includes fault codes, live data and ECU information: maintenance intervals and component actuation are not included. Scania is listed in Jaltest under both off-highway equipment and marine engines; the cable falls under Jaltest OHW (Off-Highway Equipment) and Jaltest Marine.
KEY BENEFITS
IMPORTANT NOTES
Applications and features
Through this connection, you access the engine management of the Scania engine using Jaltest software. Which control unit you reach depends on the diagnostic connector on the engine.
Control units you can access
- DEC2 (V7.0), Diesel in-line injection pump: Control of engines with in-line injection pump, including serial number, software version and manufacturer reference.
- EDC MS5, Diesel in-line injection pump: The successor control unit for the same pump type.
- EDC MS6.2, Engine Management System, Unit Injector: The unit injector control system.
- EMS PDE, Engine Management System, Unit Injector: Scania engine management with pump-jet units.
What you can do
- Read and clear fault codes: Access the fault memory of the control unit with fault descriptions, and clear it after repair.
- View live data: Monitor current sensor values connected to the control unit.
- Set alarm thresholds: Define limits for sensor readings outside normal range, so deviations are immediately visible.
Compatible vehicles and applications
The connector type determines compatibility, not the engine model. This cable fits any Scania engine with the 9-pin RS232 diagnostic connector. Jaltest covers the engine series listed below; check which connector is on your engine on-site.
Scania:
- DC09 series: The nine-liter industrial engines
- DC12 series: The twelve-liter variants
- DC13 series: The thirteen-liter industrial engines
- DC16 series: The sixteen-liter V8 engines
- Built into off-highway machinery, power units and vessels — Scania is also listed among Jaltest's marine engines
Package contents
- 1x Jaltest (JDC531A) | Scania 9-pin RS232 – 16-pin OBD2 Adapter Cable | Diesel Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC531A |
| Type | Adapter cable |
| Application | Scania engines with 9-pin RS232 diagnostic connector |
| Engine-side connection | 9-pin RS232 |
| Interface-side connection | 16-pin OBD2 |
| Control units | DEC2 (V7.0), EDC MS5, EDC MS6.2 and EMS PDE |
| Segment | Diesel engine |
| Jaltest module | Jaltest OHW (Off-Highway Machinery) and Jaltest Marine |
| Required to use | Jaltest Link with valid software license |
