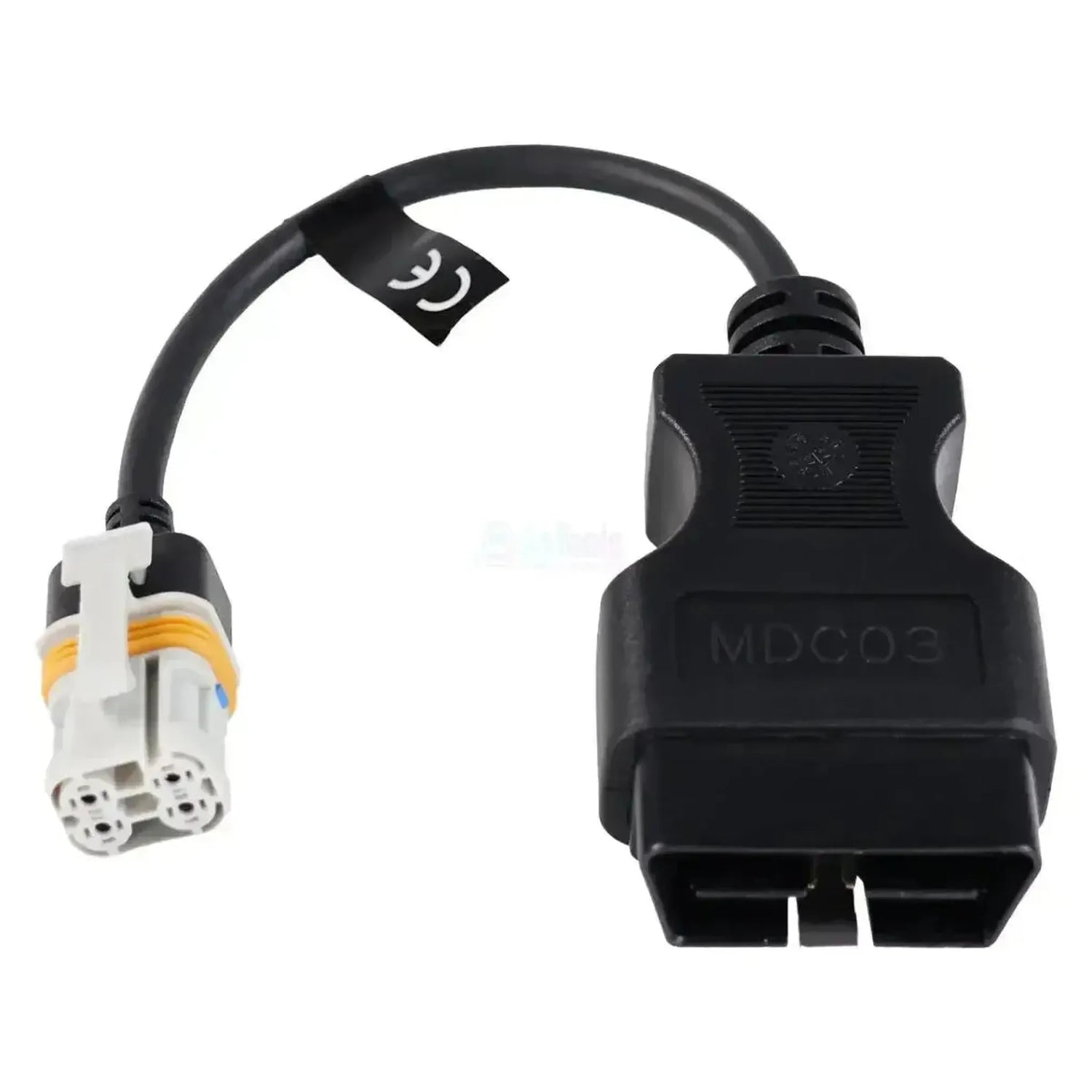

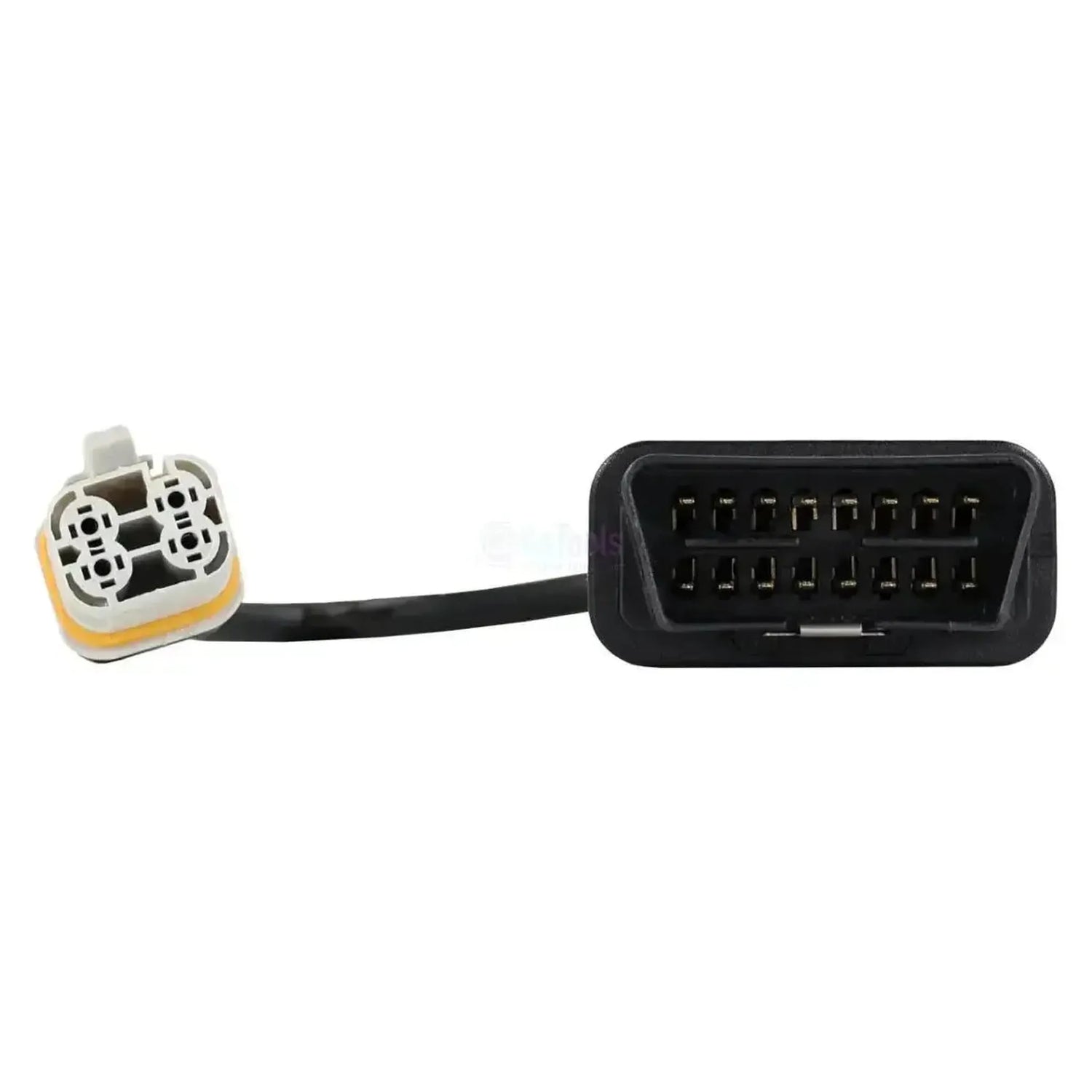

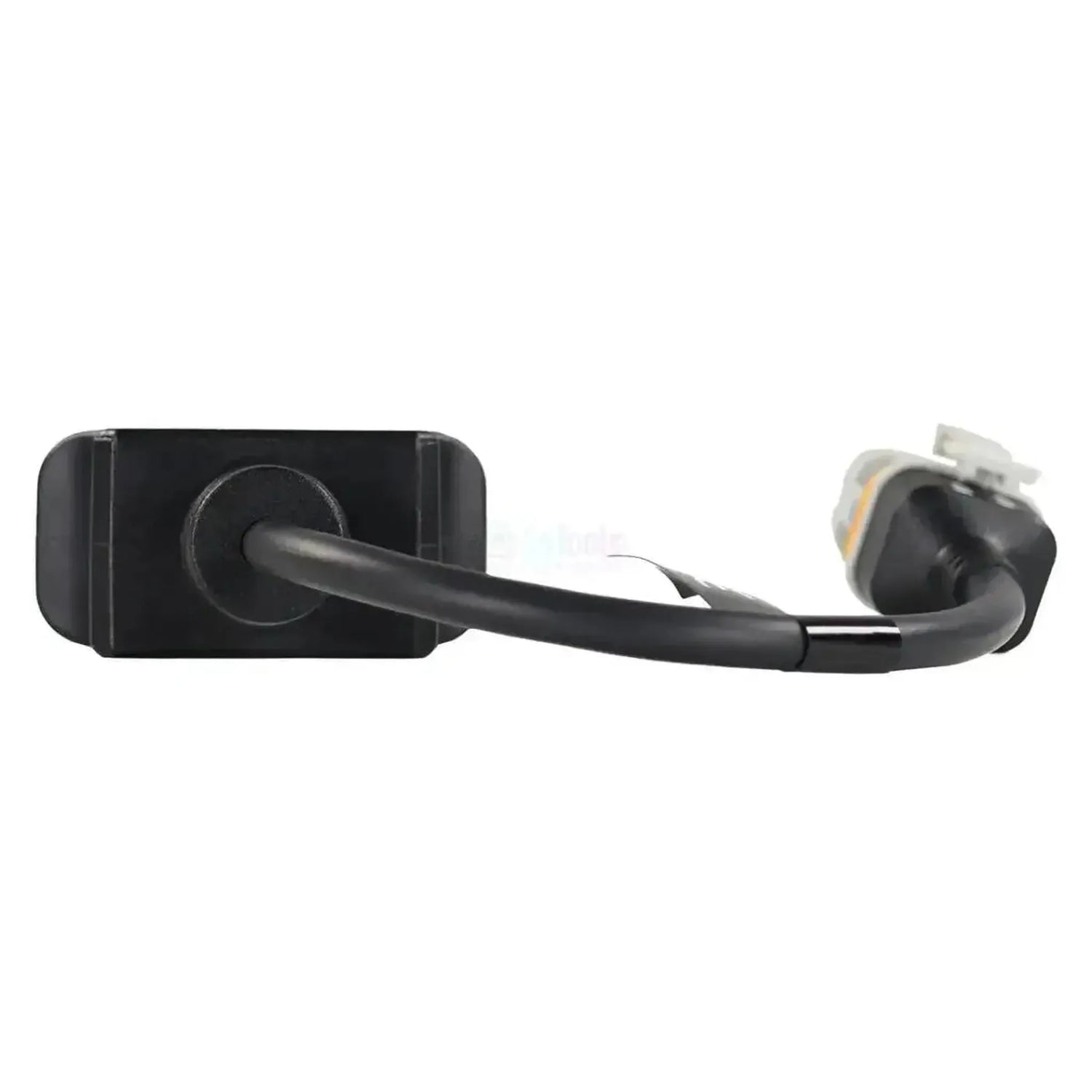

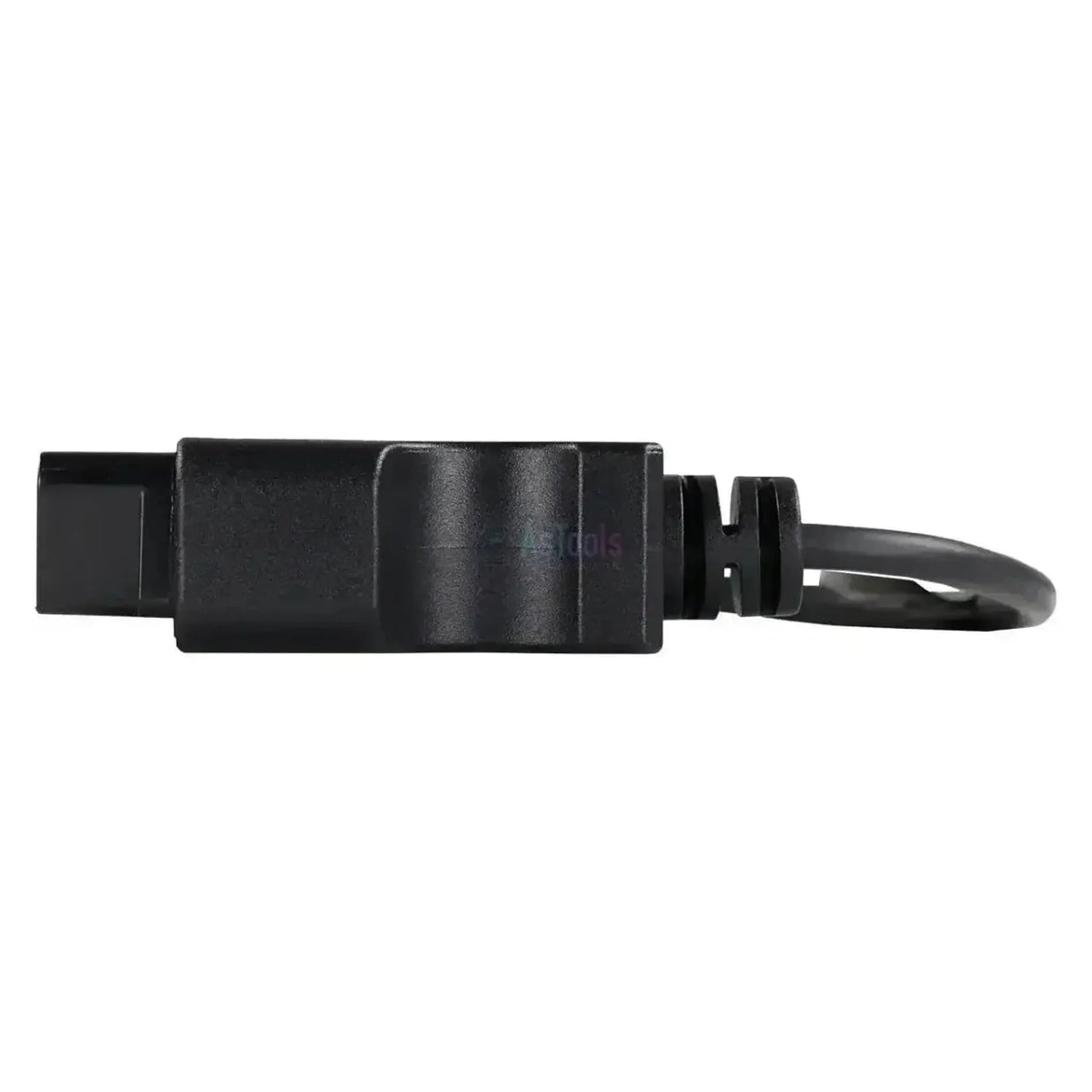

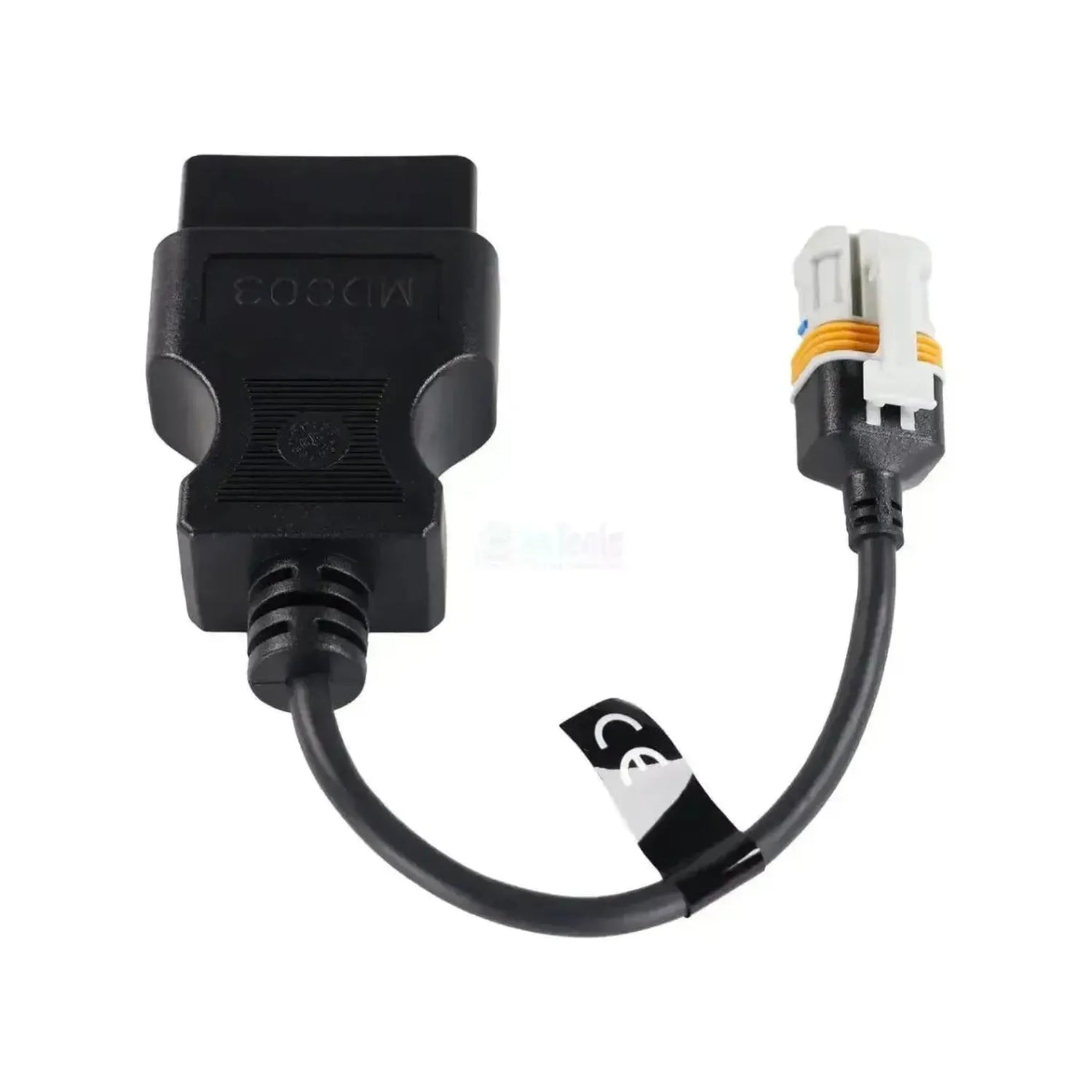

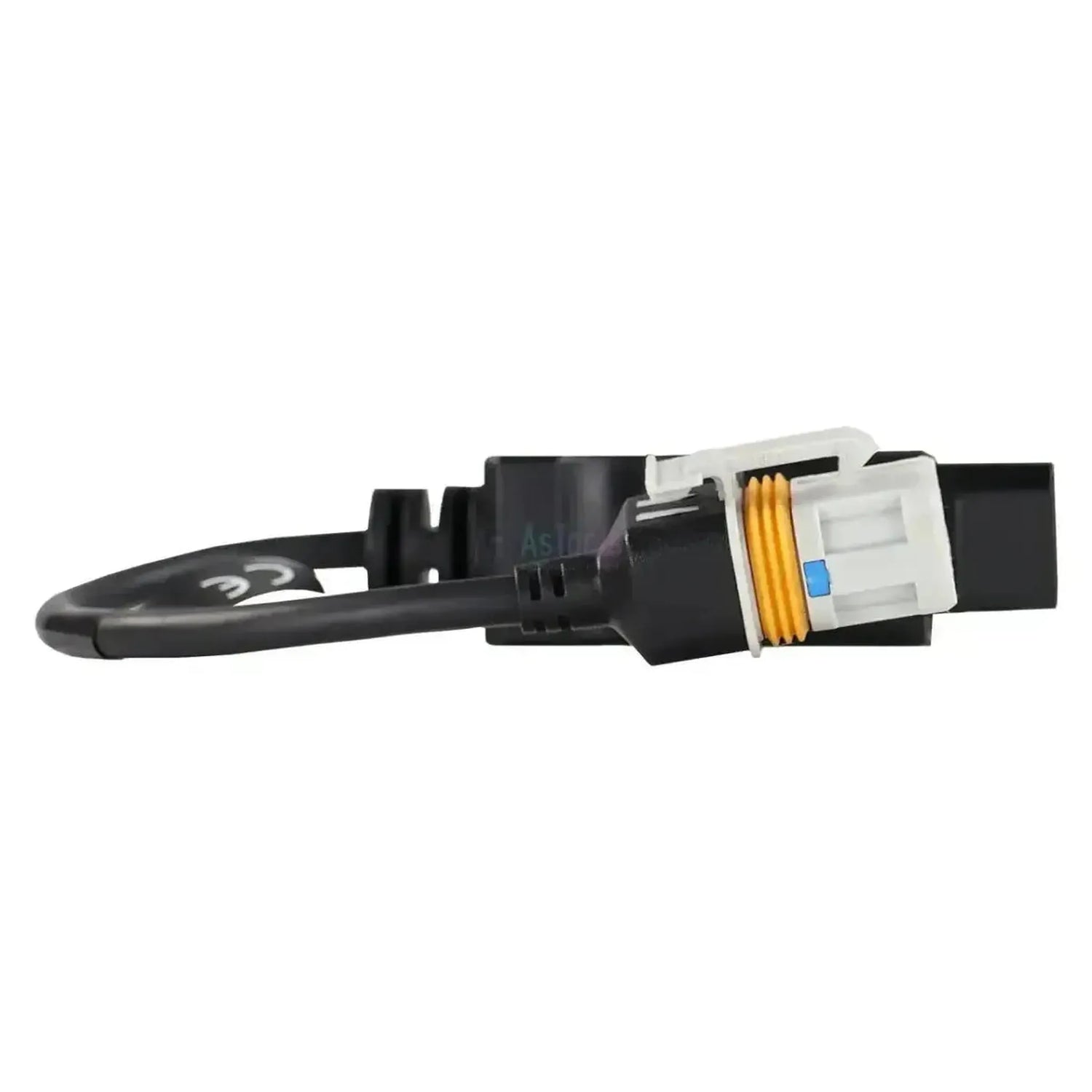

The Jaltest MDC03 is the test cable connecting the grey 4-pin connector (2x2) of the Knorr-Bremse modulator in MAN commercial vehicles to the 16-pin OBD2 port of the Jaltest ETM. You connect it directly to the modulator, not to the vehicle's diagnostic connector.
With this connection, the Jaltest ETM assumes the role of the control unit and establishes communication with the modulator itself. This allows you to determine whether the component is genuinely faulty or whether the fault lies in the wiring or control unit. The ETM performs a complete diagnostic scan of the modulator and an End of Line test. In addition to this cable, you will need the ETM itself, with an ETM licence and an active CV or Modular software licence.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Through this cable, the Jaltest ETMdirectly with thecomponent, without intermediaries of the vehicle control unit. Below you will find whichcomponents the ETM in that manner and what you put in it workshop determines as well.
What the Jaltest ETM covers
- Wabco EBS modulators: First, second and third generation.
- Knorr-Bremse EBS modulators: Second and third generation.
- Knorr-Bremse trailer control modulators: The trailer brake control modules.
- Inductive wheel speed sensors: The speed sensors from ABS and EBS systems.
- Brake pad wear sensors: The sensors that monitor brake pad thickness.
What you can do
- Approach the component in isolation: The ETM takes over the role of the control unit and communicates directly with the component.
- Determine whether the component is actually faulty: If the component works, the fault lies elsewhere in the system.
- Measure an EBS modulator in full: Complete diagnosis of the modulator.
- Perform an End of Line test (EOL): The check that confirms the component is working correctly.
What you will need
- Jaltest ETM: The test module itself. For the Jaltest Link V9, that is the ETM interface with reference 70001007; the complete ETM kit is 70001008.
- ETM licence: Without this licence, the ETM will not start. Annual renewal has reference 29701.
- An active Jaltest software licence: A CV licence or a Modular licence. Other modules cannot be combined with the ETM.
- Power supply: The ETM is powered from the vehicle batteries.
Package contents
- 1x Jaltest (MDC03) | Knorr-Bremse 4-pin EBS - 16-pin OBD2 Adapter Cable | Commercial Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | MDC03 |
| Type | Test cable for the Jaltest ETM |
| Intended for | EBS modules from Knorr-Bremse in MAN vehicles |
| Vehicle-side connection | Grey 4-pin connector (2x2), 4-pin EBS |
| Interface-side connection | 16-pin OBD2 |
| Length | 24 to 26 cm |
| Interface | Jaltest Link V8.1 and V9 |
| Part of cable kit | ETM kit (70001008) |
| Required to use | Jaltest ETM with ETM licence and an active CV or Modular software licence |
| Not available for | Jaltest handheld devices |
| ETM licence extension | 29701 (Jaltest ETM, extension for one year) |
