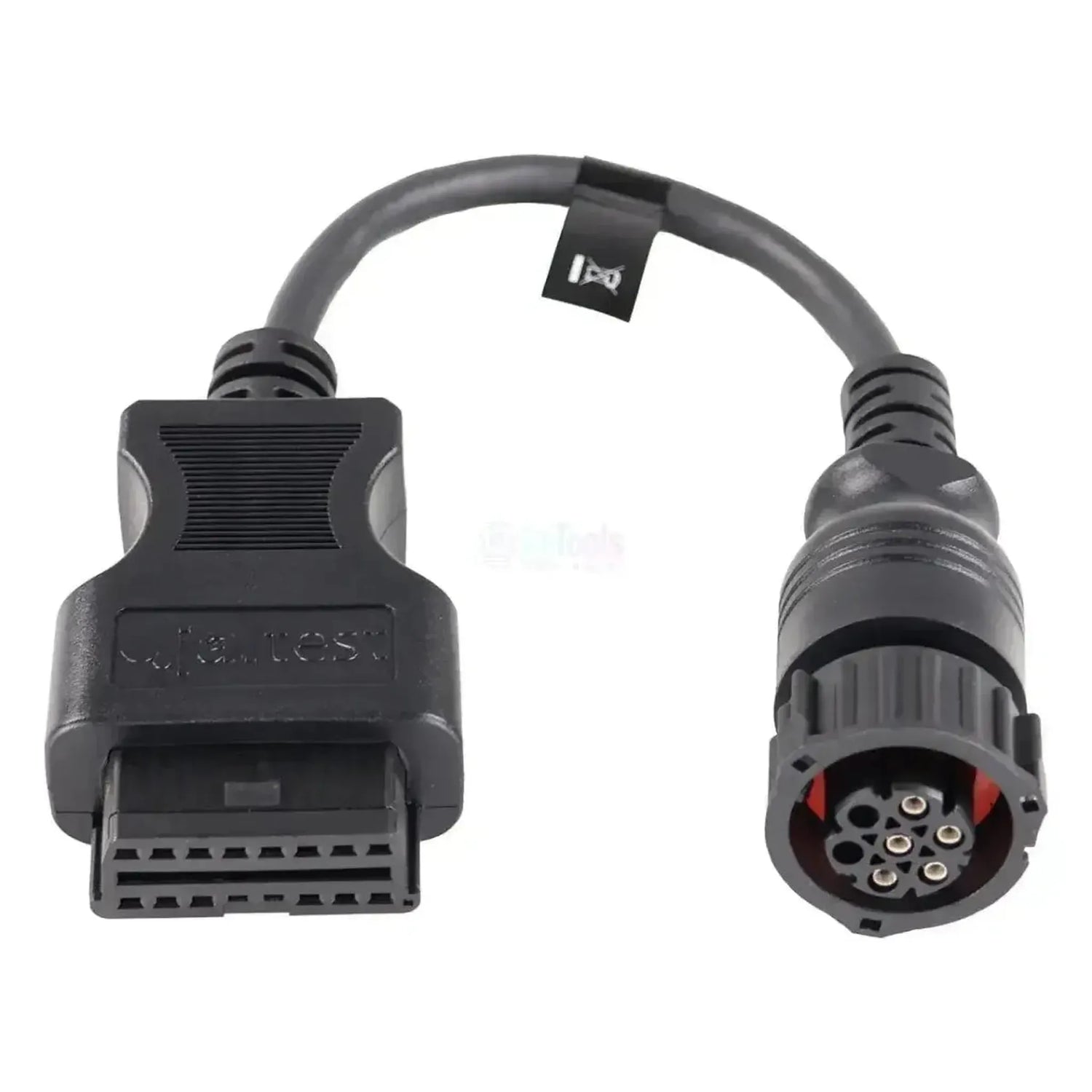

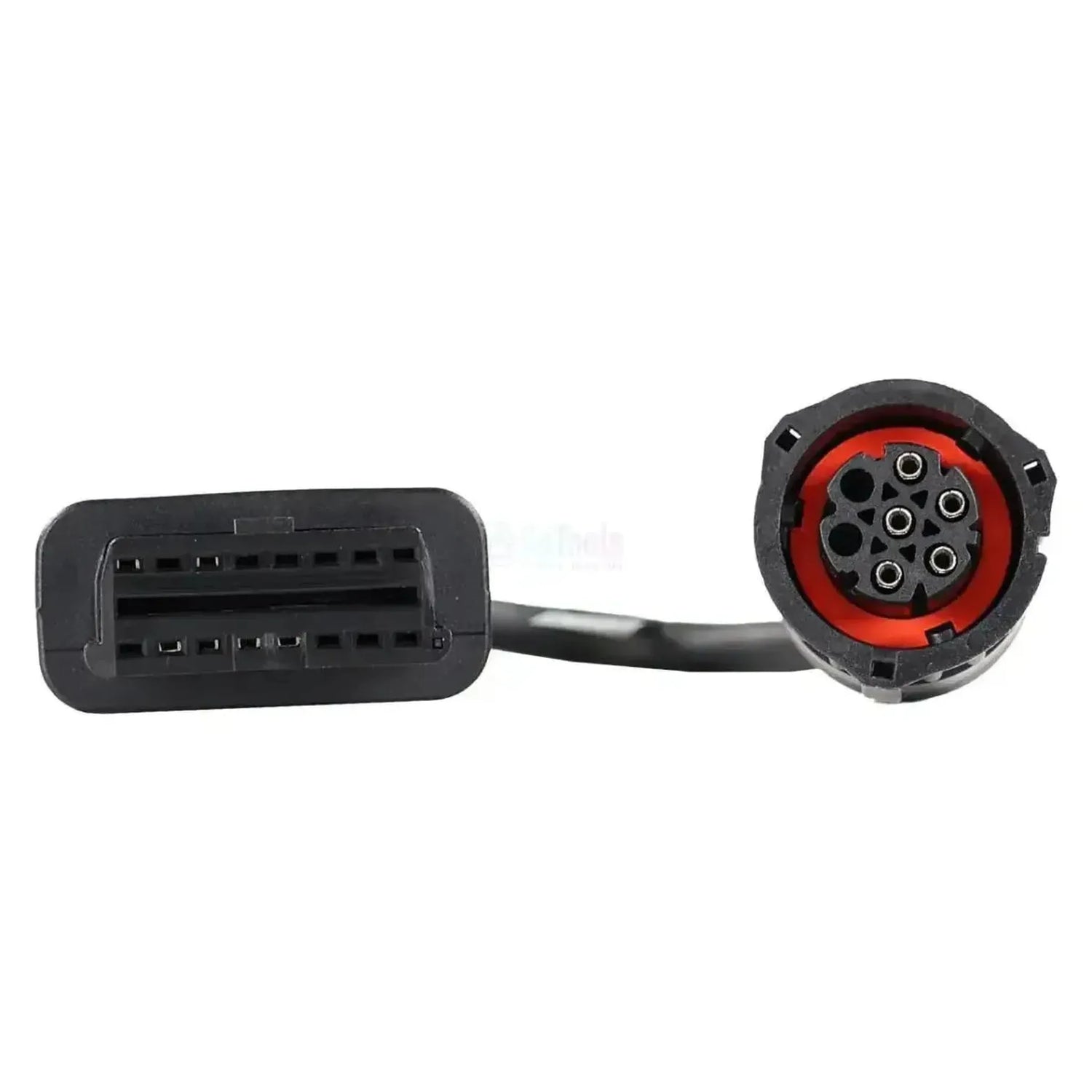

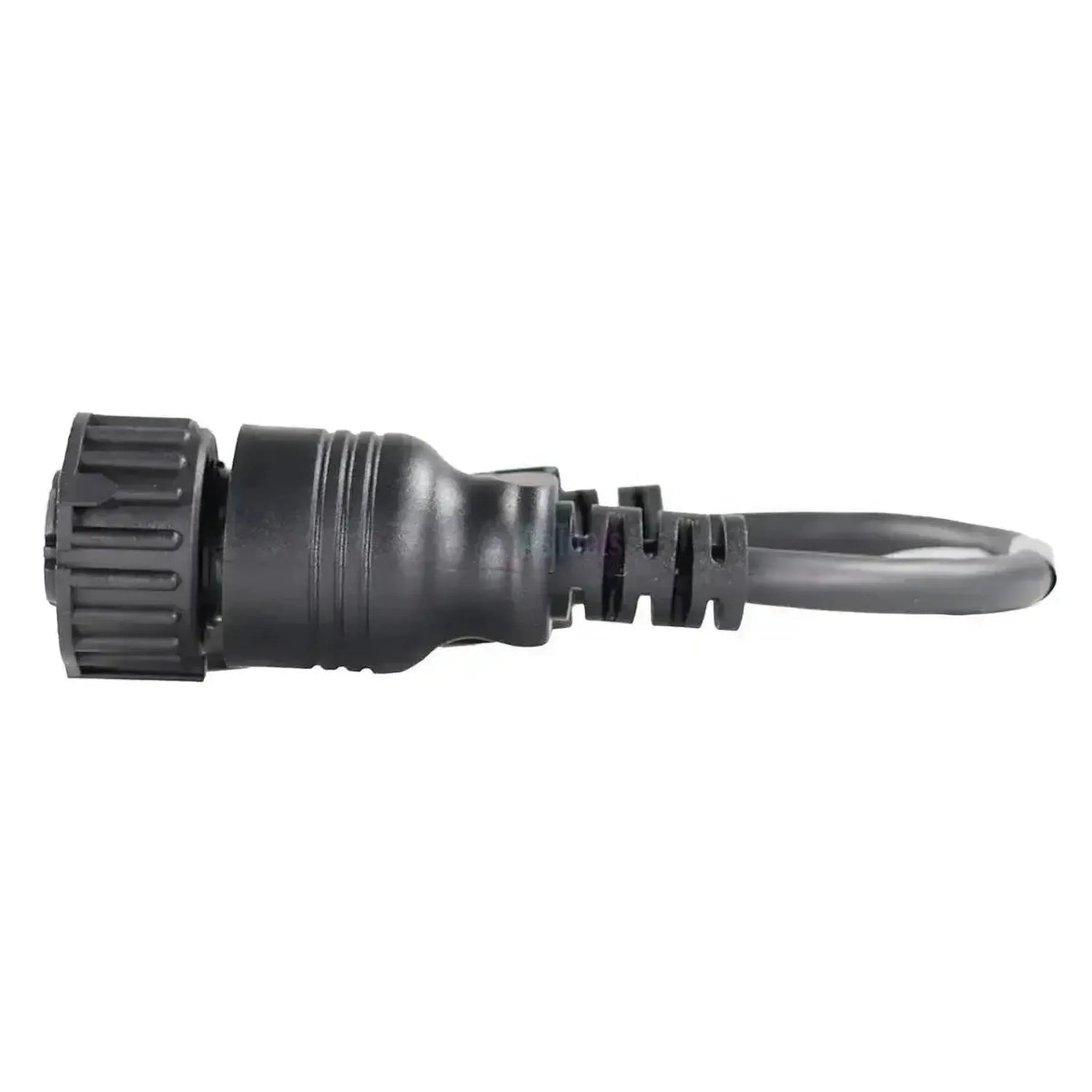

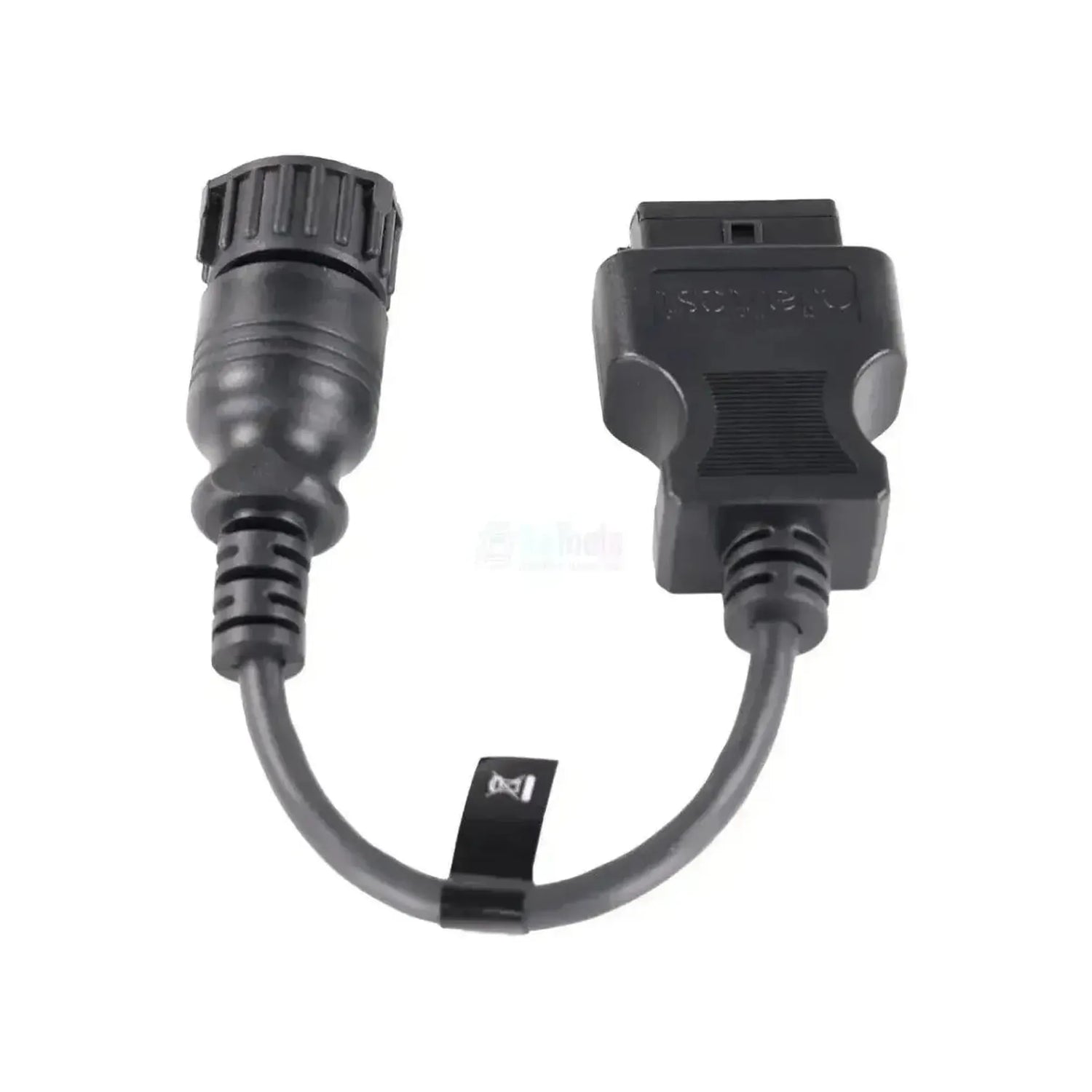

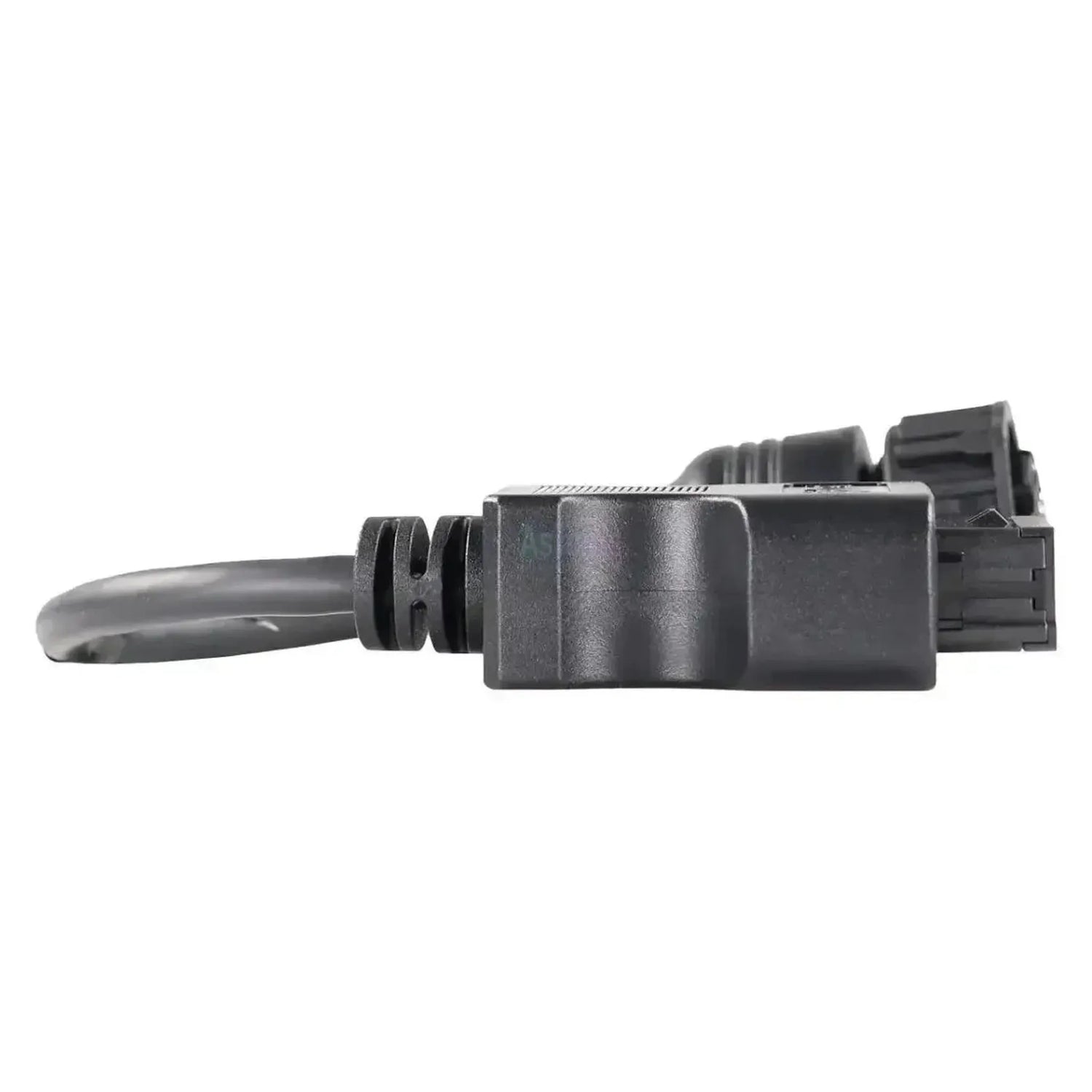

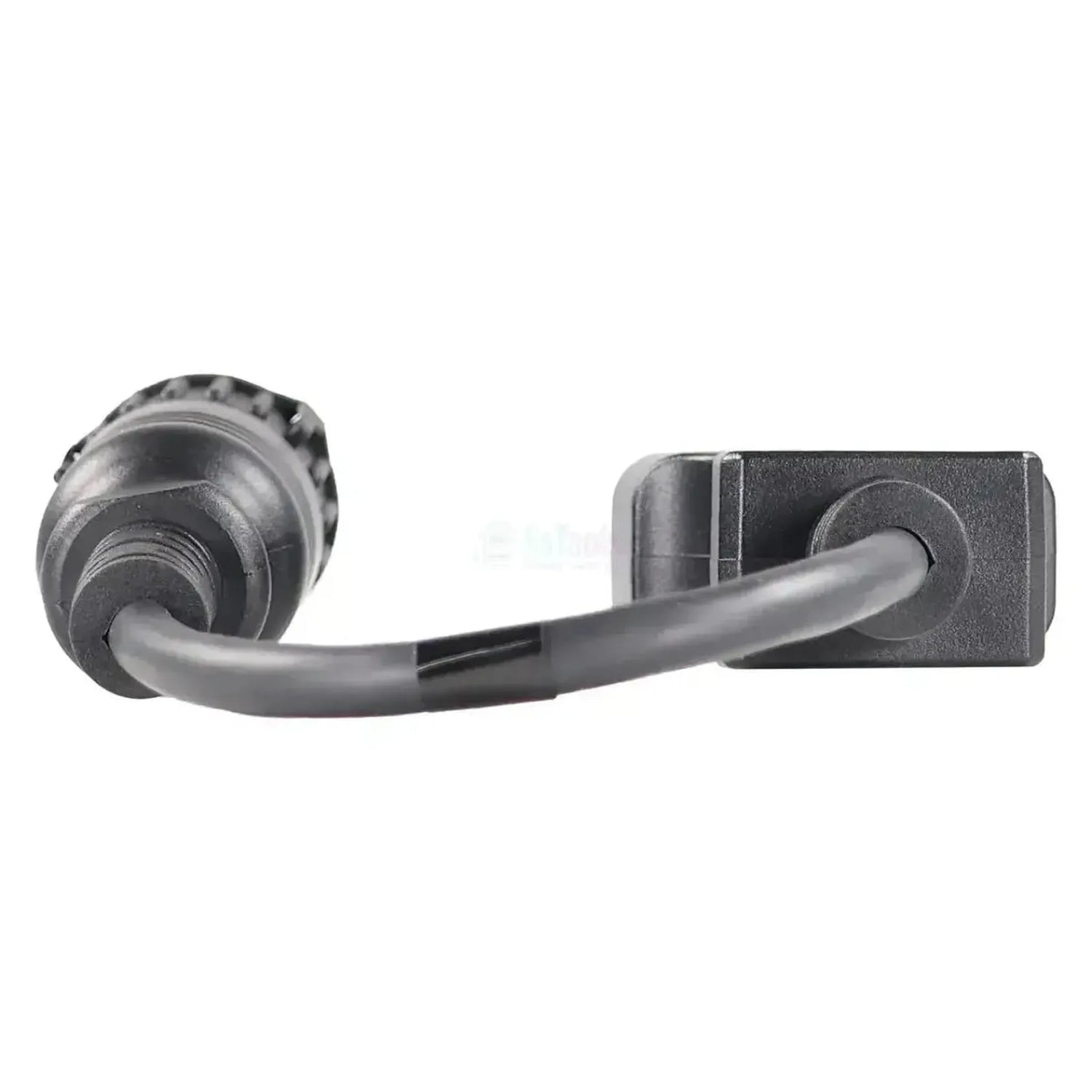

The Jaltest JDC552A is the diagnostic cable for Linde forklifts; it connects the round 7-pin connector to the 16-pin OBD2 port of your Jaltest diagnostic interface. On the vehicle side, you'll find the manufacturer's proprietary round 7-pin connector, located in the operator's cabin of the forklift; on the interface side sits the 16-pin OBD2 plug of the Jaltest Link.
With this connection, Jaltest equipment reads the complete Linde CAN network: In addition to the engine control unit, the drive control LTC, the hydraulic control LHC, the display LDC and the particulate filter control LPF are connected, and on the electric series the power modules HPM and TPM. For LTC, LHC and LDC, measured values are limited, while the diesel engine controls provide the more comprehensive data set. Internal handling equipment has never been subject to OBD requirements, which is why Linde uses this connector on newer models as well. The cable falls under Jaltest MHE (Material Handling Equipment).
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
Using this connection, you can access the lift truck's control units with Jaltest software. Which systems are available varies by model and drivetrain.
Control units you can access
- LTC (CAN), Transmission: The truck's transmission control.
- LHC (CAN), Hydraulic System: The hydraulic system control for the lifting mechanism.
- LDC (CAN), Instrument cluster: The display, including maintenance data.
- EDC 15 VM, EDC 16 U31, EDC 17 CP20 (CJDA) and EDC 17 CP20 (CPY), Electronic Diesel Control: The successive diesel engine control units.
- GCP, Engine Control Module: The engine control for gas and LPG versions.
- LPF (CAN), Exhaust gas treatment system: The particulate filter control.
- HPM (CAN) and TPM (CAN), Power module: The power modules for electric models.
What you can do
- Read and clear fault codes: Access the control unit's fault memory with detailed descriptions of detected faults.
- View measurement values: The sensor readings per control unit; with LTC, LHC and LDC, this list is limited.
- Access maintenance data: Via the LDC display and diesel engine controls, with the exception of the EDC 15 VM.
Compatible Vehicles and Applications
The connector type is what matters, not the model.This cable is compatible with any Linde forklift truck equipped with the round 7-pin diagnostic connector. The series listed below are covered by Jaltest MHE; check which connector is installed on your truck on-site.
Linde:
- 392 series(H20 - H25 diesel/LPG forklifts)
- 393 series(H25 - H35 diesel/LPG forklifts)
- 394 series(H40 - H50 diesel/LPG forklifts)
- 396 series(H50 - H80 diesel/LPG forklifts)
- 391 series(H14 - H20 diesel/LPG forklifts)
- 386 series (E12 - E20 electric forklifts):(approx. 2006 - 2019)
- 387 series(E20 - E30 electric forklifts)
- 388 series(E35 - E50 electric forklifts)
Package contents
- 1xJaltest (JDC552A) | Linde 7-pin OBD – 16-pin OBD2 Adapter Cable | Lifting & Material Handling Equipment
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC552A |
| Type | Adapter cable |
| Application | Linde diesel, LPG and electric forklift trucks |
| Vehicle-side connector | 7-pin OBD |
| Interface-side connector | 16-pin OBD2 |
| Control units | LTC, LHC, LDC, EDC 15 VM, EDC 16 U31, EDC 17 CP20 (CJDA and CPY), GCP, LPF, HPM and TPM |
| Segment | Material handling equipment |
| Jaltest module | Jaltest MHE (Material Handling Equipment) |
| Part of cable set | MHE cable set for forklifts (70002022) |
| Required to use | Jaltest Link with valid software license |
