Jaltest  |  SKU: JTP101

Jaltest (JTP101) | Multi-pin Connection Cable | Accessories

€64,95 incl.
€53,68 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

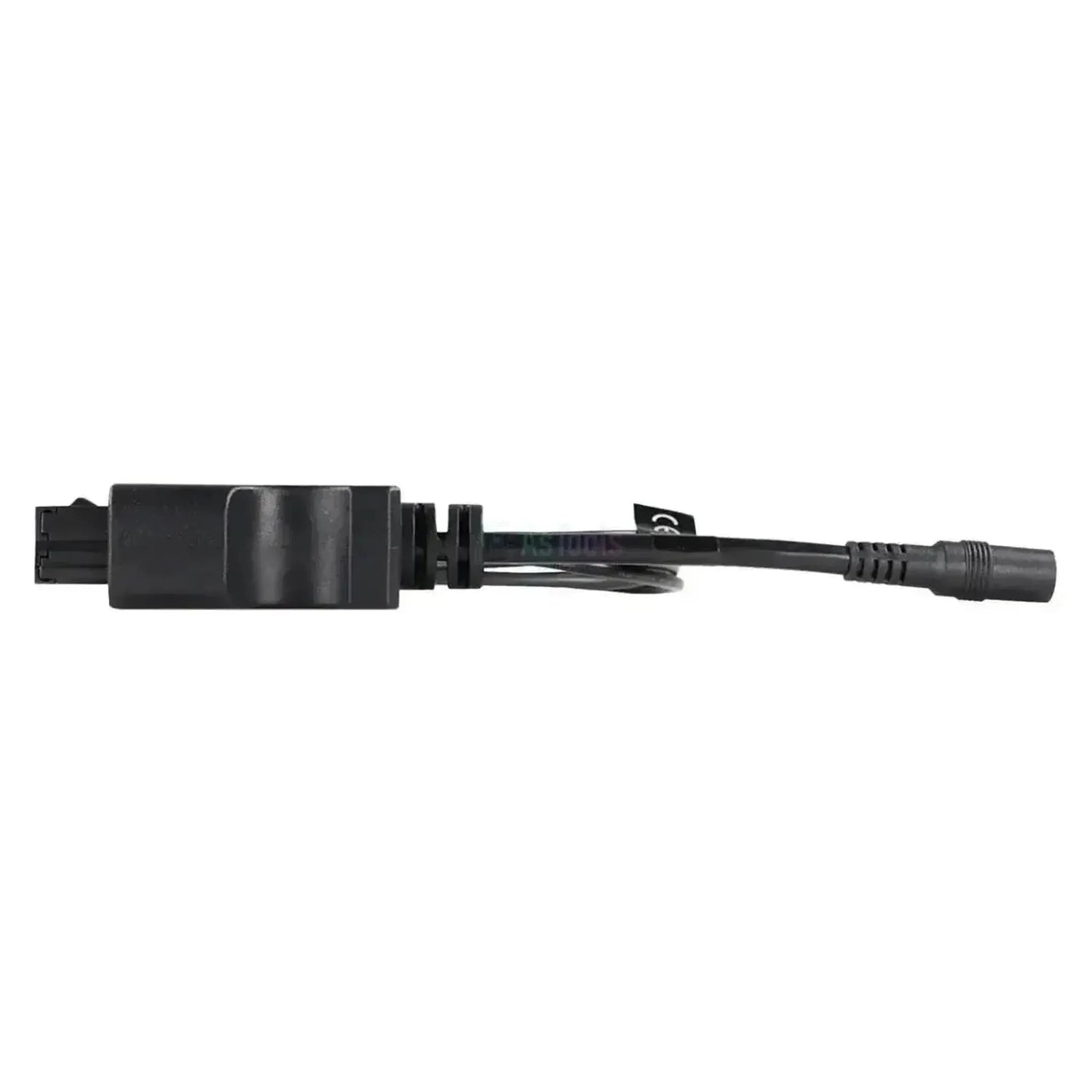

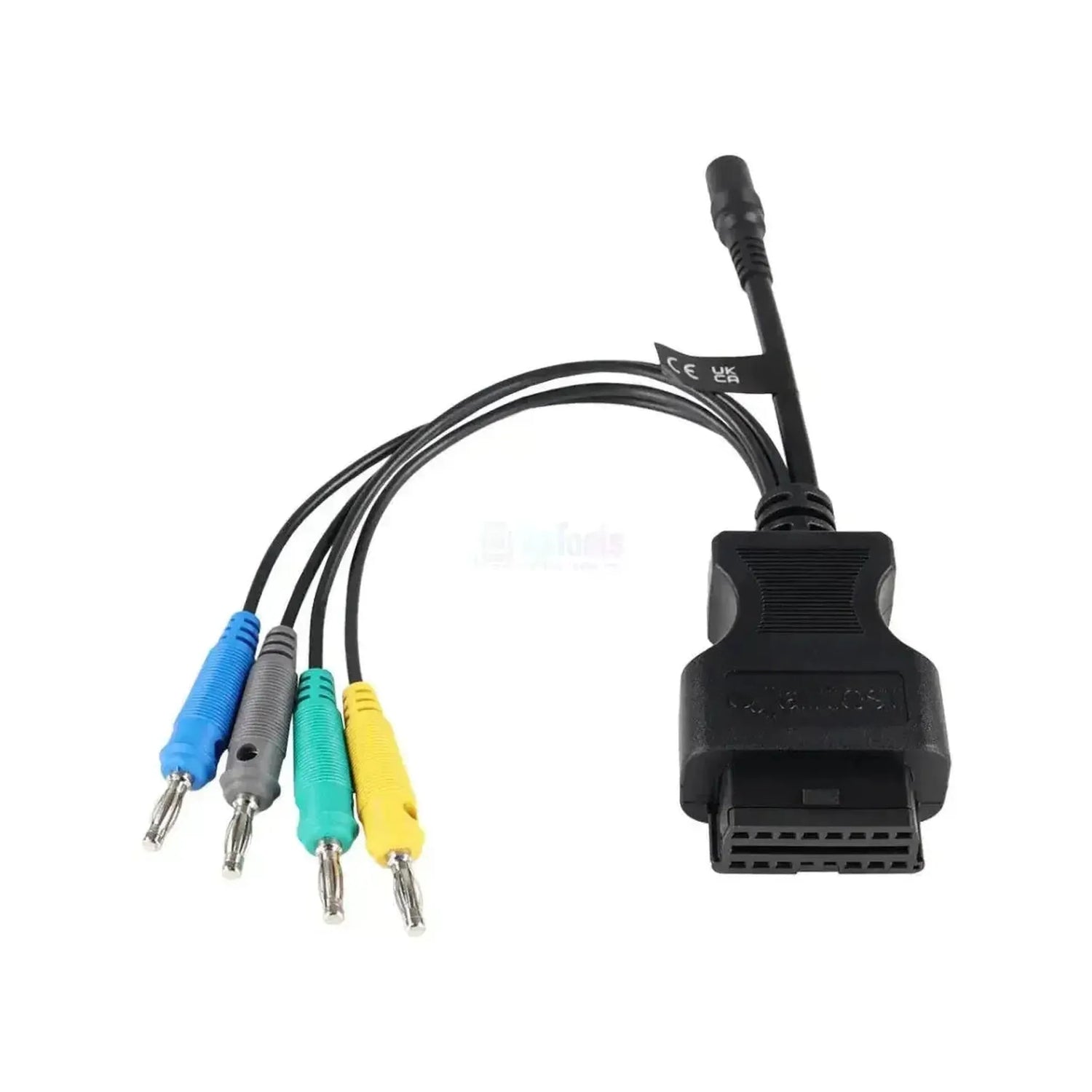

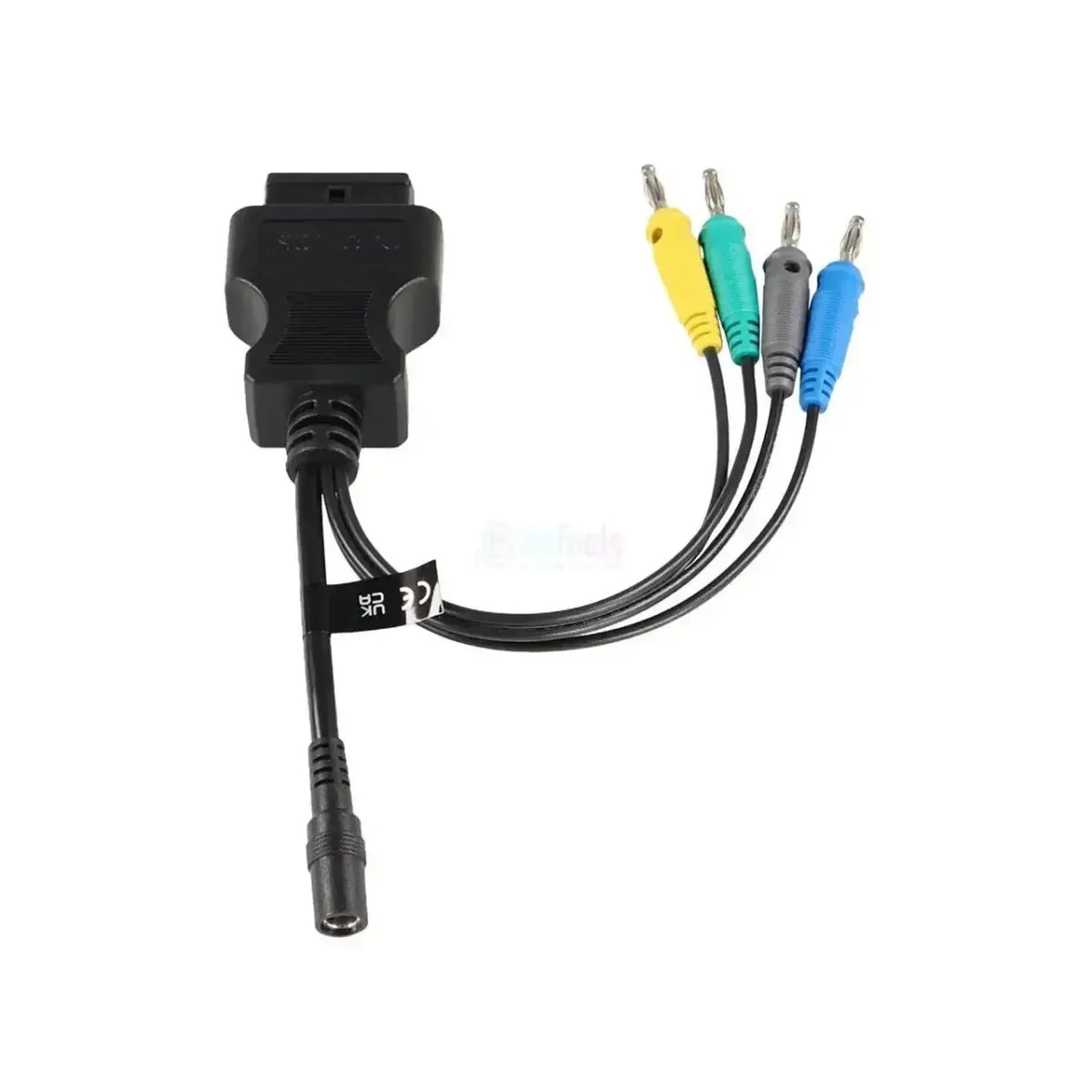

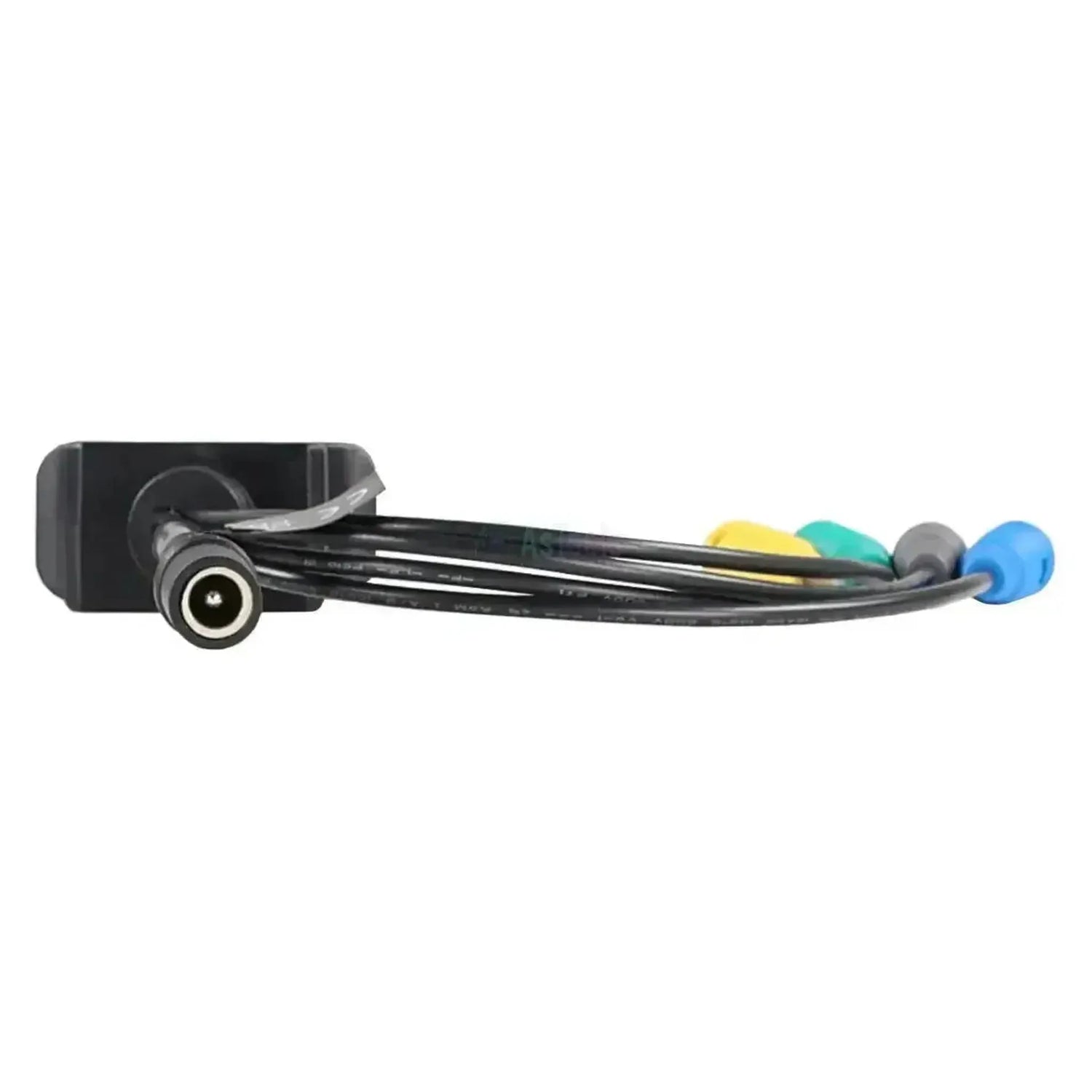

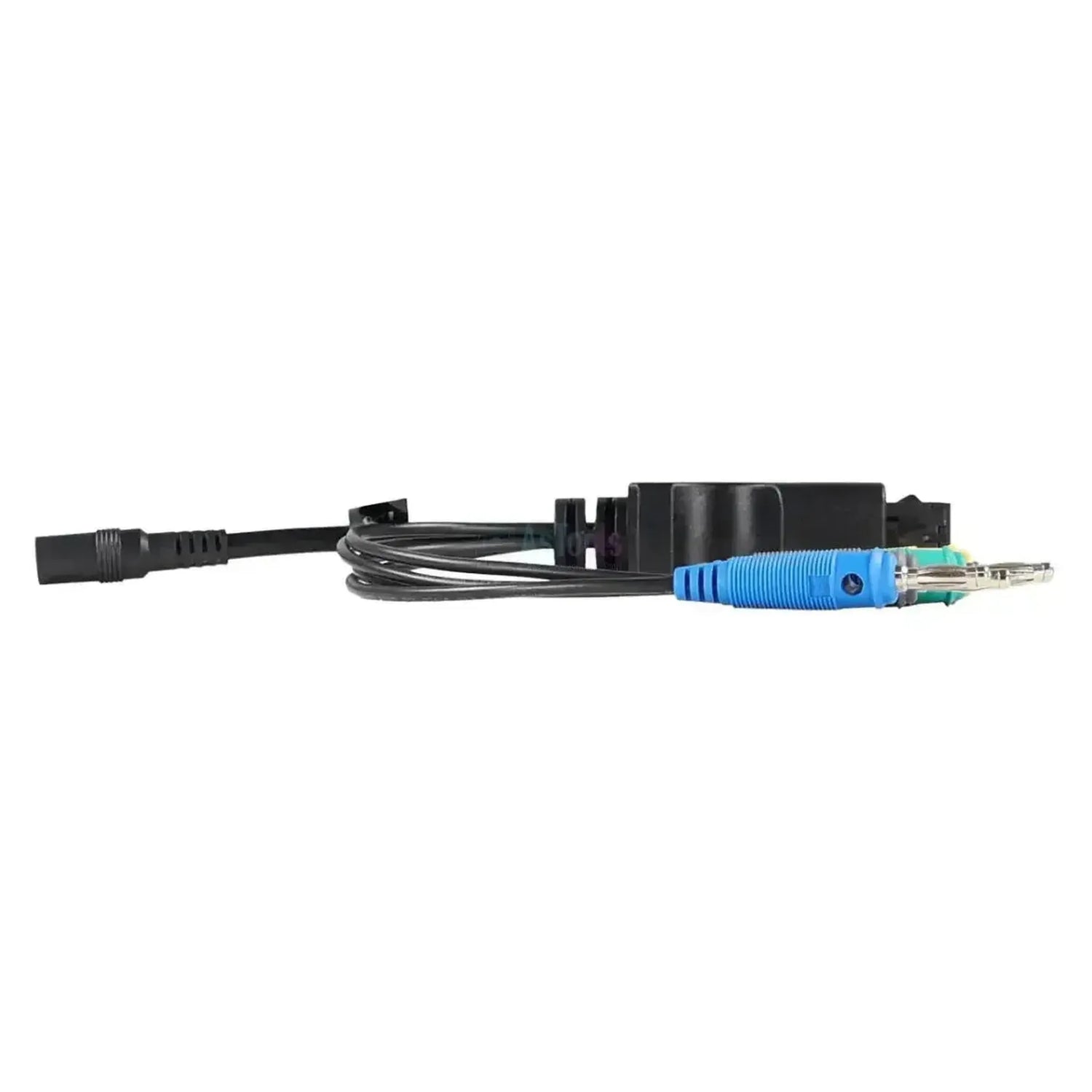

The Jaltest JTP101 is the multipin connection cable for the Jaltest Link V9. On one end is a black housing with a 16-pin OBD2 connector, whilst on the other end are four banana plug-type measurement leads in green, grey, yellow and blue, alongside one separate round connector on its own lead. The cable measures 28 to 30 cm in length.

The cable is part of the Jaltest multipin sets and is also available for separate purchase as a replacement or spare part, for instance when setting up a second set. It is compatible exclusively with the Jaltest Link V9 and does not work with the earlier Jaltest Link V8.1. In addition to this cable, you will require an active Jaltest software licence.

KEY FEATURES

✔On one end a 16-pin OBD2 connector in black housing, on the other end four colour-coded measurement leads and one separate round connector.
✔The dimensions are fixed: The length is 28 to 30 cm.
✔Compatible with the Jaltest Link V9, the current generation interface.
✔Available for separate purchase as a replacement or spare cable, for example when setting up a second kit.

IMPORTANT NOTES

✕This cable works only with the Jaltest Link V9. If you still have the older Jaltest Link V8.1, it is not compatible.
✕This is not an ETM multipin cable: The MDC13 has two measurement pins in green and yellow, and the MDC14 has three in blue, black and red, whereas the JTP101 has four pins plus a round connector.
✕Where the four measurement pins and round connector are connected varies depending on the application; determine this based on the vehicle or equipment you are working on.
✕This is not a diagnostic cable for a specific make or model, and without an active Jaltest software licence you cannot perform diagnostics with it.

Applications and functionality

Below are the fixed specifications for this cable: The configuration of both ends, the length and the interface it is compatible with.

What this cable is for

  • What it is: The multipin connection cable with reference JTP101.
  • Length: 28 to 30 cm.
  • Interface: Jaltest Link V9, and that version only.
  • What it belongs with: The Jaltest multipin sets, not with a vehicle-specific cable set.

How the cable is configured

  • One end: A black housing with a 16-pin OBD2 connector.
  • The other end: Four loose measurement pins of the banana plug type, in green, grey, yellow and blue.
  • The additional lead: One loose round connector, on its own lead alongside the four measurement pins.

What you will need

  • Jaltest Link V9: The interface to which you connect this cable; it is not compatible with the Jaltest Link V8.1.
  • An active Jaltest licence: Without a valid software licence, you cannot perform diagnostics.
💡
Good to know: If your Jaltest equipment arrived as a CV/OHW, MHE, AGV or Marine kit, the multipin set was already included and you already have the JTP101. Order it as a replacement, or when you want to set up a second set. Check first whether you already have this cable before ordering.

Package contents

  • 1x Jaltest (JTP101) | Multipin connection cable | Accessories

Technical specifications

Specification Description
Brand Jaltest (Cojali)
Reference number JTP101
Official name Multipin connection cable
Type Connection cable from the Jaltest multipin sets
Machine-side connection Four measurement pins of the banana plug type in green, grey, yellow and blue, plus one separate round connector on its own lead
Interface-side connection Black housing with a 16-pin OBD2 connector
Length 28 to 30 cm
Interface Jaltest Link V9
Part of cable set Multipin kit V9 (70002001), Multipin kit AGV (70002002) and Multipin kit Marine (70002007)
Individual multipins JTP01 through JTP10 are individual items with their own reference number
Required to use Jaltest Link V9 with an active software licence
