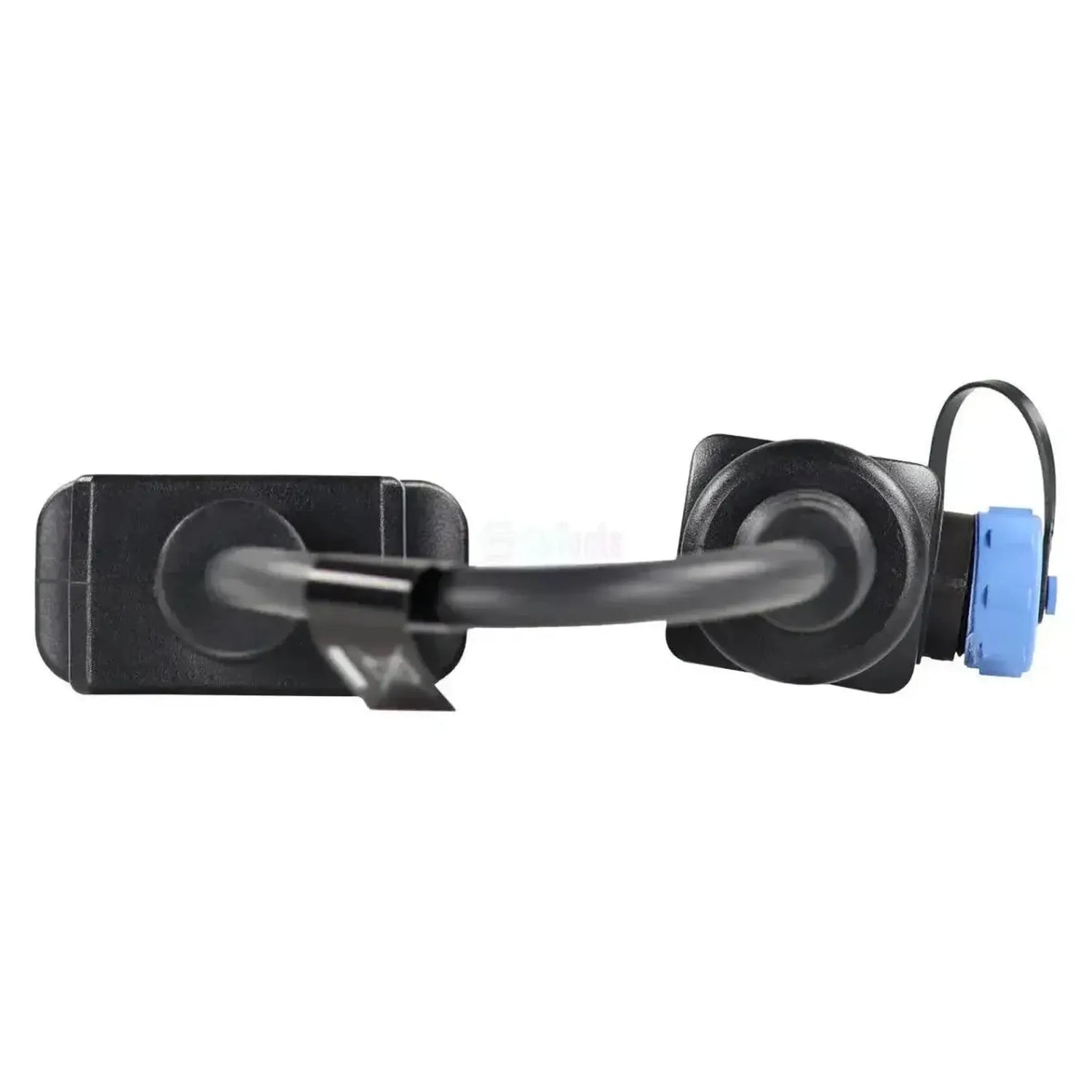

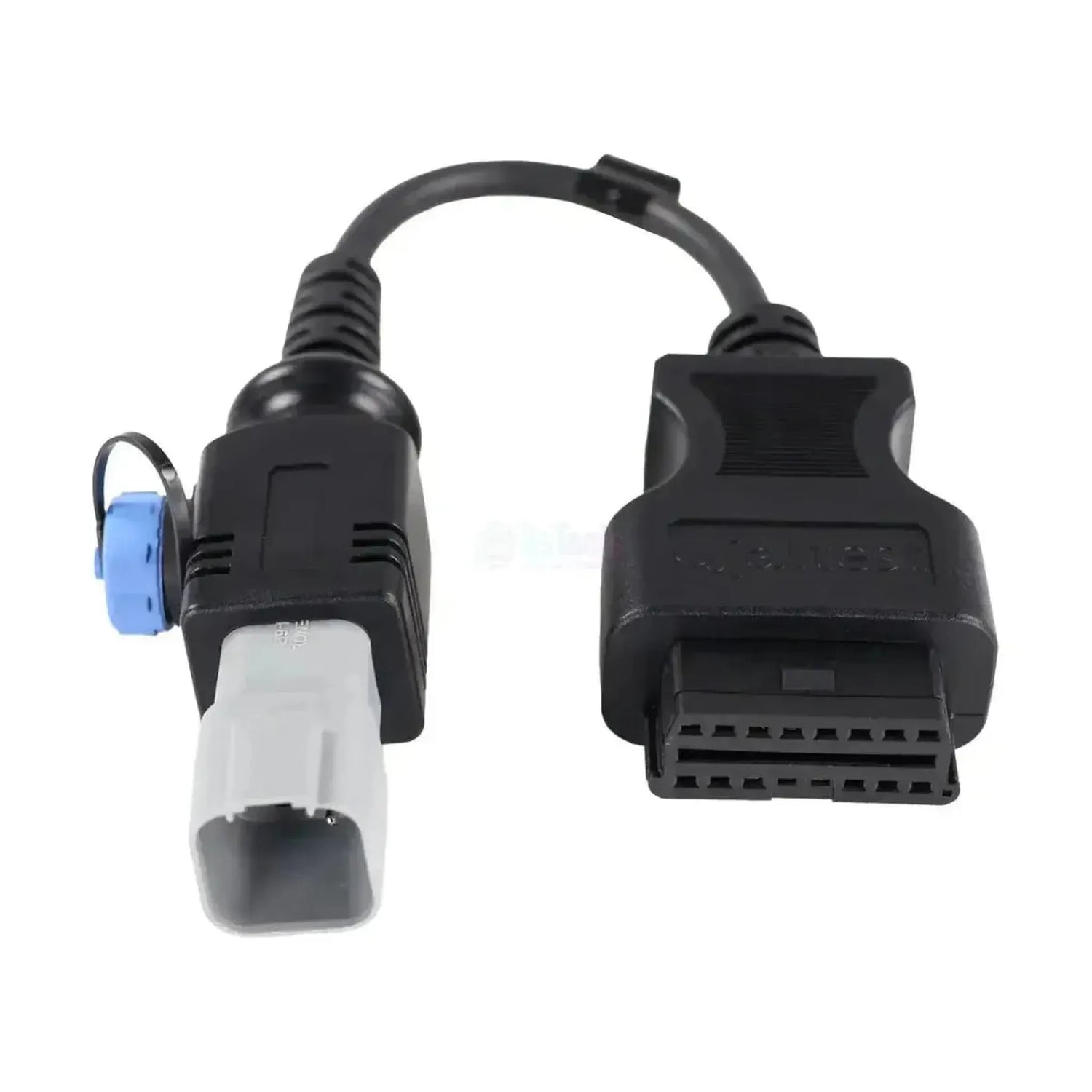

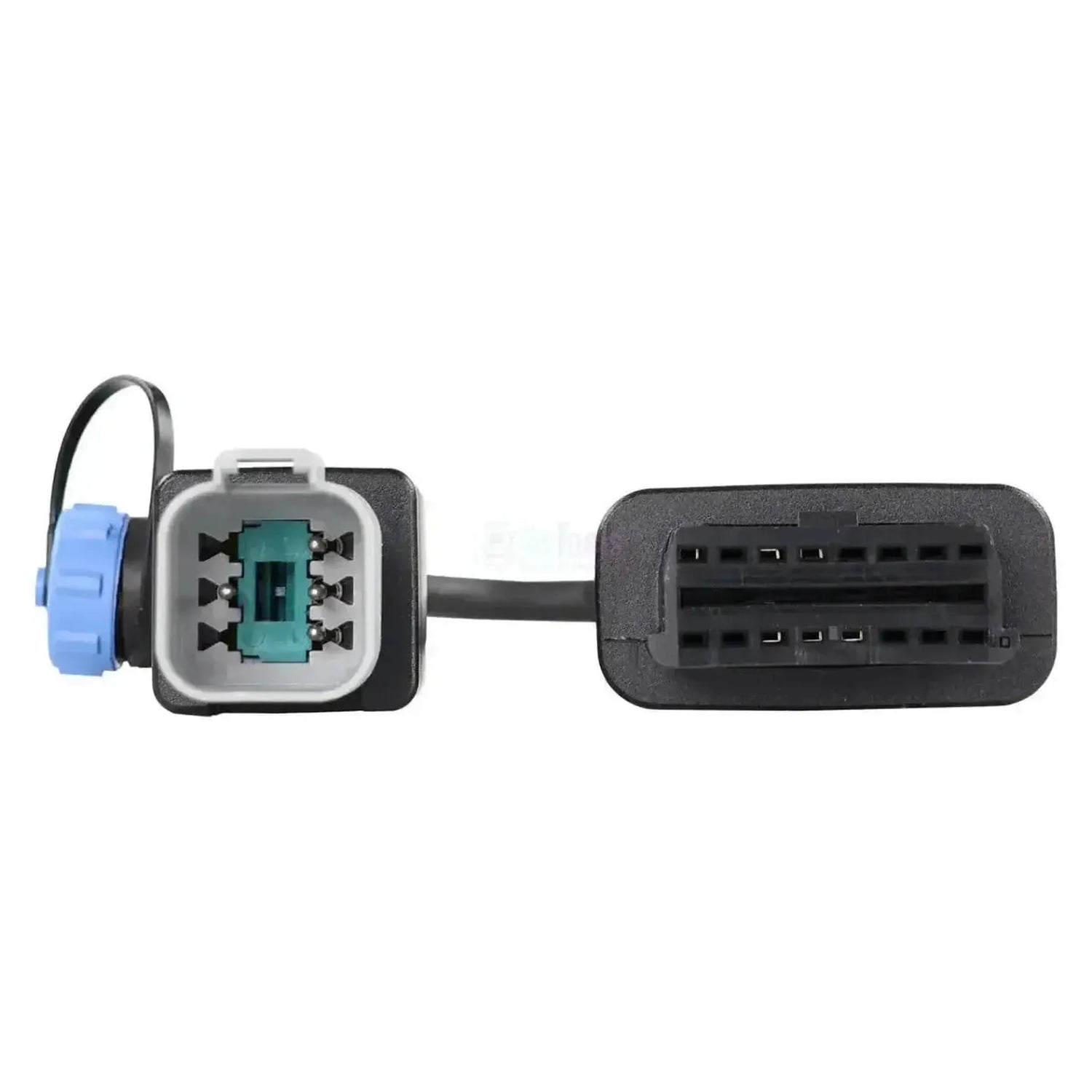

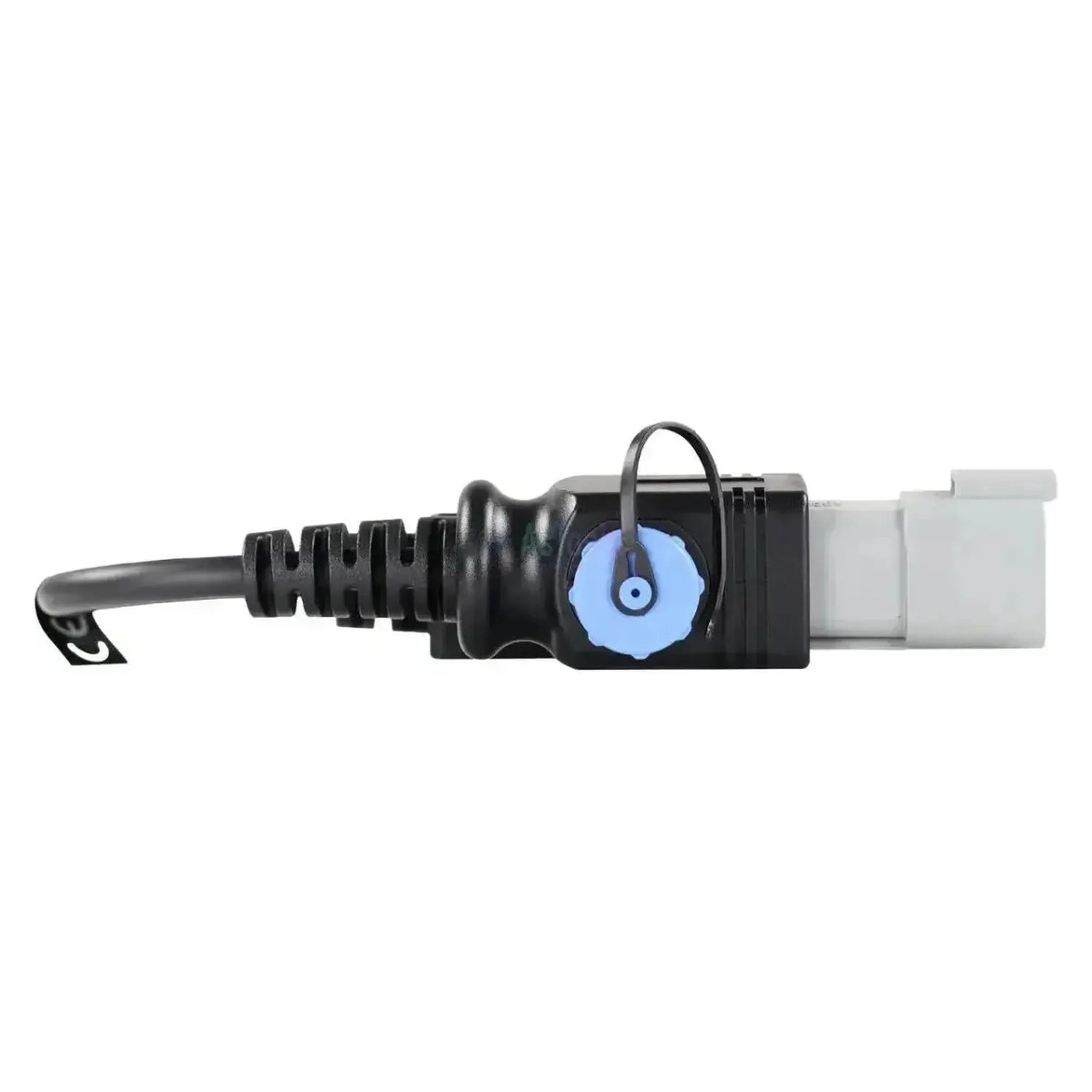

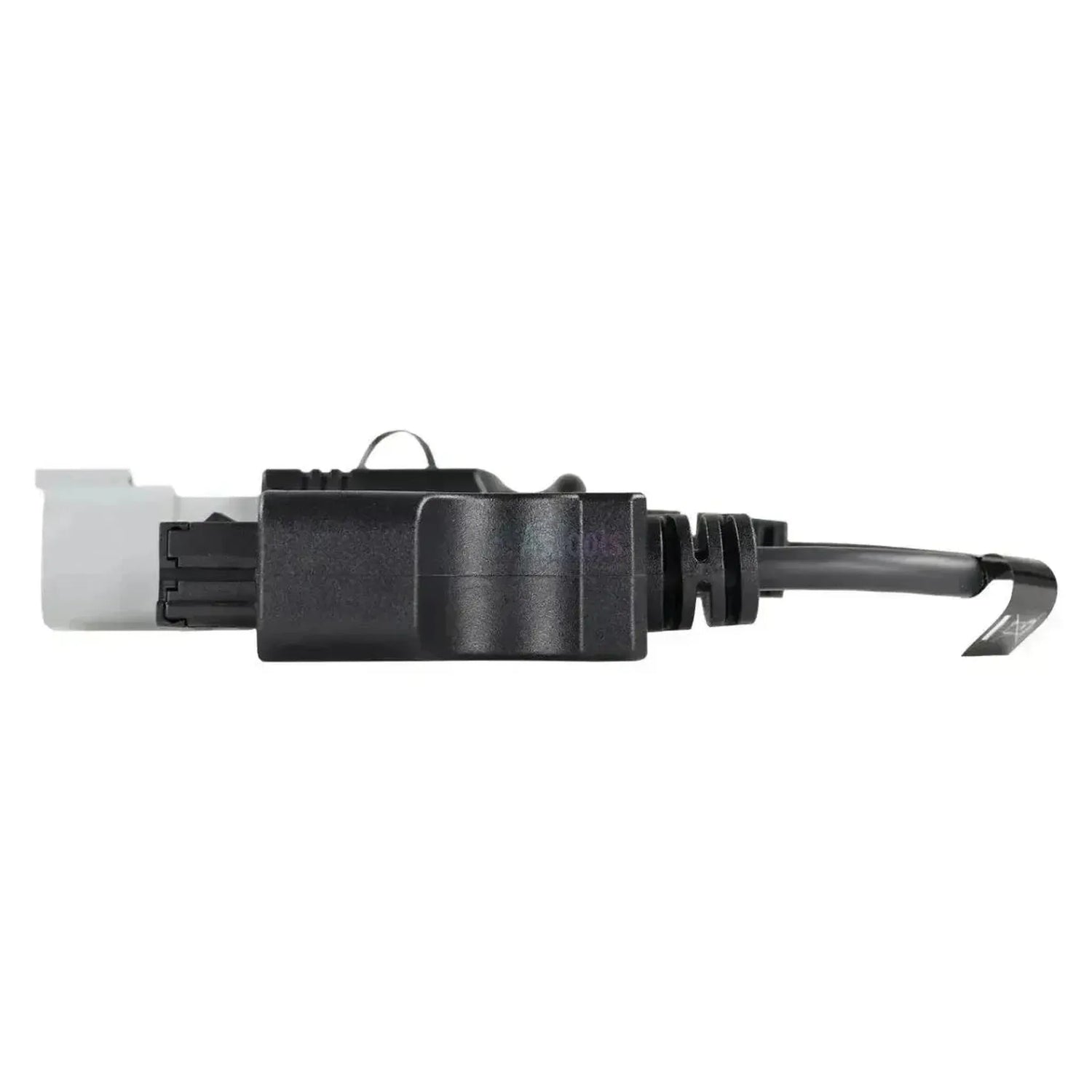

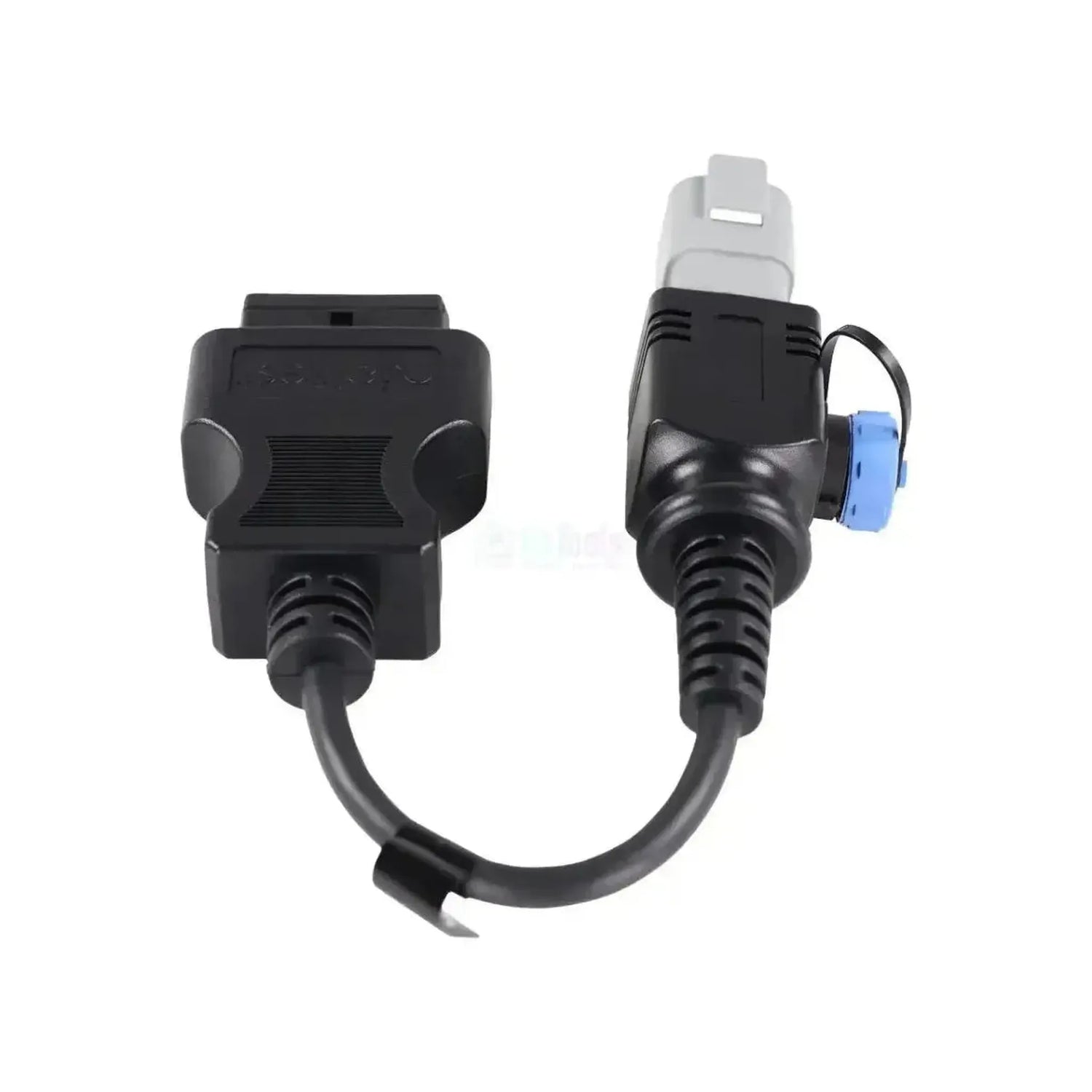

The Jaltest JDC602A is the diagnostic cable for BRP Sea-Doo jet skis; it connects the 6-pin diagnostic connector to the 16-pin OBD2 port of your Jaltest diagnostic device. The 6-pin connector is located in the engine compartment of the jet ski.
With this connection, the Jaltest equipment reads four control units on board: the brake and reverse system iBR, the multiplex module MPEM, the engine control ECM, and the instrument cluster INS. The coverage difference is significant: The iBR and MPEM provide fault codes, live data, component control and parameters — and the iBR also includes calibration — while Jaltest reads only live data and wiring diagrams from the ECM and INS, with no fault codes. The cable falls under Jaltest Marine.
KEY FEATURES
IMPORTANT NOTES
Applications and features
Using this connection, you can access the control modules of your Sea-Doo jet ski with Jaltest software.
Control modules you can access
- iBR — brake and reverse system: The Intelligent Brake and Reverse module, offering the most comprehensive feature set: fault codes, measured values, component control, parameters, calibration and live data.
- MPEM — multiplex system: The Multifunction electronic system module, with fault codes, measured values, component control, parameters and live data.
- ECM — engine control: The Engine electronic control system. Jaltest reads live data and wiring diagrams from this unit, but not fault codes.
- INS — instrument cluster: The instrument cluster, also with live data, but without fault codes.
What you can do
- Read fault codes: Access the fault memory of the iBR and MPEM, with detailed descriptions of detected faults.
- View measured values: Monitor current sensor readings from the iBR and MPEM.
- Control components: Directly command actuators in the brake system and multiplex system.
- Adjust parameters: Configure and apply settings for the iBR and MPEM.
- Perform calibration: Available on the iBR only.
- Monitor live data: Track values in real-time across all four control modules.
Compatible vehicles and applications
The connector type determines compatibility, not the model. This cable is compatible with any Sea-Doo jet ski featuring the 6-pin diagnostic connector. The Jaltest Marine coverage includes the series listed below; check your engine compartment to confirm which connector your watercraft has.
Sea-Doo (BRP):
- GTI Series: GTI RFI, GTI LE RFI, GTI 4-TEC, GTI SE 4-TEC and GTI Pro
- GTX Series: GTX DI, GTX 4-TEC, GTX Limited 4-TEC, GTX Limited iS 4-TEC, GTX Pro and GTX Wake 4-TEC
- RXP and RXT Series: RXP 4-TEC, RXP-X 4-TEC, RXT 4-TEC, RXT-X 4-TEC and RXT iS 4-TEC
- GTR and GTS Series: GTR, GTR-X and GTS
- Spark Series: Spark and Spark Trixx
- Wake Series: Wake and Wake Pro
- Other Models: 3D RFI, RX DI, XP DI, LRV DI, Fish Pro, Explorer Pro and SAR
Package Contents
- 1x Jaltest (JDC602A) | BRP (Seadoo) 6-pin OBD - 16-pin OBD2 Adapter Cable | Jet Ski
Technical Specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC602A |
| Type | Adapter Cable |
| Application | Sea-Doo (BRP) Jet Skis |
| Engine-Side Connector | 6-pin OBD |
| Interface-Side Connector | 16-pin OBD2 |
| Control Units | iBR (brake and reverse system), MPEM (multiplex system), ECM (engine control) and INS (instrument cluster) |
| Segment | Jet ski |
| Jaltest module | Jaltest Marine |
| Part of cable kit | Jet ski cable kit (29985) |
| Required to use | Jaltest Link with valid software license |
