The Jaltest JDC574A9 adapter cable is specifically developed to connect a Jaltest diagnostic interface with Crown lifting and hoisting equipment. This cable converts the standard 16-pins OBD2 connection of the diagnostic tester to the vehicle-specific 6-pins connector commonly used in various internal transport vehicles of this brand. The product is part of the Jaltest MHE (Material Handling Equipment) module and facilitates the physical connection necessary for communication with the electronic control units.

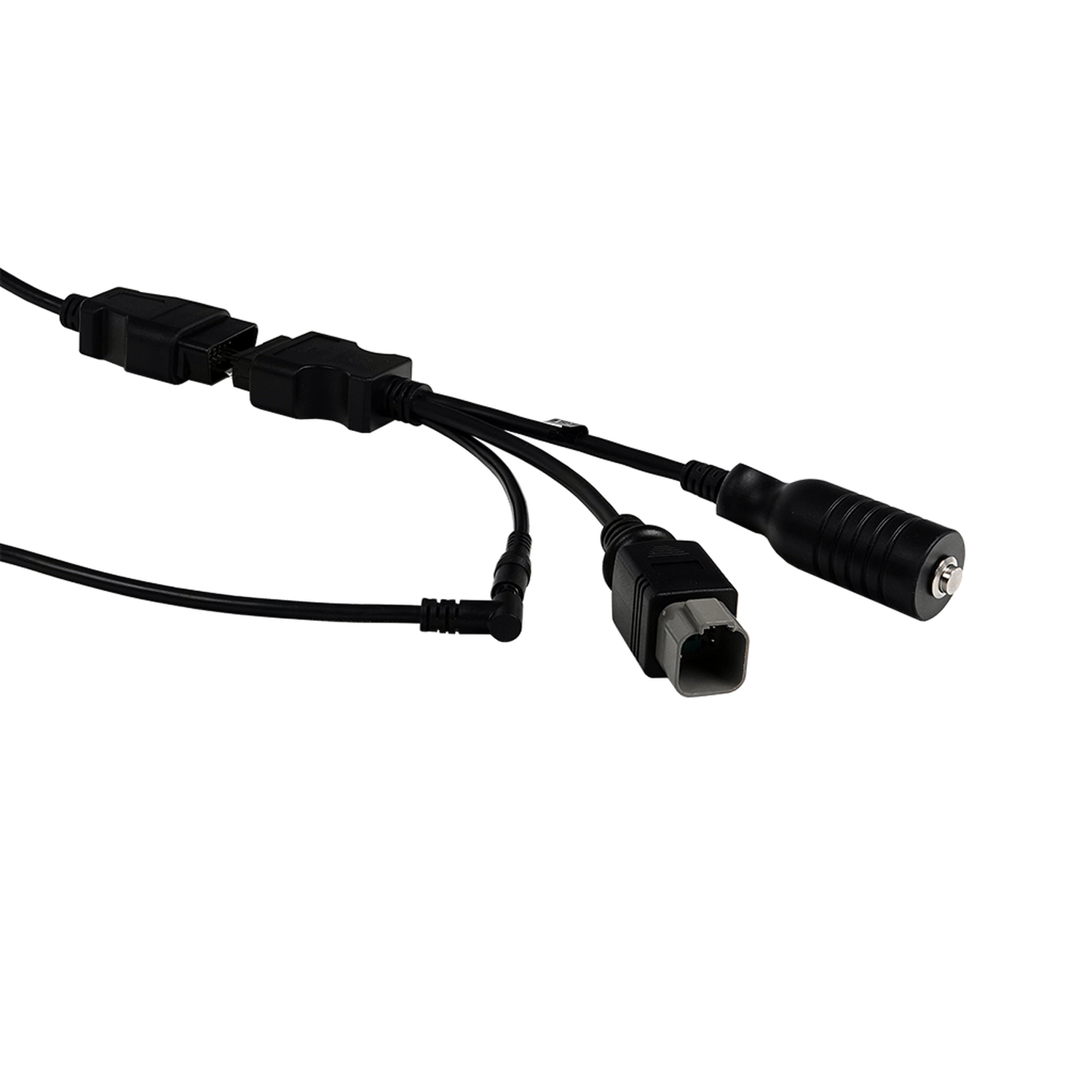

Technically, this cable set features a split design with multiple outputs to ensure full compatibility. Besides the gray data connector, the cable includes an external DC power connection for situations where the diagnostic port does not supply power, and a specific connector with a push button for simulating or bridging safety circuits during static tests. The internal wiring supports various communication protocols, including CAN bus, essential for reading modern control systems in warehouse trucks.
ADVANTAGES
ATTENTION POINTS
Applications and functionalities
This adapter cable enables communication between the diagnostic hardware and the onboard networks of internal transport equipment.
- Error code analysis: Reading and clearing stored faults in the ECU.
- Monitoring parameters: Real-time display of sensor values and system information.
- Component activation: Controlling actuators via diagnostic software.
- Safety circuits: Simulation of specific signals via the push-button connector.
Compatible vehicles and applications
The JDC574A9 is designed for use on various models within Crown's MHE segment.
Crown:
- Electric pallet trucks: (Various series)
- Reach trucks: (ESR / RR series with 6-pins interface)
- Stackers: (Various series)
- Order pickers: (When equipped with a compatible diagnostic port)
Package Contents
- 1x Jaltest (JDC574A9) | Crown 6-pins OBD - 16-pins OBD2 Adapter Cable | Lifting and Hoisting Equipment
