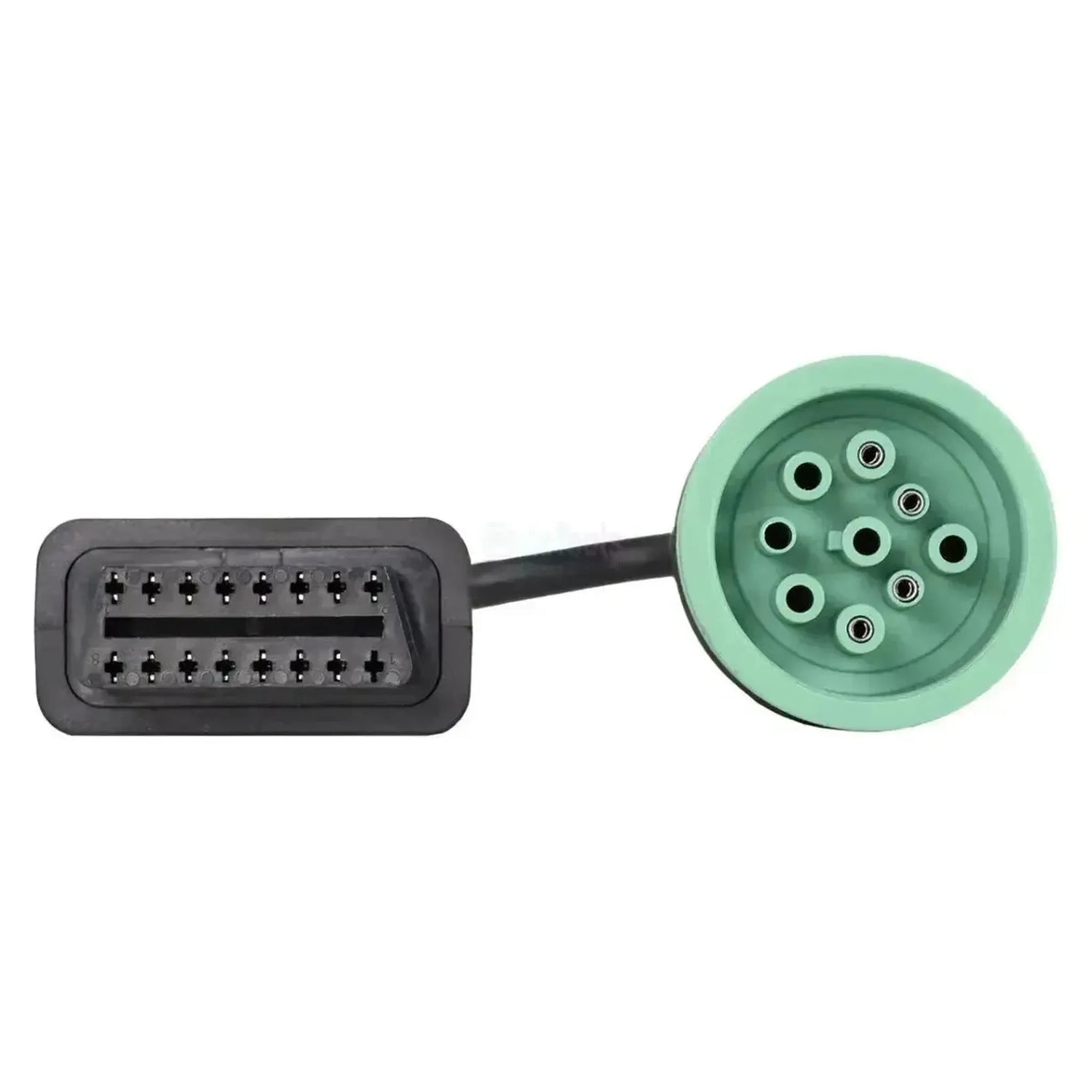

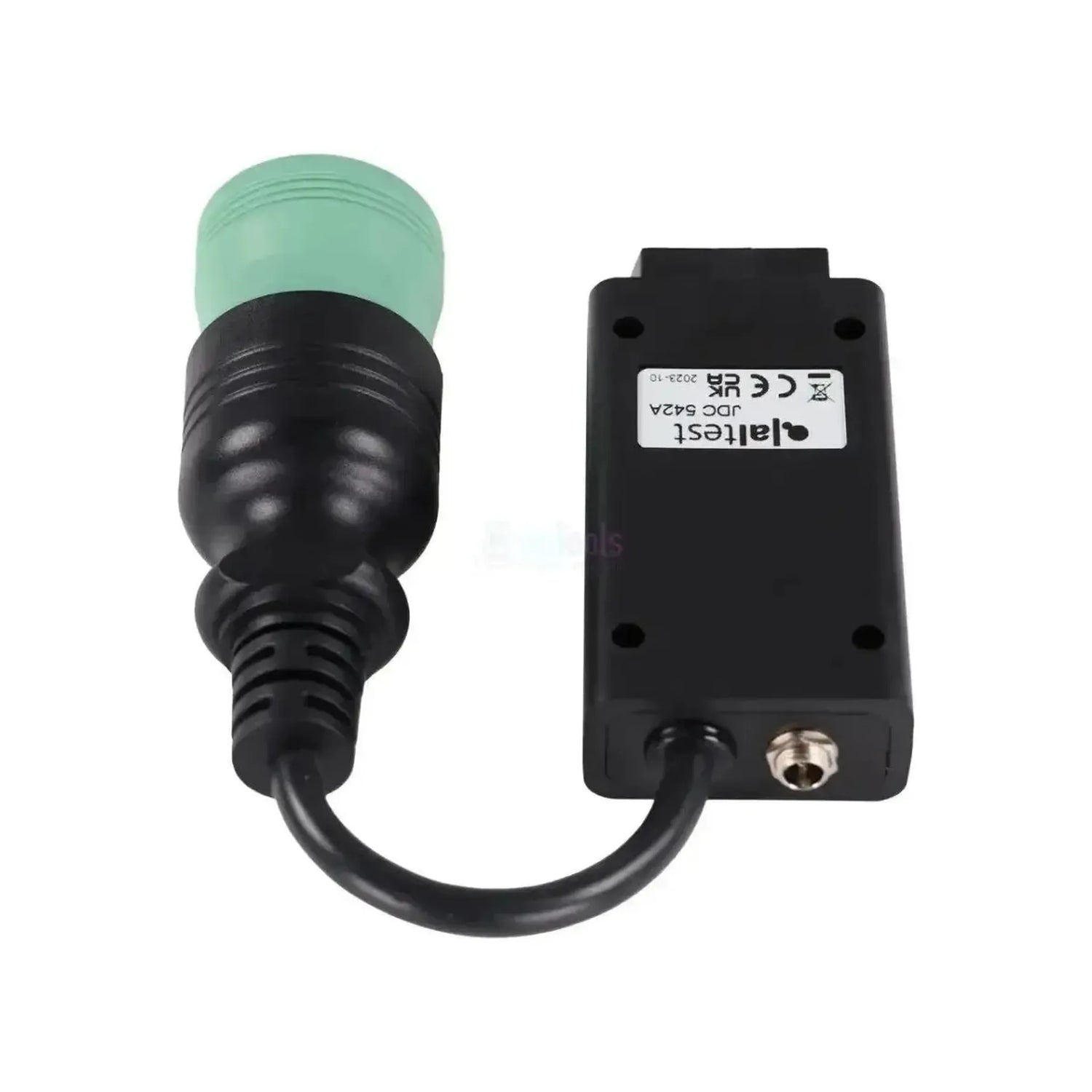

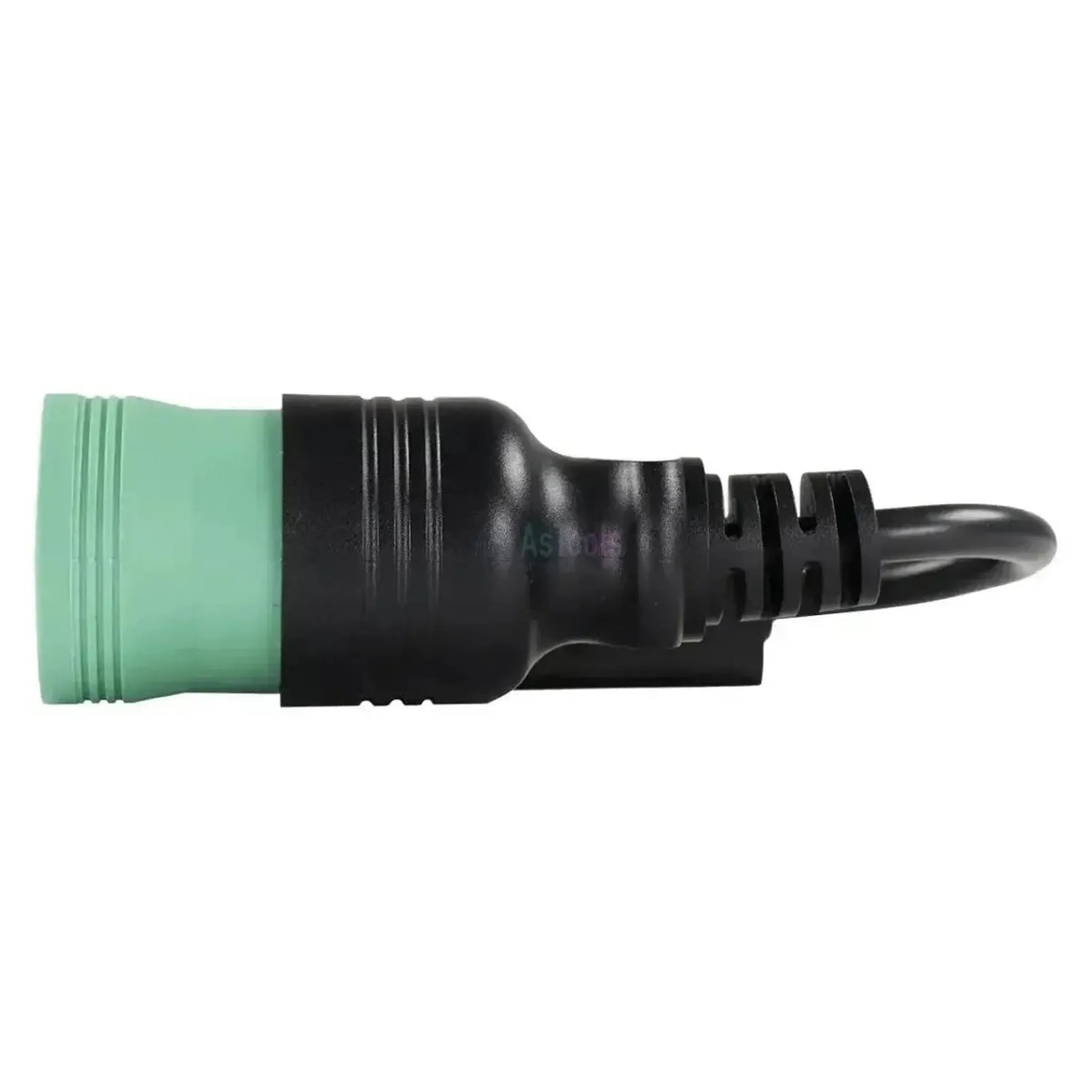

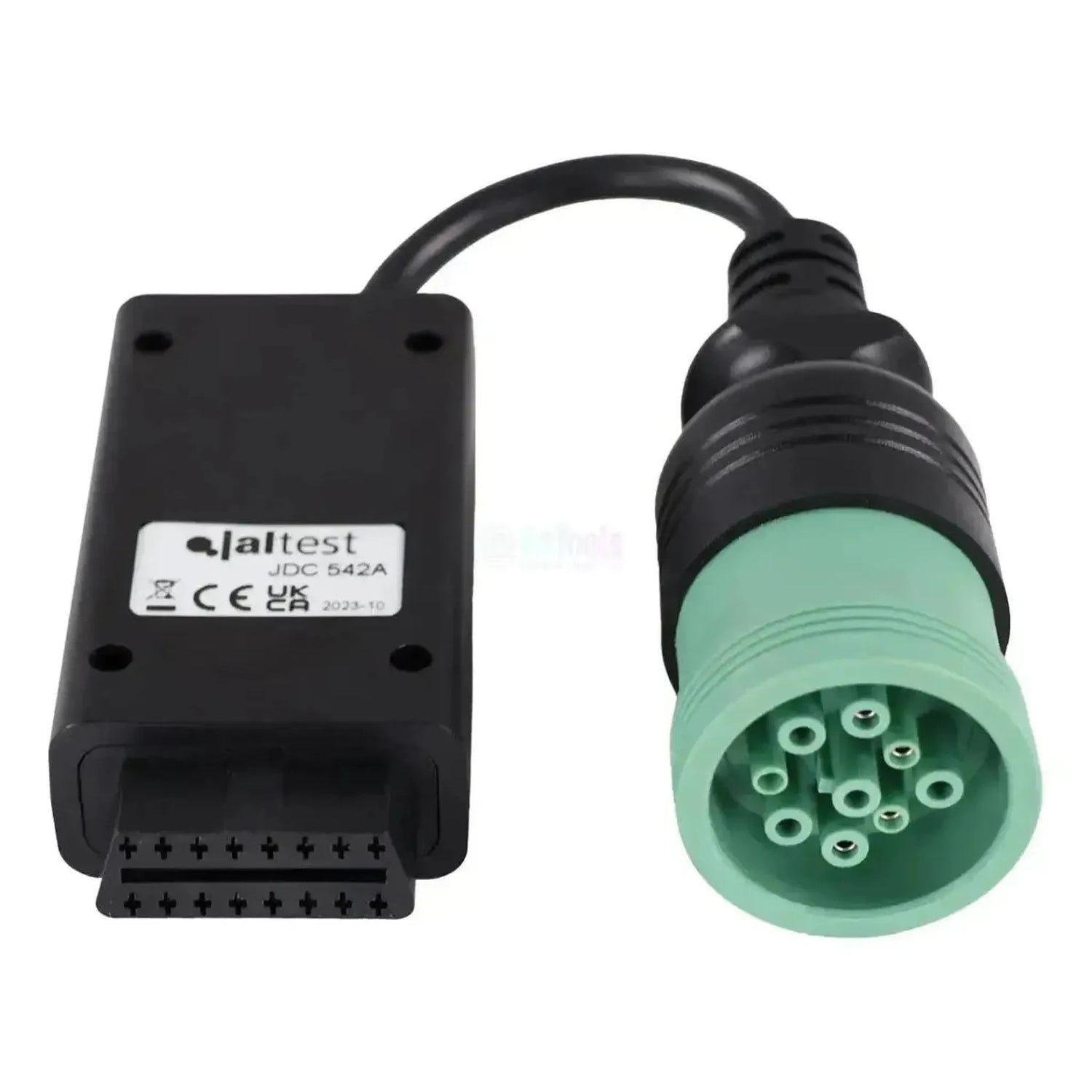

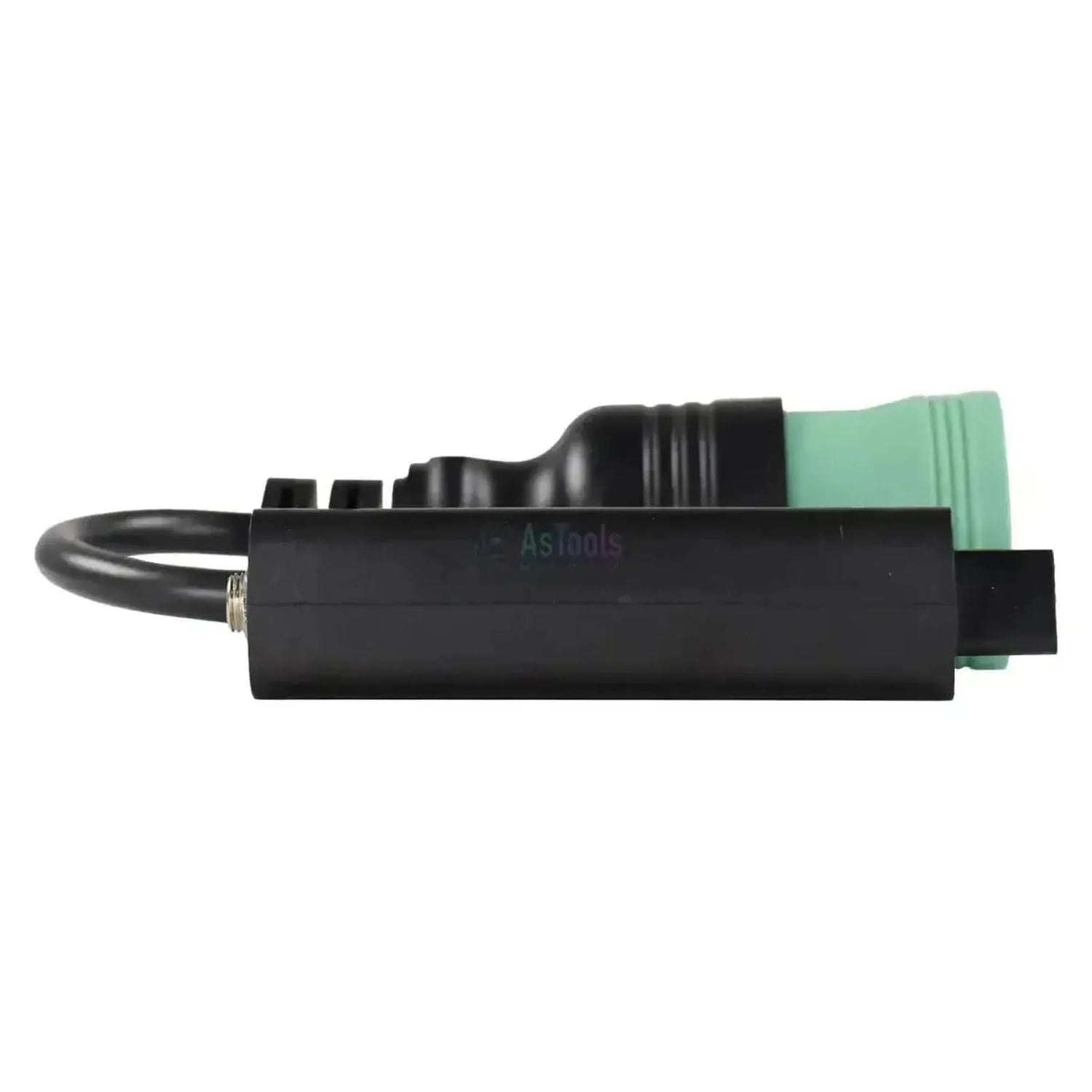

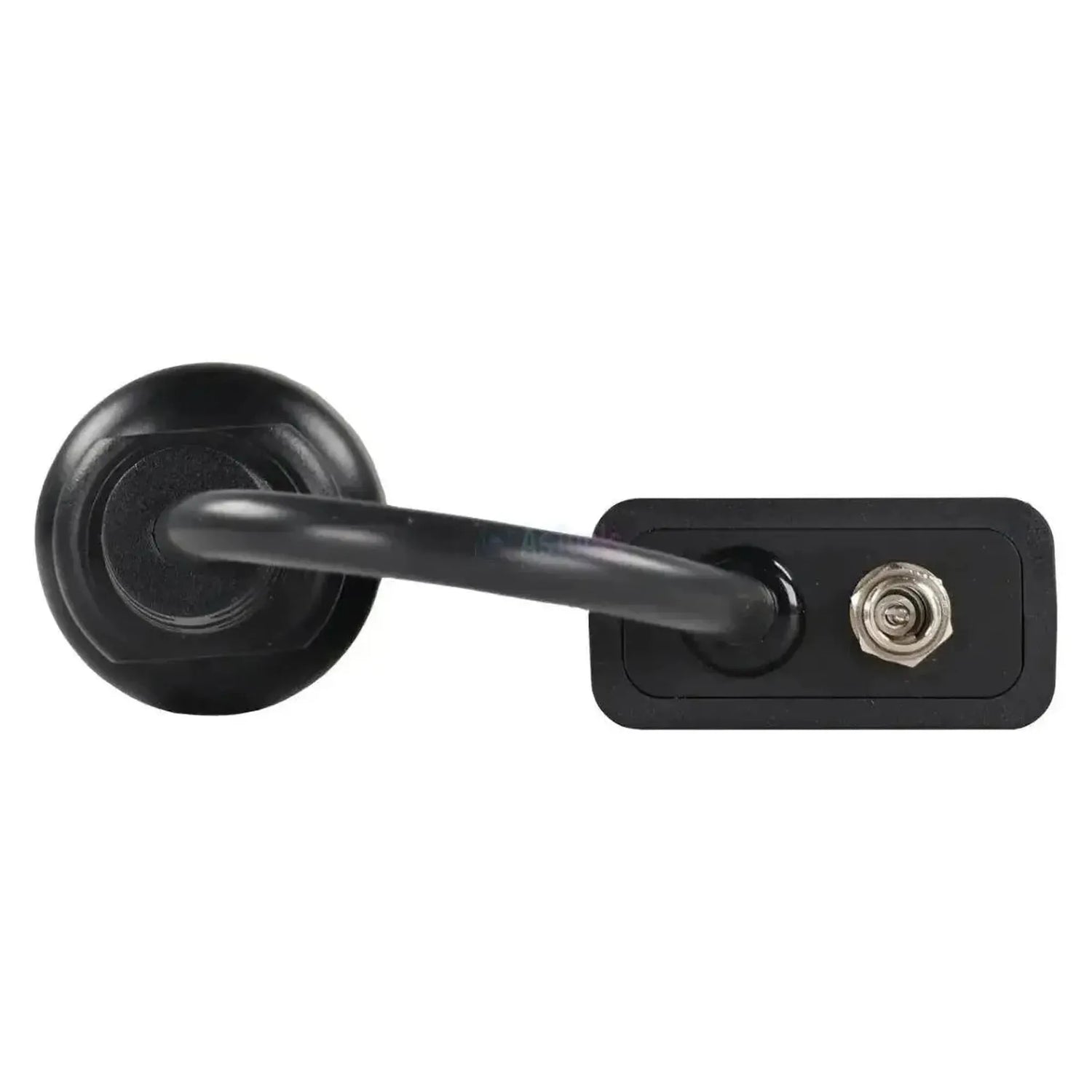

The Jaltest JDC542A is the adapter cable between the round 9-pin diagnostic connector of industrial diesel engines Liebherr and the 16-pin OBD2 of your Jaltest diagnostic cable. The connector is located on the engine or in the associated wiring harness, allowing you to connect to stationary installations and power units where no vehicle diagnostic port is available.
The cable opens the diagnostic line to the engine control unit: ECU2-HD, ECU3, LIDEC1 of LH ECU UPCR, depending on the engine type and generation. With ECU2-HD, ECU3 and LIDEC1, fault codes, measured values and ECU data are covered alongside maintenance information; with LH ECU UPCR, maintenance data is not included. Industrial and stationary engines are not subject to OBD requirements, which is why this connector appears across multiple engine generations. The cable falls under Jaltest OHW (Off-Highway machines).
KEY FEATURES
KEY POINTS
Applications and Features
Using this connection, you can access the engine control unit with Jaltest software. Which control system is available depends on the engine type and generation.
Control Units You Can Access
- ECU2-HD, Engine Control Module: Engine control with fault codes, live data, ECU information, and maintenance data.
- ECU3, Engine Control Module: The next-generation engine control unit, with the same functions.
- LIDEC1, Engine Control Module: The Liebherr engine control unit with maintenance data.
- LH ECU UPCR, Engine Control Module: Engine control with fault codes, live data, and ECU information, without maintenance data.
What You Can Do
- Read and clear fault codes: Access the fault memory of the control unit with detailed descriptions of detected faults.
- View live data: Monitor real-time sensor values connected to the control unit, displayed as numbers and graphs.
- Access maintenance data: Available for ECU2-HD, ECU3, and LIDEC1; not available for LH ECU UPCR.
Compatible Vehicles and Applications
The connector type determines compatibility, not the machine. This adapter cable is designed for Liebherr industrial diesel engines with the 9-pin diagnostic connector.
Liebherr:
- D 834 (4-cylinder industrial engine)
- D 846 / D 856 (V-engines)
- D 924 (4-cylinder industrial engine)
- D 934 (4-cylinder industrial engine)
- D 936 (6-cylinder industrial engine)
- D 944 / D 946 (V-engines)
- D 964 / D 976 (V-engines)
- D 95xx / D 96xx / D 98xx series (large V-engines, including D 9508, D 9512, D 9612, D 9816)
Package contents
- 1x Jaltest (JDC542A) | Liebherr 9-pin OBD - 16-pin OBD2 Adapter Cable | Internal Combustion Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC542A |
| Type | Adapter cable |
| Application | Liebherr industrial diesel engines (D-series) |
| Engine-side connector | 9-pin OBD |
| Interface-side connector | 16-pin OBD2 |
| Control units | ECU2-HD, ECU3, LIDEC1 and LH ECU UPCR (engine control) |
| Segment | Internal combustion engine |
| Jaltest module | Jaltest OHW (Off-Highway machines) |
| Part of cable set | OHW complete cable set (70002026) |
| Required to use | Jaltest Link with valid software license |
