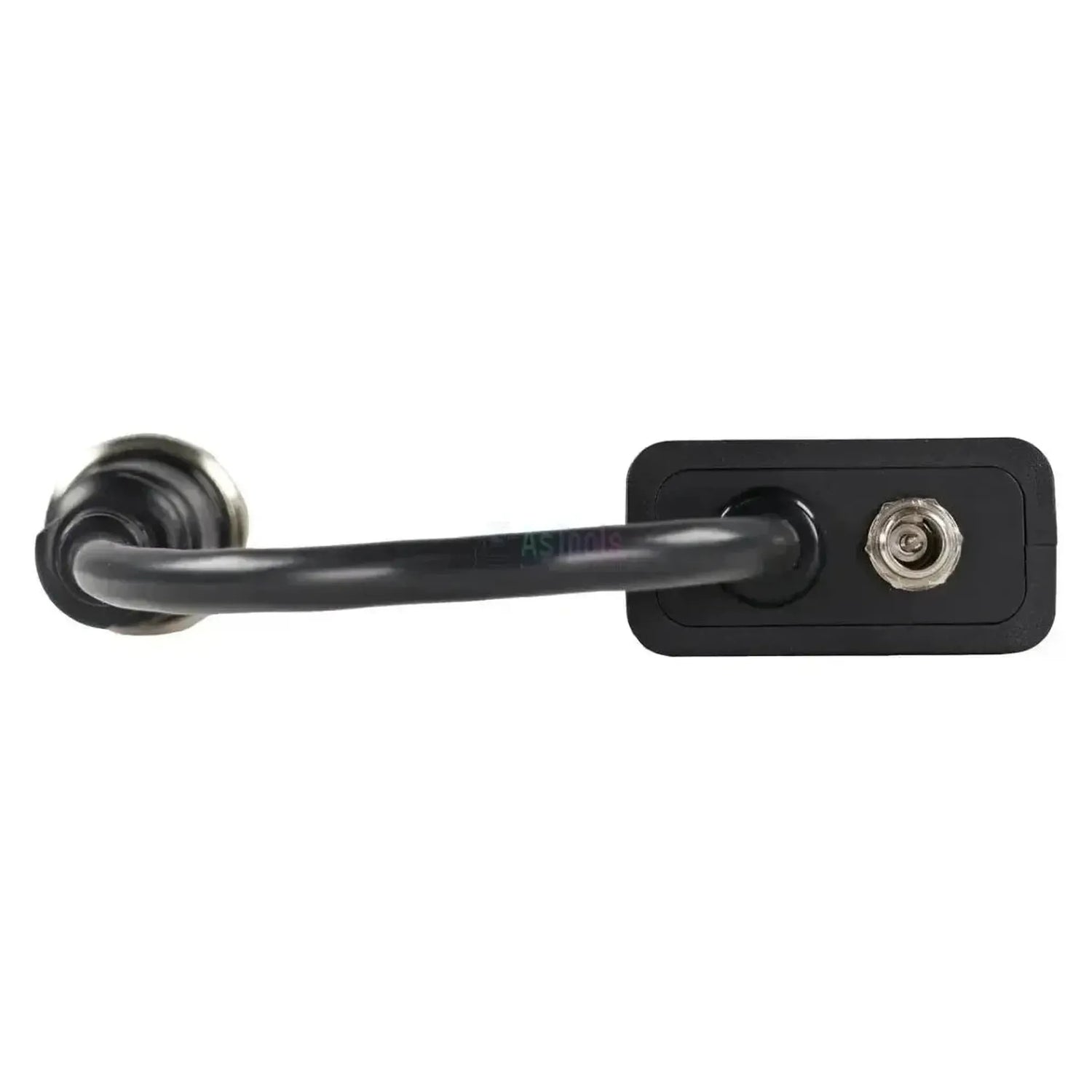

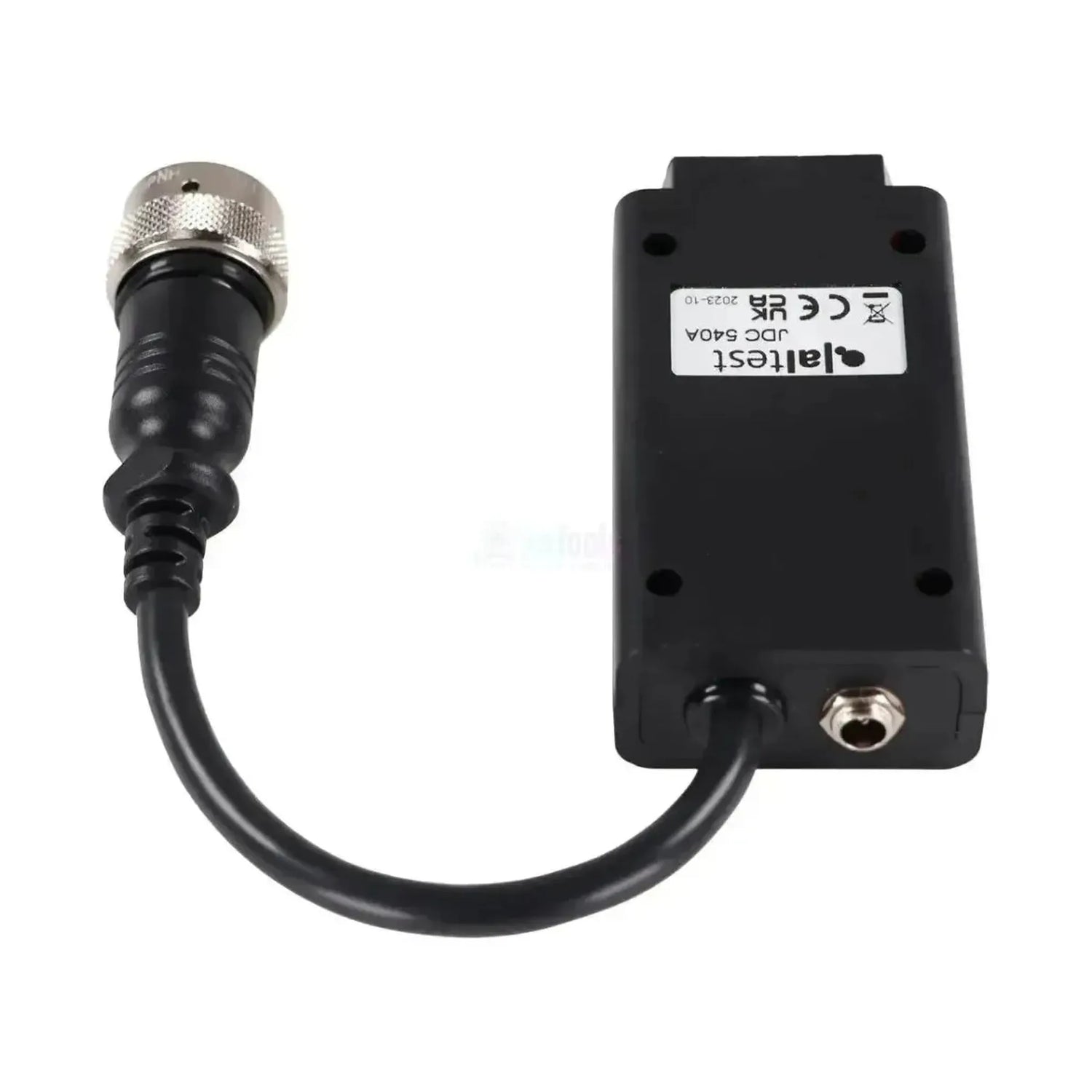

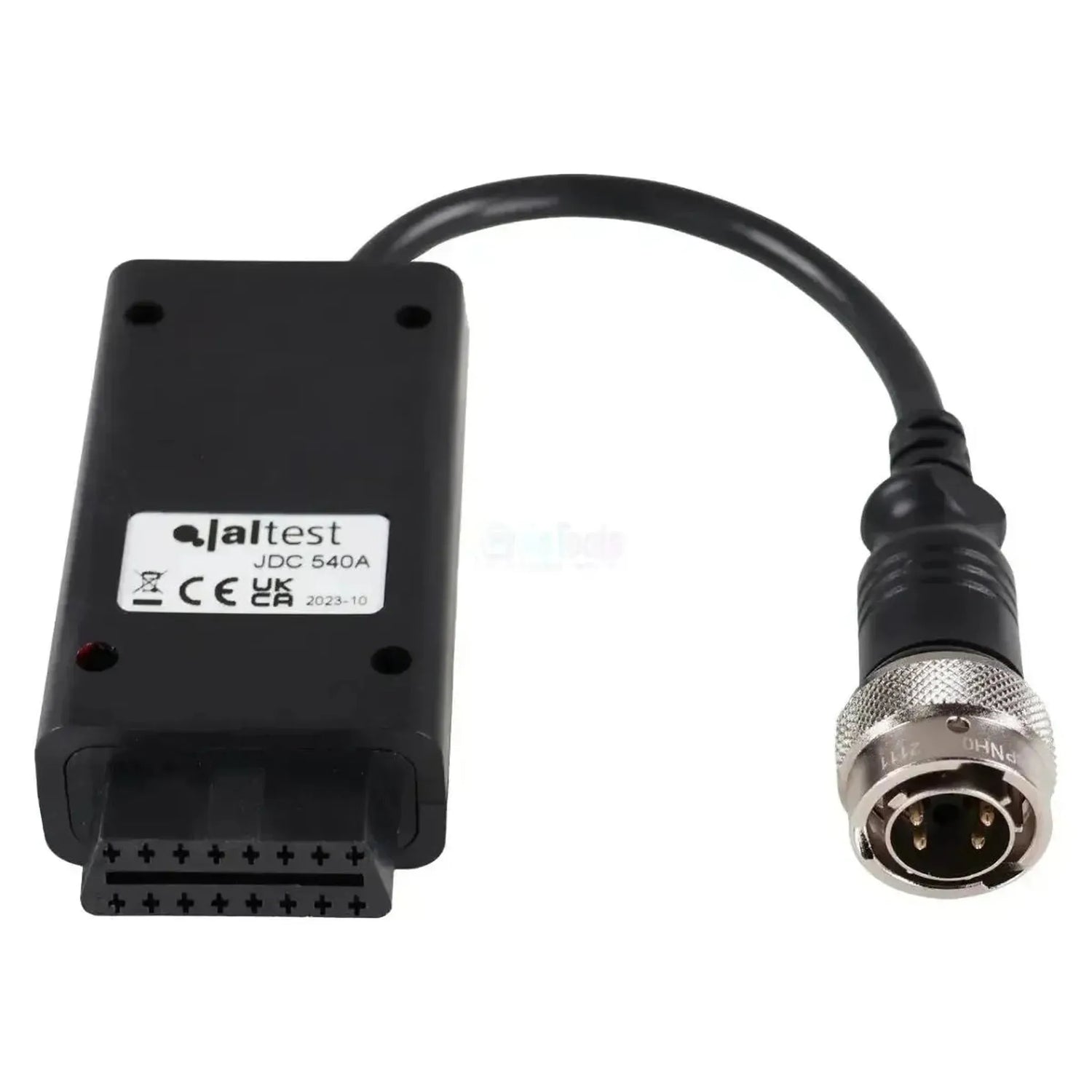

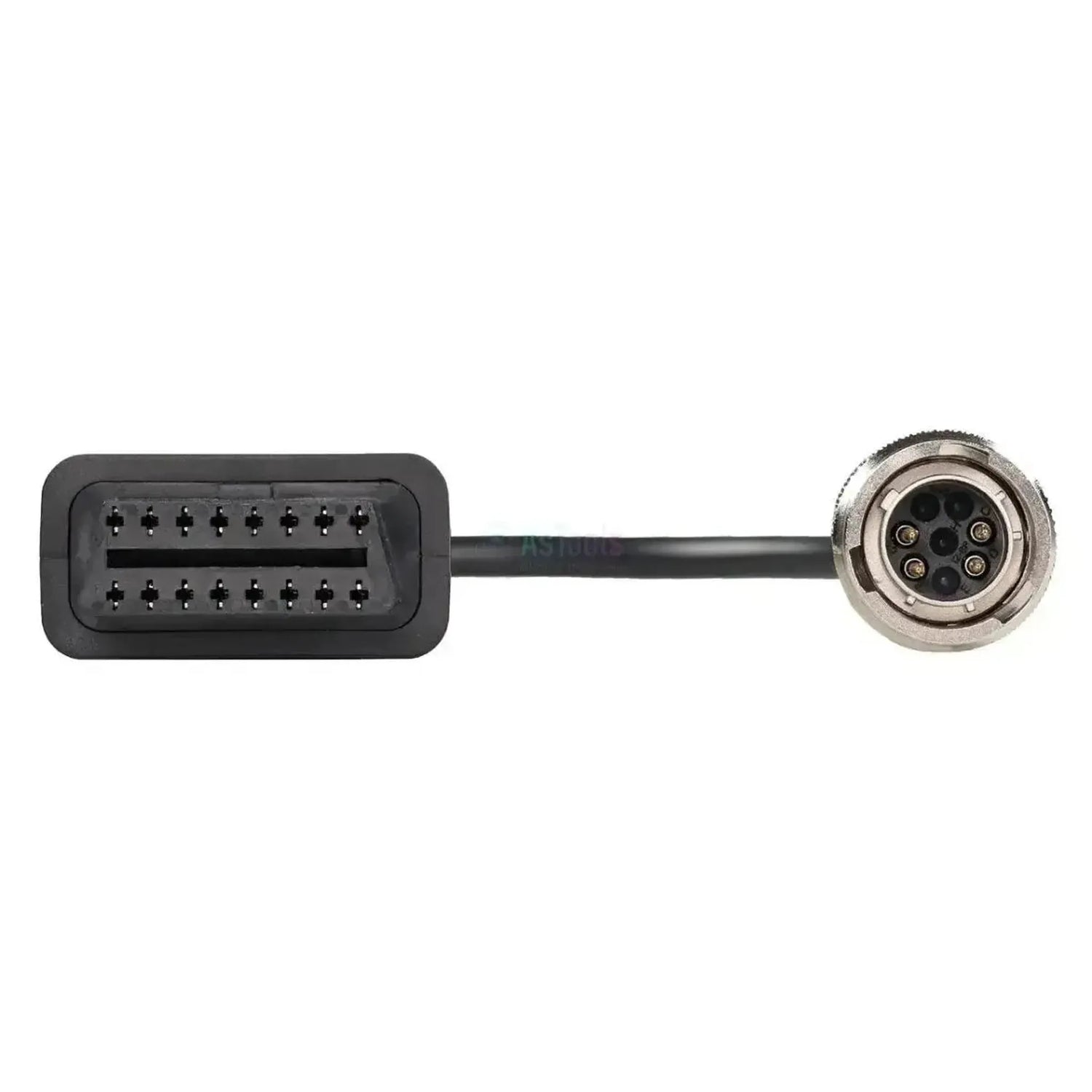

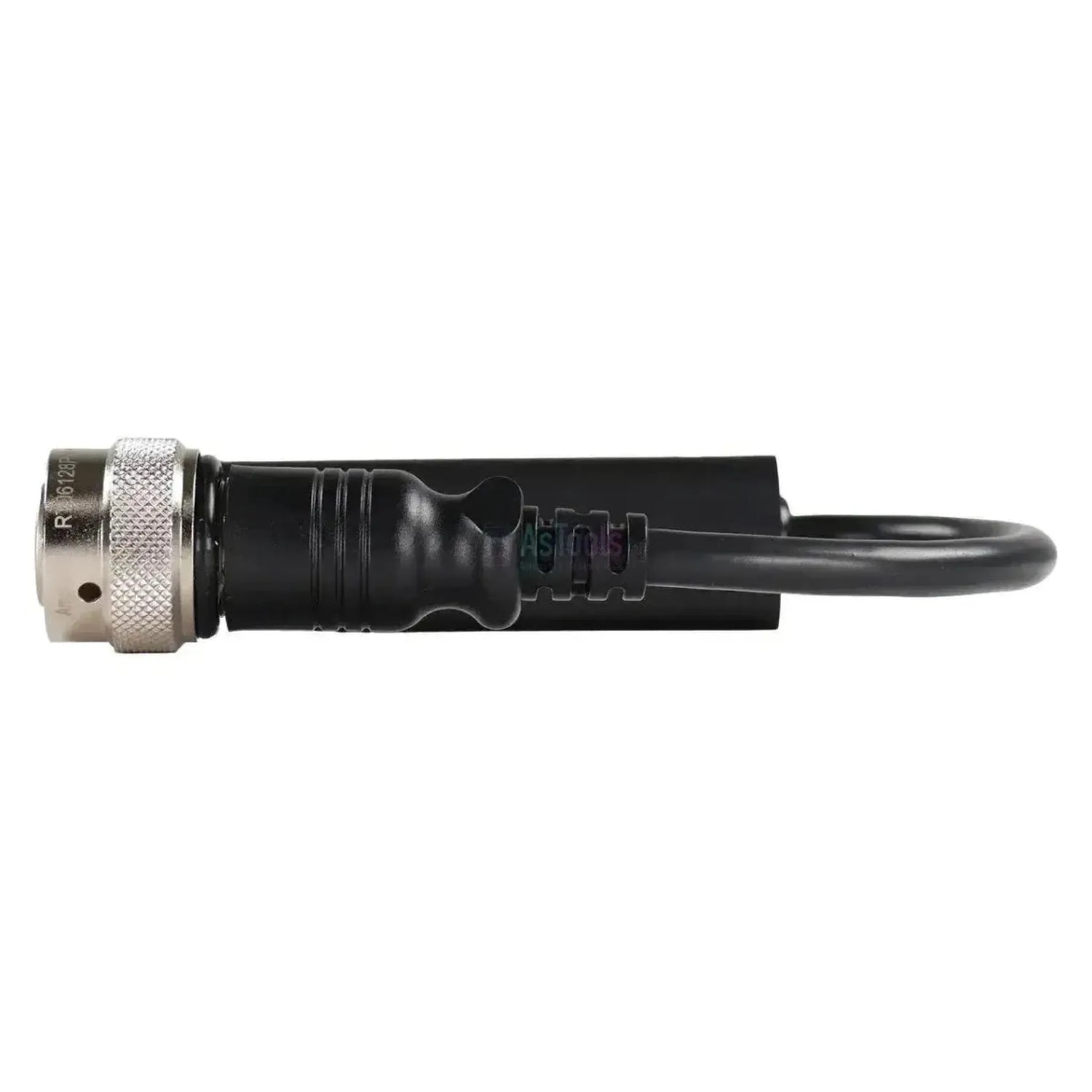

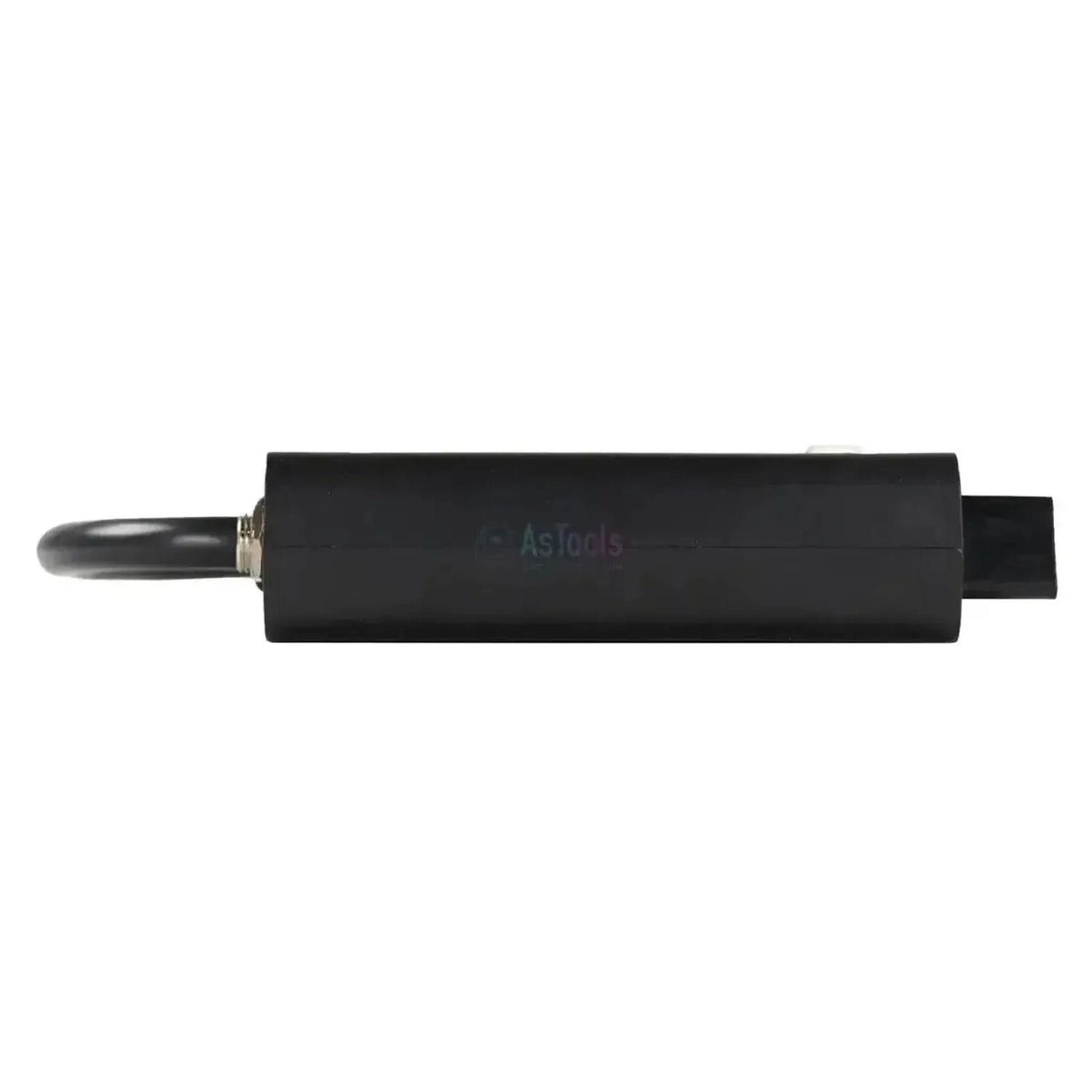

The Jaltest JDC540A is the diagnostic cable for Bosch Rexroth BODAS control units with RS232 diagnostics; it connects the 8-pin RS232 connector to the 16-pin OBD2 port of your Jaltest diagnostic cable. This connector is part of the control unit itself and is typically located in the cab or control cabinet with the machine's electronics. The determining factor is the Bosch Rexroth control unit installed in the machine, not the machine manufacturer, which means the same cable works across work machines from different manufacturers.
With this connection, Jaltest diagnostic equipment reads the BODAS RC Series (RS232), the programmable machine controller that manages hydrostatic drive and work functions in work machines. This version covers fault codes plus live data readings, ECU information, parameters and real-time data monitoring, but does not include component control, calibration or reset functions. The cable falls under Jaltest OHW (Off-Highway machines) and Jaltest MHE (Material Handling Equipment).
KEY BENEFITS
IMPORTANT NOTES
Applications and features
Using this connection, you can access the programmable BODAS machine control unit from Bosch Rexroth with Jaltest software.
Control units you can access
- BODAS RC Series (RS232), Programmable control unit: The version this cable is designed for, featuring the broadest function set in the BODAS family.
What you can do
- Read and clear fault codes: Access the fault memory of the BODAS control unit and clear it after repairs.
- View measured values: The current readings from sensors connected to the machine control unit.
- Configure parameters: Read and adjust the BODAS control settings.
- Live data monitoring: Track system values during operation in numerical and graphical format.
Compatible vehicles and applications
The control unit is what matters, not the machine brand. This cable is designed for the Bosch Rexroth BODAS control unit with RS232 diagnostic port, making it widely compatible.
Application:
- Work and construction machinery equipped with a Bosch Rexroth BODAS RC control unit with RS232 diagnostics
- Machine brand doesn't matter: BODAS is integrated as a control system by various machine manufacturers
- Year of manufacture doesn't matter: Work machines have no mandatory diagnostic connection requirement, so this connector remains in use
Package contents
- 1x Jaltest (JDC540A) | Bosch Rexroth 8-pin RS232 - 16-pin OBD2 Adapter Cable | Work Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC540A |
| Type | Adapter Cable |
| Application | Bosch Rexroth BODAS RC Series with RS232 diagnostic port |
| System-side Connection | 8-pin R232 |
| Interface-side Connection | 16-pin OBD2 |
| Control Units | BODAS RC Series (RS232), programmable machine control |
| Segment | Work Vehicles |
| Jaltest Module | Jaltest OHW (Off-Highway machines) and Jaltest MHE (Material Handling Equipment) |
| Required to Use | Jaltest Link with valid software license |
