Jaltest | SKU:
JDC526A
Jaltest (JDC526A) | FPT/Deutz 19-pins OBD - 16-pins OBD2 Adapter Cable | Internal combustion engine
Regular price
€139,95 incl.
€115,66 excl.
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

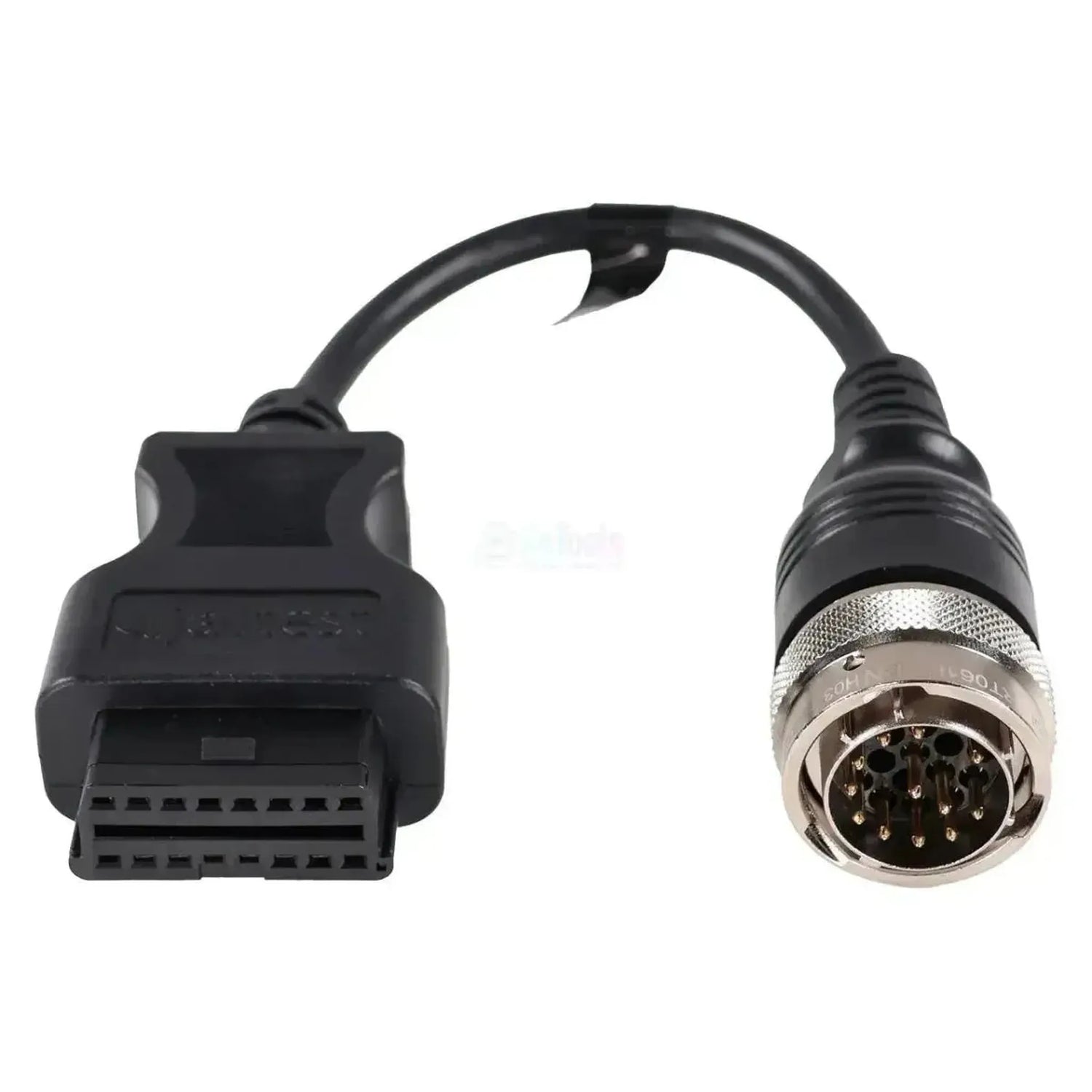

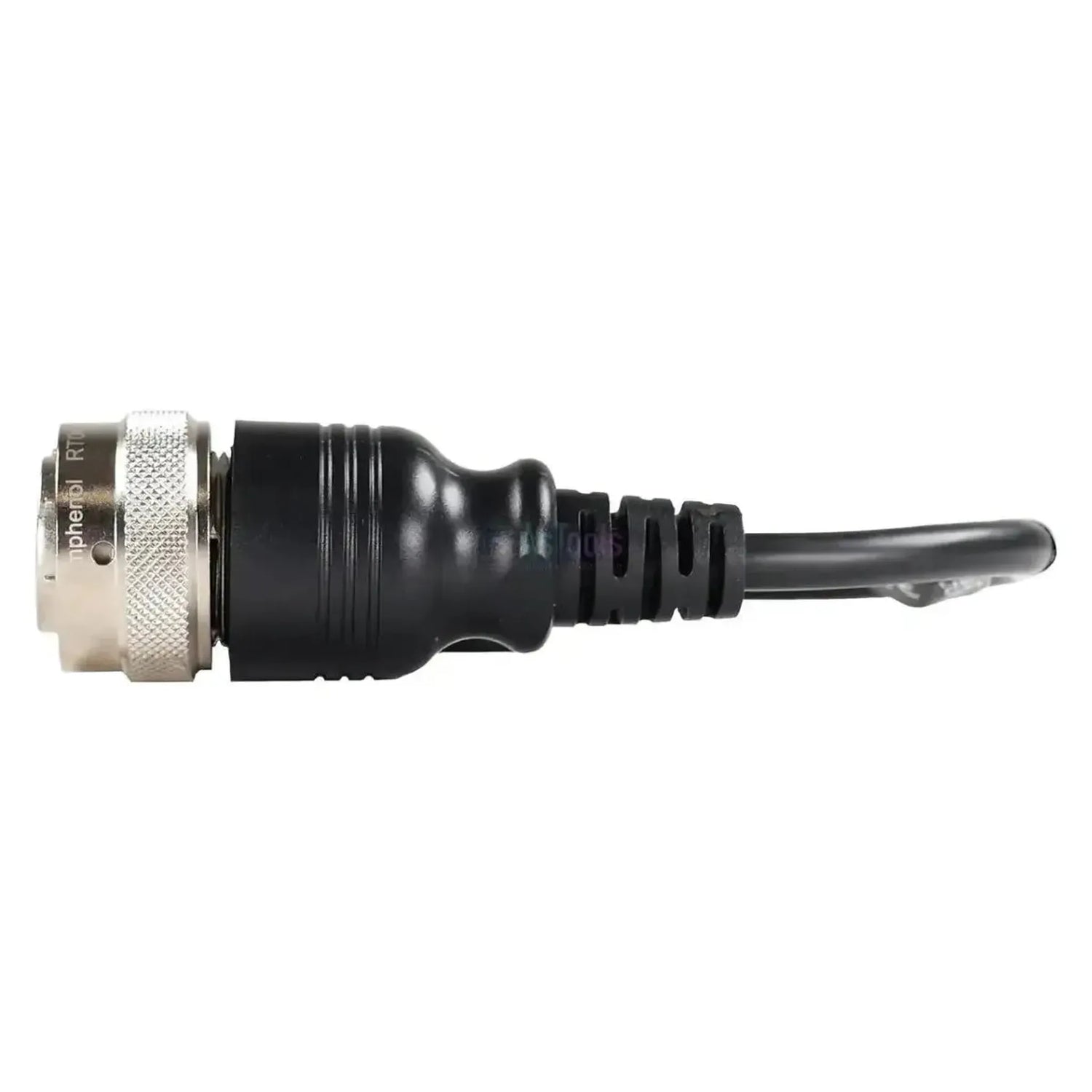

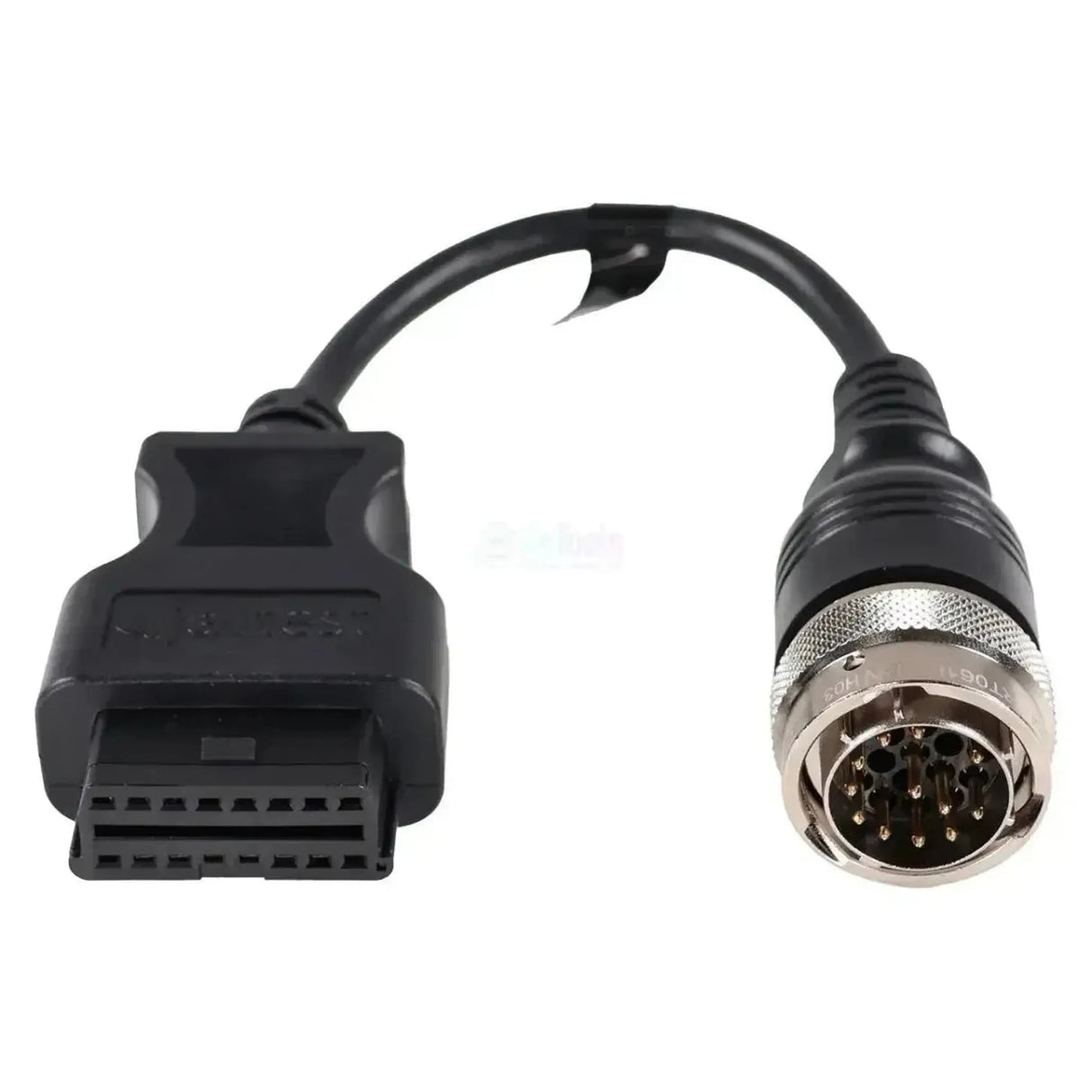

The Jaltest JDC526A adapts the 19-pin diagnostic connector from FPT engines to the standard 16-pin OBD2 connection of your Jaltest diagnostic cable. On the engine side sits a round Amphenol connector with metal housing and ribbed coupling ring; the black interior features nineteen closely spaced pin positions, of which some are populated. This connector belongs to the engine and is located in the engine bay—which version you encounter depends on the engine generation rather than the vehicle's year of manufacture. The cable measures 28 to 30 cm.
Through this interface, diagnostic equipment accesses the engine network and thus the engine control unit and exhaust aftertreatment system: from EDC 7 C1 and EDC 7 UC31 via EDC 16 C39 and EDC 17 CV41 + Denox 2.2 to EDC MD1 CE101, plus the AdBlue dosing system Denoxtronic 2.1. The feature set varies by generation: the latest units include service intervals and additional actions in coverage, whilst the oldest lack these. Jaltest classifies these engines under IVECO-FPT; the cable falls under Jaltest Multi-purpose Vehicle.
KEY BENEFITS
✔Covers the full range of FPT engine control units supported by Jaltest, from EDC 7 C1 to EDC MD1 CE101.
✔Reads the AdBlue dosing system Denoxtronic 2.1 in addition to engine data.
✔For EDC 17 CV41 + Denox 2.2 and EDC MD1 CE101, coverage also includes service intervals and additional functions.
✔Engine-specific: The same cable works on work and municipal vehicles, boom lifts, power units and terrain machinery fitted with these engines.
IMPORTANT NOTES
✕Function set varies considerably: Additional functions are available only for EDC 17 CV41 + Denox 2.2 and EDC MD1 CE101; EDC 16 C39, EDC 7 C1 and EDC 7 UC31 (K Line) also lack service interval coverage.
✕This cable is designed for FPT engines: For the 19-pin connection on Deutz engines, Jaltest supplies the JDC570A.
✕Deutz engines with a 12-pin connection are not compatible with this cable; the JDC504A is required instead.
✕The rectangular off-white 9-pin CNH connector on FPT engines in construction machinery will not fit this cable; use the JDC534A for that application.
Applications and functions
Through this connection, you can access the Jaltest software to diagnose the engine control unit and the exhaust aftertreatment system of the FPT engine. The range of functions expands with the generation of the control module. The units listed below are covered under IVECO-FPT coverage.
Control units you can access
- EDC 7 C1 and EDC 7 UC31 (CAN and K Line): The first common rail generations. With the CAN version, service intervals are also included in the coverage; with the K Line version, they are not.
- EDC 16 C39, engine control: The intermediate generation.
- EDC 17 CV41 + Denox 2.2: The control unit with integrated aftertreatment, also available in a EURO 6D version.
- EDC MD1 CE101, engine control: The current generation, with the most comprehensive function set.
- Denoxtronic 2.1, exhaust aftertreatment: The AdBlue dosing system, which Jaltest reads as a separate system.
What you can do
- Read and clear fault codes: Access the fault memory of the control unit with fault descriptions, and clear it after repair.
- View live data: Monitor current sensor values from the control unit, with the ability to set alarm thresholds for out-of-range readings.
- Maintenance: Consult engine service intervals and record associated work in a report. Available on, among others, EDC 7 UC31 (CAN), EDC 17 CV41 + Denox 2.2 and EDC MD1 CE101.
- Additional functions: The extra procedures that Jaltest offers for each control unit, such as reset and calibration functions. Only available on EDC 17 CV41 + Denox 2.2 and EDC MD1 CE101.
Compatible vehicles and applications
The connector type determines compatibility, not the machine. FPT engines are installed as standalone powerplants, so the engine series determines the cable choice. Jaltest covers the series listed below under IVECO-FPT in its database; the pin configuration on your engine indicates which version you have.
FPT (IVECO):
- Cursor series: Cursor 8 and 9 (F2) and Cursor 10, 11, 13 and 16 (F3)
- N series: N45 and N67 (F4)
- F-series: F1C (F1) and F34 and F36 (F5)
- Vector 8 (FV)
- Built into work and municipal vehicles, telehandlers, power units and off-road machinery
💡

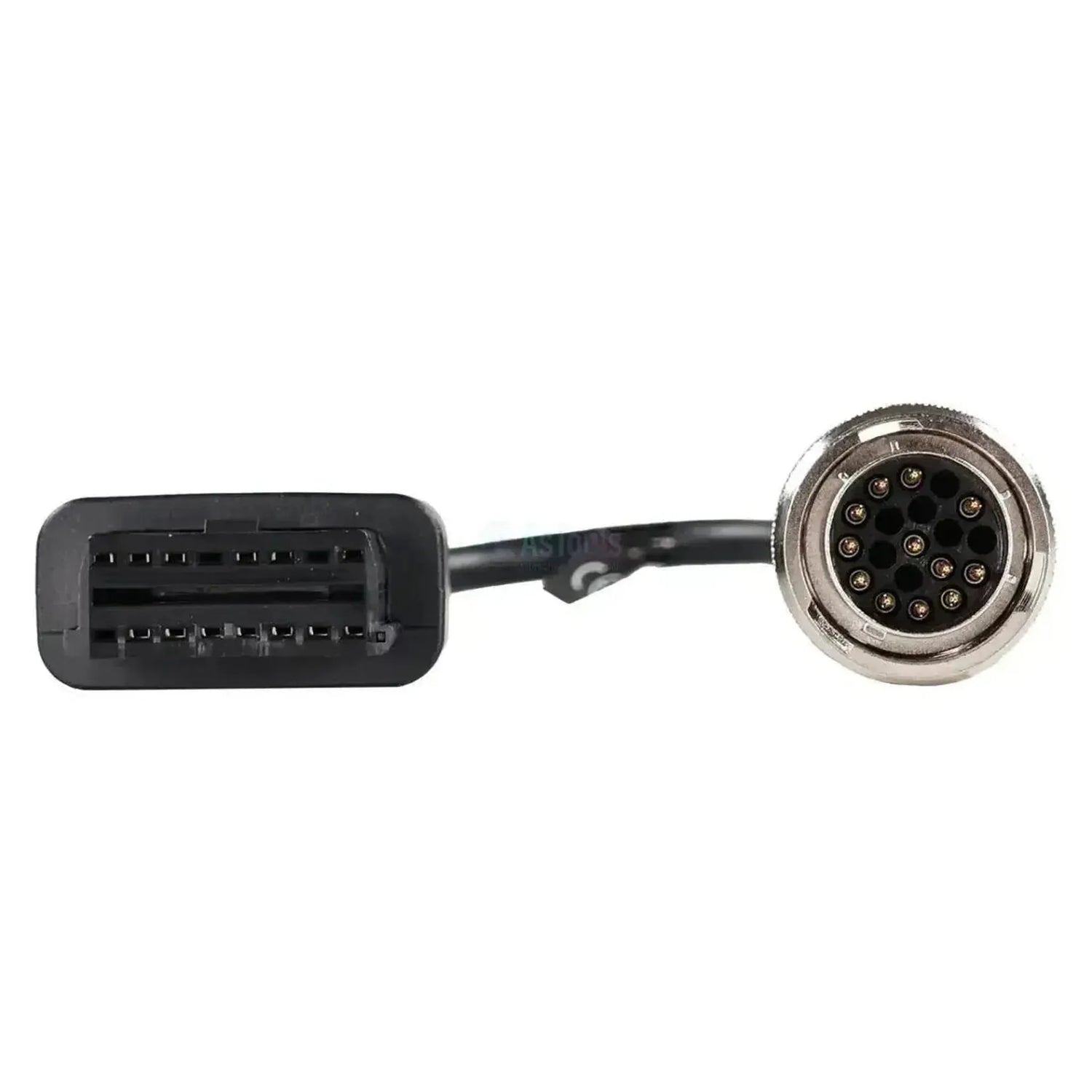

Good to know: The 19-pin version is identified by the round metal Amphenol connector with a densely packed pin field; the 12-pin Deutz connector from the same family has a visibly more spacious pin field and corresponds to the JDC504A. Count the pin positions on your engine's connection before ordering.
Package contents
- 1x Jaltest (JDC526A) | FPT/Deutz 19-pin OBD - 16-pin OBD2 Adapter Cable | Combustion Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC526A |
| Type | Adapter cable |
| Application | FPT engines with 19-pin diagnostic connection |
| Length | 28 - 30 cm |
| Interface | Jaltest Link V8.1/V9 |
| Machine-side connection | 19-pin round Amphenol connector, male |
| Interface-side connection | 16-pin OBD2 |
| Control units | EDC 7 C1, EDC 7 UC31, EDC 16 C39, EDC 17 CV41 + Denox 2.2 and EDC MD1 CE101 (engine control), Denoxtronic 2.1 (exhaust aftertreatment) |
| Segment | Combustion engine |
| Jaltest module | Jaltest Multi-purpose Vehicle |
| Part of cable set | Multi-purpose cable set (70002005) |
