Jaltest (JDC217.9) | 9-pins J1939 - 26-pins DB26 Adapter Cable | Commercial and Work Vehicle

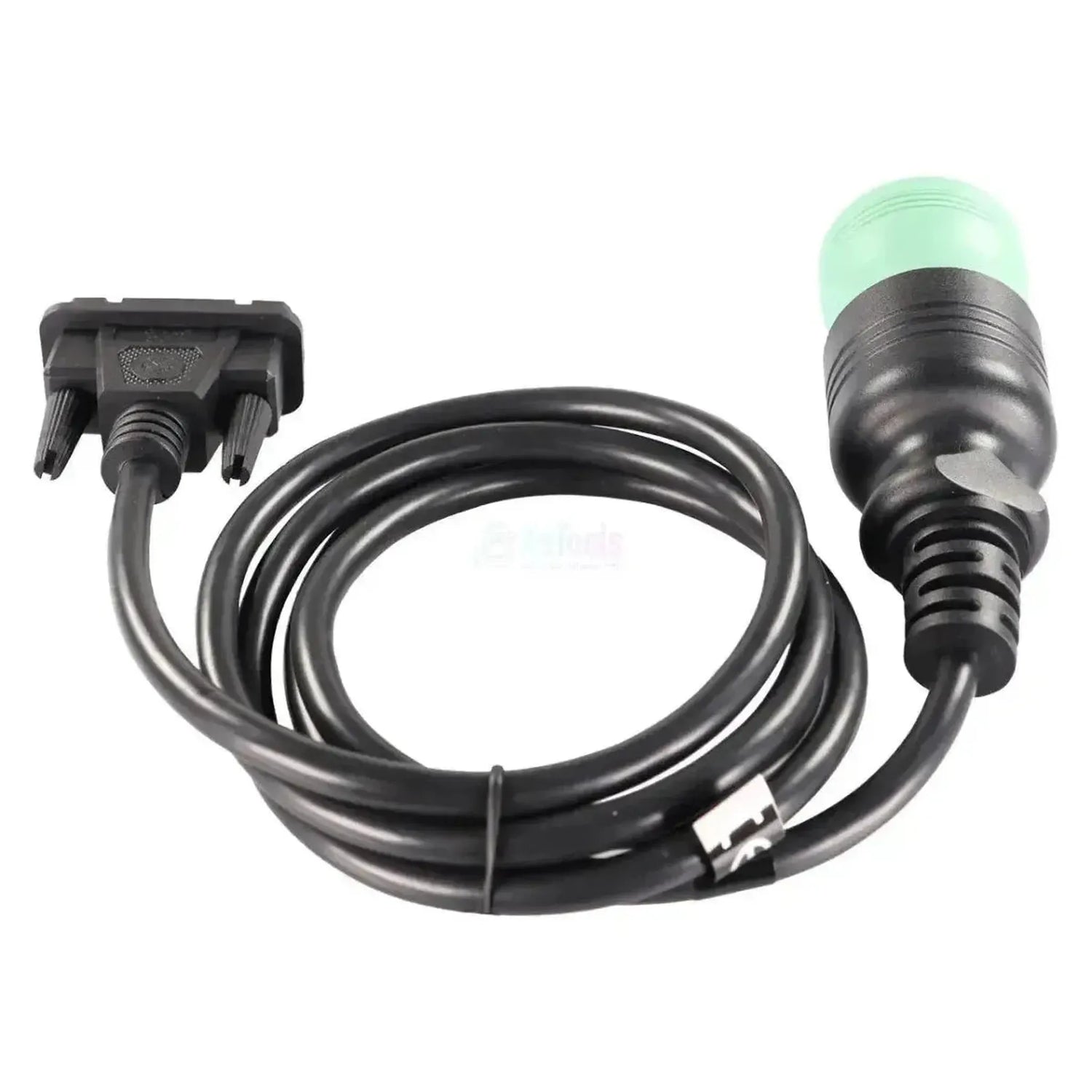

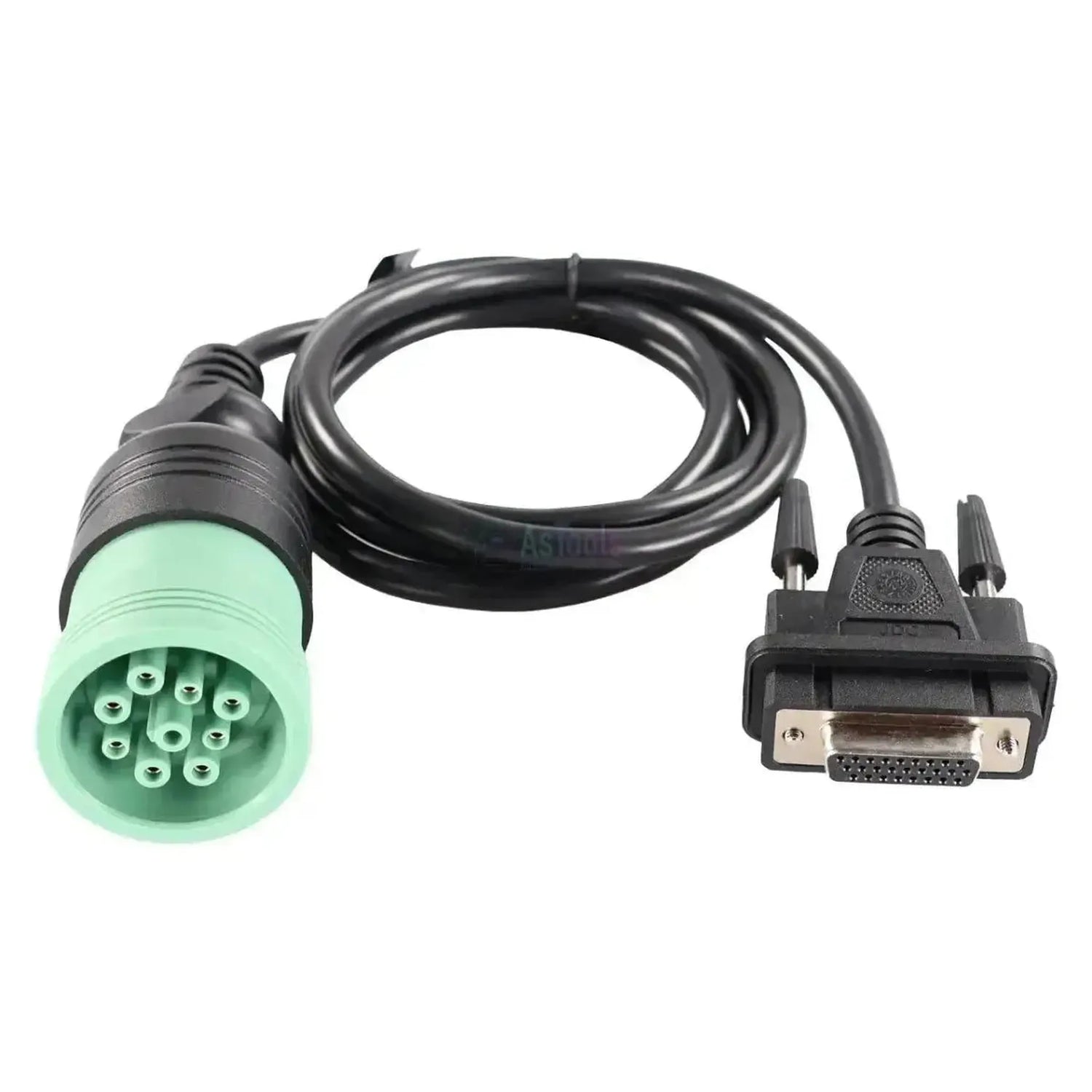

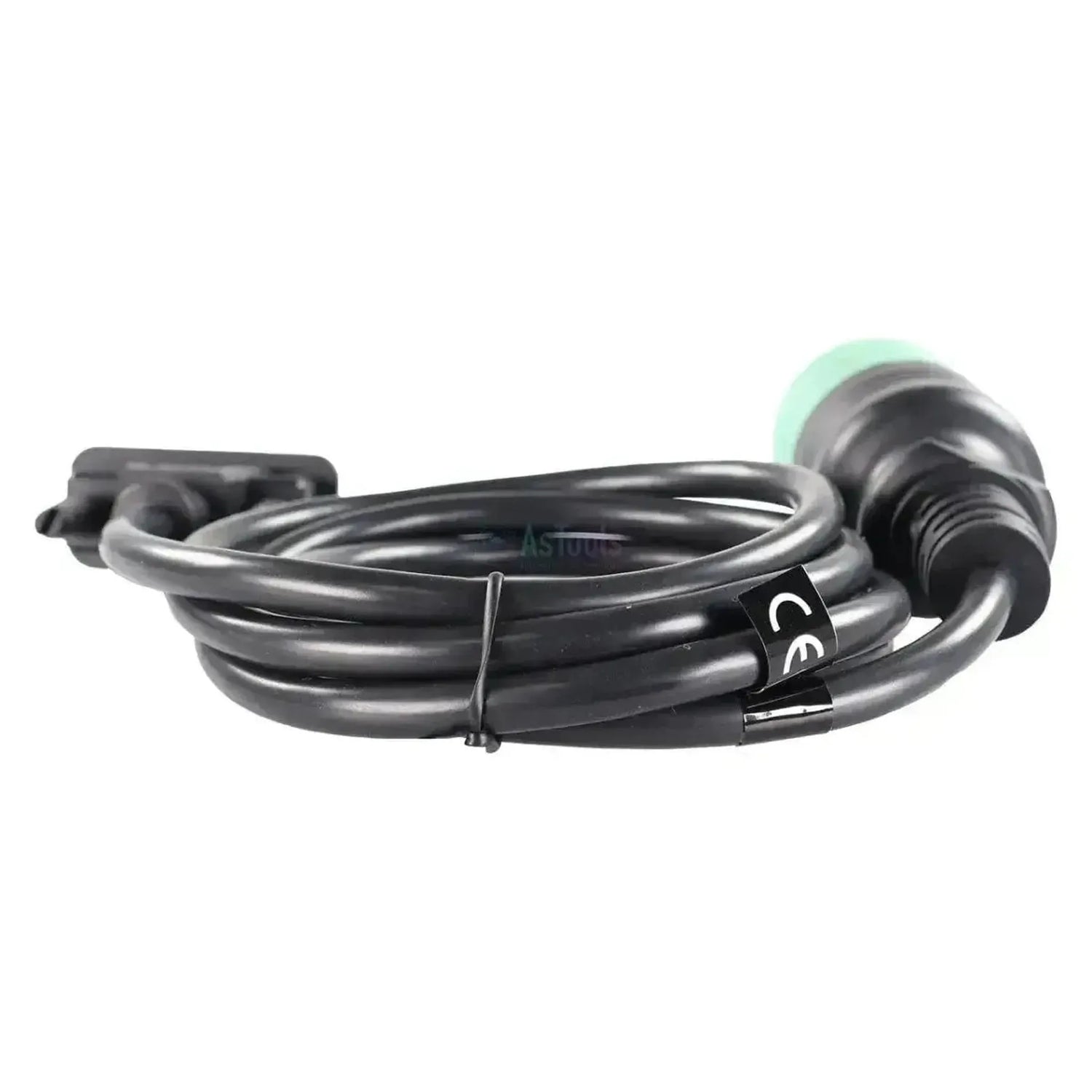

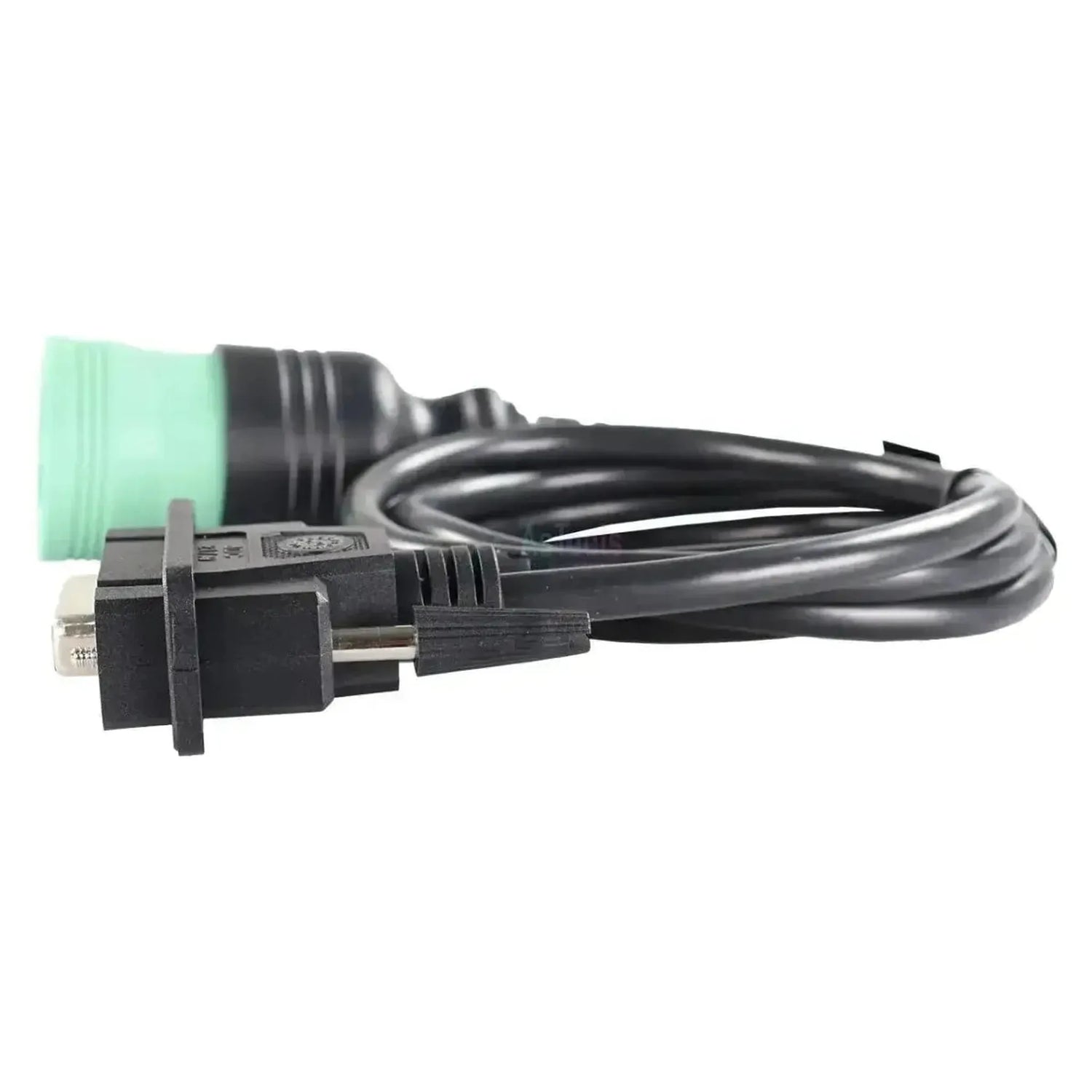

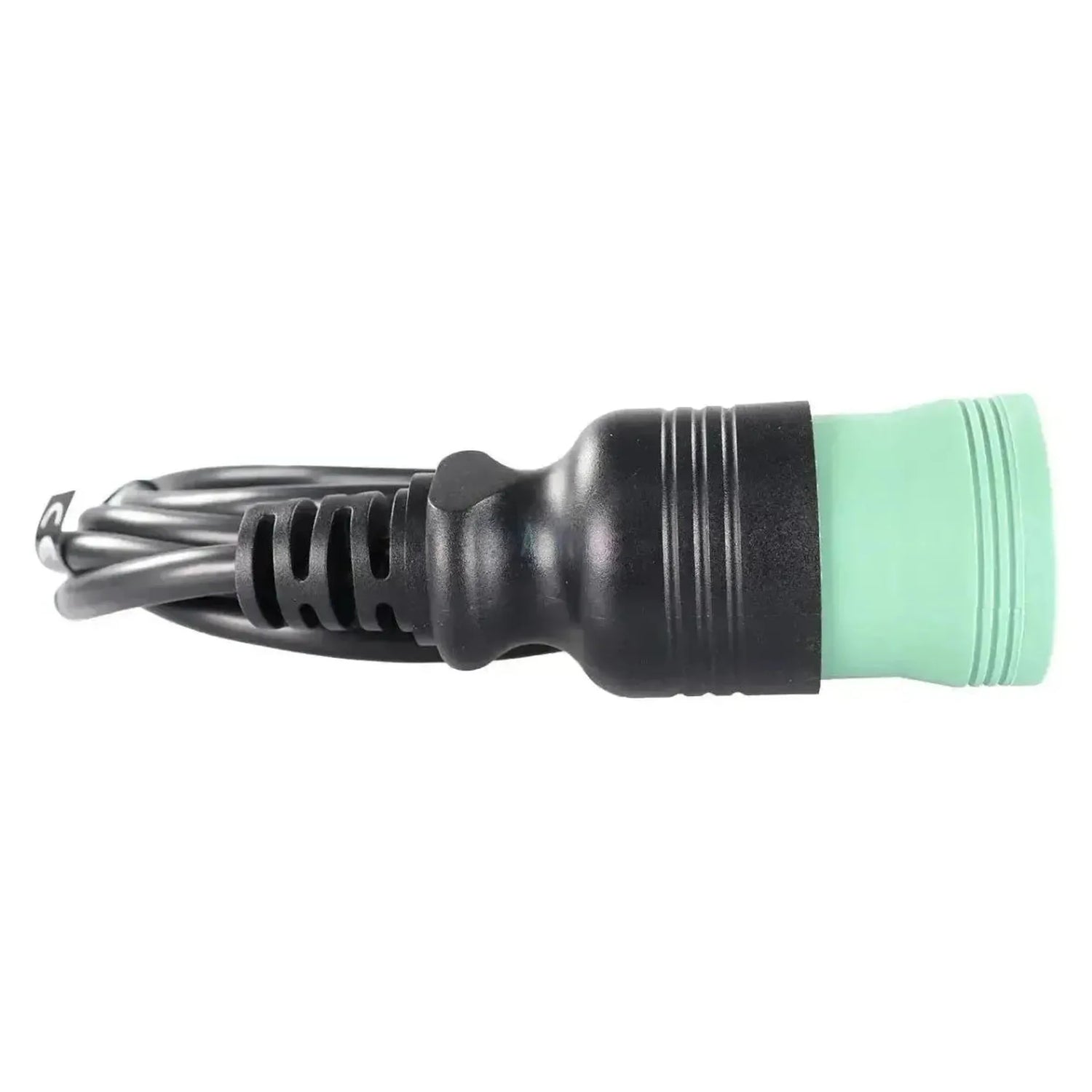

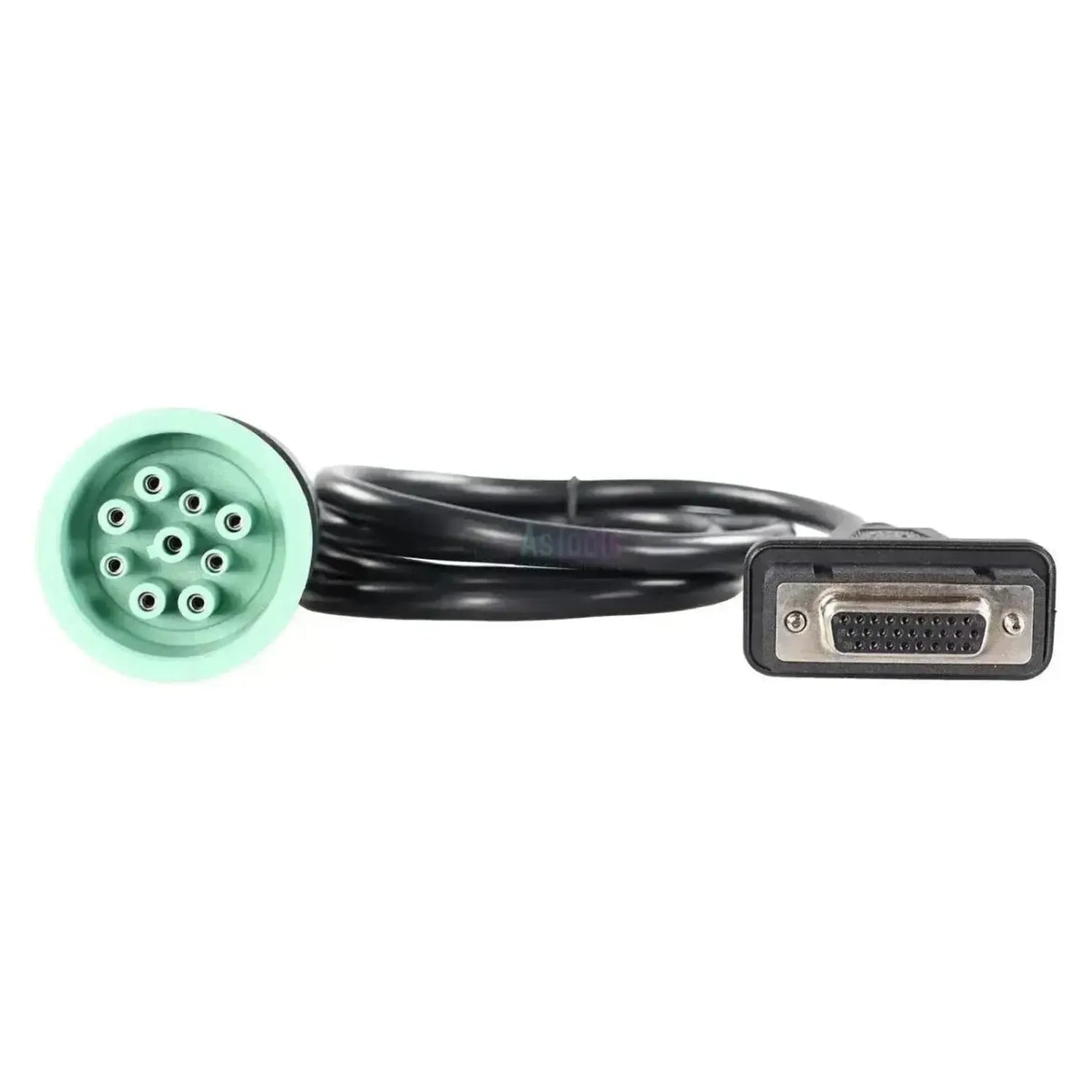

The Jaltest (JDC217.9) is an Adapter Cable equipped with a 9-pin Deutsch J1939 connector on the vehicle side and a 26-pin DB26 connector on the interface side. This cable is designed to establish a communication link between a commercial or work vehicle and the Jaltest V9 diagnostic interface. The construction is aimed at use in demanding workshop environments.

This cable supports the SAE J1939 protocol, which is standard in heavy commercial vehicles. Using this cable enables technicians to perform diagnostic functions such as reading fault codes, viewing live data, and conducting system tests on the vehicle's electronic control units (ECUs). The cable acts as a direct connection between the vehicle's diagnostic port and the diagnostic equipment.

Application and functionality:

This cable is used to establish a connection between the vehicle's diagnostic port and the Jaltest diagnostic equipment. The functionalities are specifically focused on the J1939 communication protocol.

• Diagnostic connection: Creates a direct physical connection between the vehicle's 9-pin J1939 port and the 26-pin port of the Jaltest V9 Link interface.
• Protocol support: Facilitates communication via the SAE J1939 protocol, allowing access to the vehicle systems.
• Vehicle communication: Enables the diagnostic equipment to exchange data with the vehicle's ECUs to perform diagnostic tasks.

Compatible vehicles and Application:

This Adapter Cable is designed for a wide range of heavy commercial vehicles, agricultural machines, and stationary engines equipped with a standardized 9-pin Deutsch (J1939) diagnostic port. This includes vehicles from various manufacturers.

Caterpillar:

• Various models of construction machines and engines with a J1939 diagnostic port.

Cummins:

• Various engines used in different vehicles and machines, equipped with a J1939 diagnostic port.

DAF:

• Various models of commercial vehicles (such as XF, CF) with a J1939 diagnostic port.

Iveco:

• Various models of commercial vehicles (such as Stralis, Trakker) with a J1939 diagnostic port.

MAN:

• Various models of commercial vehicles (such as TGX, TGS) with a J1939 diagnostic port.

Mercedes-Benz:

• Various models of commercial vehicles (such as Actros, Arocs) with a J1939 diagnostic port.

Renault:

• Various models of commercial vehicles (such as T-series, K-series) with a J1939 diagnostic port.

Scania:

• Various models of commercial vehicles (such as R-series, S-series) with a J1939 diagnostic port.

Volvo:

• Various models of commercial vehicles (such as FH, FM) with a J1939 diagnostic port.

Important: Before purchasing the product, always check your vehicle's connection. This may vary by model and year.

Package Contents:

• 1x Jaltest (JDC217.9) | 9-pins J1939 - 26-pins DB26 Adapter Cable | Commercial and Work Vehicle
