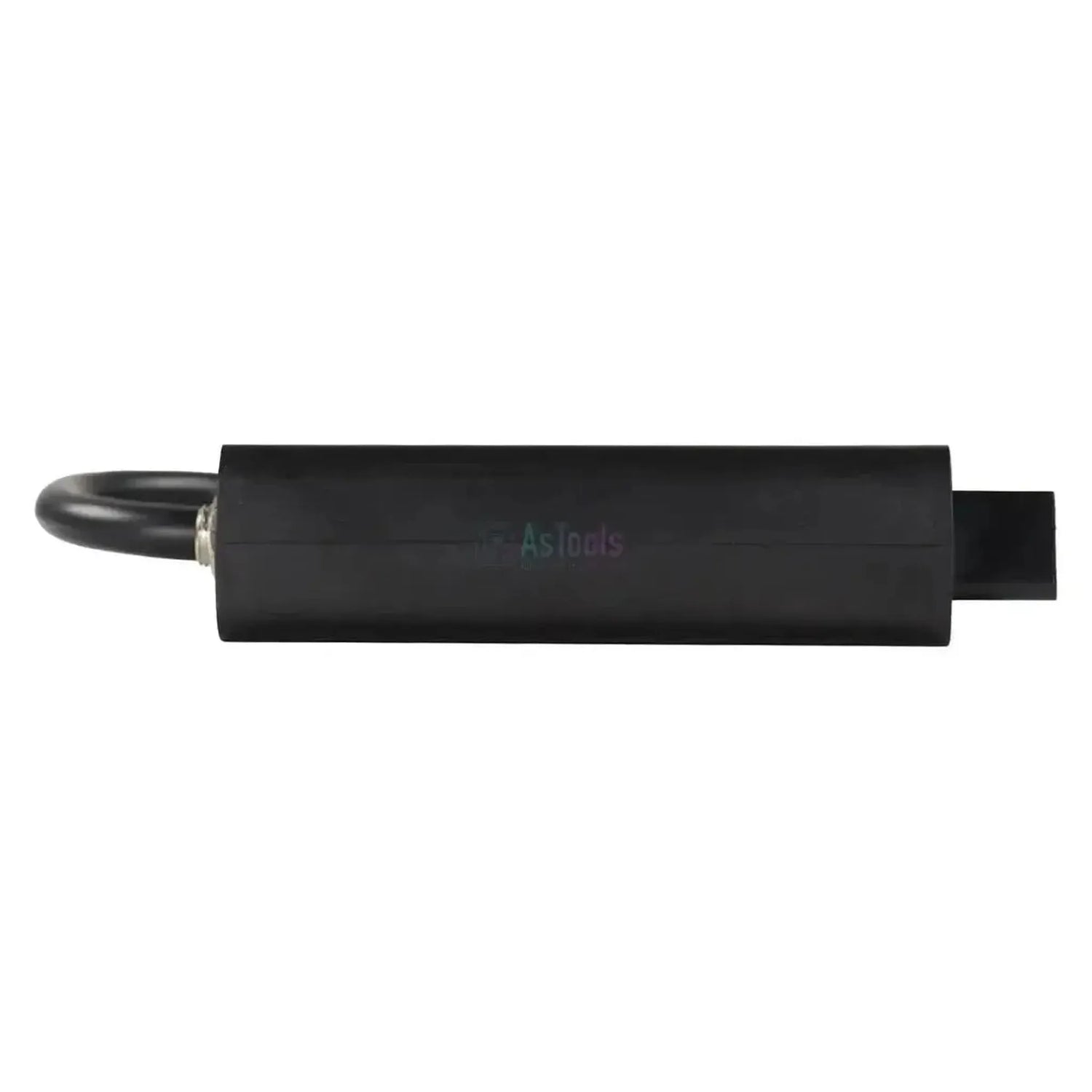

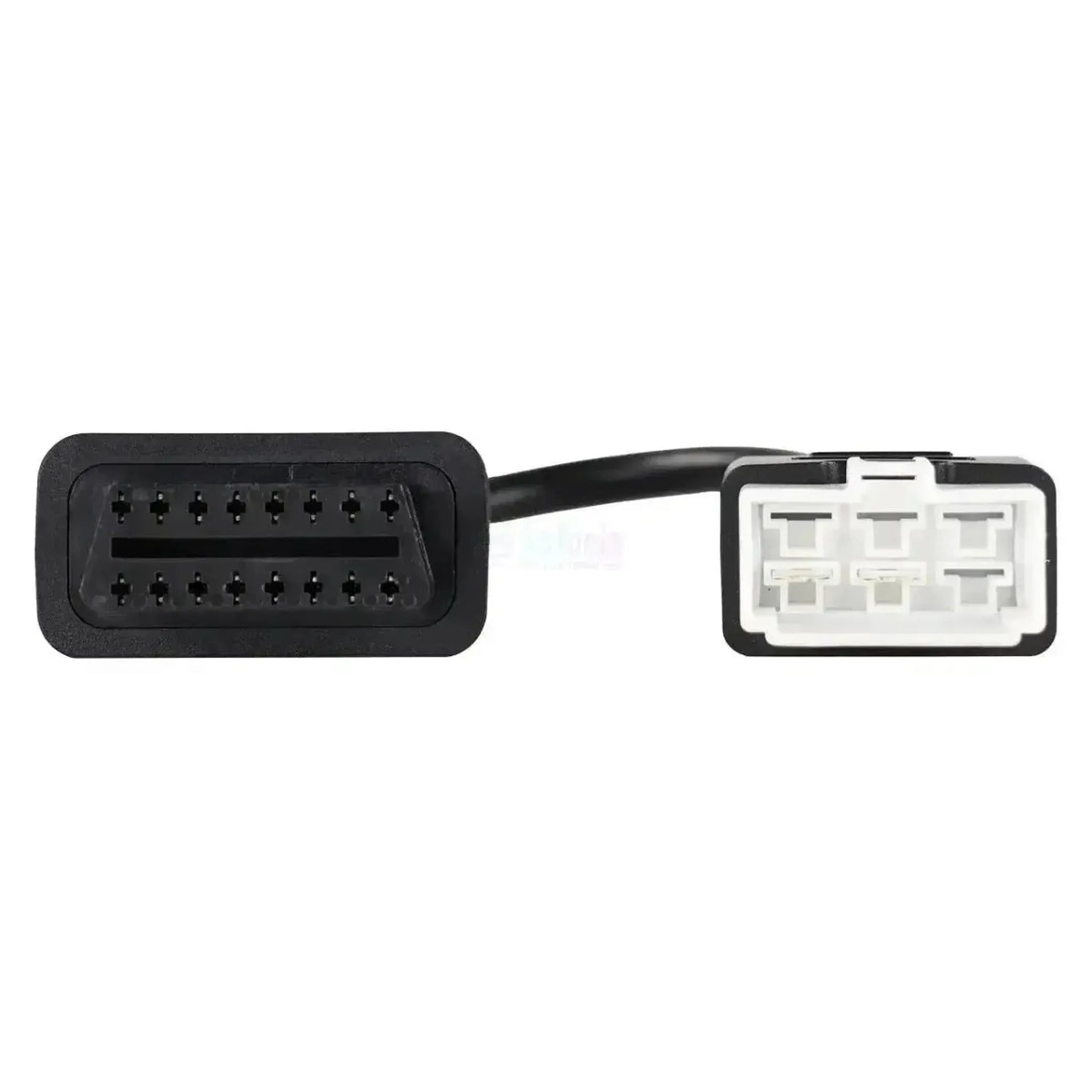

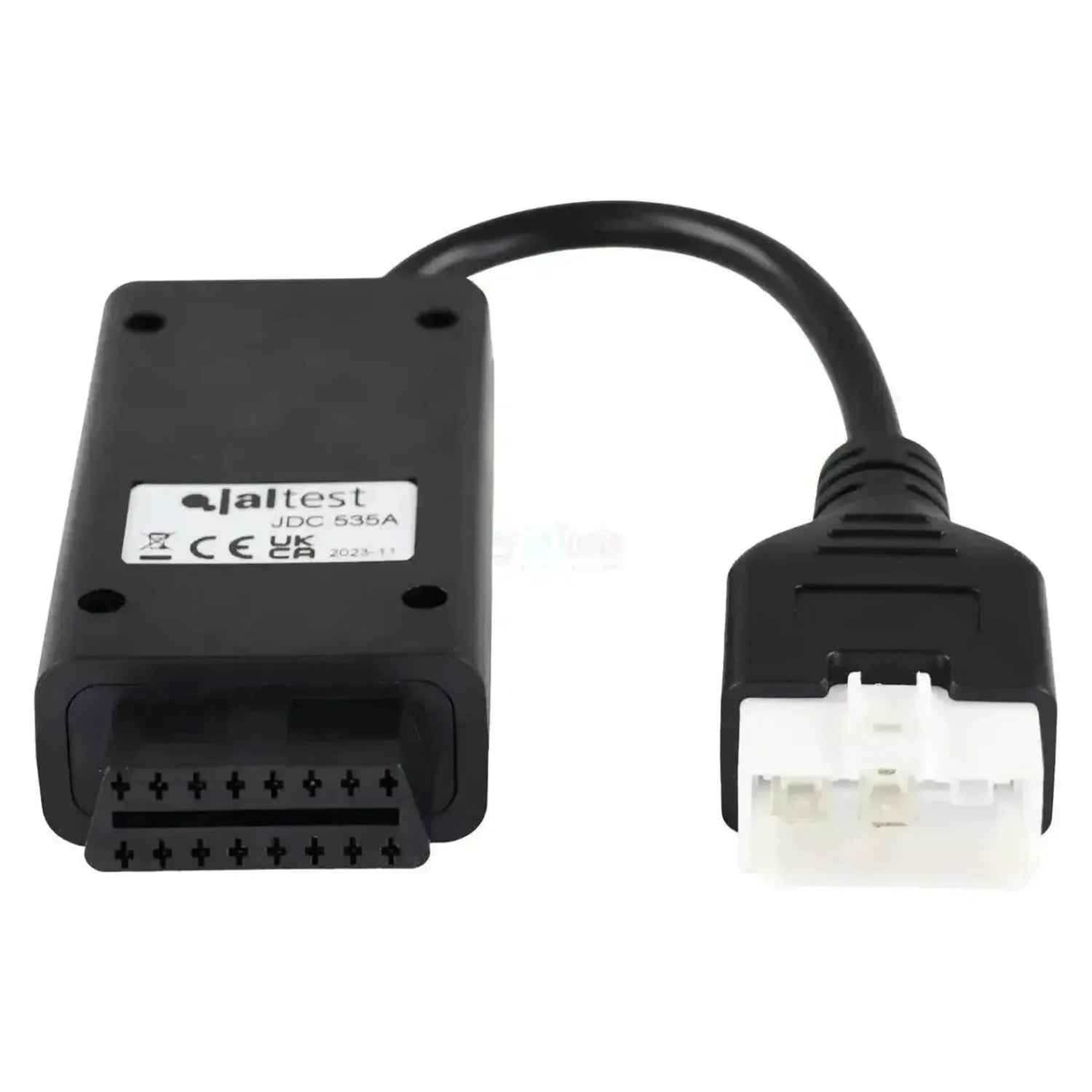

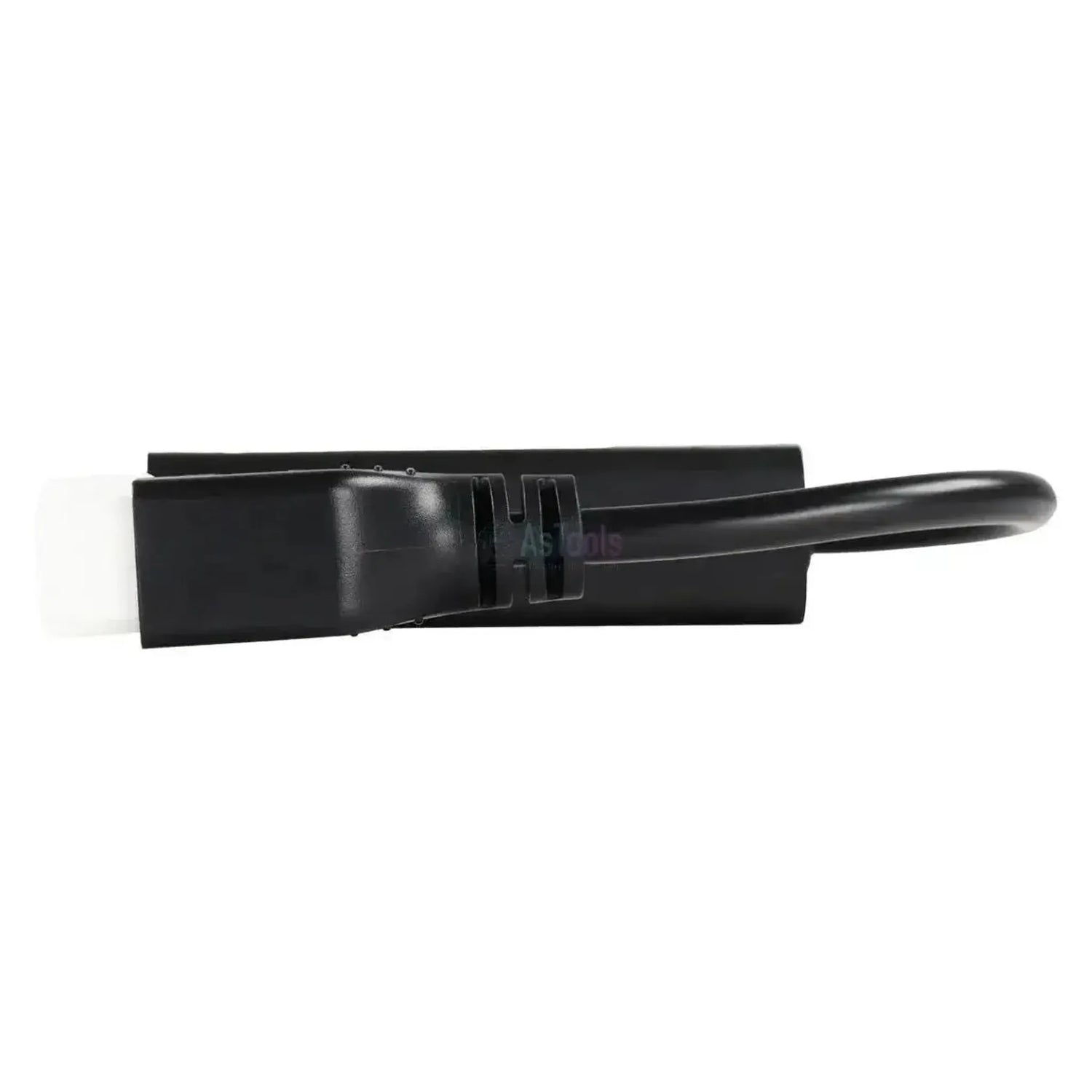

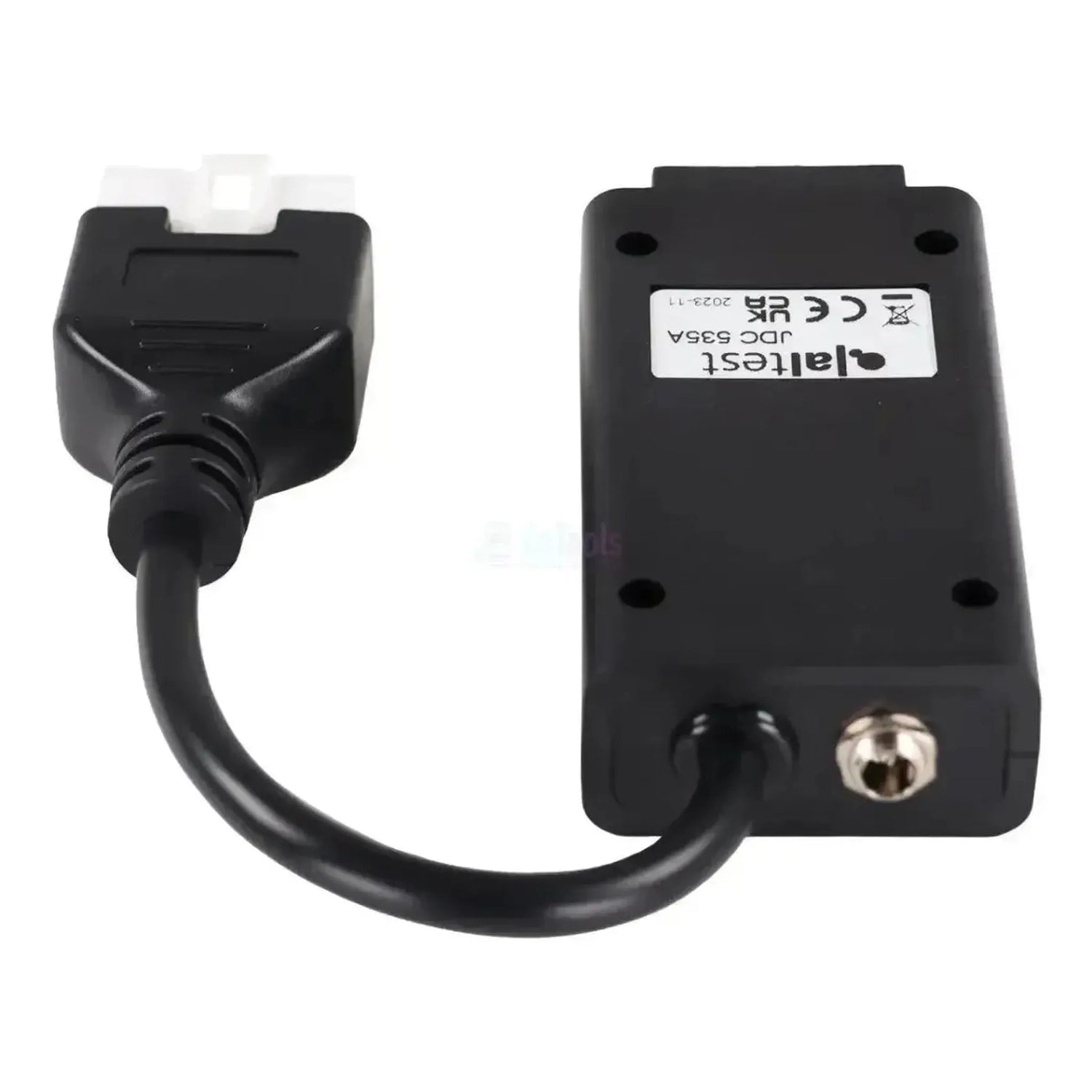

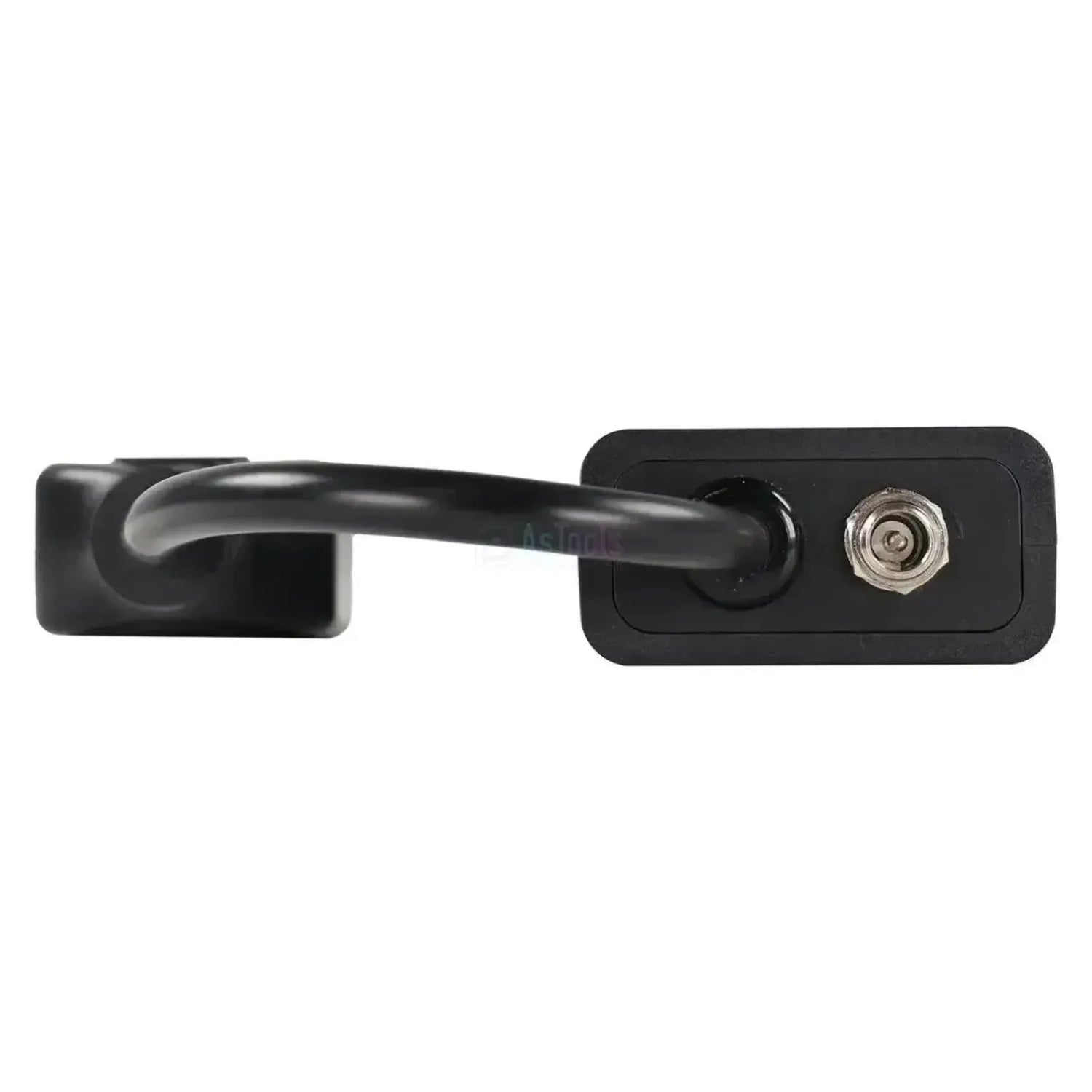

The Jaltest JDC535A is an Adapter Cable that establishes a connection between the 6-pin Hitachi diagnostic port and a standard 16-pin OBD2 interface of a diagnostic device. This cable is specifically designed for performing diagnostic tasks on off-road and construction machines and selected marine engines of the Hitachi brand. The cable ensures proper communication with the vehicle's electronic control units (ECUs).
With this adapter, technicians can perform full diagnostic functions, such as reading and clearing fault codes, viewing live data, performing actuator tests, and configuring system information. The cable is designed for use in combination with the Jaltest diagnostic equipment and is a component for maintaining compatible Hitachi systems.
Application and functionality:
The JDC535A Adapter Cable is developed to open a communication channel with the control systems of Hitachi machines.
- Diagnosis and reading: Enables reading and clearing fault codes (DTCs) from modules such as the engine, hydraulic system, and transmission.
- System integration: Translates the communication protocols of the vehicle-specific 6-pin port to the standard 16-pin OBD2 connector of the Jaltest Link interface.
- Data analysis: Supports monitoring of real-time sensor data and system performance, helping to identify irregularities.
Compatible vehicles and applications:
This cable is primarily intended for various heavy machinery and engines equipped with a 6-pin Hitachi diagnostic port.
Hitachi:
- Excavators (including EX and ZX series)
- Articulated dump trucks (including AH series)
- Marine engines (Inboard)
- Wheel loaders (including ZW series)
John Deere:
- Excavators (certain models using Hitachi technology)
Important: Before purchasing the product, always check your vehicle’s connector. This may vary by model and year of manufacture.
Package Contents:
- 1x Jaltest (JDC535A) | Hitachi 6-pin OBD – 16-pin OBD2 Adapter Cable | Off-road and Construction Machine
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Jaltest |
| Product model | JDC535A |
| Vehicle side connector | Hitachi 6-pin |
| Adapter side connector | 16-pin OBD2 (female) |
