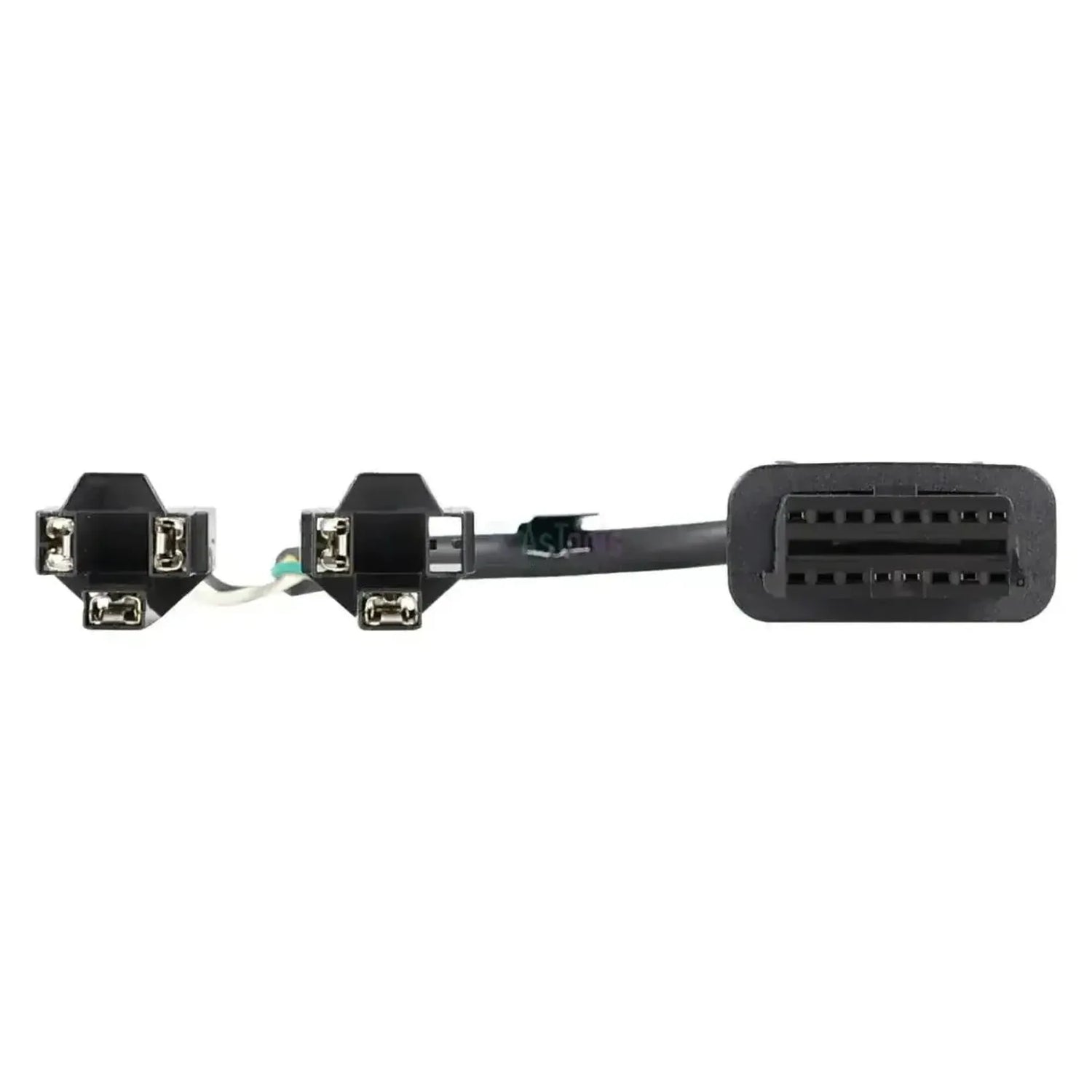

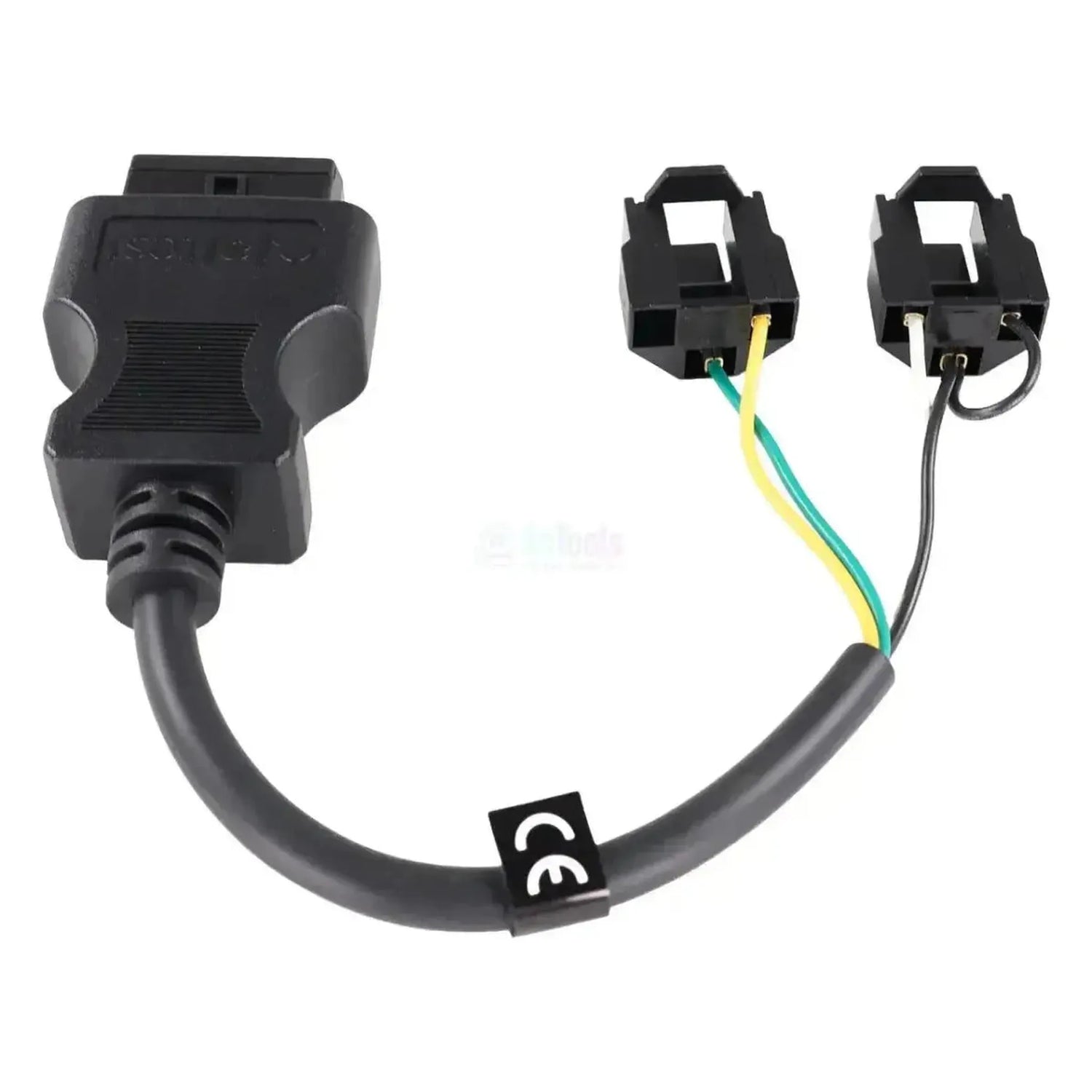

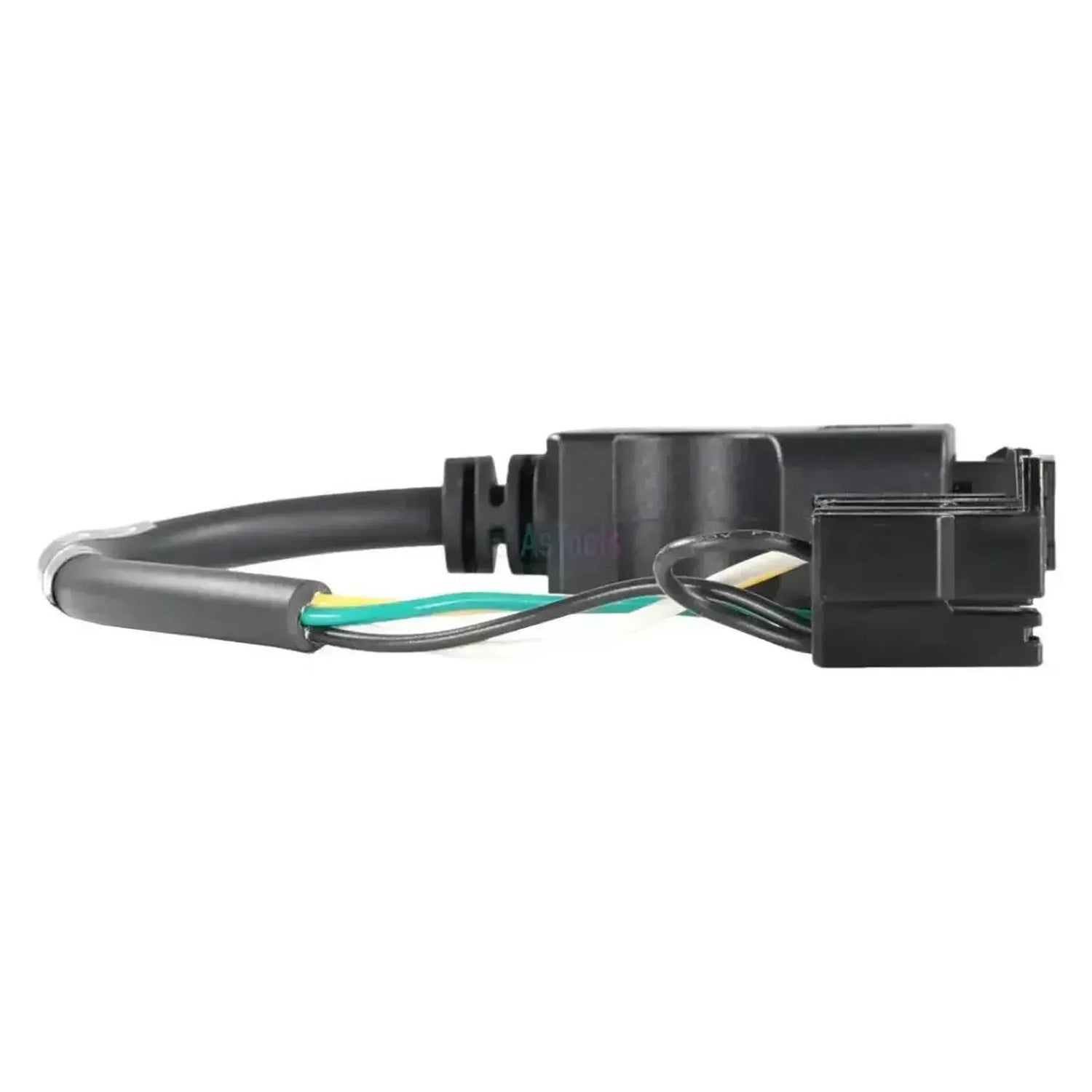

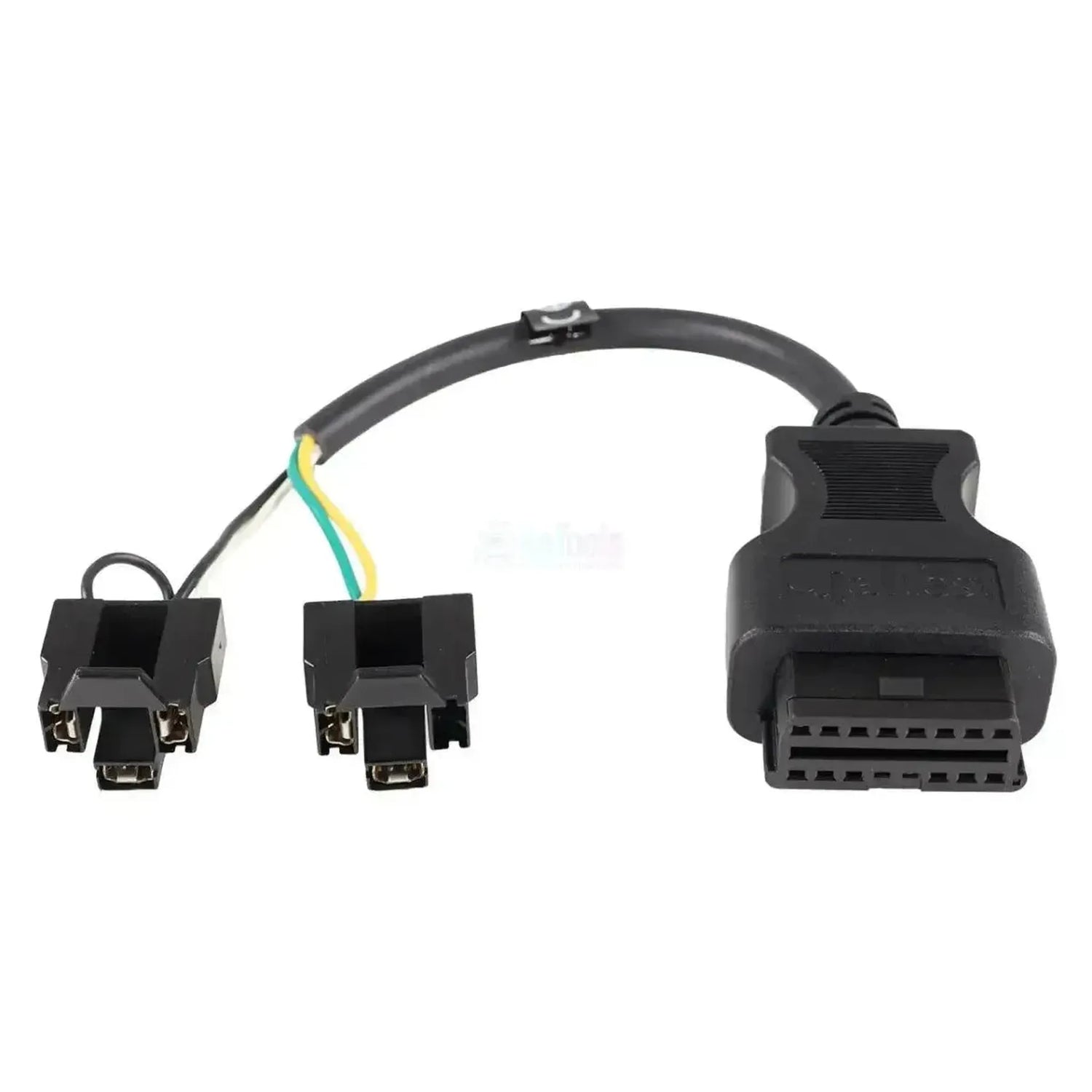

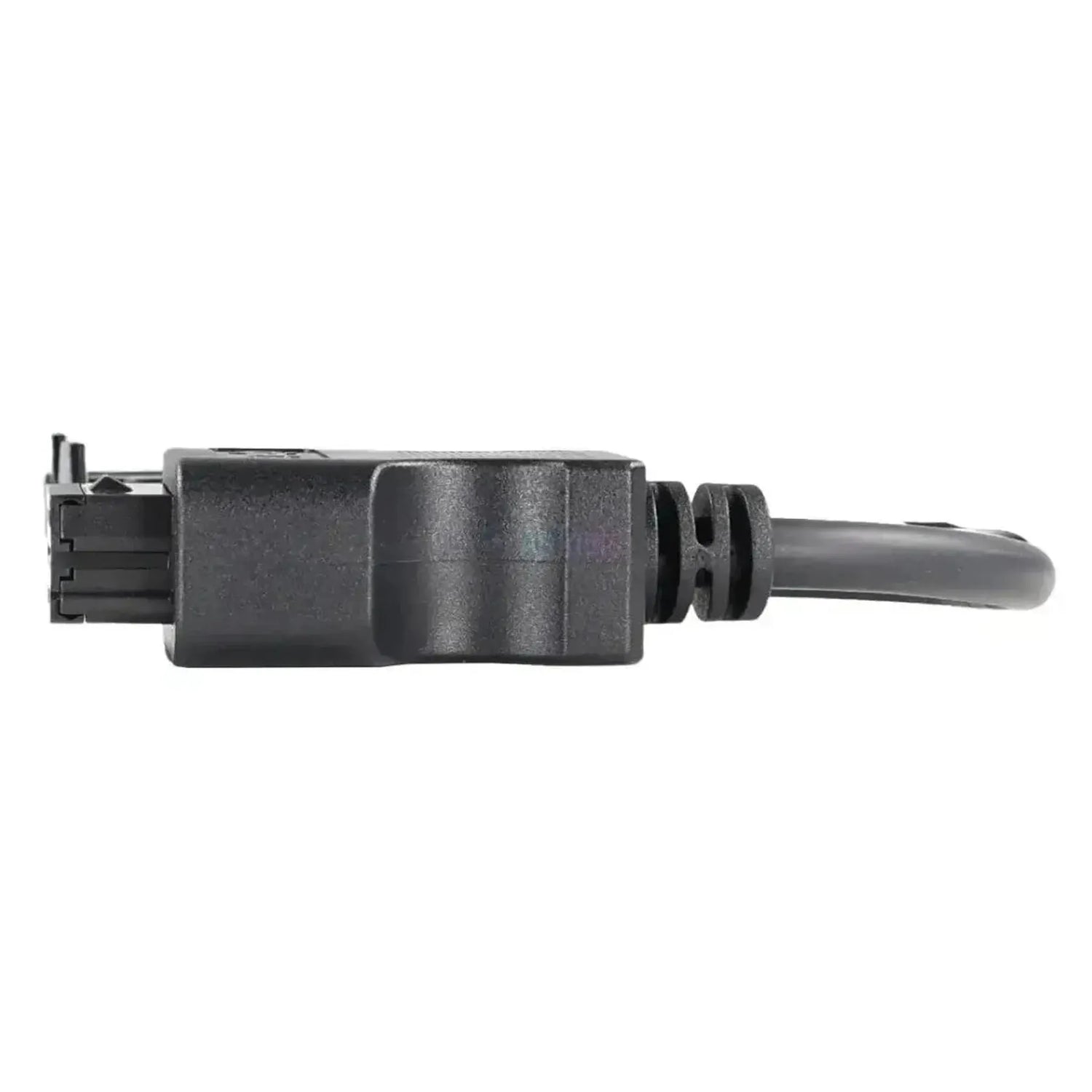

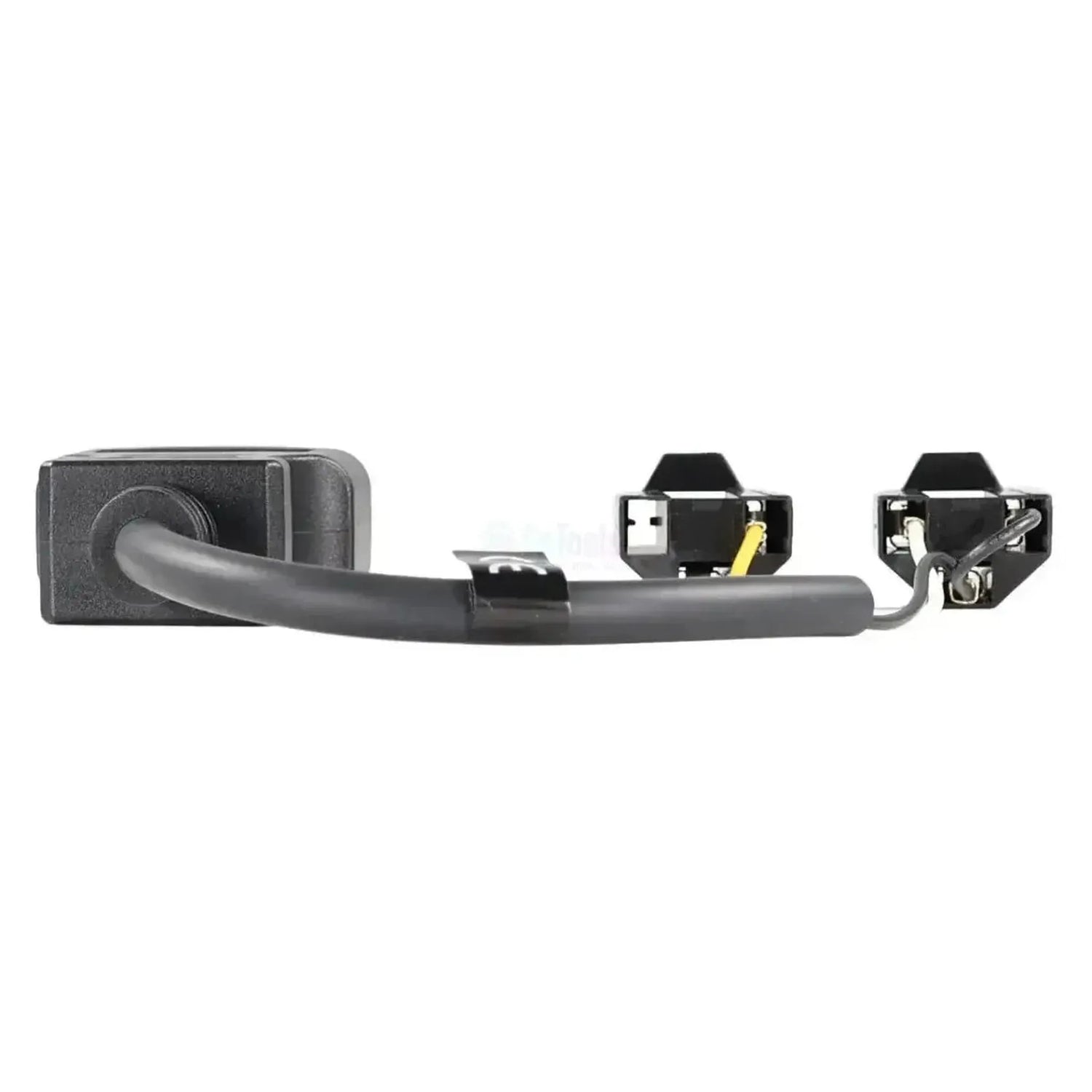

The Jaltest JDC101A connects the 3+3-pin diagnostic connector of the Haldex Modal trailer braking system to the 16-pin OBD2 port of your Jaltest diagnostic cable. Behind the OBD2 connector, a single black cable runs to two identical black connector housings, each with three cavities. One housing contains three brass-coloured flat pin terminals, the other two, with one cavity empty; the two housings are interconnected by a white and a green wire. Both housings carry terminals and therefore do not form a mating pair: each connects to its own pin block on the Modal unit. The cable is 28 to 30 cm in length.
Beyond that connection, Jaltest software accesses the ABS MODAL, the anti-lock braking system for trailers and semi-trailers. From that unit you can read fault codes, live data, ECU information and maintenance data; actuating components and adjusting parameters are not supported for this system. Because the Haldex unit is chassis-mounted and not determined by the trailer manufacturer, the same cable fits various trailer makes. The cable is compatible with Jaltest Link V8.1 and V9 and falls under the Jaltest CV module.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Via this connection you can access the Jaltest software the remote control system of the trailer, in other words the anti-lock braking system, and not the tractor unit itself. Which Haldex module you encounter determines the system generation on the chassis, not the trailer make. The control unit below is sourced from the Haldex coverage of Jaltest, with the functions available there for this system.
Control units you can access
- ABS MODAL, anti-lock braking system for trailers: The brake control system this cable is designed for, with fault codes, measured values, ECU data and maintenance information.
What you can do
- Read fault codes: Query the fault memory of the control unit, with descriptions of stored faults.
- View measured values: The current values from connected sensors, with an alert when a value falls outside the specified range.
- Consult maintenance data: View the system's service intervals and compile a service report.
Compatible vehicles and applications
The connector type is what matters, not the model. This cable fits any trailer or semi-trailer where the Haldex Modal unit with two 3-pin connectors is mounted on the chassis. For trailers, no standardised diagnostic connector has ever been mandated, which means this configuration remains in use on more recent semi-trailers as well. Trailers with a single round 4-pin Haldex connector belong to JDC102A or JDC108A.
Haldex (scope):
- ABS MODAL: The anti-lock braking system for semi-trailers and trailers this cable is designed for.
- Chassis make: Not a determining factor; the cable follows the Haldex unit on the chassis.
- Year of manufacture: Not applicable; trailers have no mandatory diagnostic connection requirement.
Package contents
- 1x Jaltest (JDC101A) | Haldex Modal (ABS) 3+3-pins OBD – 16-pins OBD2 Adapter Cable | Trailer
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC101A |
| Type | Adapter cable |
| Application | Haldex Modal trailer braking system (ABS MODAL) |
| Length | 28 to 30 cm |
| Interface | Jaltest Link V8.1 and V9 |
| Vehicle-side connection | 3+3-pins OBD (two black 3-pin housings with sockets) |
| Interface-side connection | 16-pins OBD2 |
| Control units | ABS MODAL (trailer anti-lock braking system) |
| Segment | Trailer |
| Jaltest module | Jaltest CV (commercial vehicles) |
