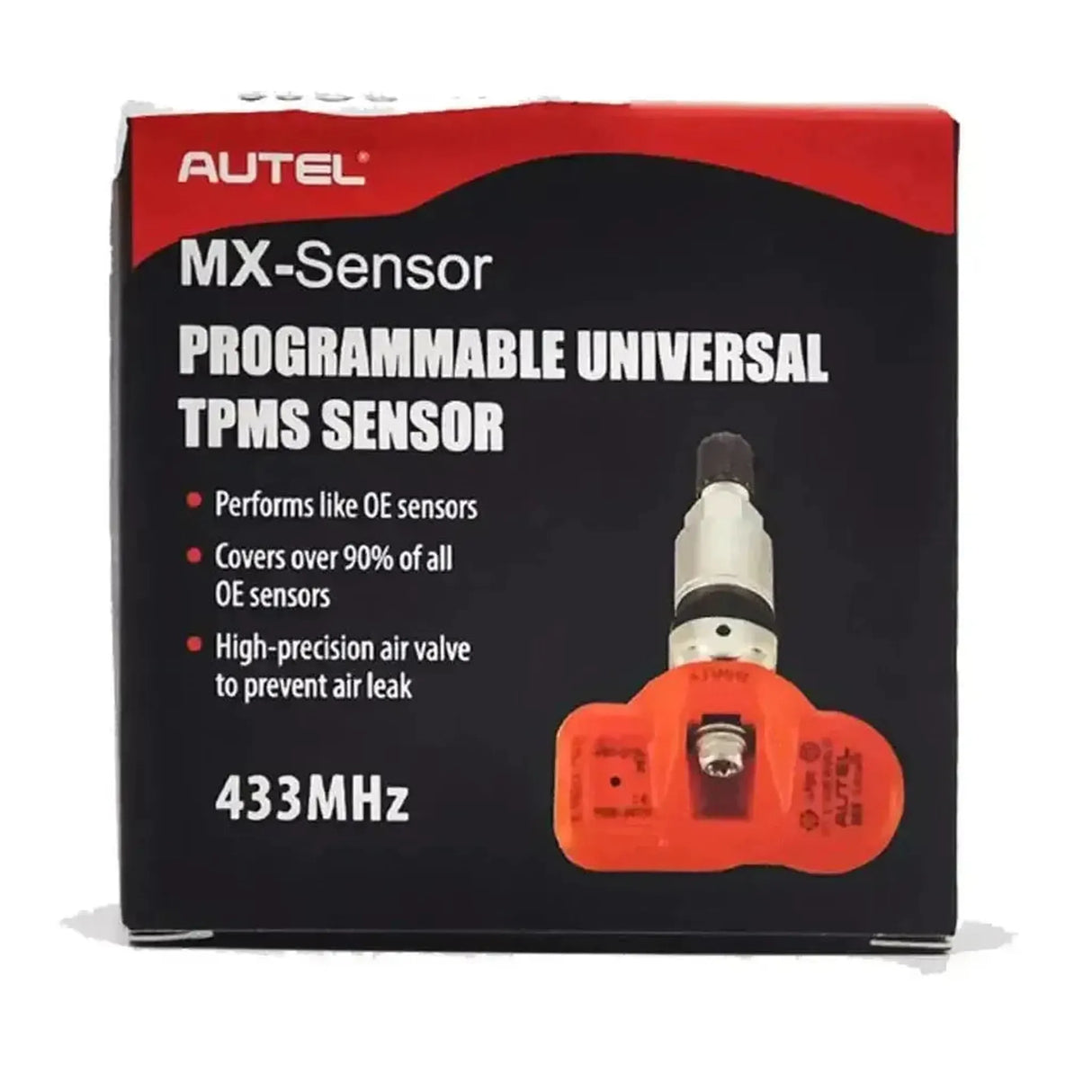

Autel MX-Sensor 433MHz (Aluminum) | TPMS sensor (Screw-in)
Sign up and receive an email as soon as it is back in stock.
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

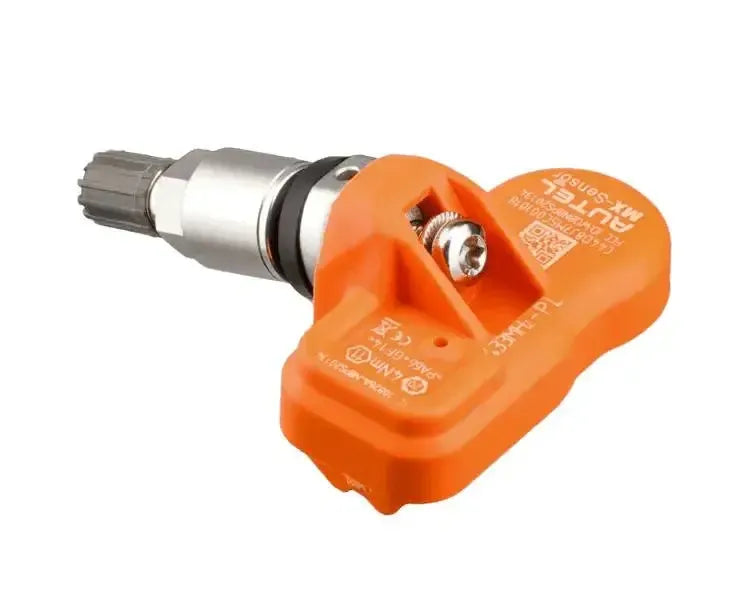

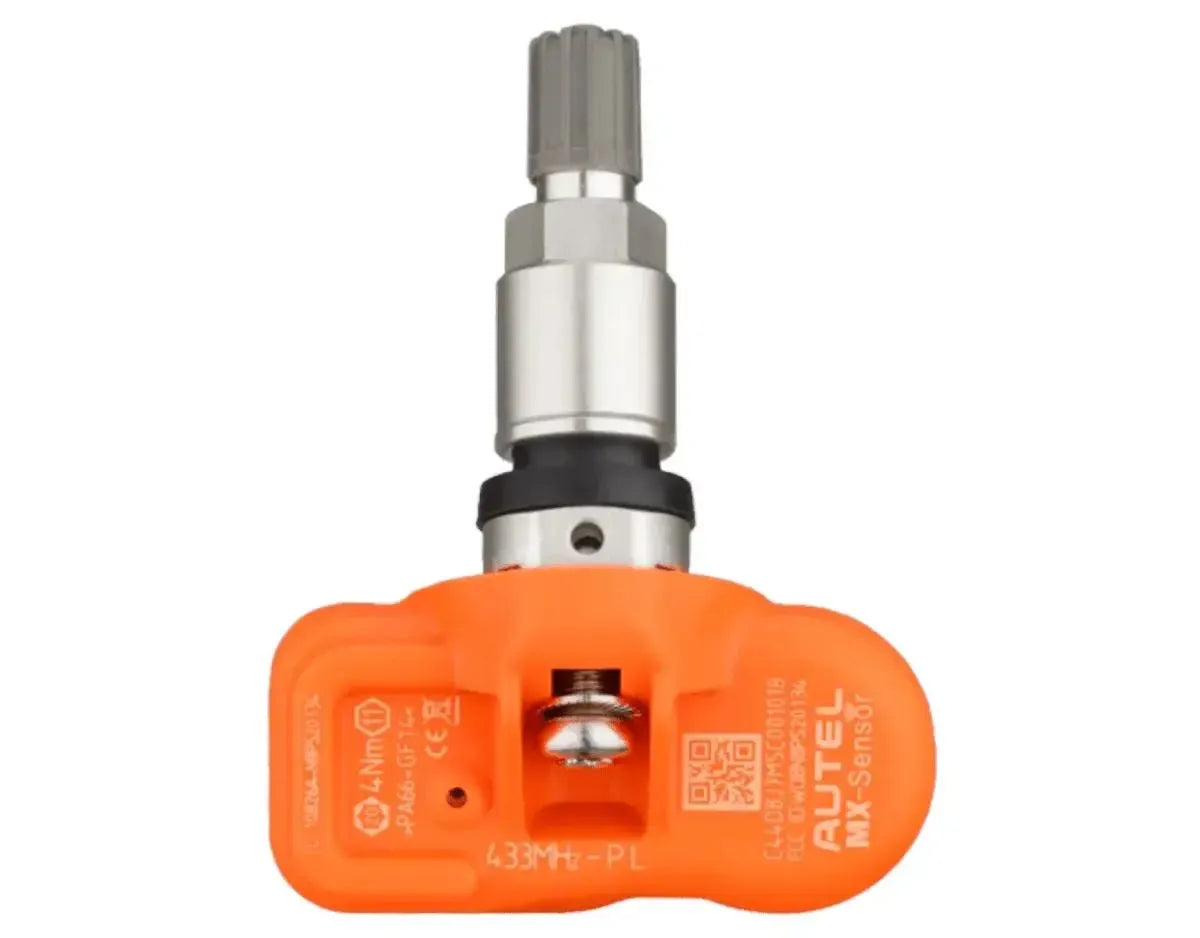

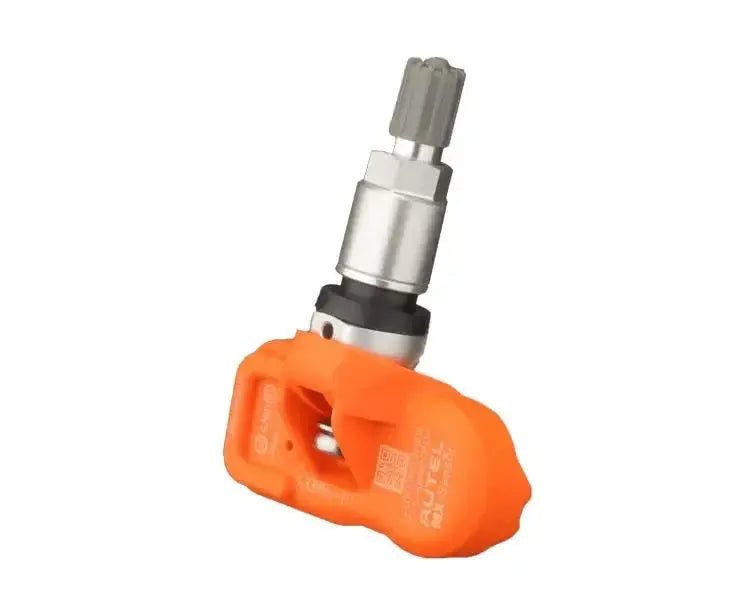

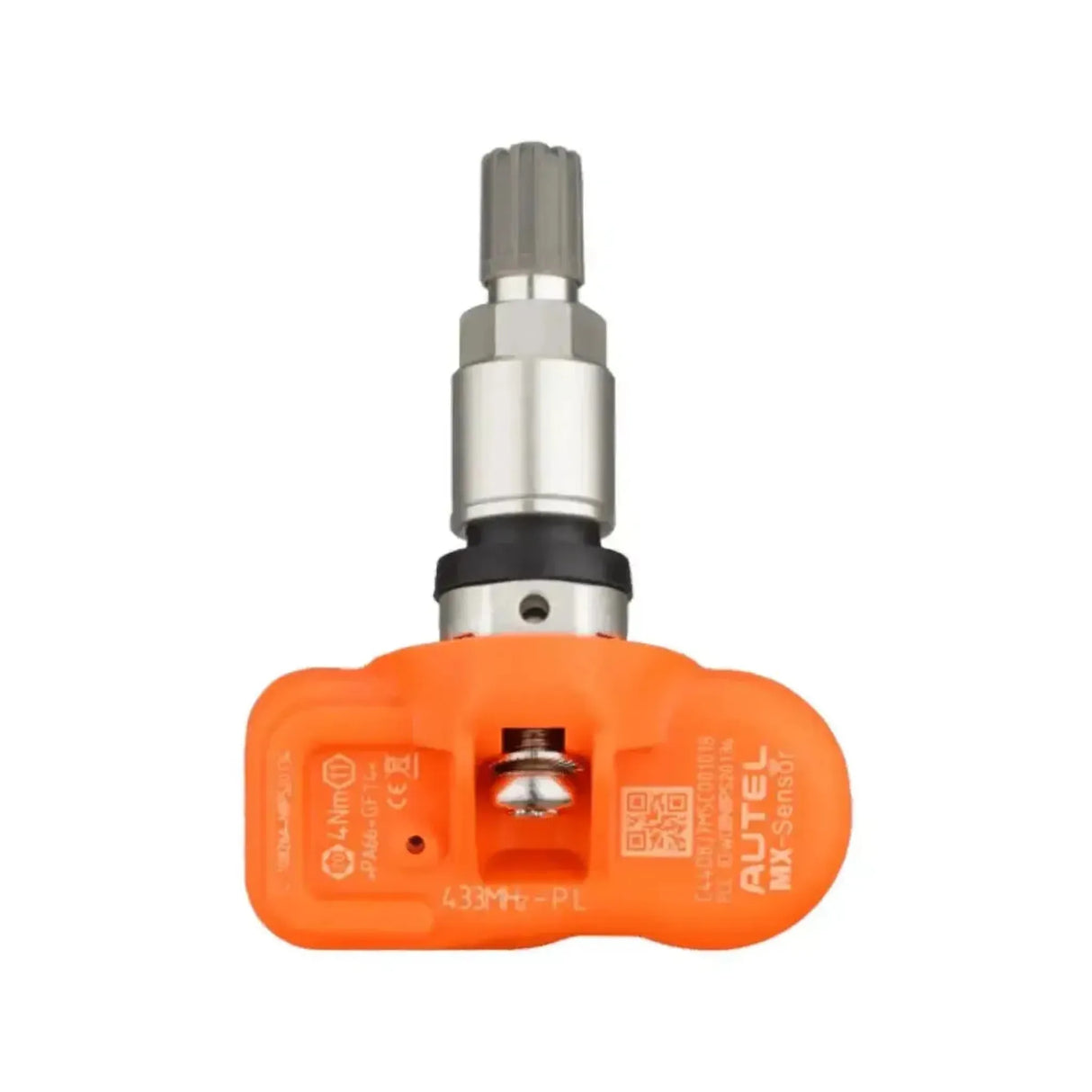

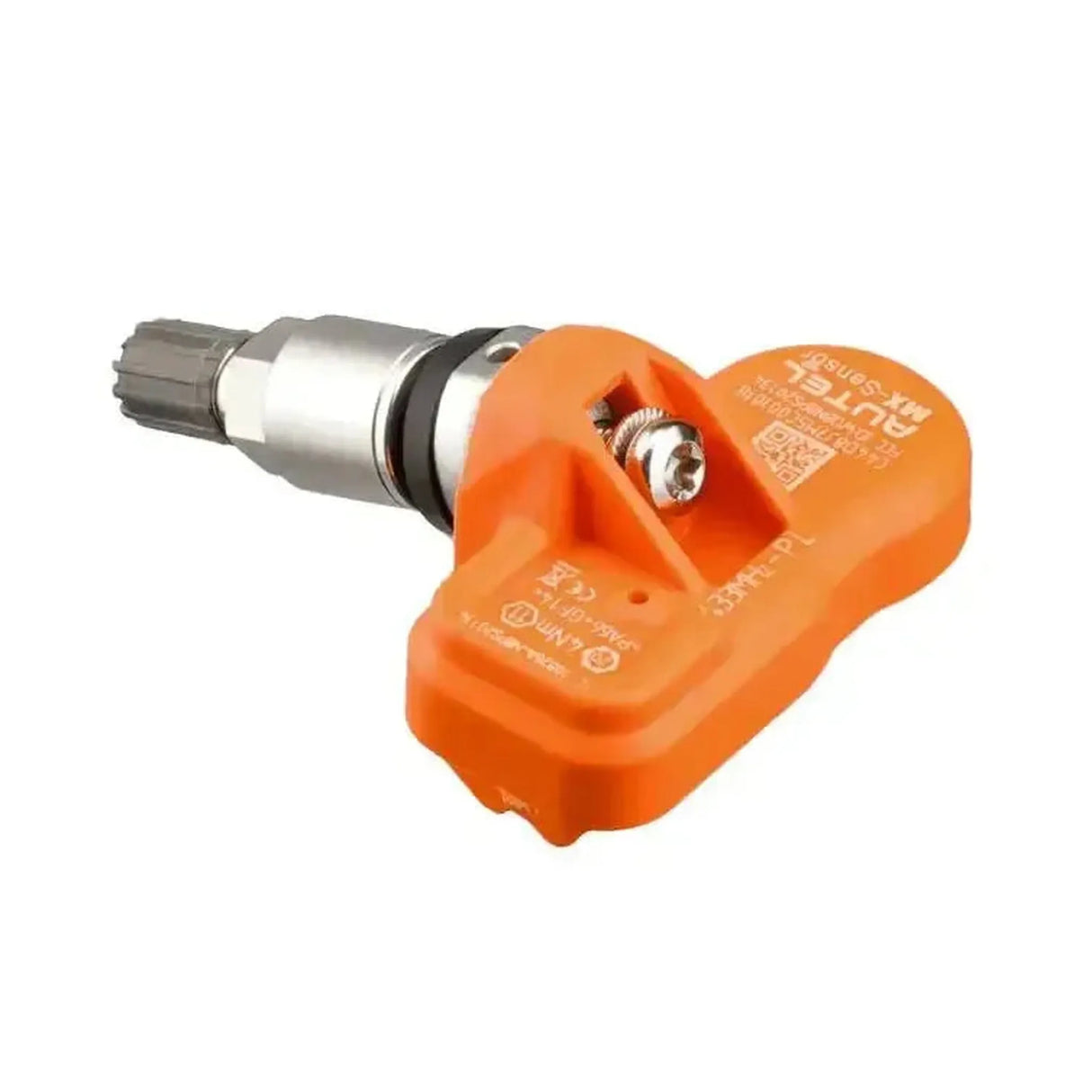

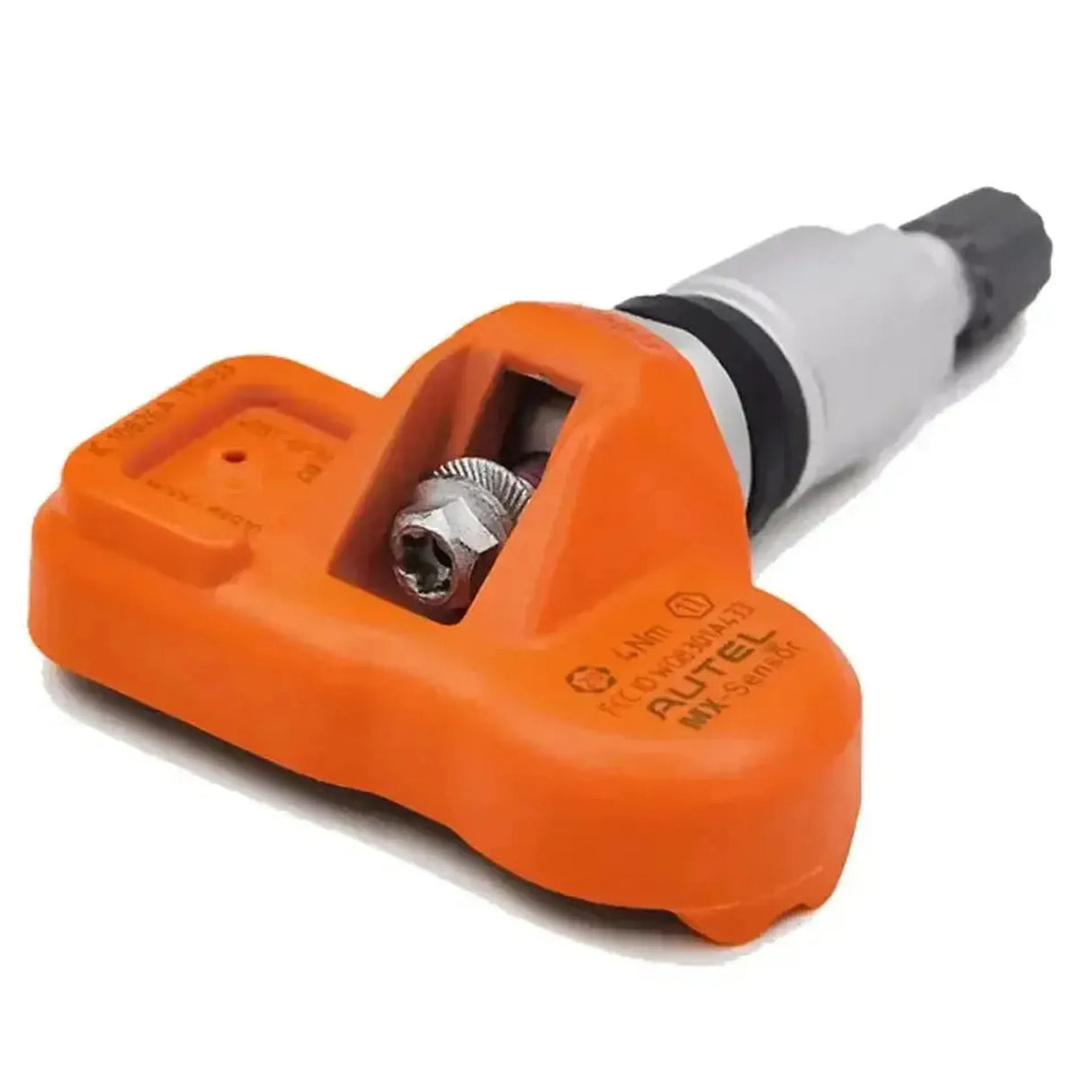

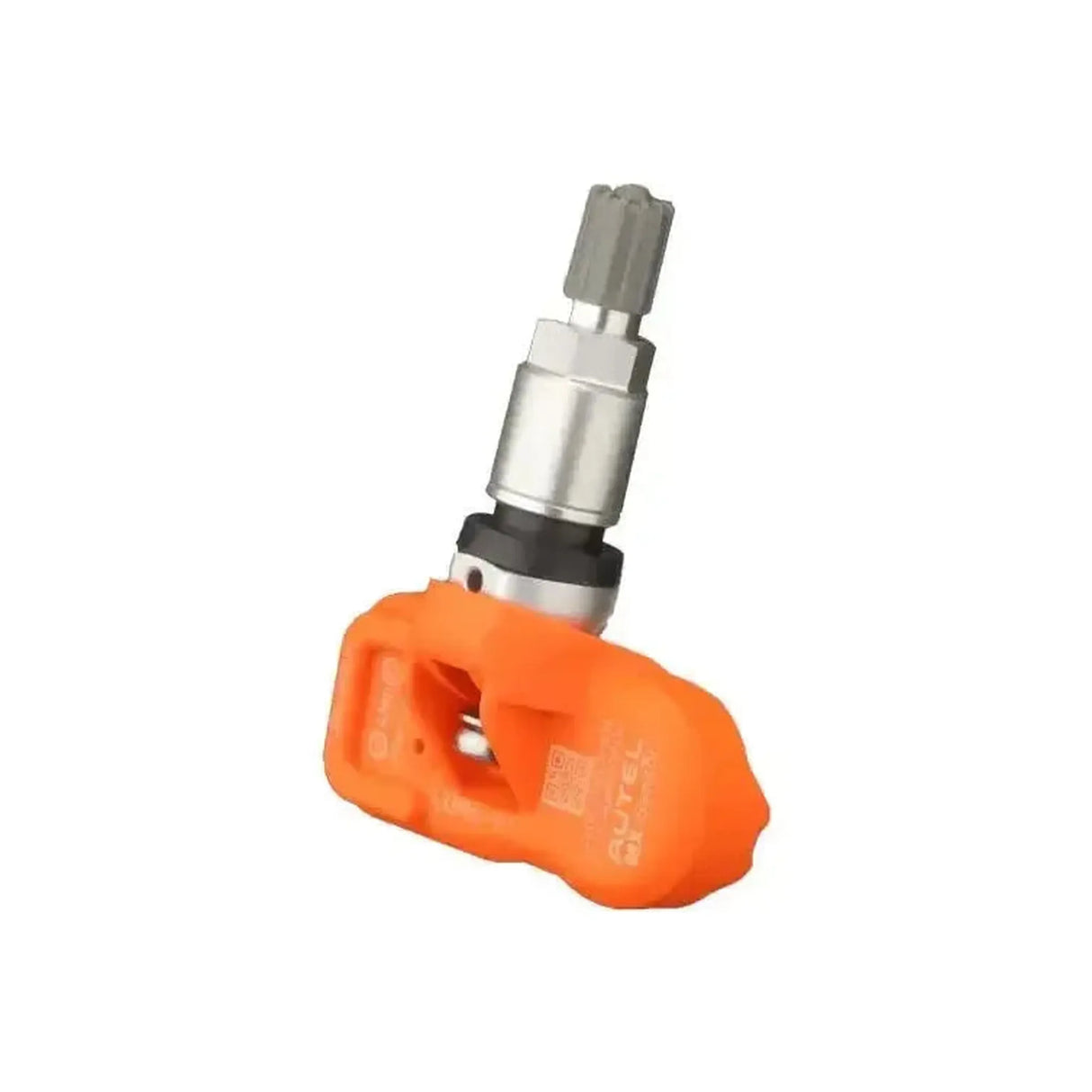

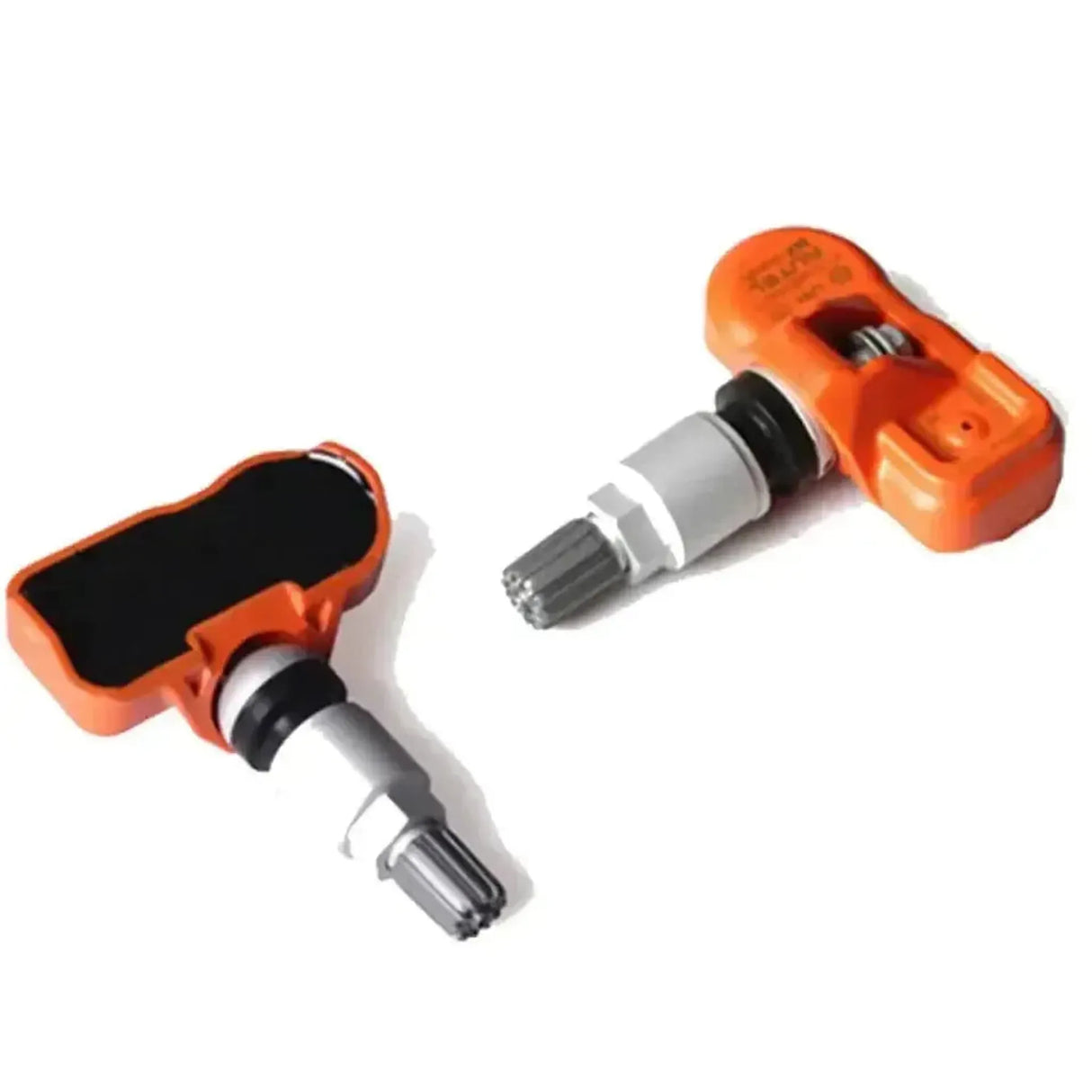

The Autel MX-Sensor 433MHZ (Aluminum) is a direct TPMS sensor designed for continuous monitoring of tire pressure and temperature in the wheel. This sensor operates at a frequency of 433 MHz and is suitable for use in a wide range of passenger cars and light commercial vehicles, mainly targeting the European market. The sensor functions as a programmable replacement solution for defective original equipment (OE) sensors and uses a screw-in, aluminum valve stem (screw-in/clamp-in) for a mechanically secure connection to the rim.
The sensor accurately measures internal air pressure and temperature and transmits this data via an RF signal to the vehicle's receiver module. For proper operation, the module communicates using a unique sensor ID. This identification code can be wirelessly generated or exactly cloned from an existing sensor using an Autel TPMS programmer. When the original sensor ID is cloned, the vehicle's ECU immediately recognizes the sensor, making an OBD or driving learning process unnecessary. During use, the sensor is activated by rotation, after which it sends data at fixed intervals to provide the vehicle system with current measurements.
ADVANTAGES
ATTENTION POINTS
Applications and functionalities
The sensor is designed to replace defective original sensors and continuously collects relevant wheel data for the vehicle system.
- Tire pressure measurement: Measures the current static and dynamic air pressure in the tire with a range of 0 to 800 kPa, then transmits the data for timely warnings of pressure loss.
- Temperature monitoring: Monitors internal tire temperature between -40°C and +125°C. This allows the TPMS to apply temperature compensation to the pressure reading and warn of impending overheating.
- Acceleration detection (G-sensor): Measures radial forces to determine if the vehicle is moving. This controls switching between energy-saving sleep mode and active transmission mode to conserve battery.
Special features and capabilities
This universal sensor has specific technical features that support the calibration and installation process in the workshop.
- Wireless ID cloning: Via the 125 kHz wake-up signal, the sensor can wirelessly communicate with the TPMS tool to copy the exact hexadecimal identification code of the OE sensor to be replaced. This bypasses the OBD learning procedure on the vehicle.
- Modular valve system: The electronic sensor module is separated from the valve by a screw connection. This allows replacing only the aluminum valve in case of minor mechanical damage without discarding the sensor electronics.
Package Contents
- 1x Autel MX-Sensor 433MHZ (Aluminum) | TPMS sensor
- 1x Aluminum screw valve (including rubber seal, washer, and nut)
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Autel |
| Product model | MX-Sensor 433MHz Metal Stem |
| Transmission frequency | 433 MHz |
| Valve type | Aluminum (Clamp-in / Screw-in) |
| Tire pressure measurement range | 0 to 800 kPa |
| Tire pressure accuracy | ±10 kPa |
| Temperature measurement range | -40°C to +125°C |
| Temperature accuracy | ±5°C |
| G-sensor accuracy | ±15% |
| Transmission power | 5-8 dBm |
| Operating voltage (battery) | 3.0 V |
| Battery lifespan | 4 to 6 years |
| Dimensions (W x H x D) | 55.1 mm x 29.4 mm x 21.8 mm |
| Weight (without valve) | 18.5 grams |
| Valve nut tightening torque | 4.0 Nm |
