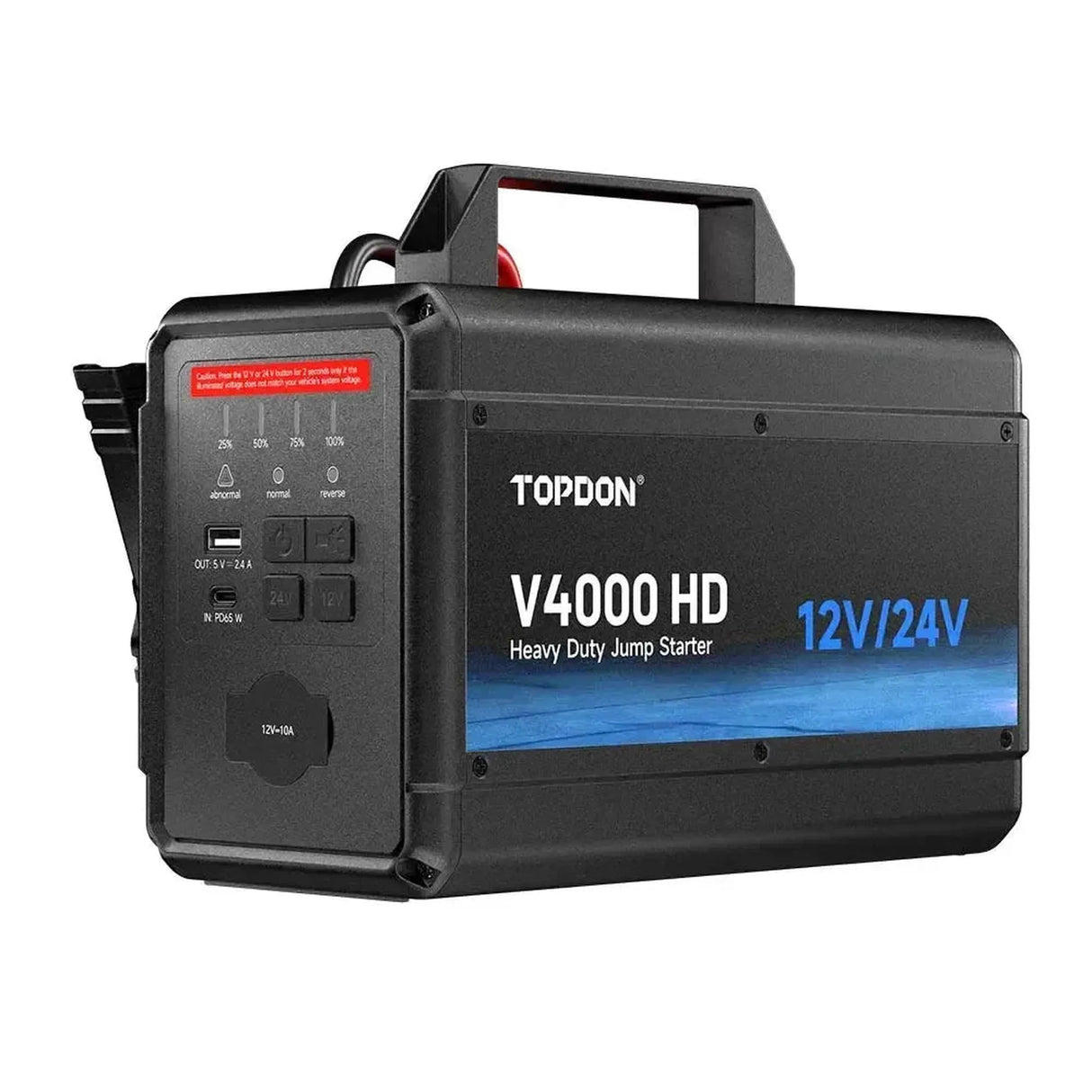

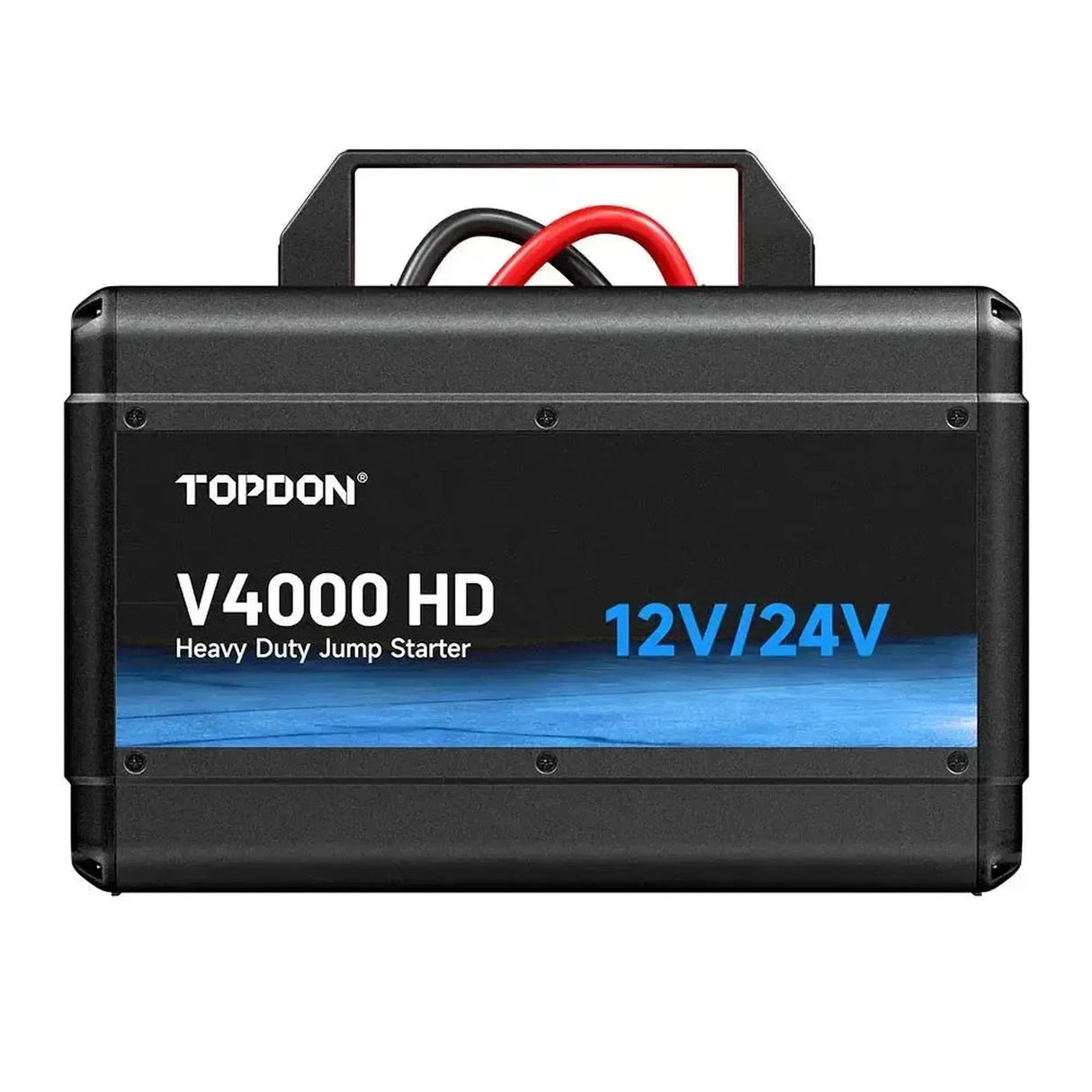

The Topdon V4000 HD is a professional jumpstarter. Designed for mechanics, fleet managers, and roadside assistance services, this robust device delivers starting power for both light and heavy vehicles. The system automatically supports 12V and 24V battery voltages and provides a peak current of 4000A at 12V and 3000A at 24V. Thanks to the internal LiFePO4 battery with a capacity of 64000mAh (204.8Wh), the unit is suitable for starting gasoline and diesel engines with a cylinder capacity of up to 16 liters. This ensures a wide application range, from passenger cars to heavy trucks, buses, and earthmoving machines.

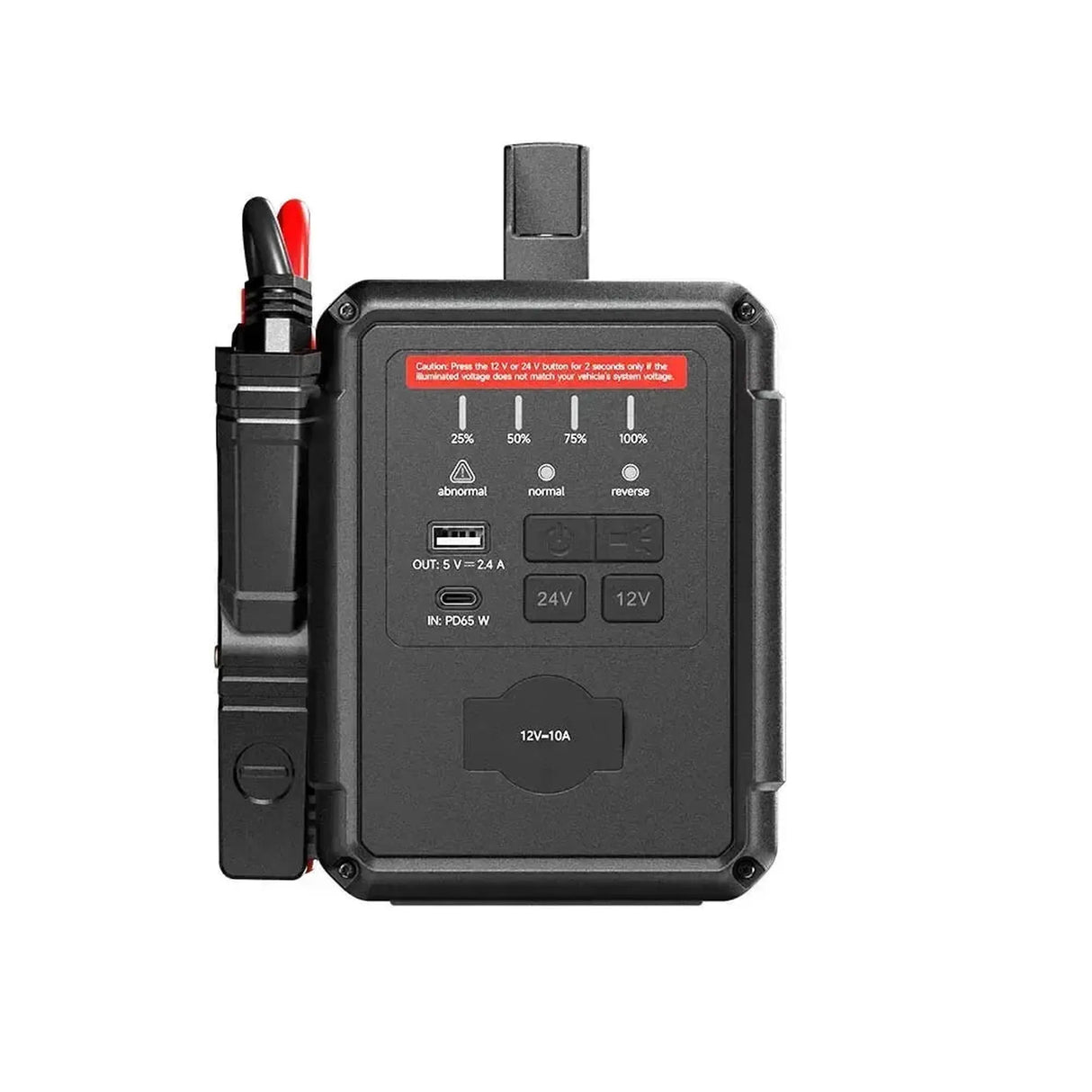

During use, the safety of the vehicle and the jumpstarter is ensured by seven built-in protection systems, including reverse polarity protection, short circuit protection, and temperature monitoring. The device features a clear status display with color-coded indicator lights confirming the current system status and correct connection. The built-in battery can be quickly charged via the 65W PD USB-C port, achieving a full charge in about 3.5 hours. In addition to starting vehicles, the housing includes various connections, such as a 12V/10A DC output and a 5V/2.4A USB-A port, allowing external equipment to be powered. There is also a built-in LED work light with multiple usage modes.
ADVANTAGES
ATTENTION POINTS
Applications and Features
The Topdon V4000 HD is designed to solve a wide range of starting and power supply issues on-site or in the workshop with specific technical features.
- Automatic Voltage Detection: The battery booster automatically detects whether it is connected to a 12V or 24V electrical system and adjusts the power output accordingly and automatically.
- Vehicle Start (Jumpstart): Provides a short, powerful burst of current to crank vehicle starter motors with a dead battery, capable of multiple consecutive start attempts.
- DC Power Supply: Through the built-in 12V/10A connection, 12V devices such as mobile compressors, workshop lights, or memory retention equipment can be powered directly during battery changes.
- Power Bank Function: External mobile devices or diagnostic tablets can be charged via the integrated USB-A output during work.
Special Features and Capabilities
In addition to the standard starting capacity, this device integrates technologies that make it suitable for safe and intensive professional use.
- LiFePO4 Battery Technology: The use of lithium iron phosphate cells provides a lifespan of over 1000 charge cycles. This composition offers high thermal stability, minimizing the risk of cell degradation or heat issues under heavy load.
- Integrated Safety Management: The system continuously monitors current flow and is equipped with hardware protection against reverse polarity (incorrect clamp connection), overvoltage, deep discharge, and excessive operating temperatures. This protects sensitive vehicle electronics.

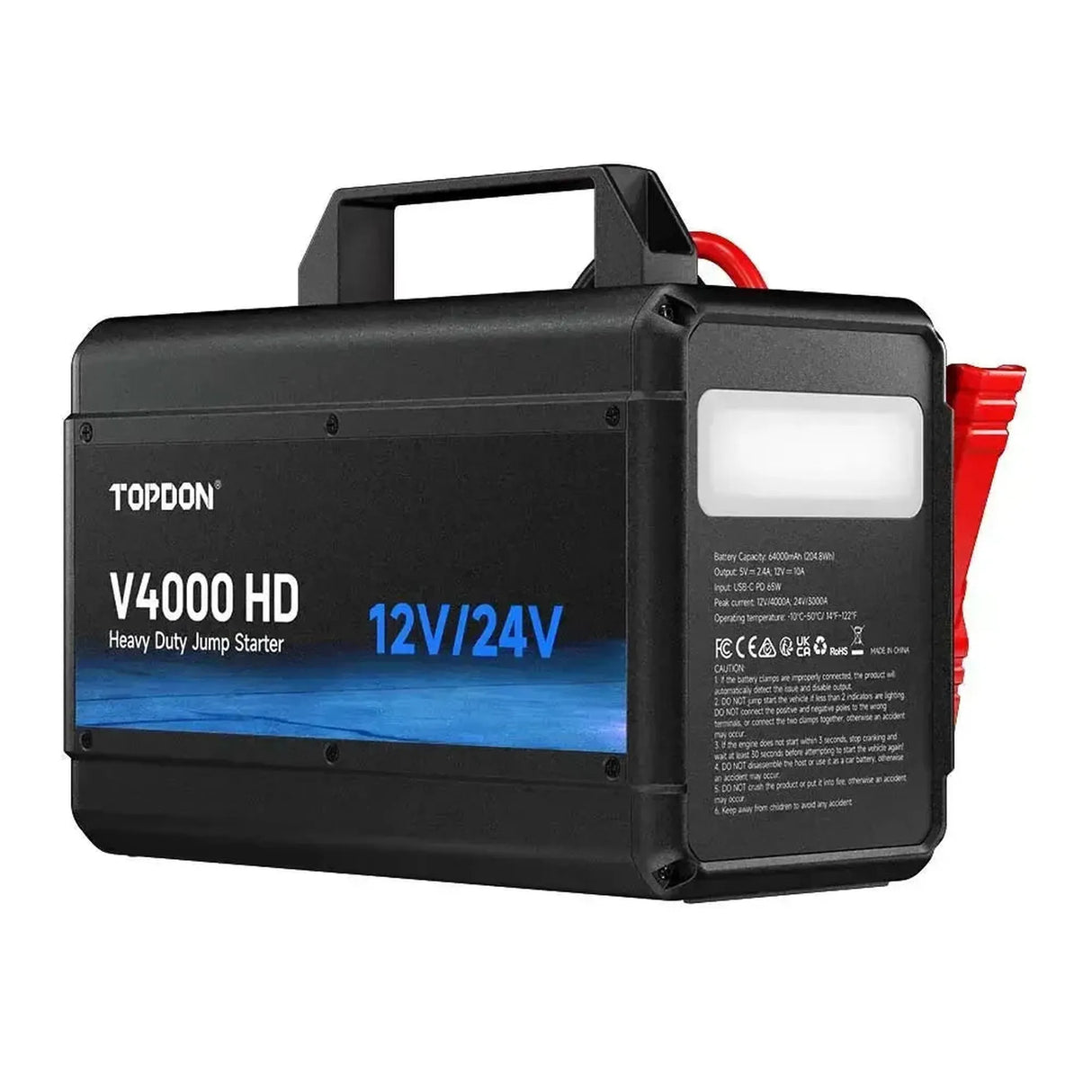

- Multifunctional LED Lighting: The housing includes a powerful LED lamp with three different modes (standard lighting, strobe, and SOS signal) for work in unlit engine compartments or as an emergency roadside marker.
Compatible Vehicles and Applications
This model is technically designed to supply sufficient starting current for a variety of heavy and light combustion engines.
- Vehicle Category: Suitable for passenger cars, light commercial vehicles, heavy trucks, buses, earthmoving machines, and agricultural vehicles.
- Engine Capacity: Provides starting capacity for gasoline and diesel engines with a cylinder capacity up to 16.0 liters.
- Battery Voltage: Designed for both 12V and 24V vehicle systems.
- Battery Type: Compatible with standard lead-acid, AGM, and gel starter batteries.
Package Contents
- 1x Topdon V4000 HD
- 1x PD65W USB-C Cable
- 1x 5V/2.4A USB-A Cable
- 1x Power Adapter
- 1x User Manual
Technical Specifications
| Specification | Description |
|---|---|
| Product Brand | Topdon |
| Product Model | V4000 HD |
| Peak Current (12V) | 4000A |
| Peak Current (24V) | 3000A |
| Battery Capacity | 64000 mAh / 204.8 Wh |
| Battery Technology | LiFePO4 |
| Input | PD65W USB-C |
| Output (DC) | 12V/10A |
| Output (USB) | 5V/2.4A (USB-A) |
| Operating Temperature | -10°C to 50°C |
| Weight | 4.0 kg |
| Dimensions | 247 x 146 x 194 mm |
