Topdon Phoenix Scope Oscilloscope 4-Channel

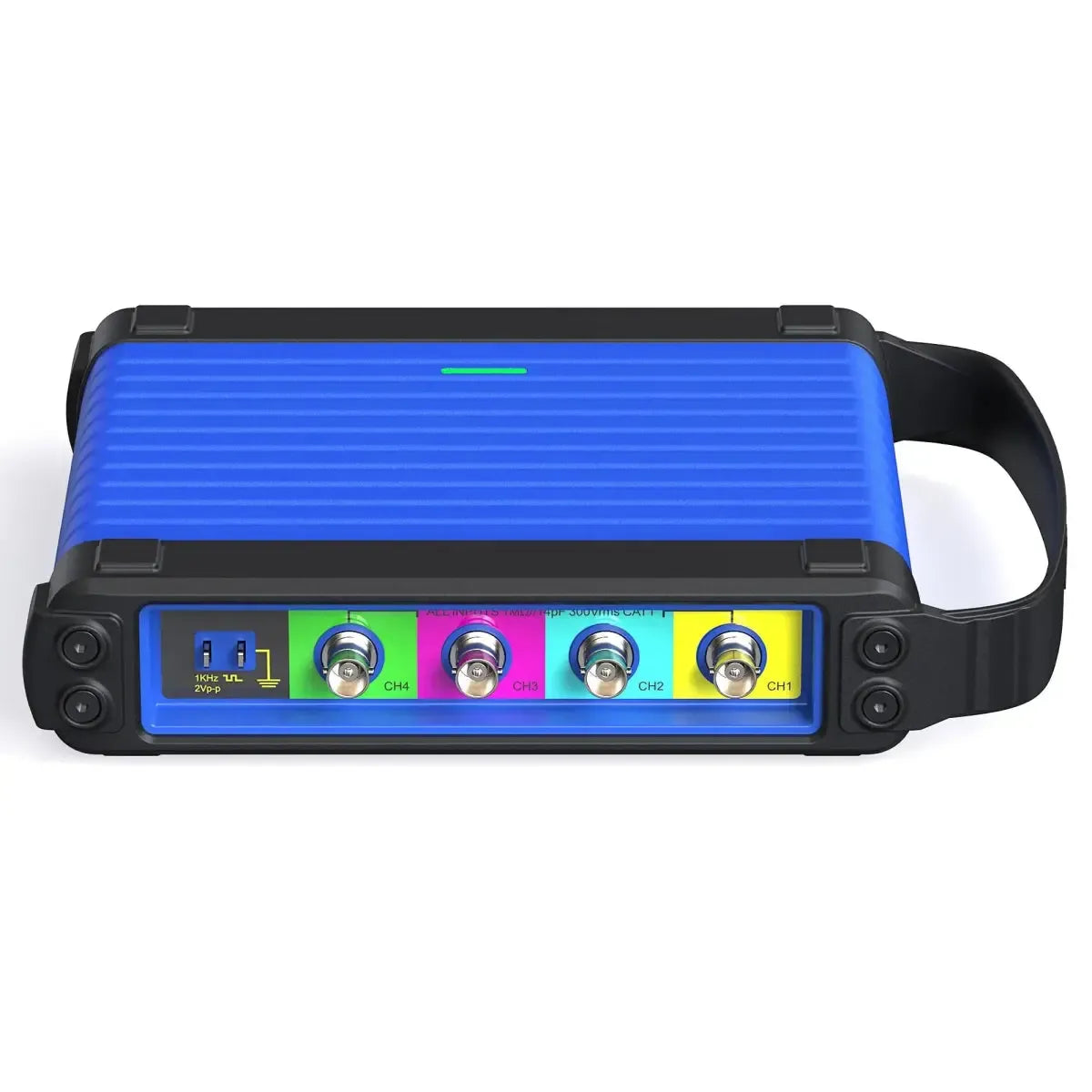

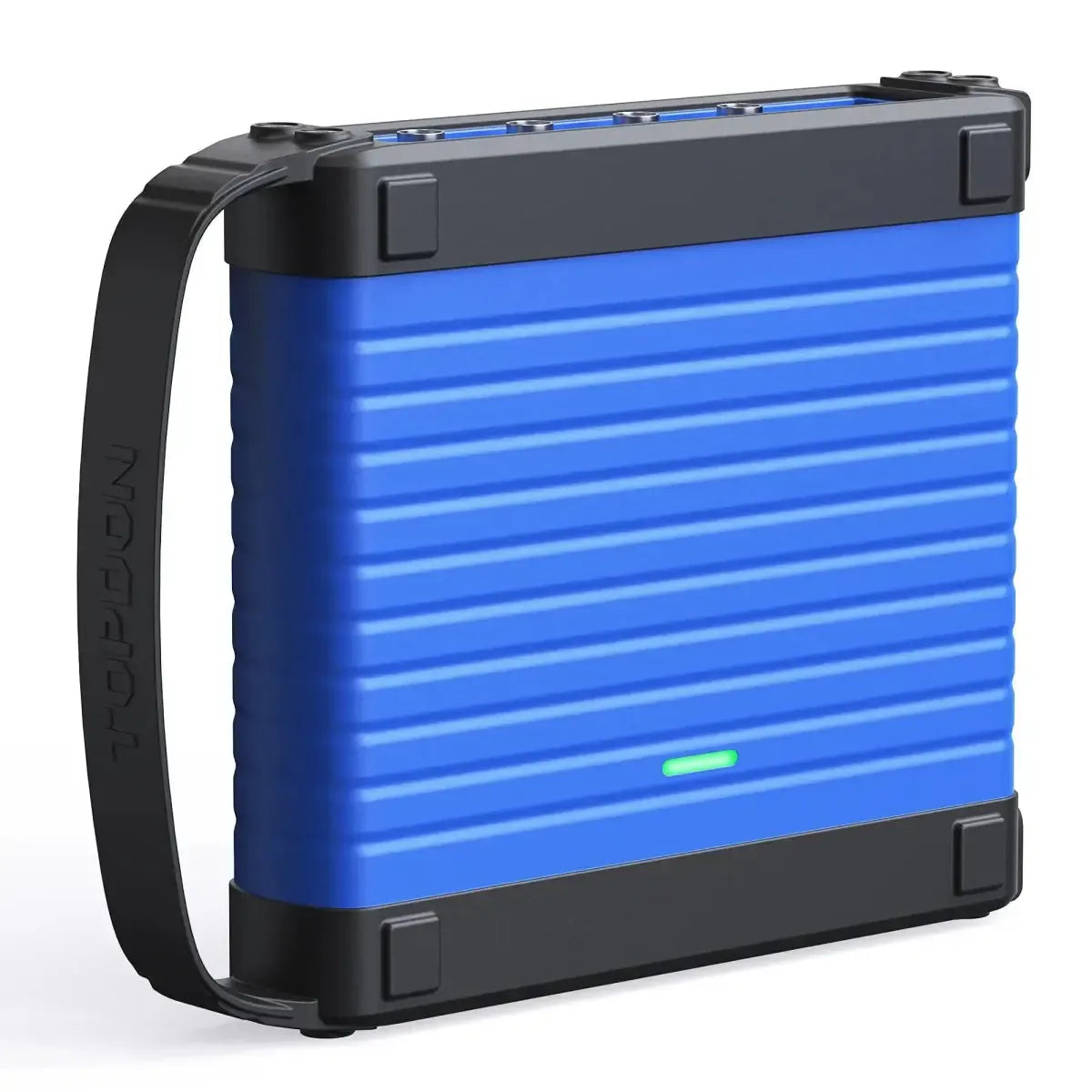

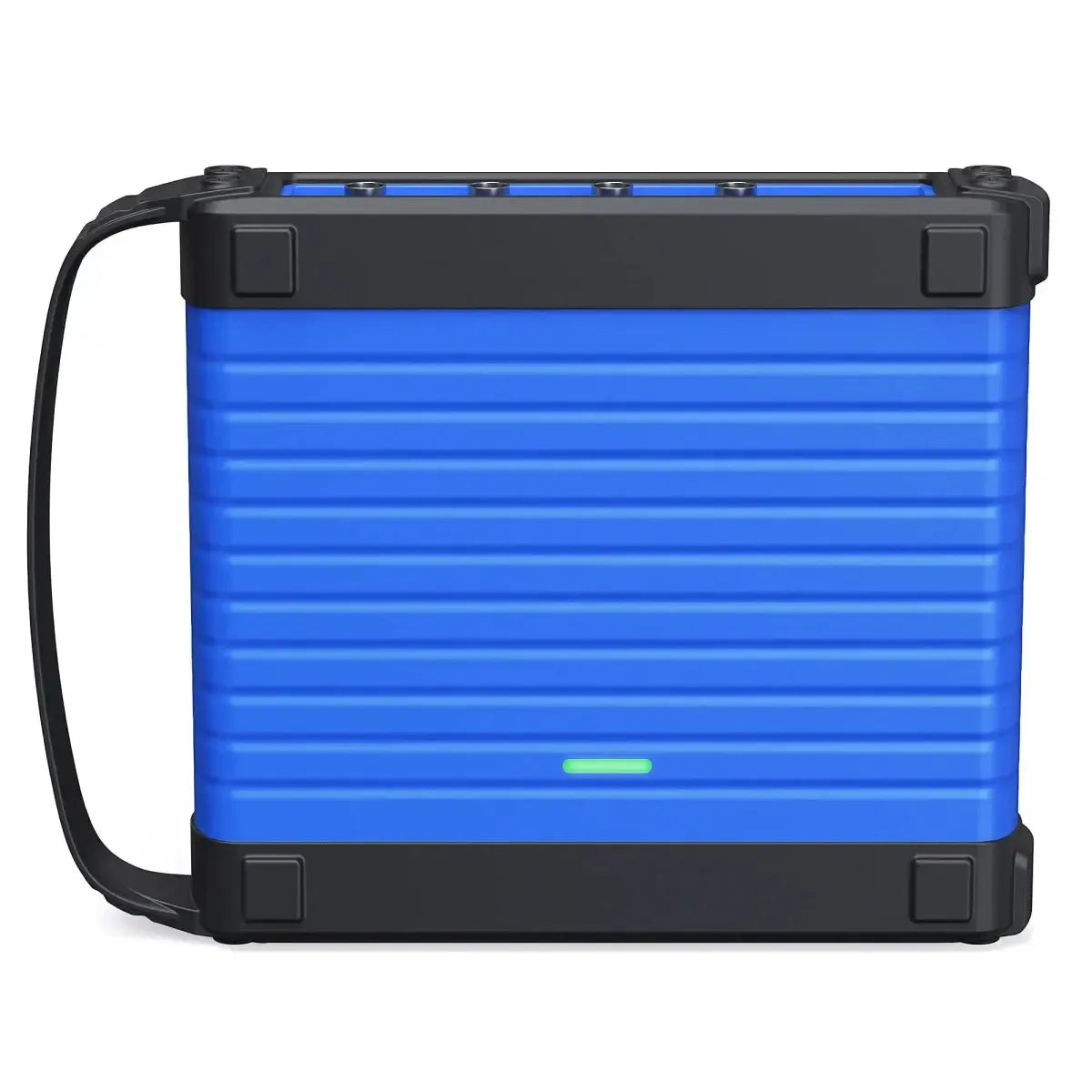

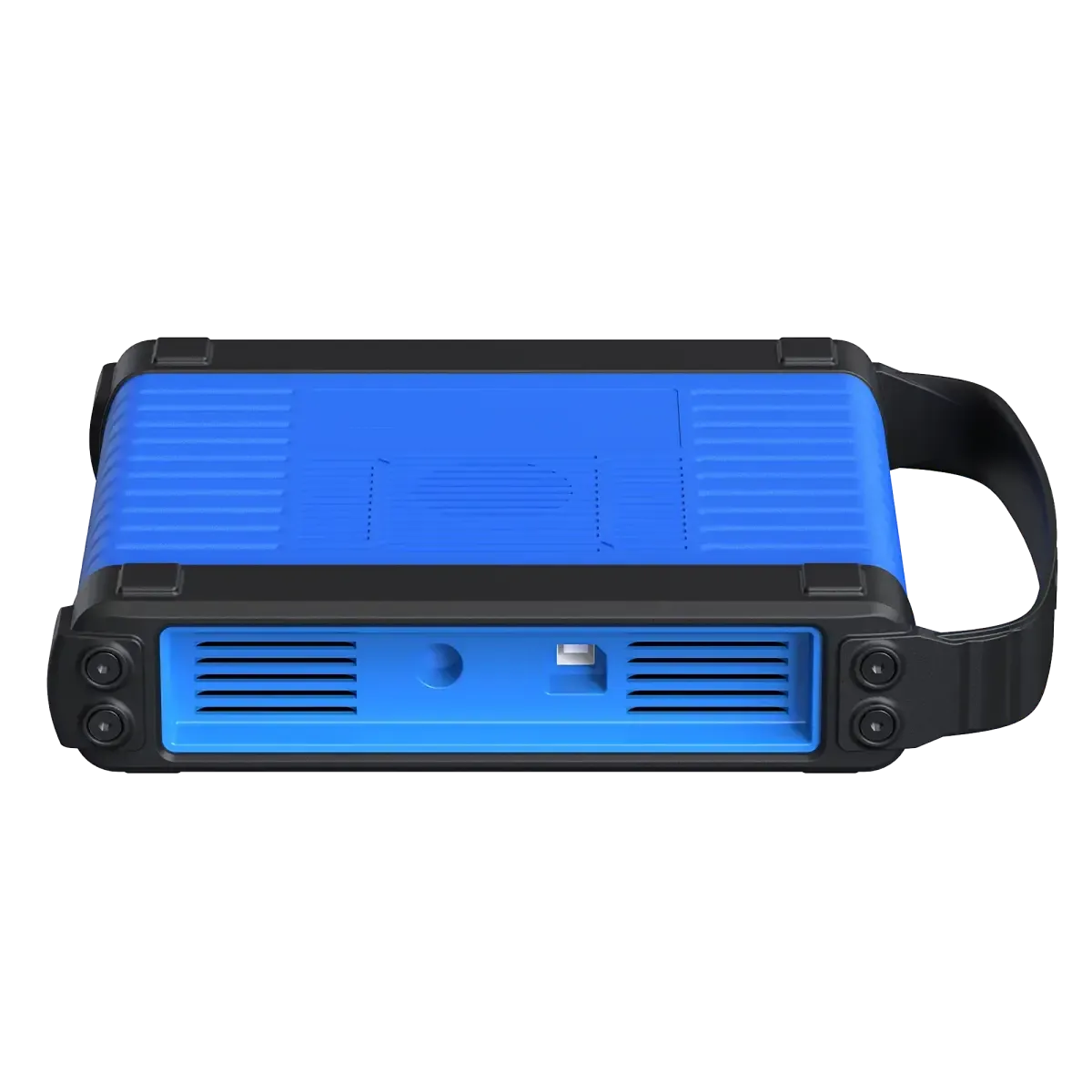

The Topdon Phoenix Scope is an advanced 4-channel Car oscilloscope, specially designed for use in combination with Topdon’s Phoenix series diagnostic devices. With a bandwidth of 100 MHz, a maximum sampling rate of 1 GSa/s (at one channel) and a memory of 50 Mpts, this instrument offers accurate and detailed signal analysis for various vehicle electronics. The Phoenix Scope supports various tests, including sensors, actuators, ignition systems and communication protocols such as CAN and LIN.

Functions:

• Compatibility: Works exclusively with Topdon Phoenix devices such as the Max, Smart, Elite, Lite 2/3 and Plus.
• Automatic measurements: Supports 23 types of automatic measurements displayed clearly on one screen.
• Memory and zoom: Depth of 50 Mpts with zoom function for both global and detailed display.
• Fast storage: Saves waveforms with one tap, reducing storage time by more than 70%.
• Cursor operation: Horizontal and vertical cursors can be opened and moved separately for efficient analysis.
• Soft keyboard: Supports input via a virtual keyboard, increasing efficiency by more than 90%.
• System settings: Settings can be saved as configuration files for repeated use.
• Waveform recording and playback: Recorded signals can be saved and later displayed as reference.
• Mathematical operations: Supports addition, subtraction, multiplication, division, and Fast Fourier Transform (FFT) of two-channel waveforms.
• Car tests: Suitable for circuit, sensor, actuator, ignition, and communication tests with preset parameters and connection methods.

Special features:

• Powerful trigger function: Supports edge, pulse width, and other triggers with simple and intuitive settings.
• Protocol decoding: Supports decoding of communication protocols such as CAN and LIN.
• Customizable system settings: Users can save and load preference settings for consistent use.
• Waveform recording and playback: Recorded signals can be saved and later displayed as reference.
• Mathematical operations: Supports addition, subtraction, multiplication, division, and Fast Fourier Transform (FFT) of two-channel waveforms.
• Car tests: Suitable for circuit, sensor, actuator, ignition, and communication tests with preset parameters and connection methods.

Package contents:

• Topdon Phoenix Scope Oscilloscoop
• USB-A - USB-B Adapter Cable
• Test Leads (2 pieces)
• Red Crocodile Clips (4 pieces)
• Black Crocodile Clips (4 pieces)
• Acupuncture Probe Set (5 pieces)
• P130A Series Probe Construction Drawing (2 pieces)
• Manual
