TopDiag P100 | Circuit tester

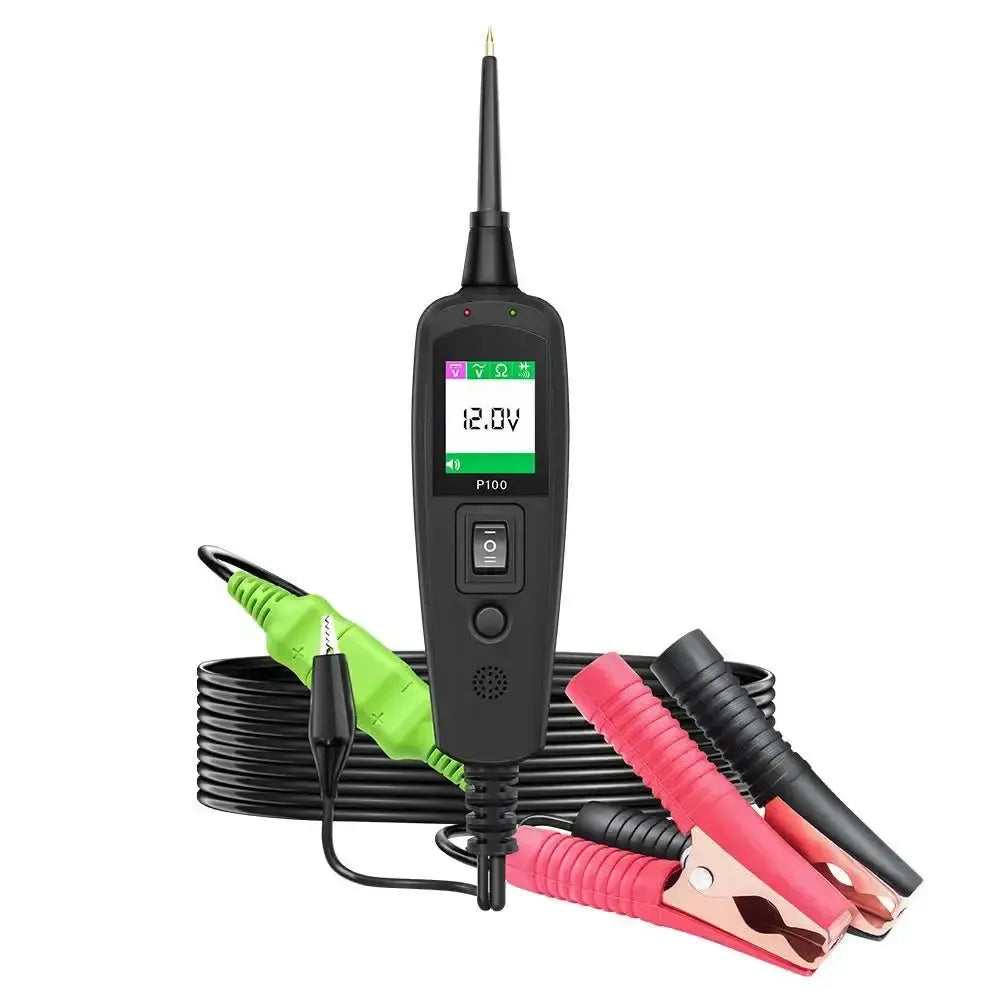

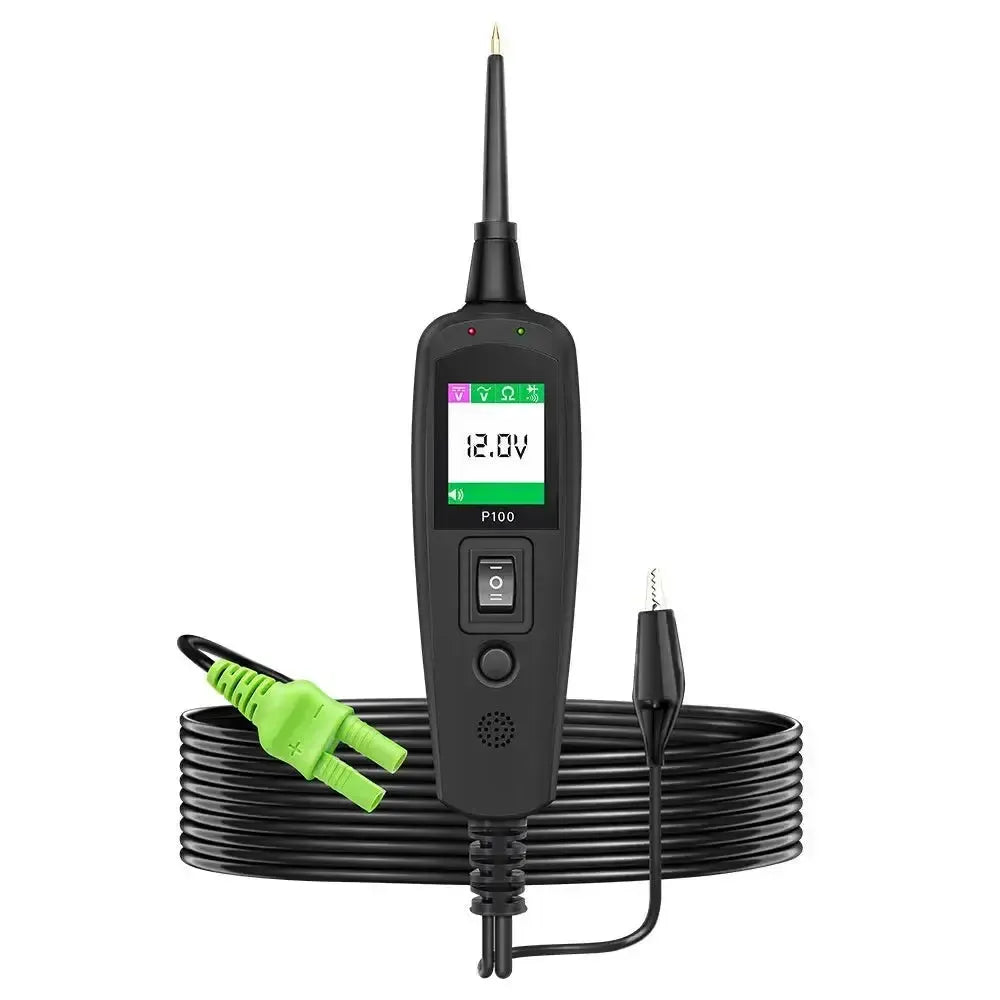

The TopDiag P100 is a circuit tester designed for diagnosing 6V to 30V electrical systems in vehicles. The device is equipped with a TFT color screen for clearly displaying measurement values. The P100 can perform various measurements, including testing DC voltage up to 65V, AC voltage with display of frequency and duty cycle, resistance up to 200 KΩ, and diode testing.
This circuit tester offers the possibility to activate components by directly supplying a positive or negative voltage via the probe. Functionalities such as detecting short circuits and checking poor ground connections are integrated. The device is protected against overload with a self-resetting thermal fuse of 8A. The interface is adjustable in multiple languages and the device comes with a 10-meter long extension cable for a large working range.
Application and functionality:
The P100 is developed for performing various measurements and tests on the electrical circuit of vehicles.
- Testing voltage and polarity: For measuring DC and AC voltage, identifying positive and negative circuits, and checking ground connections.
- Testing resistance and continuity: For measuring wiring, switches, relays, and other components for breaks or resistance.
- Activating components: For directly controlling electrical components such as fans, motors, and lamps by supplying power or ground via the probe.
- Tracing short circuits: For locating short circuits in wiring without having to remove fuses.
- Trailer lighting test: For checking the functionality of the lighting and connections of trailers.
Measurement ranges and functions:
The device has various measurement modes for wide applicability.
- DC voltage measurement: Measures direct voltage in a range of 0 to 65 volts.

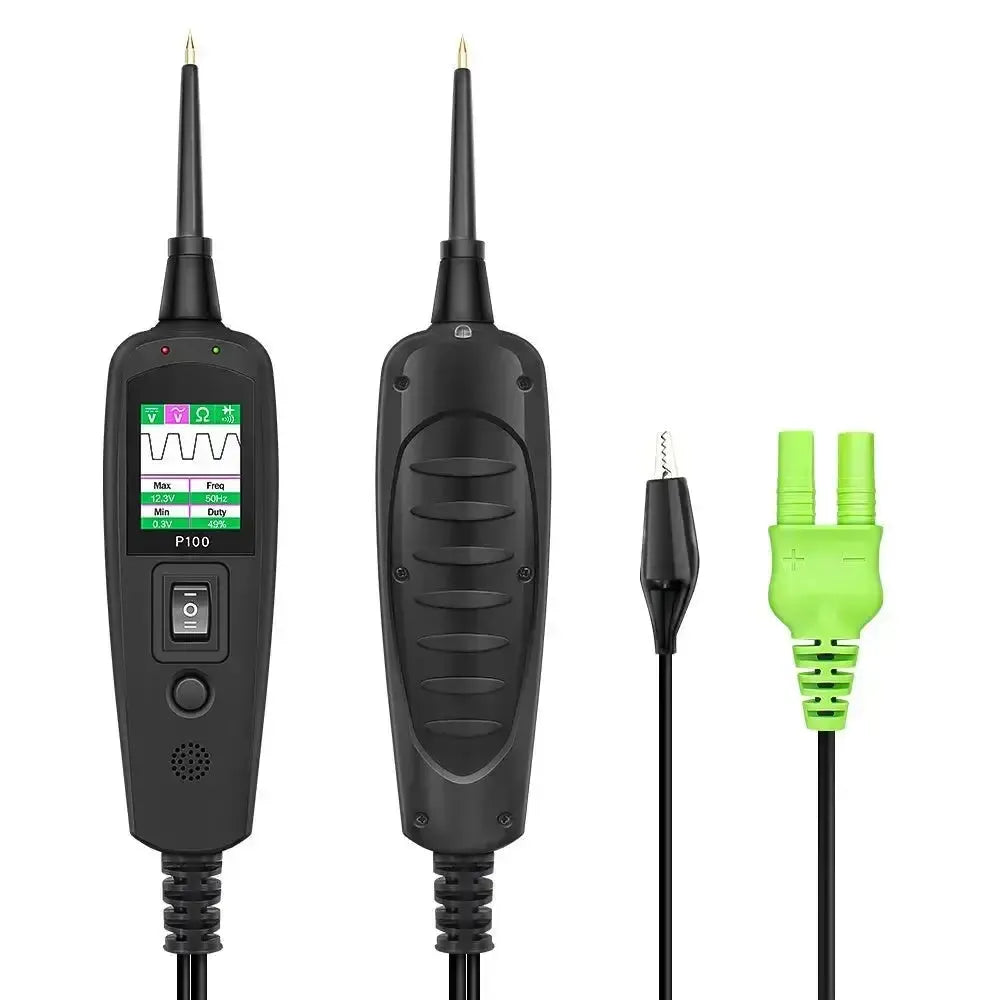

- AC voltage measurement: Measures alternating voltage and displays the minimum and maximum voltage, frequency, and duty cycle.
- Resistance measurement: Measures resistance in a range of 0 to 200 KΩ.
- Diode test: Checks the functionality of diodes.
- Overload protection: An integrated, self-resetting thermal fuse protects the device and vehicle circuit at a current of more than 8 amperes.

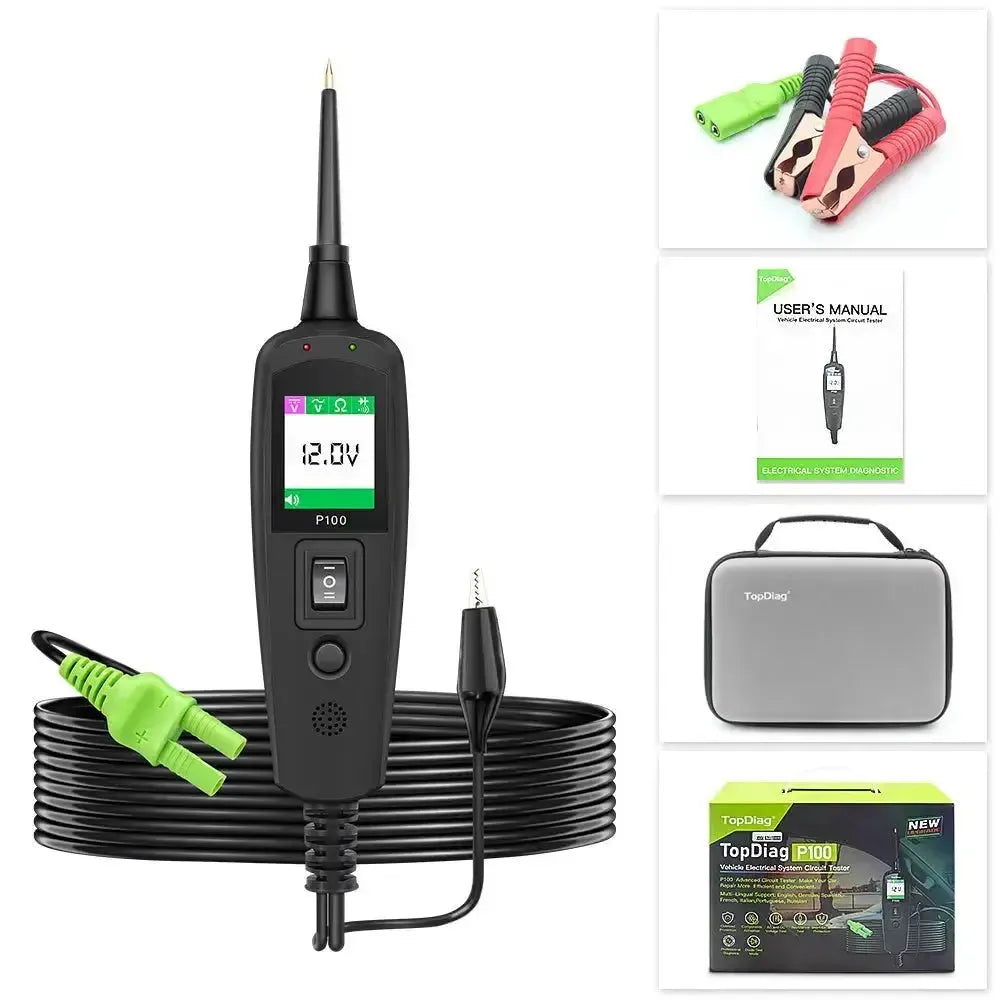

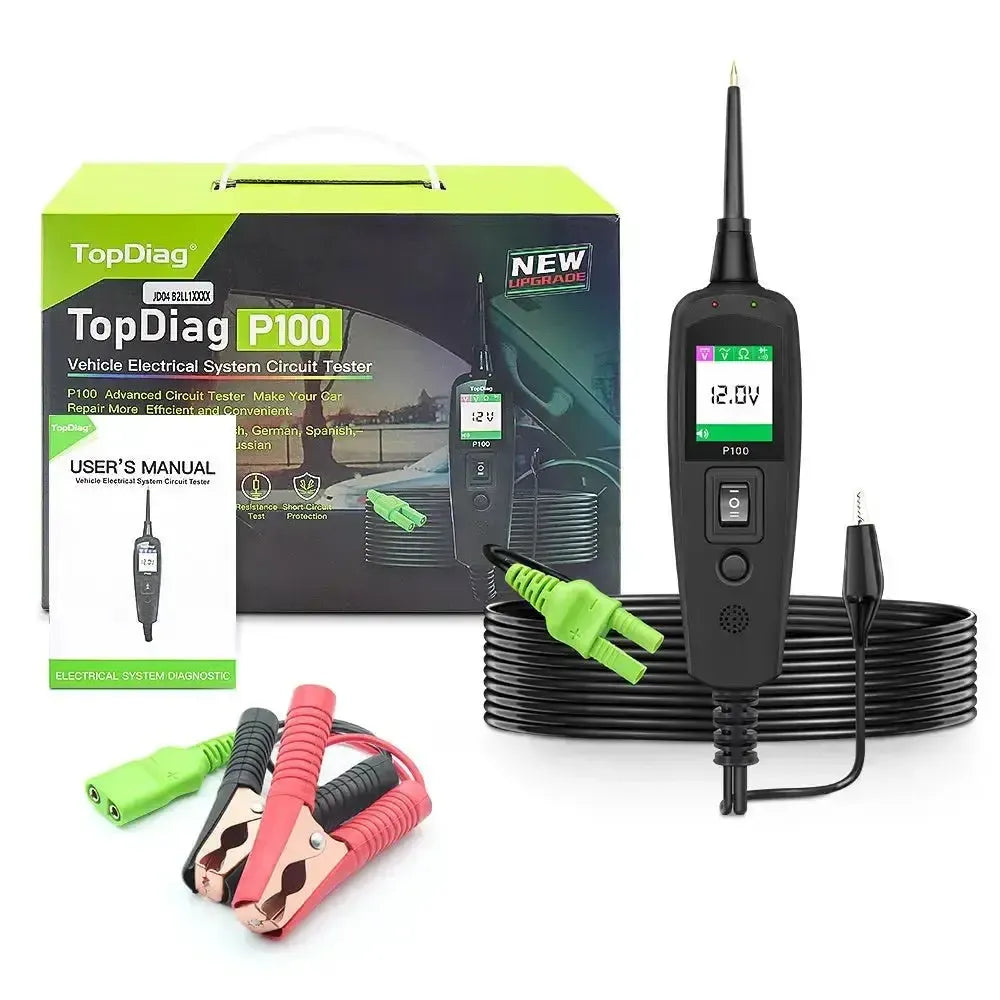

Package Contents:
- 1x TopDiag P100 circuit tester
- 1x Extension cable (10 meters)

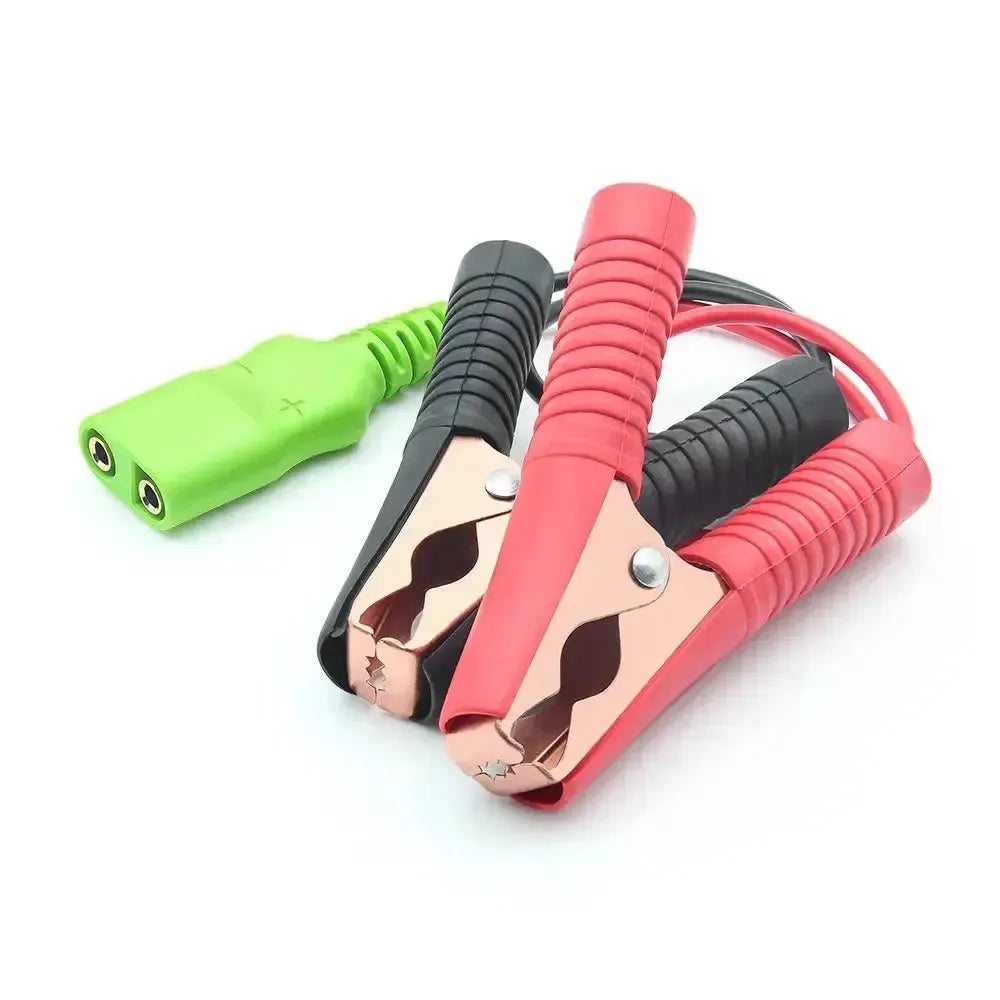

- 1x Battery clamp adapter
- 1x Cigarette lighter adapter

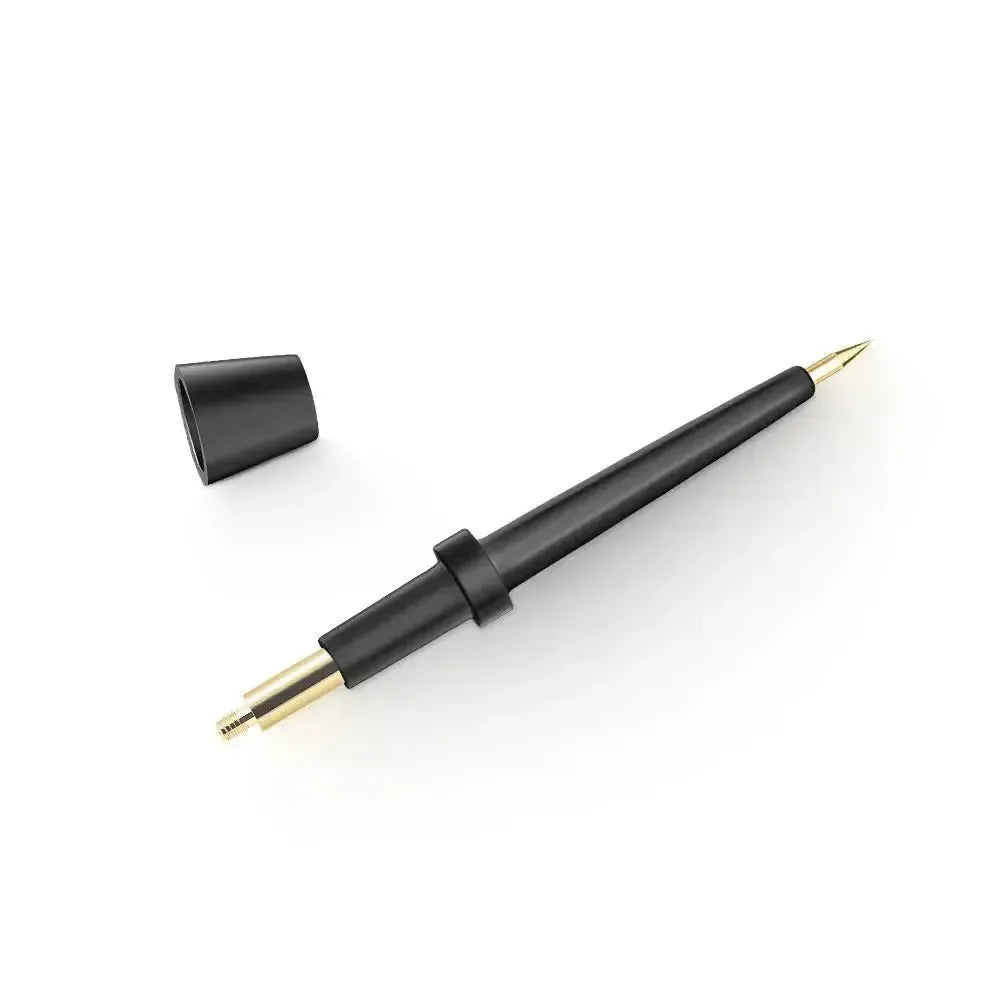

- 1x Probe tip
- 1x Manual

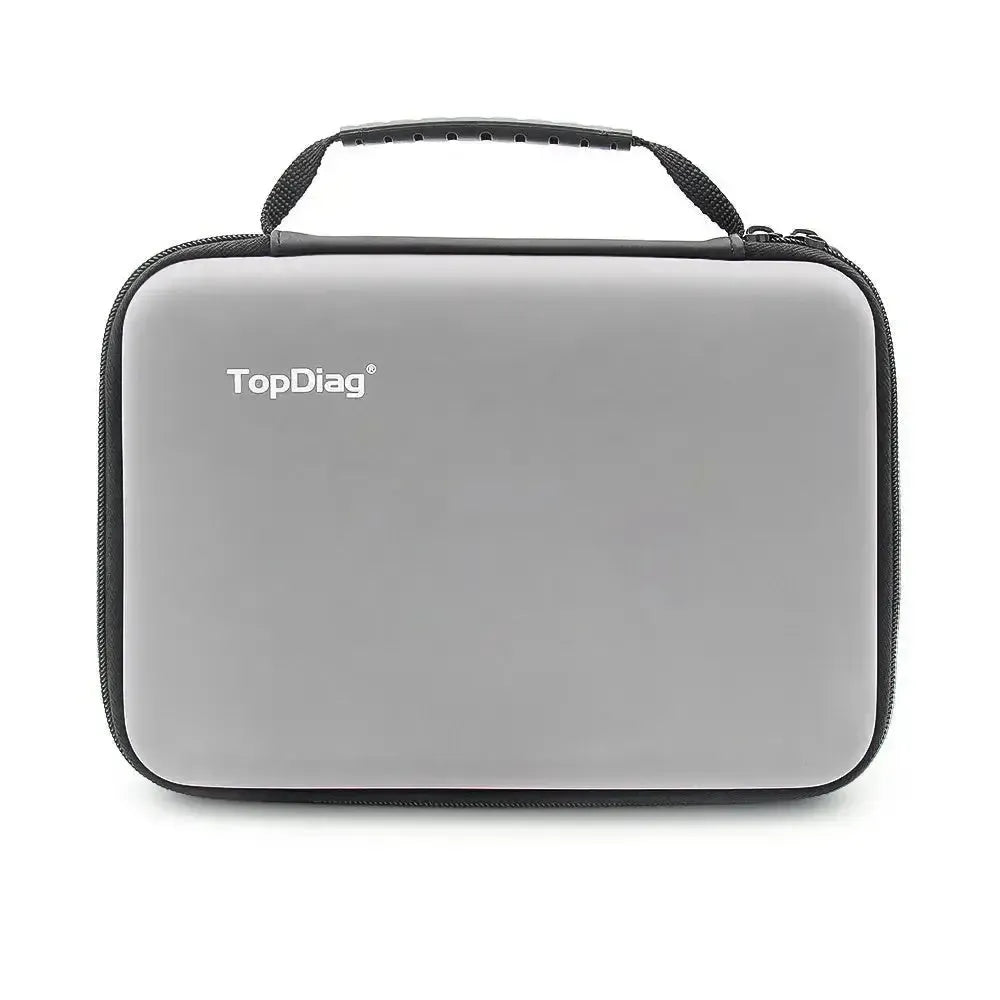

- 1x Storage case
Technical specifications:
| Specificatie | Omschrijving |
|---|---|
| Productmerk | TopDiag |
| Product Model | P100 |
| Screen | TFT Color Screen (240x320 dpi) |
| Operating Voltage | 6V to 30V DC |
| DC Measurement Range | 0V to 65V |
| Resistance Measurement Range | 0Ω to 200 KΩ |
| Frequency Range | 0Hz to 10 KHz |
| Overload Protection | 8A (thermal, self-resetting fuse) |
| Extension Cable Length | 10 meters |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
