The VT18316 Timing Set (4-piece) is a specific locking and adjustment tool for maintenance on the 1.2L PureTech GDI petrol engines from the PSA group (Citroën, Peugeot, Opel/Vauxhall, and DS). These direct-injection three-cylinder engines use a wet timing belt running in oil, making precise alignment of the camshafts and flywheel essential during replacement. The set locks the engine in the correct timing position so that timing tasks such as replacing the wet timing belt, the belt tensioner, or the associated oil pump drive can be performed correctly without valve timing deviation.

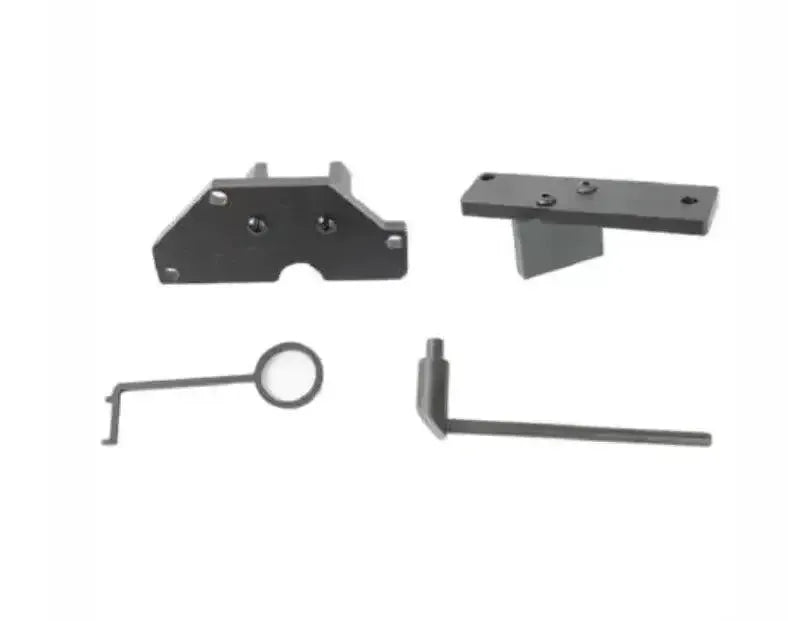

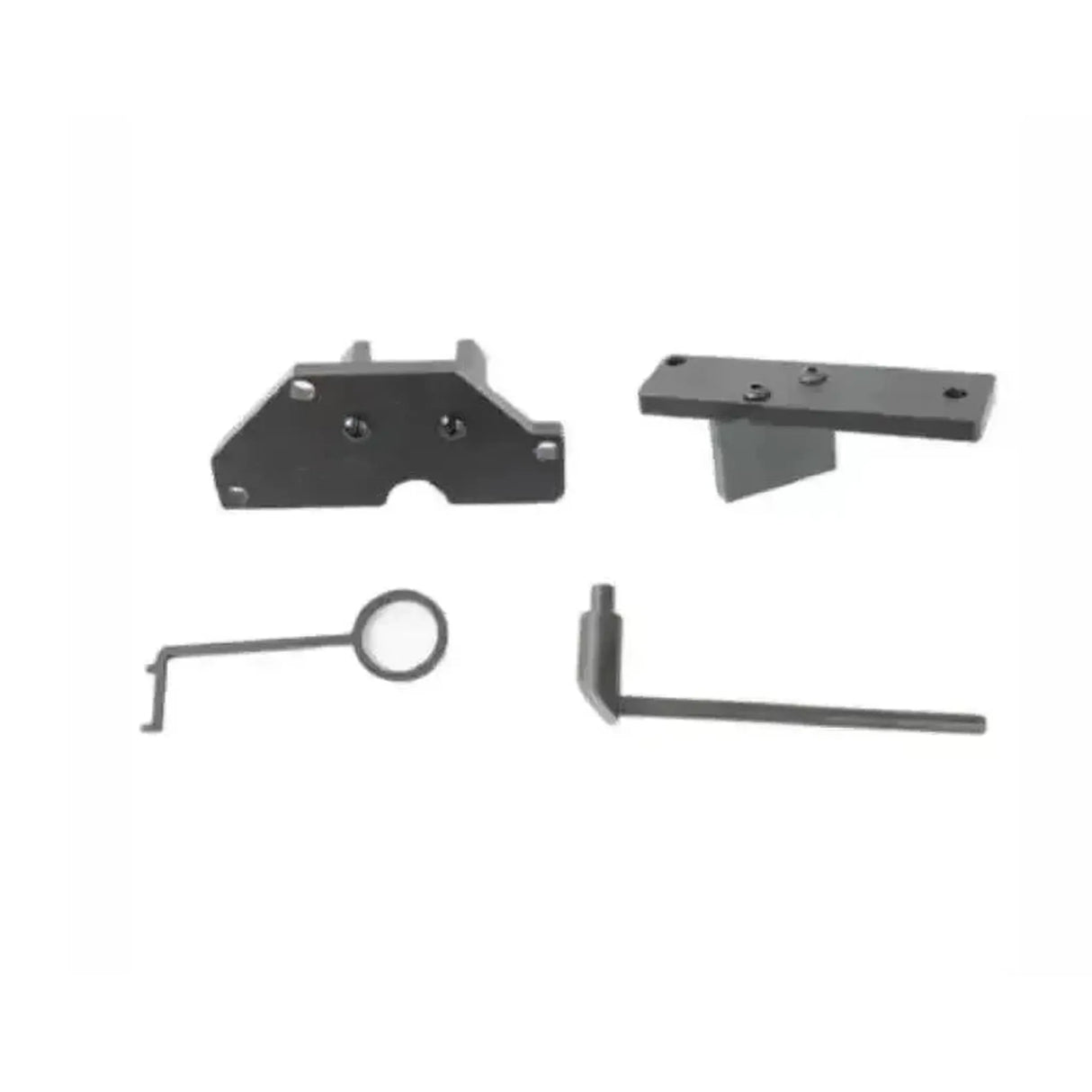

The set includes a locking tool for the intake camshaft and a separate locking tool for the exhaust camshaft, both mounted on top of the cylinder head to fix the camshafts in the reference position. A flywheel locking pin holds the crankshaft at the TDC point through the opening in the engine block. Additionally, an adjustment tool for the belt tensioner is included to set the correct pre-tension on the wet timing belt. All parts are supplied in a storage case for organized storage in the workshop.
KEY FEATURES
IMPORTANT NOTES
Applications and functionalities
With this set, the technician performs the complete timing lock on 1.2L PureTech engines with wet belt.
- Lock camshaft: Secures both intake and exhaust camshafts in the TDC position during removal of the timing cover and wet belt.
- Lock crankshaft: Holds the flywheel via the locking pin, allowing the crankshaft pulley to be safely unscrewed without turning the engine.
- Adjust belt tension: The adjustment tool sets the tensioner of the wet timing belt to the factory position for correct pre-tension.
- Check timing: Allows exact verification of timing in case of suspected belt jump or after engine overhaul.
- Replace wet timing belt: Essential for the preventive replacement of the oil-lubricated belt known for premature wear on PureTech engines.
Compatible vehicles and engine codes
This timing set is developed for the 1.2L three-cylinder PureTech gasoline engines with direct injection (GDI) from Stellantis (formerly PSA), used in passenger cars and light commercial vehicles from Citroën, Peugeot, Opel/Vauxhall, and DS Automobiles.
Citroën:
- C3 III: (2016–present)
- C3 Aircross: (2017–present)
- C4 Cactus: (2014–2020)
- C4 III / C4 X: (2020–present)
- Berlingo III: (2018–present)
- DS3 / DS3 Crossback: (2015–present)
Peugeot:
- 208 II: (2019–present)
- 2008 II: (2019–present)
- 308 II / III: (2013–present)
- 3008 II: (2016–present)
- 5008 II: (2017–present)
- Partner / Rifter: (2018–present)
Opel/Vauxhall:
- Corsa F: (2019–present)
- Crossland X / Crossland: (2017–present)
- Grandland X / Grandland: (2017–present)
- Mokka B: (2020–present)
- Combo E: (2018–present)
DS Automobiles:
- DS 3 Crossback: (2018–present)
- DS 4: (2021–present)
- DS 7 Crossback: (2017–present)
Engine codes:
- 1.2 PureTech (EB2 series): HMZ, HM01, HM05, HN01, HN02, HN05, HNP, HNS, HNV, HNY
Package Contents
- 1x Intake camshaft locking tool – OEM: 0109-2B, 0197-BZ, 0197-N, EN-52127-2
- 1x Exhaust camshaft locking tool – OEM: 0109-2C, J-0109-2C
- 1x Flywheel locking tool – OEM: 0109-2D, J-0109-2D
- 1x Adjustment tool for belt tensioner – OEM: G-0109-6, EN-52809

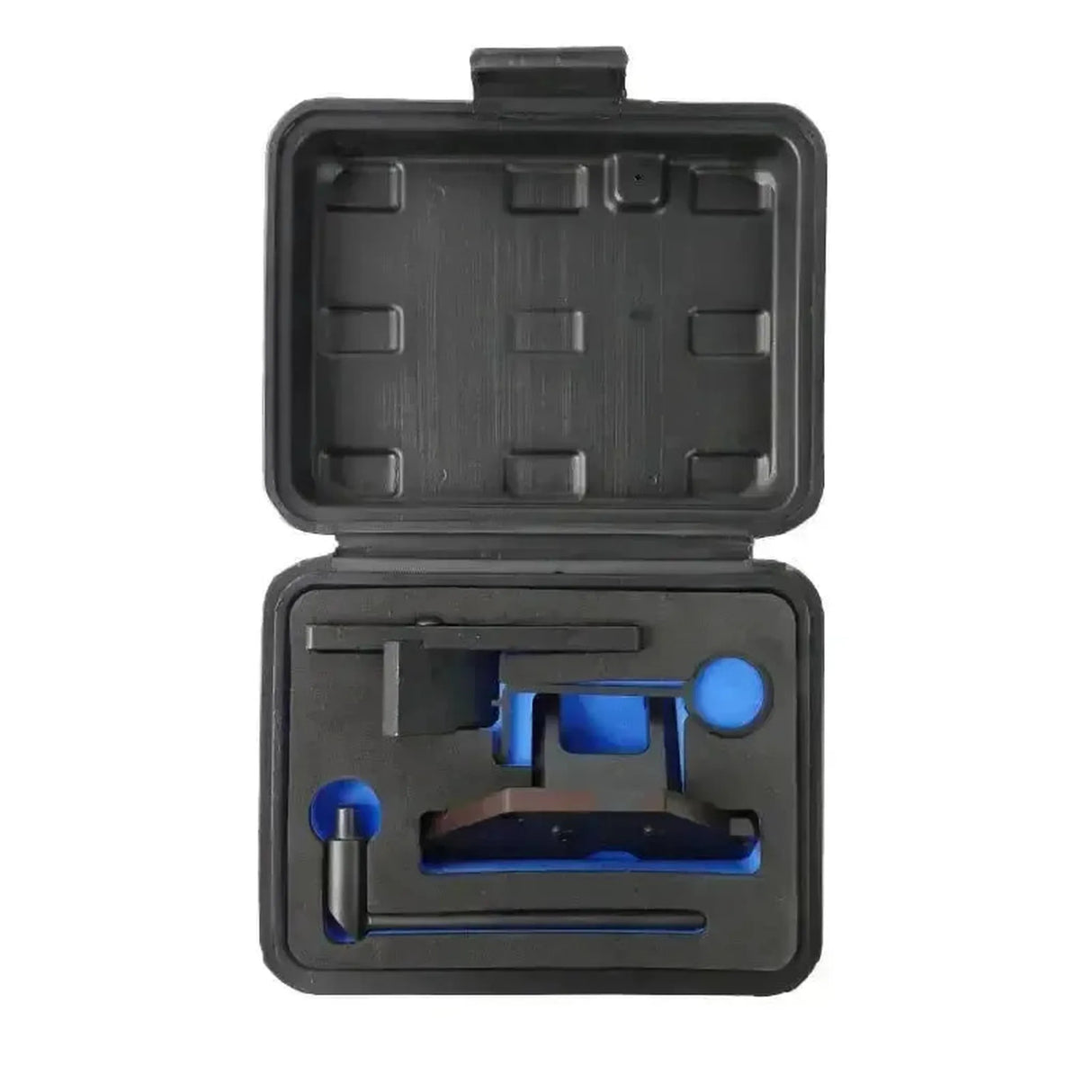

- 1x Storage case
Technical specifications
| Specification | Description |
|---|---|
| Product model | VT18316 |
| Product type | Timing set / locking tool for timing |
| Number of parts | 4-piece (excluding storage case) |
| Engine type | 1.2L PureTech GDI petrol (3-cylinder, wet timing belt) |
| Compatible vehicle brands | Citroën, Peugeot, Opel, Vauxhall, DS Automobiles |
| Compatible engine codes | HMZ, HM01, HM05, HN01, HN02, HN05, HNP, HNS, HNV, HNY |
| OEM references | 0109-2B, 0109-2C, 0109-2D, 0197-BZ, 0197-N, J-0109-2C, J-0109-2D, G-0109-6, EN-52127-2, EN-52809 |
| Delivery | In a plastic storage case with cutouts |
