VT01273C | VAG - 1.2/1.4/1.6L (FSI/TFSI) | Timingset (5-piece)

The timing set (VT01273C) is a collection of tools for adjusting and locking the camshaft and crankshaft on VAG 1.2, 1.4, and 1.6 liter FSI and TFSI gasoline engines. The set is used during timing chain replacement or other engine repairs requiring correct timing.

This 5-piece set includes a camshaft lock, a crankshaft locking pin, and a dial gauge for accurately determining top dead center (TDC). Additionally, a locking pin for the chain tensioner is included. The tools are necessary for maintaining correct engine timing and preventing engine damage.

Application and functionality:

This set is designed for performing maintenance on the timing of specific VAG gasoline engines with timing chains.

• Locking the camshaft: The tool with OEM T10171 A secures the camshafts in the correct position during timing chain replacement.
• Locking the crankshaft: The locking pin (OEM T10340) is used to lock the crankshaft at top dead center (TDC).
• Accurately determining TDC: The supplied dial gauge (OEM VAS 6079) allows precise determination of the TDC position of the first cylinder.
• Tensioning the chain: The universal locking pin (OEM T40011) is used to secure the chain tensioner in a retracted position.

Compatible vehicles and engine codes:

Suitable for various models of Audi, Seat, Skoda, and Volkswagen with 1.2, 1.4, and 1.6 liter FSI/TFSI engines.

Audi:

• A1: (2010–2015)
• A3: (2003–2013)

Seat:

• Altea: (2006–2015)
• Ibiza: (2008–2015)
• Leon: (2007–2012)
• Toledo: (2004–2009)

Skoda:

• Fabia II: (2007–2014)
• Octavia II: (2004–2013)
• Rapid: (2012–2015)
• Roomster: (2006–2015)
• Superb II: (2009–2015)
• Yeti: (2009–2015)

Volkswagen:

• Beetle: (2011–2015)
• Caddy: (2010–2015)
• Eos: (2006–2012)
• Golf: (2003–2013)
• Golf Plus: (2005–2012)
• Jetta: (2006–2011)
• Passat: (2005–2011)
• Polo: (2009–2014)
• Scirocco: (2008–2014)
• Sharan: (2010–2015)
• Tiguan: (2007–2015)
• Touran: (2003–2015)

Engine codes:

• 1.2 FSI/TFSI: AXU, BAG, BKG, BLF, BLN, BLP, BMY, BTS, BWK, CAXA, CAXC, CBZA, CBZB, CBZC
• 1.4 FSI/TSI: AXU, BKG, BLG, BLN, BLP, BMY, BUD, BWK, CAVA, CAVB, CAVC, CAVD, CAVE, CAVF, CAXA, CAXC, CDGA, CSMA
• 1.6 FSI: BAG, BLF, BLP, BTS

Package Contents:

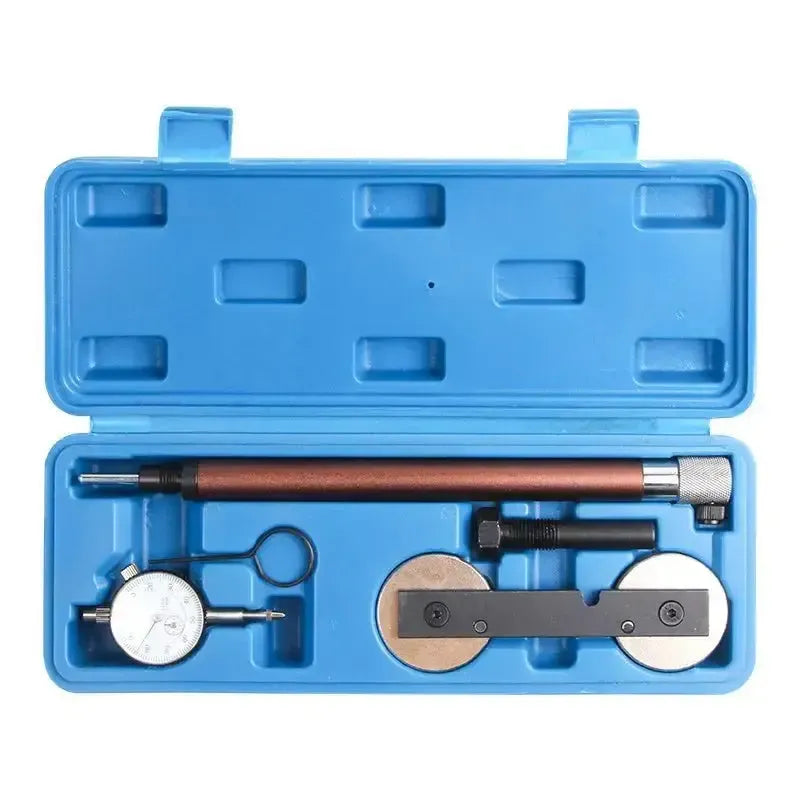

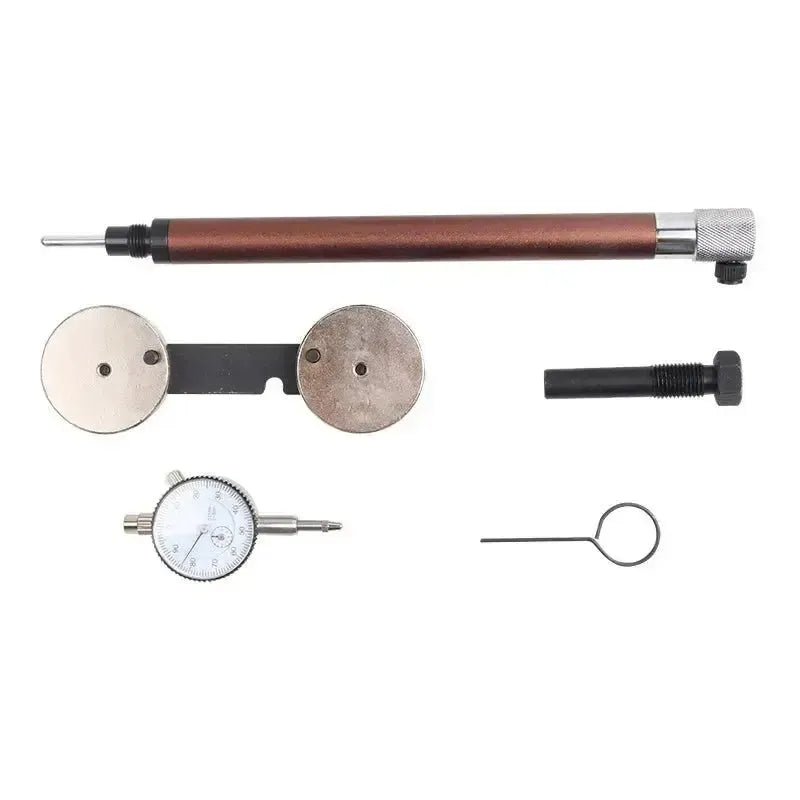

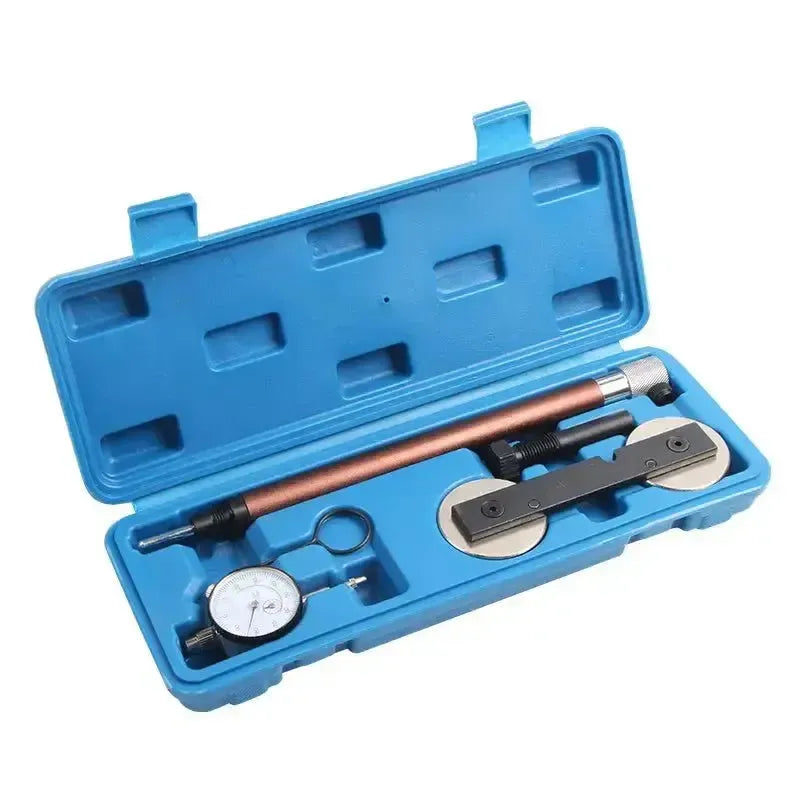

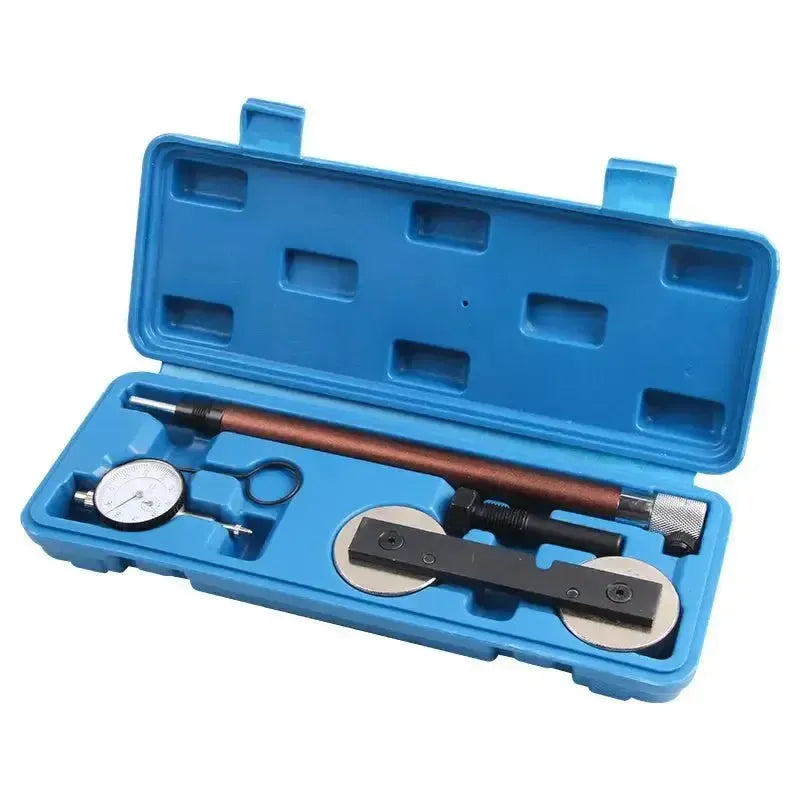

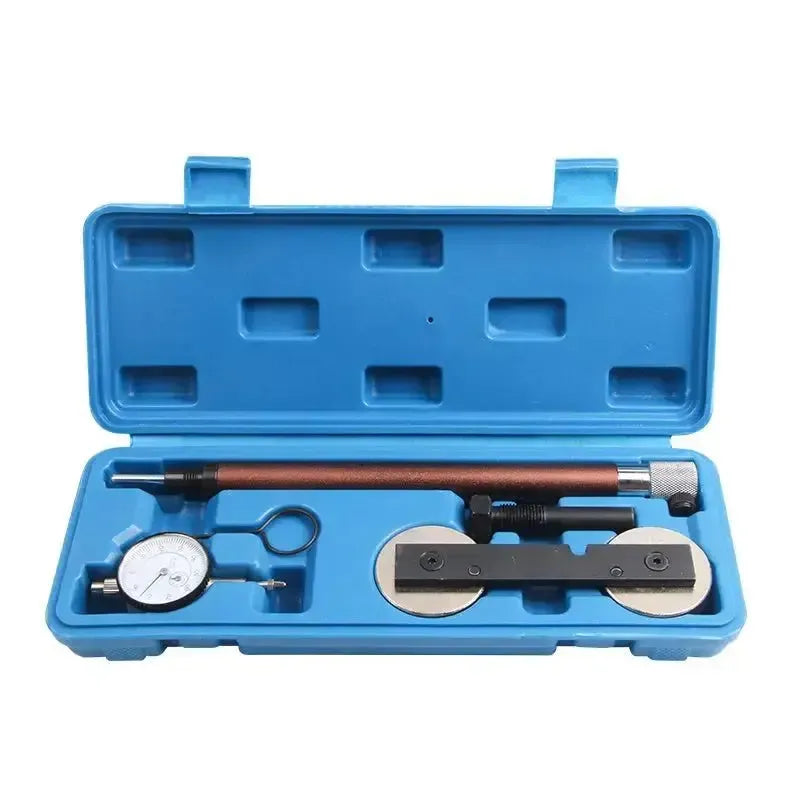

• 1x Locking tool for camshaft – OEM: T10171 A
• 1x Locking pin for crankshaft – OEM: T10340
• 1x Dial gauge – OEM: VAS 6079
• 1x Universal locking pin – OEM: T40011
• 1x Storage case
