Autool Stroboscope Lamp | Timing

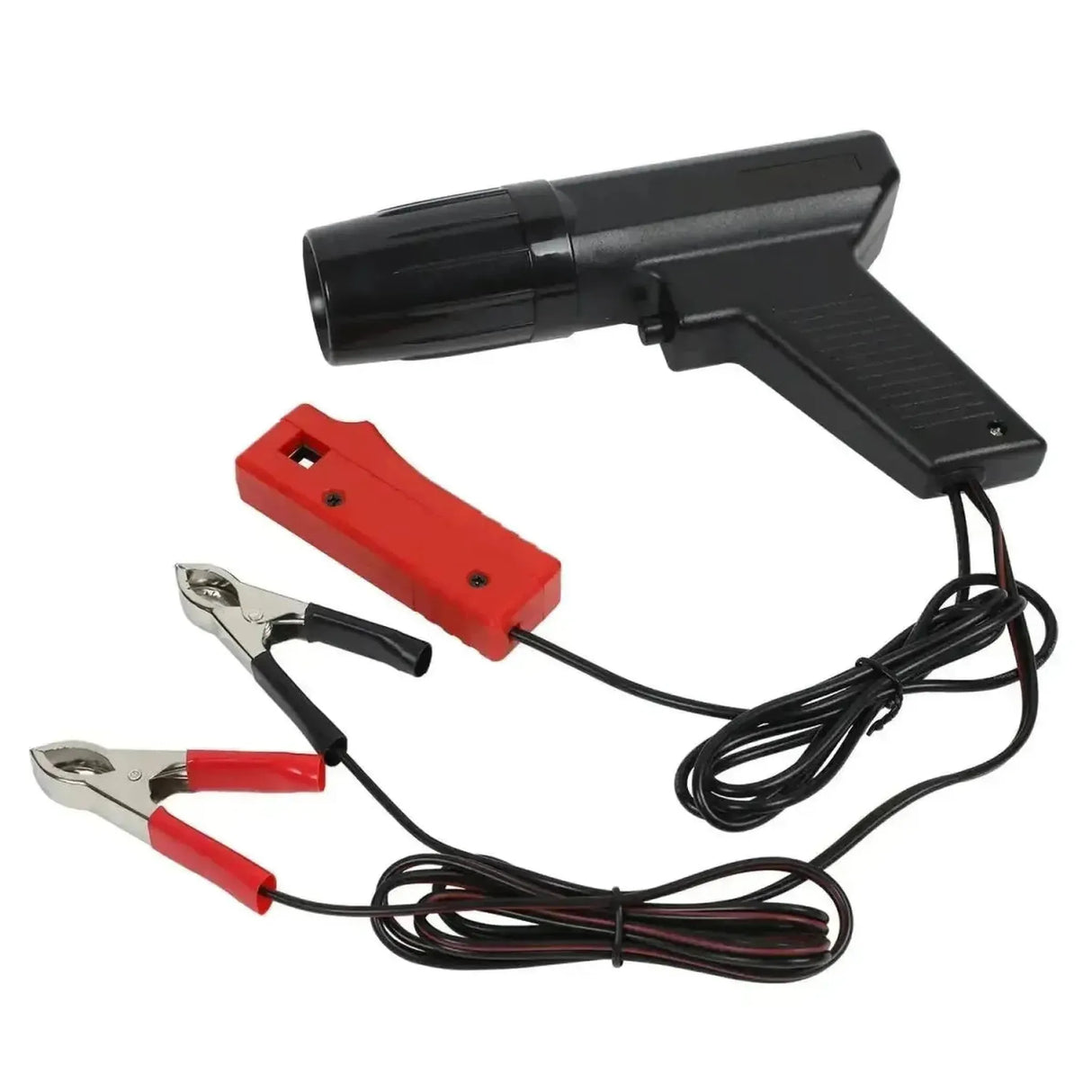

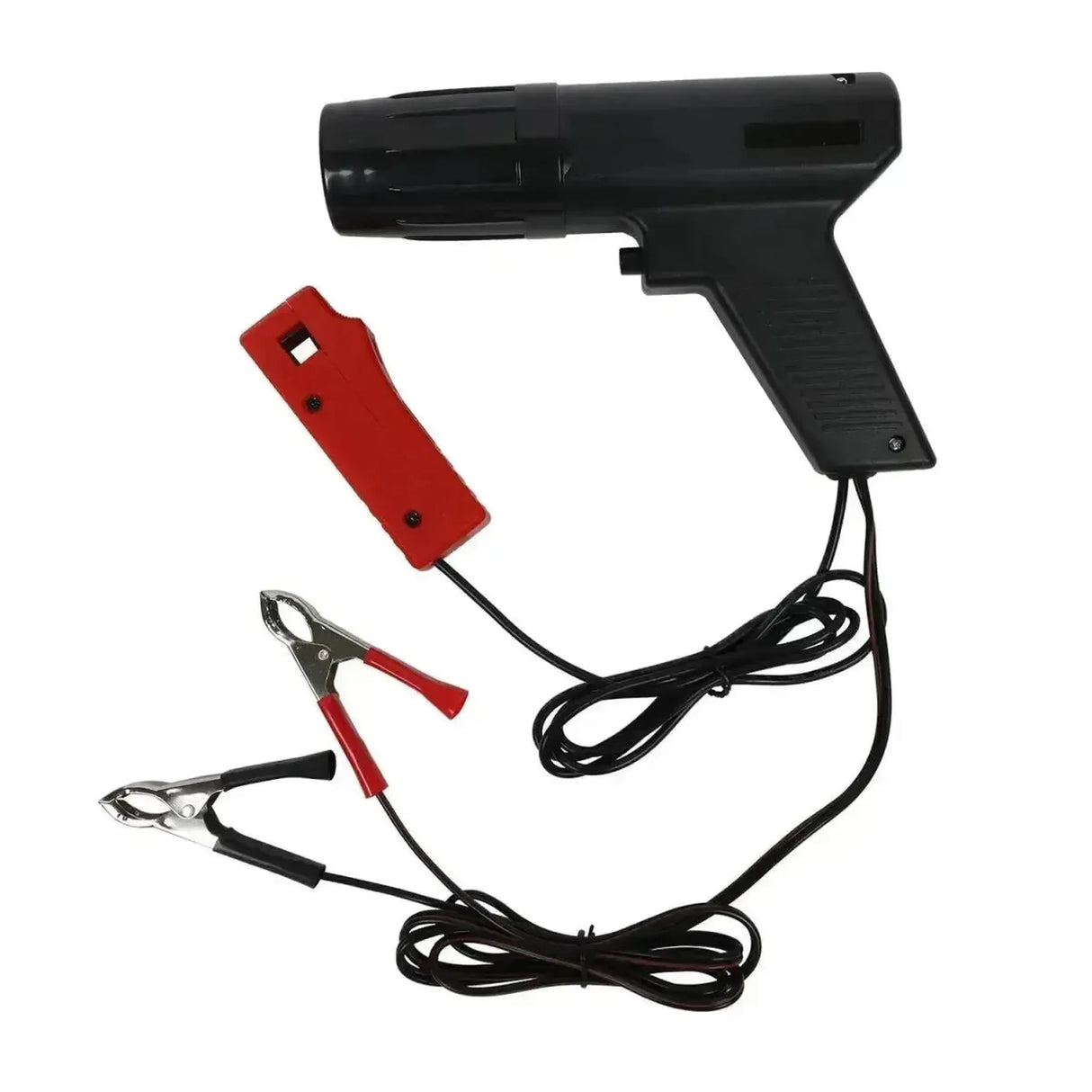

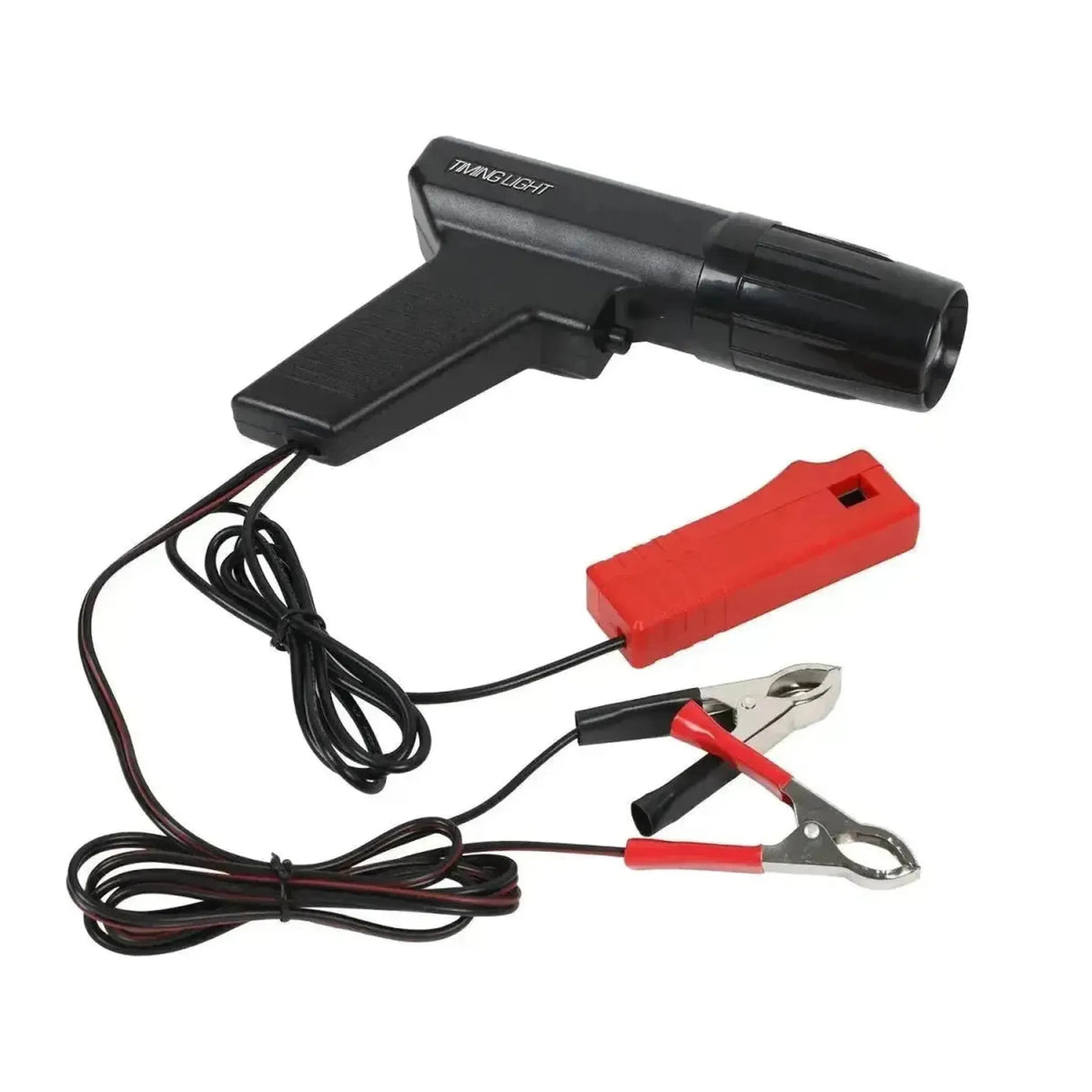

The Autool stroboscope lamp is a diagnostic tool designed for checking and adjusting the ignition timing of gasoline engines. This model operates on a 12 V power system and is compatible with most conventional and electronic ignition systems. The lamp is connected via battery clamps and an inductive sensor that clamps around the spark plug wire of the first cylinder.

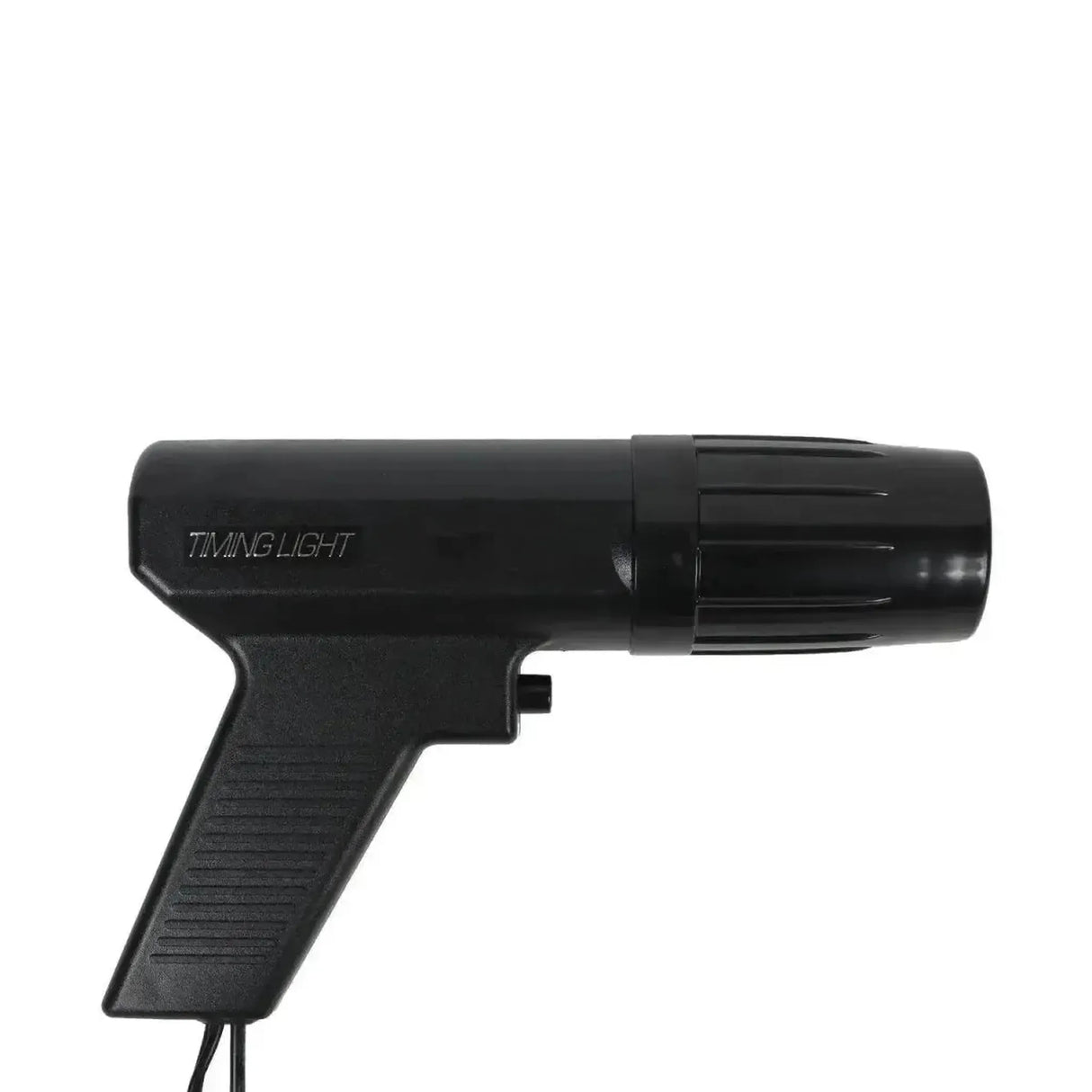

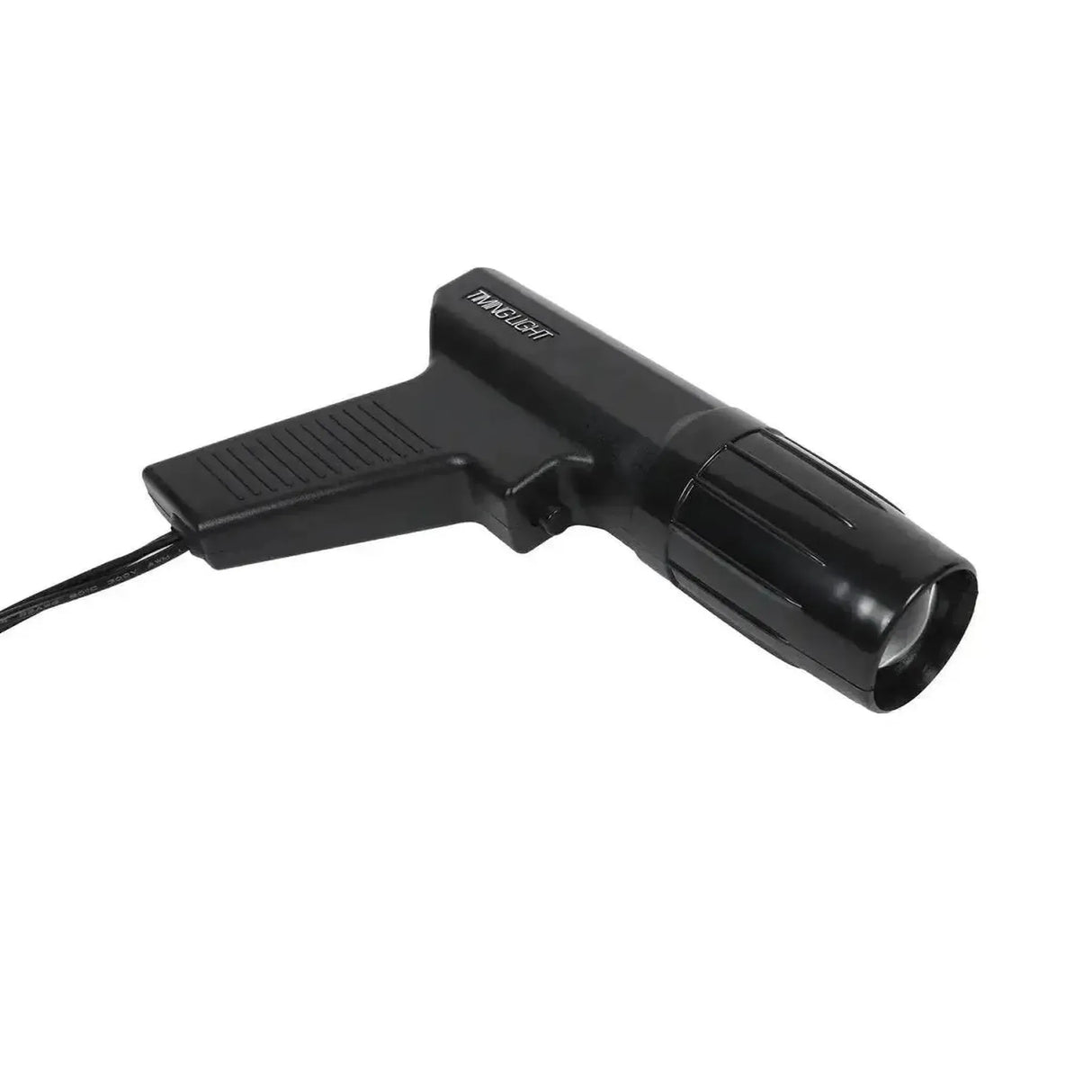

The lamp housing is made of ABS material, providing resistance to shocks and engine fluids. The device features a bright xenon lamp that produces a concentrated light beam to make the timing marks on the crankshaft pulley or flywheel clearly visible, even in daylight. The pistol grip design ensures stable operation during measurements.

Application and functionality:

The stroboscope lamp is used for performing measurements and adjustments on a vehicle's ignition system. Its functionality focuses on visualizing the ignition timing.

• Check ignition timing: The lamp flashes synchronized with the ignition of the first cylinder. This makes the rotating timing marks on the crankshaft pulley or flywheel appear stationary, allowing the ignition timing to be read and compared with the manufacturer's specifications.
• Adjust ignition timing: While the engine is running, the distributor can be adjusted. The lamp immediately shows the effect of the adjustment, enabling precise timing setting.
• Advance diagnosis: Checks the correct operation of the mechanical (centrifugal) and vacuum advance mechanisms by varying the engine speed and observing the movement of the timing marks.
• Easy connection: The red and black clamps are connected to the positive and negative terminals of the 12 V battery. The inductive sensor clamps around the spark plug wire of the first cylinder without needing to disconnect the wire.

Package Contents:

• 1x Autool stroboscope lamp with connection cables and inductive sensor

Technical specifications:
