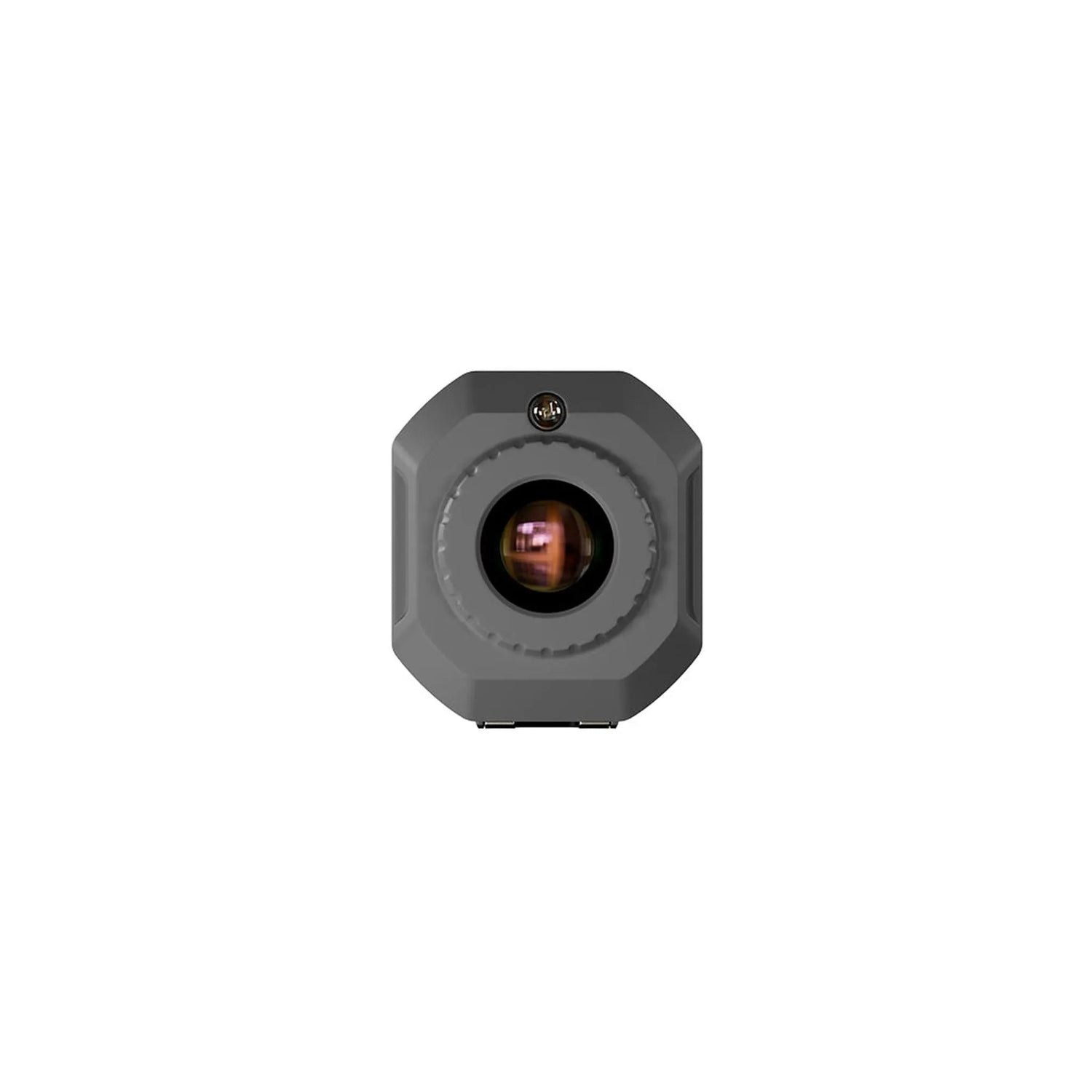

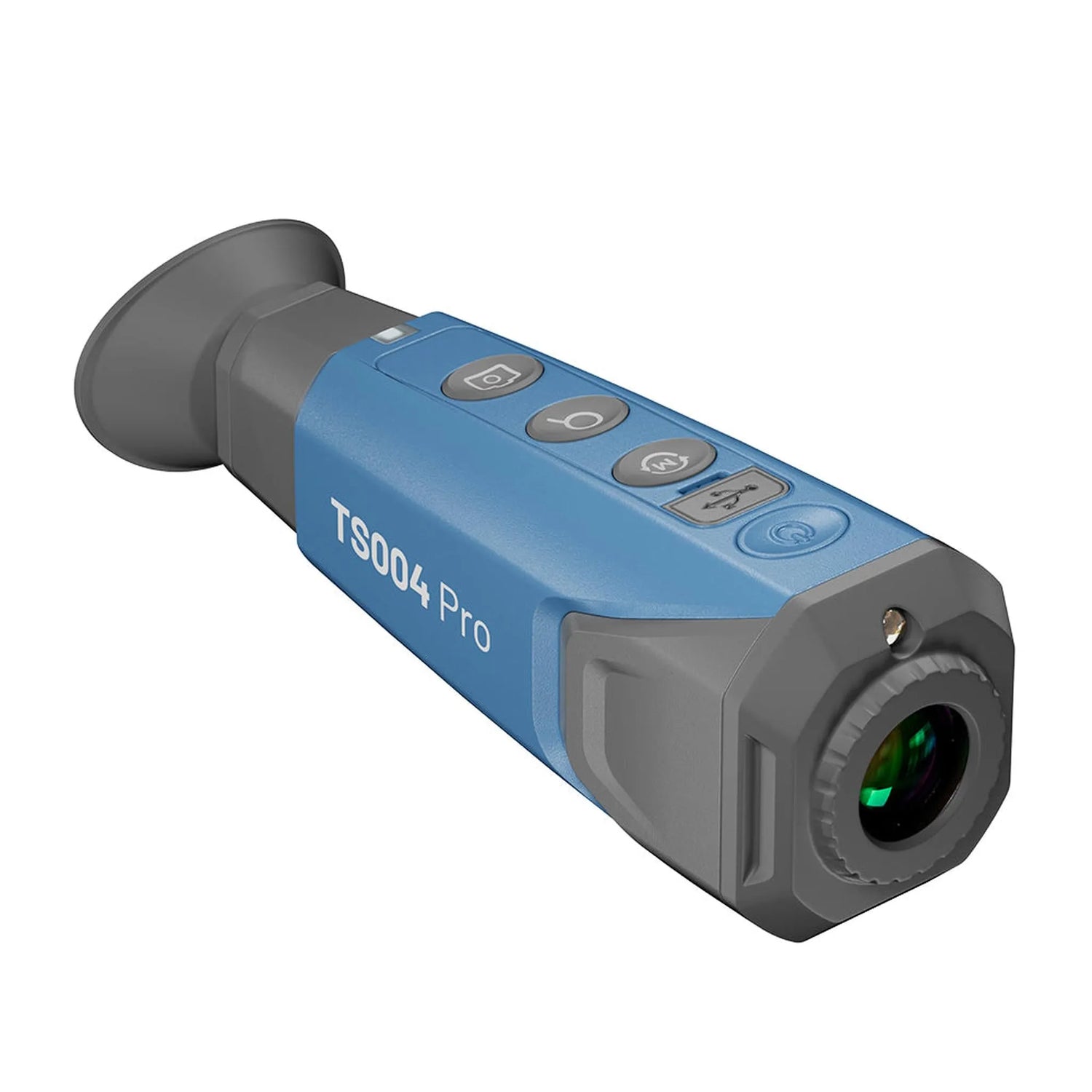

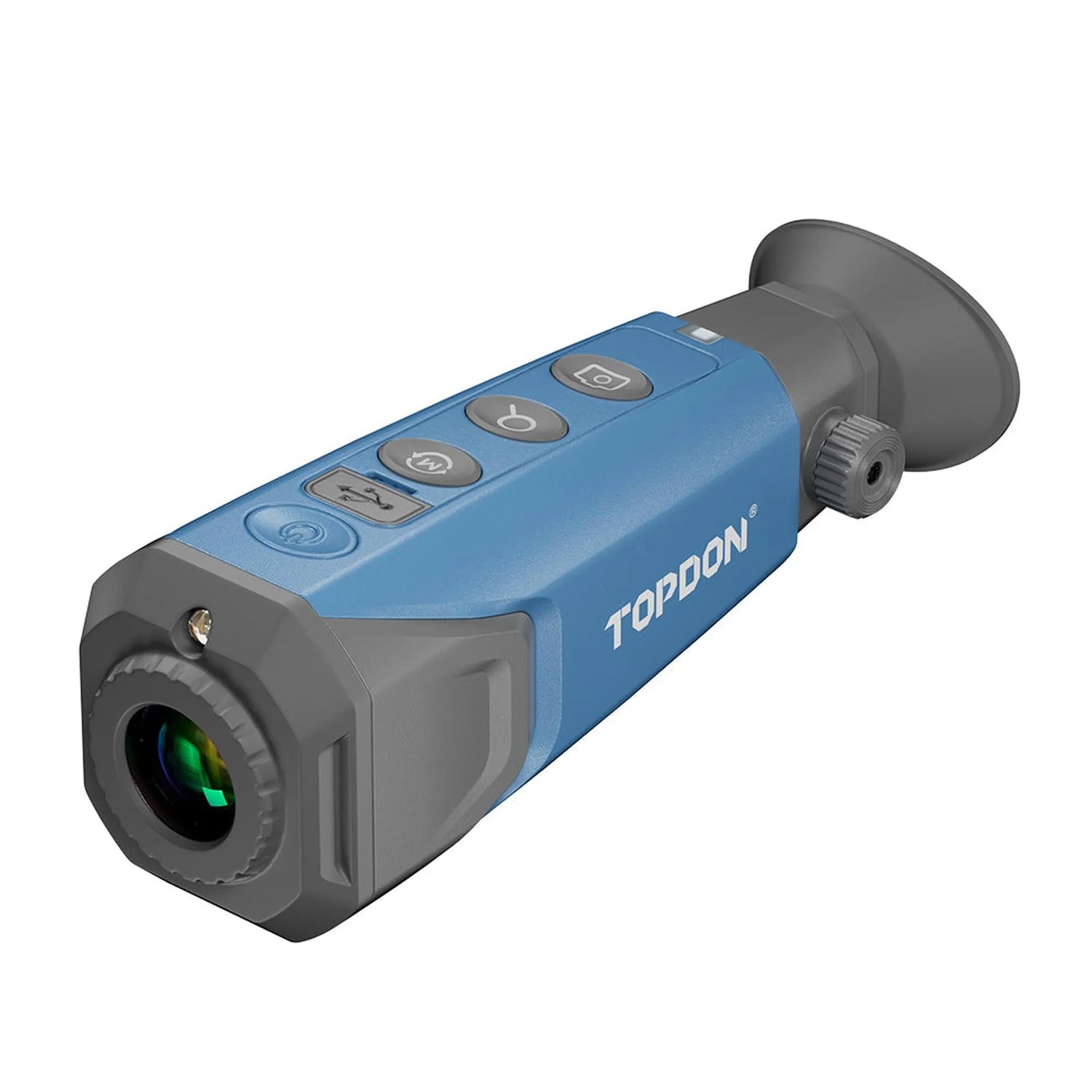

The Topdon TS004 Pro is a handy thermal monocular and thermal imaging camera, designed for long-distance detection and inspection under various conditions. The device features an uncooled vanadium oxide sensor with a thermal sensor resolution of 384 x 288 pixels and a frame rate of 50 Hz, resulting in smooth display of moving objects. The fixed lens with a focal length of 19 mm enables a detection range of up to 594 meters, allowing significant temperature differences to be observed at a distance.
For detailed image analysis, this system offers various display options, including five selectable color palettes and an adjustable digital zoom with steps from 1x to 8x. Images and video recordings are saved directly to the internal memory with a storage capacity of 32 GB. The camera is powered by a built-in rechargeable battery that lasts up to 10 hours, while the housing complies with the IP67 standard for resistance to dust and water.
ADVANTAGES
KEY POINTS
Applications and functionalities
The TS004 Pro is equipped with features that optimize the detection of heat sources in diverse environments. The camera allows the user to maintain visibility in complete darkness, smoke, or light fog.
- Color palettes: Five selectable display modes (White Hot, Black Hot, Red Hot, Bird, Fusion) for optimal contrast in various situations.
- Digital zoom: Electronic image magnification with factors 1x, 2x, 4x, and 8x for remote inspection.
- Connectivity: Wireless connection with the TopInfrared app for live viewing and file transfer.
- Storage management: Direct storage of thermal photos and videos on the integrated 32 GB memory.
Special features and capabilities
In addition to standard thermal imaging, this model has specific tools that increase usability in the field.
- Picture-in-Picture (PiP): Displays a digitally zoomed detail window over the full thermal image for simultaneous overview and detail.
- LED flashlight: Integrated light for visual orientation or inspection in dark spaces without thermal imaging.

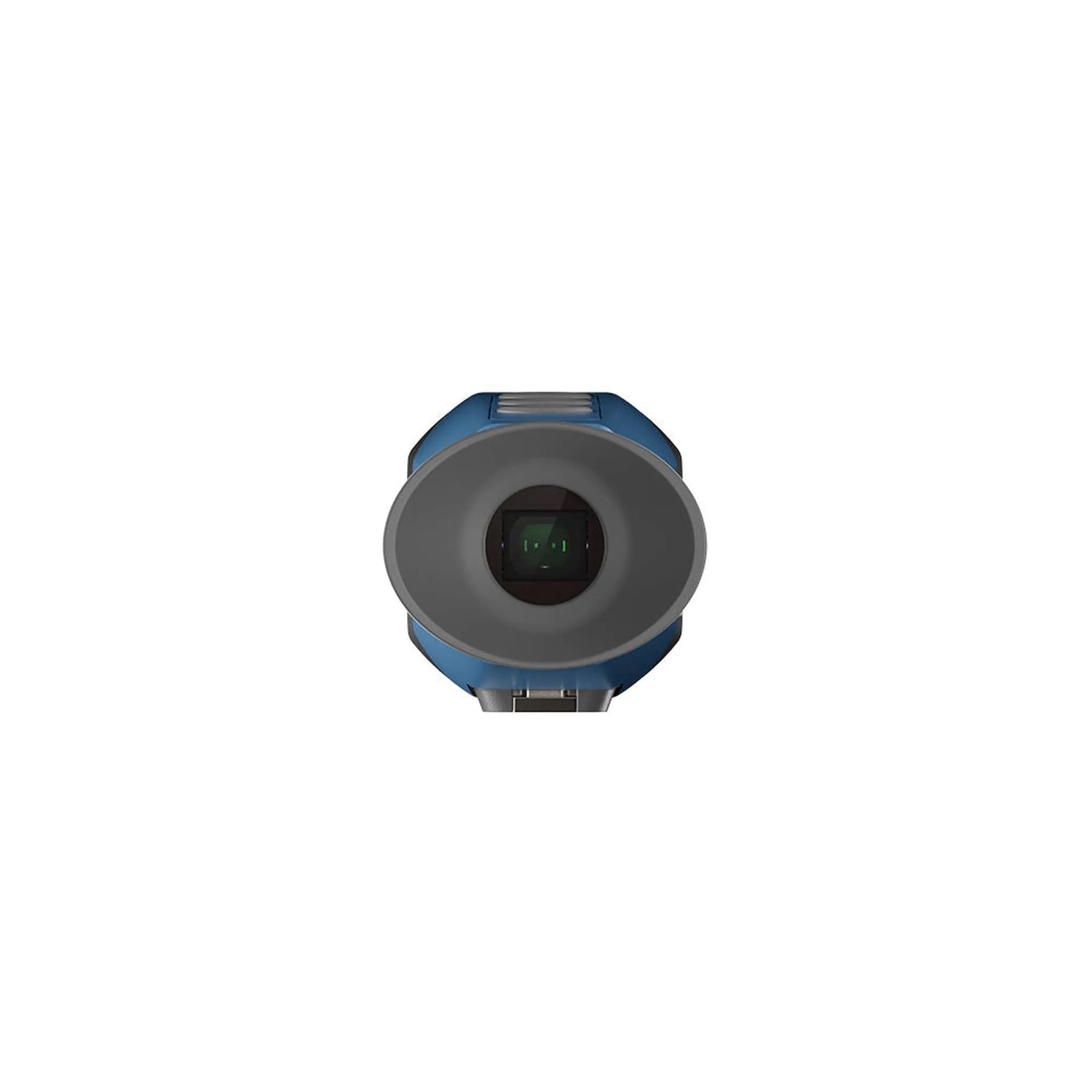

- Diopter adjustment: Knob at the eyepiece for sharpness correction based on the user's eyesight.
Application areas and inspection uses
Although primarily designed as an observation monocular, this instrument can be used for specific technical inspections where contactless detection of temperature differences is required.
- Vehicle inspection: Detection of dragging brakes, overheated wheel bearings, or axle problems after a test drive.
- Transport inspection: Checking for cold leaks in insulated walls of refrigerated trucks or trailers.
- Site surveillance: Observing unauthorized persons or vehicles on company premises in complete darkness.

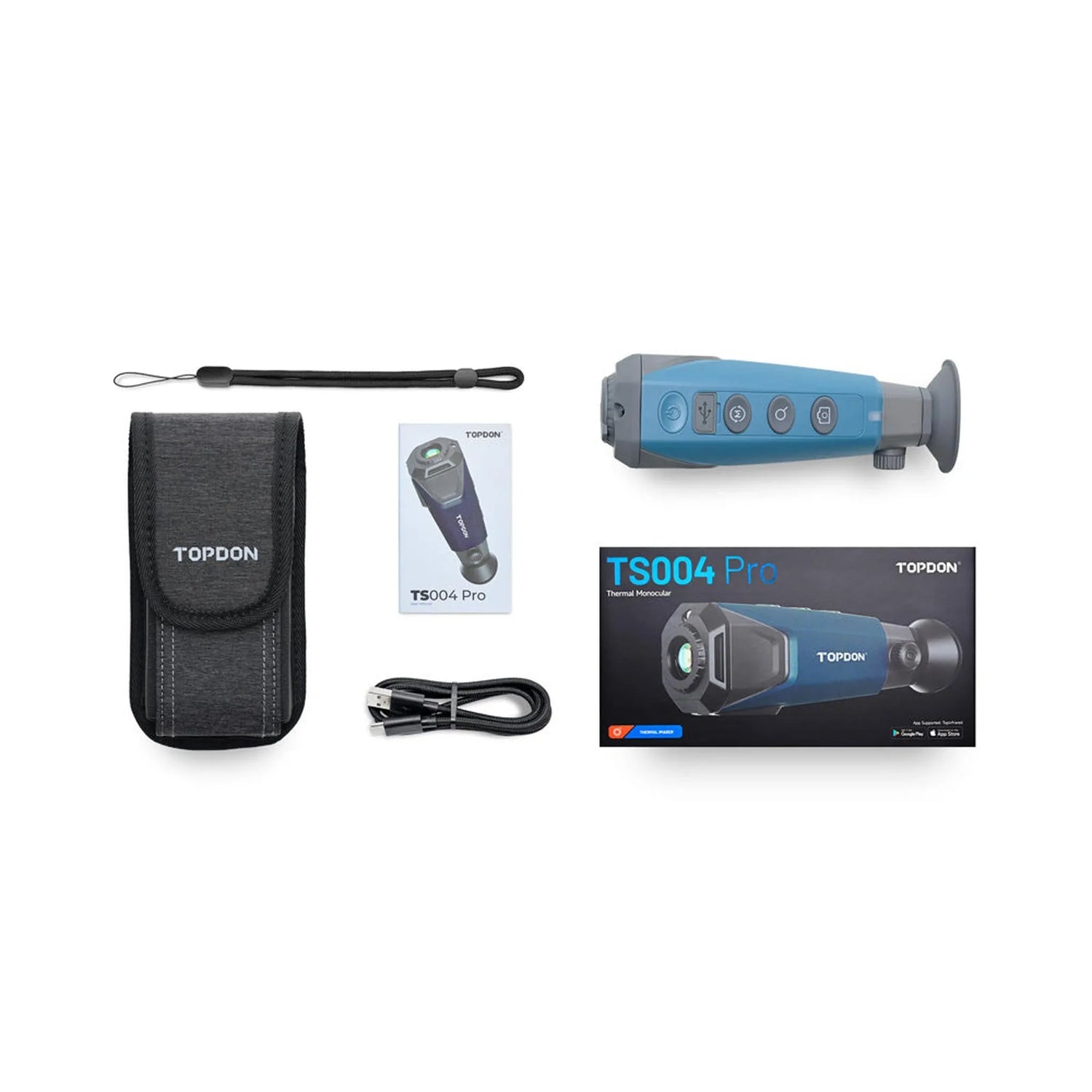

Package Contents
- 1x Topdon TS004 Pro Thermal Imaging Camera
- 1x USB-A to USB-C charging and data cable
- 1x Protective carrying case (EVA case)
- 1x Wrist strap
- 1x Manual
Technical specifications
General
- The manufacturer of the thermal imaging camera.Brand
- Topdon
- A standalone handheld camera, a camera that connects to your phone, or a monocular for viewing at distance. This determines how and where you use it.Type of camera
- Monocular
- The number of pixels in the thermal sensor. More pixels mean sharper detail of small hot spots.Thermal image resolution
- 384 x 288 pixels
- The smallest temperature difference the camera can detect. A lower figure means finer differences are visible.Thermal sensitivity (NETD)
- 40 mK
- The number of images the camera produces per second. A higher rate gives smoother images when moving.Frame rate
- 50 Hz
- How wide the camera's view is. A wide field of view suits close work, a narrow one suits viewing at distance.Field of view
- 10.4° x 7.9°
- The focal length of the lens. A longer focal length lets you view further away, but with a narrower image.Focal length
- 19 mm
- Whether the lens has a fixed focus or can be adjusted manually.Focusing
- Fixed focus
- How many colour displays you can choose, such as iron red or white hot. This lets you pick what works best.Number of colour palettes
- 5 palettes
- The maximum distance at which you can detect a warm object such as a person or animal.Detection range
- 594 m
Measurement and functions
- The camera warns you when a temperature exceeds or falls below a set limit.Temperature alarm
- No
- A built in light for viewing in dark areas.LED light
- Yes
- Software on your computer lets you review images later and analyse temperatures.PC analysis software
- Yes
Connectivity
- How much space is available for storing photos and videos.Storage
- 32 GB
Battery
- How long you can use the camera on a full battery.Operating time
- 10 hours
- How much energy the battery can store. A higher mAh figure usually means longer operation.Battery capacity
- 5,000 mAh
- You can swap a depleted battery for a charged one yourself, allowing you to keep working.Replaceable battery
- No
Dimensions and weight
- The length, width and height of the camera.Dimensions
- 180 x 64 x 54 mm
- How heavy the camera is. A lighter camera remains comfortable to hold over time.Weight
- 310 g
- How well the camera is protected against dust and water. A higher IP rating withstands heavier use.Protection rating
- IP67
- The ambient temperature range in which the camera operates properly, for example outdoors in winter.Operating temperature
- -10 to 45 °C
Other specifications
- Detection range
- Up to 594 meters (650 yards)
- Recognition range
- Up to 133 meters (146 yards)
- Digital zoom
- 1x, 2x, 4x, 8x
