Autool SDT206 | Smoke Tester
Regular price
€373,95 incl.
€309,05 excl.
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
The Autool SDT206 is a professional smoke leak detector designed to identify leaks in sealed vehicle systems. The smoke generation operates through controlled heating, with a built-in pump providing independent compressed air supply without requiring an external compressor. The unit delivers a constant operating pressure of up to 18 psi and air displacement up to 6 liters per minute. Power is drawn directly from the 12V vehicle battery using the supplied battery clamps. This type of leak detection is specifically engineered for low-pressure circuits, such as intake, exhaust, crankcase, and EVAP systems across various motor vehicles.
During the diagnostic procedure, the machine simplifies smoke injection with separate control buttons for air-only testing and smoke testing. The pressure regulation and actual flow rate can be precisely monitored via the built-in analog pressure gauge and rotary dial flowmeter, allowing the technician to fine-tune the supply to match the system capacity being tested. For leak visualization, the system fills sealed lines with dense smoke; when this smoke escapes, it immediately marks the location of a crack or poor connection. Practical operation is further enhanced by a transparent fluid sight glass and an integrated drain valve to safely remove excess or contaminated test fluid after the diagnostic process.
KEY BENEFITS
✔ Fully independent operation thanks to two integrated air pumps; no external shop air required.
✔ Lower fluid consumption and cleaner testing with the separate air and smoke modes.
✔ Precise control over smoke injection volume thanks to the adjustable flowmeter.
✔ Easy fluid management with the visible sight glass and drain valve.
IMPORTANT NOTES
✕ Not suitable for high-pressure circuits due to the maximum operating pressure of 18 psi.
✕Must be used near a power source due to the required 12V vehicle battery power supply.
✕Requires regular checking during intensive use due to the maximum fluid capacity of 20 ml.
✕Test fluid not included — The refill bottle is empty; baby oil or specialized smoke fluid must be purchased separately.
Application and Functionality
The Autool SDT206 is engineered with specific features to make the testing process efficient and controlled within professional diagnostic environments.
- Air Mode: Activates only the internal compressor to fill the sealed system with clean compressed air. This allows you to detect pressure drops using the pressure gauge first, without unnecessarily consuming smoke fluid or introducing contamination into the system.
- Smoke Mode: Engages the internal heating element. The fluid is converted into dense smoke that, driven by the pumps, flows into the test lines within ten seconds for visual detection of cracks and leaks.

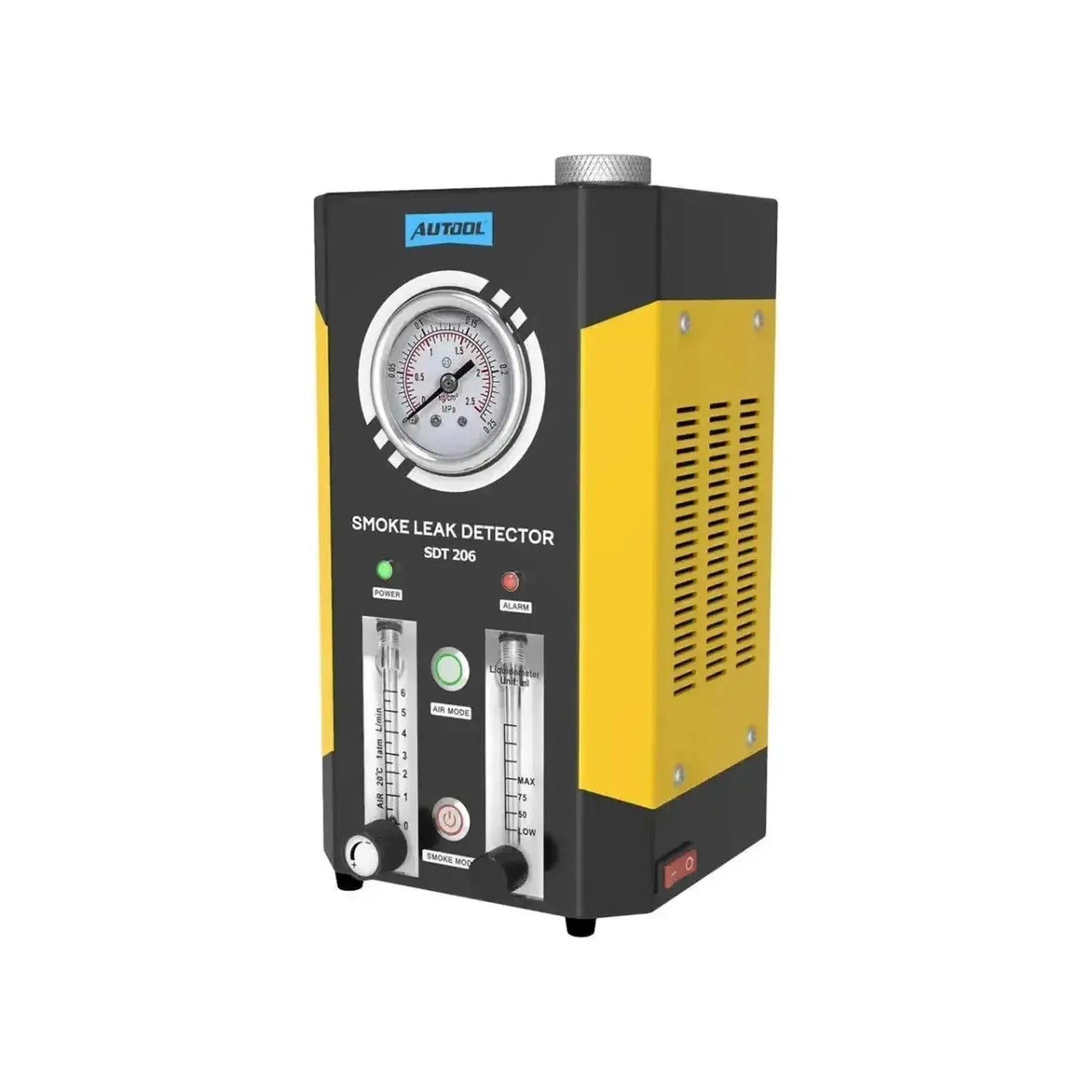

- Flow Control: The amount of air or smoke pumped into the system is infinitely adjustable via a mechanical dial knob. The flow meter with glass tube and indicator displays the throughput volume in liters per minute directly.
Special Features and Capabilities
To prevent damage to both the device and the vehicle, this smoke tester is equipped with various safety and monitoring mechanisms.

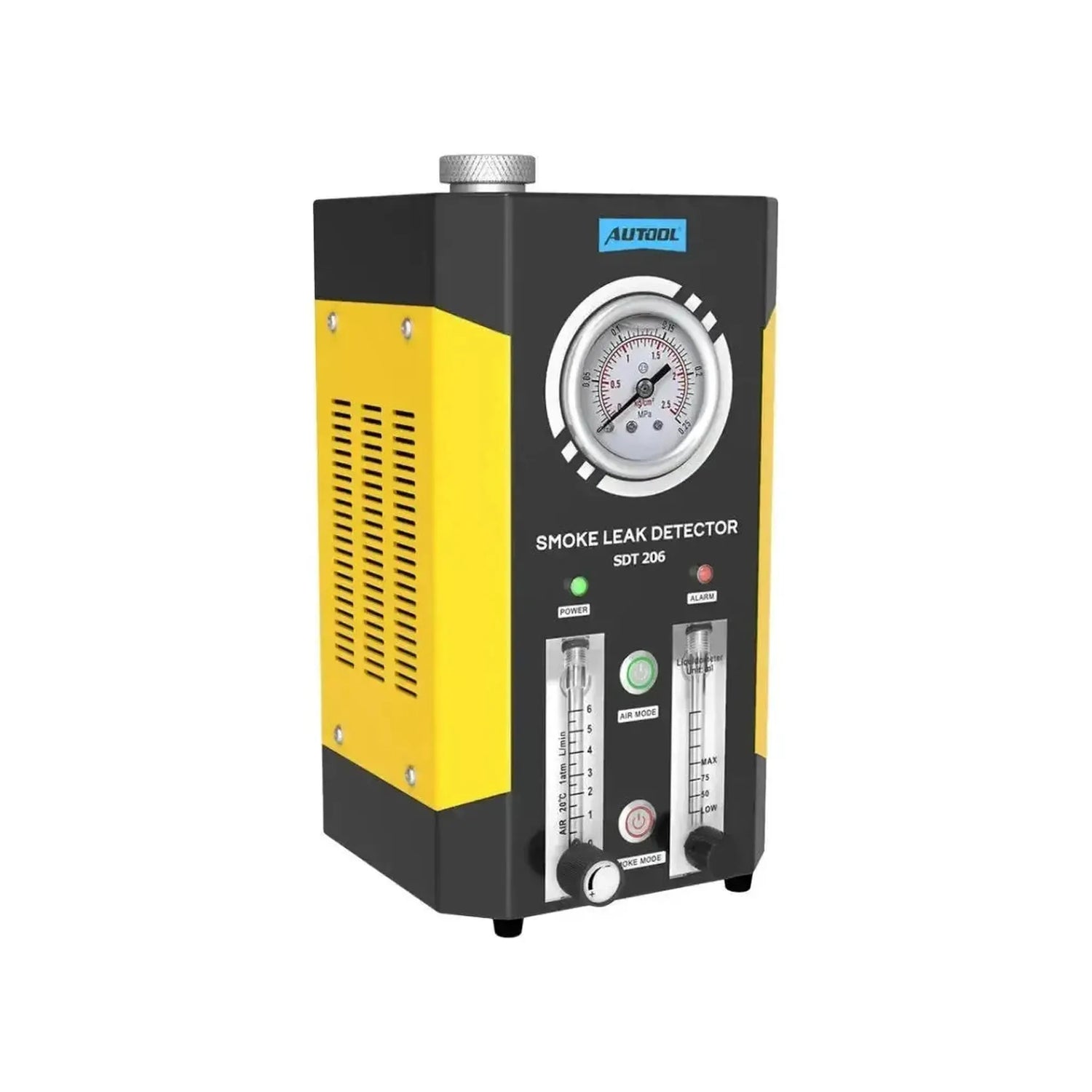

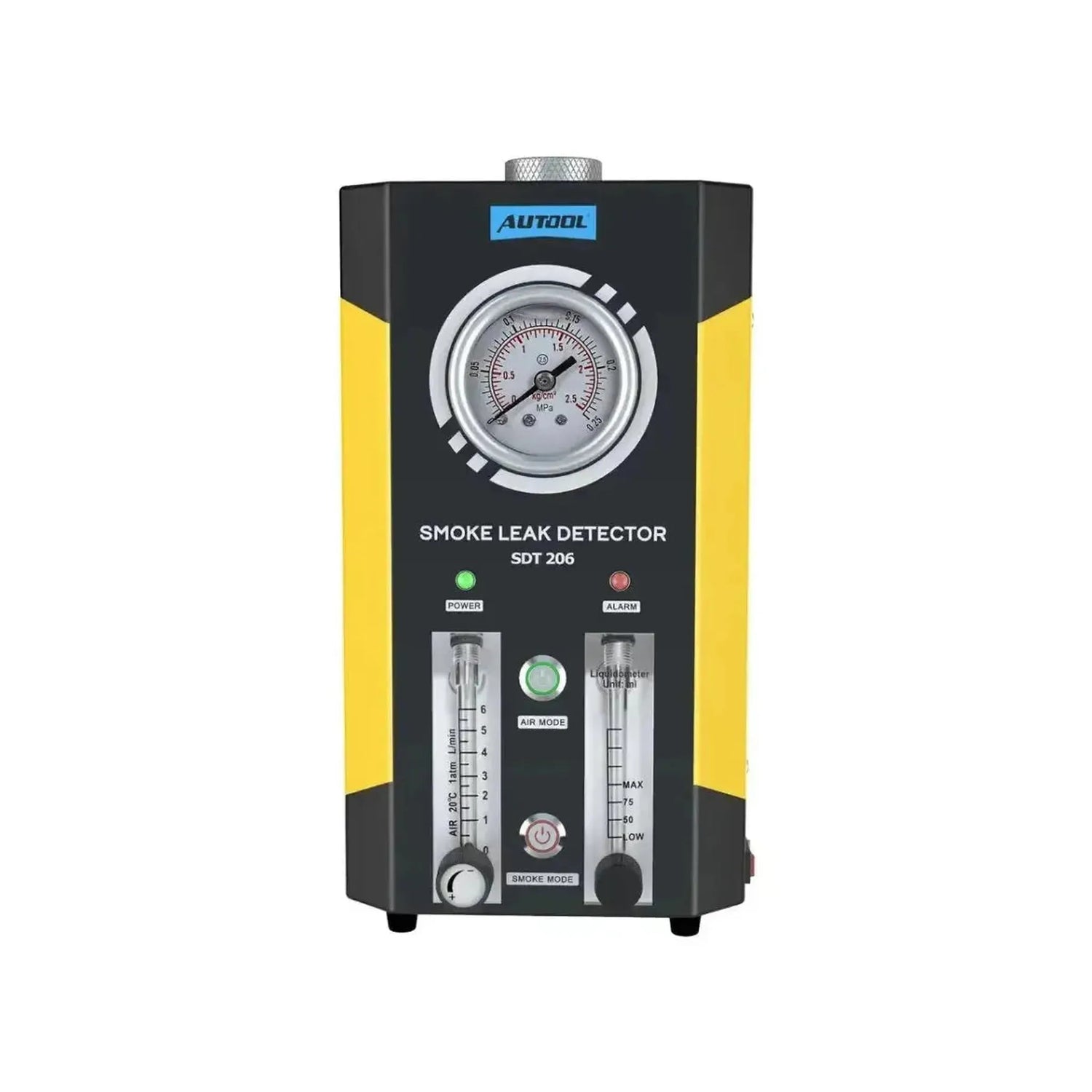

- Integrated Pressure Monitoring: The large analog pressure gauge on the front panel allows you to pressurize the test circuit. If the gauge drops back when pumping stops, this indicates pressure loss. This way, even micro-leaks that are not visually apparent can be detected.
- Thermal Protection: The device is equipped with a built-in temperature sensor. Once the heating element reaches its operating limit due to intensive use, the red alarm indicator lights up and power to the element is paused to prevent dry running or overheating.
- Transparent Fluid Management: On the front is a fluid level indicator that displays the current contents between minimum and maximum. Via a valve on the underside, unused or aged test oil can be easily drained after a test run.
Compatible Vehicles and Systems
Thanks to the wide operating pressure range and included adapter fittings, the smoke machine is suitable for many different low-pressure diagnostic applications.
- System Type: EVAP fuel vapor recovery systems, crankcase ventilation, intake manifolds, exhaust systems, turbo circuits, cooling systems, and interior seals on doors and windows.
- Vehicle Category: Passenger cars, light commercial vehicles, motorcycles, ATVs, snowmobiles, and boats with a 12V electrical system.
- Diagnostic Application: Detecting cracked vacuum lines, worn gaskets, leaking EGR valves, damaged intercoolers, and missing seals.
Package Contents
- 1x Autool SDT206 smoke tester
- 1x Power cable with battery clamps
- 1x Smoke hose with velcro strap
- 1x Standard cone adapter
- 1x Universal inflatable adapter
- 1x EVAP-specific adapter
- 1x Set of sealing caps in various sizes
- 1x Valve core tool
- 1x Empty refill bottle for test oil
- 1x Hanging hook
- 1x User manual
💡

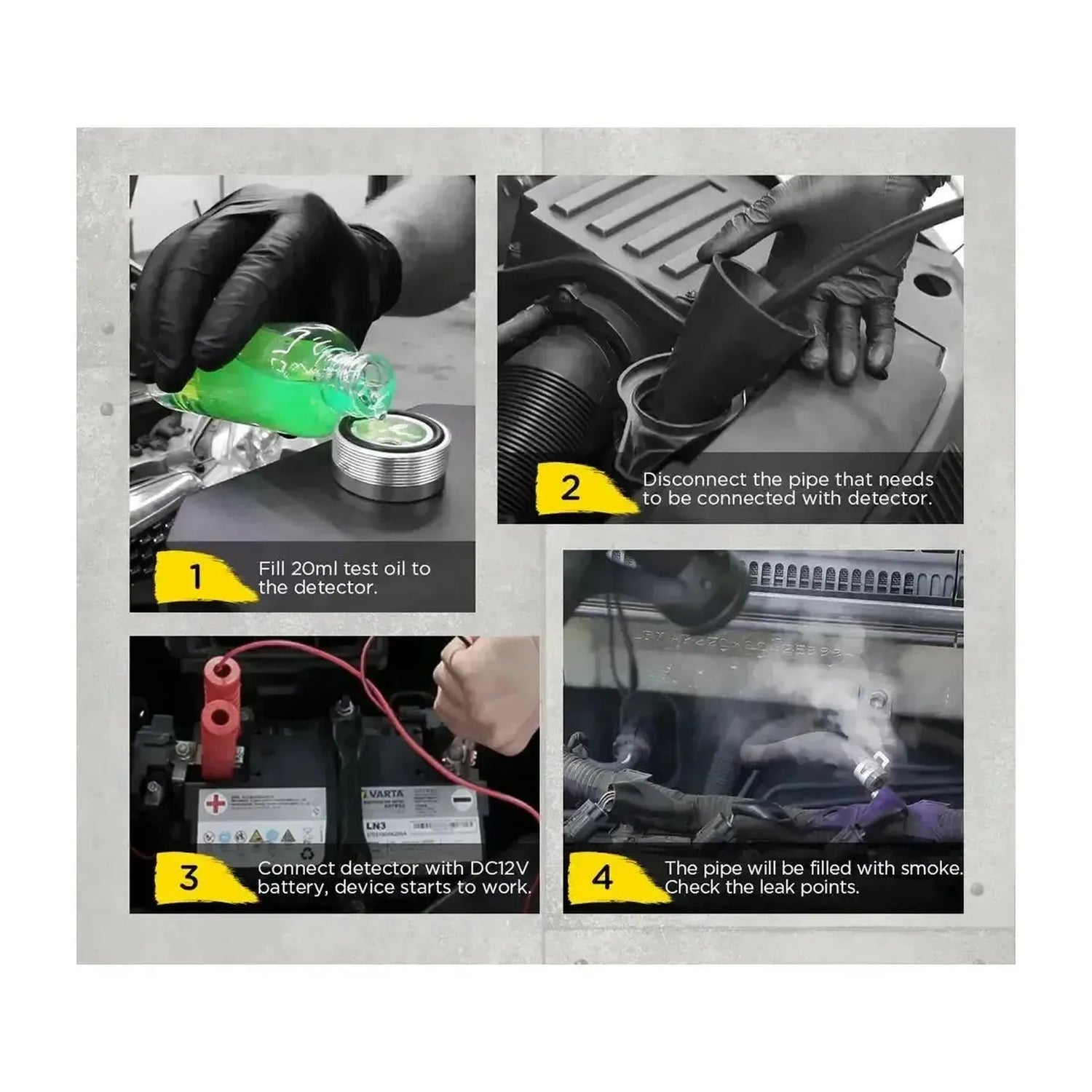

Good to know: Always fill a maximum of 20 ml baby oil or dedicated smoke fluid, as excess will block the internal airflow. Additionally, start every diagnostic in air mode: if the pressure gauge shows no pressure drop, there's no leak and you'll save fluid and time. After use, drain the remaining test oil through the valve at the bottom.
Technical specifications
General
- The manufacturer of the product.Brand
- Autool
- Whether this is a complete smoke tester or an accessory, such as a sealing kit for a smoke tester.Product type
- Smoke tester
- The types of vehicles the tester can be used on.Vehicle types
- Cars
- Light commercial vehicles
- Motorcycles
- The vehicle systems in which leaks can be detected. More systems means broader use of the tester.Systems that can be tested
- EVAP system
- Intake system
- Exhaust system
- EGR system
- Turbo system
- Cooling system
- Crankcase ventilation
- Body seals
Smoke and air
- The highest pressure at which the tester blows smoke or air into the system. Low pressure is safe for sensitive systems such as EVAP.Maximum working pressure
- 18 psi
- How much smoke or air the tester produces per minute. Higher output fills large systems more quickly.Maximum smoke output
- 6 l/min
- How much test oil is added to the tester at once. More oil means longer testing without refilling.Oil capacity per session
- 20 ml
- Whether the tester generates its own air, removing the need for a separate compressed air connection.Built-in compressor
- Yes
- Whether you can choose between testing with smoke and testing with air only, for example for a pressure test.Separate smoke and air mode
- Yes
- Whether a dial and flow meter let you adjust the amount of smoke or air released.Adjustable flow
- Yes
- Whether a pressure gauge is fitted. This shows if pressure drops, which indicates a leak.Pressure gauge
- Yes
- Whether a window lets you see how much test oil remains.Sight glass for oil level
- Yes
Power supply and protection
- The battery voltage on which the tester operates. With 24 V, testing on lorries is also possible.Supply voltage
- 12 V
- How much current the tester uses while operating.Power consumption
- 70 W
- Whether the tester switches off automatically when it becomes too hot, preventing damage.Overheating protection
- Yes
Dimensions and weight
- The length, width and height of the device. Useful for checking whether it fits your workshop or case.Dimensions
- 275 x 150 x 150 mm
- The weight of the package including box and accessories.Weight including packaging
- 5.5 kg
Other specifications
- Operating pressure
- Less than 18 psi, approximately 1.2 bar
- Air supply
- Integrated air pump
- Smoke generation
- Heating with limited oxygen supply
- Monitoring
- Analog pressure gauge, flow meter, sight glass and thermal protection
- Air pumps
- Two integrated pumps
- Smoke buildup
- Within ten seconds
