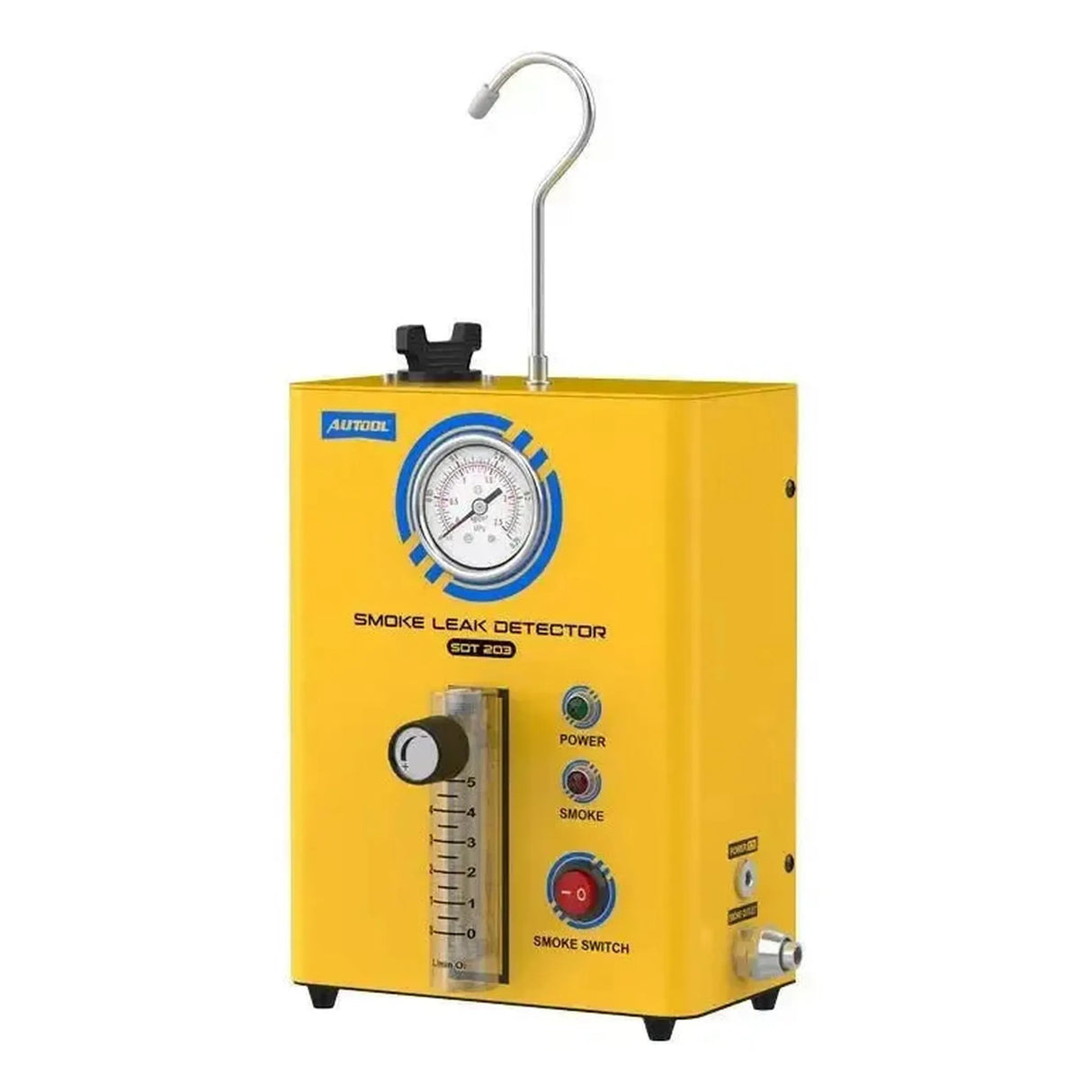

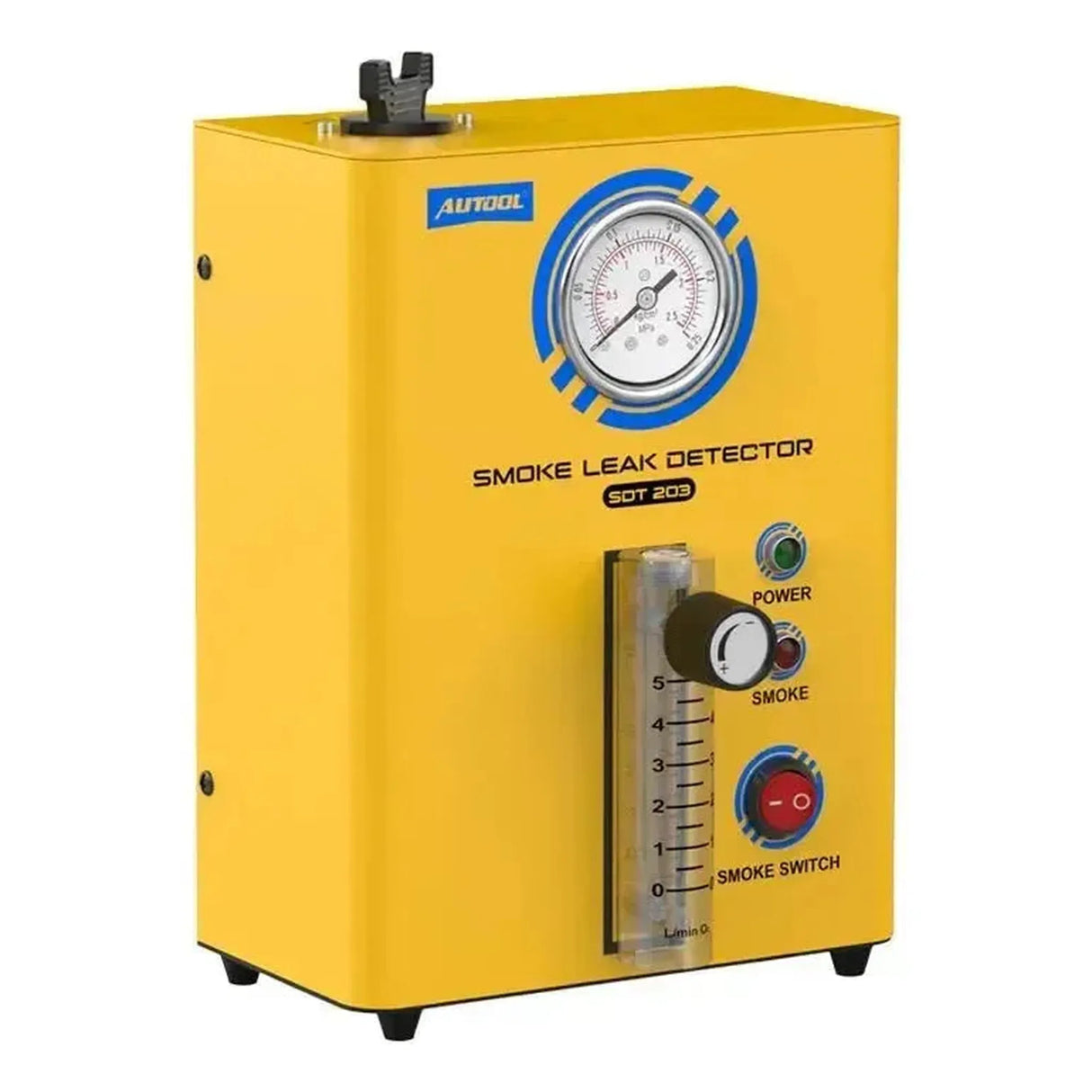

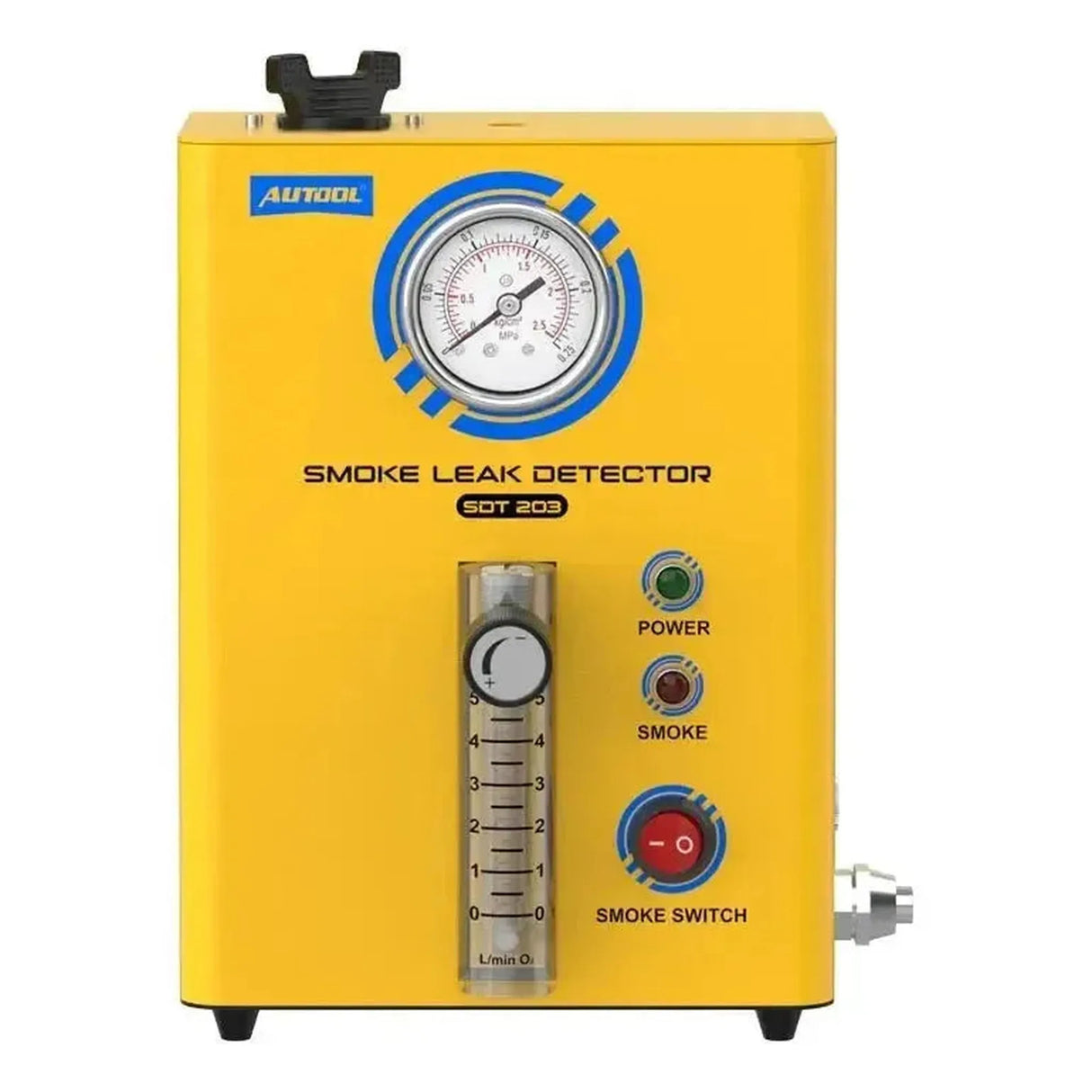

The Autool SDT203 is a smoke tester designed to detect leaks in sealed vehicle systems. The smoke generation operates on the principle of oxygen-depleted combustion of test oil, with the airflow driven by an integrated internal pump. The device delivers a maximum working pressure of 15 psi and comes with power supply supplied via a direct connection to a 12V DC power source, such as the vehicle battery. This method of leak detection is versatile and used for inspecting intake manifolds, exhaust systems, crankcase ventilation and fuel tanks.
During a diagnostic procedure, the smoke injection as soon as the device is connected to the circuit being tested using the supplied cone or inflatable adapters. The technician has control over the pressure control and the smoke density via the continuously adjustable flow meter on the front panel. An integrated analog pressure gauge displays the system pressure directly, making it possible to detect a pressure drop before the smoke supply begins. The final smoke visualization is created when the introduced smoke escapes through microscopic cracks, faulty seals or loose hoses, allowing you to quickly pinpoint the exact location of the vacuum or pressure leak.
KEY FEATURES
KEY FEATURES
Applications and Functionality
The smoke tester supports a wide range of leak detection procedures for inspecting closed circuit systems, engine components, and vacuum systems.
- Intake system test: Detect leaks and false air in the intake tract, including throttle bodies, intercoolers, and intake manifolds, to diagnose mixture problems and rough idle.
- Exhaust system test: Identify cracks, failed welds, or leaking flange gaskets in the exhaust system, which is critical for proper operation and oxygen sensor readings.
- Crankcase pressure test: Check the engine block and crankcase ventilation system for pressure loss along oil seals and valve cover gaskets.
- EVAP system test: Inspect the fuel vapor recovery system for fuel tank and line leaks using smoke, helping locate emission-related fault codes.
- Cooling system test: Find hairline cracks and poor seals in expansion tanks and coolant hoses when the system is empty and depressurized.
Special Features and Capabilities
This model is equipped with hardware components that optimize flow and pressure control of the smoke test for diagnostic technicians.
- Built-in flow meter with adjustment knob: Features a glass tube that allows the technician to continuously adjust smoke or air flow between 0 and 6 liters per minute, depending on the volume of the circuit being tested.
- Pressure loss indication via pressure gauge: A prominent analog pressure meter displays the pressure within the sealed circuit directly. With a closed supply, a falling needle immediately indicates a leak before smoke visually escapes.
- Thermal protection: When operating temperature exceeds 75°C, the unit automatically cuts power; below -20°C, frost protection activates.
- Fully independent pressure buildup: Thanks to the integrated air pump in the housing, the technician doesn't need to connect a shop air line. This increases mobility around and under the vehicle.
Compatible Vehicles and Systems
This smoke tester is designed for use on various 12V vehicle platforms, with adapters for common seal sizes.
- System type: EVAP circuits, air intake tracts, exhaust pipes, EGR systems, crankcase ventilation, vacuum lines, and fluid-free cooling circuits.
- Vehicle category: Passenger cars, light commercial vehicles, motorcycles, ATVs, snowmobiles, and 12V boats.
- Diagnostic application: Checking component seals during emission faults, vacuum leaks, and power loss issues.
Package contents
- 1x Autool SDT203 smoke tester
- 1x Power cable with 12V battery clamps
- 1x Flexible smoke hose
- 1x Universal inflatable adapter
- 1x Standard cone adapter
- 1x EVAP adapter with shut-off cap
- 1x Fill funnel
- 1x Metal hanging hook
- 1x User manual
Technical specifications
General
- The manufacturer of the product.Brand
- Autool
- Whether this is a complete smoke tester or an accessory, such as a sealing kit for a smoke tester.Product type
- Smoke tester
- The types of vehicles the tester can be used on.Vehicle types
- Cars
- Light commercial vehicles
- Motorcycles
- Quads
- The vehicle systems in which leaks can be detected. More systems means broader use of the tester.Systems that can be tested
- EVAP system
- Intake system
- Exhaust system
- EGR system
- Cooling system
- Crankcase ventilation
Smoke and air
- The highest pressure at which the tester blows smoke or air into the system. Low pressure is safe for sensitive systems such as EVAP.Maximum working pressure
- 15 psi
- How much smoke or air the tester produces per minute. Higher output fills large systems more quickly.Maximum smoke output
- 6 l/min
- Whether the tester generates its own air, removing the need for a separate compressed air connection.Built-in compressor
- Yes
- Whether a dial and flow meter let you adjust the amount of smoke or air released.Adjustable flow
- Yes
- Whether a pressure gauge is fitted. This shows if pressure drops, which indicates a leak.Pressure gauge
- Yes
Power supply and protection
- The battery voltage on which the tester operates. With 24 V, testing on lorries is also possible.Supply voltage
- 12 V
- How much current the tester uses while operating.Power consumption
- 65 W
- Whether the tester switches off automatically when it becomes too hot, preventing damage.Overheating protection
- Yes
- Whether the tester locks in severe cold to prevent damage.Frost protection
- Yes
Dimensions and weight
- The length, width and height of the device. Useful for checking whether it fits your workshop or case.Dimensions
- 145 x 80 x 200 mm
- How heavy the device itself is. A lighter tester is easier to carry.Weight
- 1.7 kg
- The weight of the package including box and accessories.Weight including packaging
- 2.9 kg
Other specifications
- Air supply
- Integrated air compressor
- Operating principle
- Oxygen-depleted combustion of test oil
- Pressure display
- Built-in analog gauge
- Thermal protection
- Shuts off above 75°C, frost protection below -20°C
- Maximum continuous runtime
- 8 minutes uninterrupted
- Oil capacity per session
- 10 to 15 ml
