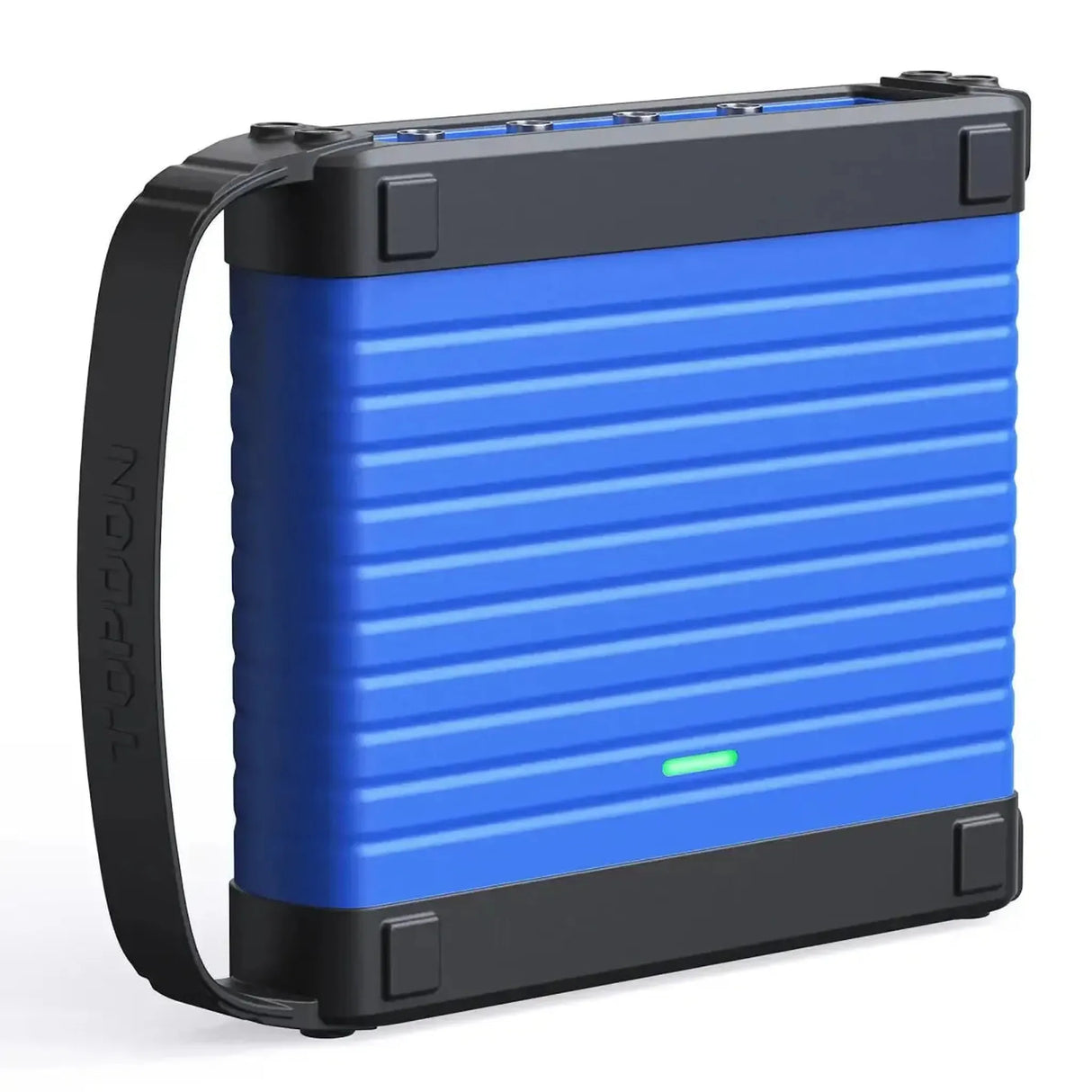

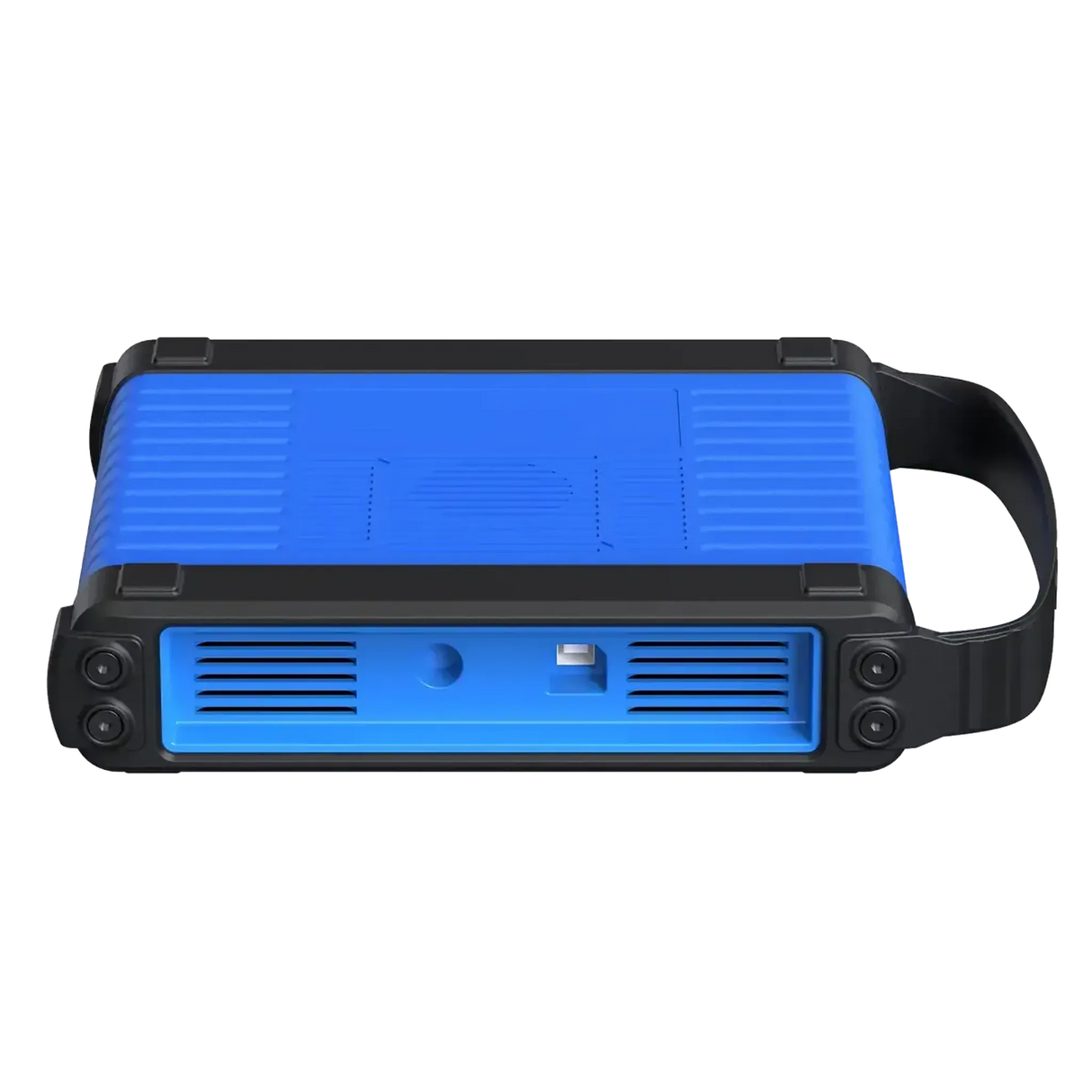

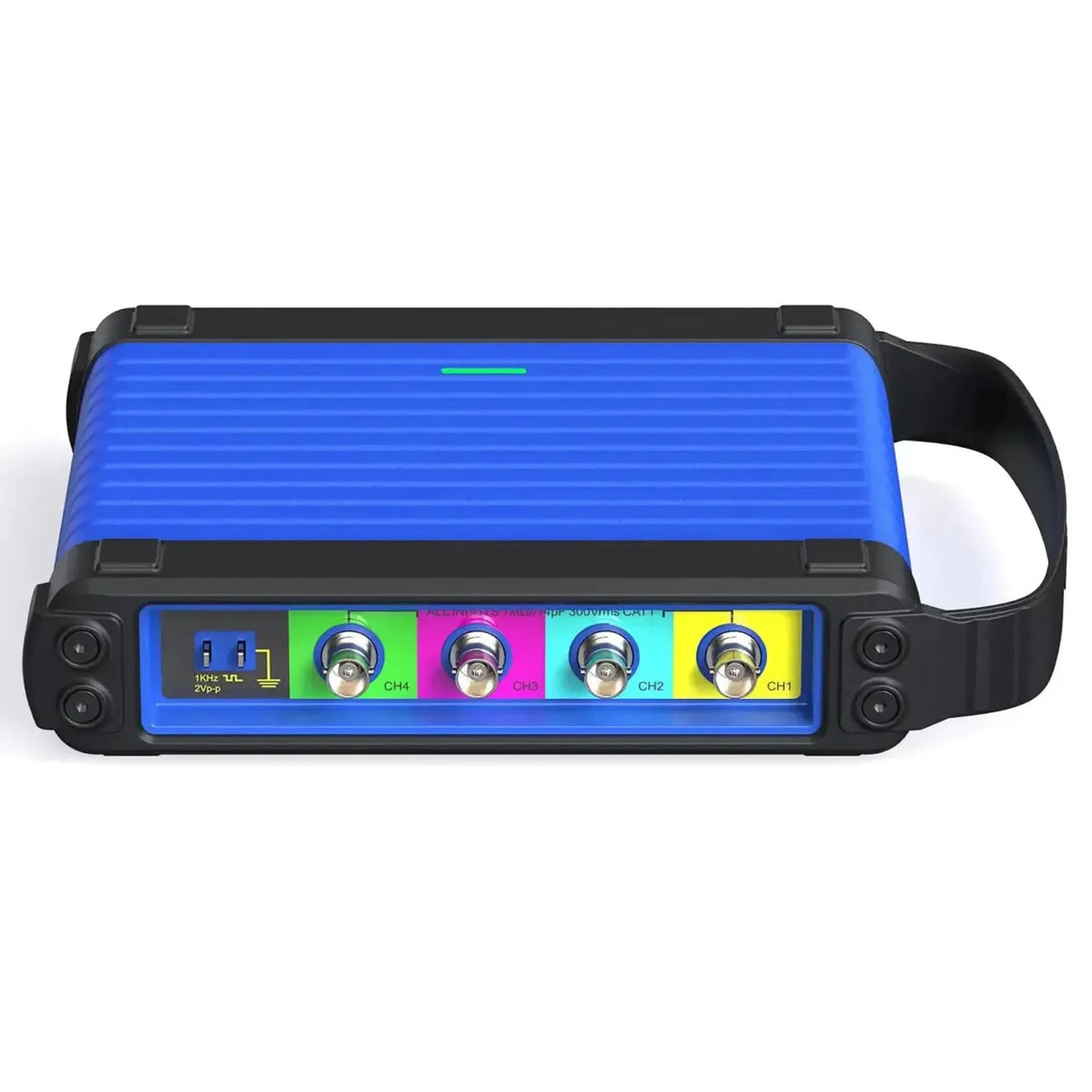

The Topdon Phoenix Scope is a 4-channel oscilloscope designed for diagnosing complex issues with automotive electronics and wiring. This device functions as an expansion module for the Topdon Phoenix series diagnostic tablets and features a bandwidth of 100 MHz with a sampling rate of 1 GSa/s. It captures circuit signals and waveforms, enabling technicians to perform detailed observations and fault analyses, including detecting intermittent faults through the long sampling time.
The oscilloscope has a memory depth of 50 Mpts, allowing both an overview of a signal and deep zooming into details. The system supports 23 types of automatic measurements and advanced trigger functions, such as edge and pulse-width. Users can record, play back waveforms, and perform mathematical operations including addition, subtraction, multiplication, division, and Fast Fourier Transform (FFT). System settings can be saved as configuration files and loaded directly for repeated use.
Application and functionality:
This oscilloscope is designed for performing detailed analyses of electronic signals in vehicles. The functionalities include:
- Vehicle-specific tests: Pre-programmed tests for circuits, sensors, actuators, ignition, and communication networks (such as CAN and LIN) with specific parameters for various vehicle models.
- Automatic measurements: Offers 23 different automatic measurements selectable with one click, simplifying manual parameter settings.
- Advanced trigger functions: Extensive trigger options to capture and analyze stable waveforms of complex signals.
- High memory depth: A depth of 50 Mpts enables capturing detailed signal information and deep zooming without data loss.
- Record and playback: Waveforms can be recorded and saved in a specific format for later analysis and comparison.
- Mathematical operations: Supports various mathematical functions (addition, subtraction, multiplication, division) and FFT for in-depth signal analysis.
- Cursor control: Independent horizontal and vertical cursors and cursor tracking for precise waveform measurements.
Package Contents:
- 1x Topdon Phoenix Scope
- 2x BNC to banana plug cable
- 2x Oscilloscope probe
- 8x Alligator clip (4x red, 4x black)
- 1x Set of back-pinning probes
- 1x USB Type-C cable
- 1x Manual
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Topdon |
| Model | Phoenix Scope |
| Number of channels | 4 |
| Bandwidth | 100 MHz |
| Sampling rate | 1 GSa/s (one channel) |
| Memory depth | 50 Mpts (one channel) |
| Vertical resolution | 8 bit |
| Input impedance | 1MΩ |
| Connectivity | USB Type-C |
| Compatibility | Topdon Phoenix series diagnostic tablets |
