Julie VAG | IMMO OFF | Emulator

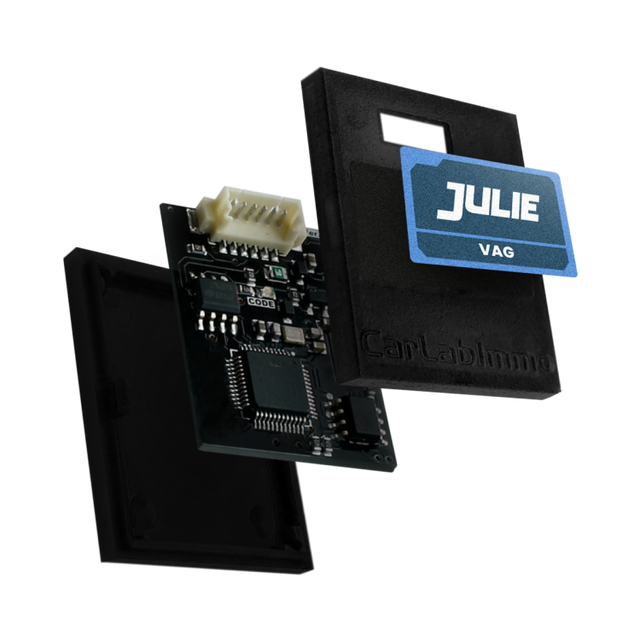

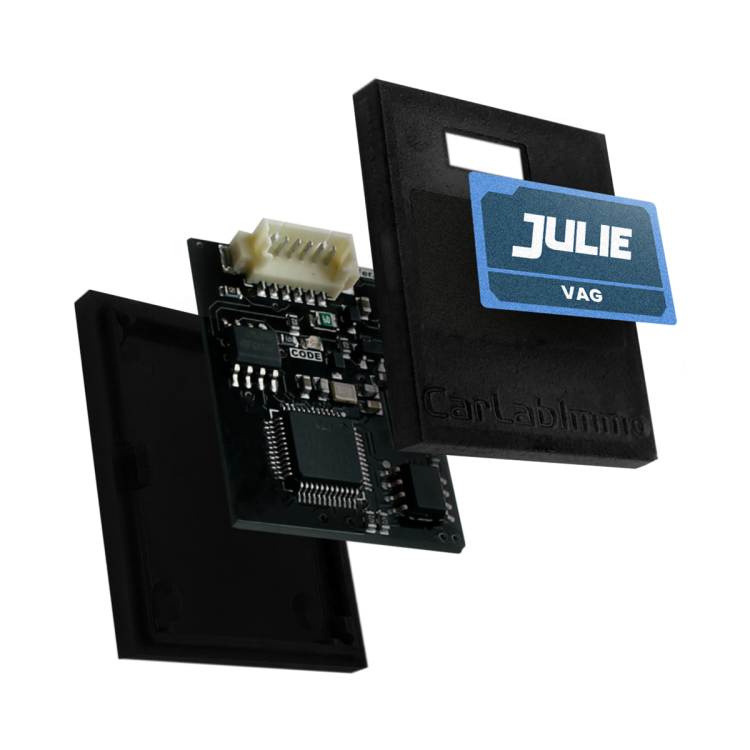

The Julie VAG | IMMO OFF | Emulator is an electronic module developed to replace or simulate the original immobilizer signal in Volkswagen Group vehicles. Its primary function is to temporarily or permanently disable the IMMO function, allowing the engine control unit (ECU) to start the engine without a valid transponder signal. This is used in diagnosing starting problems, testing the ECU, or when components of the original immobilizer system, such as the transponder key or the reading coil, are defective.

This emulator supports various types of engine control units used in models from Audi, Seat, Skoda, and Volkswagen, including systems from Bosch, Magneti Marelli, and Siemens. The installation and configuration of the Julie VAG | IMMO OFF | Emulator are intended exclusively for test and workshop use by qualified personnel. Permanently deactivating the immobilizer system results in reduced vehicle theft protection and may be subject to legal restrictions.

---

Applications and functionalities:

• IMMO OFF - Deactivation of the immobilizer: The primary application is disabling the immobilizer. This provides a solution when original IMMO components are defective. After installation, the engine can start without an authorized signal. This function is relevant for a wide range of ECU types:
  • Audi: Models with Bosch EDC15, EDC16, ME7 and Siemens control units.
  • Seat: Models with Bosch EDC15, EDC16, ME7, Magneti Marelli, and Siemens SIMOS control units.
  • Skoda: Models with Bosch EDC15, EDC16, ME7 and Siemens control units.
  • Volkswagen: Models with Bosch EDC15, EDC16, ME7, Delphi DCM, Magneti Marelli IAW, and Siemens SIMOS/PPD control units.
• Testing the Engine Control Unit (ECU): The emulator is used to test an ECU on a test bench. By simulating the IMMO system, the functionality of the ECU can be verified without the presence of all original vehicle components.
• Replacing a defective ECU: When installing a used ECU, the emulator resolves synchronization issues with the vehicle's original IMMO system, allowing the replacement ECU to start the engine.
• Signal simulation: The module generates a digital signal that simulates a successful authorization of the immobilizer. This replaces the communication between the ECU and the original immobilizer module.
• Fault isolation: By temporarily bridging the IMMO system, a technician can determine whether a starting problem is caused by the immobilizer system or by another electronic or mechanical fault.
• Selectable programs: The module is equipped with solder pads (jumpers) that allow selecting the correct program for a specific ECU. This ensures compatibility with various types of engine control units within the VAG group.

The Julie VAG Emulator is intended exclusively for use by qualified professionals in a workshop environment for diagnostic and repair purposes. Permanently disabling the immobilizer (IMMO OFF) may reduce the vehicle's theft protection.

---

Supported vehicle brands and applications:

This product is developed for replacing the immobilizer signal in specific vehicles of the VAG group, including Audi, Bentley, Bugatti, Lamborghini, Porsche, Seat, Skoda, and Volkswagen. Communication with the vehicle systems is supported via both CAN-bus and K-line protocols.



Bosch EDC17CP20

The Bosch EDC17CP20 is a diesel control unit (ECU) designed for 2.0 TDi engines from Audi. This ECU belongs to the EDC17 series with advanced high-pressure injection and Euro 5 support.

Audi:

• Audi A4 (B8) 2.0 TDi 143 hp (2007–2013)

ECU numbers (selection):

• 0 281 016 140 / 03L 906 022 NN – Audi A4 (B8) 2.0 TDi 143 hp (2011)

---

Bosch EDC17CP44

The Bosch EDC17CP44 is a diesel ECU used in Porsche diesel engines with 3.0-liter V6. The unit controls injection, turbo pressure, soot filter regeneration, and emission control.

Porsche:

• Porsche Macan 3.0 Diesel 211 hp (2014–2018)
• Porsche Macan 3.0 Diesel 250 hp (2014–2018)
• Porsche Macan 3.0 Diesel 258 hp (2014–2018)

ECU numbers (selection):

• 0 281 030 554 – Porsche Macan 3.0 Diesel 250 hp (2017)

---

Bosch ME17.1.6

The Bosch ME17.1.6 is a gasoline ECU for twelve-cylinder W12 engines from Bentley. This advanced ECU offers precise control of injection, ignition, and air mass for high performance.

Bentley:

• Bentley Continental GT Speed 6.0 635 hp (2014–2016)

ECU numbers (selection):

• 0 261 S08 071 – Bentley Continental GT Speed 6.0 635 hp (2015)

---

Bosch MED17.5.5

The Bosch MED17.5.5 is a gasoline engine control unit with direct injection and turbocharger control. This ECU is used in Volkswagen 1.4 TSI engines.

Volkswagen:

• Volkswagen Golf VI 1.4 TSI 122 hp (2008–2012)

ECU numbers (selection):

• 0 261 S04 390 – Volkswagen Golf VI 1.4 TSI 122 hp (2010)

---

Bosch MED9.5.10

The Bosch MED9.5.10 is a gasoline ECU with direct fuel injection (FSI), used in several models of the Volkswagen Group with 1.4-, 1.6-, and 2.0-liter FSI engines.

Audi:

• Audi A3 1.6 FSI 115 hp (2003–2007)
• Audi A3 2.0 FSI 150 hp (2003–2007)

Seat:

• Seat Altea 2.0 FSI 150 hp (2004–2009)
• Seat Leon 2.0 FSI 150 hp (2005–2009)

Volkswagen:

• Volkswagen Golf V 1.4 FSI 90 hp (2003–2006)
• Volkswagen Golf V 1.6 FSI 115 hp (2003–2007)
• Volkswagen Golf V 2.0 FSI 150 hp (2004–2008)
• Volkswagen Golf Plus 1.6 FSI 115 hp (2004–2007)
• Volkswagen Jetta 2.0 FSI 150 hp (2005–2008)
• Volkswagen Passat (B6) 2.0 FSI 150 hp (2005–2010)
• Volkswagen Touran (1T) 1.6 FSI 115 hp (2003–2006)

ECU numbers (selection):

• 0 261 S02 003 / 03C 906 056 F – Volkswagen Touran 1.6 FSI 115 hp (2005)
• 0 261 S02 008 / 03C 906 056 B – Volkswagen Golf V 1.6 FSI 115 hp (2004)
• 0 261 S02 014 / 06F 906 056 S – Audi A3 2.0 FSI 150 hp (2005)
• 0 261 S02 056 / 06F 906 056 CE – Audi A3 2.0 FSI 150 hp (2006)
• 0 261 S02 121 / 06F 906 056 BF – Seat Leon 2.0 FSI 150 hp (2008)
• 0 261 S02 132 / 06F 906 056 AM – Volkswagen Passat (B6) 2.0 FSI 150 hp (2006)
• 0 261 S02 135 / 06F 906 056 AN – Volkswagen Passat (B6) 2.0 FSI 150 hp (2006)
• 0 261 S02 183 / 03C 906 056 CG – Volkswagen Golf V 1.6 FSI 115 hp (2007)
• 0 261 S02 262 / 06F 906 056 FC – Volkswagen Passat (B6) 2.0 FSI 150 hp (2006)
• 0 261 S02 535 / 06F 906 056 JD – Volkswagen Jetta 2.0 FSI 150 hp (2006)
• 0 261 S02 566 / 03C 906 056 EQ – Volkswagen Golf Plus 1.6 FSI 115 hp (2007)

---

Continental Simos PCR 2.1

The Continental Simos PCR 2.1 is a diesel control unit (ECU) for the 1.6 TDi engines of the Volkswagen Group. This ECU combines injection, turbo pressure, and emission control and supports Euro 5 emission standards.

Audi:

• Audi A1 (8X) 1.6 TDi 90–105 hp (2010–2014)
• Audi A3 (8P) 1.6 TDi 90–105 hp (2009–2013)

Seat:

• Seat Altea 1.6 TDi 90–105 hp (2009–2015)
• Seat Ibiza (6J/6P) 1.6 TDi 75–105 hp (2008–2017)
• Seat Leon II 1.6 TDi 90–105 hp (2010–2012)
• Seat Toledo (KG) 1.6 TDi 90–105 hp (2012–2015)

Škoda:

• Škoda Fabia II 1.6 TDi 75–105 hp (2010–2014)
• Škoda Octavia II 1.6 TDi 105 hp (2009–2013)
• Škoda Rapid (NH) 1.6 TDi 90–105 hp (2012–2015)
• Škoda Roomster (5J) 1.6 TDi 90–105 hp (2010–2015)
• Škoda Superb (3T) 1.6 TDi 105 hp (2010–2013)
• Škoda Yeti (5L) 1.6 TDi 105 hp (2009–2015)

Volkswagen:

• Volkswagen Caddy (2K) 1.6 TDi 75–102 hp (2010–2015)
• Volkswagen Golf VI 1.6 TDi 90–105 hp (2009–2013)
• Volkswagen Golf Plus 1.6 TDi 90–105 hp (2009–2014)
• Volkswagen New Beetle (5C) 1.6 TDi 105 hp (2011–2014)
• Volkswagen Passat (B7) 1.6 TDi 105 hp (2010–2014)
• Volkswagen Polo V 1.6 TDi 75–105 hp (2009–2014)
• Volkswagen Touran (1T) 1.6 TDi 90–105 hp (2010–2015)

ECU numbers (selection):

• 03L 906 023 A / 5WP42801 AA – Volkswagen Golf Plus 1.6 TDi 105 hp (2010)
• 03L 906 023 AN / 5WP42805 AA – Volkswagen Golf VI 1.6 TDi 105 hp (2010)
• 03L 906 023 BF / 5WP42843 AA – Seat Ibiza (6J/6P) 1.6 TDi 105 hp (2011)
• 03L 906 023 DK / 5WP42886 AA – Škoda Fabia II 1.6 TDi 90 hp (2010)
• 03L 906 023 DN / 5WP42864 AA – Škoda Roomster (5J) 1.6 TDi 105 hp (2011)
• 03L 906 023 FS / 5WP42676 AA – Volkswagen Passat (B7) 1.6 TDi 105 hp (2011)
• 03L 906 023 JK / 5WP42673 AA – Audi A3 (8P) 1.6 TDi 105 hp (2010)
• 03L 906 023 JT / 5WP42682 AA – Škoda Yeti (5L) 1.6 TDi 105 hp (2012)
• 03L 906 023 KC / 5WP42944 AA – Volkswagen New Beetle (5C) 1.6 TDi 105 hp (2011)
• 03L 906 023 LR / 5WP42685 AA – Škoda Octavia II 1.6 TDi 105 hp (2011)
• 03L 906 023 PS / 5WP42953 AA – Audi A1 (8X) 1.6 TDi 105 hp (2014)
• 03L 906 023 QE / 5WP42959 AA – Škoda Rapid (NH) 1.6 TDi 90 hp (2013)
• 03L 906 023 QH / 5WP42960 AA – Seat Toledo (KG) 1.6 TDi 105 hp (2014)
• 03L 906 023 QS / 5WP42716 AA – Škoda Yeti 1.6 TDi 105 hp (2015)
• 03L 907 425 C / 5WP42902 AA – Volkswagen Touran (1T) 1.6 TDi 105 hp (2015)

---

Siemens VDO PPD 1.1

The Siemens VDO PPD 1.1 is a diesel ECU for 2.0 TDi engines of the Volkswagen Passat (B6). The ECU controls injection, turbo pressure, and emission management with a unit injector system.

Volkswagen:

• Volkswagen Passat (B6) 2.0 TDi 170 hp (2005–2008)

ECU numbers (selection):

• 03G 906 018 / 5WP45500 AF – Volkswagen Passat (B6) 2.0 TDi 170 hp (2007)
• 03G 906 018 A / 5WP45502 AB – Volkswagen Passat (B6) 2.0 TDi 170 hp (2006)
• 03G 906 018 BK / 5WP45505 AA – Volkswagen Passat (B6) 2.0 TDi 170 hp (2008)

---

Siemens VDO PPD 1.2

The Siemens VDO PPD 1.2 is a diesel control unit used in 2.0 TDi 170 hp engines of the VAG group. The ECU supports extensive diagnostics and emission control according to Euro 4.

Audi:

• Audi A3 (8P) 2.0 TDi 170 hp (2006–2008)

Škoda:

• Škoda Octavia II RS 2.0 TDi 170 hp (2006–2008)

Volkswagen:

• Volkswagen Golf V 2.0 TDi 170 hp (2005–2008)
• Volkswagen Passat (B6) 2.0 TDi 170 hp (2005–2008)
• Volkswagen Touran (1T) 2.0 TDi (2006–2010)

ECU numbers (selection):

• 03G 906 018 CT / 5WP45534 AC – Volkswagen Golf V 2.0 TDi 170 hp (2008)
• 03G 906 018 DH / 5WP45548 AA – Audi A3 (8P) 2.0 TDi 170 hp (2007)
• 03G 906 018 DL / 5WP45560 AD – Volkswagen Touran (1T) 2.0 TDi (2007)
• 03G 906 018 EM / 5WP45562 AE – Volkswagen Passat (B6) 2.0 TDi 170 hp (2007)
• 03G 906 018 HB / 5WP45637 AA – Škoda Octavia II RS 2.0 TDi 170 hp (2008)

---

Siemens VDO PPD 1.3

The Siemens VDO PPD 1.3 is an ECU for 2.0 TDi engines of the Audi A4 (B8). This variant offers improved emission control and advanced management of unit injectors.

Audi:

• Audi A4 (B8) 2.0 TDi 170 hp (2007–2015)

ECU numbers (selection):

• 03G 906 018 AQ / 5WP45549 AG – Audi A4 (B8) 2.0 TDi 170 hp (2007)

---

Siemens VDO PPD 1.5

The Siemens VDO PPD 1.5 is a diesel control unit (ECU) developed for the 2.0 TDi engines of the Volkswagen Passat (B6). This ECU belongs to the Pumpe-Düse generation and controls injection, turbo pressure, and emission systems.

Volkswagen:

• Volkswagen Passat (B6) 2.0 TDi 140 hp (2005–2008)
• Volkswagen Passat (B6) 2.0 TDi 170 hp (2005–2008)

ECU numbers (selection):

• 03G 906 018 CD / 5WP45600 AA – Volkswagen Passat (B6) 2.0 TDi 170 hp (2005)
• 03G 906 018 CE / 5WP45610 AC – Volkswagen Passat (B6) 2.0 TDi 140 hp (2006)
• 03G 906 018 CK / 5WP45602 AA – Volkswagen Passat (B6) 2.0 TDi 140 hp (2007)
• 03G 906 018 FG / 5WP45614 AA – Volkswagen Passat (B6) 2.0 TDi 140 hp (2006)

---

Bosch EDC 1.3.1 | 1.3.3

The Bosch EDC 1.3.x series is an early generation diesel control units from the MSA range, used in various VAG vehicles with TDi and SDi engines. These ECUs control fuel injection, engine speed, and basic diagnostics via K-line.

Audi:

• Audi A4 (B5) 1.9 TDi 90 hp (1995–2001)
• Audi A6 (C4) 2.5 TDi 115 hp (1994–1997)
• Audi A6 (C4) 2.5 TDi 140 hp (1994–1997)

Seat:

• Seat Alhambra I 1.9 TDi 110 hp (1996–2000)

Škoda:

• Škoda Fabia I (6Y) 1.9 SDi 64 hp (1999–2005)

Volkswagen:

• Volkswagen Caddy (9KV) 1.9 SDi 64 hp (1995–2003)
• Volkswagen Golf III 1.9 TDi 90 hp (1993–1997)
• Volkswagen Golf III 1.9 SDi 64 hp (1995–1997)
• Volkswagen Passat (B4) 1.9 TDi 90 hp (1993–1996)
• Volkswagen T4 2.5 TDi 102 hp (1995–2003)

ECU numbers (selection):

• 0 281 001 320 / 4A0 907 401 P – Audi A6 (C4) 2.5 TDi 140 hp (1995)
• 0 281 001 253 / 4A0 907 401 E – Audi A6 (C4) 2.5 TDi 115 hp (1996)
• 0 281 001 316 / 028 906 021 AP – Audi A4 (B5) 1.9 TDi 90 hp (1995)
• 0 281 001 308 / 028 906 021 AF – Volkswagen Golf III 1.9 TDi 90 hp (1995)
• 0 281 001 411 / 028 906 021 DD – Volkswagen Passat (B4) 1.9 TDi 90 hp (1996)
• 0 281 011 321 / 038 906 012 HR – Škoda Fabia I (6Y) 1.9 SDi 64 hp (2004)
• 0 281 001 469 / 074 906 021 F – Volkswagen T4 2.5 TDi 102 hp (2000)
• 0 281 001 407 / 028 906 021 CQ – Volkswagen Caddy (9KV) 1.9 SDi 64 hp (1997)

---

Bosch MA 1.3

The Bosch MA 1.3 is a gasoline ECU used in Volkswagen models with 1.6-liter engines. This unit controls fuel injection, ignition, and idle control.

Volkswagen:

• Volkswagen Golf III 1.6 75 hp (1994–1997)
• Volkswagen Polo III (6N) 1.6 75 hp (1995–1999)

ECU numbers (selection):

• 0 261 203 308 / 032 906 026 B – Volkswagen Polo III (6N) 1.6 75 hp (1994)
• 0 261 203 314 / 032 906 026 D – Volkswagen Golf III 1.6 75 hp (1995)
• 0 261 203 456 / 030 906 026 AJ – Volkswagen Polo III (6N) 1.6 75 hp (1998)
• 0 261 203 897 / 032 906 026 H – Volkswagen Polo III (6N) 1.6 75 hp (1995)

---

Bosch M 5.4

The Bosch M 5.4 is a gasoline engine control unit for V8 engines from Audi. The ECU controls injection, ignition, and idle control and is part of the Bosch Motronic series.

Audi:

• Audi A8 (D2) 4.2 300 hp (1994–1999)

ECU numbers (selection):

• 0 261 203 299 / 4D0 907 557 B – Audi A8 (D2) 4.2 300 hp (1998)
• 0 261 203 609 / 4D0 907 557 E – Audi A8 (D2) 4.2 300 hp (1996)
• 0 261 204 146 / 4D0 907 557 J – Audi A8 (D2) 4.2 300 hp (1995)

---

Bosch M 3.8.4

The Bosch M 3.8.4 belongs to the Motronic series and is used in 1.8-liter gasoline engines of the VAG group. This ECU controls fuel injection, ignition, and idle control with OBD support.

Audi:

• Audi A4 (B5) 1.8 125 hp (1994–1999)
• Audi A6 (C5) 1.8 125 hp (1995–1997)

Volkswagen:

• Volkswagen Passat (B5) 1.8 125 hp (1996–1999)

ECU numbers (selection):

• 0 261 204 252 / 4B0 907 557 – Audi A6 (C5) 1.8 125 hp (1996)
• 0 261 204 773 / 8D0 907 558 G – Volkswagen Passat (B5) 1.8 125 hp (1998)
• 0 261 204 774 / 8D0 907 558 B – Audi A4 (B5) 1.8 125 hp (1996)

---

Bosch MED 9.1.2

The Bosch MED 9.1.2 is a gasoline ECU with direct injection for the Lamborghini Gallardo 5.2 V10. This advanced ECU controls fuel pressure, injection, ignition, and torque management.

Lamborghini:

• Lamborghini Gallardo 5.2 560 hp (2008–2013)

ECU numbers (selection):

• 0 261 S02 569 – Lamborghini Gallardo 5.2 560 hp (2009)

---

Bosch MP 9.0

The Bosch MP 9.0 is a gasoline management system for small engines of the VAG group. The ECU controls injection, ignition, and idle control for 1.0- to 1.6-liter engines.

Seat:

• Seat Arosa 1.0–1.4 50–60 hp (1997–2003)
• Seat Cordoba 1.4 75 hp (2002)
• Seat Ibiza II (6K) 1.0–1.4 50–60 hp (1998)

Volkswagen:

• Volkswagen Fox 1.4 75 hp (2005)
• Volkswagen Golf IV 1.4 75 hp (1999)
• Volkswagen Lupo 1.0 50 hp (1999)
• Volkswagen Polo III (6N/6N2) 1.0–1.6 50–75 hp (1995–2001)

ECU numbers (selection):

• 0 261 203 613 / 030 906 027 T – Seat Arosa 1.4 60 hp (2001)
• 0 261 203 933 / 6K0 906 027 D – Seat Ibiza II (6K) 1.0 50 hp (1998)
• 0 261 204 054 / 6K0 906 027 A – Volkswagen Fox 1.4 75 hp (2005)
• 0 261 204 226 / 030 906 027 AL – Volkswagen Lupo 1.0 50 hp (1999)
• 0 261 204 230 / 030 906 027 AR – Volkswagen Golf IV 1.4 75 hp (1999)
• 0 261 204 153 / 030 906 027 L – Volkswagen Polo III (6N) 1.4 60 hp (1999)
• 0 261 204 593 / 6K0 906 027 E – Seat Cordoba 1.4 75 hp (2002)
• 0 261 206 118 / 377 906 021 FH – Volkswagen Polo III (6N) 1.0 50 hp (2000)

---

Hitachi MMS-314

The Hitachi MMS-314 is a gasoline ECU used in Audi models with the 2.6-liter V6 engine from the 90s. This ECU controls injection, ignition, and air control via the Bosch Motronic principle.

Audi:

• Audi A4 (B5) 2.6 174 hp (1994–1997)

ECU numbers (selection):

• 8A0 906 266 J – Audi A4 (B5) 2.6 174 hp (1996)

---

Hitachi MMS-341

The Hitachi MMS-341 is a petrol engine control unit developed for the Audi 80 (B4) with a 1.6-liter petrol engine. This ECU controls injectors, ignition timing, and idle control.

Audi:

• Audi 80 (B4) 1.6 101 hp (1993–1995)

ECU numbers (selection):

• 8A0 906 264 B – Audi 80 (B4) 1.6 101 hp (1995)

---

Magneti Marelli IAW 1AV

The Magneti Marelli IAW 1AV is a petrol ECU for vehicles from the VAG group with 1.6-liter engines. This control unit manages injection, ignition, and OBD diagnostics via the K-line.

Seat:

• Seat Ibiza II (6K) 1.6 75 hp (1998)

Škoda:

• Škoda Octavia I (1U) 1.6 75 hp (1998)

Volkswagen:

• Volkswagen Golf III 1.6 75 hp (1995)

ECU numbers (selection):

• 6K0 906 030 E / IAW1AV.V7 – Seat Ibiza II (6K) 1.6 75 hp (1998)
• 032 906 014 F / IAW1AVM.S0 – Škoda Octavia I (1U) 1.6 75 hp (1998)
• 032 906 030 G / IAW1AV.V1 – Volkswagen Golf III 1.6 75 hp (1995)

---

Magneti Marelli IAW 4AV

The Magneti Marelli IAW 4AV was used in VAG vehicles with 1.4- and 1.6-liter petrol engines. This ECU supports full OBD functionality and adaptive ignition control.

Seat:

• Seat Leon I 1.4 75 hp (1999–2005)

Volkswagen:

• Volkswagen Golf IV 1.4 75 hp (1997–2003)
• Volkswagen Golf IV 1.6 105 hp (1999–2003)

ECU numbers (selection):

• 036 906 014 AQ – Seat Leon I 1.4 75 hp (2003)
• 036 906 014 AN – Volkswagen Golf IV 1.4 75 hp (2002)
• 036 906 014 M – Volkswagen Golf IV 1.4 75 hp (1998)

---

Magneti Marelli IAW 4CV

The Magneti Marelli IAW 4CV has similar functions to the 4AV series and was used in compact vehicles with 1.4- and 1.6-liter engines.

Seat:

• Seat Leon I 1.4 75 hp (1999–2005)

Volkswagen:

• Volkswagen Golf IV 1.4 75 hp (1997–2003)
• Volkswagen Golf IV 1.6 105 hp (1999–2003)

ECU numbers (selection):

• 036 906 014 AQ – Seat Leon I 1.4 75 hp (2003)
• 036 906 014 AA – Volkswagen Golf IV 1.4 75 hp (1998)
• 036 906 014 AN – Volkswagen Golf IV 1.4 75 hp (2002)

---

Magneti Marelli IAW 4LV

The Magneti Marelli IAW 4LV is a gasoline ECU used in various VAG models with 1.4- and 1.6-liter engines. This ECU manages injection, ignition, EGR, and OBD communication via K-line.

Seat:

• Seat Ibiza II (6K) 1.4 75 hp (2000–2002)
• Seat Leon I 1.6 105 hp (2000–2006)

Škoda:

• Škoda Fabia I (6Y) 1.4 101 hp (1999–2007)

Volkswagen:

• Volkswagen Golf IV 1.6 105 hp (1999–2003)
• Volkswagen Polo III (6N/6N2) 1.4 75–100 hp (1996–2001)

ECU numbers (selection):

• 036 906 034 BK – Škoda Fabia I (6Y) 1.4 101 hp (2002)
• 036 906 034 BD – Seat Leon I 1.6 105 hp (2002)
• 036 906 034 BB – Volkswagen Golf IV 1.6 105 hp (2001)
• 6K0 906 034 E – Volkswagen Polo III (6N2) 1.4 75 hp (2000)

---

Siemens 5WP4 154

The Siemens 5WP4 154 is a gasoline ECU used in the Volkswagen Passat (B4) with a 2.0-liter engine. This control unit manages injection, ignition, and idle control.

Volkswagen:

• Volkswagen Passat (B4) 2.0 116 hp (1993–1997)

ECU numbers (selection):

• 037 906 025 – Volkswagen Passat (B4) 2.0 116 hp (1995)

---

Siemens 5WP4 167

The Siemens 5WP4 167 was used in Volkswagen Golf III with a 2.0-liter gasoline engine. This ECU supports injection and ignition control with OBD functionality.

Volkswagen:

• Volkswagen Golf III 2.0 115 hp (1994–1997)

ECU numbers (selection):

• 023 906 024 AE – Volkswagen Golf III 2.0 115 hp (1995)

---

Siemens 5WP4 182

The Siemens 5WP4 182 is a gasoline engine control unit used in the Volkswagen T4 with a 2.5-liter engine.

Volkswagen:

• Volkswagen T4 2.5 115 hp (1990–1996)

ECU numbers (selection):

• 023 906 024 F – Volkswagen T4 2.5 115 hp (1996)

---

Siemens 5WP4 340

The Siemens 5WP4 340 is a gasoline ECU used in Seat Toledo II (1M) with a 1.6-liter engine.

Seat:

• Seat Toledo II (1M) 1.6 100 hp (1998–2000)

ECU numbers (selection):

• 6K0 906 025 A – Seat Toledo II (1M) 1.6 100 hp (1999)

---

Siemens 5WP4 457

The Siemens 5WP4 457 is a gasoline ECU developed for Seat Leon I with a 1.6-liter engine. This control unit is based on Siemens Simos technology.

Seat:

• Seat Leon I 1.6 100 hp (1999–2000)

ECU numbers (selection):

• 06A 906 019 BR – Seat Leon I 1.6 100 hp (1999)

---

Temic Digifant 1.74

The Temic Digifant 1.74 is a gasoline engine control unit (ECU) used in the Volkswagen T4 2.0 gasoline engine. This ECU controls injection, ignition, and idle control and is part of the early Digifant system developed by Temic and Volkswagen.

Volkswagen:

• Volkswagen T4 2.0 84 hp (1990–2003)

ECU numbers (selection):

• 044 906 024E – Volkswagen T4 2.0 84 hp (1999)

---

VAG diesel systems with K-line

These ECUs are designed for the first generation TDI and SDI engines of the VAG group (Audi, Seat, Škoda, and Volkswagen) with K-line communication. They control fuel injection, turbo control, EGR, and support OBD diagnosis via K-line.

Audi:

• Audi A3 (8L) 1.9 TDi 90–110 hp (1996–2001)
• Audi A4 (B5) 1.9 TDi 90–115 hp (1995–2001)
• Audi A6 (C4/C5) 1.9–2.5 TDi 90–150 hp (1994–2005)

Seat:

• Seat Alhambra I 1.9 TDi 110 hp (1996–2000)
• Seat Cordoba (6K) 1.9 TDi 110 hp (1999–2002)
• Seat Ibiza II (6K) 1.9 TDi 90 hp (1996–1999)
• Seat Toledo II (1M) 1.9 TDi 110 hp (1996–2004)

Škoda:

• Škoda Octavia I (1U) 1.9 TDi 90 hp (1996–2005)

Volkswagen:

• Volkswagen Bora 1.9 TDi 115 hp (1999–2001)
• Volkswagen Caddy (9KV) 1.7 SDi 57 hp, 1.9 SDi 64 hp, 1.9 TDi 90 hp (1995–2003)
• Volkswagen Golf III 1.9 TDi 90–110 hp (1993–1997)
• Volkswagen Golf IV 1.9 SDi/TDi 68–115 hp (1997–2003)
• Volkswagen LT 2.5–2.8 TDi 102–158 hp (1996–2006)
• Volkswagen Lupo 1.7 SDi 60 hp (1998–2005)
• Volkswagen New Beetle (9C) 1.9 TDi 90 hp (1998–2004)
• Volkswagen Passat (B5/B5 FL) 1.9 TDi 90–115 hp, 100 hp (1996–2005)
• Volkswagen Polo III (6N/6N2) 1.4 TDi 75 hp, 1.7–1.9 SDi 57–64 hp (1995–2001)
• Volkswagen Sharan I 1.9 TDi 90–115 hp (1996–2010)
• Volkswagen T4 2.5 TDi 88–151 hp (1995–2003)
• Volkswagen Vento 1.9 TDi 90 hp (1996–1998)

ECU numbers (selection):

• 0 281 001 425 / 028 906 021 CE – Audi A4 (B5) 1.9 TDi 110 hp (1999)
• 0 281 001 640 / 074 906 021 L – Volkswagen LT 2.5 TDi 102 hp (1999)
• 0 281 001 693 / 038 906 018 AH – Audi A3 (8L) 1.9 TDi 110 hp (1997)
• 0 281 001 757 / 038 906 018 BB – Audi A3 (8L) 1.9 TDi 90 hp (1998)
• 0 281 001 755 / 038 906 018 BC – Škoda Octavia I (1U) 1.9 TDi 90 hp (2004)
• 0 281 001 588 / 2D0 906 019 A – Volkswagen LT 2.8 TDi 158 hp (2005)
• 0 281 010 082 / 074 906 018 C – Volkswagen T4 2.5 TDi 102 hp (2000)
• 0 281 010 091 / 038 906 019 AN – Audi A4 (B5) 1.9 TDi 115 hp (1999)
• 0 281 010 217 / 038 906 019 CE – Volkswagen Passat (B5) 1.9 TDi 115 hp (1999)
• 0 281 010 407 / 074 906 018 H – Volkswagen LT 2.5 TDi 109 hp (1999)

---

VAG vehicles without ECU (fuel shut-off valve)

Certain older Volkswagen T4 2.4D engines are not equipped with an electronic ECU. The engine management is controlled exclusively via a mechanical fuel pump with an electric fuel shut-off valve.

Volkswagen:

• Volkswagen T4 2.4D 78 hp (1990–1998)

---

Package Contents:

• 1x Julie VAG | IMMO OFF | Emulator
