CarLabImmo  |  SKU: Julie Toyota IMMO OFF

Julie Toyota | IMMO OFF | Emulator

€4595 €5395

Warranty handled directly by AsTools

We handle warranty cases ourselves, quickly and without the intervention of the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually help you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This way, you are assured of long-lasting quality and service.

Easy returns via Returnless

Returns are easy via Returnless. Register your return online and choose your own shipping method. Return costs are at your own expense.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

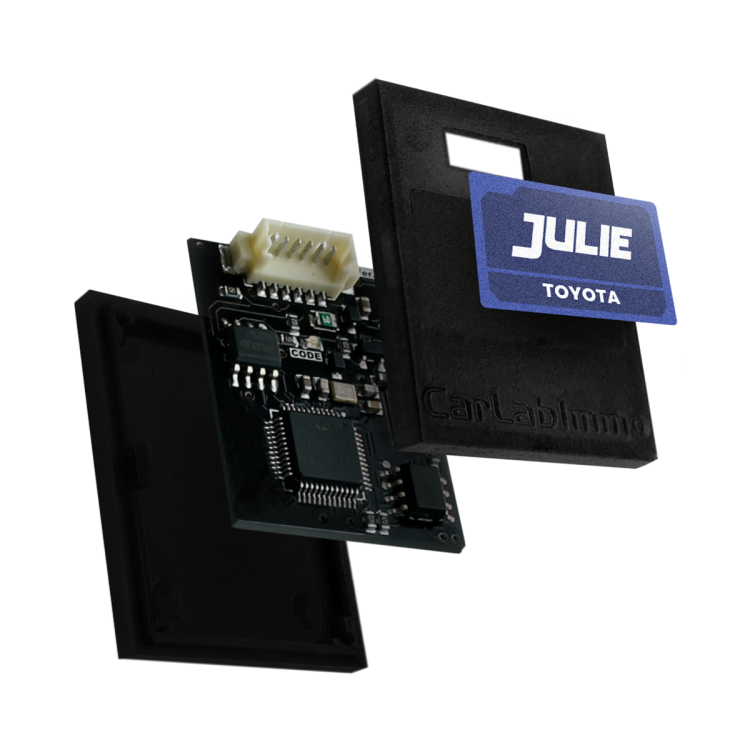

The Julie Toyota IMMO OFF emulator is an electronic module designed for the permanent deactivation of the immobilizer system in the engine control unit (ECU). Its primary function is to replace the original signal from the immobilizer, thereby releasing the ECU and allowing the engine to start. This IMMO OFF solution is used for diagnosing and repairing faulty immobilizer components or to test the engine control unit independently of the immobilizer system.

The emulator is compatible with specific Toyota vehicles where the immobilizer data is stored directly in the ECU. The use of the Julie Toyota IMMO OFF emulator is intended solely for testing and workshop purposes. Permanently disabling the immobilizer can significantly reduce vehicle security, and its use may be subject to legal restrictions depending on local regulations.

Applications and functionalities:

  • IMMO OFF - Deactivation of the start blocking system: The primary application is the permanent disabling of the factory immobilizer. This is a solution when the original IMMO components are defective, keys are lost, or during an engine or ECU swap where the original IMMO data cannot be transferred.
  • Start system fault diagnosis: The emulator can be used to determine whether a starting problem is related to the immobilizer system. If the vehicle starts with the emulator installed, it confirms that the fault lies in the original IMMO components.
  • Signal simulation: The emulator generates and sends the authorization signal that the ECU expects from a functioning original immobilizer system. This allows the engine control unit to permit the engine to start.
  • Data adjustment and programming: The module requires programming with data read from the memory (EEPROM or Flash) of the original ECU. This process ensures that the simulated code is unique and matches the specific ECU.
  • Compatibility: Works with various ECUs from manufacturers such as Denso and Bosch, used in vehicles with both gasoline (VVT-i) and diesel engines (D-4D).

Supported vehicle brands and applications:

The Julie TOYOTA Emulator is designed to replace the immobilizer signal in various Toyota vehicles. This makes it possible for engine control units (ECUs) to function correctly when the original immobilizer or transponder key is not available.

    The overview below shows the supported ECU types, including the corresponding vehicle models and engine variants on which these systems are applied.



    Bosch EDC16C10-6.2 [Immo Box 89780-12140]

    The Bosch EDC16C10-6.2 is a diesel engine control unit used in Toyota models with a 1.4 D-4D common-rail engine. The ECU supports injection timing, EGR control, and CAN bus communication for diagnostics and engine management.

    Toyota:

    • Toyota Corolla 1.4 D-4D 90 hp (2005–2009)

    ECU numbers:

    • 0 281 011 731 – Toyota Corolla 1.4 D-4D (2005)
    • 0 281 011 733 – Toyota Corolla 1.4 D-4D (2005)
    • 0 281 011 734 – Toyota Corolla 1.4 D-4D (2007)

    Bosch EDC16C10-9.3 [Computer Assy, Transponder Key 89780-0D011]

    The Bosch EDC16C10-9.3 is a variant of the EDC16 series, designed for the 1.4 D-4D diesel engine with transponder-controlled immobilizer. This ECU supports fuel pressure control, intake valve control, and OBDII diagnostic functions.

    Toyota:

    • Toyota Corolla 1.4 D-4D 90 hp (2005–2009)
    • Toyota Yaris II 1.4 D-4D 90 hp (2006–2009)

    ECU numbers:

    • 0 281 012 517 – Toyota Yaris II 1.4 D-4D (2006)
    • 0 281 012 518 – Toyota Yaris II 1.4 D-4D (2007)
    • 0 281 012 322 – Toyota Yaris II 1.4 D-4D (2007)
    • 0 281 013 413 – Toyota Corolla 1.4 D-4D (2009)

    Bosch EDC17CP07 [Computer Assy, Transponder Key 89780-0D011]

    The Bosch EDC17CP07 belongs to the later generation of common-rail ECUs and is designed for 1.4 D-4D engines with improved emission control and advanced CAN network communication.

    Toyota:

    • Toyota Auris 1.4 D-4D 90 hp (2006–2013)
    • Toyota Yaris II 1.4 D-4D 90 hp (2009–2011)

    ECU numbers:

    • 0 281 015 361 – Toyota Auris 1.4 D-4D (2010)
    • 0 281 015 358 – Toyota Yaris II 1.4 D-4D (2009)
    • 0 281 015 385 – Toyota Yaris II 1.4 D-4D (2009)
    • 0 281 015 695 – Toyota Yaris II 1.4 D-4D (2009)

    Bosch EDC17CP37 [Computer Assy, Transponder Key 89780-0D011]

    The Bosch EDC17CP37 is a diesel control unit used in various Toyota D-4D engines with 1.4 liter displacement. This ECU supports common-rail injection, EGR control, and CAN bus communication for engine management and diagnostics.

    Toyota:

    • Toyota Auris 1.4 D-4D 90 hp (2006–2013)
    • Toyota Corolla 1.4 D-4D 90 hp (2006–2013)
    • Toyota Etios 1.4 D-4D 90 hp (2010–2017)
    • Toyota Urban Cruiser 1.4 D-4D 90 hp (2008–2014)
    • Toyota Yaris II 1.4 D-4D 90 hp (2009–2011)
    • Toyota Yaris III 1.4 D-4D 90 hp (2010–2017)

    ECU numbers:

    • 0 281 016 911 – Toyota Auris 1.4 D-4D (2010)
    • 0 281 017 097 – Toyota Auris 1.4 D-4D (2010)
    • 0 281 017 134 – Toyota Yaris II 1.4 D-4D (2011)
    • 0 281 017 135 – Toyota Yaris II 1.4 D-4D (2010)
    • 0 281 017 226 – Toyota Corolla 1.4 D-4D (2009)
    • 0 281 017 290 – Toyota Urban Cruiser 1.4 D-4D (2011)
    • 0 281 017 292 – Toyota Urban Cruiser 1.4 D-4D (2009)
    • 0 281 017 500 – Toyota Etios 1.4 D-4D (2013)
    • 0 281 017 820 – Toyota Yaris II 1.4 D-4D (2011)
    • 0 281 019 178 – Toyota Auris 1.4 D-4D (2021)
    • 0 281 019 993 – Toyota Yaris III 1.4 D-4D (2013)
    • 0 281 019 995 – Toyota Yaris III 1.4 D-4D (2014)

    Bosch M7.9.41 [Computer Assy, Transponder Key 89780-02040]

    The Bosch M7.9.41 is a gasoline engine control unit for Toyota models with 1.4-liter engines, equipped with transponder security and OBDII communication.

    Toyota:

    • Toyota Auris 1.4 97 hp (2006–2012)

    ECU numbers:

    • 0 261 201 209 / 89661-02E90 – Toyota Auris 1.4 (2008)

    Denso 89661-02A60 [Immo Box 89780-12140]

    The Denso 89661-02A60 is a diesel engine ECU used in Toyota vehicles with 2.0 D-4D engines.

    Toyota:

    • Toyota Corolla 2.0 D-4D 116 hp (2003–2007)

    ECU numbers:

    • 89661-02A60 – Toyota Corolla 2.0 D-4D (2006)

    Denso 89661-05D30 [Computer Assy, Transponder Key 89780-05050]

    This ECU is used in Toyota Avensis T27 models with 2.0 D-4D diesel engines.

    Toyota:

    • Toyota Avensis T27 2.0 D-4D 126 hp (2009–2011)

    ECU numbers:

    • 89661-05D30 – Toyota Avensis T27 2.0 D-4D (2009)

    Denso 89661-0D310 [Computer Assy, Transponder Key 89780-0D011]

    The Denso 89661-0D310 is a gasoline ECU for Toyota vehicles with 1.3 VVT-i engines.

    Toyota:

    • Toyota Yaris II 1.3 VVT-i 87 hp (2005–2008)

    ECU numbers:

    • 89661-0D310 / MB 275100 2493 – Toyota Yaris II 1.3 VVT-i (2005)

    Denso 89661-12B00 [Immo Box 89780-12180]

    The Denso 89661-12B00 is a 2.0 D-4D diesel ECU used in Toyota vehicles with common-rail injection.

    Toyota:

    • Toyota Auris 2.0 D-4D 126 hp (2006–2012)

    ECU numbers:

    • 89661-12B00 – Toyota Auris 2.0 D-4D (2007)

    Denso 89661-52F30 [Comp. Assy, Transponder Key 89784-52011]

    The Denso 89661-52F30 is a gasoline engine ECU for sporty Toyota models with 1.8-liter engines.

    Toyota:

    • Toyota Yaris II 1.8 133 hp (2007–2009)

    ECU numbers:

    • 89661-52F30 – Toyota Yaris II 1.8 (2008)

    Package Contents:

    • 1x Julie Toyota | IMMO OFF | Emulator
