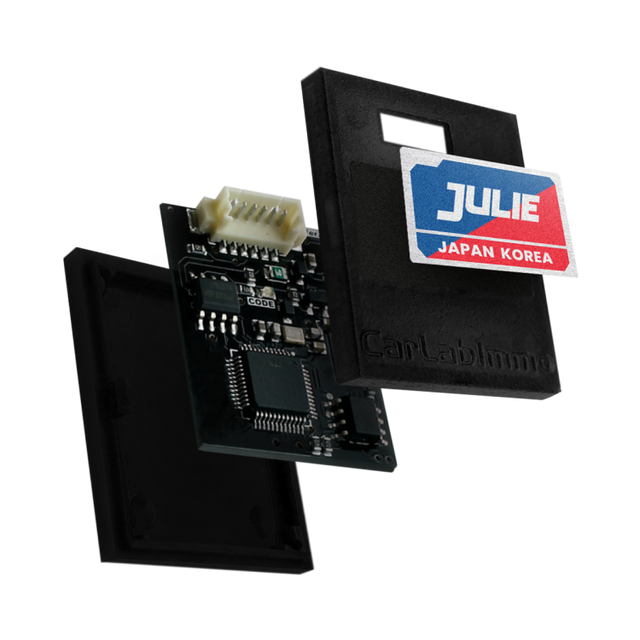

Julie Japan Korea | IMMO OFF | Emulator

The Julie Japan Korea IMMO OFF emulator is an electronic module developed to replace or disable the original immobilizer signal in specific vehicles. The primary function of this emulator is to simulate a correct signal from the IMMO system, allowing the engine control unit (ECU) permission to start the engine. This is applied during diagnostic procedures, testing the ECU, or as a temporary solution when the original immobilizer is defective.

The emulator is compatible with a selection of vehicle brands of Japanese and Korean origin, including Honda, Mazda, Suzuki, Hyundai, and Kia. Its use is intended solely for testing purposes and workshop applications. Permanently disabling the immobilizer may have legal restrictions and affect vehicle insurance. Installation and configuration of the Julie Japan Korea IMMO OFF emulator require specific technical knowledge of vehicle electronics and the respective engine control units.

---

Applications and functionalities:

• Diagnosis and replacement of immobilizer (IMMO OFF): The primary application is disabling the factory immobilizer. This is a solution for situations where the original IMMO module, transponder key, or the communication between them is defective. The emulator replaces the signal from the original immobilizer, allowing the engine control unit (ECU) to authorize engine start.
  • Honda: Compatible with various ECUs from Keihin and OKI.
  • Hyundai / Kia: Support for ECUs from Kefico and Bosch.
  • Mazda: Suitable for ECUs from Denso and Mitsubishi using 93C56 or 93C66 EEPROM memory.
  • Nissan: Compatible with vehicles equipped with NATS 4 and NATS 5 systems.
  • Suzuki: Support for various ECUs from Denso and Mitsubishi.
  • Toyota / Lexus: Compatible with a range of ECUs from manufacturer Denso.
• Testing the engine control unit (ECU): By emulating the IMMO function, the ECU can be tested independently ("on the bench"). This makes it possible to verify the correct operation of the ECU without the other components of the IMMO system needing to be present.
• Signal simulation and fault isolation: The emulator generates a digital signal recognized by the ECU as valid authorization. This allows a technician to isolate the source of the fault. If the engine starts with the emulator, the problem lies in the original IMMO components and not in the ECU.
• ECU memory adjustment: For correct operation, it is necessary to read and modify the contents of the memory (usually EEPROM or flash) of the ECU. The ECU is programmed to accept the unique code of the emulator.

The Julie Japan Korea Emulator is intended exclusively for use by qualified professionals for diagnostic and repair purposes. Permanently disabling the immobilizer (IMMO OFF) may affect vehicle security and car insurance conditions.

---

Supported vehicle brands and applications:

The list below provides an overview of the vehicle brands, models, and ECU types supported by this emulator. The information helps verify compatibility with specific systems and engine variants. The mentioned ECU codes and production years can be used as a reference for diagnosis, repair, or replacement.



Daewoo:

• Blue-socket ECU (Motorola HC11F1-processor)
• Continental D52
• Delphi Hybrid ECU (Daewoo Lanos 1.4 OHC gasoline, Daewoo Rezzo 2.0 DOHC gasoline)
• Delphi R1 GTFX (Chevrolet Aveo)
• Kemsco D3 (Daewoo Matiz, Daewoo Tacuma)
• Siemens 42R (Chevrolet Aveo)
• Siemens 4R (Chevrolet Aveo 1.2 gasoline)
• Siemens D32 (Chevrolet Spark 0.8 gasoline)
• Siemens with TMS374-processor (Daewoo Matiz)
• Sirius D42 (Daewoo Kalos 1.2 gasoline)
• White-red-socket ECU (Motorola HC11F1-processor)

---

Honda:

• Honda Accord
• Honda Civic
• Honda CR-V

---

Hyundai / Kia:

• Bosch / Kefico EDC15C7
• Kefico ME7.9.0
• Kia Sportage 2.0 TD (Zexel ECU)

---

Mazda:

• Denso B33M 18 881A
• Denso B34A 18 881B
• Denso B34B 18 881A
• Denso B35B 18 881C
• Denso B35J 18 881B
• Denso B5F3 18 881C
• Denso B5F4 18 881B
• Denso B6MM 18 881A
• Denso B6MU 18 881B
• Denso BP5C 18 881A
• Denso BP5D 18 881A
• Denso BP6J 18 881C
• Denso BP6M 18 881B
• Denso BP7P 18 881C
• Denso FP87 18 881B
• Denso FP88 18 881B
• Denso FPG6 18 881B
• Denso RF3R 18 881A
• Denso RF4D 18 881
• Denso RF4F 18 881D
• Denso RF4P 18 881C
• Denso RF4S 18 881B
• Denso RF4W 18 881C
• Denso RF5W 18 881A
• Denso RF6A 18 881B
• Denso ZM39 18 881C
• Denso ZM40 18 881C
• Denso ZMWM 18 881A
• Lucas ZL05 18 881A
• Lucas ZL13 18 881A
• Mitsubishi WLE7 18 881A
• Mitsubishi WLF2 18 881A

---

Nissan:

• Bosch EDC15M1-5.x / EDC15V-1.5.x
• Bosch EDC16CP33
• Bosch with 24LC02 memory (1.4 gasoline, NATS 4 / NATS 5)
• Continental SID310
• Hitachi MEC32-210 → MEC32-680 (NATS 6)
• Hitachi MEC36-xxx (NATS 6)
• Hitachi MEC43-xxx (NATS 6)
• Hitachi MEC81-730 (NATS 6)
• Hitachi MEC with 93C46 and 93C56 EEPROM memory (1.5 | 1.8 | 2.0 gasoline, NATS 4 and 5)

---

Suzuki:

• Denso 33920.x (93C56 EEPROM + 29F200 Flash, metal casing)
• Denso 33920.x (93C56 EEPROM + 29F200 Flash, plastic casing)
• Denso 33920.x (93C56 EEPROM, metal casing)
• Denso 33920.x (93C56 EEPROM, Subaru application)

  Note: supports vehicles with 4C/4D key.
• Hitachi 33920.x (93LC46 EEPROM)
• Hitachi 33920.x (OKI memory)
• Hitachi 33920.x (24C04 EEPROM)
• Hitachi 33920.x (X24C01 EEPROM)


Note: not compatible with vehicles with Opel immobilizer (TMS).

---

Toyota:

• Bosch EDC16C10-6.2 [Immo Box 89780-12140]
• Bosch EDC16C10-9.3 [Computer Assy, Transponder Key 89780-0D011]
• Bosch EDC17CP07 [Computer Assy, Transponder Key 89780-0D011]
• Bosch EDC17CP37 [Computer Assy, Transponder Key 89780-0D011]
• Bosch M 7.9.41 [Computer Assy, Transponder Key 89780-02040]
• Denso 89661-02A60 [Immo Box 89780-12140]
• Denso 89661-05D30 [Computer Assy, Transponder Key 89780-05050]
• Denso 89661-0D310 [Computer Assy, Transponder Key 89780-0D011]
• Denso 89661-12B00 [Immo Box 89780-12180]
• Denso 89661-52F30 [Comp. Assy, Transponder Key 89784-52011]

---

Yamaha:

• Yamaha YZF-R1 / YZF-R6
• Yamaha FZ6 N / FZ6 S
• Yamaha T-MAX
• Yamaha X-MAX
• Yamaha V-MAX

---

Package Contents:

• 1x Julie Japan Korea | IMMO OFF | Emulator
