Benelli 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

The Adapter Cable converts a vehicle-specific 6-pin OBD connector to a standardized 16-pin OBD2 connector. This product is designed to establish a connection between the diagnostic port of a Benelli Motorcycle and a compatible reading device. The cable enables diagnostic tasks such as reading and clearing fault codes from the engine management system.

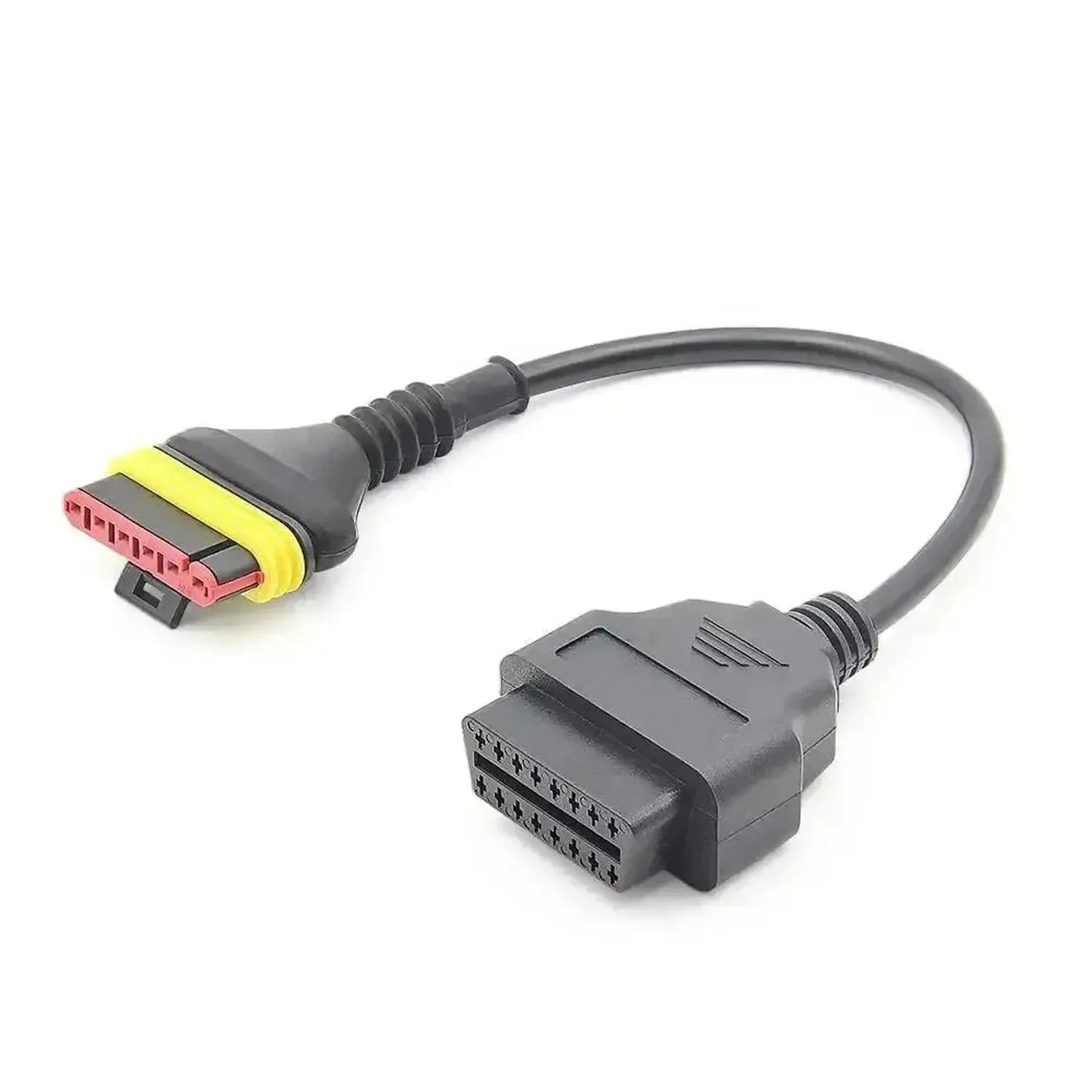

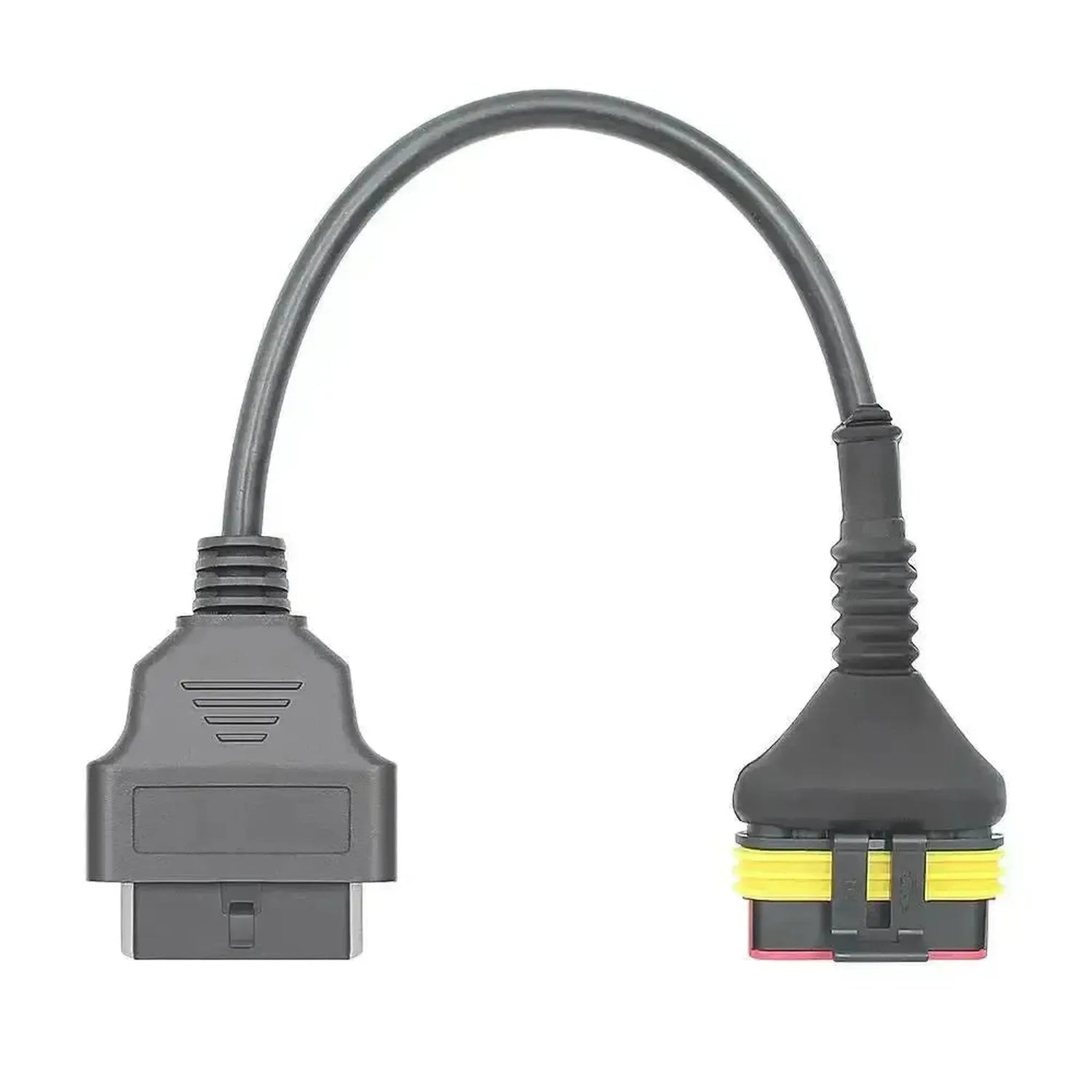

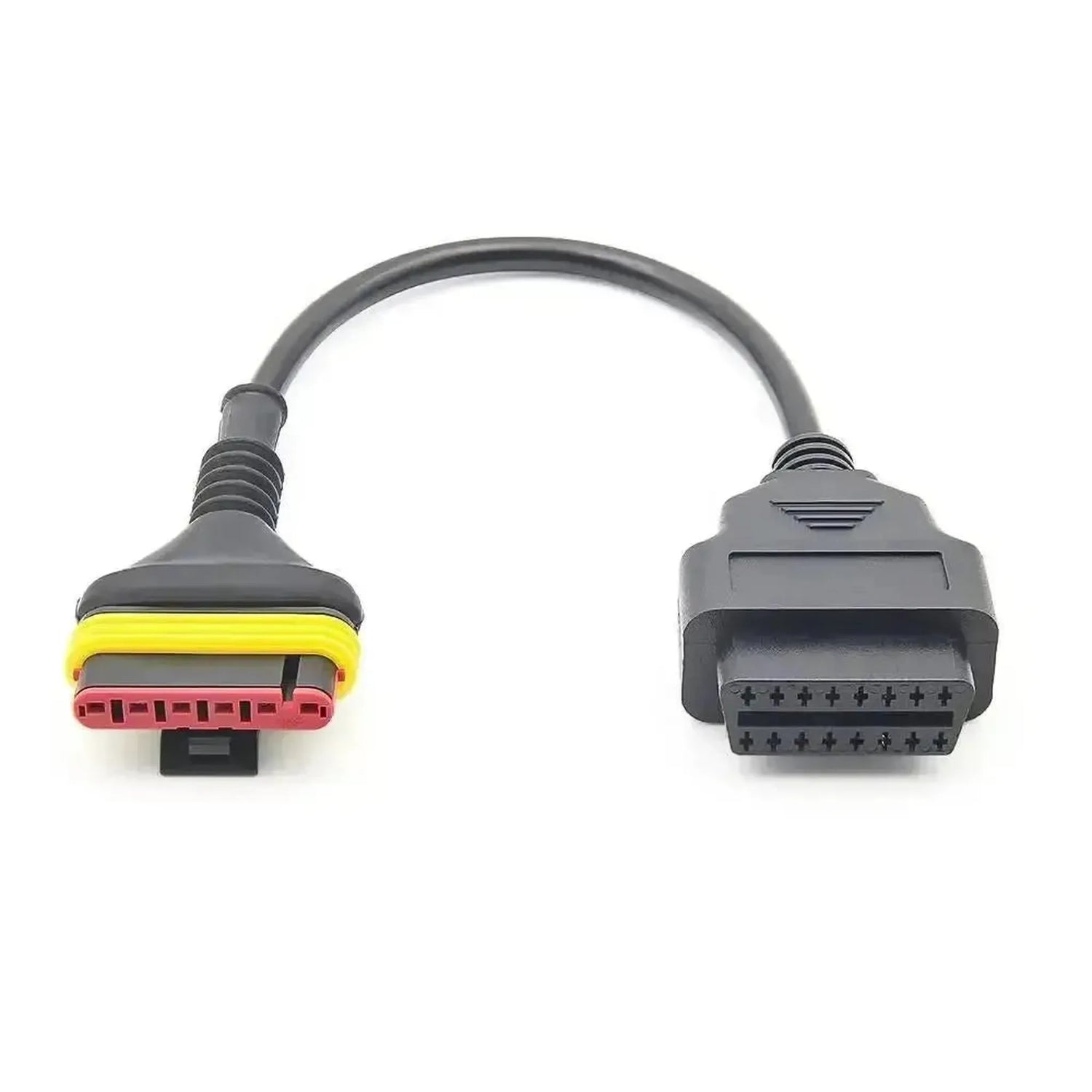

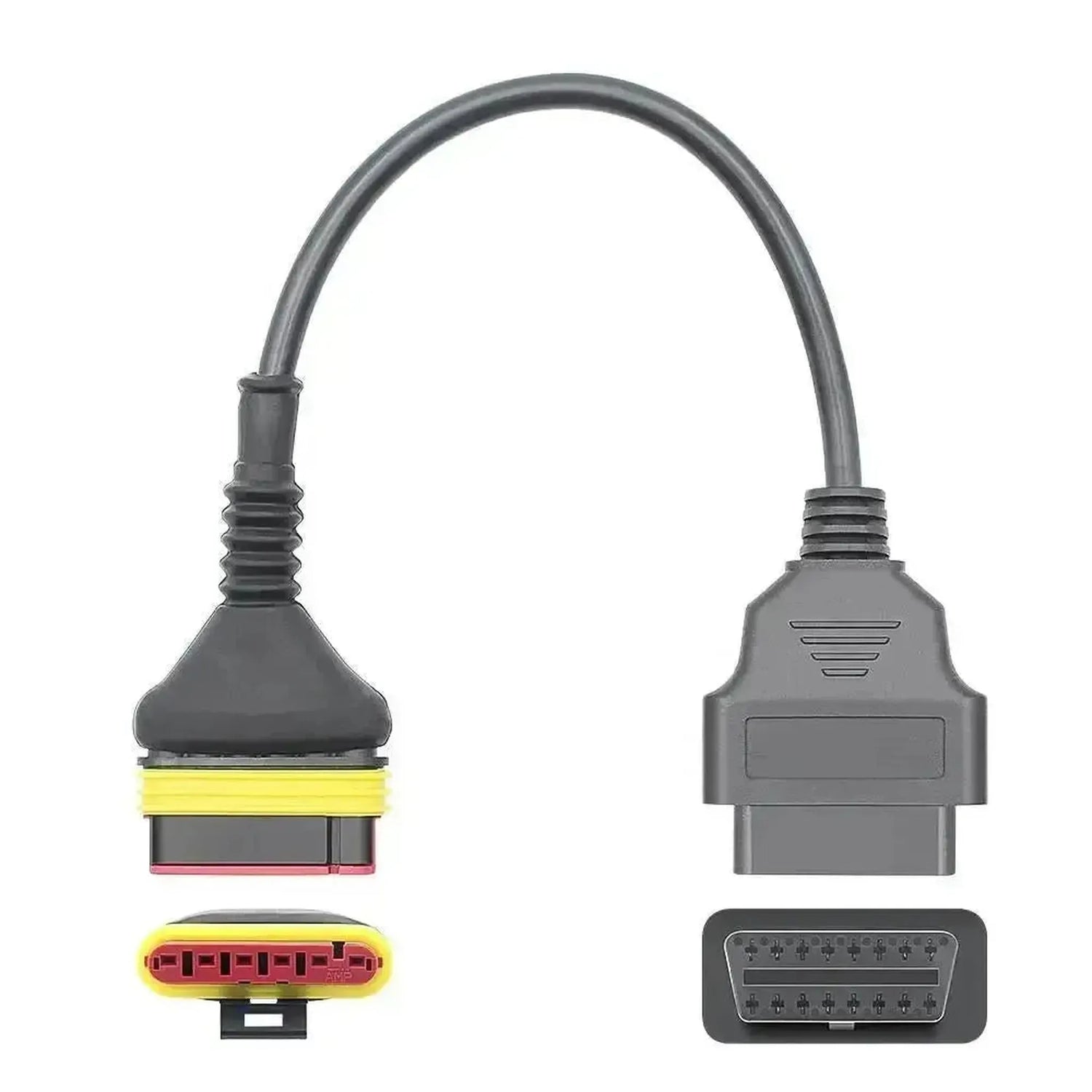

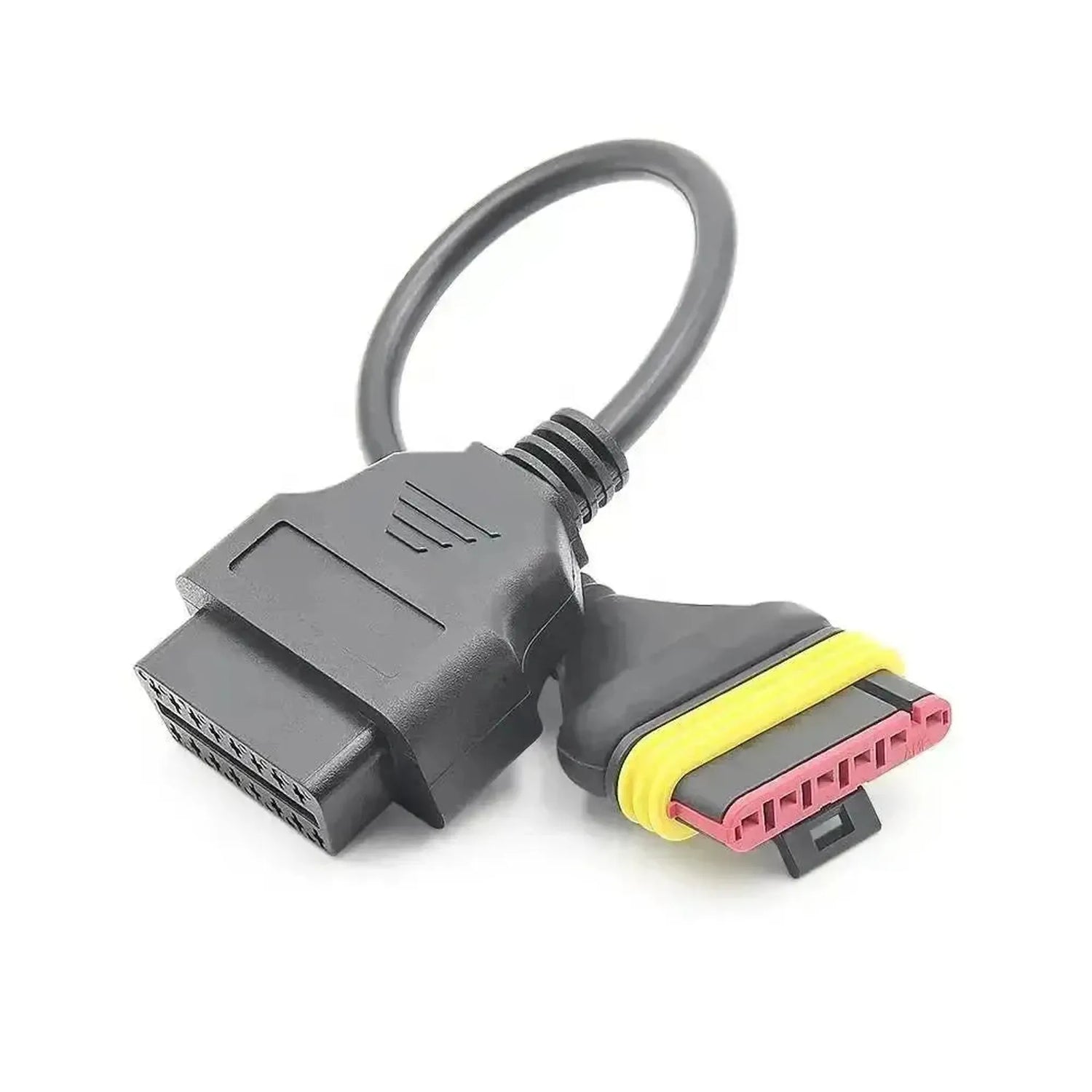

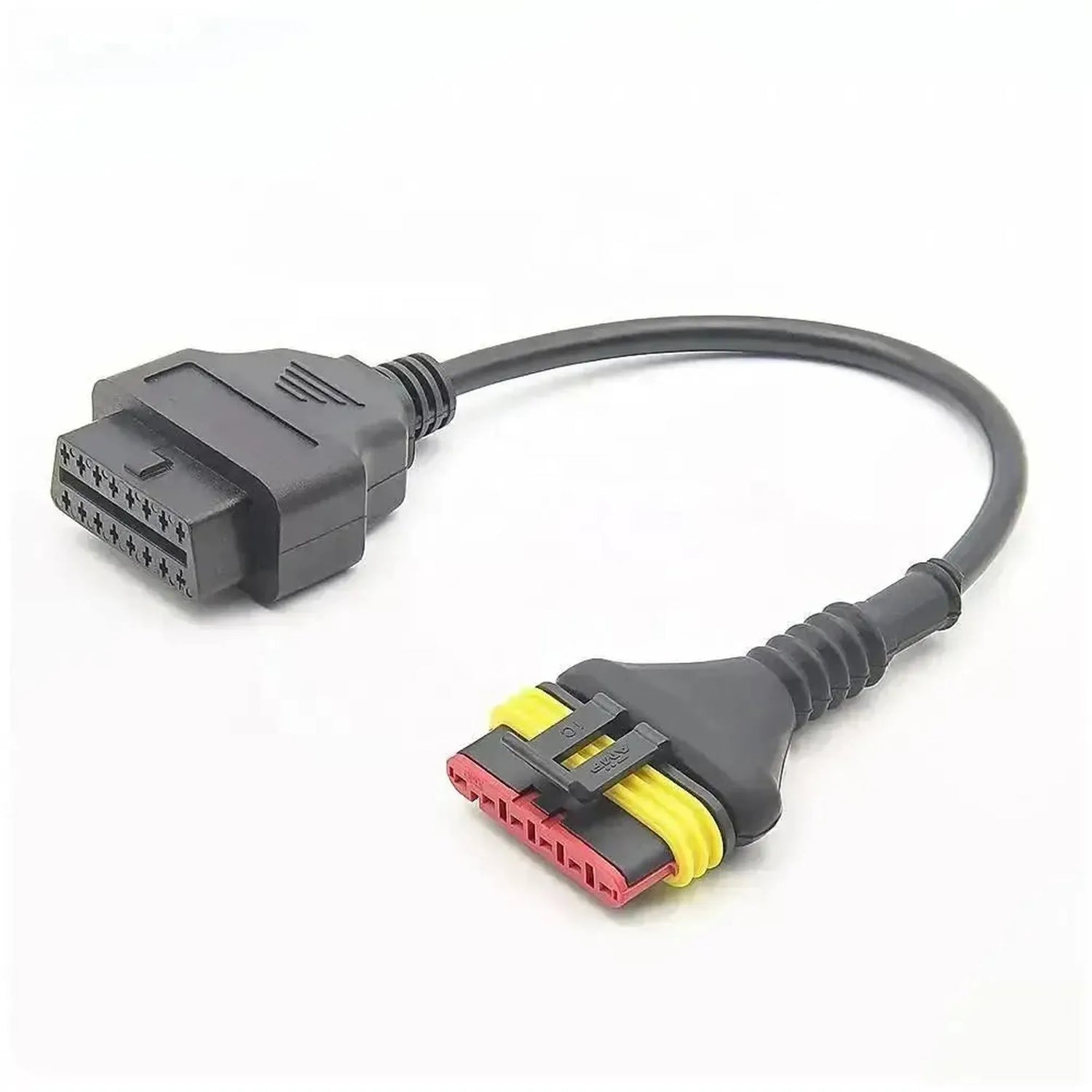

The adapter is equipped with a robust 6-pin connector on the vehicle side and a standard OBD2 (J1962) female connector on the other side. This design makes the cable suitable for use with a wide range of generic OBD2 scanners and interfaces, reducing the need for brand-specific equipment for basic diagnostics.

Application and functionality:

This Adapter Cable serves as an adapter to connect the engine management system of a motorcycle to an external diagnostic device.

• Diagnostic port connection: Creates a physical link between the 6-pin diagnostic port of the Benelli Motorcycle and the 16-pin input of an OBD2 scanner.
• Reading system data: Enables communication for reading fault codes (DTCs), viewing live sensor data, and accessing other vehicle information available via the OBD protocol.
• Scanner compatibility: Ensures that standard OBD2 reading equipment, such as ELM327 interfaces and professional scanners, can be used on motorcycles with a 6-pin connector.

Compatible vehicles and applications:

This Adapter Cable is developed for use with various motorcycles from the Benelli brand equipped with a 6-pin diagnostic port. This generally concerns models that comply with Euro 4 and Euro 5 emission standards.

Benelli:

• 302S
• 752S
• Imperiale 400
• Leoncino 500
• Leoncino 800
• TNT 125
• TNT 135
• TRK 502
• TRK 502 X

Important: Before purchasing the product, always check your vehicle’s connector. This may vary by model and year of manufacture.

Package Contents:

• 1x Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications:
